ST-130328.1 - Croque monsieur clip Emerio - Free user manual and instructions

Product Type	Sandwich press (Croque-monsieur maker)
Brand	Emerio
Model	ST-130328.1
Supply Voltage	220-240 V ~ 50/60 Hz
Power	900 W
Plate Material	Non-stick coating (Teflon)
Number of Plates	2 cooking plates
Indicator Lights	Red power indicator, green control indicator
Main Function	Grill sandwiches (croque-monsieur)
Capacity	1 standard sandwich (2 slices of bread)
Dimensions (approx.)	Approx. 25 x 25 x 10 cm (W x D x H)
Weight (approx.)	Approx. 1.5 kg
Power Cord Length	Approx. 80 cm
Safety	Temperature control thermostat, insulated handle
Cleaning	Damp cloth, do not immerse, no metal utensils
Usage	Domestic use only
Warranty	2 years
Included Accessories	None (appliance only)
Repairability	Do not open yourself, contact approved after-sales service
Important Safety Instructions	Do not touch hot surfaces, do not leave unattended, do not use outdoors

Frequently Asked Questions - ST-130328.1 Emerio

How to use the appliance for the first time?

Remove all packaging materials. Clean the plates with a damp cloth and dry them. Fully unwind the power cord. Plug in the appliance, the indicators light up. Wait for the green indicator to turn off to indicate that the appliance is hot. Prepare your sandwich and place it on the lower plate, then close. Let it cook for 2 to 4 minutes.

Why does the green indicator light up and turn off during cooking?

This is normal. The green indicator shows that the thermostat is regulating the temperature. It turns on when the appliance heats up and turns off when the temperature is reached. This ensures even cooking.

Can I use metal utensils to remove the sandwiches?

No, never use metal or sharp utensils (knives, metal spatulas) as they would damage the non-stick coating. Use a plastic or wooden spatula.

How to clean the appliance?

Always unplug the appliance and let it cool completely. Use a very soft brush to remove crumbs. Clean the plates with a damp cloth. Never immerse the appliance in water or any other liquid. Do not use abrasive products.

What to do if the bread sticks out of the plates?

The bread should not extend beyond the grilling plates. If it does, cut off the bread edges or use smaller slices. Overhang can burn the bread and damage the appliance.

Can the appliance grill foods other than sandwiches?

This appliance is designed only for grilling sandwiches (croque-monsieur). Do not use other foods that could damage the plates or cause overflow.

How to get a crispy sandwich?

Butter the outer sides of the bread. Let the appliance preheat until the green indicator turns off. For sweet fillings, sprinkle a little sugar on the butter. Use cheese, ham, pineapple, etc.

What to do if the appliance does not heat up?

Check that the plug is properly inserted and that the voltage matches your mains (220-240 V). If the indicators do not light up, contact after-sales service. Do not attempt to repair the appliance yourself.

Is the appliance suitable for children?

This appliance can be used by children aged 8 years and older under supervision. Children must not play with the appliance. Cleaning must not be done by children under 8 years old without supervision.

How to recycle the appliance at the end of its life?

Do not dispose of the appliance with household waste. Follow the European directive 2012/19/EU: use collection points in your region or contact your retailer for responsible recycling.

USER MANUAL ST-130328.1 Emerio

Black and white photo of a modern sandwich grater with a 'amero' logo on the lid (no additional text or symbols visible)

XXL Sandwich toaster (EN)

XXL Sandwichtoaster (DE)

Grille-Sandwichs XXL (FR)

Tostiera XXL (IT)

Content – Inhalt – Contenu – Contenuto

Instruction manual – English ...... - 2 -

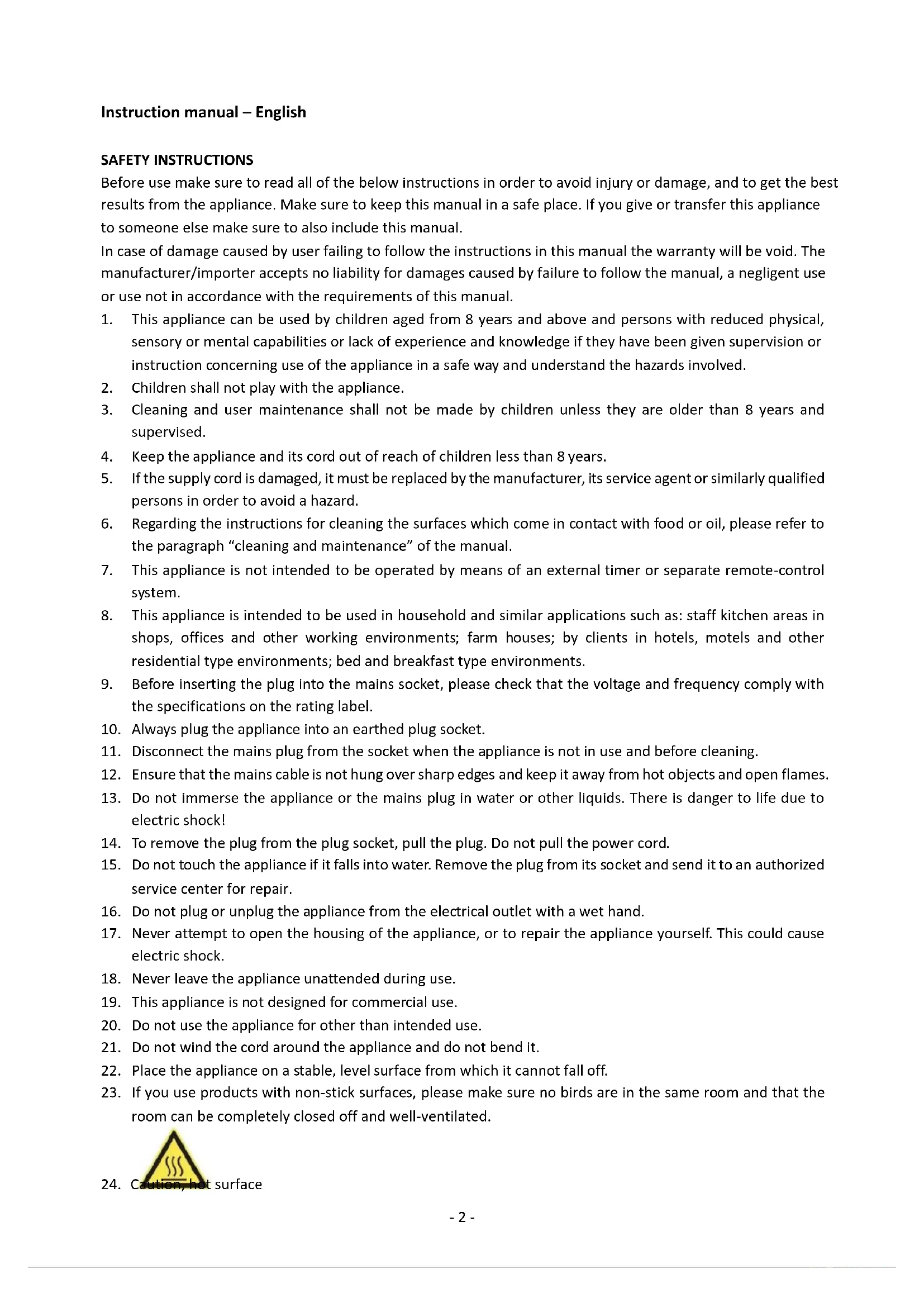

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
10. Always plug the appliance into an earthed plug socket.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
18. Never leave the appliance unattended during use.
19. This appliance is not designed for commercial use.
20. Do not use the appliance for other than intended use.
21. Do not wind the cord around the appliance and do not bend it.
22. Place the appliance on a stable, level surface from which it cannot fall off.

23. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

24. Caution, hot surface

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. The bread shall not stick out of the toasting surface!

PARTS DESCRIPTION

1 2 3 4

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle

BEFORE INTITIAL USE

1. Remove all packaging.
2. Clean the toasting surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

USE

1. Connect the appliance to an appropriate socket. Both of the indicator lights will illuminate and the toasting surface begins to heat.

2. As soon as the appliance has heated up, the green control light goes off.

3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich.

4. Open the appliance at the handle by unlocking the catch.

5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards. The bread shall not stick out of the toasting surface!

6. Now put the filling on the bread slices (e.g. cheese, ham, pineapple, etc.) and cover this with the second slice of bread. Once again, ensure that the buttered sides are facing outwards.

7. Close the appliance, making sure that the catch is engaged.

8. Caution: If the slices of bread have too much filling on, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.

9. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.

10. After completion of the toasting process (approx. 2-4 minutes) open the catch and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.

11. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently, repeat the toasting process as described above.

12. After use, disconnect the mains plug immediately. With the appliance open, allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin toasting.
2. Lay the buttered side facing outwards.
3. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
4. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. First, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
6. Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power: 900W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
