USER MANUAL Juice Art Digital RGV

Exterior view of a modern kitchen juicer with open lid and glass cups (no visible text or symbols)

(Translation of original instructions)

FR

Line drawing of two hands shaking, no text or symbols present

Indice

IT

Prohibition sign with hand holding a screwdriver crossed out, enclosed in a red circle

Line drawings of various household appliances including a hand mixer, two washers, and a juicer (no text or labels present)

Exterior view of a modern kitchen juicer with open lid and side cups (no visible text or symbols)

Exploded view diagram of a kitchen brush and blender with numbered parts for identification

Hard Medium Soft Mixed Juice Vegetable Jam Sorbet Pomegranate Washing Menu Power Start R 1b 1b 1

Hand inserting a plug into an electrical outlet socket (no text or symbols visible)

Technical diagram of a mechanical device with labeled parts and magnified detail view

Technical diagram of a hand mixer with labeled parts and cross-sectional view

Technical diagram of a hand mixer with labeled parts and directional arrow indicating rotation or adjustment.

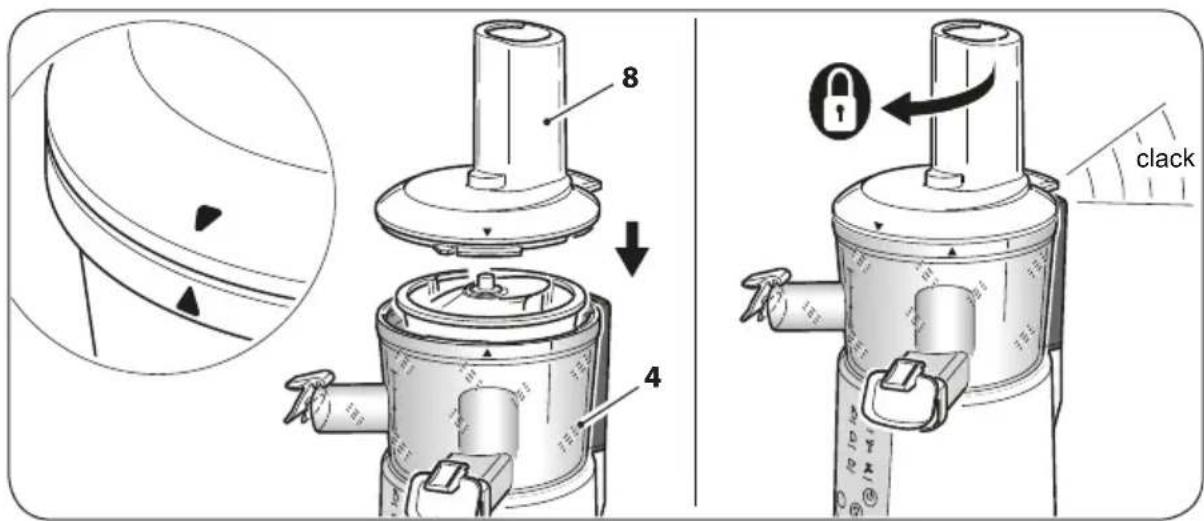

8 4 clack

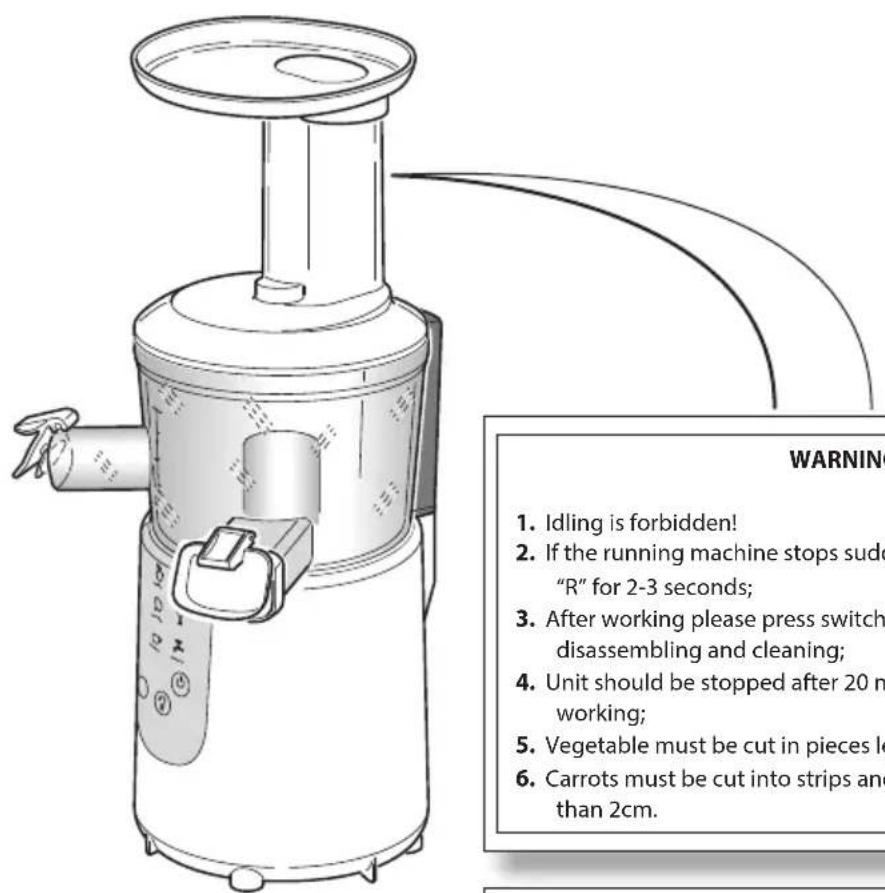

WARNING 1. Idling is forbidden! 2. If the running machine stops sudden "R" for 2-3 seconds; 3. After working please press switch disassembling and cleaning; 4. Unit should be stopped after 20 m working; 5. Vegetable must be cut in pieces left; 6. Carrots must be cut into strips and than 2cm.

WARNING

1. Idling is forbidden!
2. If the running machine stops suddenly please press switch "R" for 2-3 seconds;
3. After working please press switch "R" for 2-3 seconds before disassembling and cleaning;
4. Unit should be stopped after 20 minutes of continuos working;
5. Vegetable must be cut in pieces less than 2cm length;
6. Carrots must be cut into strips and the diameter must be less than 2cm.

AVVERTENZE

Technical diagram showing a mechanical device with labeled parts and an upward arrow indicating rotation or assembly.

Technical diagram of a portable blender with labeled parts and directional arrows indicating assembly or installation.

Pulizia

N1 - PULIZIA PRIMA DELL'USO

Hand inserting a plug into a wall socket (no text or symbols visible)

Thank you for choosing our product and we are confident that this choice will meet your expectations in full.

Before using this equipment, please read carefully this "instruction manual" in order to optimize the functional characteristics and eliminate any problems that may arise from incorrect use.

Line drawing of two hands shaking, no text or symbols present

Index

EN

A Introduction...... Page 31
B Important safety information...." 32
C Instruction for use .... " 33
D Important warnings .... " 35
E Safety.... " 36
F To reduce the risk of injury to persons.... " 36
G Package contents.... " 37
H Specifications.... " 38
I Introduction.... " 38
J Controls and components.... " 38
J1 Control panel.... " 40
K Use 42
L Tips “ 48

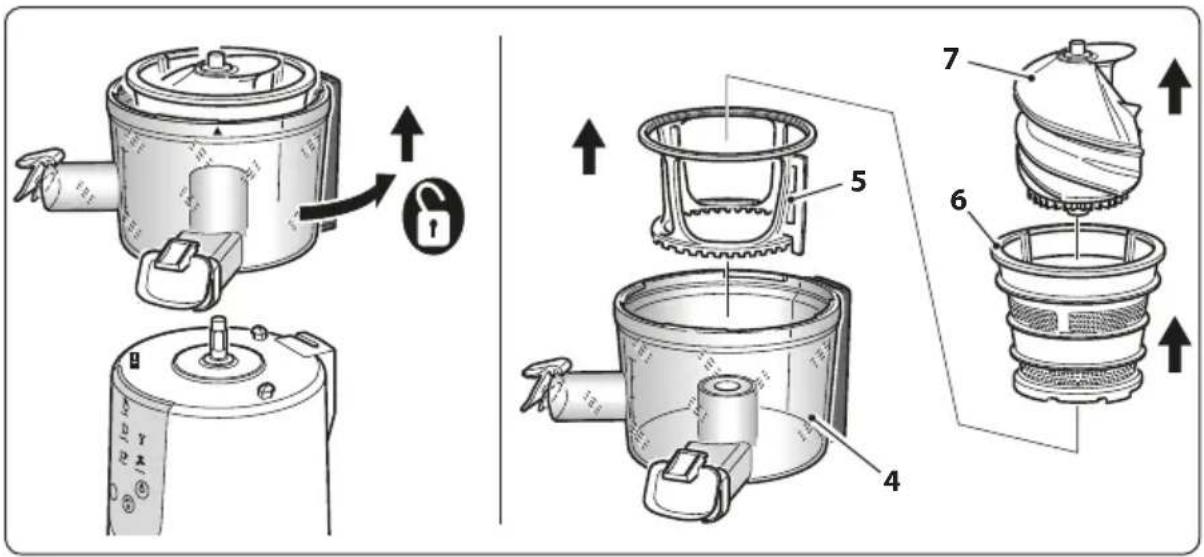

M Components disassembling.... " 52
N Cleaning.... " 53
O Disposal of the device.... " 55
P Possible problems .... " 55
Q Additional warnings.... " 56
R Conventional warranty conditions.... " 57
S Data plate .... “ 114

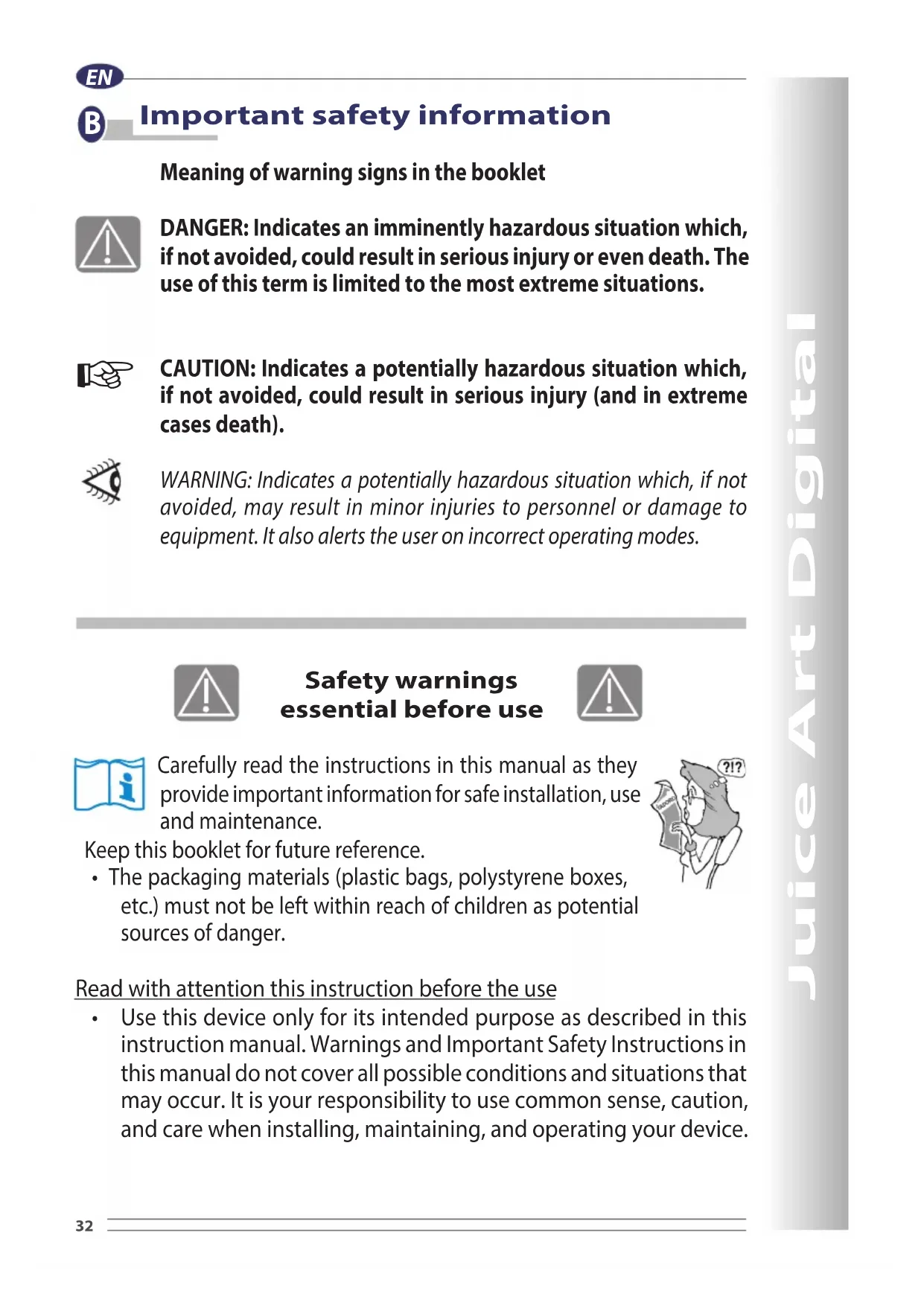

Important safety information

Meaning of warning signs in the booklet

DANGER: Indicates an imminently hazardous situation which, if not avoided, could result in serious injury or even death. The use of this term is limited to the most extreme situations.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury (and in extreme cases death).

WARNING: Indicates a potentially hazardous situation which, if not avoided, may result in minor injuries to personnel or damage to equipment. It also alerts the user on incorrect operating modes.

Safety warnings essential before use

Carefully read the instructions in this manual as they provide important information for safe installation, use and maintenance.

?!?

Keep this booklet for future reference.

- The packaging materials (plastic bags, polystyrene boxes, etc.) must not be left within reach of children as potential sources of danger.

Read with attention this instruction before the use

- Use this device only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your device.

Instruction for use

To ensure safe operation:

- Before each use, verify the mechanical integrity of the device and of all its components.

The device body and all components must not show cracks or tears.

The protective sheath and the plug of the power cord should not be cracked or broken.

Upon the occurrence of the above, disconnect the plug from the wall socket and take the unit to the dealer for the necessary checks.

Before plugging the device, ensure that the line voltage corresponds to that indicated on the rating plate (see page 114).

- The electrical safety of the device is ensured only if connected to an efficient earthing system in accordance with current safety standards.

To verify this important requirement you need the help of a professionally qualified personnel.

The manufacturer can not be held responsible for damage caused by lack of earthing.

- For your safety, it is recommended to supply power through a differentialswitch(RCD)withatrippingcurrentnotexceeding 30 mA.

- Do not obstruct the cooling during operation.

- Never immerse the device, the power cord and plug in water or other liquids.

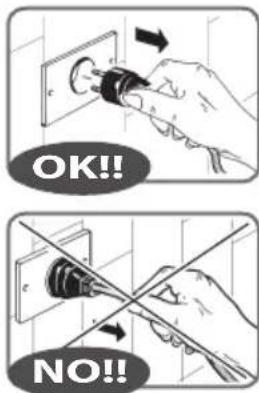

- Do not disconnect the electrical device by pulling the power cord.

- Do not use or store this device outdoors, in a wet environment or near water.

- Place the device on a horizontal supporting and firm plane whose surface is not sensitive (eg, lacquered furniture, tablecloths, etc..). Items such as caps, jars etc.. shall be placed on the apparatus.

OK!! NO!!

EN

Make sure that the unit is placed in a safe manner.

The device may be used by children over the age of 8 or persons with reduced physical, sensory and mental faculties, or who do not have experience or the necessary knowledge, provided that under supervision or after receiving instructions on safe use of the device and having understood the related hazards.

Cleaning and maintenance to be carried out by the user may not be carried out by children without the supervision of an adult.

An electric device is not a toy. Use and store it out of reach of children; children must be supervised to make sure that they do not play with the device.

During operation, the power outlet should be easily accessible in the event that it is necessary to disconnect the equipment.

Check that there are no nearby flammable materials (eg curtains, upholstery, etc.).

Do not use the device to process excessively hard or fibrous food (e.g. rhubarb).

DO NOT USE THE Device IF THE FILTER BASKET (6) IS BROKEN OR SLIGHTLY DAMAGED.

• The basket (6) is a very delicate component; it must be kept efficient and should not be used, even if only slightly damaged. It should be replaced at least every year if the device is used frequently.
• Do not put your fingers into the duct on the cover as this could cause injury.

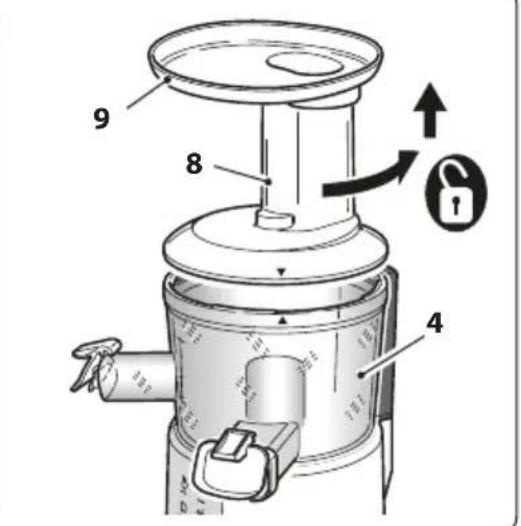

Do not remove the lid (8) from the motor base (1) without first having removed the plug from the mains socket.

After each use disconnect the plug from the mains outlet.

Place the unit away from sinks and faucets.

The device MUST be checked and/or repaired at an authorized dealer.

Any repairs carried out on the device by unauthorized personnel will void the warranty automatically.

This device should only be used for the purpose for which it was made: as a juice extractor (from fresh fruit and vegetables) for domestic use.

Any other use is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage deriving from improper, incorrect, or unreasonable uses.

Only for domestic use

In case of problems of the device, please contact the authorized assistance centres.

Avoid trying to repair the device by yourself.

Any repair operation carried out on the device by unauthorized personnel automatically invalidates the warranty even if its duration hasn't come to an end.

Prohibition sign with crossed-out screwdriver and hand holding a pen, commonly used in safety or medical contexts.

Important warnings

To reduce the risk of fire, electric shock, injury to persons when using your device, follow basic precautions, including the following:

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Do not store or use this device outdoors.
• Do not use this device near water, in a wet basement or near a swimming pool.
• Do not connect the unit to the power supply via external timer or remote control systems .

EN

• Do not install this device; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on unlevelled ground.
• Do not spray volatile material such as insecticide onto the surface of the oven.

• Always pull the plug out of the socket before cleaning the device.
- To avoid overheating, the device stops automatically if it's used constantly for 20 minutes.

If you must perform machining operations in succession or with longer times, to perform breaks of at least 5 minutes between cycles and reducing the time of continuous operation at 10 minutes.

Safety

- Do not attempt to repair the device.

Potential injury from misuse!

Avoid contact with all moving parts.

Switch off the device and disconnect from supply before changing accessories or approaching parts that move in use.

To reduce the risk of injury to persons

GROUNDING INSTALLATION

- This device must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This device is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Electric Shock Hazard. Improper use of the grounding can result in electric shock. Do not plug into an outlet until device is properly installed and grounded.

Do not disassemble this device..

- Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the device is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

- Do not leave the power cord in the reach of children.

Make sure that the power cord is not laying on the floor in order to prevent someone from inadvertently overturning and pulling the unit.

The device is provided with a safety switch on the motor base that does not allow the device to start if the lid (8) and the separator (4) are not positioned correctly.

Do not run the device after manipulating the safety lock button.

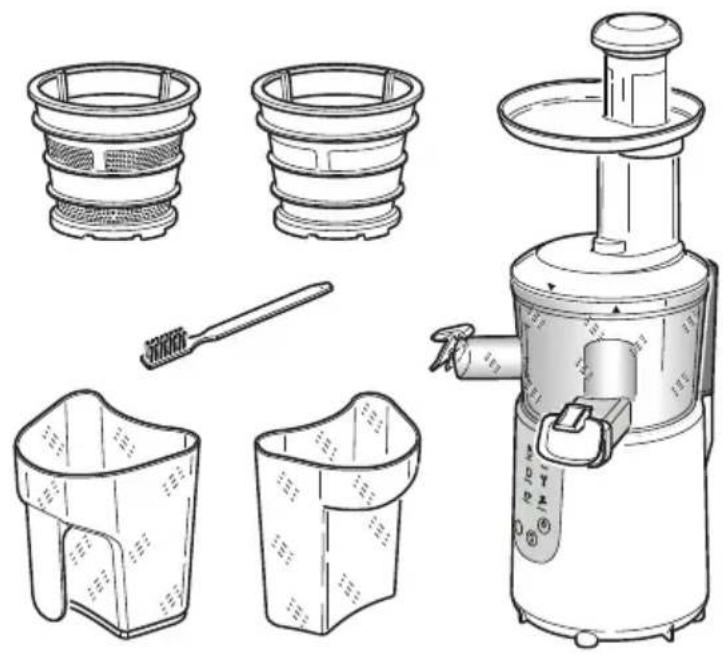

Package contents

• Device
  • Instruction manual
  • 1 liter juicer cup
  • 1 liter pulp tank
• Cleaning brush
• Sorbet filter
• Cookbook
• Juice filter

JUICE ART Digital Estrastore succo digitale Digital slow Juleser Extracteur digital de jus Digitaler Entauffer Liberto di l'ignarled instruction manual standard d'utilisation Schwab Handelting CEZEN SCIENCE

Line drawings of various household appliances including a brush, filter, and a juicer (no text or labels present)

Specifications

• Dimensions of the device (lxpxh):......mm 200 x 180 x 420
• Weight of the device ( approximate): Gross....kg 5,0 Net....kg 4,3
• "Motor unit" electrical specifications
• Voltage: V\~ 220-240
• Frequency: Hz 50/60
• Power: Watt 200

Introduction

• The juice extractor uses a completely different mechanism where fresh juice comes from squeezing rather than grinding. This device is a newly developed product which is capable of making soy milk, extracting vegetables juice, offering fresh squeezed fruit juice, etc.
• The Low speed technology system squeezes instead of grinds, which allows the juice to maintain it's pure colour, natural taste, nutrients and vitamins.

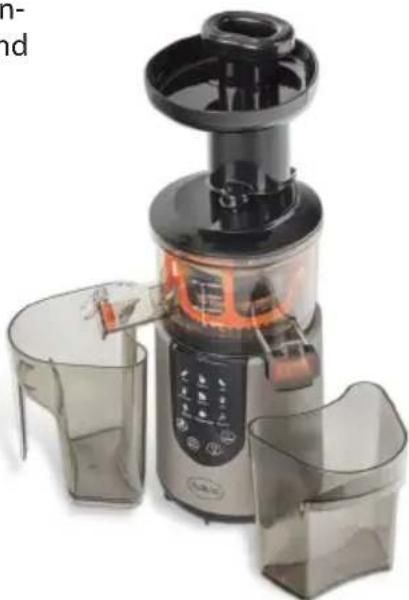

Exterior view of a modern glass juice maker with open lid and side cups (no visible text or symbols)

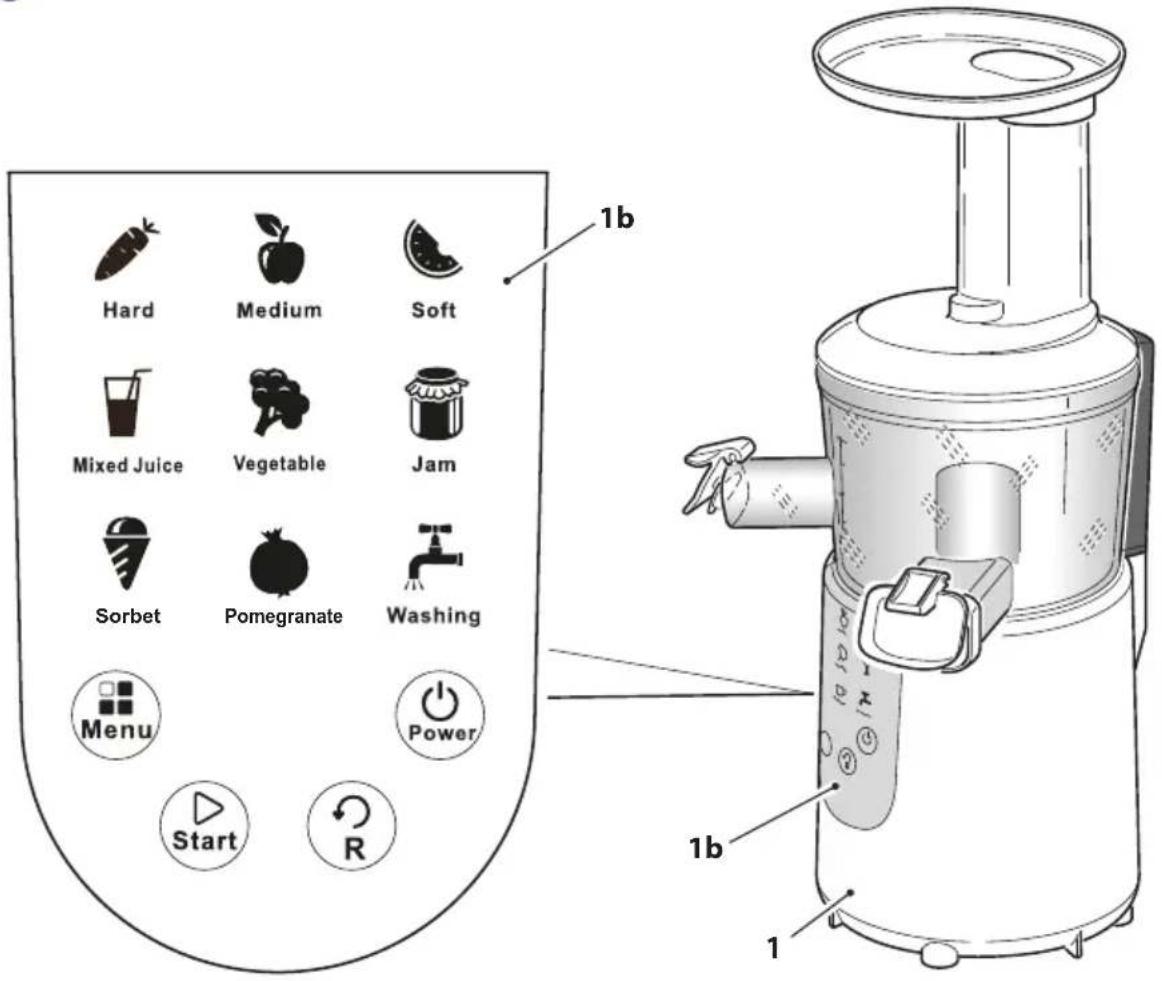

Controls and components

1) Motor base
1a) Rubber feet
1b) Control panel

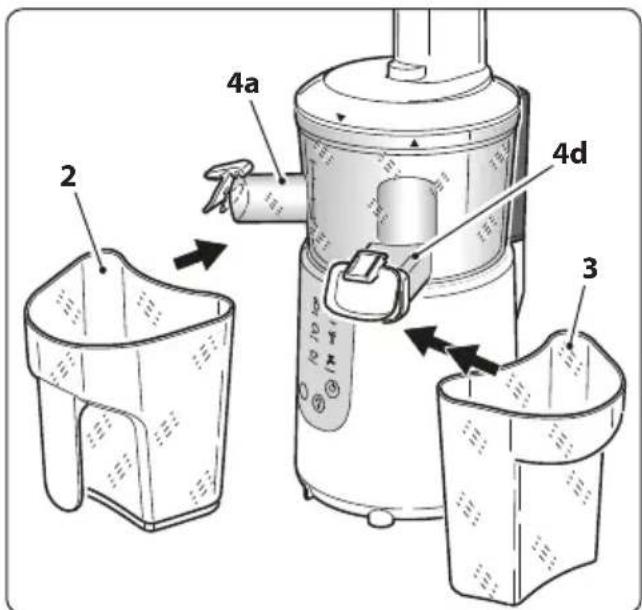

2) Juice collection container/jug
3) Pulp collection container
4) Pulp separator

4a) Juice pouring spout
4b) Pulp pouring spout
4c) Anti-drip cap
4d) Anti-drip cap

Exploded view diagram of a kitchen brush and blender with numbered parts for identification

Hard Medium Soft Mixed Juice Vegetable Jam Sorbet Pomegranate Washing Menu Power Start R 1b 1b 1

Program	Recommended feedingstuffs	Speed rpm
Hard	Suitable for processing "hard" fruit and vegetables (example: carrots, green apples, etc.).	55
Medium	Suitable for processing fruit of medium hardness (example: apples, pears, peachs).	50
Soft	Suitable for processing "soft" fruit (example: watermelons, grapes, etc.).	45
Mixed Juice	Ideal for processing "hard" and "soft" fruit together.	50
Vegetable	Ideal for processing vegetables.	55
Jam	Suitable for creating soft fruit jams bases (example: apricot, prunes, figs, etc.).	45
Sorbet	Suitable for fruit-based ice creams and sorbets.	55
Pomegranate	Suitable for extracting the juice from the pomegranate.	55
Washing	Before using the device close the juice and pulps pouring spouts, pour some clean water in the pulp separator and the press this button. Empty the pulp separator and then use the device.	55

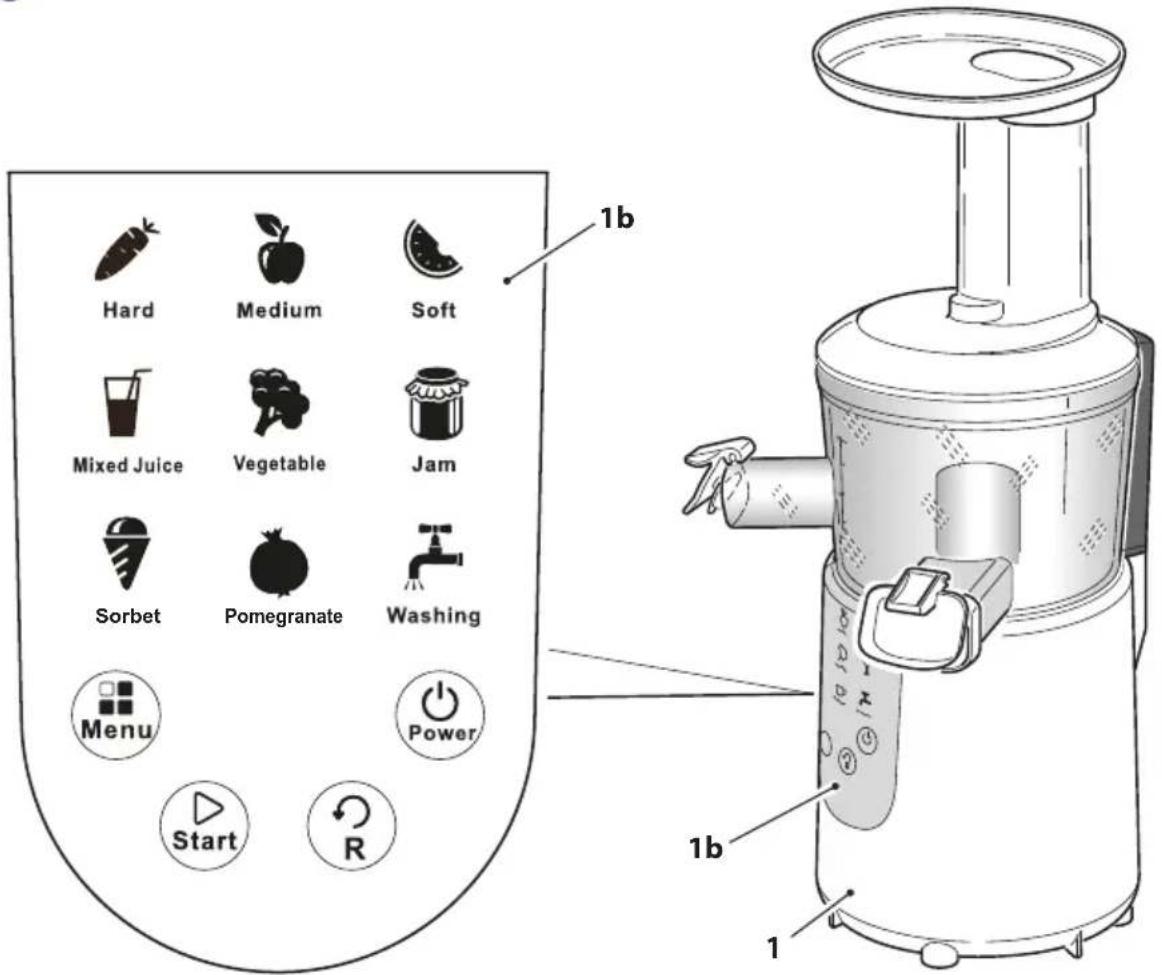

"POWER" button - device starts/stops

- After electrically connecting the device and correctly placing the lid (8) on the pulp separator (4) a buzzer emits an acoustic signal and the switch warning light blinks; the device is in "standby" mode.

- Press (the warning light turns on steady), the device is ready for use and the "Hard" menu is set as default (the icon blinks).

- To turn off the device press "Power", the machine turns off after carrying out the basket support reverse rotation (5) for 5 seconds.

"MENU" button - menu selection

• Press this button to select the desired menu.

At every button pressure a buzzer emits an acoustic signal and the selected icon blinks.

"START" button - working cycle start

• Press this button to start the selected menu.

To temporarily stop the menu in progress, press "Start"; press it again to resume the processing.

- To start another menu first it's necessary to press the "Power" button, then select the desired menu and press "Start".

"R" button - "reverse" rotation

- Press this button to start the reverse motor rotation "R"; the basket support (5) rotates in reverse for 10 seconds.

This button can be used when the device is off or during the execution of a program.

- If all of the icons blink and the buzzer emits a "beep", it means that the device is in "standby", (status of protection). To restart the device press one of the buttons.

- The device automatically stops after working constantly for 20 minutes. In this case wait for about 10 minutes for the motor to cool down before resuming to use the device.

K1 - FIRST USE

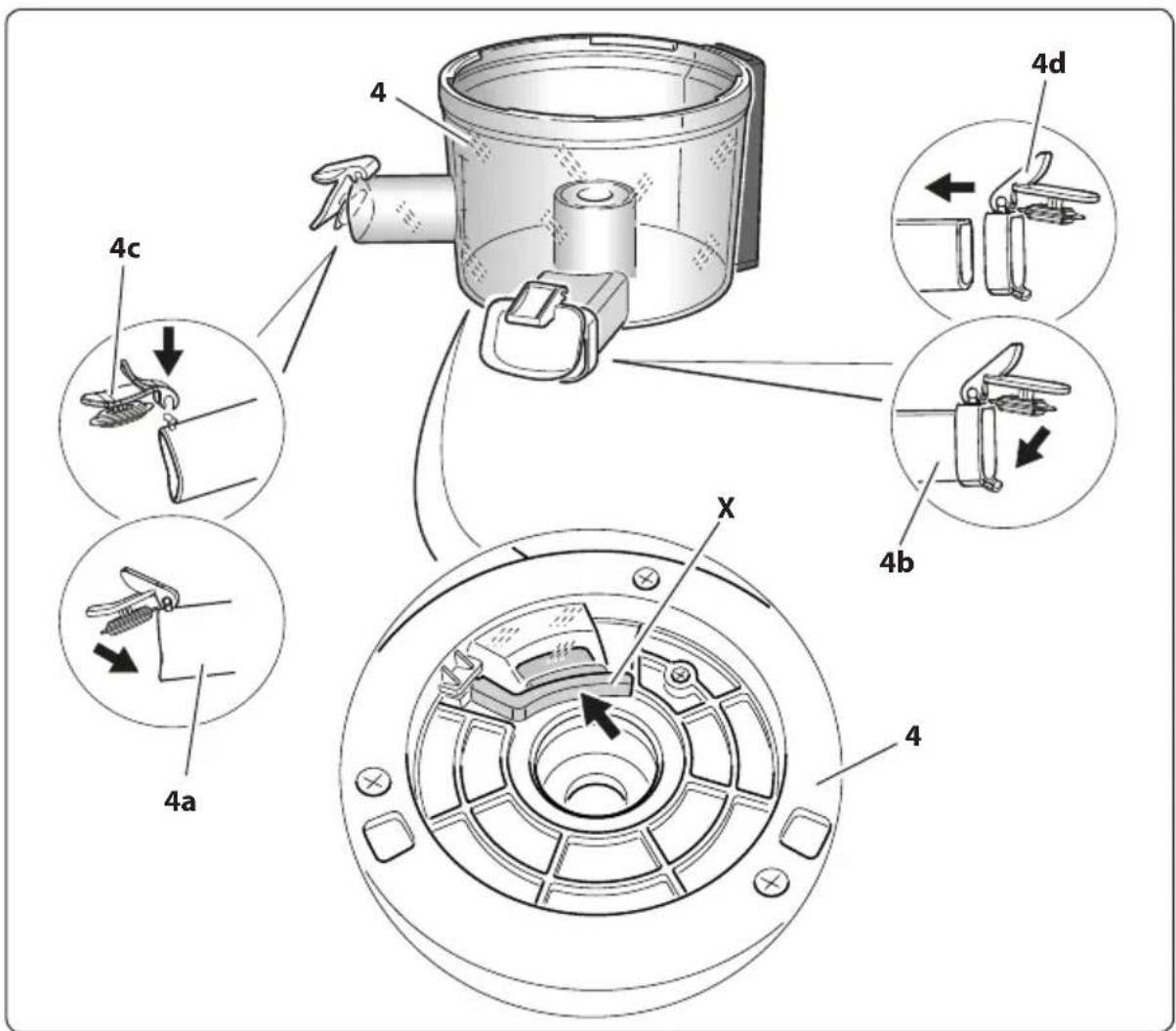

1. Before placing the separator (4) on the motor base (1) make sure that the rubber bearing (X) is correctly installed.

If the rubber bearing (X) is not placed correctly and it's not in good condition some liquid losses could occur during the food pressing. Carry out this verification before any use of the device.

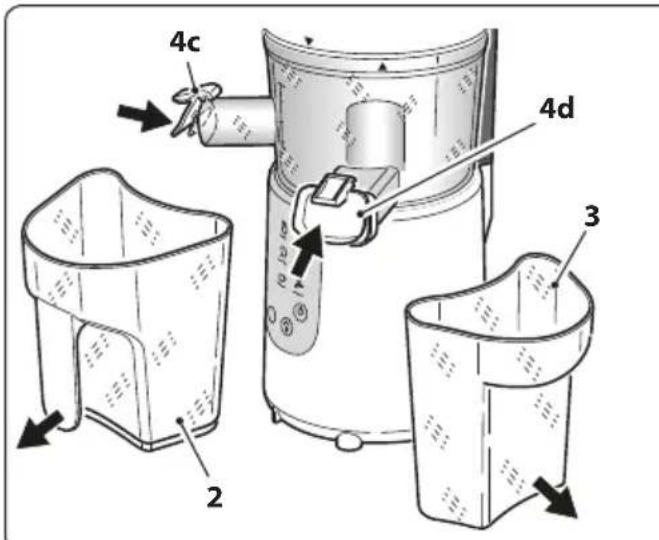

1. Install the anti-drip cap (4c) on the juice pouring spout (4a).
2. Install the anti-drip cap (4d) on the pulp pouring spout (4b).

4 4d 4c 4b X 4a 4

1. Clean the device as described in "Cleaning before use".

K2 - ASSEMBLING

When using for the first time or after a long period of disuse carefully clean all the parts (see "Cleaning" section). Rinse thoroughly and dry the parts before using them again.

Hand using a tool to adjust or install an electrical socket on a wall (no text or symbols visible)

To correctly assemble the appliance:

Remove any label or stickers.

Before you assemble the slow juicer, ensure that the power cord is unplugged.

1. Place the motor base on a flat, dry and stable surface.

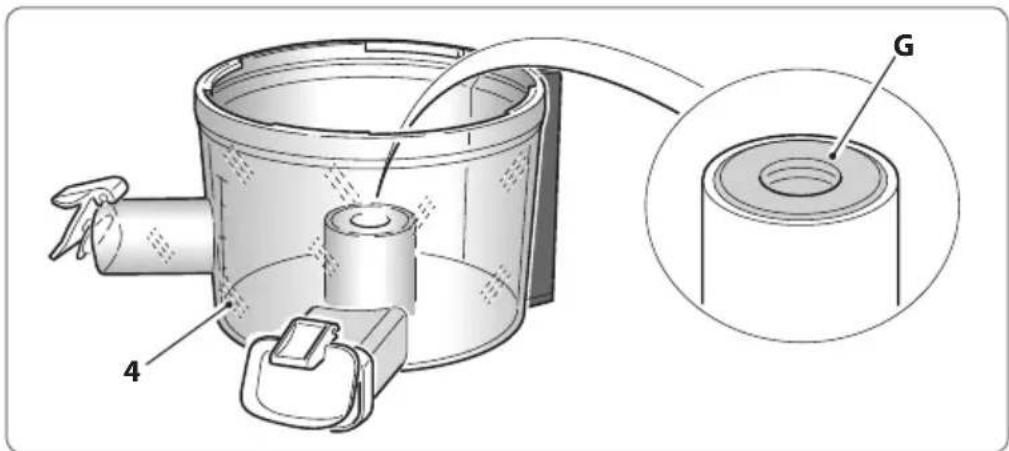

2. In the pulp separator (4) there's a silicone gasket (G).

Make sure that this component (G) is intact and in its appropriate place.

Technical diagram of a mechanical device with labeled parts and magnified detail view

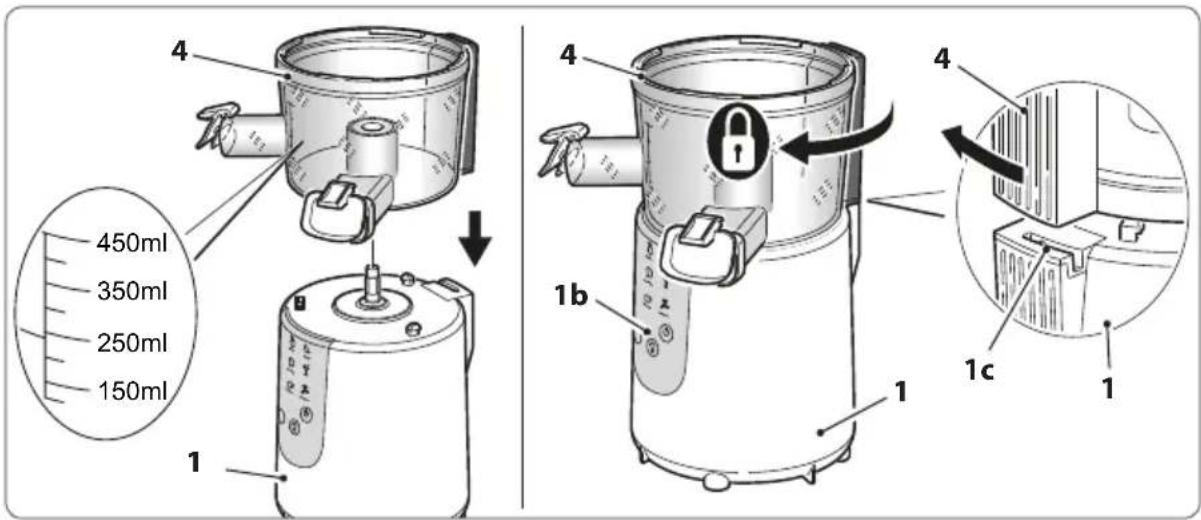

1. Place the separator (4) on the motor base (1) with the graduated scale placed in correspondence with the control panel (1b).

Turn the separator (4) clockwise to block it on the safety switch (11).

450ml 350ml 250ml 150ml 1 1b 4 4 1c 1

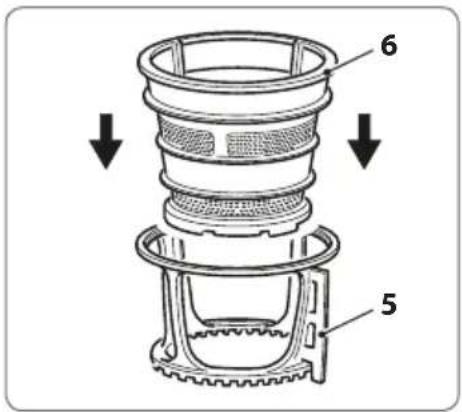

1. Insert the basket filter (6) in the support (5), then place everything in the separator (4).

6 5

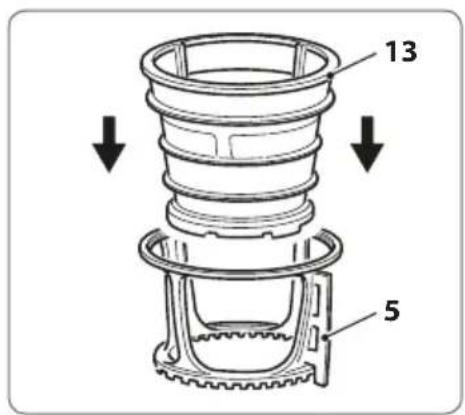

1. To use the "Sorbet" function (Sorbet) use the holes free basket (13).

13 5

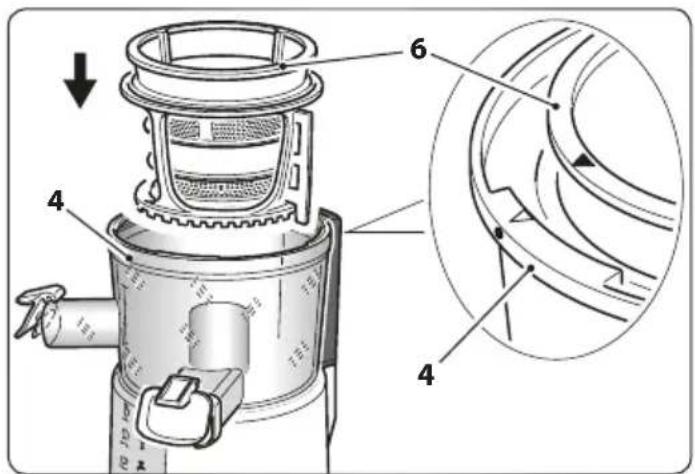

1. Verify that the "arrow" symbol on the basket (6) is aligned with the same symbol on the separator (4).

Make sure that the basket is completely inserted.

Technical diagram of a hand mixer with labeled parts and cross-sectional view

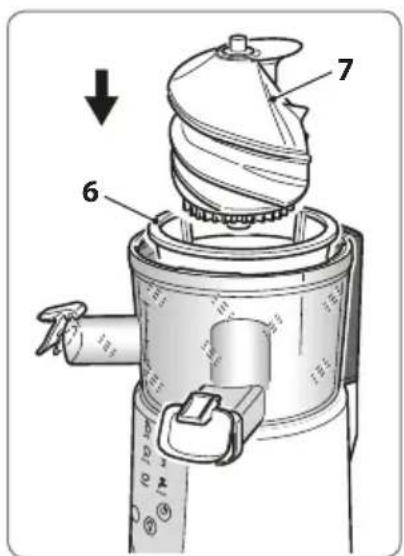

1. Place the auger (7) in the basket (6).

Make sure that the auger (7) is in the correct position and then press it downwards to lock it.

Technical diagram of a hand mixer with labeled parts and directional arrow indicating motion

1. Place the lid (8) on the separator (4).

Align the arrow on the lid (8) with the one on the separator (4).

Turn the lid (8) clockwise in blocking position.

8 4 clack

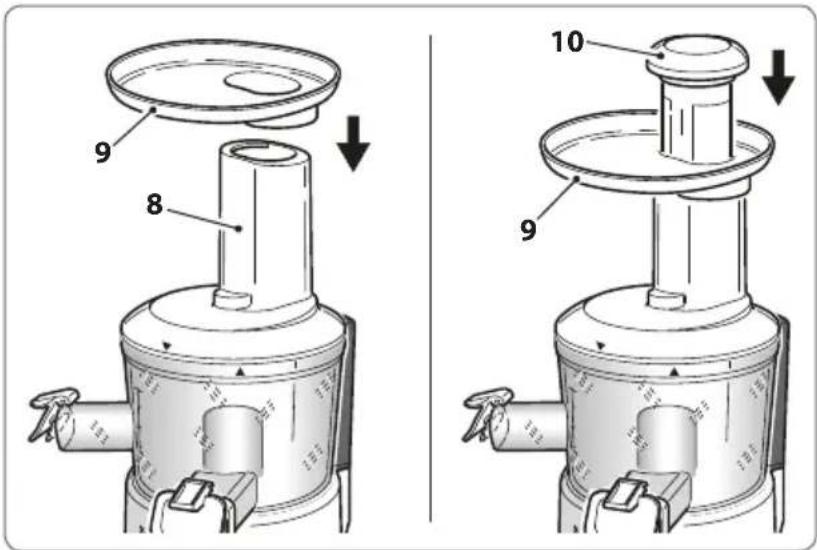

1. Place the tray (9) on the lid duct (8).
2. Place the food pusher (10) in the hole of the tray (9).

9 8 10 9

1. Place the pulp container (3) under the cap (4d).
2. Place the juice container (2) under the respective spout (4a).

2 4a 4d 3

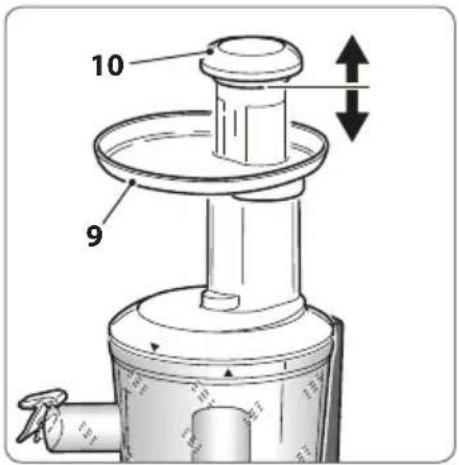

1. Slide the food pusher (9) down the food chute. The pusher can only fit one way.

Before using the device make sure that the basket (6) is not damaged. that case proceed to its replacement using original spare parts.

10 9

1. Prepare the food to be processed by cutting it into size-wise pieces so that they could be inserted in the tray hole (9). Other fruit or vegetables have to be inserted in the little duct and pushed with the pusher in order to obtain the juice.

Discard the hard parts (stones, seeds, etc.).

1. Electrically connect the device, verifying that the network data fit with those on the data plate of the device itself.

2. Turn on the device and select the desired program (see paragraph "J1").

220-240V~ 50/60Hz

Do not touch the control panel with wet hands.

1. To close the anti-drip cap (4c) of the juice pouring spout (4a) and to open it at the end of the pressing or when the juice level in the separator (4) is at maximum level is advised. This allows a reduced contact of the juice with air, this means less oxidation of the juice itself and, in case of pressing of different food simultaneously, a more homogeneous mixing of the final juice.

2. Insert in the tray duct (9) the food cut and prepared previously (see "Tips" paragraph).

3. Open the anti-dry cap (4d) of the pulp pouring spout (4b).

4. Press "Start" to start the device.

4c 10 9 8 4d

1. Press, without forcing, the food in the lid (8) duct to facilitate its pressing.

Never press the food with fingers nor with others tools (spoon, fork, etc.). Always use the appropriate pusher (10).

1. Juice and pulps are automatically separated; the juice is channelled in the juice collection container (2) through the spout (4a) while the pulps are channelled in the appropriate collection container (3).

This operation allows to work a considerable amount of food before its necessary to clean the device.

1. To avoid spatters, slowly open the anti-dry tap (4a) to let the juice clear.

2. To temporally stop the device during the processing press "Start". Press it again to resume the processing.

By pressing twice "Power" during functioning, the device starts the shutdown phase by rotating the basket in reverse direction for about 10 seconds.

1. At the end of the processing press "R".

2. Close the caps (4c and 4d) before removing the respective containers (2 and 3).

If the device stops during its functioning, press "R" (Reverse) and make it rotate in reverse to allow the food to be "lifted" by the basket filter (6).

Press "Start" to resume the processing. If the device doesn't restart or the rotation is forced, disassemble and clean the components to avoid to damage them.

ATTENTION

1. Clean the parts before use.
2. Do not use this appliance without food inside.
3. Put food only after they have been cleaned of any seeds.
4. If using frozen fruit combine always with juice or milk.
5. To push the foods use only and exclusively the pusher.

Tips

WARNING 1. Idling is forbidden! 2. If the running machine stops sudden "R" for 2-3 seconds; 3. After working please press switch disassembling and cleaning; 4. Unit should be stopped after 20 m working; 5. Vegetable must be cut in pieces left; 6. Carrots must be cut into strips and than 2cm.

WARNING

1. Idling is forbidden!
2. If the running machine stops suddenly please press switch "R" for 2-3 seconds;
3. After working please press switch "R" for 2-3 seconds before disassembling and cleaning;
4. Unit should be stopped after 20 minutes of continuos working;
5. Vegetable must be cut in pieces less than 2cm length;
6. Carrots must be cut into strips and the diameter must be less than 2cm.

AVVERTENZE

Do not operate with an empty bowl (4) for more than a few seconds.

Extended use with an empty bowl (4) may damage the unit.

• Prepare the fruit or vegetables to be processed by washing and cutting as necessary then insert it into the food introduction chute.
• Peel and remove the seeds or cores from the food before processing them.
• Insert the cut fruit and vegetables into the food introduction chute and gently push it downwards with the food pusher (10).

Do not use fingers or other objects to press down the food, always use the food pusher (10).

• When using carrots, do not place directly into the food introduction chute but cut them into pieces and push down with the food pusher (10).
• When processing fruit such as avocado or bananas the result will be closer to a puree than a fruit juice.
• Roll up fresh vegetables such as spinach, cabbage, lettuce etc. into balls before putting into the food introduction chute.
• For the best results, make sure that the filter basket (6), the separator (4) and the juice spout (4a) are not blocked.
• When using very mature fruit, the juice extracted will be quite heavy. In this case, make sure that the juice density does not block the pouring spout (4a).

Do not process excessively hard or fibrous foods such as rhubarb.

Foods as bananas, avocados and similar, due to their pulp type, aren't suitable for single processing with the juicer.

For food like bananas, avocados and similar is advised the use with other products to facilitate their leak.

For almond milk (due to its consistency) is advised not to use great quantities of product (almonds) and to constantly add water to avoid the device block.

EN

About the "Sorbet" button functioning is advised to let the fruit defrost (previously chopped and frozen) for at least 15/20 minutes before inserting it in the juicer to ensure that frozen parts don't damage the device.

• Slowly insert the food in the tray duct (9) and add other food after that the previous ones have been pressed.
• Food like celeries must be cut into 1 ÷ 2 cm pieces and processed slowly.
• To work food like carrots after that they've been stored in the fridge (or at low temperatures) for more than 1 week, to press them together with food with plenty of liquid (like "ripe" pears or oranges) is advised. The amount of obtained juice will be higher.
• If the food is not fresh, the amount of obtained juice will be lower. To work food conserved in the fridge for some days, to let them to soak in water for some minutes and then "squeeze" them before their pressing is advise; the result will be better.
• Working cherries or grapes (without stones) the juice could splatter when you press them with the pusher.
• When you work hard food (carrots, apples with skin, etc) you could feel a certain friction. Do not force this food pushing.
• Do not place ice into the appliance. If using frozen fruit combine always with juice or milk.
• Insert food at a regular speed, allowing all the pulp to be extracted. For maximum efficiency, do not rush this process.
• When juicing leafy greens or wheat grass, it is suggested that you mix it with fruits or other hard vegetables for optimal results.
• The juice obtained from the fresh fruit or vegetables juicer is high in nutritional content. The juice is an important part of a balanced diet.
• Unlike normal juicer that "chew" the food for maximum extraction and need you to force the food down with the pusher, the juicer doesn't require you to force the food down. Gently use the pusher when food gets stuck or aid passage through the chute for foods like leafy greens.

- If using multiple ingredients, It is best to alternate between hard and soft foods. We have provided a list below to make it easy to decide what foods are soft and what foods are hard.

Soft food Hard food
Pickles Carrots
Leafy greenes Green apples
Parsley Pineapples
Mint Celery
Watermelons Ginger

- If juicing celery or beets or ginger with ingredients, It is recommended to do so towards the end of your juicing as they are most fibrous.

- You can juice most fruits and vegetables in their skin or rind on, however, some of the harder skins and rinds are bitter and may not taste good.

- You may want to experiment to see what flavours appeal to you.

- It is best results remove stems from leafy greens (such as collards, chard, etc.) before juicing and peel orange, lemons, limes, watermelon and pineapple.

• After you have finished juicing, pour a glass or two of water down the chute into the running juice. This can help make clean-up quicker and easier.

- If the separator (4) is blocked and it doesn't unplug from the base (1), press "R" (Reverse) for 3÷5 seconds. Repeat this process 2-3 times.

• The basket (6) is equipped with an auto-cleaning brush.

The device is equipped with a safety switch on the motor base that doesn't allow the device starting if the lid (8) and the separator (4) are not correctly placed.

Do not let the device work manipulating the safety switch.

Handle with care the basket (6) in order to avoid to cutting yourself or damaging the unit.

A damaged basket (6) compromises the proper functioning of the appliance and its efficiency.

Replace the basket (6) if dented or broken.

Components disassembling

• Ensure the slow juicer is turned off and the power cord is unplugged from the power outlet.
• Remove the containers (2 and 3).
• Close the caps (4c and 4d).
• Remove the lid (8) by rotating it anti-clockwise.

4c 4d 2 3

9 8 4

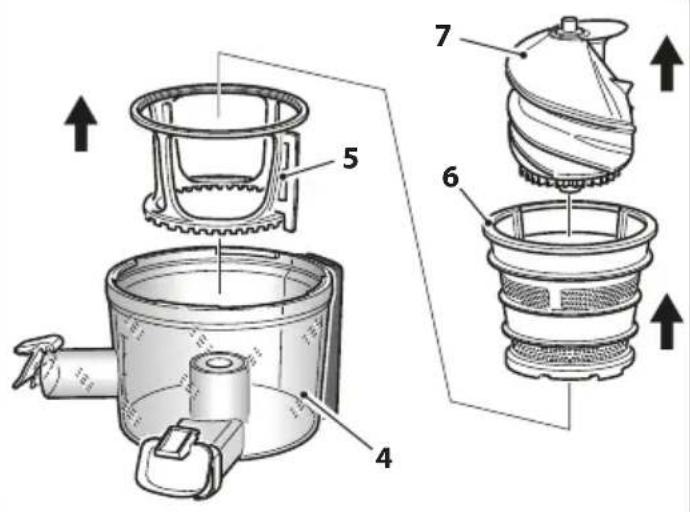

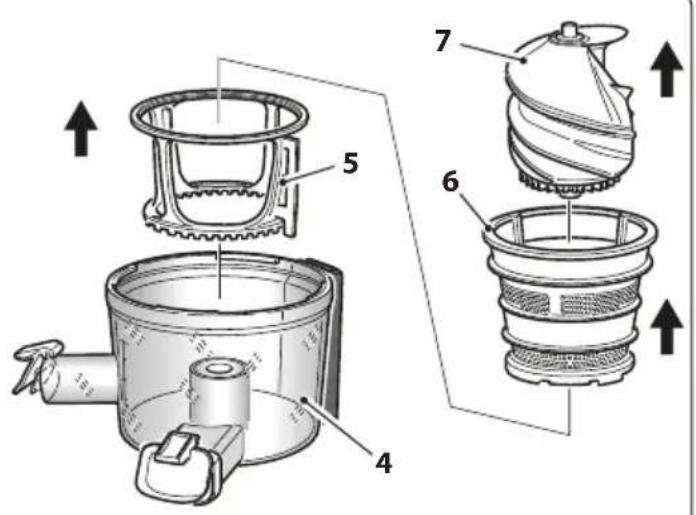

- The separator, auger, basket and basket holder can all be removed together. Grip the separator (4) and turn it to the open position (anti-clockwise) slightly, it will click out of position. This is a very small movement. The separator and all the internals can now be removed from the motor base for cleaning.

Technical diagram showing exploded view of a hairdryer with labeled parts and directional arrows indicating assembly steps.

Cleaning

N1 - CLEANING BEFORE USE

• Correctly assemble all of the components.
• Close the caps (4c and 4d).
• Place the containers (2 and 3).
  • Pour 500 ml of clean water in the tray (9).
• Select "Washing" and then press "Start".

The device will work for almost 10 seconds making the basket (6) rotate in both directions.

• When the device stops slowly opne the caps (4c y 4d) to empty the separator (4).
  • The device is ready for use.

N2 - CLEANING AFTER USE

Before cleaning, ALWAYS remove the plug from the mains socket.

- To clean the motor base (1) use a damp cloth and avoid abrasive detergents.

Hand inserting a plug into a wall socket (no text or symbols visible)

Never immerse the motor base (1) in water or other liquids.

Never wash the motor base (1) in the dishwasher.

- All parts, except the motor base (1), can be washed with warm water and ordinary detergents for dishes as long as they have a low alkaline content.

It is NOT recommended to wash the parts in a dishwasher.

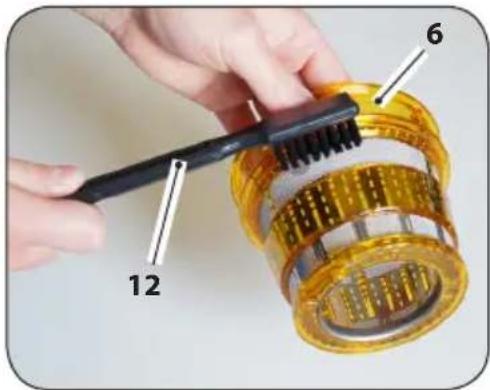

- Immediately after each use, use the brush (12) to thoroughly clean the fine mesh holes of the basket (6). Brush the inside of the basket under running water, holding it up towards the light to ensure the fine mesh holes are not blocked.

• Use the brush (12) provided with the slow juicer. This brush has been specially designed to clean the basket.

Simply place the basket inside the brush and under running water twist the brush left and right to remove the pulp from the basket.

- If the holes are blocked, soak the basket in hot water with 10% lemon juice to loosen the blocked holes.

12 6

Tips:

If the basket must be cleaned immediately after use, soak the basket in hot soapy water immediately after juicing is complete. If pulp is left to dry on the basket, it may clog the fine mesh holes, thereby lessening the effectiveness of the slow juicer.

Do NOT soak the basket (6) in bleach.

Do NOT place the basket (6) in the dishwasher.

The basket is particularly delicate. Handle with care.

Handle with care the basket (6) in order to avoid to cutting yourself or damaging the unit.

A damaged basket (6) compromises the proper functioning of the appliance and its efficiency.

Replace the basket (6) if dented or broken.

- Discolouration that may occur when the appliance comes into contact with certain foods (e.g. an orange colour when carrots are blended) can be removed with a cloth soaked in cooking oil.

Before inserting the plug in the mains outlet, ensure that the appliance and all its components are completely dry.

Disposal of the device

The crossed-out wheeled bin symbol placed on the product and on the accompanying documentation indicates that the product itself is subject to Directive 2012/19/EU which regulates the collection, the management, the processing and the disposal of electrical and electronic equipment waste (WEEE).

When the product reaches the end of its lifetime must therefore not be disposed of as a common mixed urban waste but it must be subject to sorted collection at authorized collection centers.

Responsible disposal of electrical and electronic equipment waste helps to ease the material resources sustainable recycling and reuse, as well as to avoid possible damages to the environment and to human health caused by uncontrolled waste disposal.

The municipalities organize sorted collection centers specialized for WEEE. For more detailed information regarding the WEEE collection and pick-up systems, it is possible to refer to your own municipality or to the local household waste disposal service.

Moreover, at the time of purchase of a new equivalent equipment intended to be used in a household environment, the customer has the right to freely lend, at the rate of one on one, the used equipment to the distributor which will provide for its disposal as required by law.

Professional purchasers are exhorted to contact their own supplier to check the terms and conditions of the purchase contract.

Possible problems

- In case there is a malfunction contact an authorized dealer or contact the service (technical support).

Additional warnings

- Before connecting the appliance, make sure that the data on the plate correspond to those of the electricity distribution network. The plate is located on the bottom of the unit body.

- In case of incompatibility between the socket and power cable plug, have the socket replaced with a suitable type by a qualified professional who will also have to make sure that the section of the cord is suitable for the power absorbed by the appliance.

We do not recommend the use of adapters, multiple sockets and / or extensions.

When their use is absolutely necessary, you must use only simple or multiple adapters and extensions that comply with current safety standards, taking care not to exceed the range limit.

- The use of an electrical appliance requires the observance of some fundamental rules.

In particular:

• do not touch or use the appliance with wet or damp hands or bare feet;
• do not pull the power cord or the appliance itself to remove the plug from the socket;
• do not allow the appliance to be used by children or unfit persons without supervision.

- In case of failure and/or malfunction, turn it off and do not tamper with it.

For repairs only contact an authorized dealer.

Failure to comply with the above may compromise the safety of the device.

- If you decide not to use this appliance again you must make it inoperative by cutting the cord after removing the plug from the socket.

It is also recommended to make harmless those parts which may constitute a danger, especially for children who could use an abandoned appliance for their games.

- The installation must be carried out according to the manufacturer's instructions. Improper installation may cause damage to persons, animals or property in respect of which the manufacturer can not be held responsible.

- To avoid dangerous overheating it is recommended to unroll the power cord for its entire length and use the device as recommended in the paragraph "Instructions for Use".

- DO NOT allow it to be unnecessarily connected to the power. Disconnect the plug from the outlet when the appliance it's not used.

R Conventional warranty conditions

This Warranty does not affect your statutory rights under D. Lgs. 02/022002, n. 24.

With this guarantee, the manufacturer suggests the Purchaser to address directly a Point of Sale which to comply with the restoration in a fast, safe and unquestionable quality.

This Warranty is effective regardless of the evidence that the defect - resulting from manufacturing defects present at the time of purchase of the device, except as provided in paragraph "d" of this text.

a) Warranty duration: 24 months from date of purchase.

After the first 12 months of warranty, the warranty on the unit will be managed by the Stores within 12 months of legal guarantee in strict application of the provisions of Legislative Decree 02/022002, n. 24.

b) The warranty is effective: In case of a request for assistance, the warranty is valid only if you show the warranty certificate together with a document, valid receipt, showing the identification details of the seller, the product and the date on which the purchase was made.

c) Warranty extension: Repair DOES NOT stop nor change the duration of the warranty which will expire on its legal deadline.

d) Limitations of Warranty:

The warranty does not cover any damage resulting from:

- negligence, incompetence, recklessness and carelessness in use (failure to comply with the rules in this manual);

- maintenance not covered in this booklet or performed by unauthorized personnel;

- tampering or interventions to increase the power or efficacy of the product;

- incorrect installation (power supply with a voltage other than that listed on the nameplate and in this booklet);

- improper use of the appliance;

- damage due to normal wear and tear of the components, impacts, falls, transport damage.

- the guarantee does not cover the repair / replacement of parts subject to wear during normal use of the product (hooks, kneading, blades, belts, connectors ...).

e) Costs: In cases not covered by the warranty, the manufacturer reserves the right to charge the customer the cost of repair or replacement of the appliance.

f) Manufacturer's responsibility: The manufacturer is not liable for any damage that may directly or indirectly affect persons, property or pets as a consequence of failure to comply with all the requirements set out in this "Instructions for Use" booklet and concerning especially the warnings regarding installation, use and maintenance.

How to contact technical support

• Tel. [phone]

• Fax [phone]

[e-mail]

www.rgv.it

PAGINA INTENZIONALMENTE BIANCA THIS PAGE INTENTIONALLY LEFT BLANK PAIGE LAISEE INTENTIONNELEMENT VIDE DEISER SETTE ABSICHTLICK GELASSEN FREIE RAUM

A Introduction

Cher client,

Line drawing of two hands shaking, no text or symbols present

Index

FR

A Introduction...... Page 59
B Information de sécurité.... " 60
C Consignes d'utilisation .... " 61
D Consignes importantes .... “ 63
E Sécurité...... " 64
F Pour réduire le risque de blessure .... " 64
G Contenu de l'emballage .... “ 65
H Caractéristiques.... " 66
I Introduction...... " 66
J Commandes et composants.... " 66
J1 Panneau de commande .... " 68
K Utilisation.... " 70
L Conseils .... “ 76
M Élimination des composants .... " 80
N Nettoyage.... " 81
O Élimination de l'appareil.... " 83
P Inconvénients possibles.... " 83
Q Consignes supplémentaires.... " 84
R Conditions de garantie conventionnelle.... " 85
S Plaque des données.... " 114

Prohibition sign with a hand holding an ant and a screwdriver, enclosed in a red circle

Consignes importantes

Line drawings of various household appliances including a brush, filter, and a juicer (no text or labels present)

Caractéristiques

Exterior view of a modern juice brush maker with open lid and glass cups (no visible text or symbols)

Hand using a tool to adjust or install an electrical socket on a wall (no text or symbols visible)

Technical diagram of a mechanical device with labeled parts and magnified detail view

Technical diagram of a hand mixer with labeled parts and cross-sectional view

Technical diagram of a hand mixer with labeled parts and directional arrow indicating motion

8 4 clack

WARNING 1. Idling is forbidden! 2. If the running machine stops suddenly "R" for 2-3 seconds; 3. After working please press switch disassembling and cleaning; 4. Unit should be stopped after 20 m working; 5. Vegetable must be cut in pieces left; 6. Carrots must be cut into strips and than 2cm.

WARNING

1. Idling is forbidden!
2. If the running machine stops suddenly please press switch "R" for 2-3 seconds;
3. After working please press switch "R" for 2-3 seconds before disassembling and cleaning;
4. Unit should be stopped after 20 minutes of continuos working;
5. Vegetable must be cut in pieces less than 2cm length;
6. Carrots must be cut into strips and the diameter must be less than 2cm.

AVERTISSEMENTS

Technical diagram showing a mechanical device with labeled parts and an upward arrow indicating rotation or assembly.

Technical diagram of a coffee maker with labeled parts and directional arrows indicating assembly or operation.

Nettoyage

N1 -NETTOYAGE AVANT UTILISATION

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Line drawing of two hands shaking, no text or symbols present

Inhalt

DE

Prohibition sign with hand holding a screwdriver, enclosed in a red circle

Wichtige hinweise

Technical line drawings of various household appliances including a juicer, filter, and brush (no text or labels present)

Eigenschaften

- Set Abmessungen (BxTxH): ....mm | 200 x 180 x 420

- Einheitsgewicht (ca.): Gros....kg 5,0 Rein ....kg 4,3

Exterior view of a modern glass juice maker with open lid and side cups (no visible text or symbols)

Exploded view diagram of a kitchen brush and blender with numbered parts for identification

Hard Medium Soft Mixed Juice Vegetable Jam Sorbet Pomegranate Washing Menu Power Start R 1b 1b 1

Hand using a tool to adjust or install an electrical socket on a wall (no text or symbols visible)

Technical diagram of a mechanical device with labeled parts and an inset showing a cylindrical component labeled G.

Technical diagram of a hand mixer with labeled parts and cross-sectional view

Technical diagram of a hand-operated blender with labeled parts and directional arrow indicating rotation or adjustment.

8 4 clack

WARNING 1. Idling is forbidden! 2. If the running machine stops sudden "R" for 2-3 seconds; 3. After working please press switch disassembling and cleaning; 4. Unit should be stopped after 20 m working; 5. Vegetable must be cut in pieces left; 6. Carrots must be cut into strips and than 2cm.

WARNING

1. Idling is forbidden!
2. If the running machine stops suddenly please press switch "R" for 2-3 seconds;
3. After working please press switch "R" for 2-3 seconds before disassembling and cleaning;
4. Unit should be stopped after 20 minutes of continuos working;
5. Vegetable must be cut in pieces less than 2cm length;
6. Carrots must be cut into strips and the diameter must be less than 2cm.

WARNHINWEISE

Technical diagram of a mechanical device with labeled parts and an arrow indicating rotation or assembly.

Technical diagram of a coffee maker with labeled parts and directional arrows indicating assembly or assembly steps.

Reinigung

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Line drawing of a modern manual grimmer with handle and control knob (no text or symbols)

R.G.V.

Stamp and Signature of retailer:

Fill in the fields below for the validity of the Warranty

JUICE ART DIGITAL - Art. Code: 110851

Model

Modèle

Modell

Cognome

Last Name

Nom

Nachname

Nome

First Name

Prénom

Name

Via

n°

Street

No.

Rue

n^

Straße

Nr.

Città

City

Ville

Stadt

Nazione

Country

Nation

Nation

R.G.V.

Fabbricato da / Manufactured by / Fabriqué par / Hergestellt von:

R.G.V. srl

Via Giovanni XXIII, 11

22072 Cermenate (CO) - Italia

Tel. [phone] / fax [phone]

e-mail: [e-mail]

www.rgv.it

Ed.: 10/2018

Made in P.R.C.
