USER MANUAL 2386FL Flama

Black Flama flat-screen electric heater with control knobs and display (no visible text or symbols on body)

2386FL

PT CONVECTOR 1

ES CONVECTOR 7

EN CONVECTOR HEATER 13

FR CONVECTEUR 19

This appliance is appropriate for use only in well-insulated spaces or for occasional use.

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

IEC 60417 - 5041

(DB:2002 / 10)

ATTENTION - HOT SURFACE - Accessible surface temperatures can be high during appliance operation.

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

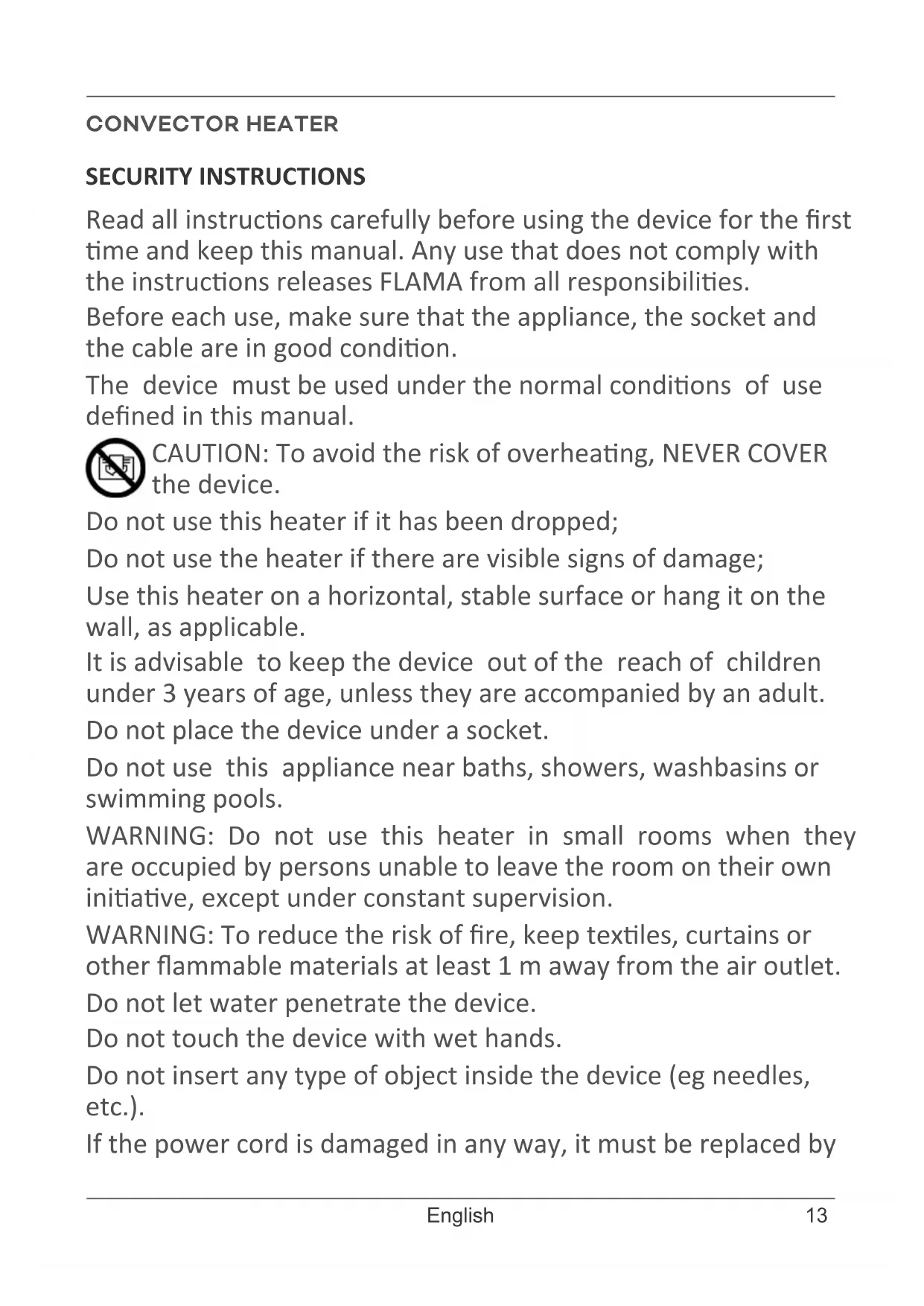

Read all instructions carefully before using the device for the first time and keep this manual. Any use that does not comply with the instructions releases FLAMA from all responsibilities.

Before each use, make sure that the appliance, the socket and the cable are in good condition.

The device must be used under the normal conditions of use defined in this manual.

CAUTION: To avoid the risk of overheating, NEVER COVER the device.

Do not use this heater if it has been dropped;

Do not use the heater if there are visible signs of damage;

Use this heater on a horizontal, stable surface or hang it on the wall, as applicable.

It is advisable to keep the device out of the reach of children under 3 years of age, unless they are accompanied by an adult.

Do not place the device under a socket.

Do not use this appliance near baths, showers, washbasins or swimming pools.

WARNING: Do not use this heater in small rooms when they are occupied by persons unable to leave the room on their own initiative, except under constant supervision.

WARNING: To reduce the risk of fire, keep textiles, curtains or other flammable materials at least 1 m away from the air outlet.

Do not let water penetrate the device.

Do not touch the device with wet hands.

Do not insert any type of object inside the device (eg needles, etc.).

If the power cord is damaged in any way, it must be replaced by

the manufacturer, an authorized Technical Assistance Center or a qualified technician, in order to avoid any danger to the user.

To learn more about maintenance and cleaning operations, see the user guide that comes with the appliance.

Children between 3 and 8 years of age must only be able to switch the appliance on or off if it has been placed or installed in the normal operating position and if children are accompanied or have been instructed on how to use the appliance safely and understand all potential hazards. Children between 3 and 8 years of age must not install, adjust or clean the appliance, or carry out maintenance at the expense of the user.

ATTENTION: Some components of the appliance can reach very high temperatures and cause burns. Particular attention should be paid to the presence of children and vulnerable people.

This appliance can be used by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities, or without experience or knowledge, if these persons are properly supervised or if they have received instructions regarding the safe use of the appliance and if the possible risks have been assimilated. Children must not use the appliance as a toy.

Cleaning and user maintenance must not be carried out by children without supervision.

This heater is filled with a precise amount of special oil. Repairs that require opening the oil container should only be done by the manufacturer or its service agent, who should be contacted in the event of an oil leak.

The regulations regarding oil disposal must be followed when disassembling the device.

This product complies with the Electromagnetic Compatibility and Low Voltage Directives.

This instruction manual is also available in PDF format at www.flama.pt.

RECOMMENDATIONS

The electrical installation of the part, the installation of the device and its use must comply with the regulations in force in your country.

Do not use the device near flammable objects and products, and, in general, respect the minimum distance of 50 cm between the device and other objects (walls, curtains, mists, etc.).

The appliance must be placed so that the electrical plug is accessible.

Do not pull on the power cord or the appliance, even when you want to disconnect the plug from the socket.

Never use the appliance leaning or lying on its side.

This product is intended for domestic use only. In the event of professional, inappropriate use or use that does not comply with the instructions, the manufacturer declines all responsibility and the guarantee will be void.

Fully unwind the cable before each use.

Do not use an extension cord not adapted to the power of the appliance.

Do not switch on the appliance in a dusty place or where there is a risk of fire.

DESCRIPTION

1. grate
2. Power & Mode rotary knob
3. Thermostat adjustment knob
4. Handle
5. Feet

OPERATION

The device can be operated using the manual controls located on its side.

ATTENTION – The appliance must never be put into operation without the feet being properly fitted.

Feet assembly

Carefully remove the convector from the box and bag.

The feet must be placed at the ends of the lower part of the device.

Match the holes in the feet with the axles located in the lower area.

Then screw them in (with the screws provided).

Use

The appliance must be placed on a solid, flat and stable surface.

Make sure the Power & Mode rotary knob is in the off position (0) before plugging the appliance into the wall outlet.

Plug the power plug into an electrical outlet. Make sure the plug is securely in the socket. If not properly seated, it can overheat and damage the outlet. The cord and plug assembly may become hot during use. It is a normal situation and does not interfere with the proper functioning of the device.

Set the thermostat adjustment knob to the MAX position.

Turn the Power & Mode rotary knob to the desired temperature mode. Low temperature (max. 1000W) is represented by (I) and high temperature (max. 2000W) by (II).

Thermostat Instructions

Note - Make sure the thermostat adjustment knob is in the MAX position before switching on the appliance.

Once the compartment has reached the desired temperature, slowly turn the thermostat adjustment knob counterclockwise until you hear a slight sound. Then turn the thermostat adjustment knob clockwise until you hear a slight sound again. The appliance/thermostat switches on and off to ensure the desired temperature.

To turn off the device, turn the Power & Mode rotary knob to the off position (0). Then remove the plug from the socket.

To adjust the thermostat knob, turn the thermostat adjustment knob clockwise to increase the desired temperature. Turn counterclockwise to decrease the temperature.

NOTE: It is normal for the appliance to turn on and off as it maintains a fixed temperature.

SAFETY FEATURES

The device is equipped with thermal overload protection to prevent overheating.

The appliance switches off automatically when it reaches an excessive temperature and will only start again if the user restarts the appliance (see RESET INSTRUCTIONS)

RESTART INSTRUCTIONS

Unplug the appliance and wait 15 minutes for the appliance to cool down.

After 15 minutes, turn the device back on and operate normally.

TROUBLESHOOTING TIPS

if your appliance unexpectedly shuts down or stops working, this may be due to activating one of the aforementioned safety features to prevent overheating.

Make sure the power plug is plugged into a working electrical outlet.

Make sure the power plug is plugged into a working electrical outlet.

CLEANING AND MAINTENANCE

WARNING - Always disconnect the plug from the power outlet before carrying out any maintenance and cleaning operations.

IMPORTANT! DO NOT IMMERSE THE APPLIANCE IN WATER!

Clean the grill with the help of the vacuum cleaner and the brush attachment. This will remove grime and dirt from the inside of the heater.

DO NOT ATTEMPT TO DISASSEMBLE THE APPLIANCE. Clean the outside with a soft cloth.

DANGER: Do not use gasoline, benzine, thinner, abrasive cleaning fluids, etc. as these will damage the convector. NEVER USE ALCOHOL OR SOLVENTS.

To store the device, place it together with these instructions in its original box in a cool, dry place.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

INFORMATION REQUIREMENTS

Model identifier(s) 2386FL
Element Symbol Value Unit Element Unit
Heating output				Type of heating output, only for electric,accumulation ambient heaters (choose one option)
Nominal heating output	Pnom	2,0 kW		Manual thermal load control, with integra-ted thermostat	No
Minimum heating output (indicative)	Pmin	0,0 kW		Manual thermal output control, with interior and/or exterior temperature retroaction	No
Maximum continuous heating output	Pmax, c	2,0 kW		Electronic control of thermal load, with inte-rior and/or exterior temperature retroaction	No
Auxiliary electricity consumption Heating potential with fan No
At nominal heating output	elmax	0 kW		Type of heating output/interior temperature control(select an option)
At minimum heating output	elmin	0 kW		Heating potential in a single phase, without interior temperature control	No
In standby mode	eISB	N/A kW		In two or more manual phases, without interior temperature control	No
				With interior temperature control by mecha-nical thermostat	Yes
				With electronic interior temperature control	No
				With electronic interior temperature control and daily timer	No
				With electronic interior temperature control and weekly timer	No
				Other control options (multiple selections possible)
				Interior temperature control, with presence detection	No
				Interior temperature control, with open window detection	No
				With remote control option	No
				With adaptive startup control	No
				With limited operation time	No
				With black body sensor	No
Información de contacto	FLAMA - Fábrica de Louças e Electrodomésticos, S.A.Zona Industrial | Apartado 2041 | 3701-906 Cesar | Portugal

CONVECTEUR

CONSIGNES DE SÉCURITÉ

DYSFONCTIONNEMENTS ET RÉPARATIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This page has been deliberately left blank

This page has been deliberately left blank

This page has been deliberately left blank

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.
