USER MANUAL 81004 KORONA

Exterior view of a Korona air conditioner fan with visible blades and mounting base (no text or symbols on fan body)

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Bedienungsanleitung

Technical line drawing of a circular fan with radial blades (no text or symbols)

123

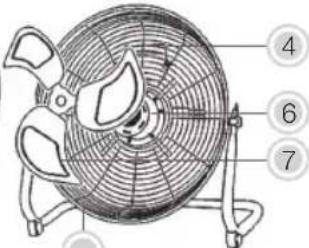

Diagram of a fan with numbered parts labeled 4, 6, and 7 for identification.

10 9 11 8

Front view of a four-bladed industrial fan with two side-mounted legs and downward arrows indicating side arm (no text or symbols)

Exterior view of a flat-screen office fan with visible grille and control panel (no text or symbols)

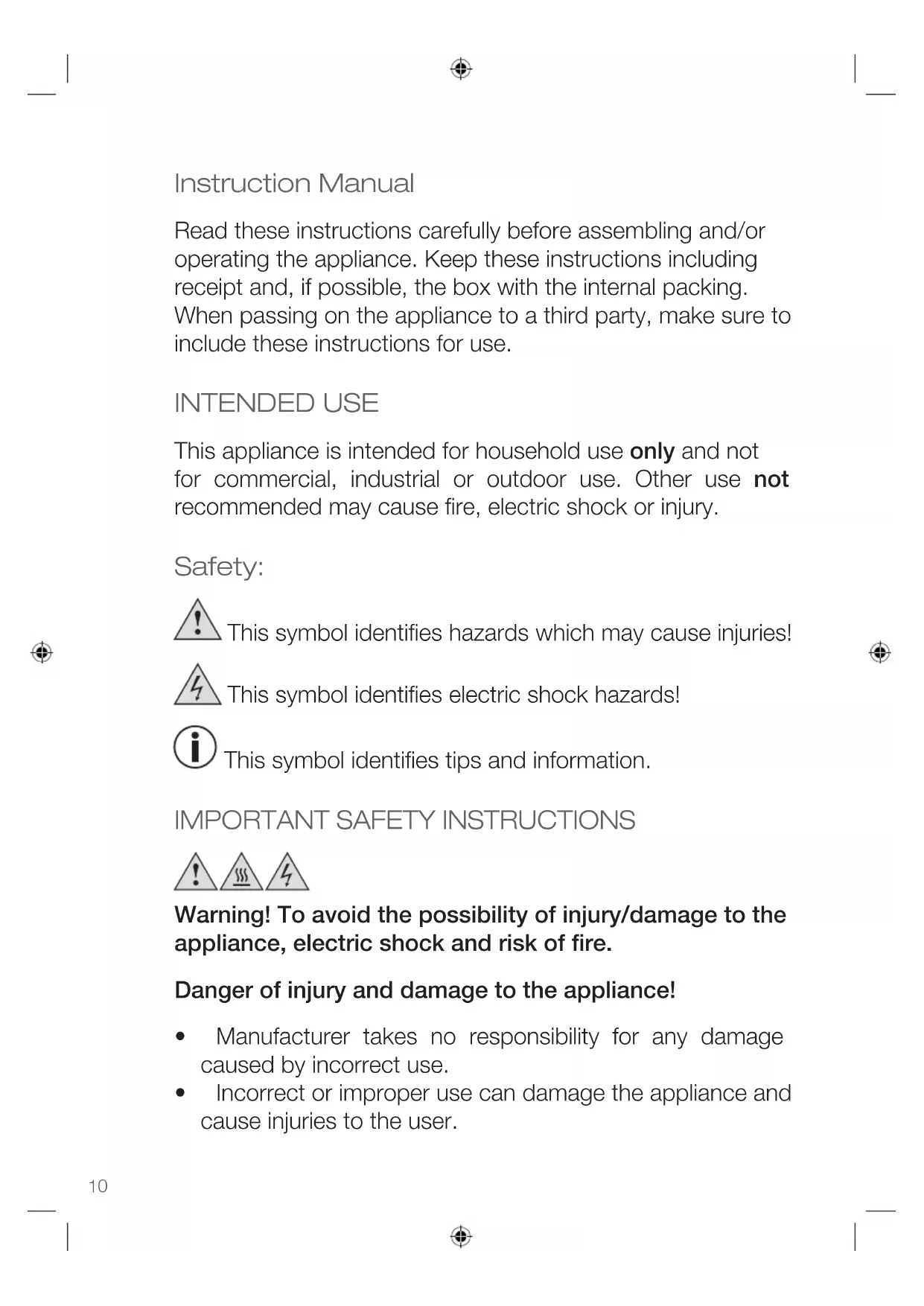

Read these instructions carefully before assembling and/or operating the appliance. Keep these instructions including receipt and, if possible, the box with the internal packing. When passing on the appliance to a third party, make sure to include these instructions for use.

INTENDED USE

This appliance is intended for household use only and not for commercial, industrial or outdoor use. Other use not recommended may cause fire, electric shock or injury.

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

This symbol identifies tips and information.

IMPORTANT SAFETY INSTRUCTIONS

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of fire.

Danger of injury and damage to the appliance!

• Manufacturer takes no responsibility for any damage caused by incorrect use.

• Incorrect or improper use can damage the appliance and cause injuries to the user.

• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

• Do avoid contact with all moving parts. Always wait until all moving parts have come to stand still before touching them.
• Do not insert fingers or allow foreign objects to enter the grill.
• Do not operate without the fan grills properly in place or if the gril becomes damaged or loose.
• Make sure the fan is not placed near drapes, curtains, or any objects that may be drawn (including hair and clothes) into the fan.
• Never place or operate the unit where it could be subject to:
• Heat sources such as radiators, heat registers, stoves or other products that produce heat
• Direct sunlight
• Excessive dust
• Mechanical vibration or shock
• Lack of ventilation
• Uneven surfaces, to avoid the tipping of the fan during use
• Always turn OFF (0) and unplug the fan when not in use and/or when moving it from one location to another.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

- Do not place the appliance close to an open window. Rain splashing on the fan could cause an electric shock hazard.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Do not run cord under carpeting. Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use.
• Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

DESCRIPTION OF PARTS

1. Safety Screws (6x)
2. Front Grill
3. Rear Grill
4. Handle
5. Speed Control Knob
6. 0 (Off)
7. 1 (Low)
8. 2 (Medium)

9. 3 (High)

10. Motor

11. Blade
12. Metal Tube + 2 screws

13. Metal Base

14. Knobs to adjust the tilt

15. Power cord and plug

BEFORE FIRST USE

• Remove all packaging material and check whether the appliance is complete and that all accessories are included.
  • Fully unwind the power cord.
• Clean the appliance as described under Cleaning and Care.

If any items are damaged or missing, contact your dealer or customer service.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away bid suffocation.

ASSEMBLY OF METAL BASE

Your high velocity floor fan only needs minimal assembly. Always ensure that the fan is unplugged from the power supply and turned off before commencing with the assembly.

Front view of a four-bladed industrial fan with directional arrows indicating force or movement (no text or symbols)

1. Unscrew and remove the 2 screws from the metal tube.
2. Insert the metal tubes into the metal base and align the holes on each side of the metal tube with the holes of the metal base.
3. Re-insert the screws and tighten them.

OPERATION

Make sure that the fan is properly assembled before operation.

1. Place your fan on an even, dry and stable surface.
2. Ensure the fan is set to 0 (OFF) before plugging it into a power socket.

Make sure your local voltage matches the technical data of the appliance. Otherwise the chance may overheat and get damaged.

1. Adjust the fan head to the desired tilt angle (see ADJUST TILT ANGLE)

2. Switch on the appliance by turning the speed control knob to the desired speed setting:

1=Low Speed

2=Medium speed

3=High speed.

1. After use, turn the speed control knob to 0 (Off) and unplug the appliance.

Never leave the appliance unattended during use.

ADJUST TILT ANGLE

Caution: The fan should always be switched off when making this adjustment!

Use the adjustment knobs on either side of the fan to loosen the tilt nut.

Close-up of a flat-screen office chair with a coiled cable and indicator lights (no visible text or symbols)

- Loosen the tilt nut by turning the knob into anti-clockwise direction.

- Adjust the fan head to the desired tilt angle by slightly moving it up or down.

- To fix the tilt angle, turn the knob into clockwise direction.

CLEANING AND CARE

Before cleaning, always switch off the appliance and disconnect it from the mains.

Never immerse the appliance in water. Danger! Electric Shock!

- Clean the appliance using a soft damp cloth.

- Never spray the appliance with liquids or submerge it in water or other liquid.

- For cleaning purpose, front and back grill as well as the fan blade can be removed.

After the cleaning process is finished make sure that all parts are dry and that the front/back grill incl. fan blade are properly reassembled.

Never use alcohol, gasoline, and/or any other aggressive cleaning agents/hard objects.

CAUTION: The Fan Blade may have sharp edges. Handle with extreme care.

STORAGE

Keep the appliance away from children and store it in a clean and dry place, best in its original box or cover it to protect it from dust.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Floor Fan 81004 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

TECHNICAL DATA

Voltage: 220 - 240 V \~ 50 Hz

Power: 100 W

Protection class: I

Technical data subject to change!

Description Symbol Value Unit
Maximum fan flow rate F 79.51 m3/min
Fan power input P 91.79 W
Service value SV 0.87 (m3/min)/W
Standby power consumption	PSB	0.00	W
Seasonal electricity consumption	Q	29.37 kWh/a
Fan sound power level	LWA	65.40 dB(A)
Maximum air velocity	c 3.36	meter/sec
Measurement standard for service value	EN 50564:2011IEC 60879:1986 +cor1:1992EN 60704-2-7:1998

NOTE: As a result of continual improvements, the design and specifications of the product within may differ slightly to the unit illustrated on the packaging.

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Handleiding

Circular fan with radial blades and a central hub, labeled with numbers 1, 2, 3 (no text or symbols on the fan itself)

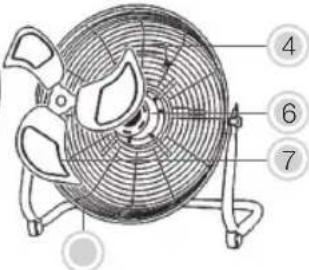

Diagram of a fan with numbered parts labeled 4, 6, and 7 for identification.

10 9 11 8

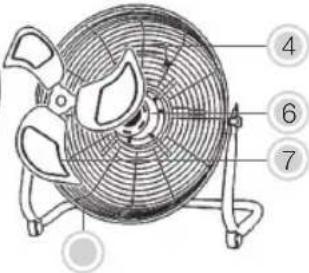

BESCHRIJVING VAN ONDERDELEN

Front view of a four-blade industrial fan with adjustable arms and downward arrows indicating side arm (no text or symbols)

Close-up of a flat-screen office fan with adjustable arm and stand (no visible text or symbols)

Front view of a four-bladed industrial fan with mounting brackets and downward arrows indicating force or adjustment (no text or symbols)

Exterior view of a flat-screen office fan with a coiled cable and indicator lights (no text or symbols visible)

Circular fan with radial blades and a central hub, labeled with numbers 1, 2, 3 (no text or symbols on the fan itself)

Diagram of a fan with numbered parts for identification

10 9 11 8

Front view of a four-bladed industrial fan with mounting brackets and downward arrows indicating side arm (no text or symbols)

Exterior view of a flat-screen office fan with adjustable arm and stand (no text or symbols visible)

Front view of a four-bladed industrial fan with two side supports and downward arrows indicating force or adjustment (no text or symbols)

Exterior view of a portable air conditioner unit with adjustable arm and base (no text or symbols visible)

Front view of a large industrial fan with visible blades and mounting brackets (no text or symbols)

Exterior view of a flat-screen office chair with a coiled cable and ventilation grille (no text or symbols visible)

Front view of a four-bladed industrial fan with two side supports and downward arrows indicating force or adjustment (no text or symbols)

Exterior view of a flat-screen office fan with a mounted grille and stand (no text or symbols visible)

MONTÁŽ KOVOVÉ ZÁKLADNY

Front view of a four-bladed industrial fan with two side brackets and downward arrows indicating side arm (no text or symbols)

Exterior view of a flat-screen office fan with visible grille and control knobs (no text or symbols)

Abstract geometric shape with curved and angular lines, no text or symbols present

Ref: 81004/2019.12
