USER MANUAL Bosotherm 1200 BOSO

White medical or dental device with a coiled cable and a small electronic device on top, placed on a dotted fabric mat (no text or symbols visible)

EN Heating pad Instruction for Use 9

Diagram of a medical or electrical device with numbered parts and labeled parts, likely for an endoscopy or cathode testing procedure.

Technical illustration of a mechanical component with a spring and circular housing (no text or symbols)

4.3 Einschalten

1. Items included in the package .... 10
   1.1 Description 10
2. Important instructions Retain for future use ....11
3. Intended use 12
4. Operation 12
   4.1 Safety 12
   4.2 Initial use 12
   4.3 Switching on 13

4.4 Setting the temperature 13
4.5 Automatic switch-off ....13
4.6 Switching off 13
5. Cleaning and maintenance ....13
6. Storage 14
7. Disposal 14
8. What if there are problems? 14
9. Technical data 14
10. Warranty 14

Explanation of symbols

	Read the instructions!		Do not wash
			Machine-washable at 40°C
	Do not insert pins! Do not bleach
			Do not tumble dry
			Iron at medium temperature
			Do not iron
	Do not use folded or rucked!		Do not dry-clean
	Not to be used by very young children (0 - 3 years).		The textiles used for this device meet the stringent human ecological requirements of Oeko-Tex Standard 100, as verified by Hohenstein Research Institute.
	Dispose of packaging in an environmentally friendly manner.
	This product satisfies the requirements of the applicable Euro-pean and national directives.		The KEMA-KEUR symbol documents the safety and compliance with standards of an electrical product.
	Please dispose of the device in accordance with EC Directive - WEEE (Waste Elec-trical and Electronic Equipment).		The device has double protective insulation and therefore complies with protection class 2.
	WARNING: Warning of risks of injury or health hazards
	CAUTION: Safety information about possible damage to appliance/accessories.
	NOTE: Important information.

1. Items included in the package

1 x Heating pad
1 x Cover
1 x Controller
1 x Instructions for use

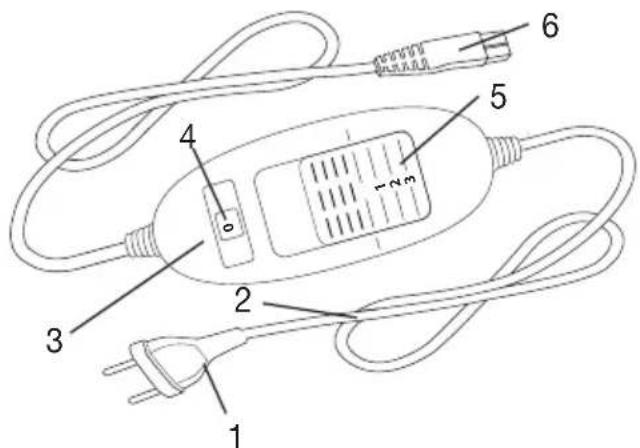

1.1 Description

1. Mains plug
2. Mains cable
3. Controller
4. Illuminated display for temperature settings
5. Sliding switch for ON/OFF and temperature settings
6. Plug-in coupling

Diagram of a medical or electrical device with numbered parts and labeled parts, likely for an endoscopic or diagnostic reference.

2. Important instructions Retain for future use

WARNING

• Non-observance of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.
• This heating pad must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain-relieving medication or alcohol).
• This heating pad may not be used by very young children (0-3 years old) as they are unable to respond to overheating.
• This heating pad may not be used by young children (3-8 years old) unless the controller has been set by a parent or responsible adult and the child has been given adequate instructions on how to use the heating pad safely.
• This heating pad may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised and have been instructed on how to use the heating pad safely, and are fully aware of the consequent risks of use.
• Children must not play with the heating pad.
• Cleaning and user maintenance must not be performed by children unless supervised.
• This heating pad is not designed for use in hospitals.
• Do not insert needles.
• Do not use when folded or bunched up.
• Do not use if wet.
• This heating pad may only be used in conjunction with the controller specified on the label.

• The electrical and magnetic fields emitted by this heating pad may interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this heating pad.

• Do not pull, twist or make sharp bends in the cables.

• Please check this heating pad frequently for signs of wear and tear or damage.

If any such signs are evident, if the heating pad has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.

• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.
• While the heating pad is switched on, the following conditions must be observed:

- Do not place any sharp objects on it.

- Heat sources, such as hot water bottles, heating pads or similar, must not be placed on the pad.

• The electronic components in the controller warm up when the heating pad is in use. For this reason, the controller must never be covered or placed on the heating pad when it is in use.
• Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).
• If you should have any questions about using our devices, please contact Customer Services.

3. Intended use

CAUTION

This heating pad is only designed to warm up the human body.

4. Operation

4.1 Safety

CAUTION

• The heating pad is fitted with a SAFETY SYSTEM. This sensor technology provides protection against overheating across the entire surface of the heating pad with an automatic switch-off in the event of a fault. If the SAFETY SYSTEM has switched off the heating pad, the temperature settings are no longer illuminated when switched on.
• Please note that for safety reasons, the heating pad can no longer be operated after a fault has occurred and must be sent to the specified service address.
• Do not connect the defective heat pad with another controller of the same type. This would trigger a permanent switch-off via the controller safety system.

4.2 Initial use

CAUTION

Ensure that the heating pad will not bunch up or become folded during use.

• First, connect the controller to the heating pad by inserting the plug-in coupling.
• Then plug the mains plug into the socket.

g use.

4.3 Switching on

To switch the heating pad on, set the sliding switch for ON/OFF and temperature settings to setting 1, 2 or 3. The temperature settings (4) are illuminated when switched on.

4.4 Setting the temperature

Level 0: OFF

Level 1: minimum heat

Level 2: medium heat

Level 3: maximum heat

NOTE

The fastest way to warm up the heating pad is to initially set the highest temperature setting.

NOTE bosotherm 1500

These heating pads have a fast heating function, which allows the pad to warm up faster in the first 10 minutes.

WARNING

If the heating pad is being used over several hours, we recommend that you set the lowest temperature setting on the controller to avoid overheating the heated body part, which may lead to burns to the skin.

4.5 Automatic switch-off

This heating pad is equipped with an automatic switch-off function. This turns off the heat supply approx. 90 minutes after the initial use of the heating pad. The temperature setting display then starts to flash. So that the heating pad can be switched back on, the sliding switch for ON/OFF and temperature settings (5) must first be set to setting "0" (OFF). After about 5 seconds it is possible to switch it on again.

4.6 Switching off

To switch the heating pad off, set the sliding switch for ON/OFF and temperature settings to setting "0" (OFF). The temperature settings are then no longer illuminated.

NOTE:

If the heating pad is not in use, switch the sliding switch for ON/OFF and temperature settings to setting "0" (OFF) and unplug the mains plug from the socket. Then disconnect the controller from the heating pad by unplugging the plug-in coupling.

5. Cleaning and maintenance

WARNING

Before cleaning, always remove the mains plug from the socket first. Then disconnect the controller from the heating pad by unplugging the plug-in coupling. Otherwise there is a risk of electric shock.

CAUTION

The controller must never come into contact with water or other liquids, as this may cause damage.

• To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.
• The textile cover can be cleaned in accordance with the symbols on the label and must be removed from the heating pad prior to cleaning.
• To clean the plastic protective cover on the heating pad, use a damp cloth.

CAUTION

Please note that the actual heating pad may not be machine-washed, spun or machine dried, chemically cleaned, wrung out, pressed or ironed. Otherwise the heating pad may be damaged.

WARNING

Never switch the heating pad on to dry it! Otherwise there is a risk of electric shock.

6. Storage

If you do not plan to use the heating pad for a long period of time, we recommend that you store it in the original packaging. For this purpose, disconnect the controller from the heating pad by unplugging the plug-in coupling.

CAUTION

• Please allow the heating pad to cool down before storing. Otherwise the heating pad may be damaged.
• To avoid sharp folds in the heating pad, do not place any objects on top of it while it is being stored.

7. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

8. What if there are problems?

Problem Cause Solution
The temperature settings are not illuminated while- the controller is properly connected to the heating pad- the mains plug is connected to a working socket- the sliding switch is set to 1, 2 or 3	The safety system has switched the heating pad off permanently.	Send the heating pad and the controller for servicing.

9. Technical data

See rating plate stamp on the heating pad.

10. Warranty

We offer a 3-year product warranty against material and production faults. The warranty does not cover:

• Damage due to improper operation
• Wearing parts
• Deficiencies already known to the customer upon purchase
• Cases of personal negligence on the part of the customer
• Outside interference

The warranty does not affect the customer's statutory rights. To assert a warranty claim within the warranty period, the customer must provide proof of purchase.

The warranty claim must be submitted within a period of 3 years from the date of purchase to BOSCH + SOHN GmbH u. Co. KG, Bahnhofstr. 64, D-72417 Jungingen (Germany). In the event of a warranty claim, the customer reserves the right to have the goods repaired at our own workshop or at a workshop authorised by us. No further rights are granted to the customer (on the basis of the warranty).
