USER MANUAL OKKA Minio Jet OK0013 Arzum

Black and white photo of a coffee maker with coffee cup and scattered coffee beans (no text or symbols visible)

KULLANMA KILAVUZU INSTRUCTION MANUAL GEBRAUCHSANWEISUNG MANUEL D'INSTRUCTIONS

ИНСТРУКЦИЯ ПО

ЭКСПЛУАТАЦИИ

دليل المستخدم

DEĞERLİ MÜŞTERİMİZ;

OKKA OKKA TEAT ① ② ③ ④ ⑤ ⑥ ⑦

ARZUM OKKA MINIO JET TÜRK KAHVESİ MAKİNESİ

Two black cups with handles and small cubes, one being stirred by a spoon (no text or symbols visible)

Black ceramic pitcher with a handle and spout, no visible text or symbols

White and black electric kettle with handle, shown against white background (no text or symbols visible)

Hand interacting with a black and white ceramic kettle (no visible text or symbols)

Close-up of a white and black square electronic device with 'OKKA MIND JET' branding and a small circular button (no readable text beyond branding)

Black-and-white photo of a hand pouring dark liquid from a black pitcher into a white cup on a saucer (no text or symbols visible)

5. TEMİZLİK VE BAKIM

Close-up of hands holding a black object, possibly a tool or device, against a white background (no text or symbols visible)

Close-up of hands holding a black cylindrical object with a handle, next to a white cloth (no text or symbols visible)

Hand holding a white object next to a black device with a black base, no visible text or symbols.

DEAR VALUED CUSTOMER;

We would like to thank you for choosing Arzum OKKA Minio Jet.

We recommend you to read this Manual carefully before using Arzum OKKA Minio Jet, and keep the Manual as it may be necessary in the future.

Arzum OKKA Minio Jet should only be used by people with knowledge of the safe use instructions given in this guide.

Terms of warranty and warranty certificate of your machine are also included in this manual.

*Our company does not take responsibility for any damage caused by improper handling contrary to the instructions in this manual or any application other than usage area and repairing to the product by other persons or parties than Arzum authorized services, and such conditions will make this warranty void.

Opening Package and First Use:

Before first use, take the machine and accessories out of the box, check for damage and malfunctions. If there are any damage or malfunctions, do not use the machine and apply to Arzum Authorized Service.

This product complies with all binding CE labeling directives.

It complies with AEEE Regulation.

This machine should not be disposed of as it is combined with recyclable parts in accordance with AEEE instructions. Please apply to the nearest civic amenity site or Arzum authorized service in order to recycle this machine.

OKKA MINIO JET

OK0013 / OK0013-K / OK0013-ST / OK0013-SY /

OK0014 / OK0015-0

TABLE OF CONTENTS

1. IMPORTANT SAFEGUARDS 16
2. GENERAL AND TECHNICAL SPECIFICATIONS OF THE MACHINE 20
3. USE OF MACHINE 21
4. RECOMMENDATIONS FOR MAKING A STRONG TURKISH COFFEE 22
5. CLEANING AND MAINTENANCE 24
6. TERMS OF WARRANTY AND WARRANTY CERTIFICATE 26

1. IMPORTANT SAFEGUARDS

Check voltage to be sure that the voltage indicated on the name plate of Arzum OKKA Minio Jet Technical Specifications corresponds with your voltage. Our company shall not be liable for any malfunction that may occur in the event of any discrepancy, therefore any malfunction resulting from discrepancy is out of warranty.

Arzum OKKA Minio Jet should only be operated by plugging into a grounded electrical socket connected in accordance with the regulations. Do not use extension cords that supply improper current in order to prevent damage to your machine.

Any repair for this electrical device or its power-supply should be conducted by authorized customer services personnel to avoid danger.

Please contact Arzum Customer

Services if it needs to be repaired.

Our company shall not be liable for any malfunction that may occur due to misuse, therefore any malfunction resulting from misuse is out of warranty.

To protect against electric shock, DO NOT clean and immerse machine and power cord in water. The machine is

electrically operated, avoid touching the plug with wet hands to protect against electric shock.

This appliance should be used by people who are informed, supervised and instructed to use this appliance in a safe manner and understood the risks. Do not let children to play with the appliance and cord, close adult supervision is required when the appliance is used or cleaned by children.

Attention: Keep children away from all packing materials, these materials have potential danger that can cause death as a result of choke.

This machine is intended to be used in such places like houses and following other places:

-Staff kitchen areas in shops, offices and other working environments,

• Farmhouses,
  -In motels, hotels and other residential type locations using by clients.
• In sleeping places and breakfast halls

Do not use outdoors, always avoid to keep the machine at zero or below zero temperatures.

Use Arzum OKKA Minio Jet ALWAYS on a hard, flat level surface. Do not place the appliance on the edge of table or countertop, the appliance can fall down. Remember your appliance could be filled with hot coffee.

Do not use Arzum OKKA Minio Jet on or near hot surfaces, heat resources, near a flame or fiery steam. (Ex: top of hot oven, heater, stove etc.) Do not let cord hang over edge of table or countertop or to contact other devices.

Do not leave Arzum OKKA Minio Jet unaccompanied and unattended during operation.

When using your coffeemaker for the first time, simply put water into coffee pot and operate your appliance then discard the waste water.

Do not start brewing coffee process without putting water into coffee pot. There is water-secure security implementation on your appliance. In case operating without water, the appliance will shut off after a while and will not be rerun until it cools down.

Do not put any material into coffee pot except water, coffee and sugar.

Coffee pot should only be used with this appliance, do not use

with any heater. (Ex: on oven, microwave oven etc.)

Serve your brewed coffee with cup, do not drink from the coffee pot.

To handle/carry the coffee pot always use a carrying handle.

After brewing coffee process, energy transmission base where the coffee pot is placed, could be hot. Before touching the energy transmission base, wait it to get cold.

Please, unplug from outlet your appliance when your appliance not in use, before cleaning and allow coffee pot to cool.

Please find detailed information about cleaning the appliance on Cleaning and Maintenance section.

Always unplug Arzum OKKA Minio Jet when; the coffeemaker is not in use for a long time and/or a malfunction occurs and/or poses a danger.

While pulling the plug NEVER pull at grid cable; always pull the plug itself.

Make sure that you unplug from outlet when cleaning and maintenance application.

Use your machine with its own power base unit only.

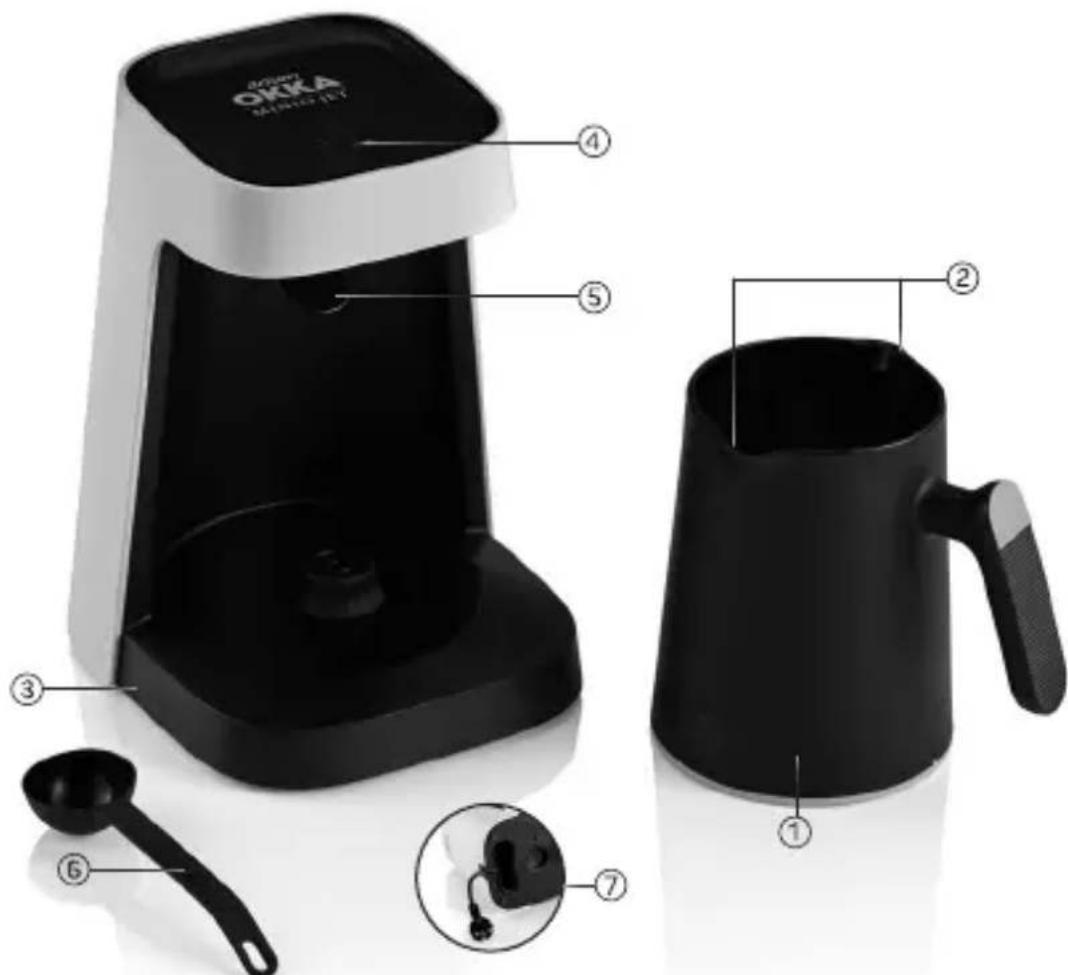

2. GENERAL AND TECHNICAL SPECIFICATIONS OF THE MACHINE

OKKA Miniety Kit ① ② ③ ④ ⑤ ⑥ ⑦

ARZUM OKKA MINIO JET TURKISH COFFEE MACHINE

1- 1-5 cups brewing capacity
2- Double-sided coffee pot (suitable for right and left-handed use)
3- Energy transmission base
4- Start button and status light
5- Brewing detection sensor
6- Turkish coffee measuring spoon
7- Cable storage area
7 year service life.
Mains voltage: 220-240V \~ 50/60 Hz
Power: 400 W

Values labeled on the appliance or declared by printed documents are obtained under laboratory conditions according to relevant standards. These values may change depending on the ambient conditions where product is used.

3. USE OF MACHINE

Wipe off the main body of the appliance before first use.

After putting water into the coffee pot at MAX level, operate the machine and discard the waste water and allow the appliance to cool.

Your Arzum OKKA Minio Jet Turkish Coffee Machine heats during use, therefore do not touch hot surfaces.

You can only make coffee with your coffeemaker. Do not use any liquids or solution in order to boil or heat.

You can make coffee for 1-5 people with your Arzum OKKA Minio Jet Turkish Coffee Machine.

When you plug in your machine, status light will turn white with a beeping sound.

Put enough water into coffee pot by number of people. Use Arzum OKKA Minio Jet measuring spoon to put exact required quantity of Turkish coffee. Add required quantity of sugar and toss to prevent ball formation. Make sure the mixture does not exceed the max level in the coffee pot.

Once you place your appliance on energy transmission base and press the start button, status light will turn into red and start the brewing process. When brewing process ends, your appliance will give a warning beep and status light will turn into white again.

Never displace the coffee pot during brewing process. When you remove the coffee pot from its slot for any reason during the brewing process and it is not placed its slot within 7 minutes, your coffee machine will beep 3 times during this times and the red status light will turn white.

You can easily take the coffee pot to serve when brewing process is done.

Always clean the coffee pot with a dry and damp cloth after each use. Never wash the reservoir by means of immersing it into water or wash in the dishwasher.

4. SUGGESTIONS FOR BREWING STRONG TURKISH COFFEE

Arzum OKKA Minio Jet, is a practical appliance designed to prepare Turkish coffee in an ideal consistency by simmering.

In the below table you can find suggested ideal measures for preparing delicious Turkish Coffee.

• Displayed amount is coffee for one person.

- 1 scale is the suggested amount of coffee. Depending on a strong or soft coffee you may use more or less coffee to your taste.

- Use fresh coffee for a delicious and foamy Turkish coffee.

Suggested Scale Of Ingredient For Preparing delicious Turkish Coffee

WATER SUGARCOFFEE
BLACK COFFEE	1 Turkish coffee cup	1 scale Arzum OKKA Minio Jet spoon	Without sugar
COFFE WITH LITTLE SUGAR	1 Turkish coffee cup	1 scale Arzum OKKA Minio Jet spoon	Half cube sugar/ Half teaspoon powder sugar
COFFEE WITH MEDIUM SUGAR	1 Turkish coffee cup	1 scale Arzum OKKA Minio Jet spoon	1 piece of cube sugar/ 1 teaspoon of powder sugar
SWEET COFFEE	1 Turkish coffee cup	1 scale Arzum OKKA Minio Jet spoon	2 pieces of cube sugar/ 2 teaspoon s of powder sugar

Brewing:

1. Insert the plug. Your appliance will turn on automatically and status light will turn into white.

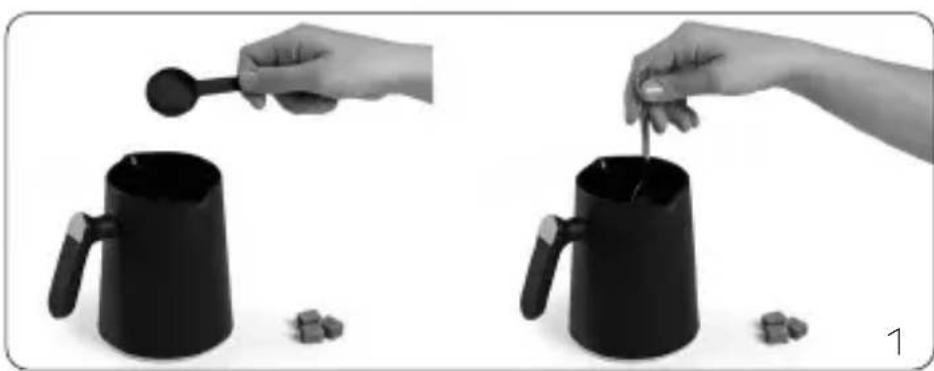

2. According to the above suggested scales, firstly add coffee then sugar and then water to the cooking coffee pot. Slightly mix with a spoon (Figure-1)

Two black cups with handles and small cubes, one being stirred by a spoon (no text or symbols visible)

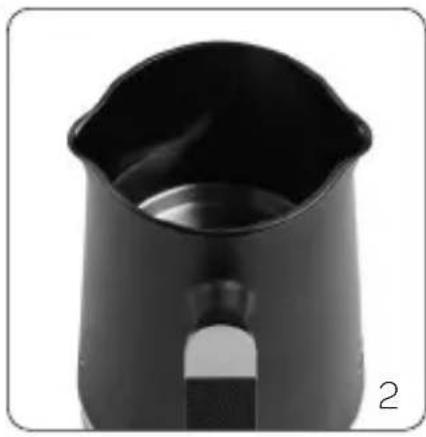

Note: For a delicious coffee, make sure the interior of coffee pot is clean.

1. Your appliance can make coffee up to 5 persons at a time. As your cup sizes may vary, pay attention not to exceed water-coffee-sugar mixture beyond the MAX level line in the coffee pot. Otherwise coffee may not brew well and/or boil over the coffee pot. (Figure-2)

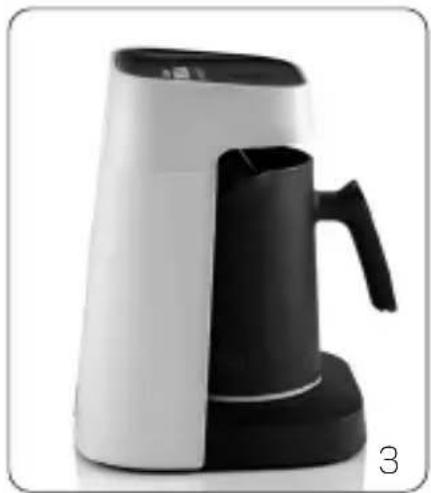

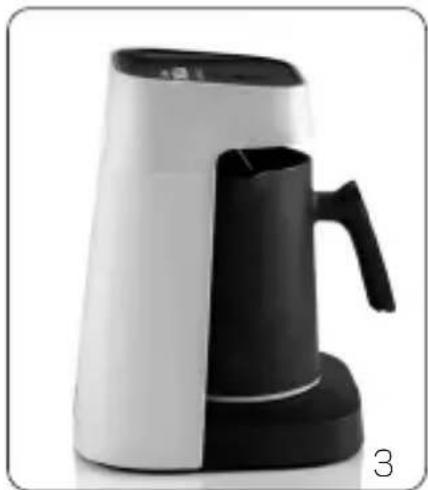

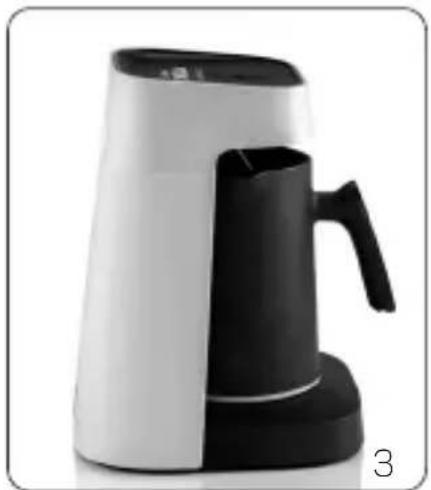

2. Place the coffee pot to the appliance. (Figure-3)

Note: If you do not place the cooking coffee pot to its spot correctly your appliance will not start brewing.

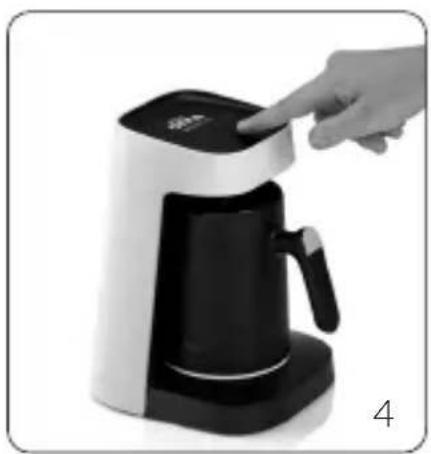

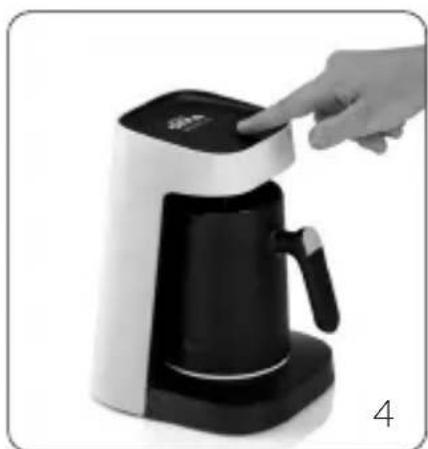

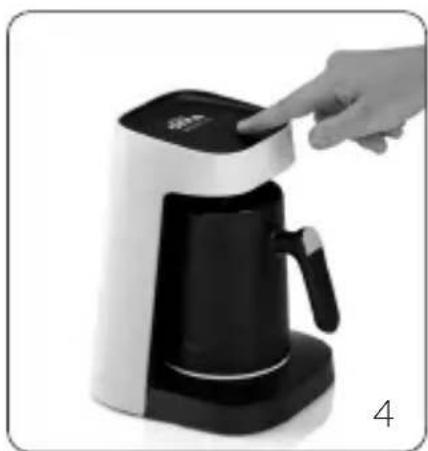

1. Press the start button located on the front panel. (Figure-4)
2. Appliance will give a warning sound (beep) to start and the status light around start button will turn into red. (Figure-5)
3. Brewing duration;

AMOUT COOKING DURATION

1 PERSON	1-1.5 MIN
2 PERSON	1.5-2 MIN
3 PERSON	2.5-3 MIN
4 PERSON	3-4 MIN
5 PERSON	4-5 MIN

Note: Duration of brewing may vary depending on ambient temperature, water temperature and mains voltage. On subsequent brewing process, the duration may shorten as the appliance will be hotter.

1. After brewing process has finished, your appliance will give warning beep and the red status light turns into white and goes into sleep mode. You may completely turn off your appliance by plugging out.

Black ceramic pitcher with a handle and spout, no visible text or symbols

White and black electric kettle with handle, shown against white background (no text or symbols visible)

Hand interacting with a black and white ceramic kettle (no visible text or symbols)

OKKA MINO JET 5

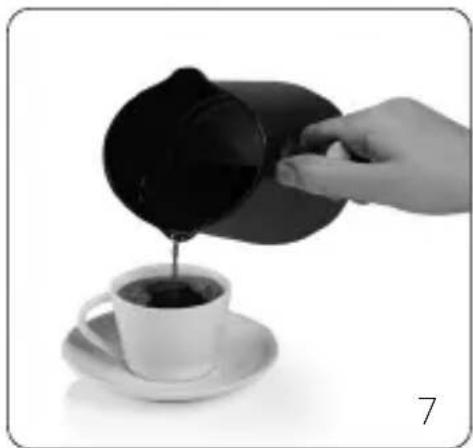

1. After cooking you can serve your coffee by pouring into the cup.

Note: In order to prevent the residue of foam and coffee grounds in the coffee pot, shake the coffee pot slightly and then pour. (Figure-7)

1. If you wish to cancel the brewing process for any reason, just press the start button.

Black-and-white photo of a hand pouring dark liquid from a black pitcher into a white cup on a saucer (no text or symbols visible)

5. CLEANING AND MAINTENANCE

Before cleaning, unplug your machine and allow for the brewing pots to cool down. After pouring the water or coffee from the coffee pot and washing it, wipe the outside of the coffee pot with a dry or damp cloth.

Close-up of hands holding a dark object, possibly a tool or device, against a white background (no text or symbols visible)

Close-up of a hand holding a black cylindrical object with a handle, next to a white tassel (no text or symbols visible)

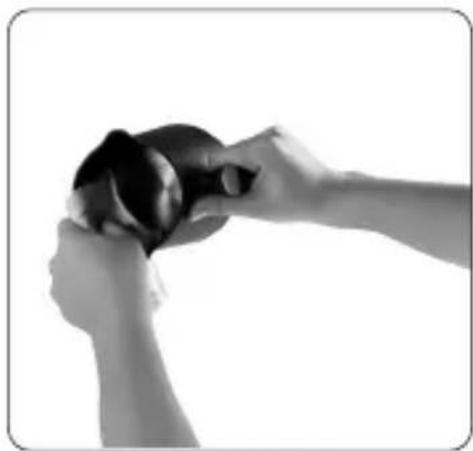

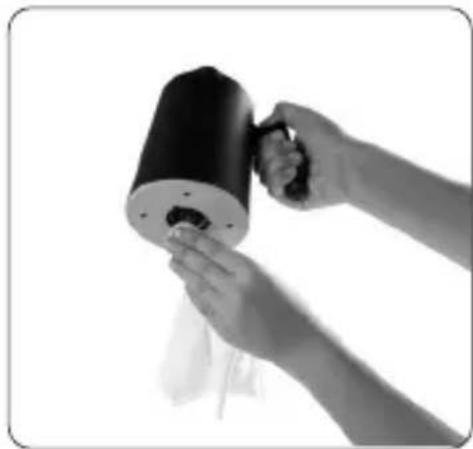

Clean the external surface of the coffee pot and its main body, including the energy transmission base only with a dry or damp cloth. NEVER wash the coffee pot by means of immersing it into water or wash in the dishwasher.

Always clean the coffee pot with a dry and damp cloth after each use. Never wash the reservoir by means of immersing it into water or wash in the dishwasher.

Do not clean any of the appliance accessories with harsh and chemical cleaners (bleach, hydrochloric acid, etc.) except the cleaners used for this type of devices. Do not use abrasive cleaners, metal objects, hard sponges, wire brushes or harsh cleaners to clean the appliance.

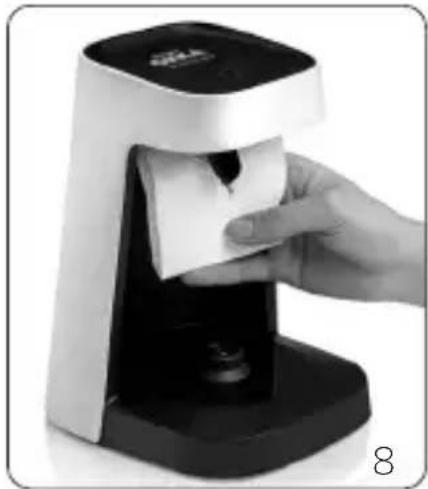

Wipe the cooking sensor with a wet fabric after each use. (Figure-8)

Hand inserting a white card into a black digital device (no text or symbols visible)

Removing Calcification

Lime inside the water used in time may pile up inside the coffee pot and thus may reduce the performance of your appliance.

You can clean your appliance's coffee pot with a decalcifying product specific to electrical kitchen appliances or you may try environmental friendly solutions such as white vinegar.

In order to clean your appliance's coffee pot with white vinegar; pour enough white vinegar to cover the base of your appliance's dec

6. HANDLING AND SHIPMENT

During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.

Keep at normal position during shipment.

Do not drop the product when transporting and protect from impacts.

After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

VEREHRTER KUNDE;

Two black cups with small cubes, one being lifted by a hand using a spoon to add liquid (no text or symbols visible)

Black ceramic pitcher with a handle and spout, no visible text or symbols

White and black electric kettle with lid, shown against white background (no text or symbols visible)

Hand interacting with a black and white water heater (no visible text or symbols)

Close-up of a white and black square device with 'OKKA MIND JET' branding and a circular button labeled '5' (no additional text or symbols visible)

Hand pouring dark liquid into a black pitcher on a saucer (no text or symbols visible)

Close-up of hands holding a dark object, possibly a tool or device, against a white background (no text or symbols visible)

Close-up of hands holding a black cylindrical object with a white handle, no visible text or symbols

Hand holding a white object inside a black device, no visible text or symbols on the device or background.

Entkalken

Two black cups with handles and small cubes, one being stirred by a spoon (no text or symbols visible)

Black ceramic pitcher with a handle and spout, no visible text or symbols

White and black electric kettle with handle, shown against white background (no text or symbols visible)

Hand interacting with a black and white coffee maker (no visible text or symbols)

OKKA MUNO JET 5

Black-and-white photo of a hand pouring dark liquid from a black pitcher into a white cup on a saucer (no text or symbols visible)

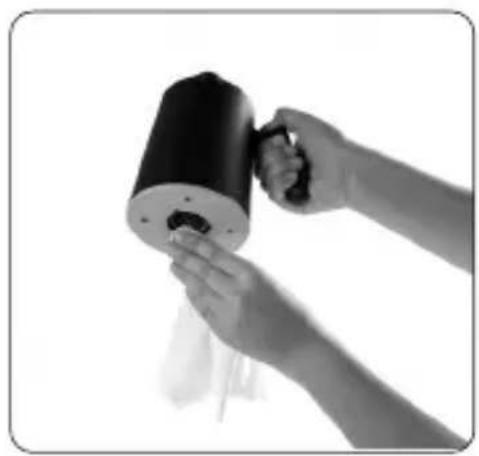

5.NETTOYAGE ET ENTRETIEN

Close-up of hands holding a black object, possibly a tool or device, against a white background (no text or symbols visible)

Close-up of hands holding a black cylindrical object with a handle, partially covered by white paper (no text or symbols visible)

Hand inserting a card into a digital device (no text or symbols visible)

Suppression de la calcification

6.MANUTENTION ET EXPEDITION

Two black cups with small cubes, one holding a spoon and the other pouring liquid from a container (no text or symbols visible)

Hand pouring dark liquid into a black pitcher on a saucer (no text or symbols visible)

5. ЧИСТКА И УХОД

Hand inserting a white card into a black digital device (no text or symbols visible)

Close-up of hands holding a dark object, possibly a tool or device, against a plain white background (no text or symbols visible)

6.

Close-up of hands holding a black cylindrical device with a handle, against a white background (no text or symbols visible)

Two black cups with handles and small cubes, one being lifted by a hand using a spoon (no text or symbols visible)

Black ceramic pitcher with a handle and spout, no visible text or symbols

White and black electric kettle with lid, shown against white background (no text or symbols visible)

Hand interacting with a black and white coffee maker (no visible text or symbols)

Black-and-white photo of a hand pouring dark liquid from a black pitcher into a white cup on a saucer (no text or symbols visible)

Hand inserting a card into a digital device (no text or symbols visible)

Close-up of hands holding a dark, round object against a white background (no text or symbols visible)

Close-up of hands holding a black cylindrical device with a handle, no visible text or symbols

GARANTI ŞARTLARI

Manufacturer / Importer:
