USER MANUAL Okka Rich Spin M Arzum

White ceramic coffee cup with saucer filled with coffee beans, accompanied by scattered dark brown coffee beans (no text or symbols visible)

DEĞERLİ MÜŞTERİMİZ;

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

ARZUM OKKA RICH SPIN M TÜRK KAHVESİ MAKİNESİ

Hand inserting a coffee maker into a black stand (no text or symbols visible)

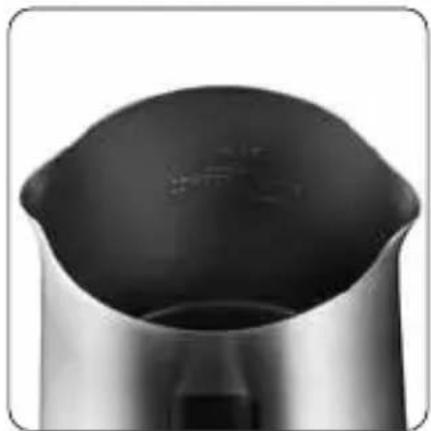

Close-up of a metallic pitcher with a curved lid (no visible text or symbols)

Hand holding a black and silver coffee maker with a handle, no visible text or symbols

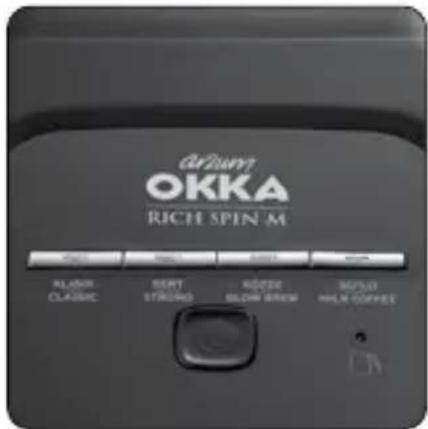

Airfoil OKKA RICH SPIN M AIRfoil CLASSIC RIGHT STRONG KHOSE BLOW BREW SOLD FULL COWEET

Black-and-white photo of a hand pouring liquid from a teapot into a teacup (no text or symbols visible)

KA PIN M KÖZDE SLOW BREW SUTLO MILK COFFEE

5. TEMİZLİK VE BAKIM

Close-up of hands installing a black cylindrical device with a spiral pattern on the lid (no visible text or symbols)

DEAR VALUED CUSTOMER;

We would like to thank you for choosing Arzum OKKA Rich Spin M. We recommend you to read this Manual carefully before using Arzum OKKA Rich Spin M, and keep the Manual as it may be necessary in the future. Arzum OKKA Rich Spin M should only be used by people with knowledge of the safe use instructions given in this guide.

Terms of warranty and warranty certificate of your machine are also included in this manual.

*Our company does not take responsibility for any damage caused by improper handling contrary to the instructions in this manual or any application other than usage area and repairing to the product by other persons or parties than Arzum authorized services, and such conditions will make this warranty void.

Opening Package and First Use:

Before first use, take the machine and accessories out of the box, check for damage and malfunctions. If there are any damage or malfunctions, do not use the machine and apply to Arzum Authorized Service.

This product complies with all binding CE labeling directives.

It complies with AEEE Regulation.

This machine should not be disposed of as it is combined with recyclable parts in accordance with AEEE instructions. Please apply to the nearest civic amenity site or Arzum authorized service in order to recycle this machine.

OKKA RICH SPIN M

OK0012 / OK0012-K / OK0012-0

OK0012-R / OK0012-RK / OK0012-R0

TABLE OF CONTENTS

1. IMPORTANT SAFEGUARDS 16
2. GENERAL AND TECHNICAL SPECIFICATIONS OF THE MACHINE 20
3. USE OF MACHINE 21
4. RECOMMENDATIONS FOR MAKING A STRONG TURKISH COFFEE 22
5. CLEANING AND MAINTENANCE 24
6. TERMS OF WARRANTY AND WARRANTY CERTIFICATE 26

1. IMPORTANT SAFEGUARDS

Check voltage to be sure that the voltage indicated on the name plate of Arzum OKKA Rich Spin M Technical Specifications corresponds with your voltage. Our company shall not be liable for any malfunction that may occur in the event of any discrepancy, therefore any malfunction resulting from discrepancy is out of warranty.

Arzum OKKA Rich Spin M should only be operated by plugging into a grounded electrical socket connected in accordance with the regulations. Do not use extension cords that supply improper current in order to prevent damage to your appliance.

Any repair for this electrical device or its power-supply should be conducted by authorized customer services personnel to avoid danger.

Please contact Arzum Customer

Services if it needs to be repaired.

Our company shall not be liable for any malfunction that may occur due to misuse, therefore any malfunction resulting from misuse is out of warranty.

To protect against electric shock, DO NOT clean and immerse machine and power cord in water. The machine is

electrically operated, avoid touching the plug with wet hands to protect against electric shock.

This appliance should be used by people who are informed, supervised and instructed to use this appliance in a safe manner and understood the risks. Do not let children to play with the appliance and cord, close adult supervision is required when the appliance is used or cleaned by children.

Attention: Keep children away from all packing materials, these materials have potential danger that can cause death as a result of choke.

This machine is intended to be used in such places like houses and following other places:

- In shops, offices and kitchens for staff in other working places,

• Farmhouses,
• In motels, hotels and other residential type locations,
• In sleeping places and breakfast halls,

Do not use the appliance outdoors, always avoid to keep the machine at zero or below zero temperatures.

Use Arzum Rich Spin M ALWAYS on a hard and flat level surface. Do not place the appliance on the edge of table or countertop. Even a small impact may fall down your appliance. Remember your appliance could be filled with hot coffee.

Do not use Arzum Okka Rich Spin M on or near hot surfaces, heat resources, near a flame or fiery steam. (Ex: top of hot oven, heater, stove etc.) Do not let cord hang over edge of table or countertop and to contact other appliance.

Do not leave Arzum OKKA Rich Spin M unaccompanied and unattended during operation.

When using your appliance for the first time, simply put water into coffee pot and operate your appliance then discard the waste water.

Do not start brewing coffee process without putting water/milk into coffee pot. There is water-secure security implementation in your appliance. In case operating without water, the appliance will shut off after a while and will not be rerun until it cools down.

Do not put any material into coffee pot except water, milk, coffee and sugar.

Coffee pot should only be used with this appliance, do not use

with any heater. (Ex: on oven, microwave oven etc.)

Serve your brewed coffee with cup, do not drink from the coffee pot.

To handle/carry the coffee pot always use a carrying handle

Please, unplug from outlet your appliance before cleaning and allow coffee pot to cool. Please find detailed information about cleaning the appliance on Cleaning and Maintenance section.

Always unplug Arzum OKKA Rich Spin M when the coffeemaker is not in use for a long time and/or a malfunction occurs and/or poses a danger.

While pulling the plug NEVER pull at grid cable; always pull the plug itself.

Make sure that you unplug from outlet when cleaning and maintenance application.

Use your machine with its own energy transmission base only.

2. GENERAL AND TECHNICAL SPECIFICATIONS OF THE MACHINE

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

ARZUM OKKA RICH SPIN M TURKISH COFFEE MACHINE

1- Coffee pot with mixer for 1-5 cups brewing capacity
2- Double-sided pouring point (suitable for right and left handed use)
3- Energy transmission base
4- On / Off button
5- Classic coffee brewing mode

7 year service life.

Mains voltage: 220-240V \~ 50-60 Hz

Power: 700W

6- Strong coffee brewing mode
7- Slow coffee brewing mode
8- Milk coffee brewing mode
9- Mixer
10- Ambience lighting
11- Coffee pot/Cooking chamber is not in the place warning light
12- Turkish coffee teaspoon

Values labeled on the appliance or declared by printed documents are obtained under laboratory conditions according to relevant standards. These values may change depending on the ambient conditions where product is used.

3. USE OF MACHINE

Wipe off the main body of the appliance before first use. Wipe off the outside of the coffee pot with a damp cloth. In the first use, after putting water into the coffee pot at MAX level, operate the machine and discard the waste water and allow the appliance to cool.

Your Arzum OKKA Rich Spin M Coffee Machine heats during use, therefore do not touch hot surfaces.

You can only make turkish coffee or milk coffee with your coffee machine. Do not use any liquids or solution.

You can make coffee for 1-5 people with your Arzum OKKA Rich Spin M Turkish Coffee Machine. The maximum capacity for milk coffee mode is 4 cups.

When you plug in your appliance and then press the on/off button on the control panel, all the led lights on the panel will flash once with the beep sound and all the leds will light up.

Put required quantity of water or milk into coffee pot according to the number of people. Use Arzum OKKA Rich Spin M measuring spoon to put exact required quantity of Turkish coffee. Add required quantity of sugar. Make sure the mixture in the coffee pot does not exceed the max level inside the coffee pot. To prepare 1 cup of Turkish coffee in milk mode, half a cup of water, half a cup of milk and half a measure of Turkish coffee should be used.

Once you place your appliance on energy transmission base and press the desired mode button, the selected mode light will turn on and the other mode lights will turn off. When the brewing process starts, the mixer in the coffee pot automatically will mix your coffee. After brewing process has finished, your appliance will give a warning beep for 10 seconds and selected mode light will flash.

Never displace the coffee pot during brewing process In case that you displace the coffee pot during brewing process for any reason, the appliance will give a warning beep and all function buttons on the control panel will turn off.

You can easily take the coffee pot to serve when brewing process is done.

Always clean the coffee pot after each use. Do not wash the coffee pot under the tap water, you can wipe the outside of it with a damp cloth. DO NOT wash coffee pot in dishwasher.

AUTO BREWING ALTITUDE DETECTION AND BREWINGALTITUDEMEASUREMENTSETTING

Arzum OKKA Rich Spin M has a smart auto brewing altitude detection system enabling you to make Turkish coffee with the same flavor anywhere in the world, by determining the ideal brewing temperature in the place where it is present.

The brewing point of the water depends on the altitude difference based on the sea level. Therefore, you can manually set the brewing point of the appliance when the altitude difference based on used of your appliance.

a. Plug in the device.
b. Press the On/Off button on the control panel.
c. All leds on the control panel will flash and give the warning beep.
ç. Remove the coffee pot from its slot.

d. Press the Classic and Slow buttons simultaneously for 3 seconds.

e. After the beep sound, the LEDs of the Classic and Slow modes will start to flash and then the manual calibration mode will be activated.

f. Place the coffee pot into its slot by putting a minimum of 180 ml (3 cups) of water into the coffee pot.

g. Wait for the water in the coffee pot to come to a rolling boil.

h. When the calibration process is completed, your appliance will give a warning beep for 10 seconds and function leds of Classic and Slow mode will flash.

i. Once remove the coffee pot from its slot, the appliance will beep and all leds will turn off.

BREWING TEMPERATURE SETTING

You can bring the coffee to the desired temperature by increasing or decreasing the brewing temperature of the coffee.

Increasing the temperature:

• Plug in your appliance.
• Press ON/OFF button.

• All leds on the control panel will flash once.

• Remove the coffee pot from its slot.

• Press the Strong and Milk buttons simultaneously for 3 seconds.

After the beep sound, the leds of the Strong and Milk modes will start to flash and then the manual brewing temperature setting mode will be activated.

You can increase the temperature by pressing the milk mode button. The temperature is increased by 1C^ in every press of the button.

The allowable temperature rise is max. 1°C.

Decreasing the temperature:

. Plug in your appliance.
- Press ON/OFF button.
. All leds on the control panel will flash once.
- Remove the coffee pot from its slot.
- Press the Strong and Milk buttons simultaneously for 3 seconds.

After the beep sound, the leds of the Strong and Milk modes will start to flash and then the manual brewing temperature setting mode will be activated.

You can decrease the temperature by pressing the Strong Mode button. The temperature is decreased by 1°C in every press of this button.

The allowable temperature decrease is max. 3°C.

4. BREWING

Arzum OKKA Rich Spin M, is designed to prepare Turkish coffee in 4

different modes (Classic, Strong, Slow and Milk)

Hand placing a black and silver coffee maker on its side panel (no visible text or symbols)

1. Plug in your appliance
2. Press the On/Off button on the panel.

Note: For delicious coffee, make sure that inside of the coffee pot is clean.

1. With the exception of the milk mode, the appliance can make coffee up 5 people at a time, and in the milk mode up 4 people at a time.

Pay attention not to exceed water-coffee-sugar mixture or milk mixture beyond the MAX level line in the coffee pot as the size of cups you are

using may differ. Otherwise, the coffee may not be brewed well and / or may overflow from the coffee pot. To prepare 1 cup of Turkish coffee in milk mode, half a cup of water, half a cup of milk and half a measure of Turkish coffee should be used.

1. Place the coffee pot in the appliance.

Note: If the Coffee pot is not in the place or not place in its slot, all leds on the control panel will remain off but coffee pot is not in the place warning light and ambient lighting will continue to light.

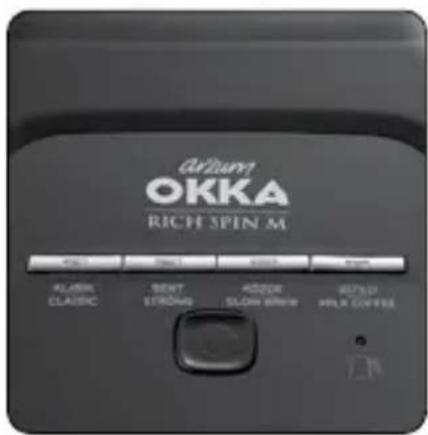

1. Depending on the type of coffee as you want, press the KLASİK/CLASSIC button for Classic Turkish Coffee, SERT/STRONG button for Strong Turkish Coffee, KÖZDE/SLOW BREW button for Slow Turkish Coffee, SUTLU/MILK COFFEE button for Milk Turkish Coffee.

2. When any brewing mode is selected, a beep sound will be heard and only the white led of the selected brewing mode will remain on and the brewing process will start.

3. Brewing times,

AMOUNT CLASSIC STRONG SLOW WITH MILK
1 CUP	1-1.5 MIN	1.5-2 MIN	3-3.5 MIN	1-1.5 MIN
2 CUPS	2-2.5 MIN	2.5-3 MIN	4-4.5 MIN	2-2.5 MIN
3 CUPS	3.5-4 MIN	3.5-4 MIN	5-5.5 MIN	3-3.5 MIN
4 CUPS	4.5-5 MIN	5-5.5 MIN	6-6.5 MIN	4-4.5 MIN
5 CUPS	5-5.5 MIN	5.5-6 MIN	7 MIN

Close-up of a metallic cylindrical container with a flanged top and a small side outlet (no visible text or symbols)

Hand holding a black and silver coffee maker with a handle, no visible text or symbols

Orizum OKKA RICH SPIN M OPEN TRANS ONION HORN BLACK CLASSIC SEND STRONG ADDRESS SLOWS WITH WHIP HORN COVER 5

Note: Duration of brewing may vary depending on ambient temperature,

water/milk temperature and mains voltage.

On subsequent brewing process, the duration may shorten as the appliance will be hotter.

KA PIN M KÖZDE SLOW BREW SÜTLÜ MLK COFFEE

1. After brewing process has finished, your appliance will give warning beep for 10 seconds and the led light and ambient lighting for the selected brewing mode will flash.

2. After brewing process has finished, you can serve your coffee by pouring into the cup.

3. If you displace the coffee pot before the brewing process is over, the red colored warning light that coffee pot is not in its place and all function lights will flash and your appliance will give a warning sound and finish the brewing process. If the coffee pot is put back after being removed, the brewing process will not continue.

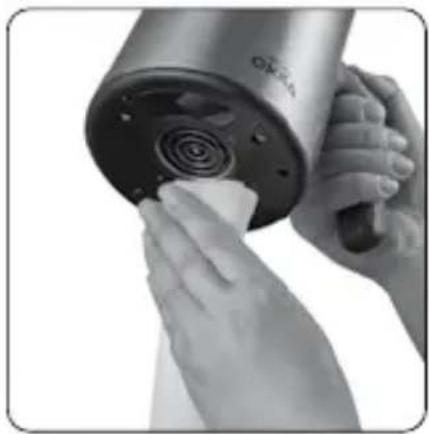

Close-up of hands holding a black OKA-branded hairdryer with a circular vent on the lid (no text or symbols visible)

5. CLEANING AND MAINTENANCE

Please, unplug from outlet your appliance before cleaning and allow coffee pot to cool.

NEVER wash the coffee pot by means of immersing it into water, under water or wash in the dishwasher.

With the exception of the coffee pot, wipe the main body of the appliance, including the energy transmission base, only with a dry or damp cloth, NEVER plunge it into water or wash in the dishwasher.

Hand pouring liquid from a teapot into a teacup on a saucer (no text or symbols visible)

Do not clean any of the appliance accessories with harsh and chemical cleaners (bleach, hydrochloric acid, etc.) except the cleaners used for this type of appliances. Do not use abrasive cleaners,

metal objects, hard sponges, wire brushes or harsh cleaners to clean the appliance.

Removing Calcification

Lime inside the water used in time may pile up inside the coffee pot and thus may reduce the performance of your appliance.

You can clean your appliance's cooking pot with a decalcifying product specific to electrical kitchen appliances or you may try environmental friendly solutions such as white vinegar.

To clean the cooking container with white vinegar; fill white vinegar in your appliance enough to cover the base and wait for 1 hour, and after that, empty the vinegar and wash your appliance with clean water for 2-3 times.

HANDLING AND SHIPMENT

During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.

Keep at normal position during shipment.

Do not drop the product when transporting and protect from impacts.

After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

EN

VEREHRTER KUNDE;

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

Hand inserting a black and silver coffee maker into a black tray (no text or symbols visible)

Close-up of a metallic cylindrical container with a flanged top and side port (no visible text or symbols)

Hand holding a black and white beverage dispenser with a stainless steel tray (no visible text or symbols)

Oriun OKKA RICH SPIN-M RGB RGB RGB RGB FLASH CLASSIC SENT STRONG RESET SLOW BIND MUSH COFFEE 5

Close-up of hands holding a cylindrical device with a spiral button, no visible text or symbols

Black-and-white photo of a hand pouring liquid from a teapot into a cup on a saucer (no text or symbols visible)

OK0012 / OK0012-K / OK00I2-0

OK0012-R / OK0012-RK / OK0012-RO

TABLE DES MATIÈRES

1. CONSIGNES DE SÉCURITÉ IMPORTANTES 40

2. GÉNÉRAL ET TECHNIQUE CARACTÉRISTIQUES DE LA MACHINE 44

3. UTILISATION DE LA MACHINE 45

4. RECOMMANDATIONS POUR FAIRE UN FORME CAFÉ TURC 46

5. NETTOYAGE ET ENTRETIEN 48

6. CONDITIONS DE GARANTIE ET 49 CERTIFICAT DE GARANTIE

1. CONSIGNES DE SÉCURITÉ IMPORTANTES

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

ARZUM OKKA RICH SPIN M MACHINE A CAFE TURQUE

Black and silver portable coffee maker with a hand pointing to its side panel (no visible text or symbols)

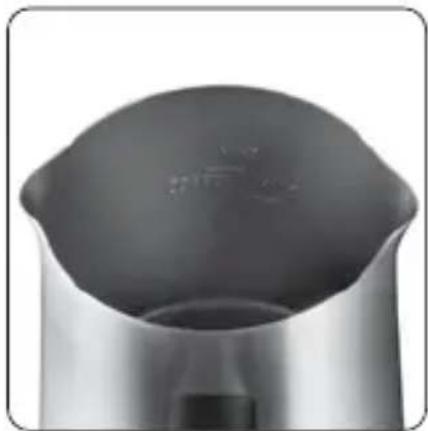

Close-up of a metallic cylindrical container with a flanged top and a small side outlet (no visible text or symbols)

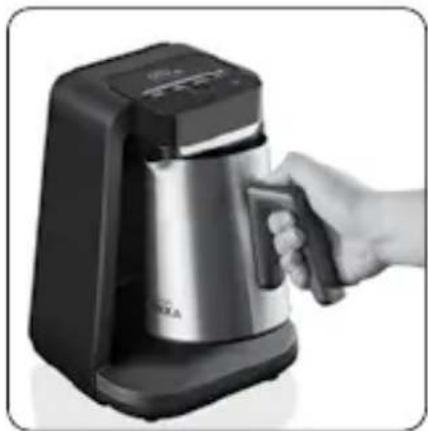

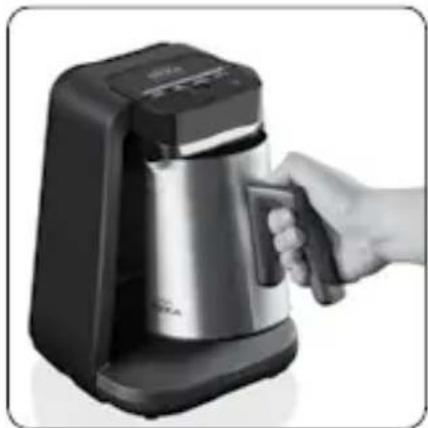

Hand holding a black and silver coffee maker with a handle, no visible text or symbols

Okka RICH SPIN M KLINE CLASSIC BENT STRONG ASZIX SLDR GROUP SOLD HILL ON FEB

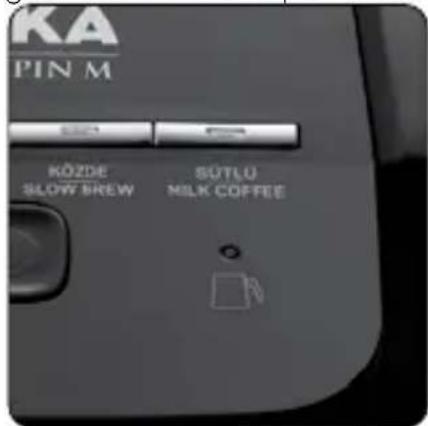

KA PIN M KÖZDE SLOW BREW SÓTLO MILK COFFEE

Close-up of hands holding a cylindrical device with a spiral button, no visible text or symbols

5.NETTOYAGE ET ENTRETIEN

Black-and-white photo of a hand pouring dark liquid from a teacup into a saucer (no text or symbols visible)

Black and silver portable coffee maker with a hand pointing to its side panel (no visible text or symbols)

Close-up of a metallic cylindrical container with a flanged top and a small side outlet (no visible text or symbols)

Hand holding a black and silver coffee maker with a white label (no visible text or symbols on the device itself)

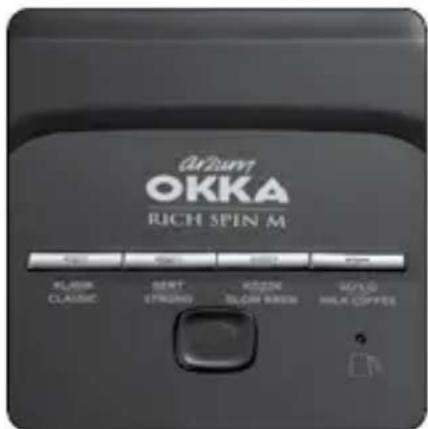

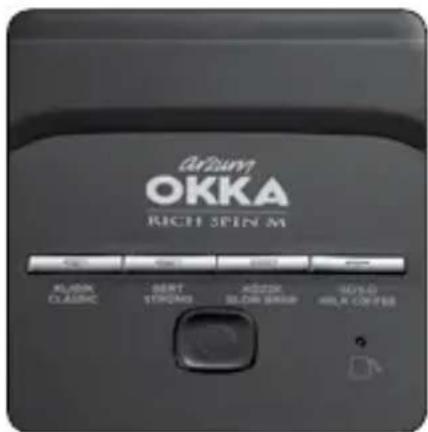

Air Burk OKKA RICH SPIN M KLINE CLASSIC BENT STRONG KLINE SLOW BREAD SOLD MLK COFFEE

KA PIN M KOZDE SLOW BREW SÜTLO MILK COFFEE

Close-up of hands installing a device into a cylindrical container (no visible text or symbols)

5. ЧИСТКА И УХОД

Black-and-white photo of a hand pouring liquid from a teapot into a teacup (no text or symbols visible)

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

ARZUM OKKA RICH SPIN M

Hand interacting with a black and silver coffee maker (no visible text or symbols)

1. الطهي

Close-up of a metallic cylindrical container with a flanged top and a small side outlet (no visible text or symbols)

Hand holding a black and silver coffee maker with a handle, no visible text or symbols

KA PIN M KÓZOE SLOW BREW SÚTLO MILK COFFEE

Close-up of hands installing a device into a cylindrical container with a spiral pattern (no visible text or symbols)

Black-and-white photo of a hand pouring dark liquid into a teacup on a saucer (no text or symbols visible)

Zhenghe South Road, Leliu Town, Shunde District,

Foshan City, Guangdong Province, China

ithalatçı:

Importer:
