IAN 279181 - Lighting MELINERA - Free user manual and instructions

Product type	LED Christmas tree garland
Brand	Melinera
Model	IAN 279181
Article reference	10332
Number of LEDs	80 (warm white)
Power consumption per LED	approx. 0.06 W
Total power of the garland	1.2 W (via adapter)
Power supply	Mains adapter 220-240 V~ / 3 V=
Total length	approx. 10 m (including 5 m power cable)
Protection rating	IP44 (protected against water splashes)
Main functions	On, off, 6-hour timer with automatic repeat
Switch type	ON / TIMER / OFF (3 positions)
Care and cleaning	Unplug before cleaning; use a soft brush or paintbrush
Safety	Do not use if damaged; do not bend; do not touch with wet hands; keep out of reach of children
Replaceable batteries/LEDs	No (LEDs not replaceable)
Warranty	36 months from date of purchase
After-sales service	Uni-Elektra GmbH, Kirchstr. 48, 72145 Hirrlingen, Germany
Manufacturer	Uni-Elektra GmbH

Frequently Asked Questions - IAN 279181 MELINERA

Can I use this garland outdoors?

Yes, the garland has a protection rating of IP44, which protects it against water splashes. It is therefore suitable for outdoor use, provided the power outlet is also suitable.

How does the timer work?

Set the switch to TIMER (green indicator on). The garland turns off automatically after 6 hours and turns on again 18 hours later, repeating this cycle daily.

Can I replace a defective LED?

No, the LEDs are not replaceable. If an LED is defective, the entire garland must be replaced.

What should I do if the garland does not light up?

First check that the mains adapter is properly plugged in and that the coupling nut is tightened. Make sure the switch is in the ON position. If the problem persists, contact after-sales service.

Can I use a different mains adapter?

No, use only the supplied power supply unit (model WD-IP-03001.2-T). Using a non-compliant adapter may damage the product or pose a risk.

What is the total length of the garland?

The garland measures approximately 10 meters in total, including 5 meters of power cable.

Is the garland suitable for children?

Children aged 8 and over can use it under supervision. Never let children play with the packaging (risk of suffocation) or clean the appliance unsupervised.

How to clean the garland?

Always unplug the adapter before cleaning. Use a soft brush or dry paintbrush. Never use water or liquids.

Can I connect multiple garlands together?

No, the product must not be electrically connected to another product. Do not plug multiple garlands into each other.

What to do in case of failure or defect?

Contact Uni-Elektra GmbH after-sales service (tel. [phone] / 91385-0, email [e-mail]). Keep your receipt as proof of purchase for the 36-month warranty.

USER MANUAL IAN 279181 MELINERA

PDF online www.lidl-service.com

LED PINE TREE GARLAND

GB IE NI

LED PINE TREE GARLAND

Operation and Safety Notes

FR BE

GUIRLANDE SAPIN À LED

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE/NI Operation and Safety Notes

Page 5

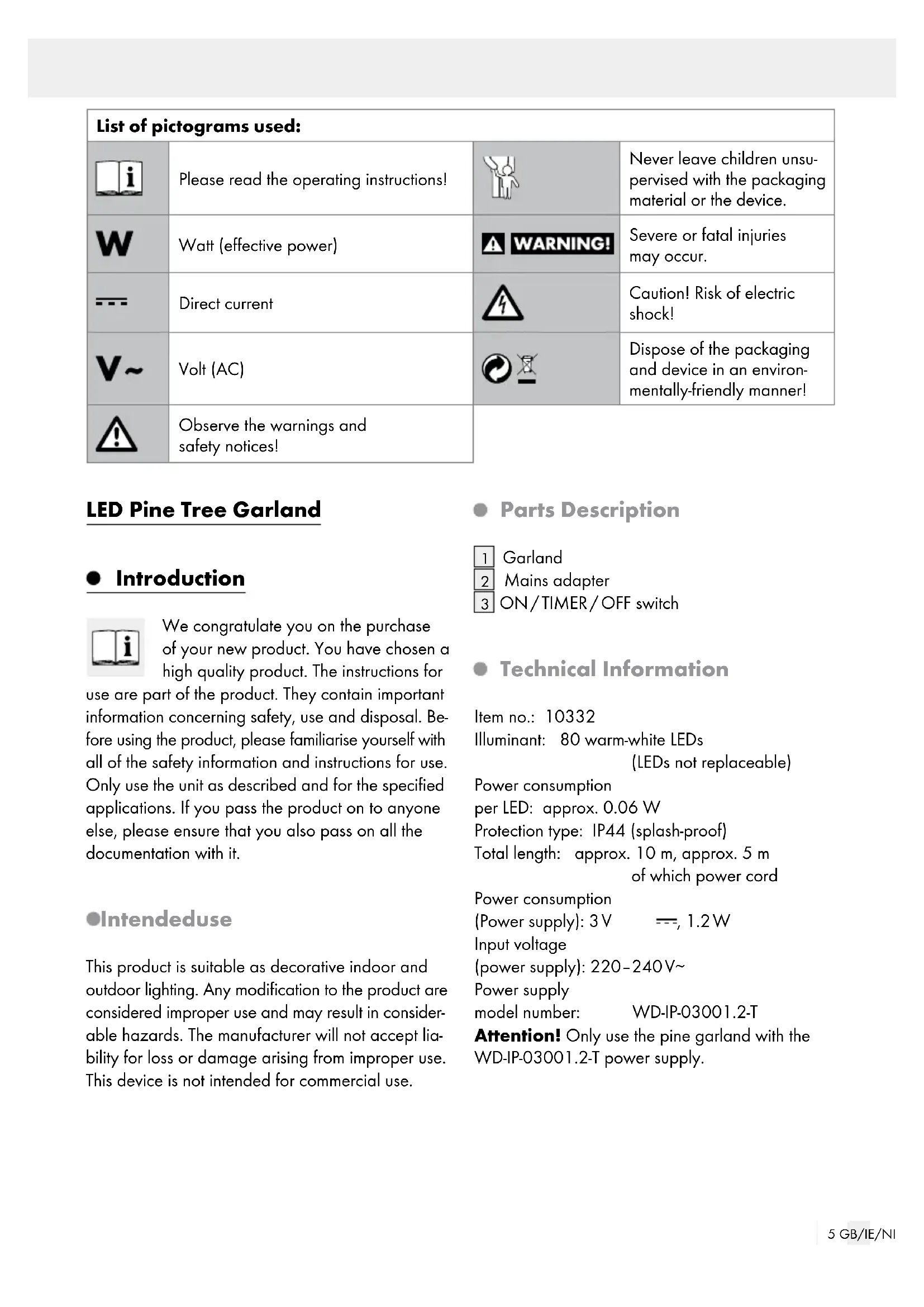

List of pictograms used:
	Please read the operating instructions!		Never leave children unsupervised with the packaging material or the device.
	Watt (effective power)		Severe or fatal injuries may occur.
	Direct current		Caution! Risk of electric shock!
	Volt (AC)	[66H3]	Dispose of the packaging and device in an environmentally-friendly manner!
	Observe the warnings and safety notices!

LED Pine Tree Garland

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for

use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is suitable as decorative indoor and outdoor lighting. Any modification to the product are considered improper use and may result in considerable hazards. The manufacturer will not accept liability for loss or damage arising from improper use. This device is not intended for commercial use.

Parts Description

1 Garland
2 Mains adapter
3 ON/TIMER/OFF switch

• Technical Information

Item no.: 10332

Illuminant: 80 warm-white LEDs

(LEDs not replaceable)

Power consumption

per LED: approx. 0.06 W

Protection type: IP44 (splash-proof)

Total length: approx. 10 m, approx. 5 m of which power cord

Power consumption

(Power supply): 3 V ——, 1.2 W

Input voltage

(power supply): 220-240V\~

Power supply

model number: WD-IP-03001.2-T

Attention! Only use the pine garland with the WD-IP-03001.2-T power supply.

- Scope of delivery

1 LED Pine Tree Garland
1 Power supply
1 Set of instructions for use

Safety Notices

READ THESE INSTRUCTIONS BEFORE USING THE PRODUCT! PLEASE KEEP ALL SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE FOR FUTURE REFERENCE!

DANG RACING!

LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Choking hazard. Keep children away from the product.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision.
- Do not use the product if you notice any signs of damage.
■ Never expose the product to high temperatures as the product may otherwise be damaged.
- Avoid mechanical strain on the product!
In the event of damage, repairs or other problems with the product, please contact an electrician.

⚠️ Remove packaging prior to use.

RISK OF OVERHEATING!

■ Store the product in the original packaging after use to prevent accidental damage.
This product does not contain any parts that can be serviced by the user. The bulbs cannot be replaced.
■ Never electrically connect the product with another product.

• Do not touch the plug for the garland or the garland itself with wet hands.
  The garland is splash-proof (IP44). This protection class will only be maintained, if the electrical socket used also complies with at least this protection class.
  Please remember the power supply will continue to draw a small amount of electricity even without the light being operated so long as the power supply is plugged into the socket. To switch the device off completely, unplug the power supply from the socket.
  The light bulbs are not replaceable. If a light bulb fails at the end of its life, the entire light needs to be replaced.
• Do not operate the product whilst wound. Do not kink!
• Only operate the garland with the included power supply.
  The branches consist of metal wire and scratch or discolour delicate surfaces.

- Initialuse

☐ Insert the plug on the lead into the socket of the power supply.
☐ Tighten the union nut, turning clockwise.
☐ Plug the power supply into an easy to access socket! Select a socket where you can unplug the power supply to switch off the garland 1.
☐ Switch the garland 1 on or off using the ON/TIMER/OFF switch 3.

- Timerfunction

This product has a 6-hour timer with automatic daily recurrence.

☐ Press the switch twice to switch on the garland 1 using the ON/TIMER/OFF switch 3 (LED lights up green). After 6 hours the garland will automatically switch off and on again after 18 hours.

- Cleaning and Care

CAUTION! RISK OF ELECTRIC SHOCK!

Unplug the power supply from the socket before cleaning.

CAUTION! RISK OF ELECTRIC SHOCK!

For reasons of electrical safety the device must never be cleaned with water or other liquids, or immersed in water.

☐ Only clean with a soft brush or paintbrush.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Warranty and Service

Note: this product includes a 36 month warranty from the date of purchase. The product has been produced to the highest standards and thoroughly checked before dispatch. However, if defects in manufacturing or material arise during the warranty period, please contact your retailer immediately.

The warranty does not cover damages due to improper handling, failure to comply with the operating instructions, or manipulation by unauthorised persons. Most malfunctions are caused by incorrect operation. Therefore please first refer to the operating instructions if a malfunction occurs.

Please contact the Uni-Elektra GmbH service address with any questions. The product can only be returned to us after contacting us. Postage due shipments will not be accepted. Warranty services do not extend or restart the warranty period of 36 months.

- Service address

Uni-Elektra GmbH

Kirchstr. 48

72145 Hirrlingen / Germany

Tel.: [phone] / 91385-0

[e-mail]

IAN 279181

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Manufacturer

Uni-Elektra GmbH

Kirchstr. 48

72145 Hirrlingen / Germany
