Product Type	Leaf blower with vacuum function
Brand	Black & Decker
Model	BEBL7000
Power Source	Electric with cord (120 V mains)
Operating Modes	Blowing, vacuuming, mulching
Boost Mode	Yes (POWERBOOST switch for increased power)
Collection Capacity	Backpack collection bag (volume not specified)
Included Accessories	Blow tubes (upper and lower), vacuum tubes (upper and lower), air concentrator, flexible collection tube, backpack bag, fan cover
Insulation Type	Double insulation (no grounding required)
Cord Length	Built-in cord rewind (length not specified)
Recommended Protection	Safety glasses, dust mask, hearing protection
Intended Use	Outdoor, household use
Use Conditions	Do not use in rain or wet conditions
Maintenance	Clean vents with dry compressed air; use a damp cloth and mild soap
Repairability	Repairs by authorized BLACK+DECKER service center only
Warranty	2-year limited for household use

Frequently Asked Questions - BEBL7000 BLACK & DECKER

How to assemble the blower in blowing mode?

First assemble the upper and lower blow tubes by snapping them firmly together. Attach the fan cover by twisting it until it clicks. Push the tube assembly into the pump head until it locks. Add the air concentrator if desired.

How to switch from blowing to vacuum mode?

Turn off and unplug the unit. Remove the blow tube by pressing the release button. Attach the flexible collection tube, then remove the fan cover and install the vacuum tubes. Roll up the bag and lock the clip.

What safety precautions should I take?

Always wear safety glasses, a dust mask, and hearing protection. Keep children and pets at least 10 meters away. Do not use the unit in rain or damp locations. Unplug before any adjustment or cleaning.

How to activate Boost mode?

Turn on the blower. Slide the POWERBOOST switch toward the auxiliary handle to activate Boost mode. Return to normal mode by sliding it the other way. Use Boost mode for heavy debris.

What to do if the blower does not start?

Check that the fan cover or vacuum tube is properly installed. Make sure the cord is plugged in and the outlet is working. Check the fuse and circuit breaker. If the problem persists, contact an authorized repair center.

How to clean the blower?

Unplug the unit. Use a damp cloth with mild soap to clean the exterior. For vents, use dry compressed air. Never immerse the tool in water and do not use solvents.

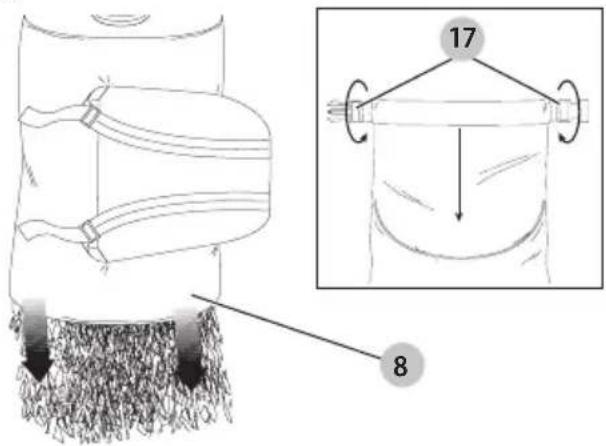

How to empty the collection bag?

Turn off and unplug the unit. Unlock the retaining clip, open the bag and empty the debris. Close the bag by rolling the end and locking the clip. Check that the vacuum tube is not blocked.

Can I use an extension cord with this unit?

Yes, use an approved outdoor extension cord (type SJW or SJTW) of appropriate gauge. Secure the extension cord with the knot shown in the manual to prevent accidental disconnection. Make sure the plug is properly connected.

What to do if there is a jam or obstruction?

Turn off and unplug the unit. Wait for the fan to stop. Remove the vacuum tube and clear debris from the inlet, outlet, or fan. Refer to the Cleaning section of the manual.

Is the unit under warranty?

Yes, this unit has a 2-year limited warranty for household use. For commercial use, the warranty is void. Keep your proof of purchase. Repairs must be done by an authorized BLACK+DECKER service center.

USER MANUAL BEBL7000 BLACK & DECKER

Please read before returning this product for any reason.

English (original instructions) 1

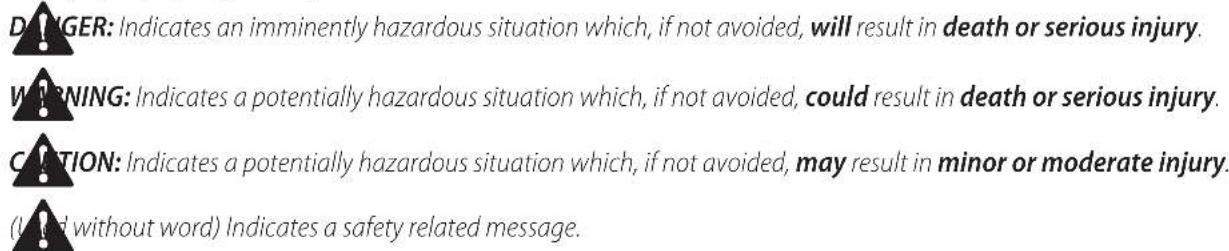

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

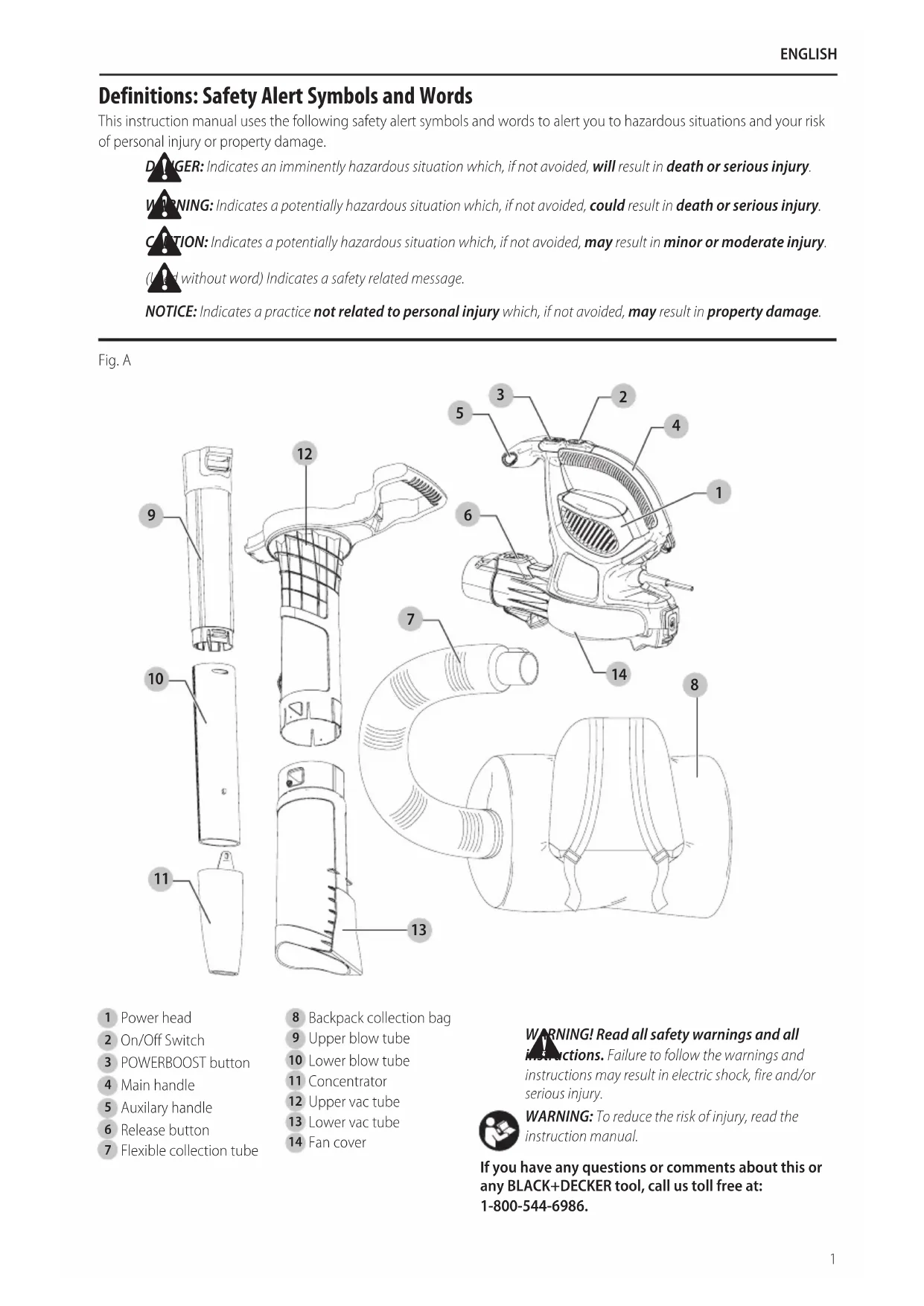

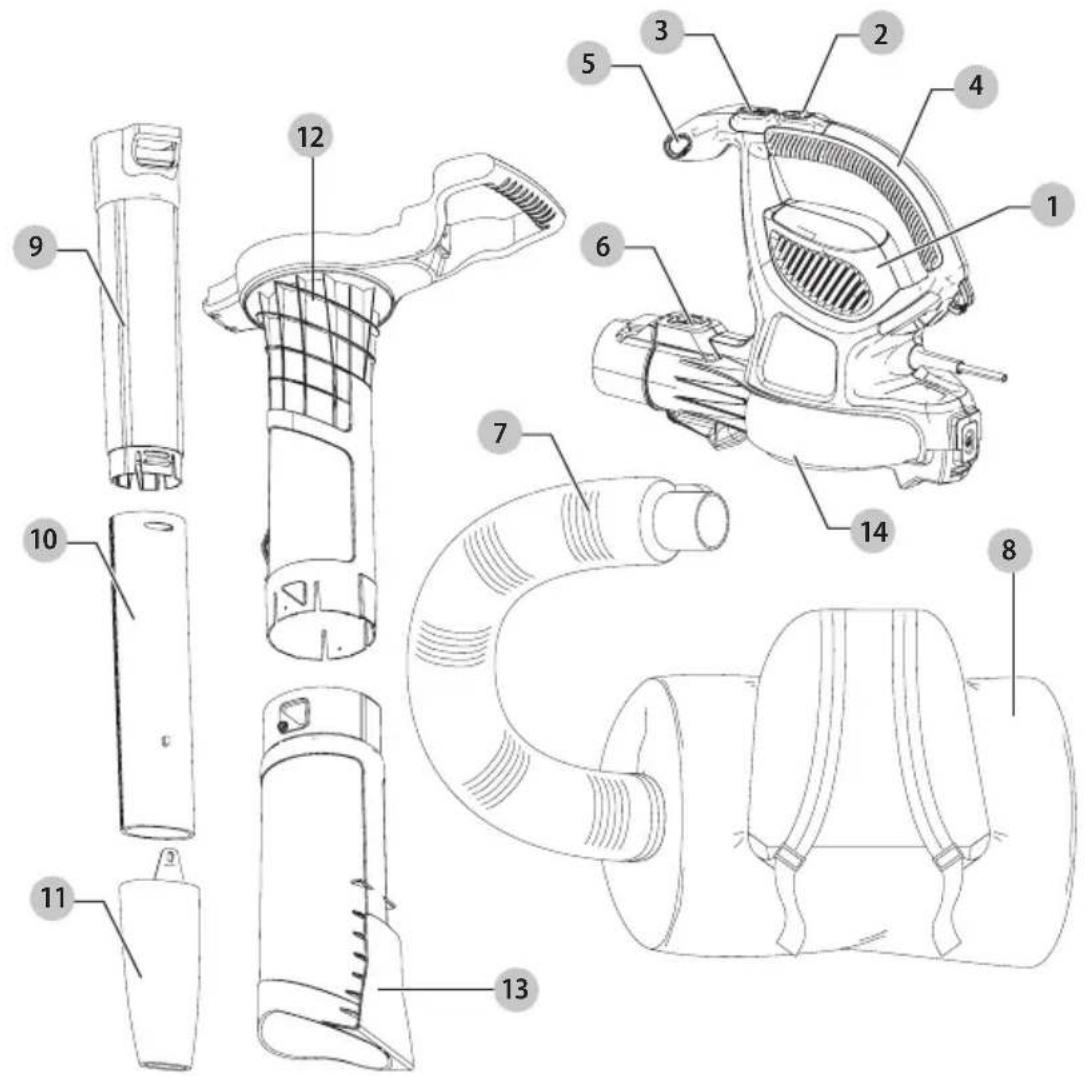

Fig. A

1 Power head
2 On/Off Switch
3 POWERBOOST button
4 Main handle
5 Auxiliary handle
6 Release button
7 Flexible collection tube

8 Backpack collection bag
9 Upper blow tube
10 Lower blow tube
11 Concentrator
12 Upper vac tube
13 Lower vac tube
14 Fan cover

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any BLACK+DECKER tool, call us toll free at: 1-800-544-6986.

English

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using an electric tool, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

WARNING: To reduce the risk of fire, electric shock, or injury:

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.
• Save these instructions and review frequently prior to use and in instructing others.
• Do not point unit discharge at self or bystanders.
• Keep long hair and loose clothing away from openings and moving parts.
  • This appliance is intended for household use.

WARNING: Some dust created by this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers
• compounds in insecticides, herbicides and pesticides
• arsenic and chromium from chemically treated lumber

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

READ ALL AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

• DO NOT place outlet of blower near eyes or ears when operating.
• STORE IDLE UNITS. When not in use, the unit should be stored in a dry, high or locked-up place - out of reach of children.
• DON'T OVERREACH. Keep proper footing and balance at all times.
• MAINTAIN UNIT WITH CARE. Keep unit clean for best and safest performance. Follow instructions for proper maintenance.
• DO NOT attempt to repair the blower. To assure product safety and reliability, repairs, maintenance, and adjustments should be performed by BLACK+DECKER service centers or authorized service centers, always using BLACK+DECKER replacement parts.
• DO NOT operate blower in a gaseous or explosive atmosphere. Motors in these units normally spark, and the sparks might ignite fumes.
• AVOID DANGEROUS ENVIRONMENTAL CONDITIONS – Do not use electric units in damp or wet locations. Don't use the unit in the rain.
• STAY ALERT - Watch what you are doing. Use common sense. Do not operate unit when you are tired.
• USE THE RIGHT UNIT – Do not use this unit for any job except that for which it is intended.
  • USE EXTRA CARE when cleaning on stairs.
• DO NOT allow to be used as a toy. Close attention is necessary when used by or near children. Not recommended for use by children.

• DO NOT attempt to clear clogs from unit without first unplugging.

• DO NOT use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

• DO NOT pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• When in vacuum mode, DO NOT use without dust bag and/or filters in place.

- USE ONLY as described in this manual. Use only manufacturer's recommended attachments.

- DO NOT put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair and everything that may reduce air flow.

- KEEP hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• DO NOT immerse any part of the unit in liquid.

- KEEP CHILDREN, BYSTANDERS AND ANIMALS AWAY from the work area a minimum of 30 feet (10 meters) when starting or operating the unit.

• INSPECT THE AREA before using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.

- DO NOT leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

- DO NOT use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

- DO NOT pull or carry by cord, use cord as a handle, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

- DO NOT unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Do not handle plug or appliance with wet hands.

- Turn off all controls before unplugging.

- This appliance is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.

- To reduce the risk of electric shock, use only with an extension cord intended for outdoor use, such as SJW or SJTW.

- Make sure your extension cord is in good condition and is the correct size for your appliance. The Minimum Gauge for Cord Sets chart below shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating

- Maintain Appliance With Care – Inspect extension cords periodically and replace if damaged.

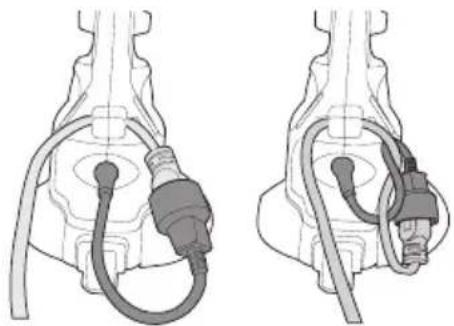

- To reduce the risk of disconnection of appliance cord from the extension cord during operating:

i) Make a knot as shown in figure B; or
ii) Use one of the plug-receptacle retaining straps or connectors described in this manual. OR
iii) Secure the extension cord to the appliance plug as shown or described in the Operating Instructions.

fig. B

Simple line drawing of a plug with coiled wires (no text or symbols)

WARNING: To reduce the risk of personal injury due to a loose electrical connection between the appliance's plug and extension cord, firmly and fully attach the appliance plug to the extension cord. Periodically check the connection while operating to ensure it is fully attached. Do not use an extension cord that provides a loose connection. A loose connection may result in overheating, fire, and increases the risk of a burning.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: To reduce the risk of electrical shock; do not expose to rain. Store indoors.

WARNING: Cut Hazard. Turn off and unplug unit, then wait until fan stops or at least 10 seconds before removing the blower or vacuum tube assemblies.

Servicing of Double Insulated Appliances

A double-insulated appliance is marked with one or more of the following: The words "DOUBLE INSULATION" or "DOUBLE INSULATED" or the double insulation symbol. Your Blower/Vac is double-insulated to give you added safety. In a double insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double insulated appliance must be identical to the parts they replace. A double insulated appliance is marked with the words double insulated or "double insulation". The symbol (square within a square) may also be marked on the appliance.

Safety Rules and Instructions: Extension Cords

Double insulated tools have 2-wire cords and can be used with 2-wire or 3-wire extension cords. Only round jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.) (C.S.A. in Canada). If the extension will be used outside, the cord must be suitable for outdoor use. Any cord marked as outdoor can also be used for indoor work.

An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. Before using an extension cord, inspect it for loose or exposed wires, damaged insulation, and defective fittings. Make any needed repairs or replace the cord if necessary.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2)		100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12 16	16 14 12
12 16 14	12 Not Recommended

Safety Rules and Instructions: Polarized Plug

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This equipment must be used with a suitable polarized 2 wire or 3 wire extension cord. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the tool plug or extension cord in any way.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min....minutes

or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

sfpm ....surface feet per minute

SPM ...... strokes per minute

A.....amperes

W......walls

\~ or AC.....alternating current

\~or AC/DC....alternating or direct current

Class II Construction (double insulated)

no ....no load speed n ....rated speed

earthing terminal

A....safety alert symbol

▲......visible radiation

wear respiratory protection

wear eye protection

O....wear hearing protection

English

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part of damage or personal injury could result.

Refer to Figure A at the beginning of this manual for a complete list of components.

INTENDED USE

This appliance is designed for household outdoor blower applications.

DO nOT use under wet conditions or in presence of flammable liquids or gases.

DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and unplug before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Before attempting any of the assembly scope below, ensure product is switched off and disconnected from the power supply.

ASSEMBLY FOR BLOW MODE

Blow Tube Assembly (Fig. C–E)

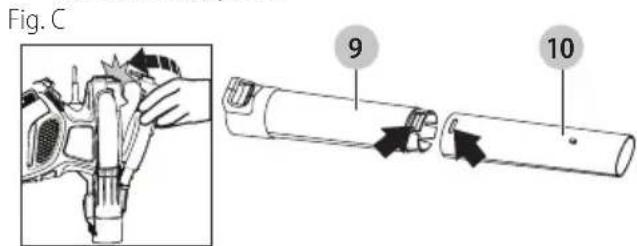

- Fit fan cover 14 as shown in Fig. C until audible click is heard.

CAUTION: CUT HAZARD. Ensure fan cover 14 is securely seated and latched into position.

nOTE: Unit will not operate in blow mode without fan cover in place.

- Align the upper 9 and lower tubes 10 as shown in Fig. C.

- Push the lower tube firmly into the upper tube, until the tubes click into place.

• Blow tubes must be assembled to the power head before use.
• Never operate without both lower and upper tubes assembled.
• In the interest of safety, it is not intended for the tubes to be separated once assembled.

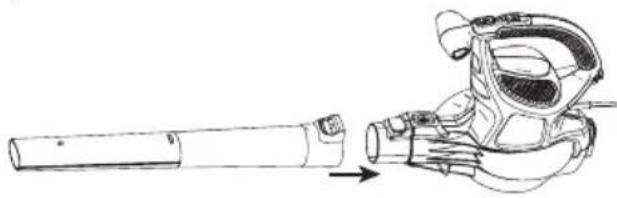

- Push the tube assembly onto the power head until it is in the fully locked in position and an audible click is heard. (Fig. D).

Fig. D

Line drawing of a medical device with a cylindrical shaft and internal components, showing an arrow indicating assembly or transformation (no text or symbols present)

CAUTION: CUT HAZARD. Ensure the tube assembly is securely seated and latched into position.

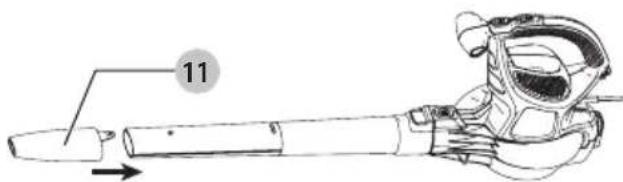

- Use the air concentrator attachment 11 to target air flow to a tighter area. Add the attachment to the assembly as shown in Fig. E. Push on until hole in tab engages raised post on tube.

Fig. E

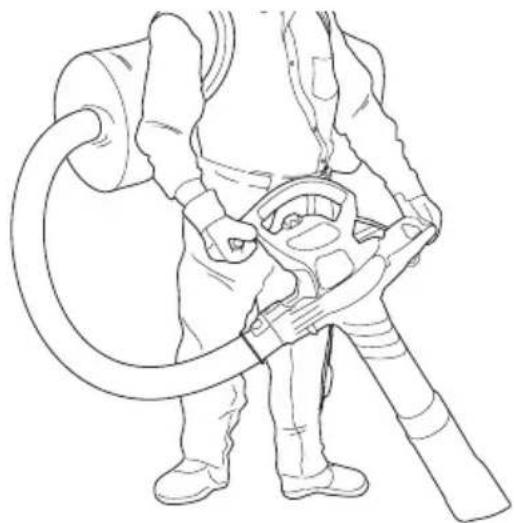

ASSEMBLY FOR VACUUM MODE

Attaching Flexible tube to Power head (Fig. F, Q)

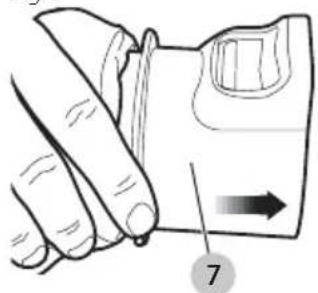

1. Align the power head 1 and flexible collection tube 7 as shown in Fig. F.
2. Push the flexible collection tube assembly onto the power head until it is in the fully locked position and an audible click is heard. (Fig. F).

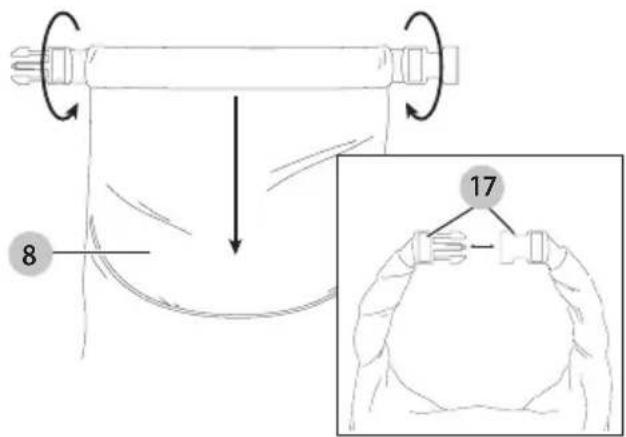

3. Seal the collection bag 8, roll the open end of the bag and latch the retaining clip 17 closed as shown in Fig. Q.

Fig. F

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Line drawing of a mechanical device with a labeled component (no text or symbols present)

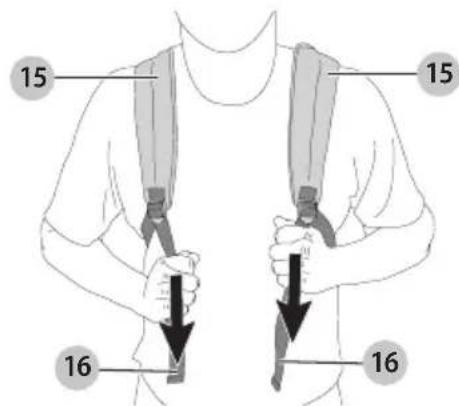

Adjusting harness (Fig. G)

1. Place the shoulder straps 15 over your shoulders.
2. Pull the adjustment straps 16 down until the backplate is firm against your back as shown in Fig. G.

Fig. G

Vacuum Tube Assembly (Fig. H–J)

• Vacuum tubes must be assembled together before use.

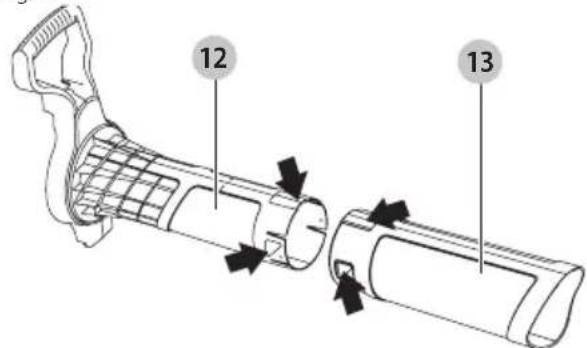

- Align the notches and the triangles on upper 12 and lower 13 tubes. (Fig. H)

Fig. H

• Push the lower tube firmly into the upper tube, until the triangles click into place. (Never operate apart).
• In the interest of safety, it is not intended for the tubes to be separated once assembled.

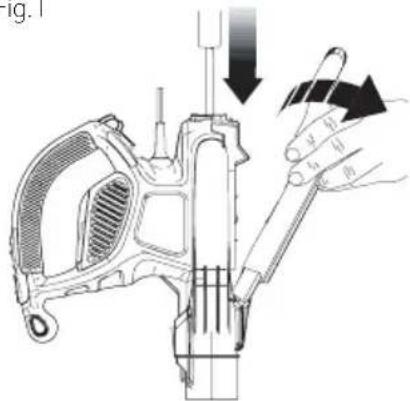

• Remove the fan cover 14 from the bottom of the power head by inserting a screwdriver/hex key in the slot on the end of the fan cover (located on the back of the power head) to actuate the internal release, and remove the fan cover (Fig. I).

Fig.1

- Attach the vacuum tube assembly to the power head (Fig. J) by locating the assembly as indicated by arrow, then pivot about this point until the locking/release catch is fully engaged.

Fig. J

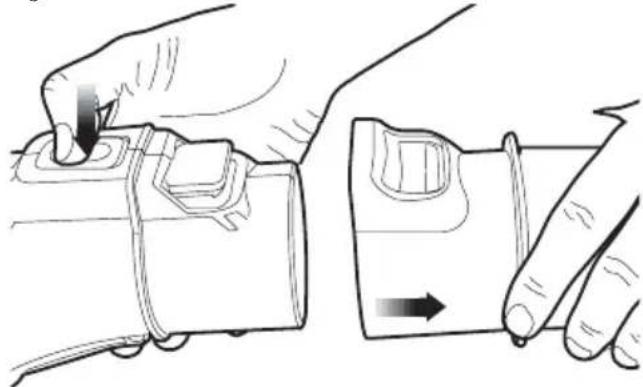

Removing Blow Tube or Flexible Collection Tube (Fig. K)

1. To remove the blow tube or flexible collection tube, depress the release button 6 on the power head and pull straight off (Fig. K).

Fig. K

Illustration of hands holding a device with a scroll wheel, showing a hand pressing down on the scroll (no text or symbols present)

OPERATION

WARNING: Do not operate blower without blow tube or flexible collection tube securely in place. Never reach down into housing through tube hole.

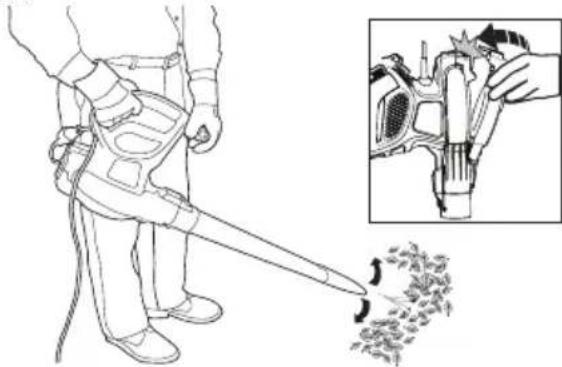

USE AS A BLOWER

WARNING: Always wear safety glasses. Wear a filter mask if the operation is dusty, use of rubber gloves and substantial footwear is recommended when working outdoors. For household use only.

WARNING: Cut Hazard. When turning the tool off for tube installation or any other reason, wait 10 seconds for the fan to stop rotating before disassembly.

• Do not use in vacuum mode without the vacuum tubes and collection bag in place.
  • Always switch off and remove the plug from the electrical supply when:

• Changing from blower to vacuum or back.

• The power supply cord has become damaged or entangled.
• You leave blower/vac unattended.
• Clearing a blockage.
• Checking, adjusting, cleaning or working on blower/vac.

- Use blower/vac only in daylight or good artificial light.

English

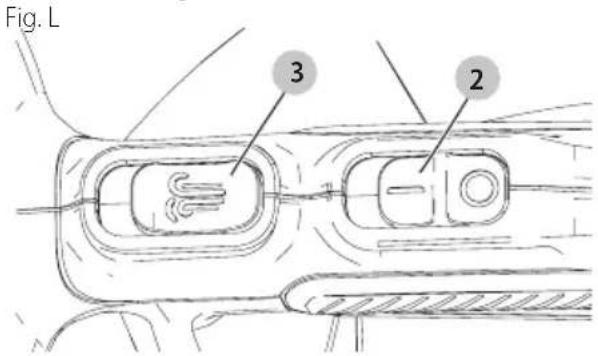

Switching On/Off (Fig. L)

WARNING: Use both hands to grip the product firmly which switching on.

CAUTION: Do not point unit discharge at self or bystanders.

WARNING: Cut Hazard. When turning the tool off for to be installation or any other reason, wait 10 seconds for the fan to stop rotating before disassembly.

Your blower is fitted with a on/off switch located on the top of the power head handle 4.

• To switch the blower on, slide the on/off forward as shown in Fig. L.
2 switch
• To switch the blower off, slide the on/off as shown in Fig. L.
2 switch back

POWERBOOST FEATURE

The POWERBOOST feature is located on the powerhead. It allows you to optimize the tool's performance and boost the power as needed.

• Switch the blower ON.
• To activate the "Boost" mode, slide the POWERBOOST button 3 towards the auxiliary handle.
• To deactivate the "Boost" mode, slide the POWERBOOST button 3 away from the auxiliary handle.

NOTE: Operate in "Normal" mode for most blowing needs. Activate "Boost" mode as needed to clear or vacuum heavy debris.

Cord Retainer (Fig. M)

• A cord retainer is incorporated into the rear of the power head. It can be used in two different ways:
  • To use the cord retainer as shown in Fig. M, hook the extension cord under the retainer. Then plug the cord from the power head into the extension cord.
  • To use the cord retainer as shown in Fig. M, loop the extension cord over the power head cord and plug the two ends into each other. Then hook the extension cord under the retainer.

Fig. M

Medical illustration showing two views of a medical device with tubing (no text or labels)

Use As A Blower (Fig. D, M, N)

WARNING: Ensure product is switched off and connected from the power supply.

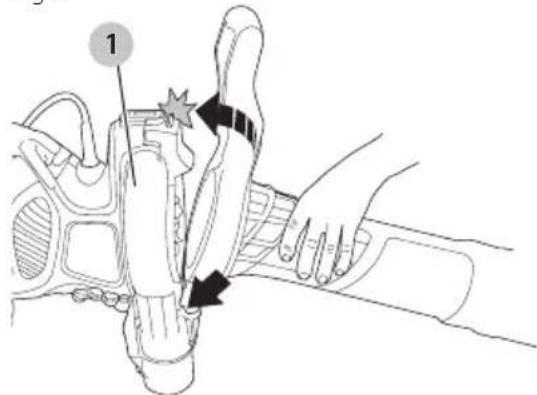

- Fit fan cover 14 as shown in Fig. N until audible click is heard.

CAUTION: CUT HAZARD. Ensure fan cover 14 is securely seated and latched into position.

• Attach the blow tube assembly to the power head as shown in Fig. D.
• Connect the cord on the power head to the power supply (Fig. M).
• Hold the blow tube approximately 7 inches (180 mm) above the ground, turn the blower/vac on and using a sweeping motion from side to side, advance slowly keeping the accumulated debris/leaves in front of you as shown in Fig. N.

Fig. N

Illustration of a person using a tool to clean or remove debris, with an inset showing the same operation (no text or symbols present)

• Once you have blown the debris/leaves into a pile, you can convert to vacuum mode to collect the debris.
• Using the air concentrator will help remove matted debris and leaves.

USE AS A VACUUM

Vacuum Mode (Fig. F, I, J, Q, M, O)

WARNING: Ensure product is switched off and disconnected from the power supply.

To fit the leaf collection bag assembly to product:

• Remove blow tube.
• Push the flexible collection tube assembly onto the power head until it is in the fully locked position and an audible click is heard. (Fig. F).

WARNING: Do not operate blower without blow tube or flexible collection tube securely in place.

Never reach down into housing through tube hole.

• Remove the fan cover 14 from the bottom of the power head by inserting a screwdriver/hSex key in the slot on the end of the fan cover (located on the back of the power head), and removing the fan cover. (Fig. I)
• Attach the vacuum tube assembly to the power head (Fig. J) by locating the assembly as indicated by arrow, then pivot about this point until the locking/release catch is fully engaged and an audible click is heard..

CAUTION: CUT HAZARD. Ensure the vacuum tube is securely seated and latched into position.

- Roll the open end of the bag and latch the retaining clip 17 closed. (Fig. Q)

• Connect the cord on the power head to the power supply (Fig. M).
• Position the tube slightly above the debris/leaves. Turn the blower/vac on, then using a sweeping motion the debris/leaves will be sucked up the tube, mulched and deposited into the collection bag (Fig. O).

As the collection bag fills, the suction power will decrease. Turn the blower/vac off and unplug from power supply before emptying collection bag.

Fig. O

Line drawing of a person using a handheld vacuum tube to lift a valve (no text or symbols present)

Emptying Back Pack Collection Bag (Fig. P, Q)

CAUTION: NEVER REMOVE THE COLLECTION BAG WITHOUT FIRST TURNING OFF AND UNPLUGGING THE VACUUM.

- Empty the back pack collection bag 8 by unlatching the retaining clip 17 and unrolling the bag as shown in Fig. P.

Fig. P

nOTE: If the suction decreases and the bag is not full, the vacuum tube is probably clogged with debris.

Turn off and unplug the blower/vac and clear the tube before continuing.

- To re-seal the collection bag 8, roll the open end of the bag and latch the retaining clip 17 closed as shown in Fig. Q.

WARNING: Do not operate blower without blow tube or flexible collection tube securely in place. Never reach down into housing through tube hole.

Fig. Q

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and unplug before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with a dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

WARNING: TURN OFF AND UNPLUG TOOL! (Unplug extension cord at power source.)

Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. Clean out any clippings which may have accumulated in the Blower/Vac. When used properly with dry leaves the fan chamber of your Blower/Vac should remain clean. If damp earth and debris are ingested some of the particles may build up on the inside of the fan chamber. If this happens the performance of the unit will decrease. This area can be cleaned out using a wooden stick as shown in Fig. R after disconnecting from the power source. Your Blower/Vac should be stored in a dry place.

ENGLISH

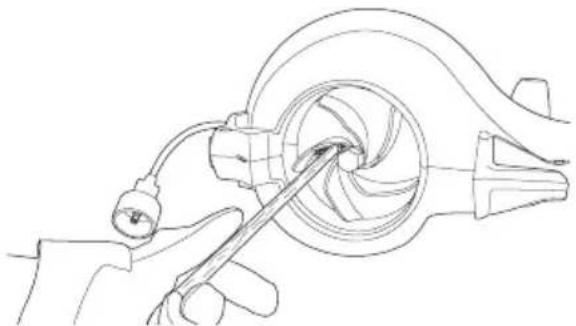

Fig. R

Line drawing of a mechanical component with a tool inserted, showing internal components and motion (no text or symbols)

WARNING: SHOCK HAZARD. DO NOT POUR OR SPRAY WORK ON THE TOOL IN AN ATTEMPT TO CLEAN.

Do not store the tool on or adjacent to fertilizers or chemicals. Such storage can cause rapid corrosion of the metal parts.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service personnel, always using identical replacement parts.

Accessories

WARNING: Since accessories, other than those offered by BLACK+DECKER, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only BLACK+DECKER recommended accessories should be used with this product.

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

Repairs

WARNING: To assure product SAFETY and HEEMIBILITY, repairs, maintenance and adjustment (including brush inspection and replacement) should be performed by a BLACK+DECKER factory service center or a BLACK+DECKER authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  • FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.blackanddecker.com/register.

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways:

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER's option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286

TROUBLESHOOTING

For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at: 1-800-544-6986.

Problem Possible Cause Possible Solution

Unit will not start. Fan cover or vac tube not installed.	Install fan cover for blow mode or vac tube for vac mode.
Cord not plugged in.	Plug tool into a working outlet.
Circuit fuse is blown.	Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced at a BLACK+DECKER service center or authorized servicer.)
Circuit breaker is tripped.	Reset circuit breaker. (If the product repeatedly causes the circuit breaker to trip, discontinue use immediately and have it serviced at a BLACK+DECKER service center or authorized servicer.)
Cord or switch is damaged.	Have cord or switch replaced at BLACK+DECKER Service Center or Authorized Servicer.

Unit jammed or clogged. Debris blocking inlet/outlet or fan. Unplug power cord. Remove vac tube. Refer to

Cleaning - Maintenance.

Simple line drawing of a plug with wires, no text or symbols present

Line drawing of a medical device with a cylindrical shaft and a gas mask, showing a close-up of the shaft (no text or symbols)

Illustration of hands adjusting a wristwatch with a magnified view showing the grip (no text or symbols present)

FONCTIONNEMENT

FONCTION POWERBOOST

Medical illustration showing two views of a medical device with tubing (no text or labels)

Illustration of a person using a tool to clean debris, with an inset showing the same tool interacting with a device (no text or symbols present)

Line drawing of a person using a handheld vacuum cleaner to lift a valve (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a turbine impeller component (no text or symbols present)

Simple line drawing of a plug with coiled wires (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical shaft and attached housing (no text or symbols)

Line drawing of a device with a labeled component (1), no text or symbols present

Ajuste de arnés

Illustration of hands adjusting a wristwatch with a magnified inset showing the grip (no text or symbols)

OPERACIÓN

Medical illustration showing two views of a medical device with tubing (no text or labels)

Illustration of a person using a tool to clean debris, with an inset showing the same tool interacting with a device (no text or symbols present)

Line drawing of a person adjusting a hose, no text or symbols present

Line drawing of a hand using a tool to adjust or install a turbine component (no text or symbols present)

ADVERTENCIA: RIESGO DE DESCARGA ELÉCTRICA.

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Black & Decker (U.S.) Inc.

701 East Joppa Road, Towson, MD 21286

Part No. N511768

BEBL7000

MAY 2017
