Notice BLACK & DECKER GW2838 - page 4
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Leaf vacuum/blower
Model GW2838
Brand Black & Decker
Power supply 230 V ~ 50 Hz
Power consumption 2800 W
Collection bag capacity 50 L
Weight in blower mode 3.45 kg
Weight in vacuum mode 4.85 kg
Functions Blowing, suction, shredding
Speed control Yes, by dial
Guaranteed sound power level 107 dB(A)
Vibration (total value) 9.8 m/s² (uncertainty 1.5 m/s²)
Double insulation Yes
Protection against splashes Do not expose to rain
Intended use Outdoor, domestic use
Warranty 2 years
Supplied accessories Blowing and suction tubes, collection bag, concentrator, rake (depending on model)
Maintenance Clean with a damp cloth and mild soap. Do not use solvent.
Repairability Spare parts available at Black & Decker authorized repairer

Frequently Asked Questions - GW2838 BLACK & DECKER

How to assemble the suction tubes?
Align the notches (13) and triangles (14) on the tubes, then push firmly until they click into place. Apply soapy water to facilitate assembly. Do not separate the tubes once assembled.
How to switch from blower mode to vacuum mode?
Turn off the appliance, unplug it, then remove the blower tube and the fan cover. Install the collection bag on the suction outlet (25) and attach the assembled suction tube to the motor unit. Make sure the latch is securely engaged.
What to do if suction is weak?
Check that the collection bag is not full; empty it if necessary. Clean the suction tubes and remove debris around the fan. If the problem persists, consult a Black & Decker authorized repairer.
How to clean the appliance?
Use a damp cloth with mild soap. Do not allow any liquid to enter the appliance and do not immerse any parts. Do not use abrasive or solvent-based cleaners.
What are the essential safety precautions?
Wear safety glasses and hearing protection. Do not use the appliance in the rain. Keep children and pets away. Maintain a stable posture and wear fitted clothing.
How to empty the collection bag?
Turn off the appliance and unplug it. Open the bag and empty its contents. Never remove the bag without turning off the appliance.
What to do in case of a jam?
Turn off the appliance and unplug it. Remove debris from the tubes or fan using a non-metallic tool. Avoid touching rotating parts.
What is the speed control used for?
It allows you to adjust the blowing or suction power. Turn the dial clockwise to increase speed, and counterclockwise to decrease. Set it to Stop to turn off.
Can I use an extension cord?
Yes, use an extension cord approved for outdoor use, type HO5VV-F 1.5 mm² up to 30 m. Fully unwind the cable and check that it is not damaged before use.
How to store the appliance after use?
Store it in a dry, well-ventilated place, out of reach of children. Disassemble the tubes if necessary and clean the collection bag. Avoid leaving it exposed to rain.

User questions about GW2838 BLACK & DECKER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Leaf blower in PDF format for free! Find your manual GW2838 - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GW2838 by BLACK & DECKER.

USER MANUAL GW2838 BLACK & DECKER

BDB GW30

BDBV30

GW3050

GW3030

GW2810

GW2838

6 14 28 5 13 14 4 13 A

12 15 15 B

Technical diagram of a mechanical device with numbered parts and directional arrows indicating assembly or operation.

16 17 32 31 D 4 5 30

1820 19 5 E

① F

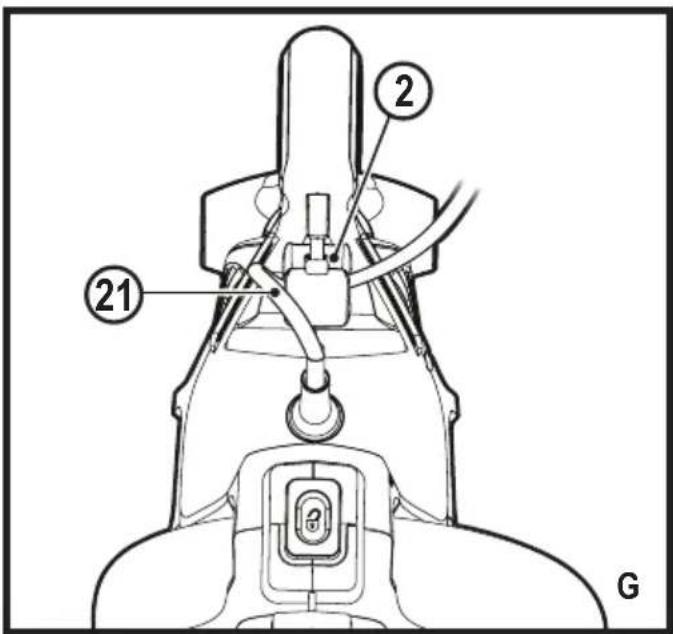

2 21 G

25 9 22 23 H

BLACK & DECKER GW2838 - 10

natural_image Illustration of a hair blower emitting leafy leaves, with arrows indicating environmental change (no text or symbols)

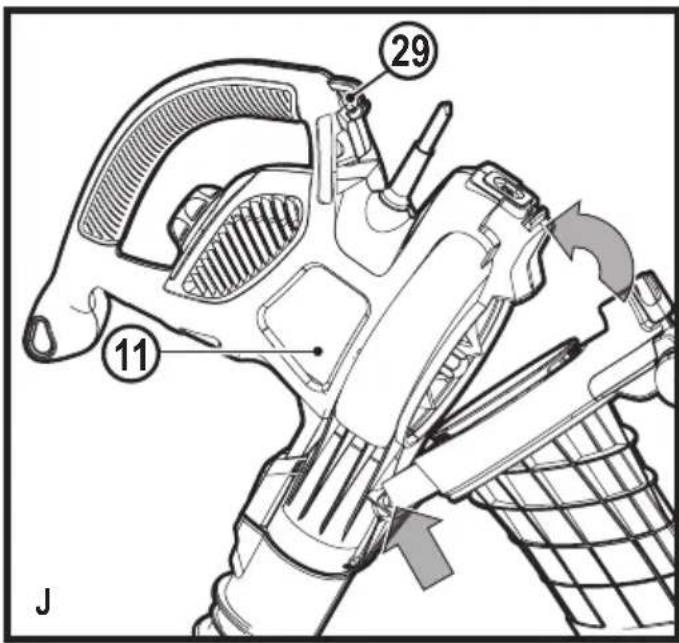

29 11 J

BLACK & DECKER GW2838 - 12

natural_image Technical line drawing of a mechanical device emitting leaf-like particles (no text or symbols)

Intended use

Your BLACK+DECKER™ BDBV30, GW3050, GW3030, GW2810, GW2838 blower vac has been designed for leaf clearing. This appliance is intended for consumer and outdoor use only.

General appliance safety warnings

BLACK & DECKER GW2838 - General appliance safety warnings - 1

Warning! When using mains powered/cordless appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

  • Read all of this manual carefully before using the appliance, be familiar with the controls and the proper use of the appliance.
  • The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.

The term "appliance" in all of the warnings listed below refers to your mains operated (corded) appliance or battery operated (cordless) appliance.

Save all warnings and instructions for future reference.

Save all warnings and instructions for future reference.

Using your appliance

  • Always take care when using the appliance.
  • Keep work area clean and well lit. Cluttered or dark areas invite accidents.

  • Only use the appliance in daylight or good artificial light.

  • Do not operate your appliance in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • Never allow children or people unfamiliar with the instructions to use the appliance, local regulations may restrict the age of the operator.
  • Do not allow children or animals to come near the work area or touch the appliance supply cord.
  • Keep children, bystanders and animals away while operating an appliance. Distractions can cause you to lose control.
  • The appliance is not to be used as a toy.
  • Do not immerse the appliance in water.
  • Do not open body casing. There are no userserviceable parts inside.

Personal safety

- Stay alert, watch what you are doing and use common sense when operating an appliance. Do not use an appliance while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating an appliance may result in serious personal injury.

- Where required, use personal protective equipment. Protective equipment such as eye protection, dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

- Prevent unintentional starting. Make sure that the switch is in the offposition before connecting to a power source and/or battery pack, picking up or carrying the appliance.

Carrying appliances with your finger on the switch or energising appliances that have the switch on invites accidents.

  • Do not overreach. Keep proper footing and balance at all times. This enables better control of the appliance in unexpected situations.
  • Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

Appliance use and care

  • Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
  • Do not use the appliance if the switch does not turn it on and off. Any appliance that cannot be controlled with the switch is dangerous and must be repaired.
  • Disconnect the plug from the power source and/or the battery pack from the appliance before making any adjustments, changing accessories, or storing appliances. Such preventive safety measures reduce the risk of starting the appliance accidentally.
  • Where applicable, keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  • Do not use the appliance if any part is damaged or defective.
  • Have any damaged or defective parts repaired or replaced by an authorised repair agent.

- Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety

  • Appliance plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) appliance. Unmodified plugs and matching outlets will reduce risk of electric shock.
  • Do not expose appliance to rain or wet conditions. Water entering a appliance will increase the risk of electric shock.
  • Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the appliance. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
  • When operating an appliance outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  • If operating an appliance in a damp location is unavoidable, use a Residual Current Device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

After Use

  • When not in use, the appliance should be stored in a dry, well ventilated place out of the reach of children.
  • Children should not have access to stored appliances.
  • When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.

Service

- Have your appliance serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the appliance is maintained.

Additional Safety instructions for blow vacs

The intended use is described in this manual. The use of any accessory or attachment or performance of any operation with this appliance other than those recommended in this instruction manual ca present a risk of personal injury and/or damage to property.

- To protect your feet and legs while operating the appliance, always wear heavy duty footwear and long trousers. - Do not use in vacuum mode without the vacuum tubes and collection bag in place. - Always switch off your product, allow the fan to stop and remove the plug from the socket when:

  • Changing from blower to vacuum.
  • The supply cable has become damaged or entangled.
  • You leave your product unattended.
  • Clearing a blockage.
  • Checking, adjusting, cleaning or working on your product.
  • If the appliance starts to vibrate abnormally.

- Do not place the inlet or outlet of the vacuum near eyes or ears when operating. Never blow debris in the direction of bystanders.

- Do not use in the rain or leave outdoors while it is raining.

  • Do not cross gravel paths or roads whilst your product is switched on during blow/vac mode. Walk, never run.
  • Do not place your unit down on gravel while it is switched on.
  • Always be sure of your footing, particularly on slopes. Do not overreach and keep your balance at all times.
  • Do not pick up matter that may be contaminated with flammable or combustible liquids such as gasoline, or use in areas where they might be present.
  • Do not place any objects into the openings. Never use if the openings are blocked - keep free of hair, lint, dust and anything that may reduce the airflow.

Warning! Always use your product in the manner outlined in this manual.

Your product is designed to be used in an upright mode and if it is used in any other way it may result in injury. Never run your product whilst lying on it's side or upside down.

  • The operator or user is responsible for accidents or hazards occurring to other people or their property.
  • Do not carry the appliance by the cable.
  • Always direct the cable to the rear away from the appliance.

Warning! If a cord becomes damaged during use, disconnect the supply cord from the mains supply immediately. Do not touch the supply cord before disconnecting the supply.

- Do not use solvents or cleaning fluids to clean your product. Use a blunt scraper to remove grass and dirt.

  • Check the collection bag frequently for wear or deterioration.
  • Replacement fans are available from a BLACK+DECKER service agent. Use on BLACK+DECKER recommended spare parts and accessories.
  • Keep all nuts bolts and screws tight to make sure that the appliance is in a safe working condition.

Safety of others

  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children should be supervised to ensure that they do not play with the appliance.

Electrical safety

BLACK & DECKER GW2838 - Electrical safety - 1

This appliance is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

  • If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.
  • Electric safety can be further improved by using a high sensitivity 30 mA Residual Current Device (RCD).

Using an extension cable

Always use an approved extension cable suitable for the power input of this tool (see technical data). The extension cable must be suitable for outdoor use and marked accordingly. Up to 30 m of 1.5 mm² HO5V V-F extension cable can be used without loss of product performance. Before use, inspect the extension cable for signs of damage, wear and ageing. Replace the extension cable if damaged or defective. When using a cable reel, always unwind the cable completely.

Residual risks

when using the tool which may not be included in the enclosed safety warnings.

These risks can arise from misuse, prolonged use etc. Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

  • Injuries caused by touching any rotating/ moving parts.
  • Injuries caused when changing any parts, blades or accessories.
  • Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
  • Impairment of hearing.
  • Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.).

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard

test method provided by EN50636 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on Appliance

The following pictograms, along with the date code, are shown on the tool.

BLACK & DECKER GW2838 - Labels on Appliance - 1

Warning! Read the manual prior to operation.

BLACK & DECKER GW2838 - Labels on Appliance - 2

Wear safety glasses or goggles when operating this appliance.

BLACK & DECKER GW2838 - Labels on Appliance - 3

Wear suitable ear protection when operating this appliance.

BLACK & DECKER GW2838 - Labels on Appliance - 4

Do not expose the tool to rain or high humidity or leave outdoors while it is raining.

BLACK & DECKER GW2838 - Labels on Appliance - 5

Switch off: remove plug from mains before cleaning or maintenance.

BLACK & DECKER GW2838 - Labels on Appliance - 6

Disconnect the mains plug if the cord becomes damaged or entangled.

BLACK & DECKER GW2838 - Labels on Appliance - 7

Beware of flying objects.

BLACK & DECKER GW2838 - Labels on Appliance - 8

Keep bystanders away.

BLACK & DECKER GW2838 - Labels on Appliance - 9

Directive 2000/14/EC guaranteed sound power.

Features

This appliance includes some or all of the following features.

  1. Variable speed control
  2. Cable restraint
  3. Collection bag
  4. Upper blow tube
  5. Lower blow tube
  6. Upper vacuum tube
  7. Middle vacuum tube
  8. Lower vacuum tube
  9. Vac release button
  10. Bag release button
  11. Powerhead
  12. Second handle

Assembly

BLACK & DECKER GW2838 - Assembly - 1

Warning! Before assembly, make sure that the appliance is switched off and unplugged.

BLACK & DECKER GW2838 - Assembly - 2

Warning! Always wear protective gloves when working with your blow vac.

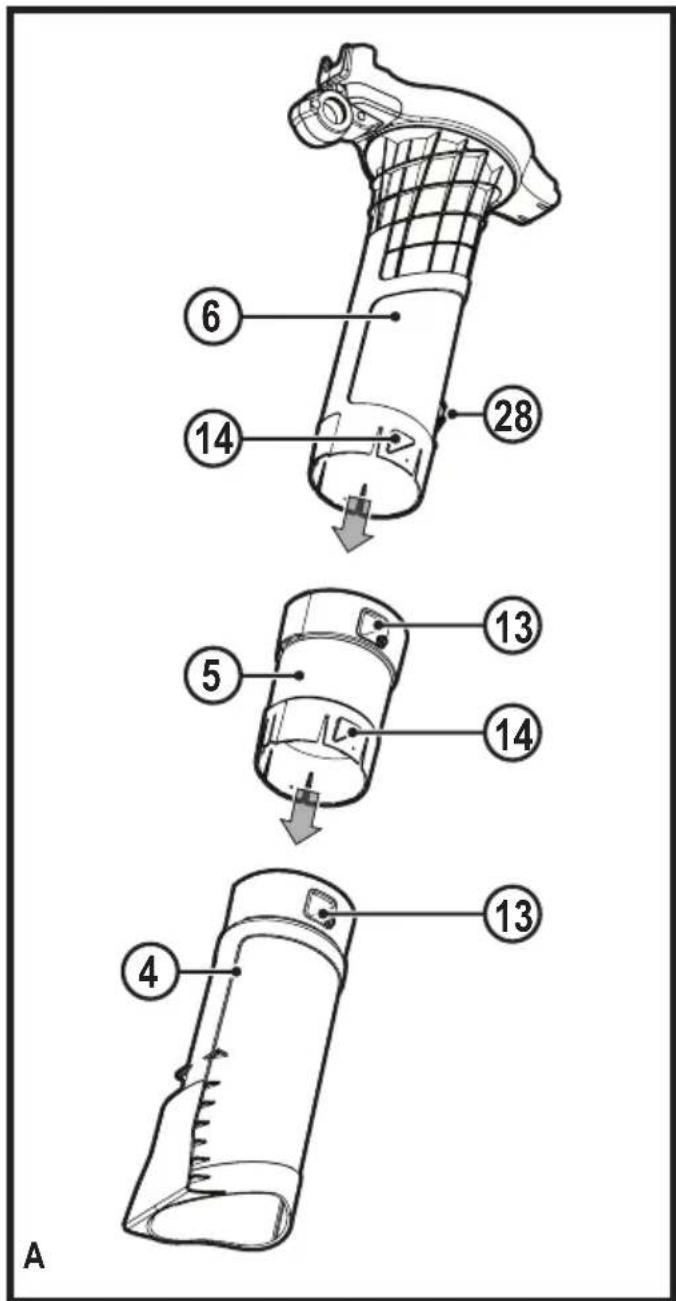

Vacuum tube assembly (fig. A)

The vacuum tubes must be assembled together before use.

Warning! Do not operate the appliance with the vacuum tubes separated.

◆ To ease assembly, apply a soapy water solution to the joint area.
♦ Align the notches (13) and the triangles (14) on the upper (6) and middle (7) vacuum tubes.
◆ Push the upper vacuum tube (6) firmly onto the middle vacuum tube (7) until the triangles click into place.
♦ Align the notches (13) and the triangles (14) on the middle (7) and lower (8) vacuum tubes.
◆ Push the middle vacuum tube (7) firmly onto the lower vacuum tube (8) until the triangles click into place.

Warning! Do not separate the tubes once assembled.

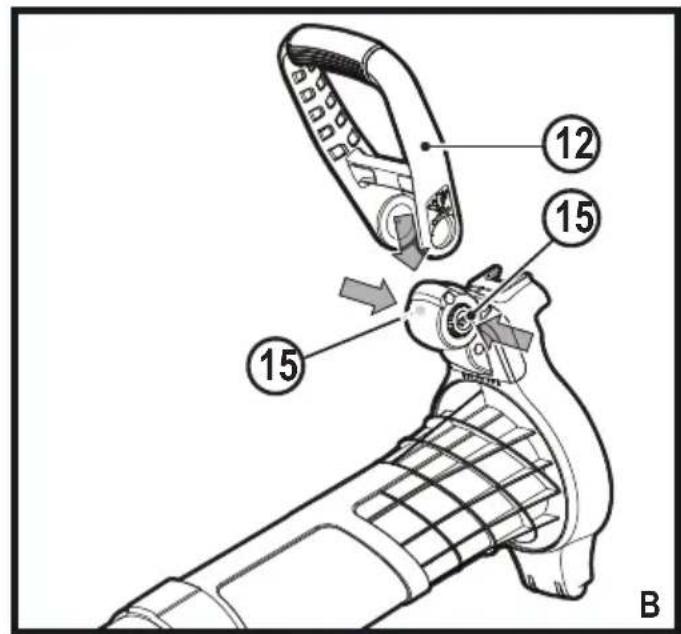

Attaching the second handle (fig. B) (GW3050 BDBV30 only)

◆ Press in and hold both of the buttons (15) on the side of the handle mount.

◆ Slide the second handle (12) in place over the buttons (15).

Note: Ensure that the orange button is on the same side as the large hole in the handle.

Warning! Ensure that the teeth on the button are correctly aligned in slots in the handle and that the handle is secure.

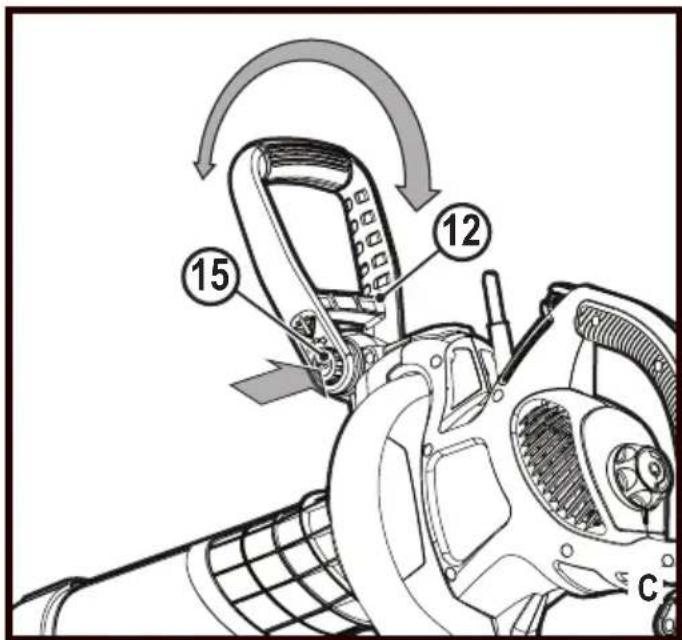

Adjusting the position of the second handle (fig. C) (GW3030 BDBV30 only)

The second handle (12) can be adjusted to provide optimum balance and comfort.

◆ Press in the button (15) on the left side of the handle.
◆ Rotate the second handle (12) into the required position.
◆ Release the button (15).

Warning! Ensure that the teeth on the button are correctly aligned in slots in the handle and that the handle is secure.

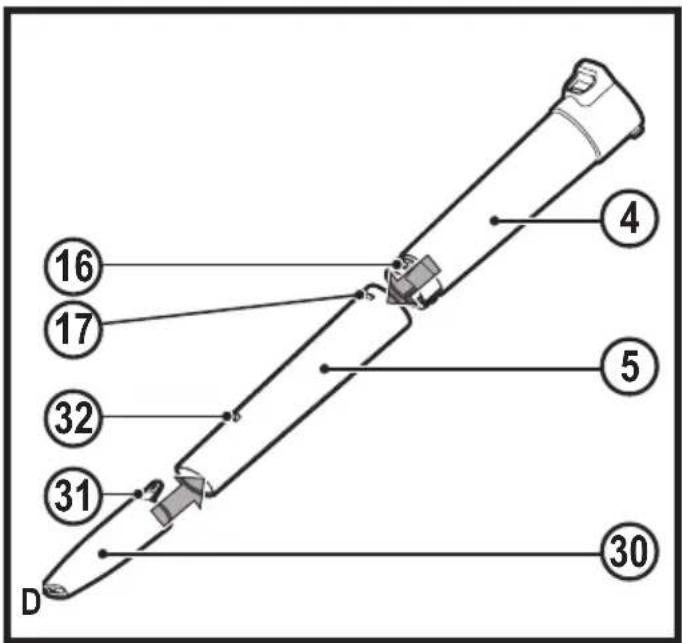

Blow tube assembly (fig. D)

  • Align the 2 markers (16) on bottom of the upper blow tube (4) and the 2 markers (17) on the bottom of the lower blow tube (5).
    ◆ Push the upper blow tube (4) firmly into the lower blow tube (5) until they click into place.

Warning! Do not separate the tubes once assembled.

Fitting and removing the concentrator (fig. D)

◆ Slide the concentrator (30) firmly onto the bottom end of the lower blow tube (5). Secure the concentrator by clipping the tab (31) onto the clip (32)
◆ To remove, lift the clip (32) and slide the concentrator (8) off the bottom of the lower blow tube(5).

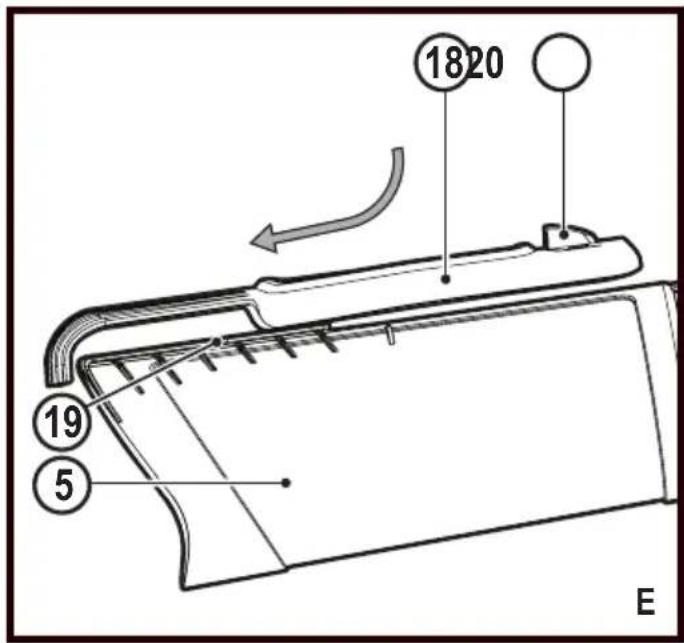

Fitting and removing the rake (fig. E) (GW3050, BDBV30 & GW2838 only)

◆ Position the rake (18) above the mount (19) on the bottom of the lower blow tube (5).
◆ Push down and slide the rake (18) firmly onto the mount (19) until it clicks into place.
◆ To remove, lift the rake release (20) and slide the rake (18) off the mount (19).

Use

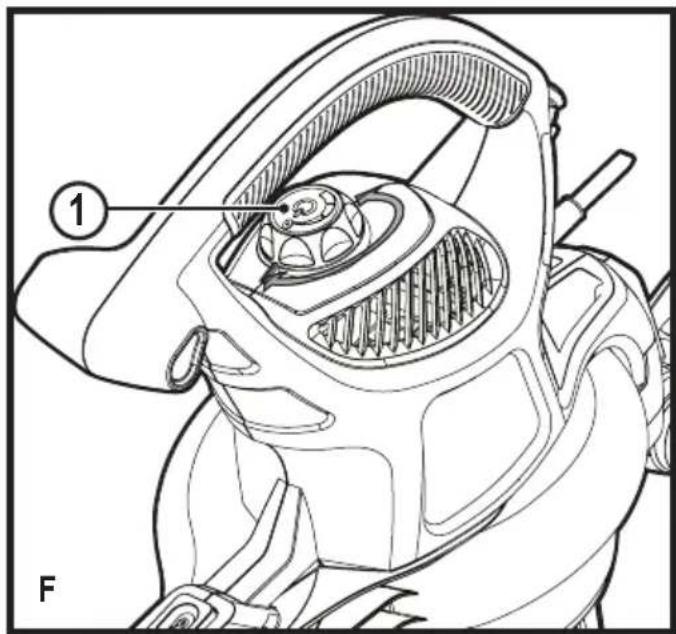

Switching on and off (fig. F)

Warning! Grip the product firmly when switching on.

◆ To switch the appliance on, turn the variable speed control (1) clockwise to the required setting.
◆ To switch the appliance off, turn the variable speed control (1) anti-clockwise to the off position.

Cable restraint (fig. G)

A cable restraint (2) is incorporated into the rear of the powerhead.

◆ Loop the cable (21) through the cable restraint (2).

Using your product

Warning! When using as a blower or vacuum, always wear safety glasses. If using in dusty conditions, wear a filter mask as well.

Warning! Switch off your product, allow the fan to stop and remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Blow mode (fig. H and I)

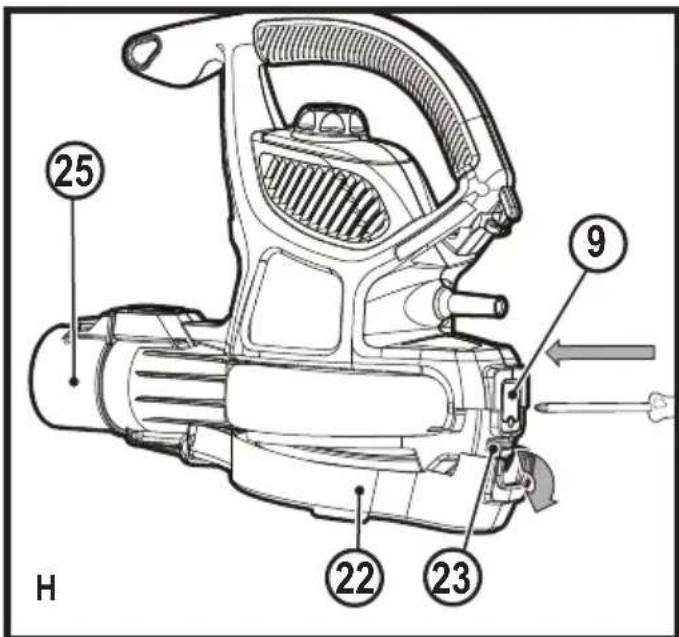

  • Attach the fan cover (22) to the powerhead (11) by locating the assembly as indicated by the arrow, then pivot about this point and press the vac release button (9) until the catch (23) is fully engaged. (fig. H)
    ◆ Align the assembled blow tube with the power head (11).
    ◆ Push the assembled blow tube onto the vacuum outlet (25) until the lock engages tightly with the blow tube.

Warning! Never operate in Blow mode without the blow tube and fan cover firmly in place.

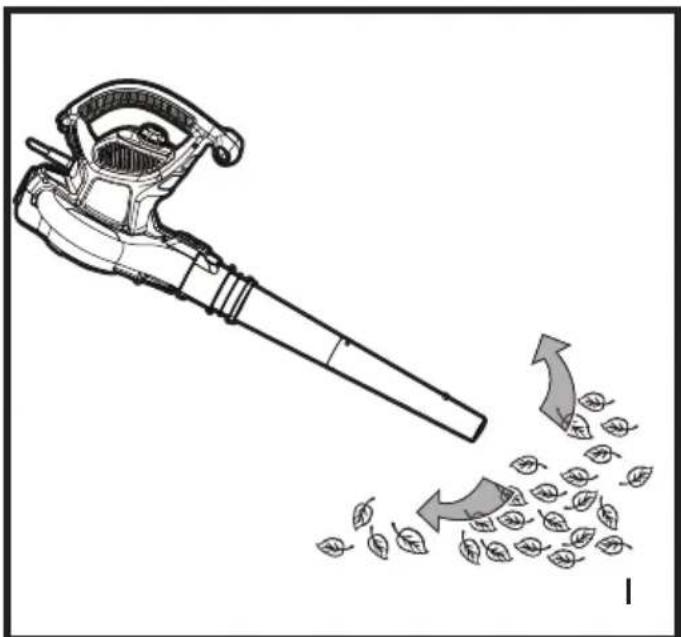

  • Hold the blow tube approximately 180 mm above the ground, switch on the appliance and using a sweeping motion from side to side, advance slowly keeping the accumulated debris/leaves in front of you (fig. I).
    ◆ Once you have blown the debris/leaves into a pile, you can convert to vacuum mode to collect the debris.

Removing the blow tube and fan cover

- Remove the fan cover (22) from the bottom of the power head by inserting a screwdriver/Allen key in the slot on the end of the fan cover (located on the back of the power head) to actuate the internal release, and remove the fan cover (figure H).

Vacuum mode (fig. H, J & K)

Note: For vacuuming/shredding, the collection bag (3) must be fitted.

  • Remove the fan cover (22) by pressing the vac release button (9) and pulling the fan cover (22) off, making sure that the fan cover does not fall to the ground.
    ◆ Attach the collection bag (3) to the vacuum outlet (25) by pressing it firmly on till it clicks into place.
  • Attach the assembled vacuum tube to the powerhead (11) by locating the assembly as indicated by the arrow, then pivot about this point and press the vac release button (9) until the catch is fully engaged.
  • Place the strap from the collection bag over your shoulder (fig. K) this will support the additional weight as the collection bag fills. Alternatively the collection bag can be clipped to the support bracket (28 - fig. A) on the upper vacuum tube (4) and the strap can be fitted to the powerhead (11) on the hook (29).

ENGLISH

(Original instructions)

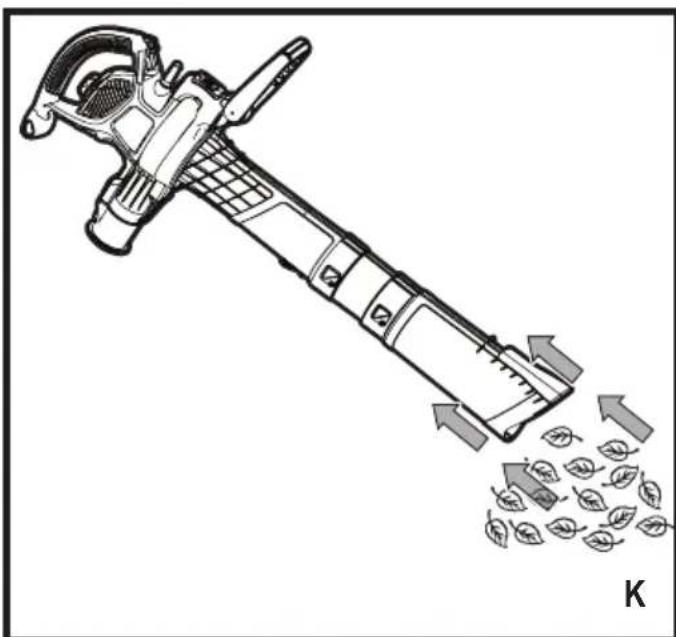

  • Position the vacuum tube slightly above the debris/leaves. Switch on the appliance and use a sweeping motion; the debris/leaves will be sucked up the tube, shredded and thrown into the collection bag (fig. K).
  • As the bag fills, the power of the suction will decrease, switch off the appliance and unplug from the mains power supply.
  • Unzip the bag to empty the contents before continuing to operate.

Warning! Never remove the collection bag without first turning off and unplugging the appliance.

Note: If the suction decreases and the bag is not full, the vacuum tube is probably clogged with debris. Turn off and unplug the vacuum and clear the tube before continuing.

Troubleshooting

Problem Possble solution
Failure to operateCheck the connection to the power supply
Check the fuse in the plug, if blown, replace (UK only).
Check that the blow/vacuum tube assembly is correctly fitted to the powerhead.
If the fuse continues to blow - immediately disconnect from the mains power supply and consult your local BLACK+DECKER authorised repair agent.
Poor vacuum/high pitched whineBLACK & DECKER GW2838 - (Original instructions) - 1Switch off - disconnect from the mains power supply, debris should fall clear of the tube.
Remove and empty the collection bag.
Check that both the inlet and exit ports on the vacuum tube are clear.
Remove any debris from the fan area
If poor vacuuming continues - immediately disconnect from the mains power supply and consult your local BLACK+DECKER authorised repair agent
Poor shreddingSwitch off - disconnect from the mains power supply and remove the collection bag.
Remove the vacuum tube and inspect the fan.
Clean any debris from the fan blades.
If the fan is cracked or damaged, do not use - consult your local BLACK+DECKER authorised repair agent.

Maintenance

Your BLACK+DECKER appliance has been designed to operate over a long period of time with a minimum of maintenance.

Continuous satisfactory operation depends upon proper appliance care and regular cleaning.

◆ Keep the appliance clean and dry.
- Remove any leaves stuck to the inside of the vacuum tube.
◆ Regularly clean the ventilation slots with a clean, dry paint brush.

  • Regularly clean the collection bag and ensure that it is clean and empty after each use.
  • To clean the appliance, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid. Do not use any abrasive or solvent-based cleaner.
    ◆ Self lubricating bearings are used in your product, therefore lubrication is not required.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

◆ Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

Technical data

BDBV30 (type 2)
Input voltage VAC230
Power Input W 3000
Capacity I 50
Weight (blower)Kg 3.7
Weight (vaccum)Kg 4.9
GW2810GW2838(type 2)GW3030(type 2)GW3050(type 2)
Input voltage V _AC 230 230 230
Power Input W 28003000 3000
CapacityI505050
Weight (blower)Kg3.45 3.7 3.7
Weight (vaccum)Kg4.854.85 4.85
Vibration total values (triax vector sum) according to EN 50636-2-100
Vibration ( a_h ) 9.8 m/s ^2 , uncertainty (K) 1.5 m/s ^2

EC declaration of conformity

MACHINERY DIRECTIVE OUTDOOR NOISE DIRECTIVE

BLACK & DECKER GW2838 - EC declaration of conformity - 1

BDBV30, GW3050, GW3030, GW2810, GW2838 - Blower Vac

Black & Decker declares that these products described under

"technical data" are in compliance with: 2006/42/EC, EN60335-1:2012+A11:2014; EN50636-2-100:2014

2000/14/EC, Blow Vac, Annex V

DEKRA Quality B.V., Utrechtseweg 310, 6802 ED Arnhem, The Netherlands Notified Body ID No.: 0344

Level of acoustic power according to 2000/14/EC (Article 13, Annex III):

LWA (measured sound power) 104 dB(A) Uncertainty = 3 dB(A)

LWA (guaranteed sound power) 107 dB(A) Uncertainty = 3 dB(A)

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of

Black & Decker.

R. Dawce

R. Laverick

Director of Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

21/10/2016

Guarantee

Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

To claim on the guarantee, the claim must be in accordance with Black&Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent.

Terms and conditions of the Black&Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual.

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.

Director of Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Royaume-Uni

12/10/2016

Garantie

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Regno Unito

12/10/2016

Garanzia

Director of Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Verenigd Koninkrijk

12-10-2016

NEDERLANDS

Black & Decker Europa, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Reino Unido

12/10/2016

Garantía

Director de Engenharia

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Reino Unido

12/10/2016

PORTUGUÊS

BDBV30, GW3050, GW3030, GW2810, GW2838 - Lövblås

Director of Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannien

2016-10-12

Garanti

BDBV30, GW3050, GW3030, GW2810, GW2838 - Løvblåser

Director of Engineering

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannia

12.10.2016

NORSK

BDBV30, GW3050, GW3030, GW2810, GW2838 - Løvsuger

2000/14/EF, Løvsuger, Annex V

DEKRA Quality B.V., Utrechtseweg 310, 6802 ED Arnhem,

Nederlandene Underrettet myndighed, id-nr.: 0344

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannien

12/10/2016

Garanti

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Iso-Britannia

12.10.2016

Takuu

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

12/10/2016

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : BLACK & DECKER

Model : GW2838

Category : Leaf blower
