Product Type	Corded Electric Leaf Blower
Brand	Black & Decker
Model	BEBL750
Power Source	Electric with power cord
Speeds	2 speeds (low and high)
Blower Tube	With snap-lock locking
Electrical Insulation	Double insulation (no grounding)
Estimated Weight	Approximately 3.5 kg
Estimated Overall Length	Approximately 90 cm (with tube)
Plug	Polarized (wide blade)
Recommended Extension Cord	Outdoor use, AWG gauge suitable for length
Intended Use	Outdoor leaf blowing for household use
Noise Level	Hearing protection recommended
Safety	Eye and respiratory protection recommended; do not use in rain
Routine Maintenance	Clean vents with dry compressed air once a week
Cleaning	Damp cloth and mild soap; do not immerse
Replacement Parts	Use only identical BLACK+DECKER parts
Repairs	Have serviced at a BLACK+DECKER authorized center
Warranty	2 years for household use
Storage	Indoors, out of reach of children

Frequently Asked Questions - BEBL750 BLACK & DECKER

How to assemble the blower tube on the BEBL750?

Align the locking tab at the bottom of the blower head with the notch at the bottom of the blower tube. Push the tube until the locks snap into place with a click. Pull to check the lock.

How to start and stop the blower?

Use the On/Off button on the handle. Push it forward to position 1 for low speed, position 2 for high speed. To stop, move the button back to the rear position (0). Wait 10 seconds for the fan to stop before removing the tube.

What to do if the blower does not start?

Check that the power cord is plugged into a working outlet. Check the circuit fuse and breaker. If the cord is damaged, have it repaired by an authorized center. Do not use if the fuse blows again.

What safety precautions should I take?

Always wear safety glasses (ANSI Z87.1), hearing protection, and a dust mask if necessary. Do not point the output toward yourself or others. Keep children and pets at least 10 meters away. Do not use in rain.

How to maintain the blower?

Clean the air vents with dry compressed air at least once a week. For the exterior, use a damp cloth with water and mild soap. Never immerse the appliance or use solvents.

Can I use an extension cord?

Yes, use an extension cord approved for outdoor use (type SJW or SJTW). Follow the minimum gauge indicated in the manual based on length. Tie a knot or use a connector to prevent accidental disconnection.

How to store the power cord?

Use the cord wrap hook on the back of the blower head. Make a loop with the extension cord, pass it through the back and hook it under the hook. You can also make an additional loop to plug in the cord.

Where can I find replacement parts?

Replacement parts must be identical BLACK+DECKER parts. Contact an authorized service center or visit www.blackanddecker.com. Do not use non-recommended accessories.

How to benefit from the warranty?

The limited 2-year warranty covers material and workmanship defects in household use. You can return the product to a participating retailer or send it to an authorized center. Keep the proof of purchase.

Can I use the blower in wet weather?

No, never use the appliance in rain or wet conditions. Risk of electric shock. Store it indoors in a dry place.

USER MANUAL BEBL750 BLACK & DECKER

Please read before returning this product for any reason.

English (original instructions) 1

If you have a question or experience a problem with your BLACK+DECKER purchase, go to: http://www.blackanddecker.com/instantanswers If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the CATALOG NUMBER available when you call.

To register your new product, visit www.BlackandDecker.com/NewOwner

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury (used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

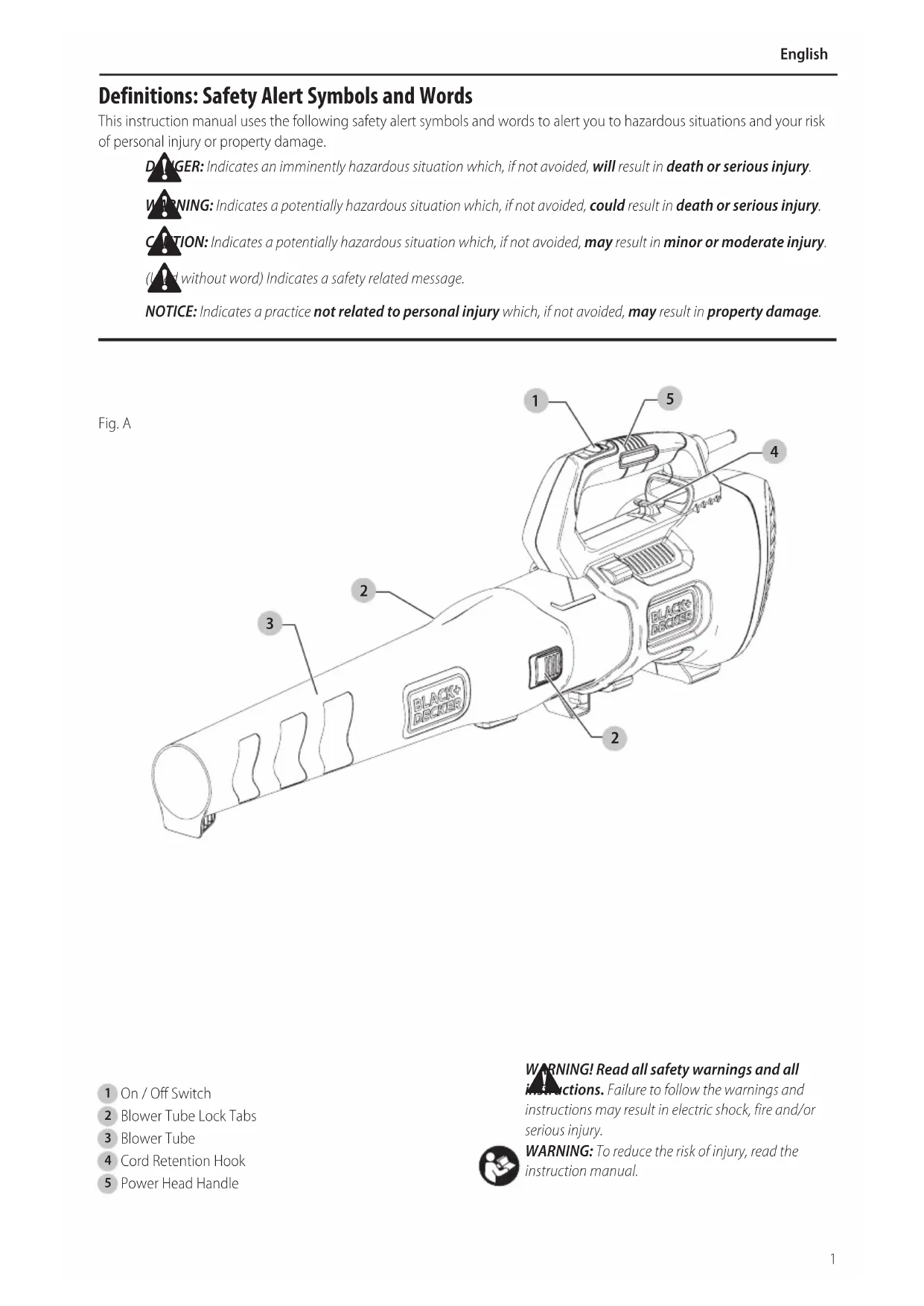

Fig. A

BLACK+ DECKER 1 2 3 4 5 BLACK+ ESCINGER 2

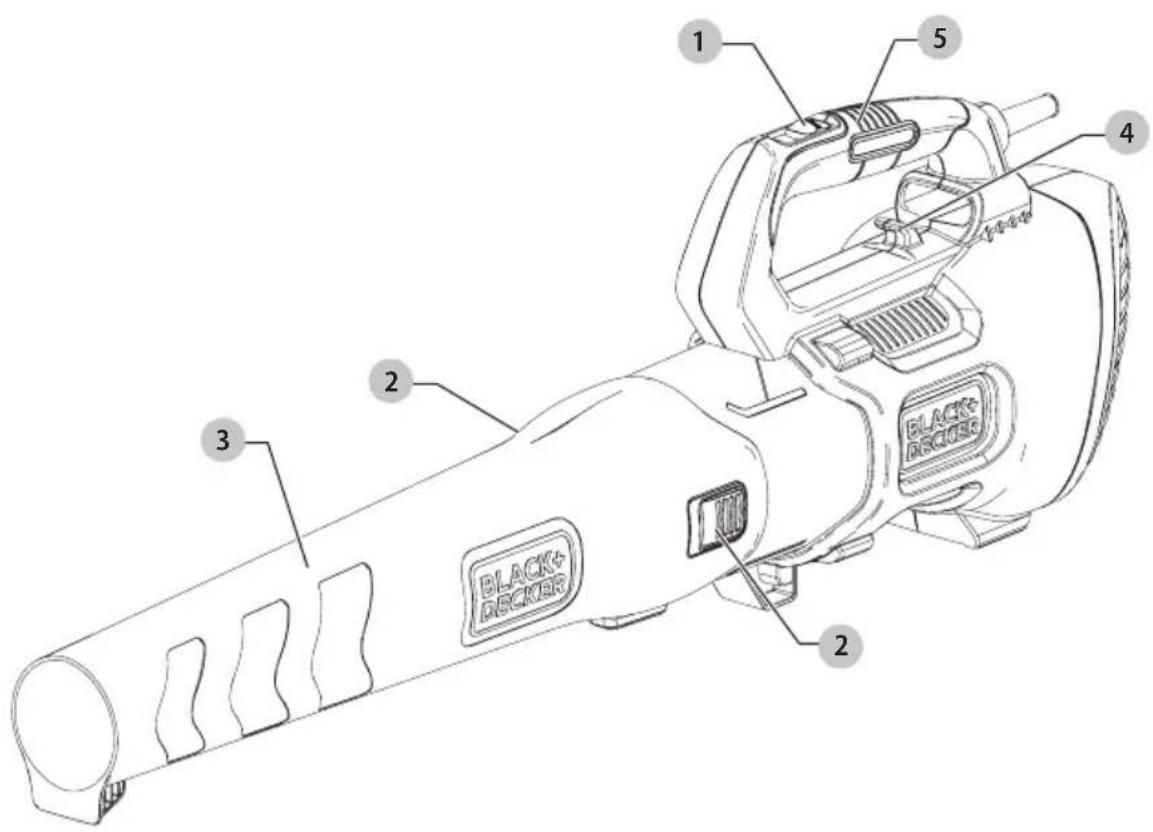

1 On / Off Switch
2 Blower Tube Lock Tabs
3 Blower Tube
4 Cord Retention Hook
5 Power Head Handle

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

English

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using an electric tool, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

WARNING: To reduce the risk of fire, electric shock, or injury:

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.
• Save these instructions and review frequently prior to use and in instructing others.
• Do not point unit discharge at self or bystanders.
• Keep long hair and loose clothing away from openings and moving parts.

WARNING: Some dust dispersed by this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers
  – compounds in insecticides, herbicides and pesticides
  – crystalline silica in dust from sand blasting or cutting bricks, mortar, concrete, and other masonry products, and
• arsenic and chromium from chemically treated lumber

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

READ ALL AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

• DO NOT place outlet of blower near eyes or ears when operating.
• STORE IDLE UNITS. When not in use, the unit should be stored in a dry, high or locked-up place - out of reach of children.
• DON'T OVERREACH. Keep proper footing and balance at all times.
• MAINTAIN UNIT WITH CARE. Keep unit clean for best and safest performance. Follow instructions for proper maintenance.
• DO NOT attempt to repair the blower. To assure product safety and reliability, repairs, maintenance, and adjustments should be performed by BLACK+DECKER service centers or authorized service centers, always using BLACK+DECKER replacement parts.
• DO NOT operate blower in a gaseous or explosive atmosphere. Motors in these units normally spark, and the sparks might ignite fumes.
• AVOID DANGEROUS ENVIRONMENTAL CONDITIONS – Do not use electric units in damp or wet locations. Don't use the unit in the rain.
• STAY ALERT - Watch what you are doing. Use common sense. Do not operate unit when you are tired.
• USE THE RIGHT UNIT – Do not use this unit for any job except that for which it is intended.
• USE EXTRA CARE when cleaning on stairs.

• DO NOT allow to be used as a toy. Close attention is necessary when used by or near children. Not recommended for use by children.

• DO NOT attempt to clear clogs from unit without first unplugging.

• USE ONLY as described in this manual. Use only manufacturer's recommended attachments.
• DO NOT put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair and everything that may reduce air flow.
• KEEP hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• DO NOT immerse any part of the unit in liquid.
• KEEP CHILDREN, BYSTANDERS AND ANIMALS AWAY from the work area a minimum of 30 feet (10 meters) when starting or operating the unit.
• INSPECT THE AREA before using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.
• DO NOT leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• DO NOT use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• DO NOT pull or carry by cord, use cord as a handle, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• DO NOT unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Turn off all controls before unplugging.
• This appliance is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.
• To reduce the risk of electric shock, use only with an extension cord intended for outdoor use, such as SJW or SJTW.
• Make sure your extension cord is in good condition and is the correct size for your appliance. The Minimum Gauge for Cord Sets chart below shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating
• Maintain Appliance With Care – Inspect extension cords periodically and replace if damaged.
• To reduce the risk of disconnection of appliance cord from the extension cord during operating:

i) Make a knot as shown in figure B; or
ii) Use one of the plug-receptacle retaining straps or connectors described in this manual. OR
iii) Secure the extension cord to the appliance plug as shown or described in the Operating Instructions. fig. B

Simple line drawing of a plug with wires, no text or symbols present

WARNING: To reduce the risk of personal injury due to a close electrical connection between the appliance's plug and extension cord, firmly and fully attach the

appliance plug to the extension cord. Periodically check the connection while operating to ensure it is fully attached. Do not use an extension cord that provides a loose connection. A loose connection may result in overheating, fire, and increases the risk of a burning.

NING: Always wear proper personal hearing action that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

NING: ALWAYS use safety glasses. Everyday

By glasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

NING: To reduce the risk of electrical shock; do pose to rain. Store indoors.

NING: Cut Hazard. Turn off and unplug unit, wait until fan stops or at least 10 seconds before

removing the blower or vacuum tube assemblies.

Servicing of Double Insulated Appliances

A double-insulated appliance is marked with one or more of the following: The words "DOUBLE INSULATION" or "DOUBLE INSULATED" or the double insulation symbol

Your Blower is double-insulated to give you added safety. In a double insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double insulated appliance must be identical to the parts they replace. A double insulated appliance is marked with the words double insulated or "double insulation". The symbol (square within a square) may also be marked on the appliance.

Safety Rules and Instructions: Extension Cords

Double insulated tools have 2-wire cords and can be used with 2-wire or 3-wire extension cords. Only round jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.) (C.S.A. in Canada). If the extension will be used outside, the cord must be suitable for outdoor use. Any cord marked as outdoor can also be used for indoor work.

An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. Before using an extension cord, inspect it for loose or exposed wires, damaged insulation, and defective fittings. Make any needed repairs or replace the cord if necessary.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2)		100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12 16	16 14 12
12 16 14	12 Not Recommended

Safety Rules and Instructions:

Polarized Plug

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This equipment must be used with a suitable polarized 2 wire or 3 wire extension cord. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the tool plug or extension cord in any way.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz hertz

min ...... minutes

- - - or DC..... direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

or AC/DC....alternating or direct current

Class II

Construction (double insulated)

⚠️ ____ safety alert symbol

△......visible radiation

wear respiratory protection

wear eye protection

O....wear hearing protection

SAVE THESE INSTRUCTIONS FOR FUTURE USE

English

COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part or damage or personal injury could result.

Refer to Figure A at the beginning of this manual for a complete list of components.

INTENDED USE

This appliance is designed for household outdoor blower applications.

DO nOT use under wet conditions or in presence of flammable liquids or gases.

DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and unplug before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Blow Tube Assembly (Fig. C, D)

• To attach the blower tube 3 to the power head, line up the peg 6 on the bottom of the power head with the notch 7 on the bottom of the blower tube opening as shown in fig. C.
- Push the blower tube onto the power head until the tube locks 2 engage the blower tube and an audible click is heard.
- Pull on the tube to ensure it is securely in place.
• To remove the tube, press in and the two tube locks and pull tube off as shown in fig. D.

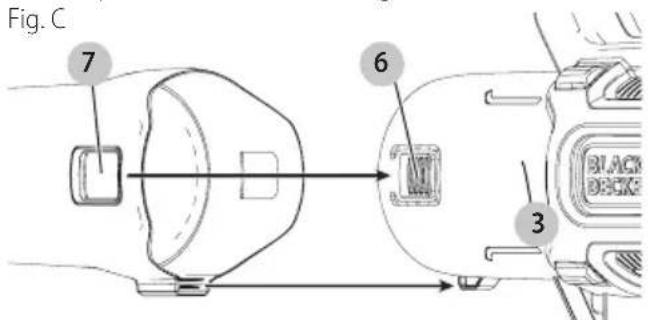

Fig. C 7 6 3

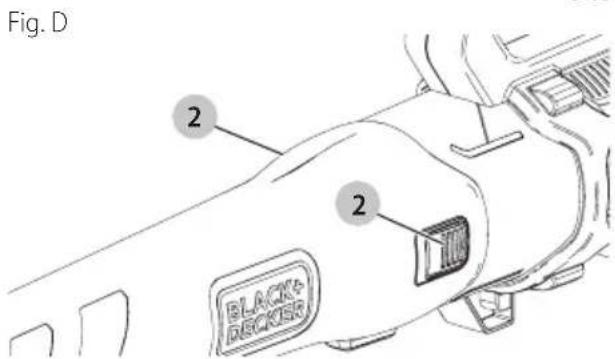

Fig. D 2 2 BLACK & DECKER

OPERATION

WARNING: Do not operate blower without blow tube securely in place. Never reach down into housing through tube hole.

WARNING: Always wear safety glasses. Wear a filter mask if the operation is dusty. Use of rubber gloves and substantial footwear is recommended when working outdoors. For household use only.

WARNING: Cut Hazard. When turning the tool is a wait 10 seconds for the fan to stop rotating before removing the blower tube.

• Always switch off and remove the plug from the electrical supply when:

• The power supply cord has become damaged or entangled.
• You leave blower unattended.
• Clearing a blockage.
• Checking, adjusting, cleaning or working on blower.

- Use blower only in daylight or good artificial light.

Switching ON/OFF (Fig. E)

WARNING: Use both hands to grip the product firmly when switching on.

CAUTION: Do not point unit discharge at self or bystanders.

WARNING: Cut Hazard. When turning the tool is a wait 10 seconds for the fan to stop rotating before removing the blower tube.

Your blower is fitted with a 2 speed ON/OFF switch located on the top of the power head handle 5.

• To switch the blower ON, slide the ON/OFF forward to position 1 as shown in Fig. L.
  • To operate blower in high speed, slide the ON/OFF switch forward to position 2 as shown in Fig. L.
• To switch the blower off, slide the ON/OFF ① switch back as shown in Fig. E.

Fig. E

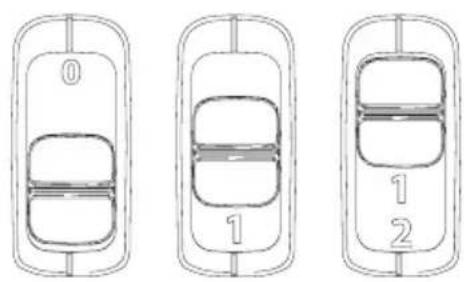

0 1 1 2

Cord Retainer (Fig. F)

• A cord retainer is incorporated into the rear of the power head. It can be used in two different ways:
• To use the cord retainer as shown in Fig. F, make a loop with the extension cord. Slide the extension cord loop through the back of the power head and hook the extension cord under the retainer. Then plug the cord from the power head into the extension cord.
• To use the cord retainer as shown in Fig. F, make a loop with the extension cord. Slide the extension cord loop through the back of the power head and hook the extension cord under the retainer. Then loop the extension cord over the power head cord and plug the two ends into each other.

English

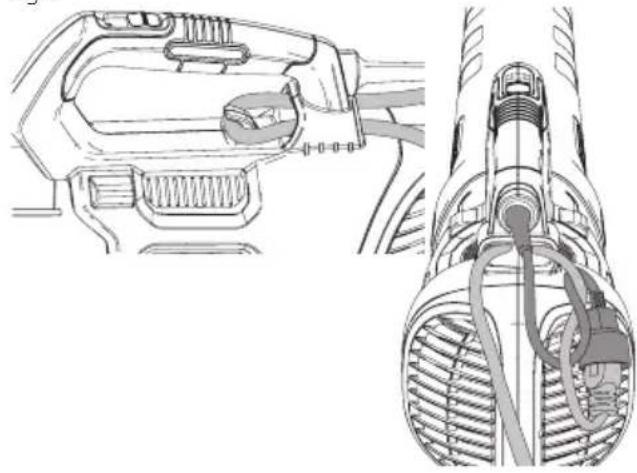

Fig. F

Technical line drawing of a mechanical component with internal wiring and housing (no text or symbols)

Use (Fig. C, F, G)

WARNING: Ensure product is switched off and connected from the power supply.

• Connect the cord on the power head to the power supply (Fig. F).
• Hold the blow tube approximately 7 inches (180 mm) above the ground, turn the blower on and using a sweeping motion from side to side, advance slowly keeping the accumulated debris/leaves in front of you as shown in Fig. G.

Fig. G

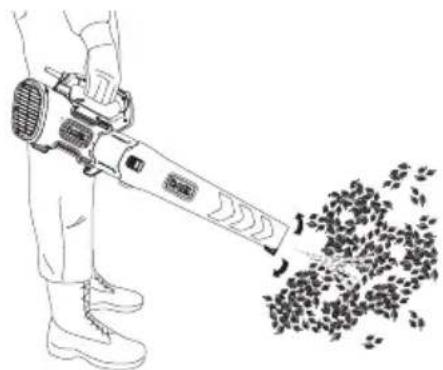

Line drawing of a person using a power tool to spread debris (no text or symbols)

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and unplug before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

WARNING: SHOCK HAZARD. DO NOT POUR OR SPRAY WATER ON THE TOOL IN AN ATTEMPT TO CLEAN.

Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Do not store the tool on or adjacent to fertilizers or chemicals. Such storage can cause rapid corrosion of the metal parts.

iIMPORTAnT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service personnel, always using identical replacement parts.

Accessories

WARNING: Since accessories, other than those offered by BLACK+DECKER, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only BLACK+DECKER recommended accessories should be used with this product.

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

Repairs

WARNING: To assure product SAFETY and PABILITY, repairs, maintenance and adjustment (including brush inspection and replacement) should be performed by a BLACK+DECKER factory service center or a BLACK+DECKER authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  • FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.blackanddecker.com/register.

ENGLISH

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways:

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER's option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other

rights which vary from state to state. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286

BlackandDecker.com 1-800-544-6986

TROUBLESHOOTING

For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at: 1-800-544-6986.

Problem Possible Cause Possible Solution

Unit will not start. Cord not plugged in.		Plug tool into a working outlet.
	Circuit fuse is blown.	Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced at a BLACK+DECKER service center or authorized servicer.)
	Circuit breaker is tripped.	Reset circuit breaker. (If the product repeatedly causes the circuit breaker to trip, discontinue use immediately and have it serviced at a BLACK+DECKER service center or authorized servicer.)
	Cord or switch is damaged.	Have cord or switch replaced at BLACK+DECKER Service Center or Authorized Servicer.

Simple line drawing of a plug with wires, no text or symbols present

fabrication classe I (double isolation)

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

Utiliser (Fig. C, F, G)

Line drawing of a person using a handheld tool to generate granular material (no text or symbols)

MAINTENANCE

Simple line drawing of a plug with coiled wires (no text or symbols)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Use (Fig. C, F, G)

Line drawing of a person using a handheld tool to spread debris (no text or symbols)

MANTENIMIENTO

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Black & Decker (U.S.) Inc.

701 East Joppa Road, Towson, MD 21286

Part No. N582978

BEBL750

APRIL 2018
