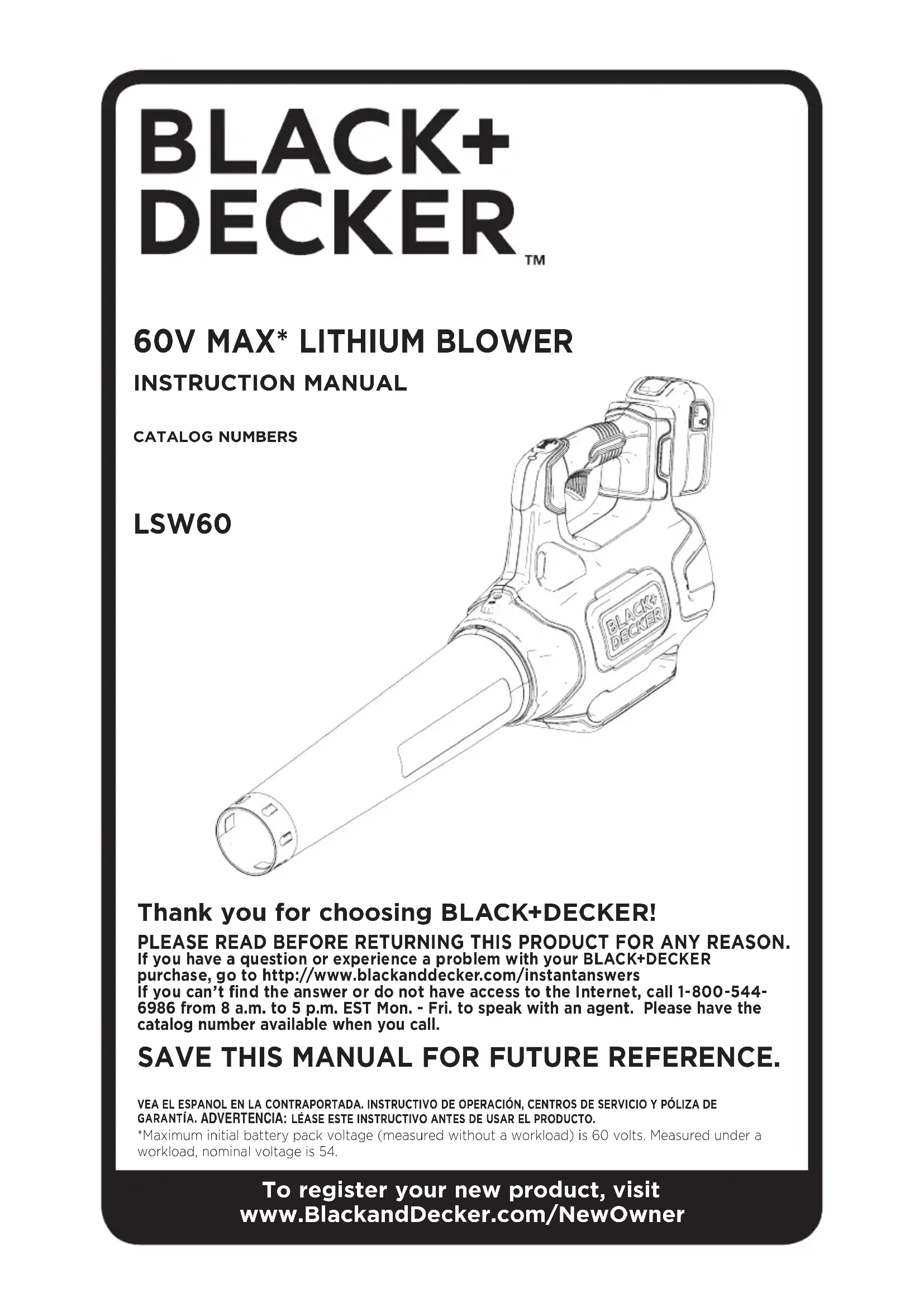

USER MANUAL LSW60 BLACK & DECKER

CATALOG NUMBERS Thank you for choosing BLACK+DECKER! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON. If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers If you can’t find the answer or do not have access to the Internet, call 1-800-544- 6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call. SAVE THIS MANUAL FOR FUTURE REFERENCE. VEA EL ESPANOL EN LA CONTRAPORTADA. INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.*Maximum initial battery pack voltage (measured without a workload) is 60 volts. Measured under a workload, nominal voltage is 54. To register your new product, visit www.BlackandDecker.com/NewOwner LSW602 IMPORTANT SAFETY WARNINGS & INSTRUCTIONS

TO REDUCE RISK OF INJURY:• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual. Save these instructions and review frequently prior to use and in instructing others.• Do not point unit discharge at self or bystanders.• Keep long hair and loose clothing away from openings and moving parts.

WARNING: When using an

electric tool, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

created by this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • compounds in fertilizers • compounds in insecticides, herbicides and pesticides • arsenic and chromium from chemically treated lumber To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

GENERAL SAFETY WARNINGS AND

INSTRUCTIONS FOR ALL TOOLS

• READ and follow all instructions.• A BATTERY OPERATED UNIT with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery. USE BATTERY OPERATED UNIT ONLY with specifically designated battery pack. Use of any other batteries may create a risk of fire.• AVOID accidental starting. Be sure switch is in the locked or off position before inserting battery pack. Carrying units with your finger on the switch or inserting the battery pack into a unit with the switch on invites accidents. DO NOT use unit if switch does not turn it on or off. A unit that cannot be controlled with the switch is dangerous and must be repaired.• DISCONNECT battery pack from unit or place the switch in the locked or off position before making any adjustments, changing accessories, or storing the unit. Such preventative safety measures reduce the risk of starting the unit accidentally.• ALWAYS WEAR EYE PROTECTION – Wear safety glasses or goggles at all times when this unit is in use. Also use face or dust mask. Safety glasses are available at extra cost at your local Black+Decker Service Center or authorized service facility. • DO NOT place outlet of blower near eyes or ears when operating. STORE IDLE UNITS. When not in use, the unit should be stored in a dry, high or locked-up place - out of reach of children.• DON’T OVERREACH. Keep proper footing and balance at all times. MAINTAIN UNIT WITH CARE. Keep unit clean for best and safest performance. Follow instructions for proper maintenance.• DO NOT attempt to repair the blower. To assure product safety and reliability, repairs, maintenance, and adjustments should be performed by Black+Decker service centers or authorized service centers, always using Black+Decker replacement parts. DO NOT operate blower in a gaseous or Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risks of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or

serious injury. CAUTION: Indicates a potentially haz ard ous situation which, if not avoided, may result in minor or mod er ate injury. NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.3 explosive atmosphere. Motors in these units normally spark, and the sparks might ignite fumes.

• AVOID DANGEROUS ENVIRONMENTAL CONDITIONS – Do not use electric units in damp or wet locations. Don’t use the unit in the rain.

• STAY ALERT - Watch what you are doing. Use common sense. Do not operate unit when you are tired.

• USE THE RIGHT UNIT – Do not use this unit for any job except that for which it is intended.

• USE EXTRA CARE when cleaning on stairs.

• DO NOT allow to be used as a toy. Close attention is necessary when used by or near children. Not recommended for use by children.

• DO NOT attempt to clear clogs from unit without first removing battery.

• USE ONLY as described in this manual. Use only manufacturer’s recommended attachments.

• DO NOT put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair and everything that may reduce air flow.

• KEEP hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

DO NOT immerse any part of the unit in liquid.

• UNDER ABUSIVE CONDITIONS, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• DO NOT handle appliance or charger, including charger plug, and charger terminals with wet hands.

• KEEP CHILDREN, BYSTANDERS AND ANIMALS AWAY from the work area a minimum of 30 feet (10 meters) when starting or operating the unit.

• INSPECT THE AREA before using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.

• USE ONLY charger supplied by the manufacturer to recharge.

EXERCISE CARE in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and cause burns.

• DO NOT OPEN OR MUTILATE the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

• DO NOT CHARGE the unit outdoors.

To reduce the risk of electrical shock; do not expose to rain, do not use on wet surfaces. Store indoors

SAVE THESE INSTRUCTIONS

SYMBOLS The label on your tool may include the following symbols. The symbols and their definitions are as follows: V ....................... volts A ....................... amperes Hz ..................... hertz W...................... watts min ................... minutes or AC ......... alternating current or DC ...... direct current

SAVE THESE INSTRUCTIONS: T

his manual contains important safety instructions for battery chargers.

Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

Shock hazard. Do not allow any liquid to get inside charger. CAUTION: Burn hazard. To reduce the risk of injury, charge only designated BLACK+DECKER batteries. Other types of batteries may burst causing personal injury and damage. CAUTION: Under certain conditions, with the charger plugged in to the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

attempt to charge the battery pack with any chargers other than those specified by the manufacturer. The charger and battery pack are specifically designed to work together.

• These chargers are not intended forany uses other than charging designated BLACK+DECKER rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.

• Do not expose charger to rain or snow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.

• Do not operate charger with damaged cord or plug — have them replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorized service center.

• Do not disassemble charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

• NEVER attempt to connect 2 chargers together

• The charger is designed to operate on standard household electrical power (120 Volts). Do not attempt to use it on any other voltage. EXTENSION CORD Make sure your extension cord is in good condition. When using an extension cord be sure it is heavy enough to carry the current your product will draw. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY PACKS SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for battery packs. Before using the battery pack, read all instructions and cautionary markings on battery pack, charger, and product using the battery pack.

For safe operation, read this manual and manuals originally supplied with tool before using the charger. The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when battery packs are burned.

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.

• I f battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Li-ion batteries is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

• Charge the battery packs only in BLACK+DECKER chargers.

• DO NOT splash or immerse in water or other liquids. This may cause premature

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 105°F (40˚C) (such as outside sheds or metal buildings in summer).

DAMAGED IN ANY WAY (I.E., PIERCED WITH A NAIL, HIT WITH A HAMMER,

APRONS, POCKETS, TOOL BOXES, PRODUCT KIT BOXES, DRAWERS, ETC., WITH LOOSE NAILS, SCREWS, KEYS, ETC.

TRANSPORTING BATTERIES CAN

POSSIBLY CAUSE FIRES IF THE BATTERY

SUCH AS KEYS, COINS, HAND TOOLS AND

THE LIKE. THE US DEPARTMENT OF

UNLESS THEY ARE PROPERLY PROTECTED

ARE PROTECTED AND WELL INSULATED

IN CHECKED BAGGAGE. TRANSPORTATION Your BLACK+DECKER batteries comply with all applicable shipping regulations as prescribed by industry and legal standards, including UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and U.S. Department of Transportation Regulations. Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests and Criteria. The shipping or transportation of the battery in this product is restricted and may be classified as a Class 9 Hazardous material.

• Contact your carrier for up to date instructions. Have your contents (including the battery) with you when contacting them. The specifications written on them will be needed to prepare them for shipment, pack them in a compliant box, and properly label the box.

• The original product box and its packing material can be used for shipping by ground within the United States and Canada with the following stipulations:

1. The battery and all other contents must be in their

original packing materials and arranged as received (including the battery in its original plastic bag and or battery box).

2. The original product box and all other packing

materials must be undamaged.

3. The shipment must be include a document which

contains the following:

• The package contains lithium-ion cells or batteries.

• The package must be handled with care and that a flammability hazard exists if the package is damaged.

• Special procedures should be followed in the event the package is damaged, to include inspection and repacking if necessary.

• The telephone numbers for additional information (US and Canada 1-888-698-2571, Elsewhere [phone]).

• To ship by ground in a generic box, contact your carrier for up to date instructions. Have your contents (including the battery) with you when contacting them. The specifications written on them will be needed to prepare them for shipment, pack them in a compliant box, and properly label the box. These batteries can be carried on airplanes if:

1. The airline allows spare batteries up to 160 Whr

(check airline website)

2. No more than 2 batteries are carried on, and

3. The batteries are protected against short circuit.

The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. The shipper is responsible to comply with the applicable regulations. STORAGE RECOMMENDATIONS

1. The best storage place is one that is

cool and dry away from direct sunlight and excess heat or cold.

2. Long storage will not harm the battery

pack or charger. CHARGING PROCEDURE Use only with BLACK+DECKER BDCAC60 Series chargers. BLACK+DECKER chargers are designed to charge BLACK+DECKER battery packs.6

1. Plug the charger into an appropriate

outlet before inserting the battery pack.

2. Insert the battery pack into the charger.

3. The green LED will flash

indicating that the battery is being charged.

4. The completion of charge

is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left on the charger. Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished. CHARGER DIAGNOSTICS This charger is designed to detect certain problems that can arise with the battery packs or the power source. Problems are indicated by one LED flashing in different patterns. BAD BATTERY The charger can detect a weak or damaged battery. The red LED flashes in the pattern indicated on the label. If you see this bad battery blink pattern, do not continue to charge the battery. Return it to a service center or a collection site for recycling.

When the charger detects a battery that is excessively hot or excessively cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has normalized. After this happens, the charger automatically switches to the Pack Charging mode. This feature ensures maximum battery life. The red LED flashes in the pattern indicated on the label when the hot / cold pack delay is detected.

IMPORTANT CHARGING NOTES

1. Longest life and best performance can

be obtained if the battery pack is charged when the air temperature is between 60°F and 80°F (16°- 27°C). DO NOT charge the battery pack in an air temperature below +40°F (+4.5°C), or above +105°F (+40.5°C). This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may

become warm to touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.

3. If the battery pack does not charge properly:

a. Check current at receptacle by plugging in a lamp or other appliance b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. c. Move charger and battery pack to a location where the surrounding air temperature is approximately 60°F - 80°F (16° - 27°C). d. If charging problems persist, take the tool, battery pack and charger to your local service center.

4. The battery pack should be recharged

when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse affect on the battery pack.

Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

6. Do not freeze or immerse charger in

water or any other liquid.

WARNING: SHOCK HAZARD.

Do not allow any liquid to get inside charger.

SAVE THESE INSTRUCTIONS

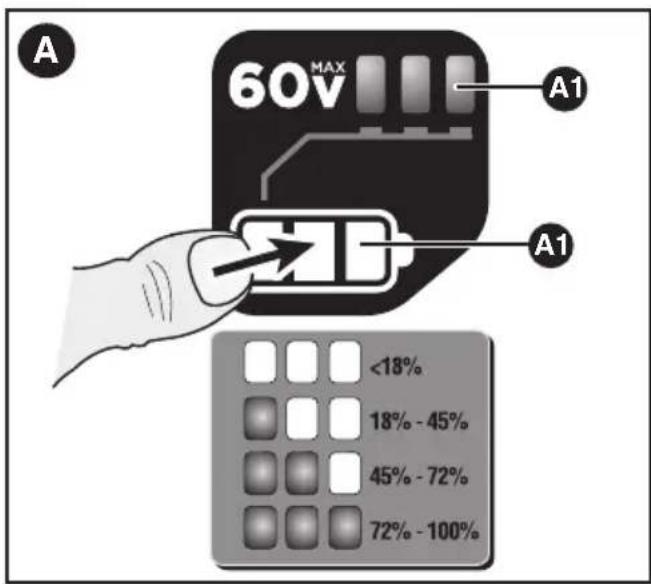

The side of the battery is equipped with a state of charge indicator. This can be used to display the current level of charge in the battery during use and during charging. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application. CHECKING STATE OF CHARGE DURING USE:

• Press the state of charge indicator button (A1).

• The three LED’s (A2) will illuminate indicating the percent of charge in the battery. See chart in figure A.

• If LED light does not lluminate, charge battery. NOTE: This battery is designed to not operate when a charge below 20% of its capacity is reached. After the battery charge is depleted, the tool will not operate until after the battery has been recharged.INSTALLING / REMOVING BATTERY PACK

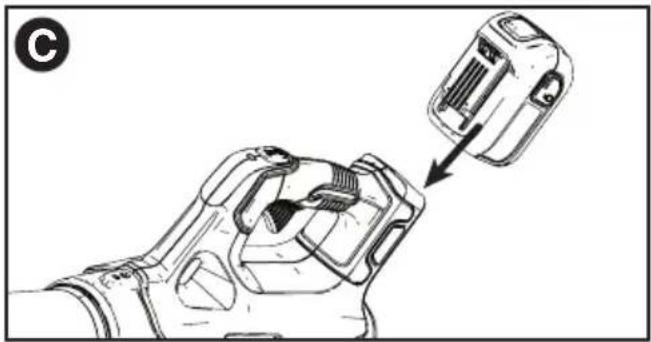

• TO INSTALL BATTERY PACK: Insert battery pack into tool until an audible click is heard as shown in figure C. Make sure battery pack is fully seated and fully latched into position.

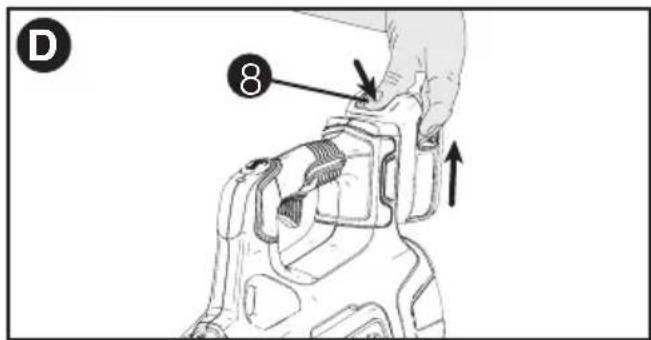

• TO REMOVE BATTERY PACK: Depress the battery release button (8) in the back of the battery pack and pull battery pack out of tool assembly as shown in figure D. OPERATION CAUTION: Always wear safety glasses. Wear a filter mask if the operation is dusty. Use of gloves, long pants and substantial footwear is recommended. Keep long hair and loose clothing away from openings and moving parts. THIS BLOWER IS FOR HOUSEHOLD USE ONLY.

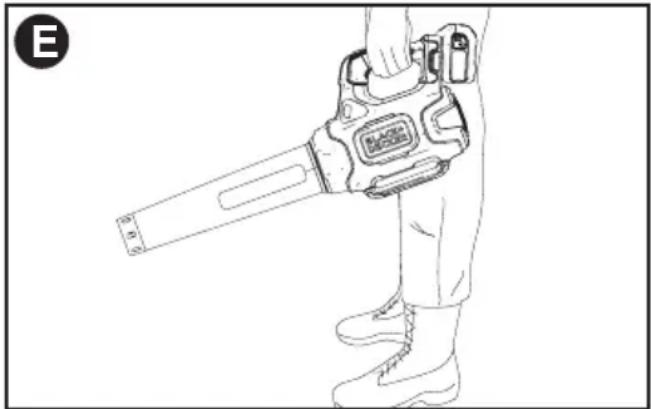

• Hold the blower with one hand as shown in figure E and blow from side to side

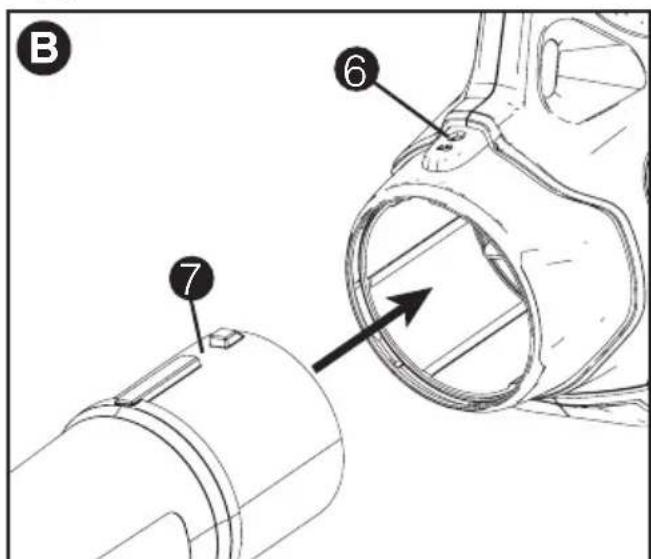

TUBE ASSEMBLY NOTE: Ensure the blower is switched off and the battery is removed before attaching or removing the blower tube. The tube must be assembled to the housing before use.

• To attach the tube to the blower, line up the tube with the blower housing as shown in figure B.

• Push the tube into the blower housing until the lock button (6) engages the lock hole (7) on the tube.

5with the nozzle several inches above the ground. Slowly advance keeping the accumulated pile of debris in front of you.

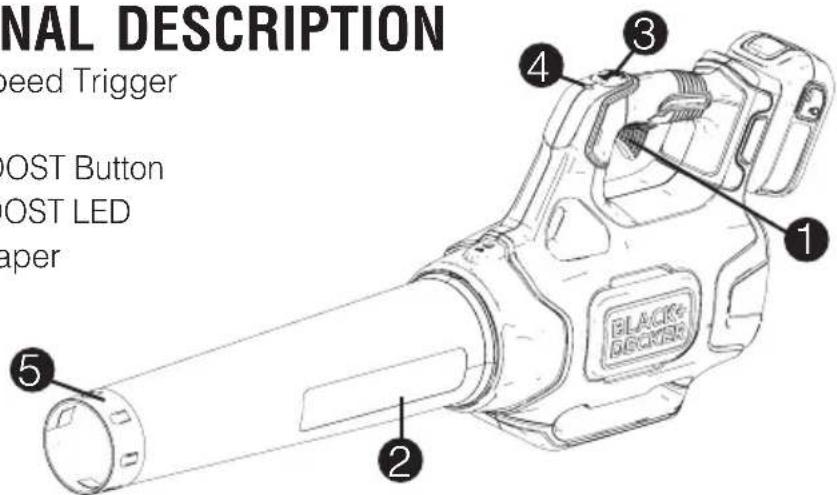

SWITCHING ON AND OFF

HANDS TO GRIP THE PRODUCT FIRMLY

CAUTION: DO NOT POINT

• To turn the blower ON, squeeze the variable speed trigger (1).

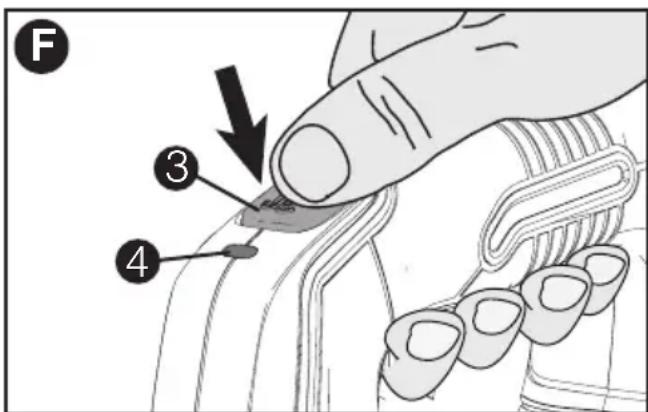

• Release the trigger to turn the blower OFF. POWERBOOST FEATURE The POWERBOOST feature (3) is located on the tool handle as shown in figure F. It allows you to optimize the tools performance and boost the power as needed.

• Switch the blower ON.

• To activate the “Boost” mode, press the POWERBOOST button. The POWERBOOST LED (4) will illuminate, indicating “Boost” is activated.

• To deactivate the “Boost” mode, press the POWERBOOST button. The POWERBOOST LED (4) will turn off.

• POWERBOOST will automatically disable and the blower will return to “Normal” mode when the variable trigger is fully released. NOTE: Operate in “Normal” mode for most blowing needs. (Longer runtime will be achieved.) Activate “Boost” mode as needed to clear heavy or wet debris.

DEBRIS SCRAPER The debris scraper (5) is great for wet sticky leaves. It allows you to scrape wet leaves or heavier debris while operating the blower. ACCESSORIES Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

The use of any accessory not recommended for use with this tool could be hazardous. SERVICE INFORMATION All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com This Class B digital apparatus complies with Canadian ICES-003. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. The RBRC

Seal The RBRC® (Rechargeable Battery Recycling Corp- oration) Seal on the nickel cadmium, nickel metal hydride or lithium-ionbatteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at

the end of their useful life have already been paid by BLACK+DECKER. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium- ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative. Call 2 Recycle, Inc., in cooperation with BLACK+DECKER and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized BLACK+DECKER service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle, Inc.

THREE-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of three (3) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than Black+Decker and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways: The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer).Returns should be made within the time period of the retailer’s policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a Black+Decker owned or authorized Service Center for repair or replacement at Black+Decker’s option. Proof of purchase may be required. Black+Decker owned and authorized service centers are listed online at www.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black+Decker Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information. Imported by Black+Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 U.S.A. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

• Unit will not start. • Battery not installed properly. • Check battery installation.

• Battery not charged. • Check battery charging requirements.

• Battery will not charge. • Battery not inserted into charger . • Insert battery intocharger until green LED appears.

• Charger not plugged in. • Plug charger into a working outlet. Refer to “Important Charging Notes” for more details.

• Check current at receptacle by plugging in a lamp or other appliance.

• Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.

• Surrounding air tempera- • Move charger and tool to a surrounding ture too hot or too cold. air temperature of above 40 degree F (4.5°C) or below 105 degree F (+40.5°C). For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the Black+Decker help line at 1-800-544-6986.10

Cat No. LSW60 Form #N498168 October 2016 Copyright © 2016 BLACK+DECKER Printed in China
