USER MANUAL ZP 3001 wet Exquisit

8.1 Signs and symbols 19
8.2 Safety directions 19
8.3 Safety and responsibility 20
8.4 Safety and warnings 20

9 Initial operation 20

9.1 Checking the citrus juicerand the scope of delivery 20
9.2Assembling the citrus juicer 21
9.3 Starting the citrus juicer 21

10 Cleaning 22
11 Disposing of old appliances 23
12 Technical information 24
13 General Warranty Conditions 25
14 Contenu de la livraison/Pièces de l'appareil 29
15 Sécurité 30

With QR codes there's fast and easy access to all information

What are QR codes?

QR codes (Quick Response codes) are graphic codes, which are read by means of a Smartphone camera and lead quickly and easily to further information (e.g. see internet site, product video or contact information).

And this is how it works

To scan the QR codes all you need is a Smartphone, a QR code reader app (available free of charge in the App Store) and an internet connection.*

*When reading QR codes additional costs may be incurred for the internet connection depending on the rate you pay.

Best regards

Dear customers,

Thank you for purchasing our device. You have made a good decision. Your Exquisit unit has been built for domestic use and a quality product that meets the highest technical demands with practical ease of operation like other Exquisit units that function all over Europe to the complete satisfaction of their owners.

Read the instruction manual carefully before using the unit. This leaflet contains important safety instructions and information regarding the installation, operation and maintenance of the unit. Proper handling contributes to efficient use and minimize energy consumption during operation.

The incorrect use could lead to dangerous situations, especially for children. Keep this booklet for future reference. Enter the instructions on to any future owner of this product. If there is doubt regarding any questions or issues that are not described in detail in this manual, contact your dealer, an authorized technician or go to our homepage www.ggv-service.de

The manufacturer is always working on the development of all types and models. For all types and models are changes to the design, features and equipment subject to change without notice.

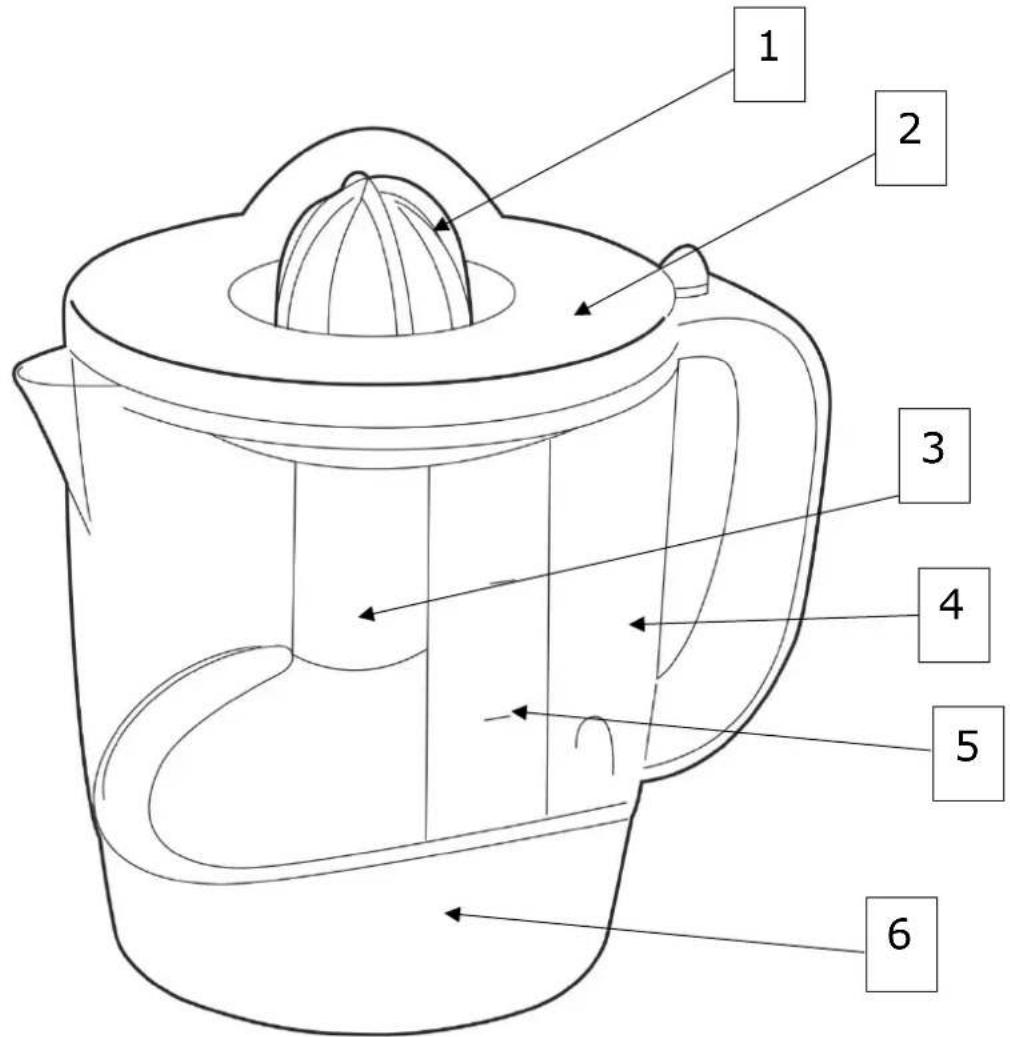

8 Scope of delivery/components

1 Pressing cone
2 Fruit pulp strainer
3 Drive axle
4 Juice container
5 Level indicator
6 Motor base

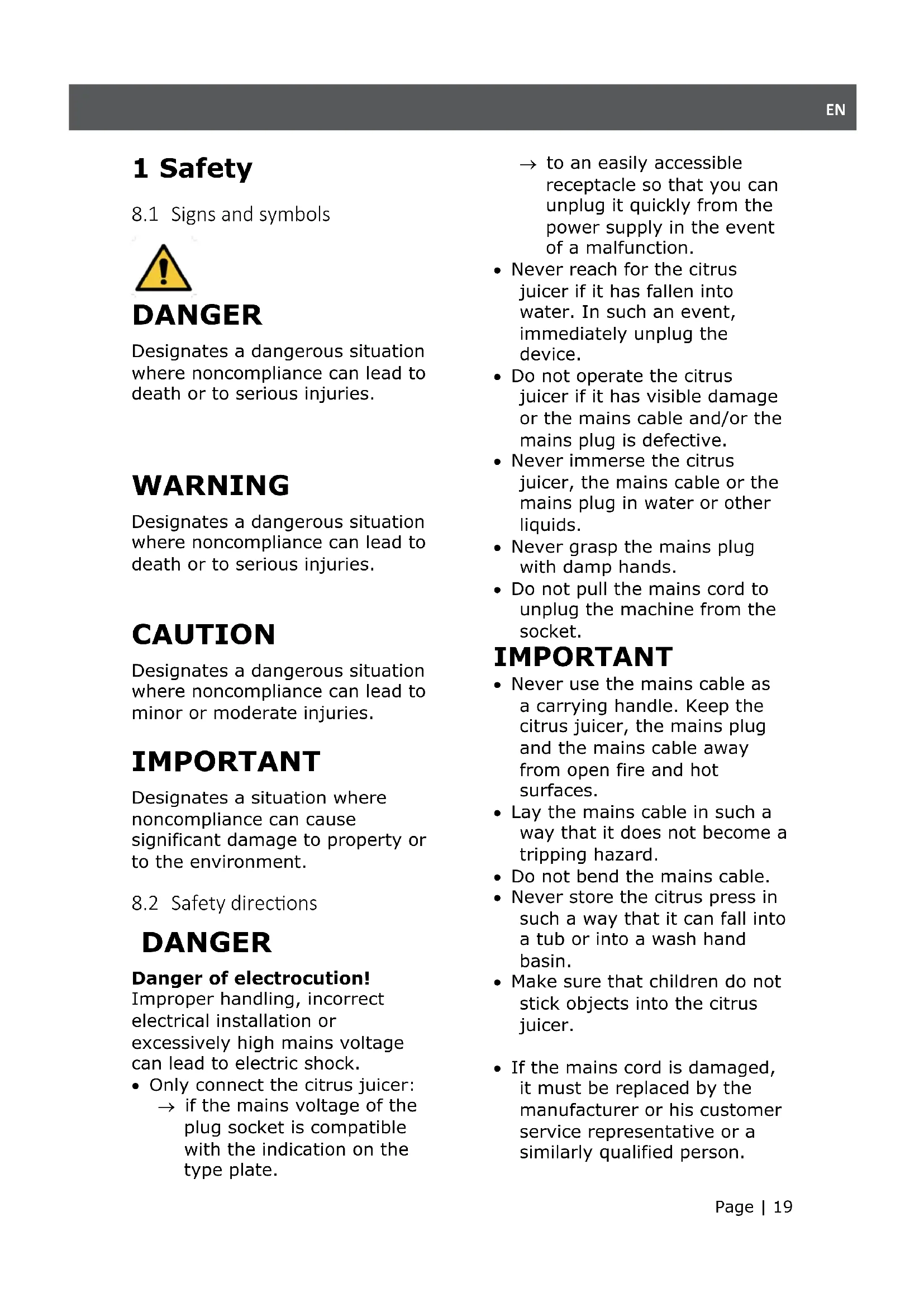

1 Safety

8.1 Signs and symbols

DANGER

Designates a dangerous situation where noncompliance can lead to death or to serious injuries.

WARNING

Designates a dangerous situation where noncompliance can lead to death or to serious injuries.

CAUTION

Designates a dangerous situation where noncompliance can lead to minor or moderate injuries.

IMPORTANT

Designates a situation where noncompliance can cause significant damage to property or to the environment.

8.2 Safety directions

DANGER

Danger of electrocution!

Improper handling, incorrect electrical installation or excessively high mains voltage can lead to electric shock.

• Only connect the citrus juicer: if the mains voltage of the plug socket is compatible with the indication on the type plate.

to an easily accessible receptacle so that you can unplug it quickly from the power supply in the event of a malfunction.

• Never reach for the citrus juicer if it has fallen into water. In such an event, immediately unplug the device.
• Do not operate the citrus juicer if it has visible damage or the mains cable and/or the mains plug is defective.
• Never immerse the citrus juicer, the mains cable or the mains plug in water or other liquids.
• Never grasp the mains plug with damp hands.
• Do not pull the mains cord to unplug the machine from the socket.

IMPORTANT

• Never use the mains cable as a carrying handle. Keep the citrus juicer, the mains plug and the mains cable away from open fire and hot surfaces.
• Lay the mains cable in such a way that it does not become a tripping hazard.
• Do not bend the mains cable.
• Never store the citrus press in such a way that it can fall into a tub or into a wash hand basin.
• Make sure that children do not stick objects into the citrus juicer.
• If the mains cord is damaged, it must be replaced by the manufacturer or his customer service representative or a similarly qualified person.

8.3 Safety and responsibility

WARNING

Risk of injury!

Dangers for children and people with reduced physical, sensory or mental abilities (for example partially impaired elderly people with restriction of their physical and mental abilities) or with a lack of experience and knowledge (for example older children).

This citrus juicer can be used by children starting from eight years old as well as people with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or were instructed concerning the safe use of the citrus juicer and understand the dangers resulting from it. Children must not play with the citrus juicer. Cleaning and user maintenance should not be performed by children without supervision.

Keep children below the age of eight years away from the citrus juicer and the connecting cable.

Do not leave the citrus juicer unsupervised while it is in operation.

Do not let children play with the packaging film. Children can get trapped in it and suffocate when playing.

8.4 Safety and warnings

WARNING

Danger of damage!

Inappropriate handling of the citrus juicer can lead to damage to the device and other objects.

• Set up the citrus juicer on an easily accessible, even, dry and sufficiently stable workwork surface.
• Do not place the citrus juicer on the edge of the work surface
• Never place the citrus juicer on or in close proximity to hot surfaces (e.g. hotplates etc.).
• Do not bring the mains cable into contact with hot parts.
• Do not use the citrus juicer any longer if the plastic structural parts of the device have tears or cracks or have been deformed. Replace damaged structural units only by suitable, original spare parts

9 Initial operation

9.1 Checking the citrus juicer and the scope of delivery

WARNING

Danger of damage

If you open the packaging imprudently with a sharp knife or other pointed objects, the citrus juicer can be damaged fast Proceed very carefully when opening the packaging.

Take the citrus juicer out of the packaging.
- Check whether the scope of delivery is complete.
- Check whether the citrus juicer or the individual parts are showing signs of damage. If this is the case, do not use the citrus juicer. Please contact customer service at www.ggv-service.de

Cleaning the citrus juicer

• Remove the packaging material and all protective plastic films.
• Clean all of the parts of the citrus juicer as described in the chapter on Cleaning before using it for the first time.

9.2 Assembling the citrus juicer

1. Unwind the mains cable completely from the cable holder.
2. Place the motor base on an even, sufficiently stable work surface that can be cleaned easily.
3. Stick the drive shaft with the short end into the motor base
4. Centre the juice container on the motor base.
5. Turn the juice container clockwise until it clicks perceptibly and audiably into place.
6. Put the strainer on the juice container.
7. Put the small pressing cone into the strainer, until it clicks perceptibly and audibly into place.
8. Insert the mains plug (7) into a properly installed receptacle

The citrus juicer is ready for use.

9.3 Starting the citrus juicer.

WARNING

Danger of electrocution!

Improper handling of the citrus juicer can lead to an electric shock.

Unplug the device from the mains if juice is overflowing and dripping on the motor base.

CAUTION

Risk of injury!

Improper handling of the citrus juicer can lead to injuries.

Before you replace or install those parts of the citrus juicer that move when it is in operation, disconnect the device from the mains.

WARNING

Danger of damage

Inappropriate handling of the citrus juicer can lead to damage to the device.

Avoid excessive pressure on the pressing cone.

• Do not press so hard that the rotating pressing cone comes to a standstill. Otherwise, you could damage the motor.
• Always let the motor work only for a short time (max.15 seconds) and take short breaks between the individual juicing steps (breaks of 15 seconds are recommended).
• If you would like to juice larger quantities, take a break of a few minutes after ten juicing steps so that the motor cools down. Otherwise, the motor could overheat
• Whilst you are juicing, splashing can always occur. Make sure that the surface under the juicer is cleaned well.
• Keep your distance from sensitive objects and/or surfaces that are difficult to clean.
  Prepare citrus fruits by halving them and leaving them close

at hand beside the citrus juicer.

• Press the cut surface of the halved citrus fruit quite powerfully onto the small or large pressing cone.
• As soon as you exert pressure on the pressing cone, it begins to rotate. The pressing cone rotates into the fruit pulp and the juice extracted in this way flows through the strainer into the juice container.

To extract more juice, change the direction of rotation of the pressing cone.

Proceed as follows for this purpose:

• Do not exert any pressure on the pressing cone for a short time.
• Press the fruit again quite powerfully onto the pressing cone.

The pressing cone will turn in the other direction.

• Repeat steps 2 and 3 if necessary.

After juicing

• Unplug the appliance from the receptacle.
• If necessary. Remove the large pressing cone from the small pressing cone.
• Remove the strainer along with the small pressing cone.
• Rotate the strainer and press the small pressing cone out with your fingers on the snap-in lugs.
• Hold the engine base tightly with one hand. Turn the juice container in the anti-clockwise direction with the other hand

and remove it from the motor base.
- Pour the juice into a glass or a jug.

10 Cleaning

WARNING

Danger of a short circuit:

Water that has penetrated into the housing can cause a short-circuit

Always unplug the appliance from the mains outlet before cleaning it.

Never immerse the citrus juicer in water and ensure that no water seeps into the motor base.

CAUTION

Danger of damage!

Inappropriate handling of the citrus juicer can lead to damage to the device.

• Don't use any harsh cleaning agents or agents that contain solvents, sharp, scratching or metallic cleaning tools such as knives, metal sponges or
• the like. These can damage the surfaces.
• Don't put the motor base into the dishwasher under any circumstances. You would destroy the motor base.
• Unplug the appliance each time before cleaning it.
• Disassemble the citrus juicer apart, so that all the parts are in front of you.
• Wash the strainer, the pressing cones, the juice container, the drive shaft and the lid under warm, flowing water. Alternatively, you can also put these parts into the dishwasher.
• Wipe the motor base clean with a soft cloth and some detergent.
• Thoroughly rub all parts dry.

11 Disposing of old appliances

This product is marked in accordance with the European waste framework directive 2012//19/EU/.The

directive regulates the correct disposal of the product.

Environmentally appropriate disposal of the appliance will prevent possibly negative consequences for health, which are caused by improper disposal. The symbol on the product or the packaging indicates that this product must not be disposed of with normal domestic refuse. The user must return the product to a collection point for the recycling of electrical and electronic equipment.

Disposal must be in accordance with the existing local regulations. For further information please contact

12 Technical information

EAN code	4016572021509
Brand	exquisit
Model GGV match code label	ZP 3001 wet
Serial number	215091711051
Batch no.	215091711
Connection voltage	220-240 V
Connection frequency	50/60 Hz
Connection power	30 W
Rating label pictograms	CE, WEEE no battery, protection class II
Rating label size	39 x 23 mm

CE Marking

At the time of its introduction on the market the product fulfills the requirements, which were specified in the directive for the standardization of the laws of the Member States concerning the electromagnetic compatibility (2014/30/EU) of electrical equipment within certain voltage limits (2014/35/EU). This product is identified by the CE marking and delivered with a declaration of conformity for inspection by the market monitoring authority. Subject to change without notice

13 General Warranty Conditions

Warranty Conditions

As the buyer of an Exquisit appliance you are entitled to the legal guarantees from the sales contract with your dealer. In addition, we grant a warranty to you under the following conditions:

Period of indemnification

The warranty shall run for 24 months starting from the purchase date (proof of purchase must be submitted). During the first 6 months defects in the appliance will be eliminated free of charge, provided that the appliance is accessible for repairs without any particular effort. In the further 18 months the buyer undertakes to prove that the defect already existed at the time of delivery of the appliance.

In the case of commercial use (e.g. in hotels or cafeterias), or in the event of community use by several households, the warranty amounts to 12 months starting from the date of purchase (proof of purchase must be submitted) During the first 6 months defects in the appliance will be eliminated free of charge, provided that the appliance is accessible for repairs without any particular effort. In the further 6 months the buyer undertakes to prove that the defect already existed at the time of delivery of the appliance.

If a claim is made on the warranty, the warranty shall not be extended either for the appliance or for the newly incorporated parts.

Scope of the Defect Removal

Within the periods mentioned we will eliminate all defects from the appliance, which are to be demonstrably attributed to unsatisfactory execution or material defects. Replaced parts are transferred to our ownership.

The following are excluded:

Normal wear, deliberate or negligent damage, damage, that is caused by non-compliance with the operating instruction, inappropriate setup or installation or due to connection to the wrong mains voltage, damage due to a chemical or an electro-thermal effect or due to other abnormal environmental conditions, glass, lacquer or enamel damage and possibly differences in colour as well as defective bulbs. Likewise, appliance defects are excluded if they are to be attributed to transport damage. Also, we don't provide any services if work is undertaken on appliances by unauthorized persons at Exquisit or if parts of foreign origin are used without our specific written permission. This restriction does not apply to defect-free work performed by a qualified specialist with our original parts to adjust the appliance to comply with the technical protection regulations of another European Union country.

Area of applicability

Our warranty applies to appliances that were purchased in a country of the European Union and that are in operation in the Federal Republic of Germany or Austria.

For appliances that were purchased in a country of the European Union and brought into another European Union country, services are provided under the customary warranty conditions of the particular country. An obligation to perform under the terms of the warranty only exists if the appliance is in compliance with the technical regulations of the country, in which the warranty claim is enforced.

For repair orders outside of the warranty period, the following shall apply:

If an appliance is repaired, the repair invoices are to be paid immediately without any deduction.

If an appliance is examined and/or a repair that has been started has not been completed, lump sums will be calculated for travel expenses and workConsultation with our customer advisory service centre shall be free of charge.
