Product type	Canister vacuum cleaner
Brand	Exquisit
Model	BP 6102 sw
Nominal power	800 W
Voltage	220-240 V / 50 Hz
Energy efficiency class	A
Annual energy consumption	26,7 kWh/year
Carpet performance class	C
Hard floor performance class	A
Dust emission class	A
Noise level	68 dB (A)
Vacuum type	Universal (carpet and hard floors)
Main filter	HEPA (replace every 6 months)
Motor filter	Replace every 12 months
Included accessories	Floor nozzle, crevice nozzle, brush nozzle, upholstery brush
Features	Cable winder, power regulation, telescopic tube
Warranty	24 months (first 6 months with full coverage)

Frequently Asked Questions - BP 6102 sw Exquisit

How to use the vacuum cleaner for the first time?

Before first use, read the instruction manual carefully. Fully unwind the cable, plug the appliance into a suitable power socket (220-240 V), then press the On/Off button. Make sure all accessories are properly attached.

How to change the HEPA filter?

The HEPA filter must be replaced every 6 months. To change it, remove the protective grille from the vacuum body, replace the old filter with a new one, then put the grille back. The HEPA filter is not washable.

What to do if the vacuum loses suction power?

Check if the dust bin is full or if the HEPA filter is dirty. Clean or replace the filter if necessary. Also check that the hoses and nozzles are not blocked. If the air flow regulator is open, close it.

How to clean the dust bin?

Press the release button and remove the bin. Open the lid by pressing the release button, shake out the dust. Remove the central plastic filter by turning counterclockwise. Wash it with water if necessary, but dry it thoroughly before putting it back.

Can I vacuum liquids with this vacuum?

No, this vacuum cleaner is designed only for dry dirt. Never vacuum liquids or wet dirt, as this could damage the appliance and pose a risk of electric shock.

What is the warranty period?

The warranty is 24 months from the date of purchase. During the first 6 months, any defect is covered free of charge. For the following 18 months, you must prove that the defect existed at the time of delivery.

How to rewind the cable?

After use, press the cable rewind button (number 7 on the appliance) to automatically rewind the cable. Hold the plug while it rewinds to prevent it from whipping.

Can I use the vacuum on hardwood floors?

Yes, use the suitable floor nozzle. For hardwood floors, press the pedal to lower the bristle ring (position 'L') to avoid scratches. For carpets, raise the ring (position '—').

What to do if the vacuum makes unusual noises?

Abnormal noises or whistling may indicate a blockage in the hose, tube, or nozzles. Check and remove any blockages. Also check that the dust bin is not full and the lid is properly closed.

How to replace the motor filter?

Open the vacuum cover at the latch, remove the bag, then the protective grille of the motor filter. Replace the old filter with a new one, put the grille and bag back, then close the cover. The motor filter must be changed every 12 months.

USER MANUAL BP 6102 sw Exquisit

Black vacuum cleaner with coiled hose and control panel (no visible text or symbols)

21684

GEBRAUCHSANLEITUNG - INSTRUCTION MANUAL - INSTRUCTION D'EMPLOI - GEBRUIKSAANWIJZING

11 Description of the appliance 22
12 Safety directions.... 25

12.1 Explanation of the safety directions 25
12.2 General safety instructions.... 25

13 Purpose of use.... 27
14 Initial operation 27
15 Operating instructions: 29
16 Cleaning and maintenance 30

16.1 Replacement of the HEPA filter 30

16.2 Replacing the motor filter 31

17 General warranty conditions.... 32
18 Troubleshooting 34
19 Technical Data 35
20 Disposal of old equipment 35

20.1 EU Product datasheet 36
20.2 Energy label 36

Illustration of a hand using a comb to clean or brush the surface (no text or symbols)

Illustration of hands holding a ruler with an arrow indicating measurement direction (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a vacuum cleaner with a hand inserting a plug into the air gap (no text or symbols)

Line drawing of a hand operating a vacuum cleaner with a grid grille (no text or symbols)

Line drawing of a car interior with a handle and grille (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a person holding a smartphone inside a vehicle (no text or symbols)

Line drawing of a hand holding a device with a circular button, no text or symbols present

Hand holding a car with a green arrow pointing to the side of the car (no text or symbols)

Thank you for buying our product. You have chosen well. Your Exquisit – appliance has been designed for use in private households and is a quality product, combining highest technical requirements with ease of practical comfort in handling – alike other Exquisit – appliances, to the full satisfaction of their owners throughout Europe

Please read this user manual carefully before you start up your appliance for the first time. It contains important safety instructions and information concerning the installation, operation and maintenance of the appliance. Correct handling will contribute to efficient use and will minimize energy consumption during operation.

Improper use could lead to dangerous situations, particularly for children. Keep this user manual for later use. Pass it on to any future owner of this product. In case of doubt concerning questions or topics, which are not dealt with in detail in this manual, please contact your dealer or an authorized technician or go to our homepage: www.ggv-service.de

The manufacturer is constantly working to further develop all types and models. We reserve the right to make changes to the design, features and equipment of all types and models without previous notice.

Scope of delivery

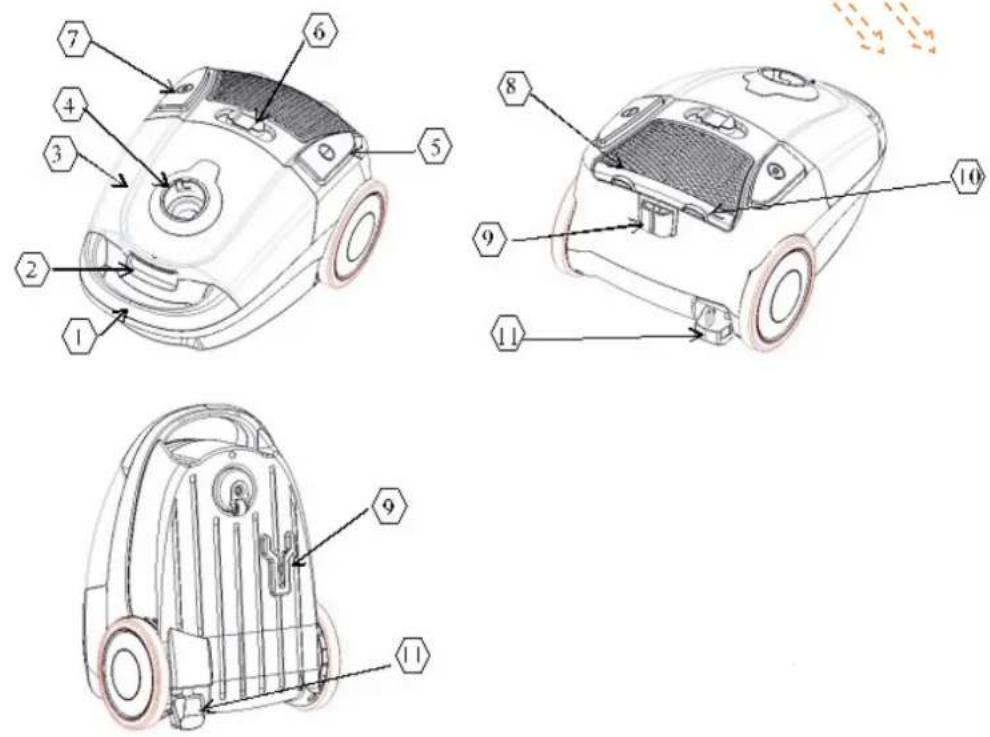

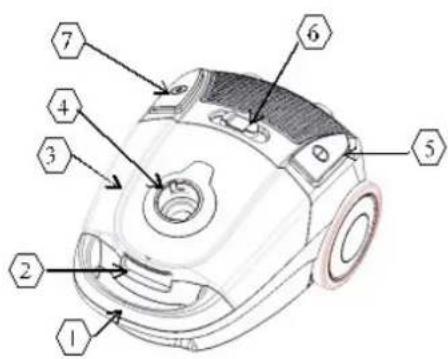

11 Description of the appliance

1. Handle
2. Release button
3. Front release button
4. Hosebase
5. On/Off button
6. Air flow controller
7. Cable rewind button

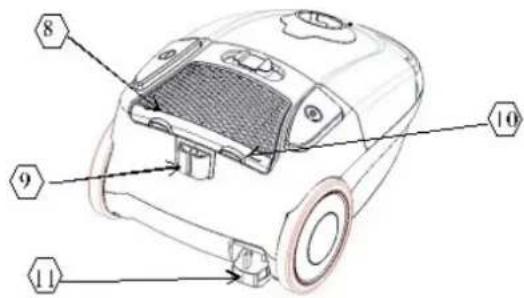

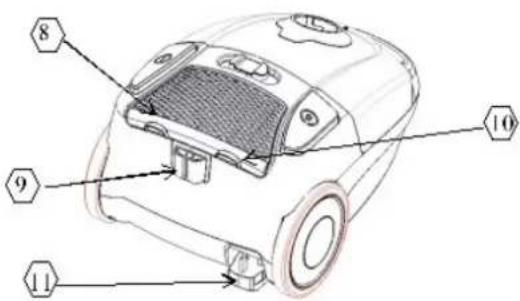

8. On/Off button

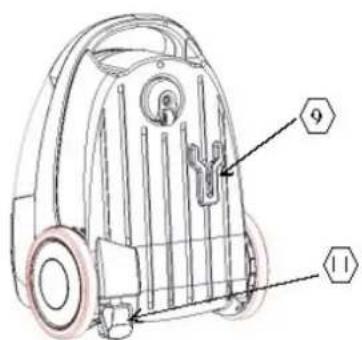

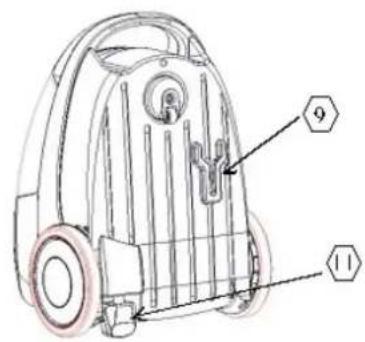

9. Accessory holder
10. HEPA filter flap
11. Power cord

Accessoires

Parket brush

Carpet/floor nozzle

A

Illustration of a hand using a comb to apply substance to a surface (no text or symbols)

Illustration of hands holding a ruler with an arrow indicating measurement direction (no text or symbols)

Line drawing of a vacuum cleaner with a handle and valve (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand adjusting the component (no text or symbols)

Line drawing of a hand gripping a small electronic device with a grid and ventilation grille (no text or symbols)

Line drawing of a car hood with a handle and grille (no text or symbols)

Line drawing of a mechanical vacuum cleaner (no text or symbols)

Line drawing of a person holding a smartphone inside a vehicle (no text or symbols)

Line drawing of a hand holding a device with a circular button, no text or symbols present

Hand holding a device with a green arrow pointing to it, labeled 'M' (no text or symbols on the device itself)

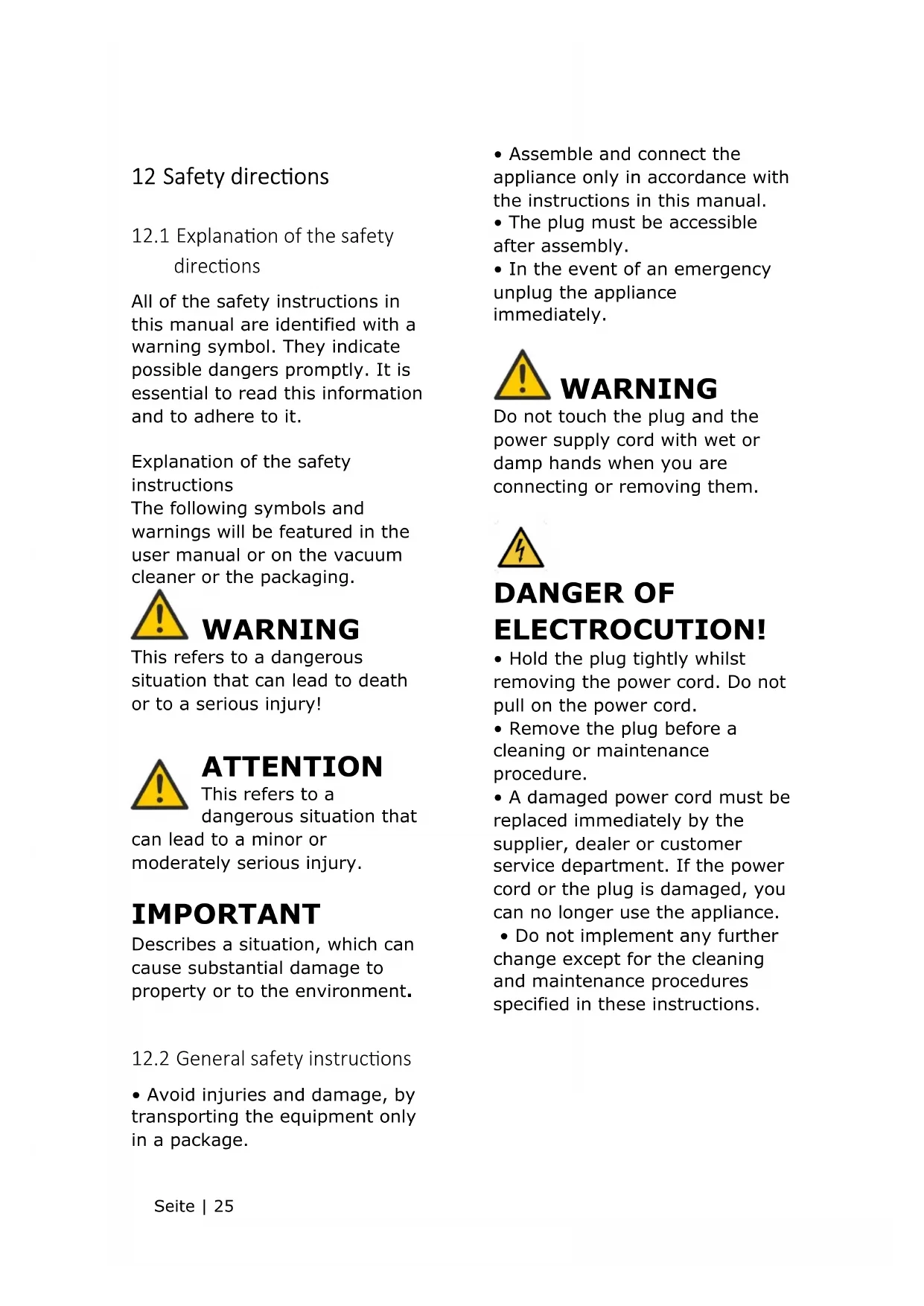

12 Safety directions

12.1 Explanation of the safety directions

All of the safety instructions in this manual are identified with a warning symbol. They indicate possible dangers promptly. It is essential to read this information and to adhere to it.

Explanation of the safety instructions

The following symbols and warnings will be featured in the user manual or on the vacuum cleaner or the packaging.

WARNING

This refers to a dangerous situation that can lead to death or to a serious injury!

ATTENTION

This refers to a dangerous situation that can lead to a minor or moderately serious injury.

IMPORTANT

Describes a situation, which can cause substantial damage to property or to the environment.

12.2 General safety instructions

- Avoid injuries and damage, by transporting the equipment only in a package.

• Assemble and connect the appliance only in accordance with the instructions in this manual.
• The plug must be accessible after assembly.
• In the event of an emergency unplug the appliance immediately.

WARNING

Do not touch the plug and the power supply cord with wet or damp hands when you are connecting or removing them.

DANGER OF ELECTROCUTION!

• Hold the plug tightly whilst removing the power cord. Do not pull on the power cord.
• Remove the plug before a cleaning or maintenance procedure.
• A damaged power cord must be replaced immediately by the supplier, dealer or customer service department. If the power cord or the plug is damaged, you can no longer use the appliance.
• Do not implement any further change except for the cleaning and maintenance procedures specified in these instructions.

- If you leave the equipment unattended and before each assembly, disassembly or cleaning of the accessories (nozzles, brushes, hoses, filters etc.) or of the appliance itself, always unplug it from the power supply. Special safety instructions Safety instructions for children and people with limited abilities.

WARNING

After removing the packaging check that all components and accessories were delivered. In case of doubt do not use your appliance and contact a qualified technician. The packaging materials (plastic bag, polystyrene, metal clips, etc.) must not be left within the reach of children since they represent possible sources of danger and must be disposed of in accordance with the valid regulations.

WARNING

The appliance must be stored beyond the reach of animals, children or people, who are incapable of using it. Do not leave the equipment unattended if it is connected to a power source.

- Undertake the necessary precautionary measures to prevent children from playing with the appliance.

- The appliance can only be used by children above eight years of age and by people, whose physical, mental or emotional capabilities are limited or impaired, or, who lack experience or knowledge, if they are supervised, after they have received instructions on the safe use of the appliance and understand the risks.

• Children must not play with the appliance.

- Cleaning and maintenance, which must be performed by the user, may not be carried out by children if they are not supervised.

- This appliance can be used by children over eight years and older and by people with physical, sensory or mental restrictions or who lack experience and knowledge if they are properly supervised or if they have received instructions concerning the safe use of the equipment and if they understand the relevant dangers. Children must not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than 8 years and are supervised.

13 Purpose of use

The vacuum cleaner is designed exclusively for vacuum cleaning indoors. It is intended exclusively for private use and is not suitable for the industrial sector.

Do not pick up any water with the vacuum cleaner.

Use the vacuum cleaner only as described in this user manual. Any other use will be deemed to be out of compliance with the regulations and can lead to material damage or even to personal injury.

The manufacturer or dealer assumes no liability for damage that was caused by improper use.

14 Initial operation

WARNING!

Incorrect electrical installation or excessively high mains voltage leads to electric shock.

DANGER OF

ELECTROCUTION!

- Connect the vacuum cleaner only to 230- volt alternating current. The plug socket should be protected with a 16-amp fuse. If further appliances with a high connected load are connected to the same electrical circuit, the safety device can be triggered when the vacuum cleaner is switched on. This can be avoided if the lowest (minimum) suction power is set and is only increased to the desired level when the engine is running.

• Connect the floor vacuum cleaner only to an easily accessible receptacle so that you can unplug it quickly from the power supply in the event of a malfunction.
• Do not operate the floor vacuum cleaner, if it exhibits visible damage or the power supply cable and/or the power plug is defective.
• If the appliance's power cord is damaged, it must be replaced by the manufacturer or its customer service representative in order to avoid risks.

• The vacuum cleaner may not be operated with an external time switch or a separate remote-control system.

• Do not open the housing but leave repairs to professional experts. Consult a specialist workshop for this. In the event of independently performed repairs, inappropriate connection or improper operation liability and warranty claims are excluded.

• In the event of repairs, only parts, which are compatible with the original equipment data, may be used. There are electrical and mechanical parts in this vacuum cleaner, which are essential for protection against sources of danger.
• Never grasp the power plug with damp or wet hands.
• Do not unplug the appliance from the power supply by pulling the cord but always grasp the power plug.
• Do not use the power cord as a carrying handle.
• Keep the floor vacuum cleaner the power supply plug and the cord away from an open fire and hot surfaces.
• Lay the power cable in such a way that it does not become the tripping hazard.
• Do not bend the power cord and do not run it over sharp edges over sharp edges. Do not squeeze it under doors for example. Avoid frequent movement of the vacuum cleaner over the power cable.
• If you're not using the vacuum cleaner or are changing the accessories, cleaning the appliance or if there is a malfunction, switch off the vacuum cleaner and unplug t from the power supply receptacle.

WARNING!

Dangers for children and people with reduced physical, sensory or mental abilities (for example partially impaired elderly people with restriction of their physical and mental abilities) or with a lack of experience and knowledge (for example older children).

ATTENTION!

Risk of injury! Improper handling the vacuum cleaner can lead to injuries.

• Do not use the vacuum cleaner on humans or animals.
• Do not come close to your head or hair when you are using the vacuum cleaners suction nozzle
• Danger of crushing: The vacuum cleaner contains moving parts. Pay attention to your fingers and hands when assembling it, using it daily and cleaning it.

PLEASE NOTE!

Danger of damage!

Improper handling of the vacuum cleaner can lead to damage to the appliance.

- Set up the vacuum cleaner on an easily accessible, even, dry, heatproof and sufficiently stable work surface. Do not place the vacuum cleaner on the edge of the work surface.

• Do not bring the power cable into contact with hot parts.
  Do not expose the vacuum cleaner to high temperatures (heating etc.) or weather conditions (rain etc.)
• Do not use the floor vacuum cleaner any longer if its plastic components have tears or cracks or have been deformed.
• Do not use the appliance without HEPA filters.
• Do not suck up burning or glowing items such as cigarettes or seemingly extinguished ash.
• Do not suck up liquids or damp dirt. Let damp cleaned or shampooed carpets dry before vacuuming.
• Do not suck up toner dust from printers or copiers. The filter system cannot filter toner dust perfectly. The toner dust would be blown into the room again by the blower.
• Do not vacuum up easily flammable or explosive materials or gases.
• Do not vacuum up sharp edged, heavy or hard objects. The vacuum cleaner would be blocked.
• Do not stand or sit on the vacuum cleaner.

Assembling the vacuum cleaner

PLEASE NOTE!

Depending on what you would like to vacuum, there are four attachments, from which to choose. For a dusty carpet or a hard floor use the floor nozzle. With the foot pedal you can lower or expose the integrated bristle ring (D)

• We recommend the crevice nozzle for corners that are hard to reach (see accessory).
• For sensitive or shaped articles use the brush nozzle by putting it on the crevice nozzle.
• For pieces of furniture there is an upholstery nozzle.

15 Operating instructions:

Please note:

Only use the appliance if all parts are fully and correctly installed. In case of doubt have it examined and assembled by a qualified specialist.

Every time before you use it, make sure that the appliance is in good condition and that the power cord isn't damaged: if the cord is damaged, it must be replaced by the manufacturer or the service center or by someone with a similar qualification, in order to prevent any risks.

• Place the vacuum cleaner housing on the floor.
• Stick the suction piece of the flexible hose into the suction opening of the vacuum cleaner (B)housing. The hose must snap into place perceptibly.

- Put the handle of the hose on the telescopic pipe (C). The hose must snap into place perceptibly.

- Put the desired suction nozzle to the other end of the telescopic pipe.

- Use the floor nozzle (D) to clean dusty carpets or hard floors.

• We recommend the crevice nozzle for corners that are hard to reach (accessory).
- For sensitive or formed items use the brush nozzle.
- In addition, there is an upholstery nozzle.
- Brush: step on the switch in order to adjust the position of the brush to 🐎 (accessory). This position is suitable for parquet and soft surfaces such as floors or tiles. For carpets or mats step on the brush again
- The crevice nozzle is suitable for corners or places that are difficult to reach.
- Fully unwind the power cord.
- Plug the appliance into the receptacle and press the on/off button.
- When you are using the appliance make sure that the flexible hose isn't blocked, twisted or trapped.
- To switch off the floor vacuum cleaner, press the button on/off (5) unplug it from the receptacle and wind the cord with the cord rewind button (7).
- Carry the vacuum cleaner easily by the handle.

16 Cleaning and maintenance

16.1 Replacement of the HEPA filter

The HEPA filter is used to filter viruses, respirable types of dust, mite eggs and excretions, pollen, smoke particles, asbestos, bacteria, various toxic types of dust and aerosols out of the air. The HEPA filter is not washable.

1. Remove the grille from the floor vacuum cleaner housing.

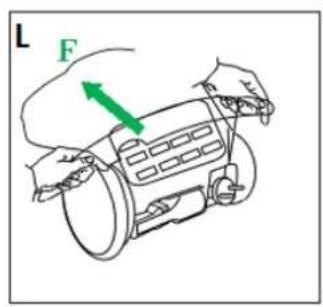

2. Change the K, L, M HEPA filter.
3. Put the grille into the vacuum cleaner housing again.

PLEASE NOTE!

Danger due to faulty operation!

The HEPA filter must be changed every 6 months. The dirt filters and motor filters must be renewed every 12 months. You can obtain a spare filter set consisting of 6 floor vacuum cleaner bags, 1 motor filter and 1 HEPA filter from www.ggv-service.de

16.2 Replacing the motor filter

No illustration available.

• Open the floor vacuum cleaner cover by the latch.

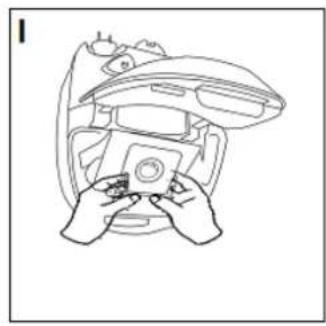

• Remove the floor vacuum cleaner bag first and then take the grille off the motor filter.
• Change the motor filter and insert the grille and the floor vacuum cleaner bag again
• with the cover of the floor vacuum cleaner

CAUTION

Risk of injury!

Improper handling of the vacuum cleaner can Lead to injuries.

Switch the vacuum cleaner off every time before you clean or maintain it and unplug it from the receptacle.

Please note: Switch the appliance off and unplug it every time before you clean it. For optimal use of the appliance and to guarantee a longer life span, empty the container regularly and clean its filters.

ATTENTION

• Do not immerse the motor unit, the plug or the power supply cord in water or any other liquid. (Clean it only with a dry cloth.)
• Clean the brushes and nozzles regularly. Use water and a sponge, which has been slightly dipped into a liquid cleaning agent. Then rinse it off thoroughly and dry it. Don't use steel wool or abrasive products. If the appliance is not being used for an extended period of time, it must be covered and placed in a dry place, in an upright position. The appliance can be carried by the handle on the motor unit. It is recommended that you put it back into its original packaging in order to protect it against dust and humidity.

- If you are no longer using the appliance, take it out of operation, disconnect the cord from the power supply and secure all parts that constitute a risk for playing children.

17 General warranty

conditions

Warranty conditions

As the purchaser of an EXQUISIT appliance you are entitled to the legal guarantees under the purchasing contract with your dealer. In addition, we grant you a warranty under the following conditions:

Benefit duration

The warranty lasts for 24 months from the date of purchase. (Proof of purchase must be submitted.) During the first 6 months, any defects on the appliance will be eliminated free of charge, provided that the appliance is accessible for repairs without any special effort. In the further 18 months, the purchaser is obliged to prove that the defect was already in existence when the appliance was delivered.

For industrial use (e.g. in hotels or canteens) or for community use by several households, the warranty lasts for 12 months from the date of purchase.

(Proof of purchase must be submitted.) During the first 6 months, any defects on the appliance will be eliminated free of charge, provided that the appliance is accessible for repairs without any special effort. In the further 6 months, the purchaser is obliged to prove that the defect was already in

existence when the appliance was delivered.

If a claim is made on the warranty, the warranty will not be extended for either the appliance or for newly installed parts.

Extent of defect rectification

We will rectify all defects on the appliance that can be proven to be attributed to faulty workmanship or material defects. Replaced parts will become our property.

The following are excluded:

Normal wear and tear, deliberate or negligent damage, damage that was caused by a failure to comply with the user manual, improper assembly and/or installation or connection of the appliance to the wrong mains voltage, damage due to chemical and/or electro thermal effects or other abnormal environmental conditions, glass, varnish or enamel damage, variations in colour and defective light bulbs. Likewise, defects on the appliance are excluded if they are to be attributed to damage in transit. We do not render any services if any work has been performed on the EXQUISIT appliance by unauthorized persons or if parts from a third party were used without our specific written permission. This restriction shall not apply to error-free work that was performed by a qualified professional within our organization to adapt the appliance to the technical safety provisions of another EU country.

Area of application

Our warranty applies to appliances that were purchased in an EU country and that are in operation in the Federal Republic of Germany or Austria.

For appliances that were purchased in an EU country and that were brought to a different EU country, services will be rendered in accordance with the warranty conditions that are customary in that country in each case. There is only an obligation to perform under the warranty if the appliance complies with the technical provisions of the country where the claim under the warranty is being asserted.

The following shall apply to repair orders outside of the warranty period:

If an appliance is repaired, the repair bills will be due immediately and must be paid without any deduction.

If an appliance is checked and/or a repair that was started has not been completed, lump sums will be charged for travel expenses and the work which has been carried out. Advice from our customer service centre is free of charge.

18 Troubleshooting

Defects	Possible reason	Solution
The vacuum cleaner doesn't work	The appliance is not switched on	Switch the appliance on.
	The electrical plug is defective	Contact a qualified technician.
	The appliance is not plugged into the receptacle	Plug the appliance into the receptacle.
If the vacuum cleaner does not have any suction power	An accessory part: The hose or pipe or nozzles or brushes are blocked	Remove whatever is causing the blockage.
	The HEPA filter is soaked/dirty	Clean the filter.
If the vacuum cleaner doesn't work as it ought to or if there are noises and/or whistling sounds	An accessory part: The hose or pipe or nozzles or brushes are blocked	Remove whatever is causing the blockage.
	The dust container is full	Empty it and clean it.
	The cover of the container is not correctly positioned	Close the cover well.
	The dust collector is not correctly positioned	Position it correctly.
	The manual air flow controller is open	Close it.
If the cord does not rewind completely		Rewinding the cord is slow: unwind it and press the button again.

In case of doubt consult a qualified expert.

19 Technical Data

Voltage	220 - 240 V / 50 Hz
Power	800 W

CE marking

At the time of its introduction on the market the product fulfills the requirements, which were specified in the directive for the standardization of the laws of the Member States concerning the electromagnetic compatibility (2014/30/EU) of electrical equipment within certain voltage limits (2014/35/EU). This product is identified by the CE marking and delivered with a declaration of conformity for inspection by the market monitoring authority.

*Subject to change without notice*

20 Disposal of old equipment

This product is marked in accordance with the European waste framework directive 2012/19/EU. The directive regulates the correct disposal of the product. Environmentally appropriate disposal of the appliance will prevent possibly negative

consequences for health, which are caused by improper disposal. The symbol on the product or the packaging indicates that this product must not to be disposed of with normal domestic refuse. The user must return the product to a collection point for the recycling of electrical and electronic equipment.

Disposal must be in accordance with the existing local regulations.

20.1 EU Product datasheet

Delegierte Verordnung (EU) 65/2014
Brand			Exquisit
Model			BP 6102 sw
Energy efficiency class 1)		kWh/annum	A
Annual power consumption 2)		Dpu c	26.7
Carpet cleaning class		Dpu hf	C
Hard floor cleaning class		d re	A
Dust emissions class		dB	A
Acoustic power level		W	68
Nominal power			800
Type of appliance 3)			Universal vacuum cleaner
1) A (highest efficiency) to G (lowest efficiency)
2) Indicative annual energy consumption (kWh per year) based on 50 cleaning processes.
	The actual annual energy consumption depends on how the appliance is utilised.
3) In the case of carpet vacuum cleaners, the nozzle proided is not suitable for use on hard floors.
	In the case of hard floor vacuum cleaners, the nozzle provided is not suitable for use on carpets.

20.2 Energy label

Chers Clients,

Illustration of a hand using a comb to clean or brush the surface (no text or symbols)

Illustration of hands holding a ruler with an arrow indicating measurement direction (no text or symbols)

Line drawing of a vacuum cleaner with a handle and valve (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand adjusting its component (no text or symbols)

Line drawing of a hand gripping a small electronic device with a grid and ventilation grille (no text or symbols)

Line drawing of a car hood with a hand inserting a component (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of hands holding a smartphone inside a vehicle (no text or symbols)

Line drawing of a hand holding a device with a circular button, no text or symbols present

Hand holding a car with a green arrow pointing to the side of the car (no text or symbols)

1. Handle
2. Release button
3. Front release button
4. Hosebase
5. On/Off button
6. Air flow controller
7. Cable rewind button
8. On/Off button
9. Accessory holder
10. HEPA filter flap
11. Power cord

Accessoires

Parket brush

Carpet/floor nozzle

A

Line drawing of a hand using a comb to apply liquid onto a surface (no text or symbols)

Illustration of hands holding a ruler with an arrow indicating measurement direction (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a vacuum cleaner with a hand adjusting its component (no text or symbols)

Line drawing of a hand operating a vacuum cleaner with a handle (no text or symbols)

Line drawing of a car interior with a handle and grille (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a person holding a smartphone in front of a vehicle (no text or symbols)

Line drawing of a hand holding a device with a circular button, no text or symbols present

Illustration of a hand holding a device with a green arrow pointing to it (no text or symbols)

GGV HANDELSGES. MBH & CO. KG

AUGUST-THYSSEN-STR.8

D-41564 KAARST

GERMANY
