USER MANUAL CR580BK LENCO

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiaon exposure.

This unit should not be adjusted or repaired by anyone except qualified service personnel.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.
2. Clean only with a slightly damp cloth.
3. Do not cover or block any venlaon openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
4. Install in accordance with the supplied user manual.
5. * Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the enre device out of children's reach! When playing with the power cable, they can seriously injure themselves.
6. * Unplug this device during lightning storms or when unused for a long period.
7. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generang products or naked ame.
8. Avoid using the device near strong magnec elds.
9. Electrostac discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instrucon manual. During le transmission, please handle with care and operate in a stac-free environment.
10. Warning! Never insert an object into the product through the vents or openings. High voltage ows through the product and inserng an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
11. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
12. Do not use this device when condensaon may occur.
13. Although this device is manufactured with the utmost care and checked several mes before leaving the factory, it is sill possible that problems may occur, as with all electrical appliances. If you noce smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
14. This device must operate on a power source as specified on the specicaon label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
15. * The socket outlet must be installed near the equipment and must be easily accessible.
16. * Do not overload ac outlets or extension cords. Overloading can cause re or electric shock.
17. * Devices with class 1 construcon should be connected to a main socket outlet with a protecve earthed conneccon.
18. * Devices with class 2 construcon do not require a earthed conncon.
19. Keep away from rodents. Rodents enjoy bing on power cords.
20. * Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
21. Avoid placing the device on any surfaces that may be subject to vibraons or shocks.
22. To clean the device, use a so dry cloth. Do not use solvents or petrol based uids. To remove severe stains, you may use a damp cloth with dilute detergent.

23. The supplier is not responsible for damage or lost data caused by malfuncon, misuse, modicaon of the device or baery replacement.

24. Do not interrupt the conncon when the device is forming or transferring les. Otherwise, data may be corrupted or lost.

25. If the unit has USB playback funcon, the usb memory stick should be plugged into the unit directly. Don't use an usb extension cable because it can cause interference resulting in failing of data.
26. The apparatus shall not be exposed to dripping or splashing and make sure that no objects lled with liquids, such as vases, are placed on or near the apparatus.
27. * To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.
28. If the unit works with battery, Baery shall not be exposed to excessive heat such as sunshine, re or the like.
29. Aenon should be drawn to the environmental aspects of baery disposal.
30. The apparatus can only be used in moderate extremely cold or climates warm environments should be avoided.
31. The rang label has been marked on the boom or back panel of the apparatus.
32. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instrucons about the correct use of the device by the person who is responsible for their safety.
33. This product is intended for non professional use only and not for commercial or industrial use.
34. Make sure the unit is adjusted to a stable posion. Damage caused by using this product in an unstable posion or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
35. Never remove the casing of this apparatus.
36. Never place this apparatus on other electrical equipment.
37. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibraon.
38. Do not allow children access to plasc bags.
39. Only use aachments/accessories specied by the manufacturer.
40. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
41. * Do not use a damaged power cord or plug or a loose outlet. Doing so may result in re or electric shock.
42. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

INSTALLATION

• Unpack all parts and remove protective material.
• * Do not connect the unit to the mains before checking the mains voltage and before all other connnecons have been made.

* Those instrucons are related only to products using power cable or AC power adaptor.

Seng Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

What's in the box

Check and identify the contents of your package:

• Main unit
• AC Adaptor
• User manual
• AUX cable

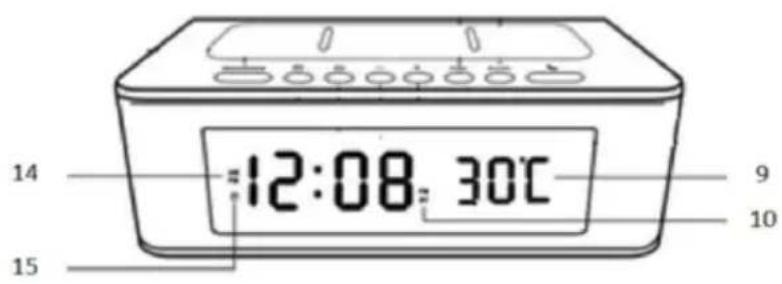

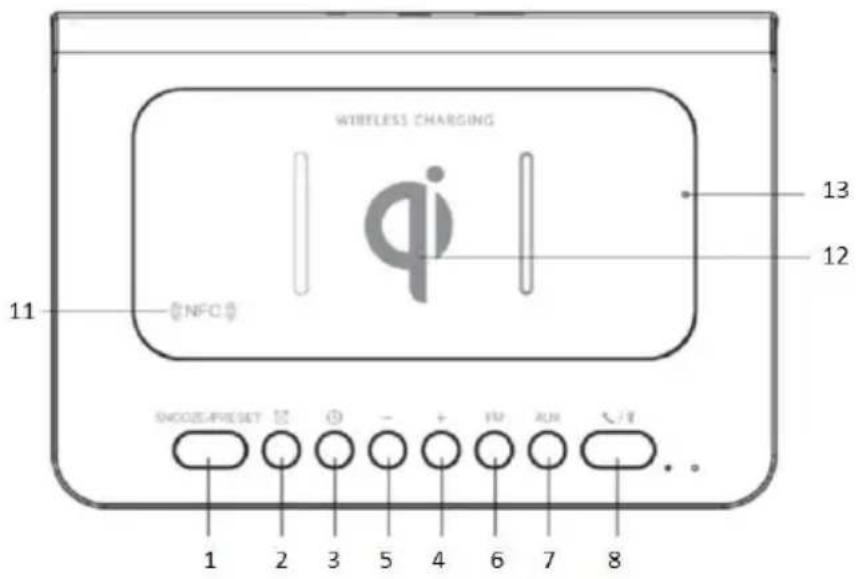

Descripon of Parts

WIRELESS CHARGING 13 12 11 NFC SNOO/SRESET 1 2 3 5 4 6 7 8

14 12:08:30°C 9 10 15

1. SNOOZE/PRESET
2. ALARM
3. TIME
6. FM RADIO
7. AUX
8. PLAY/PAUSE MUSIC; START/END PHONE CALL
9. TEMPERATURE INDICATOR
10. BLUETOOTH INDICATOR
11. NFC LOCATION
12. QI CHARGING PAD
13. QI CHARGING INDICATOR LED
14. AM/PM INDICATORS
15. ALARM ON INDICATOR

Geng started

Plug the power adapter into the back of the clock, and the other end into a standard electrical outlet.

Power

CAUTION

• Risk of product damage! Make sure that the power voltage corresponds to the voltage printed on the Power adapter.
• Risk of electric shock! When you unplug the AC power adapter always pull on the adapter. Never pull the cord.

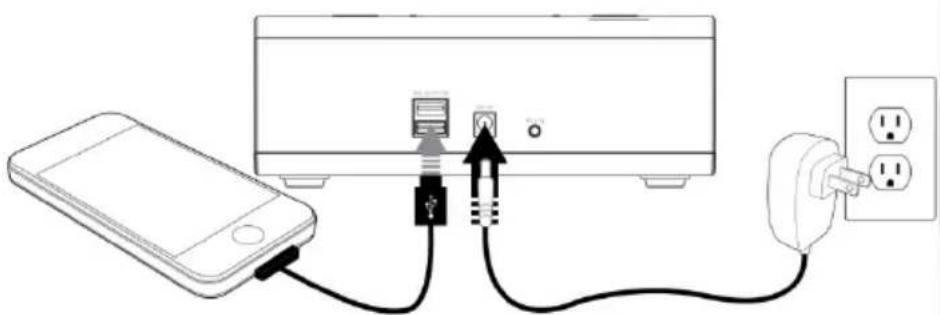

Dual USB charging

To charge your wireless device, connect your USB charging cable to one of the USB charging ports located on the back of the clock.

Diagram showing connections between a smartphone, a wall-mounted device, and an electrical outlet with three power outlets.

Wireless charging (QI)

Place a QI capable, compatible smartphone on the center pad on top of the clock.

During charging, the blue indicator light (13) on the top will light up and the smartphones charging symbol will be shown.

The phone must be aligned in the centre of the charging area, but on some devices the built-in wireless receiver may not be in the centre. This may vary by brand/model. If this is the case then you'll have to try and nd the best charging posion for your device.

12:08 30°C

Right

Wrong

Seng the me

1. Short press TIME. Hours display will start to blink.
2. Set the hour by pressing - or +.
3. Short press TIME again to make the minute blink.
4. Set the minute by pressing - or +.
5. Short press TIME or wait 15 seconds to show the current me.
6. Long press TIME to set up 12/24H mode.

DST (Daylight saving me)

To change the clock me by +1/-1, hour press and hold the snooze buon for 3 seconds

Note: the DST opon cannot be used in FM mode

Seng the alarm

1. Short press the ALARM buon once to make the hour blink.
2. Press the - or + buons as needed until the desired alarm hour is shown on the display.
3. Short press ALARM again to make the minute blink.
4. Set the minute by pressing - or +.
5. Press the ALARM buon to save the me and select the BUZZER/RADIO.

NB: If you select Radio, the last used staon and volume level will be used.

1. Short press ALARM or wait 15 seconds to exit alarm set up and return to the current me.

Snooze

1. When the alarm is acvated, Press the SNOOZE buon to snooze for 9 minutes. Or press the ALARM buon to cancel the alarm for 24hrs.
2. When the alarm sounds, press ALARM to cancel snooze.

Turning the alarm on/o

1. Long press ALARM, the alarm icon will display, meaning the alarm is acvated.
2. Long press ALARM again, the alarm icon will disappear. The alarm is now o.

AUX funcon

1. Press AUX to enter AUX mode.
2. Insert a 3,5mm jack plug cable into the AUX socket on the back of the alarm clock to connect an external sound source like a mp3 music player.
3. Press AUX again to exit.

NFC

1. Turn on the NFC funcon at your smartphone
2. Press the Call/Bluetooth buon to enter the Bluetooth mode. The "BT" indicator on the display will ash, indicating the clock is searching for Bluetooth devices.
3. Touch the NFC logo on the clock with the top of your smartphone and hold it there for a few seconds. Once your phone has detected the clock, it will ask you if you want to pair your phone with the clock. Select 'yes' on your phone to make the conncon.

Note: Not all wireless devices support the NFC feature.

Bluetooth mode

1. Press the Call/Bluetooth buon to enter the Bluetooth mode. The "BT" indicator on the display will ash, indicang the clock is searching for Bluetooth devices.
2. Open the Bluetooth sengs of your phone/tablet/mp3 player and search for Bluetooth devices. Look for a device named "Lenco CR-580" and connect to it. When connected successfully you'll hear a conrmaon sound and the ashing "BT" will be lit connuously.

Long press the Call/Bluetooth buon to disable the Bluetooth mode.

FM radio mode

1. Press the FM buon to enter FM mode.
2. Press and hold the FM Buon for 3 seconds to start auto scanning. The device will scan and store up to 50 FM radio staons automacally.
3. Press - or + to manually search for a radiostoon.
4. Press and hold - or + to change the volume.
5. Press the FM Buon one more me to exit FM mode.

Store a radio staon as preset

1. Go to the preferred frequency with the +/- keys

2. Press and hold the SNOOZE buon unl the display changes to "P.." (where .. is the acve/last used preset number)

3. Use the +/- keys to select the preferred locaon to store your radio staon and press the SNOOZE button again to conrm.

To select one of your stored presets, press the SNOOZE buon mulple mes unl you reach your preferred preset.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collecon point.
- Some components in these appliances may be hazardous to health and the environment.
- If there is an incoming call while the Lenco CR-580 is connected to your cell phone for music playback, it will pause at once when you answer the call and resume aer the call ended. (Somemes it will pause aer ending the call, depending on your cell phone.)
- The NFC™ Mark is a trademark of NFC Forum, Inc. in the United States and in other countries.

Note the following informaon:

Only use the power supply listed below.

Note: The maximum Bluetooth conncon distance is around 10 meters. Please place your Bluetooth speaker as close as possible to this device to prevent conncon interrupons.

Specicaon:

FM Frequency range: 87.5 – 108 MHz

AC/DC adapter:

AC 100-240V, 50/60 Hz, 0.5A

DC output 5 V = 3000 mA

Bluetooth Version: 4.0

Wireless charging output: 5V,1A.

Music output power: 2 x 5W (RMS)

Bluetooth Class 2

Frequency Range: 60Hz\~18KHz

USB Charging Port: DC5V 1A X 2

Power supply adapter:

• Manufacturer: Shenzhen Oten Technology LTD.
• Model number: RSBWEWC-0503000EU
• Use only the power supply listed in the user instrucons

Guarantee

Lenco oers service and warranty in accordance with the European law, which means that in case of repairs (both during and aer the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-social service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligaons of the manufacturer will be voided.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instrucon, specicaons and pictures in this documentaon may dier slightly from your parcular situaon. All items described in this guide for illustraon purposes only and may not apply to parcular situaon. No legal right or entlements may be obtained from the descripon made in this manual.

Disposal of the Old Device

Symbol of a trash bin crossed with no visible text or labels

This symbol indicates that the relevant electrical product or baery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and baery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or baeries. In so doing, you will help to conserve natural resources and improve standards of environmental protecon in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

Service

For more informaon and helpdesk support, please visit www.lenco.com Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands
