Product Type	Video Doorbell with Screen
Brand	EZVIZ
Model	DP1C
Screen Power Supply	Included AC adapter (5V/1A)
Connection	Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
Transmitted Power (EIRP)	100 mW max
Camera Viewing Angle	120° (diagonal)
Video Resolution	720p
Two-way Audio	Yes (built-in microphone and speaker)
Night Vision	Yes (infrared LED)
App	EZVIZ (iOS and Android)
Storage	Cloud (via subscription) or microSD card (not included)
Installation	On existing door (18 mm hole, recommended height 145 cm)
Housing Material	ABS plastic and glass
Color	White
Camera Dimensions (L×W×H)	50 × 50 × 50 mm
Screen Dimensions (L×W×H)	86 × 86 × 20 mm
Total Weight	320 g (camera + screen + base)
Box Contents	Camera, screen, mounting base, AC adapter, cable, 6 screws, quick start guide
Warranty	2 years
Operating Temperature	-10°C to 45°C
Care and Cleaning	Clean with a soft dry cloth; do not use abrasive products

Frequently Asked Questions - DP1C EZVIZ

How to install the EZVIZ DP1C doorbell?

Drill an 18 mm diameter hole about 145 cm from the ground. Measure your door thickness and choose appropriate screws. Attach the camera to the outside of the door, pass the cable through the hole, and connect the screen inside. Follow the manual steps to complete installation.

How to connect the doorbell to my phone?

Download the EZVIZ app, create an account, then press '+' to scan the QR code on the back of the screen. Follow the Wi-Fi setup assistant. Make sure your phone is connected to the 2.4 GHz network.

What to do if the screen does not turn on?

Check that the AC adapter is plugged in correctly and the outlet works. Press and hold the power button for 3 seconds. If the problem persists, reset the device by holding the home button for 5 seconds.

How to charge the doorbell screen?

The screen charges via the included AC adapter. You can remove it from its base by holding the disassembly button and unplugging it from the cable. Plug the adapter directly into the screen.

Is the DP1C doorbell weatherproof?

The outdoor camera is designed to withstand weather conditions, but it is not recommended to expose it to very humid environments or direct water splashes. The indoor screen must be protected from moisture.

How to reset the doorbell to factory settings?

Press and hold the home button for 5 seconds until the screen flashes or a sound is heard. This will reset the Wi-Fi settings and you can add the device again in the EZVIZ app.

Can I use an SD card to record videos?

Yes, the camera has a microSD card slot (not included) for local storage. You can also subscribe to the EZVIZ cloud for online storage.

Does the doorbell work without subscription?

Yes, basic features (live view, two-way audio) are free. Cloud storage requires a subscription, but you can use a microSD card for local recording at no extra cost.

How to clean the EZVIZ DP1C doorbell?

Use a soft dry cloth to clean the screen and camera. Do not use chemical or abrasive products. Avoid scratching the camera lens.

What to do if the Wi-Fi connection is unstable?

Make sure the router is nearby (less than 10 meters) and the signal is not obstructed. Avoid interference with other devices. Restart the router and reset the connection via the EZVIZ app.

USER MANUAL DP1C EZVIZ

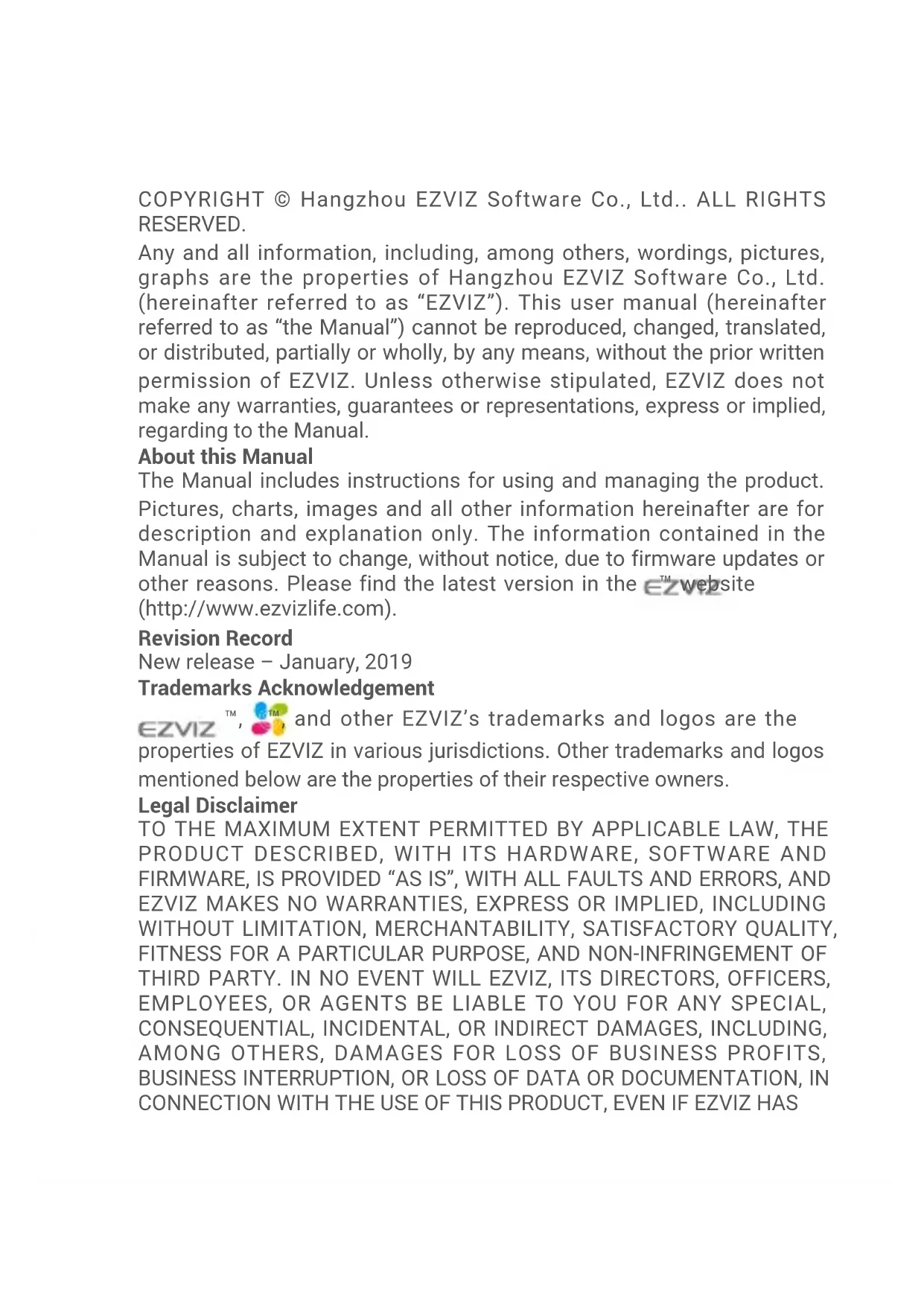

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou EZVIZ Software Co., Ltd. (hereinafter referred to as "EZVIZ"). This user manual (hereinafter referred to as "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated, EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the www.ezvizlife.com).

Revision Record

New release - January, 2019

Trademarks Acknowledgement

EZVIZ™, and other EZVIZ's trademarks and logos are the properties of EZVIZ in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND EZVIZ MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS

BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.

EZVIZ DOES NOT UNDERTAKE ANY LIABILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE AS THE RESULT OF PRODUCT INTERRUPTION OR SERVICE TERMINATION CAUSED BY: A) IMPROPER INSTALLATION OR USAGE OTHER THAN AS REQUESTED; B) THE PROTECTION OF NATIONAL OR PUBLIC INTERESTS; C) FORCE MAJEURE; D) YOURSELF OR THE THIRD PARTY, INCLUDING WITHOUT LIMITATION, USING ANY THIRD PARTY'S PRODUCTS, SOFTWARE, APPLICATIONS, AND AMONG OTHERS.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS AND DATA PROTECTION LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. EZVIZ SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATTER PREVAILS.

Regulatory Information

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www. recyclethis.info.

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou EZVIZ Software Co., Ltd. declares that the radio equipment type [CS-DP1C] is in compliance with Directive 2014/53/EU. The full text of the EC DECLARATION OF CONFORMITY is available at the following web link:

http://www.ezvizlife.com/declaration-of-conformity.

Safety Instruction

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

Customer Service

For more information, please visit www.ezvizlife.com

Need help? Contact us:

Telephone: [phone]

Technical Inquires Email: [e-mail]

SAVE THIS MANUAL FOR FUTURE REFERENCE

COPYRIGHT © Hangzhou EZVIZ Software Co., Ltd. ALLE RECHTE VORBEHALTEN.

http://www.ezvizlife.com/declaration-of-conformity.

Sicherheitshinweis

• Do not expose the camera to the harsh environment like high temperature, humid, salt mist or rain, otherwise, the device may be damaged.

• Do not press the sensor or lens of the camera, otherwise, the device may be damaged.

• Do not pull the wire of the camera hard, and protect yourself from being cut by the wire. Damage to the wire due to inappropriate operation is not included in the warranty.

• Use the exclusively power adapter to charge the panel, otherwise, the system may be damaged.

Box Content

Camera (x1) Panel (x1)

Mounting Base (x1) Power Adapter (x1)

Screws (x6) Cable (x1) Quick Start Guide (x1)

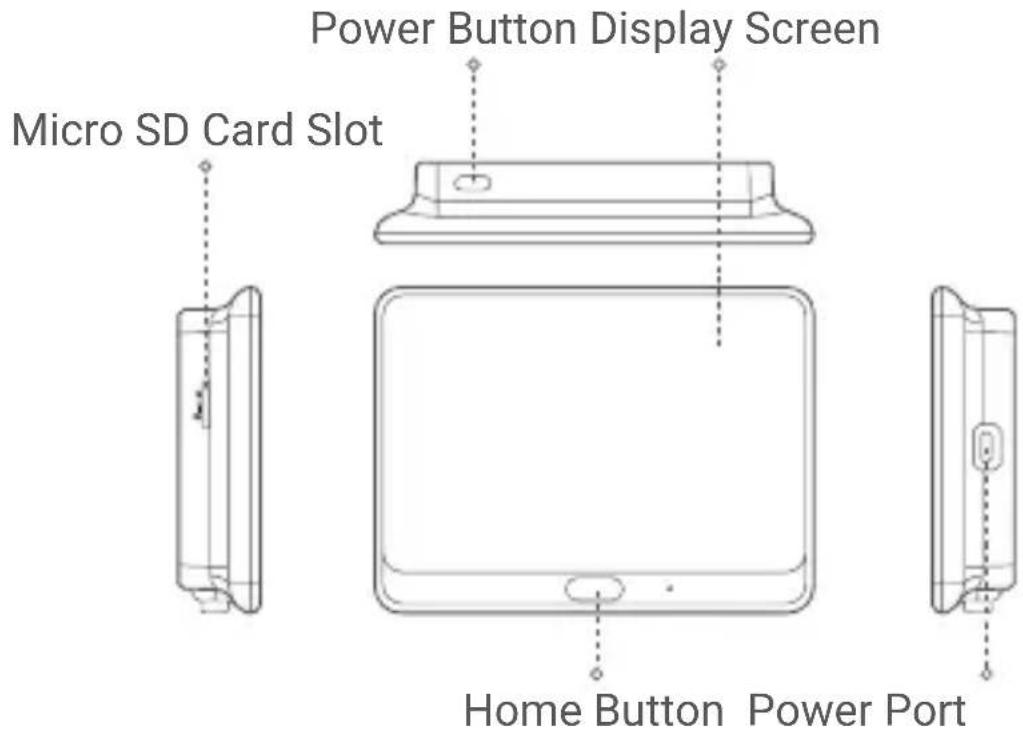

Overview Panel

LoudspeakerDismantle Button

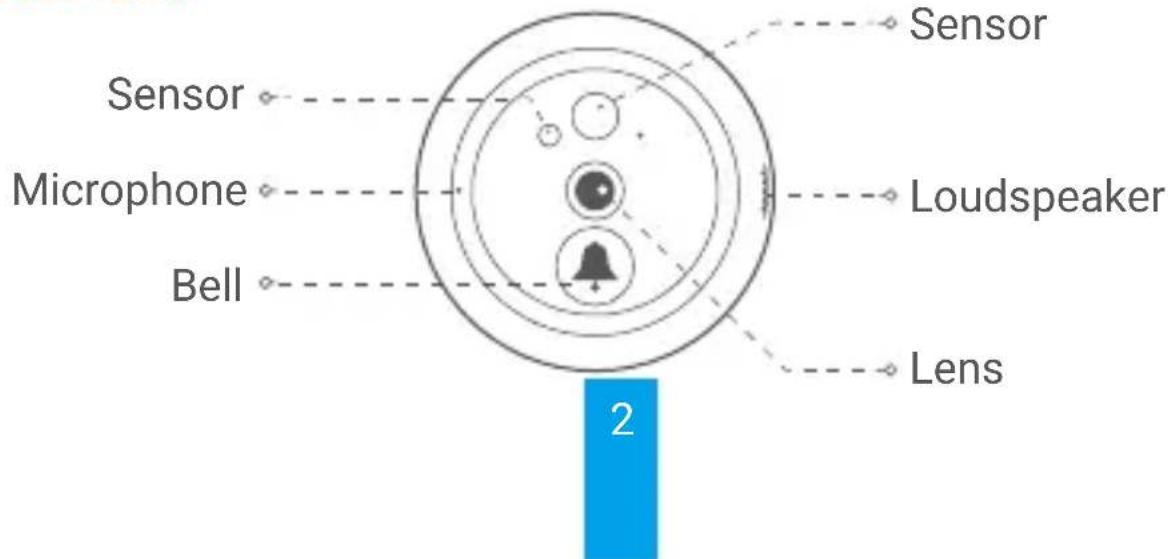

Camera

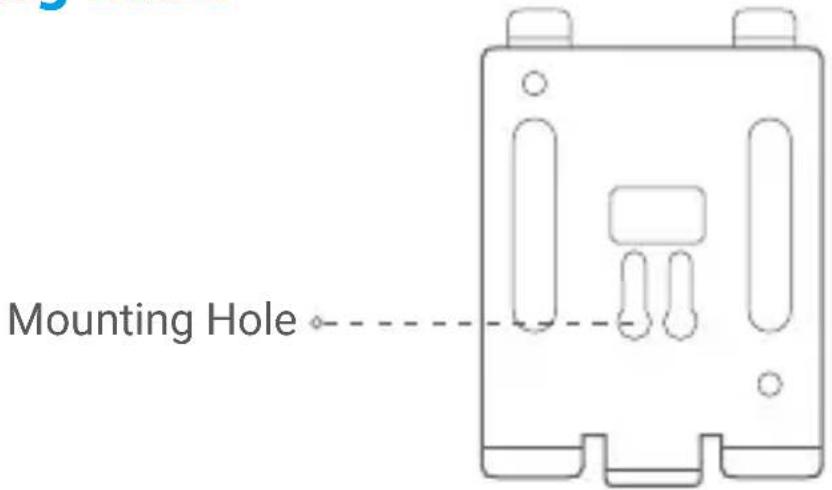

Mounting Base

EN

Installation

If you already have a peephole, install the device in the same place. If not, please drill a hole of diameter about 18mm and about 145cm distance from the ground to have a good viewing effect.

1

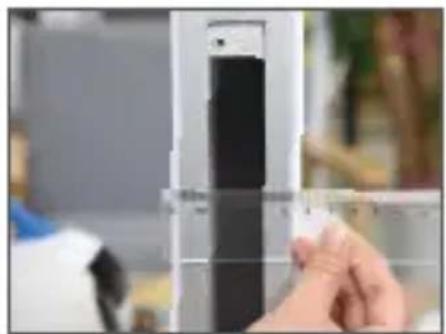

Measure the door's thickness and select the appropriate screws.

Thickness Screw

35 to 60mm

60 to 95mm

95 to 105mm

2

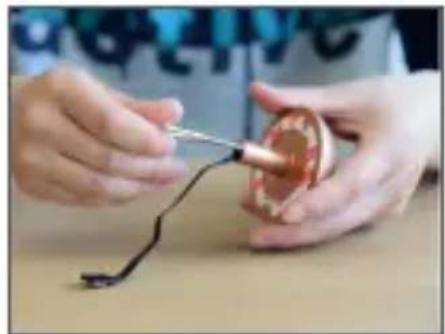

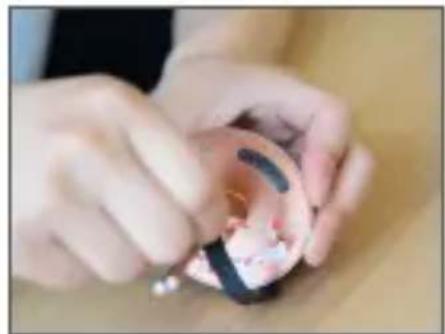

Turn the screws into the back of camera.

4

Pass screws and wire through the door. You can roll up the paper to help.

6

Pass screws and wire through the mounting base.

3

Tear off the release paper.

5

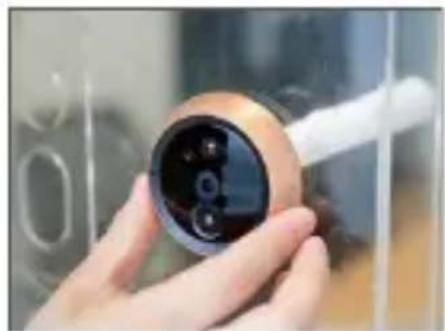

Adjust camera's position and push it close to the door gently.

7

Adjust the mounting base's position and tighten the screw.

8

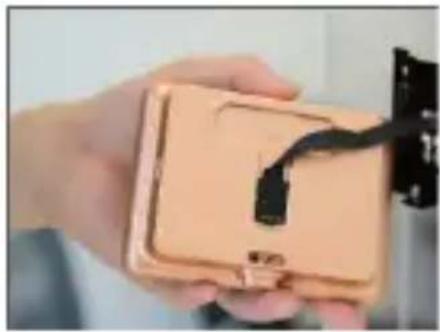

Connect the panel with the camera's wire.

10

Hold the dismantle button until the panel is well buckled.

EN

9

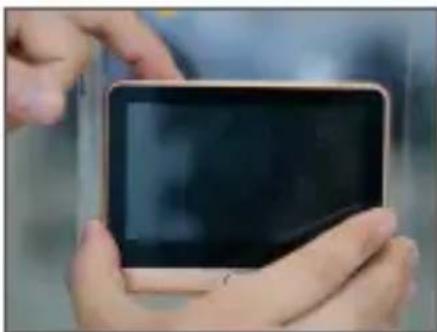

Put the panel into the mounting base.

1

Installation complete.

Power on

Hold the power button for 3 seconds to power on the panel.

Tap the Home button to see live view.

Add to EZVIZ App

1 Create a user account.

• Connect your mobile phone to Wi-Fi (suggested).
• Search for "EZVIZ" in the App Store or Google Play.
• Download and install the EZVIZ app.
• Launch the app and register an EZVIZ user account.

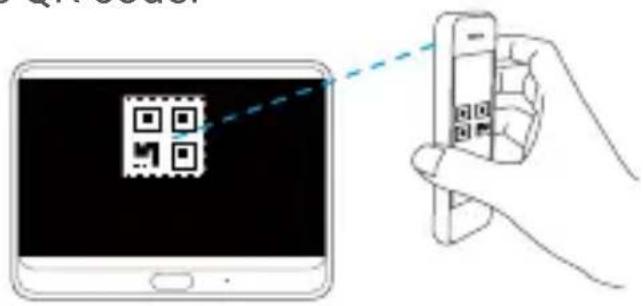

2 Add camera to EZVIZ.

• Log in the EZVIZ app.
• On the Home screen, tap "+" on the upper-right corner to go to the scan QR code page.

• Scan the QR code.

• Follow the EZVIZ app wizard to finish Wi-Fi configuration.

If you failed to get the QR code or want to reconfigure Wi-Fi, please hold the Home button for 5 seconds to reset and repeat the steps above.

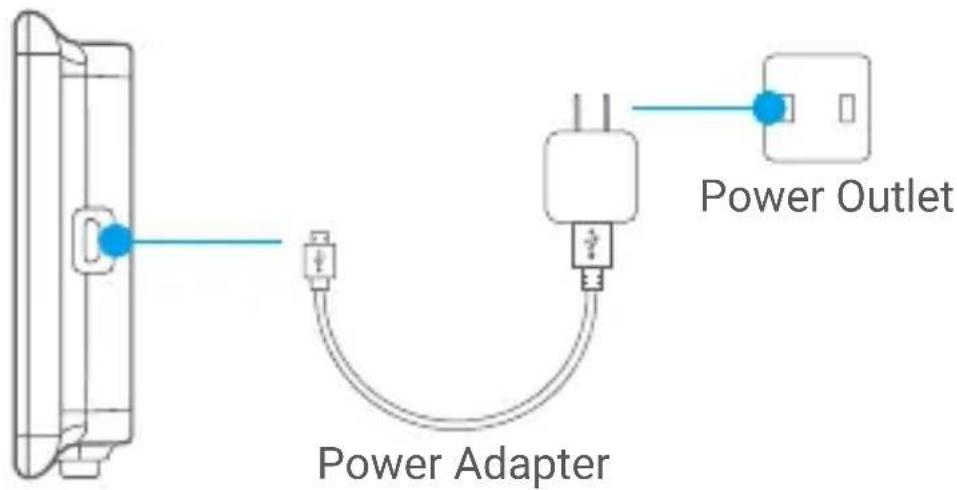

Charge the Panel

EN

Connect the panel with the power outlet via power adapter.

You can also take off the panel to charge by holding the dismantle button to remove it from the mounting base. Please disconnect the wire carefully.

EXPOSURE TO RADIOFREQUENCY RF

The frequency bands and the nominal limits of transmitted power (radiated and/or conducted) applicable to this radio device are the following:

Band Wi-Fi 2.4 GHz

Frequency From 2.412 GHz to 2.472 GHz

Power transmission (EIRP) 100 mW

Achtung

Telecamera (x1) Pannello (x1)

De installment is voltooid.

Inschakelen

Kamera (x 1) Panel (x 1)

Monteringsssockel (x 1) Strömadapter (x 1)

Skruvar (x 6) Kabel (x 1) Snabbstartsguide (x 1)

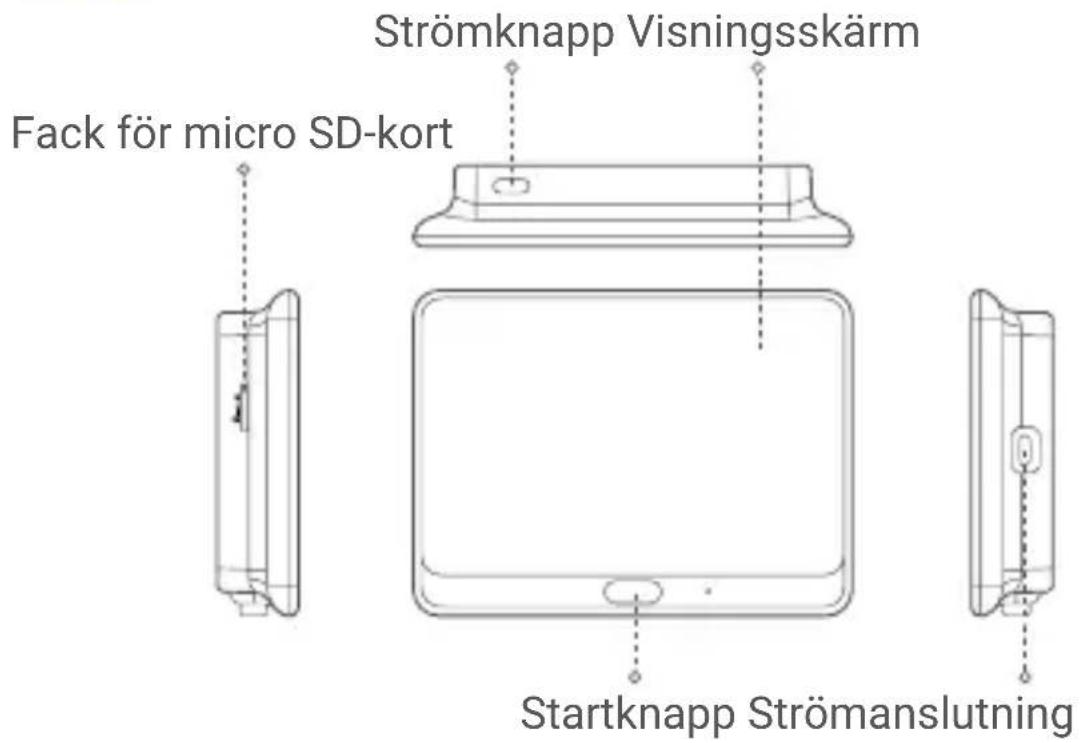

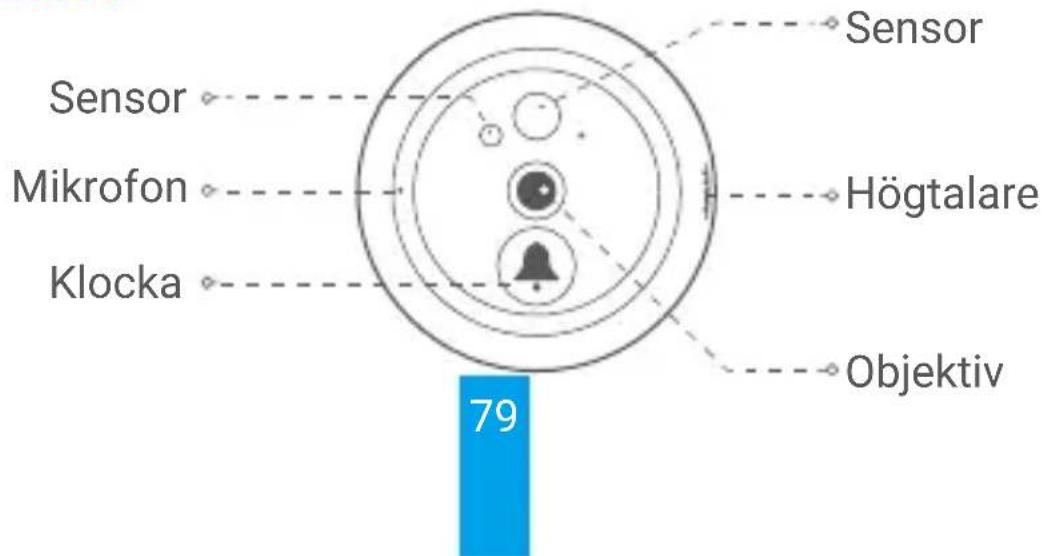

Översikt Panel

HögtalareDemonteringingsknapp

Kamera

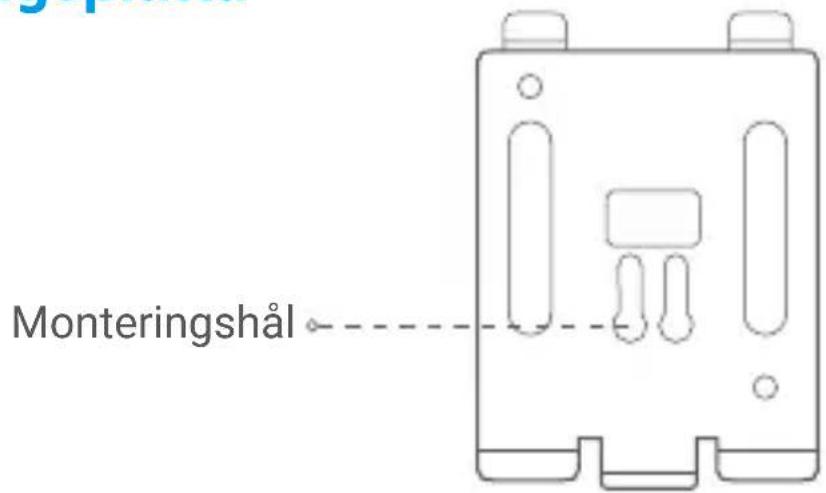

Monteringsplatta

Montering

Kamera (x 1) Panel (x 1)

Monteringsplade (x 1) Strømadapter (x 1)

Skruer (x 6) Kabel (x 1) Startvejledning (x 1)

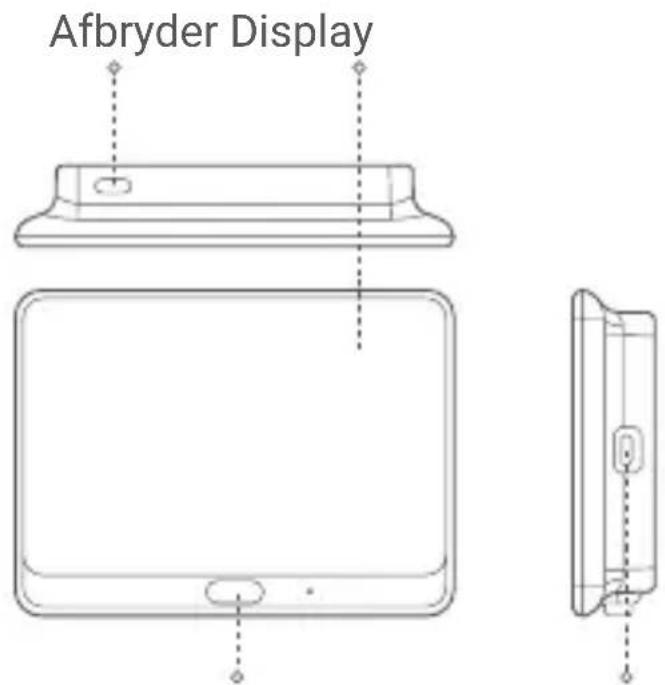

Overblink Panel

Kortholder til microSD-kort

Knappen Start Strømport

Thank you for purchasing Hangzhou EZVIZ Software Co., Ltd. ("EZVIZ") products. This limited warranty ("warranty") gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. This warranty applies only to the original purchaser of the product. "Original purchaser" means any consumer having purchased the EZVIZ product from an authorized seller. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

Your EZVIZ product is warranted for a period of two (2) years from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by contacting our Customer Service.

For any defective EZVIZ products under warranty, EZVIZ will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; or (iii) refund the original purchase price, provided you provide the original purchase receipt or copy, a brief explanation of the defect, and return the product in its original packaging. At EZVIZ's sole discretion, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the shipping cost, insurance, or any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this warranty. Any product that has either been repaired or replaced under this warranty will be covered by the terms of this warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

If the warranty claim is made outside the warranty period or if the proof of purchase is not provided;
- For any malfunction, defect, or failure caused by or resulting from the evidence of impact; mishandling; tampering; use contrary to the applicable instruction manual; incorrect power line voltage; accident; loss; theft; fire; flood; or other Acts of God; shipping damage; or damage resulting from repairs performed by unauthorized personnel;
- For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product;
- Cosmetic damage, including but not limited to scratches, dents, and broken plastic on ports;
Any software, even if packaged or sold with EZVIZ hardware;
- For any other damages free from defects in material or workmanship;
- Routine cleaning, normal cosmetic and mechanical wear and tear.

Please do not hesitate to contact your seller or our Customer Service, with any questions.
