USER MANUAL KME525860M AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website to: Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support Register your product for better service: www.registeraeg.com Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice. CONTENTS

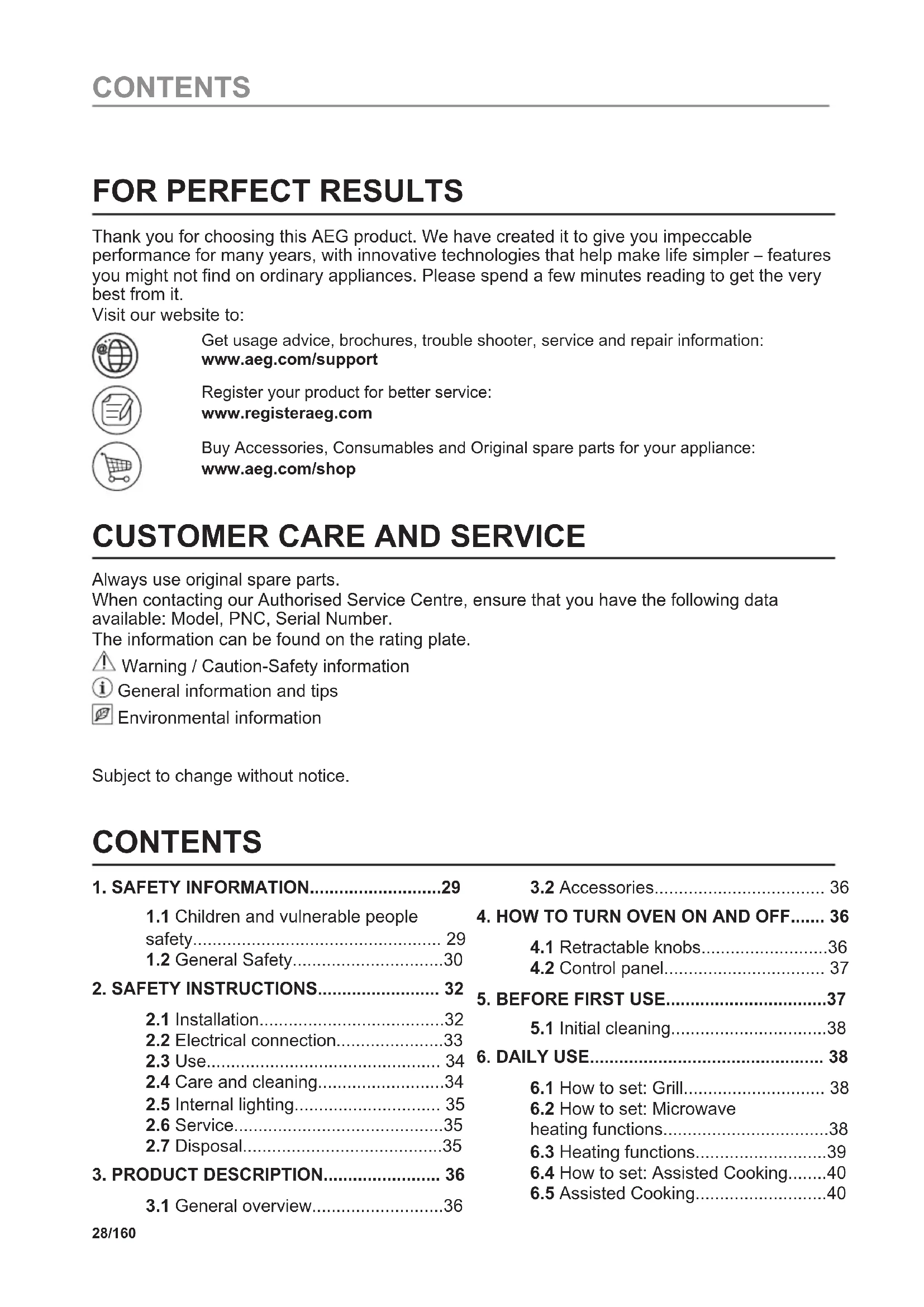

1. SAFETY INFORMATION...........................29

1.1 Children and vulnerable people

6.2 How to set: Microwave

6.4 How to set: Assisted Cooking........40

10.1 Microwave recommendations .....45

10.2 Microwave suitable cookware and

materials ............................................. 46

10.3 Recommended power settings for

different kinds of food.......................... 47

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately. 29/160 SAFETY INFORMATION• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.

• If the appliance has a child safety device, it should be activated.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

• This appliance is for cooking purposes only.

• This appliance is designed for single household domestic use in an indoor environment.

• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• Only a qualified person must install this appliance and replace the cable.

• Do not use the appliance before installing it in the built-in structure.

• Disconnect the appliance from the power supply before carrying out any maintenance.

• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Always use oven gloves to remove or insert accessories or ovenware.

• Use only the turntable and the turntable support designed for this appliance. 30/160 SAFETY INFORMATION• Do not activate the microwave function when the appliance is empty. Metal parts inside the cavity can create electric arcing.

• Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

• WARNING: If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.

• WARNING: Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

• WARNING: Do not heat liquids and other foods in sealed containers. They are liable to explode.

• Use only utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, observe the appliance due to the possibility of ignition.

• The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended. 31/160 SAFETY INFORMATION• The appliance should be cleaned regularly and any food deposits removed.

• Do not use a steam cleaner to clean the appliance.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Do not pull the appliance by the handle.

• Install the appliance in a safe and suitable place that meets installation requirements.

• Keep the minimum distance from other appliances and units.

• Before mounting the appliance, check if the oven door opens without restraint.

• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

• The built-in unit must meet the stability requirements of DIN 68930. Cabinet minimum height (Cabinet under the work‐ top minimum height) 444 (460) mm Cabinet width 560 mm Cabinet depth 550 (550) mm Height of the front of the appliance 455 mm Height of the back of the appliance 440 mm Width of the front of the appliance 595 mm 32/160 SAFETY INSTRUCTIONSWidth of the back of the appliance 559 mm Depth of the appliance 567 mm Built in depth of the appliance 546 mm Depth with open door 882 mm Ventilation opening minimum size. Opening placed on the bottom rear side 560x20 mm Mains supply cable length. Cable is placed in the right corner of the back side 1500 mm Mounting screws 3.5x25 mm

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• The appliance must be earthed.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• This appliance is supplied with a main plug and a main cable. 33/160 SAFETY INSTRUCTIONS2.3 Use WARNING! Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.

• Do not let the appliance stay unattended during operation.

• Deactivate the appliance after each use.

• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not apply pressure on the open door.

• Do not use the appliance as a work surface or as a storage surface.

• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.

• Do not let sparks or open flames to come in contact with the appliance when you open the door.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not use microwave function to preheat the oven. WARNING! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel: – do not put aluminium foil directly on the bottom of cavity of the appliance. – do not put water directly into the hot appliance. – do not keep moist dishes and food in the appliance after you finish the cooking. – be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

• Always cook with the appliance door closed.

• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING! Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Make sure the appliance is cold. There is the risk that the glass panels can break.

• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

• Be careful when you remove the door from the appliance. The door is heavy! 34/160 SAFETY INSTRUCTIONS• Make sure the cavity, the turntable and the door are wiped dry after each use. Steam produced during the operation of the appliance condensates on cavity walls and can cause corrosion.

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Fat and food remaining in the appliance can cause fire and electric arcing when the microwave function operates.

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Internal lighting

WARNING! Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

• This product contains a light source of energy efficiency class G.

• Use only lamps with the same specifications.

• To repair the appliance contact the Authorised Service Centre.

• Use original spare parts only.

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.

• Disconnect the appliance from the mains supply.

• Cut off the mains electrical cable close to the appliance and dispose of it.

• Remove the door catch to prevent children or pets from becoming trapped in the appliance. 35/160

Knob for the heating functions

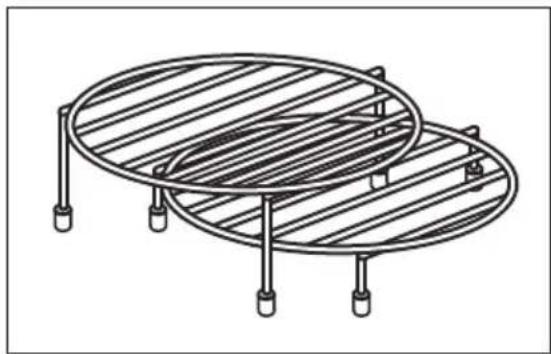

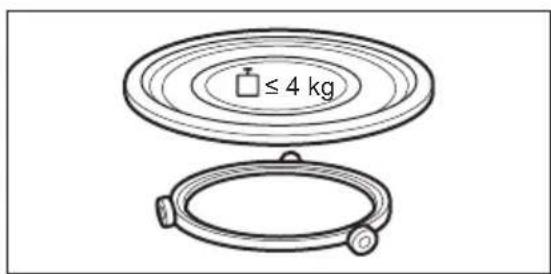

Turntable set To prepare food. ≤ 4 kg Grill rack set To grill.

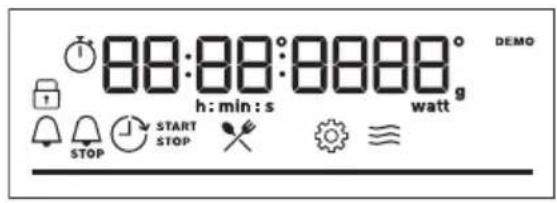

To use the appliance press the knob. The knob comes out. 36/160 PRODUCT DESCRIPTION4.2 Control panel Control panel sensor fields Press Turn the knob WATT Timer Lock Light Microwave power Confirm setting Select a heating function to turn on the oven. Turn the knob for the heating functions to the off position to turn the oven off. When the knob for the heating functions is in the off position, the display goes to standby. Display with key functions. Display in‐ dicators: Lock Assisted Cook‐ ing Settings Timer indi‐ cators: Progress bar - for temperature or time. The bar is fully red when the oven reaches the set tempera‐ ture.

WARNING! Refer to Safety chapters. 37/160 BEFORE FIRST USE5.1 Initial cleaning Before first use clean the empty oven and set the time: 00:00 Set the time. Press .

WARNING! Refer to Safety chapters.

6.1 How to set: Grill

Start cooking Step 1 Step 2 Select the function: Grill. Press .

6.2 How to set: Microwave heating functions

Step 1 Select a microwave heating function and press: to start with default settings. The display shows: duration and microwave power. Step 2 Turn the knob for the heating functions to the off position to turn off the oven. You can adjust settings while cooking. Turn the control knob to adjust duration. Press: Press WATT and turn the control knob to adjust microwave power. Press: The maximum time of microwave functions depends on microwave power you set: 38/160

DAILY USEMICROWAVE POWER MAXIMUM TIME

More than 600 W 7 minutes If you open the door, the microwave function stops. To start it again, close the door. Press .

6.3 Heating functions

Standard heating functions Heating function Application Liquid Heating up drinks and soups, power range: 800 - 1000 W Reheat Heating up pre-prepared meals and delicate food, power range: 300 - 700

Defrost Defrosting meat, fish, cakes, power range: 100 - 200 W Melting Melting chocolate and butter, power range: 100 - 400 W Popcorn Preparing popcorn, power range: 700 - 1000 W Grill To grill thin pieces of food and to toast bread. Grill High To cook food in short time and brown it with high grill intensity. Power range: 100 - 500 W. 39/160 DAILY USEHeating function Application Grill Low To cook food in short time and brown it with low grill intensity. For casser‐ oles such as potato gratin, lasagne. Power range: 100 - 500 W. Microwave Heating up, cooking, power range: 100 - 1000 W Menu To enter the Menu: Assisted Cooking, Settings.

6.4 How to set: Assisted Cooking

Every dish in this submenu has a recommended function. You can adjust the time during cooking. Assisted Cooking - use it to prepare a dish quickly with default settings: Step 1 Step 2 Step 3 Step 4 P1 - P12 Enter the menu. Select Assisted Cooking. Press . Select the dish. Press

Insert the dish to the oven. Confirm setting.

6.5 Assisted Cooking

Legend Function with microwave power. Use microwave safe accessory. Shelf level. 40/160 DAILY USEDish Weight Shelf level / Accessory Duration time Poultry P1 Whole chick‐

1,1 kg low wire rack; ceramic or glass casserole dish Use your favourite spices. 35 min P2 Chicken, two halves 0,6 - 0,7 kg per half Fish P3 Whole fish 0,6 kg turntable glass plate; ceramic or glass casserole dish Cover the food with a microwave safe lid with some holes. 7 min P4 Fish fillet 0,5 kg; 150 g per fillet turntable glass plate; ceramic or glass casserole dish Cover the food with a microwave safe lid with some holes. 4 min Vegetable / Side dishes P5 Broccoli 0,5 kg turntable glass plate; ceramic or glass casserole dish Add 50 ml of water. Cover the food with a microwave safe lid with some holes. 8 min P6 Cauliflower 0,5 kg 8 min P7 Cauliflower, frozen 0,5 kg 12 min P8 Peas, frozen 0,5 kg 10 min P9 Potatoes in their jacket 0,5 kg 10 min P10 Rice 0,2 kg turntable glass plate; ceramic or glass casserole dish Add 400 ml of water. Cover the food with a microwave safe lid with some holes. 12 min Gratins 41/160 DAILY USEDish Weight Shelf level / Accessory Duration time P11 Potato gratin (raw potatoes) 1,1 kg low wire rack; ceramic or glass casserole dish 37 min P12 Lasagna with dry noodle plates

Clock Function Application Minute minder. When the timer ends, the signal sounds. Cooking time. When the timer ends, the signal sounds and the heating function stops. Time Delay. To postpone the start and / or end of cooking. Uptimer. Maximum is 23 h 59 min. This function has no effect on the operation of the oven. To turn on and off the Uptimer select: Menu, Settings.

7.2 How to set: Clock functions

How to set: Time of day Step 1 Step 2 Step 3 To change the time of day enter the menu and select Settings, Time of day. Set the clock. Press: . 42/160 CLOCK FUNCTIONSHow to set: Minute minder Step 1 The display shows: 0:00 Step 2 Step 3 Press: . Set the Minute minder Press: . Timer starts counting down immediately. This function is available only for: Grill, Grill Low, Grill High. How to set: Cooking time Step 1 Step 2 The display shows: 0:00 Step 3 Step 4 Choose a heating function and set the temperature. Press repeated‐ ly: . Set the cooking time. Press: . Timer starts counting down immediately. This function is available only for: Grill, Grill Low, Grill High. 43/160 CLOCK FUNCTIONSHow to set: Time Delay Step 1 Step 2 The dis‐ play shows: the time of day START Step 3 Step 4 The dis‐ play shows:

Set the start time. Press:

Set the end time. Press:

Timer starts counting down at a set start time. This function is available only for: Grill.

8. HOW TO USE: ACCESSORIES

8.1 Inserting accessories

Use only suitable cookware and material. Refer to "Hints and tips" chapter, Microwave suitable cookware and materials. Turntable set: Always cook food on the turntable set. Place the roller guide around the turntable shaft. Place the turntable glass on the roll‐ er guide. Use only the turntable set supplied with the oven. Grill rack set: Place the grill rack with the silicon caps down on the turntable set. 44/160

HOW TO USE: ACCESSORIES9. ADDITIONAL FUNCTIONS

This function prevents an accidental change of the oven function. Turn it on when the oven works - the set cooking continues, the control panel is locked. Turn it on when the oven is off - the oven cannot be turned on, the control panel is locked. - press and hold to turn on the function. A signal sounds. - press and hold to turn it off. 3 x - flashes when the lock is turned on.

9.2 Automatic switch-off

For safety reasons the oven turns off after some time, if a heating function works and you do not change any settings. (°C) (h)

The Automatic switch-off does not work with the functions: Light, Time Delay.

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

10.1 Microwave recommendations

Let's cook! Do not place the food directly on the turntable. Always use the microwave suitable cookware. Place the cookware in the middle of the turntable. Contact with too hot or too cold items can break the turntable. Turn or stir the food halfway through the defrosting and cooking time. Stir liquid dishes from time to time. 45/160 ADDITIONAL FUNCTIONSStir the food before serving. Cover the food for cooking and reheating. Put the spoon to the bottle or glass when heating drinks to ensure better heat distribution. Put the food into the oven without packaging. The packaged ready meals can be put into the oven only when the packaging is microwave safe (check information on the packaging). Microwave cooking Cook food covered. If you want to keep a crust cook food without a cover. Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or cause fire. Do not use the oven to cook eggs or snails in their shells, because they can burst. Pierce the yolk of fried egg before reheating it. Pierce food with skin or peel several times before cooking. Cut vegetables into similar-sized pieces. After you turn off the oven, take the food out and let it stand for a few minutes to allow the heat distribute evenly. Microwave defrosting Put the frozen, unwrapped food on a small upturned plate with a container below it, or on a defrosting rack or plastic sieve so that the defrosting liquid can leak out. Remove defrosted pieces subsequently. To cook fruit and vegetables without defrosting them first, you can use a higher microwave power.

10.2 Microwave suitable cookware and materials

For the microwave use only suitable cookware and materials. Use below table as a reference. Check the cookware / material specification before use. Cookware / Material

Ovenproof glass and porce‐ lain with no metal compo‐ nents, e.g. heat-proof glass Non-ovenproof glass and porcelain without any silver, gold, platinum or other metal decorations X X X Glass and glass ceramic made of ovenproof / frost- proof material 46/160 HINTS AND TIPSCookware / Material

Ceramic and earthenware without any quartz or metal components and glazes which contain metal X X Ceramic, porcelain and earth‐ enware with unglazed bottom or with small holes, e.g. on handles X X X X Heat-resistant plastic up to 200 °C X X Cardboard, paper X X X Microwave clingfilm X X X Roasting film with microwave safe closure X X Roasting dishes made of metal, e.g. enamel, cast iron X X X Baking tins, black lacquer or silicon-coated X X X Cookware for microwave use, e.g. crisp pan X X X Grill rack set X X

10.3 Recommended power settings for different kinds of food

The data in the table is for guidance only. 47/160

HINTS AND TIPS800 - 1000 W

Searing at the start of the cooking process Heating liquids

Cooking vegeta‐ bles Cooking egg dishes Simmering stews Heating one-plate meals Defrosting and heating frozen meals

Melting cheese, chocolate, butter Simmering rice Heating baby food Cooking / Heating delicate food Continuing cooking

Defrosting bread Defrosting fruit and cakes Defrosting cheese, cream, butter Defrosting meat, fish

10.4 Cooking tables for test institutes

Information for test institutes Tests according to IEC 60705. MICROWAVE FUNCTION (W) (kg) (min) Sponge cake 600 0.475 Turntable set

Egg custard 500 1 Turntable set

11. CARE AND CLEANING

WARNING! Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents Clean the front of the oven with a soft cloth with warm water and a mild deter‐ gent. Use a cleaning solution to clean metal surfaces. Clean stains with a mild detergent. 49/160 CARE AND CLEANINGEveryday Use Clean the cavity after each use. Fat accumulation or other residue may cause fire. Clean the oven ceiling carefully from residue and fat. Do not store the food in the oven for longer than 20 minutes. Dry the cavity with a soft cloth after each use. Accessories Clean all accessories after each use and let them dry. Before cleaning, wait un‐ til the turntable is cold. There is a risk that the turntable can break. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher. Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

WARNING! Refer to Safety chapters.

12.1 What to do if...

In any cases not included in this table please contact with an Authorised Service Centre. The oven does not turn on or does not heat up Problem Check if... You cannot activate or operate the oven. The oven is correctly connected to an electrical supply. The oven does not heat up. The automatic switch-off is deactivated. The oven does not heat up. The fuse is not blown. The oven does not heat up. The Lock is off. Components Problem Check if... 50/160 TROUBLESHOOTINGComponents The lamp does not work. The lamp is burnt out. Contact an Authorised Service Centre. The turntable set makes noise. There is food residue below the turntable set. Error codes The display shows... Check if... 00:00 There was a power cut. Set the time of day. If the display shows an error code that is not in this table turn the house fuse off and on to restart the oven. If the error code recurs contact an Authorised Service Centre.

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity. We recommend that you write the data here: Model (MOD.) ......................................... Product number (PNC) ......................................... Serial number (S.N.) .........................................

Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position. When possible, do not preheat the oven before cooking. Keep breaks between baking as short as possible when you prepare a few dishes at one time. Cooking with the lamp off Turn off the lamp during cooking. Turn it on only when you need it. 51/160

- select to enter the Menu. Menu structure Assisted Cooking Settings Step 1 Step 2 Step 3 Step 4 Step 5 O1 - O9 Select the Menu, Settings. Confirm setting. Select the set‐ ting. Confirm setting. Adjust the value and press . Settings O1 Time of day Change O2 Display brightness 1 - 5 O3 Key tones 1 - Beep

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic 52/160 MENU STRUCTUREappliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. 53/160
