AF1W350 - Deep fryer WILFA - Free user manual and instructions

Product type	Air fryer
Brand	Wilfa
Model	AF1W350
Power	1500 W (estimated)
Basket capacity	3.5 L (estimated)
Temperature range	35 °C to 200 °C
Timer	1 minute to 24 hours
Cooking programs	8 preset programs: Defrost, Fries, Chicken wings, Ground beef, Shrimp, Fish, Cake, Dehydrate
Digital display	Yes
Preheat function	Yes
Automatic shut-off	Yes (at the end of cooking time)
Basket material	Non-stick metal (estimated)
Cleaning	Basket and pot hand washable; do not use abrasive cleaners
Safety	Automatic shut-off, overheat protection, short power cord
Warranty	5 years
Power supply	220-240 V, 50/60 Hz (estimated)
Cable length	Approximately 0.8 m (estimated)
Net weight	4.5 kg (estimated)
Dimensions (W x D x H)	30 x 30 x 35 cm (estimated)
Included accessories	Basket, pot
Maintenance	Do not immerse, wipe with a soft cloth

Frequently Asked Questions - AF1W350 WILFA

How to use the air fryer for the first time?

Before first use, heat the air fryer empty for 10 minutes. A slight smoke or odor may be emitted, which is normal. Let it cool, then clean the basket and pot.

How to preheat the air fryer?

Plug in the appliance, select a program (or manually adjust the temperature) and press the start button. Preheating takes 3 to 5 minutes. The screen displays "ADD" once finished.

What to do if the appliance does not start?

Check that the air fryer is plugged in and that the pot and basket are properly inserted into the main unit. If the problem persists, contact customer service.

Why are my foods not crispy?

Make sure you have preheated the air fryer for 3 to 5 minutes before adding food. You can also brush the ingredients with a little oil for extra crispiness.

How to clean the basket and pot?

Wash the basket and pot by hand with hot water and a mild detergent. Do not use abrasive cleaners, hard or sharp objects, nor a dishwasher.

Can I use the air fryer with oil?

Yes, you can add a little oil for a crispier result. However, do not fill the air fryer with oil: it is designed for air frying.

What to do if white smoke comes out of the appliance?

This may happen if the food is greasy or if there are grease residues. Clean the pot and basket thoroughly after each use. White smoke is normal and does not damage the appliance.

How to set the temperature and time manually?

After selecting a program, press the setting button (clock or temperature), then use the + and - buttons to adjust the values as needed.

What is the warranty period?

Wilfa offers a 5-year warranty from the date of purchase for domestic use. Keep your purchase receipt.

Can I put the parts in the dishwasher?

No, do not put the basket or pot in the dishwasher. Wash them by hand with a mild detergent to avoid damaging the coating.

USER MANUAL AF1W350 WILFA

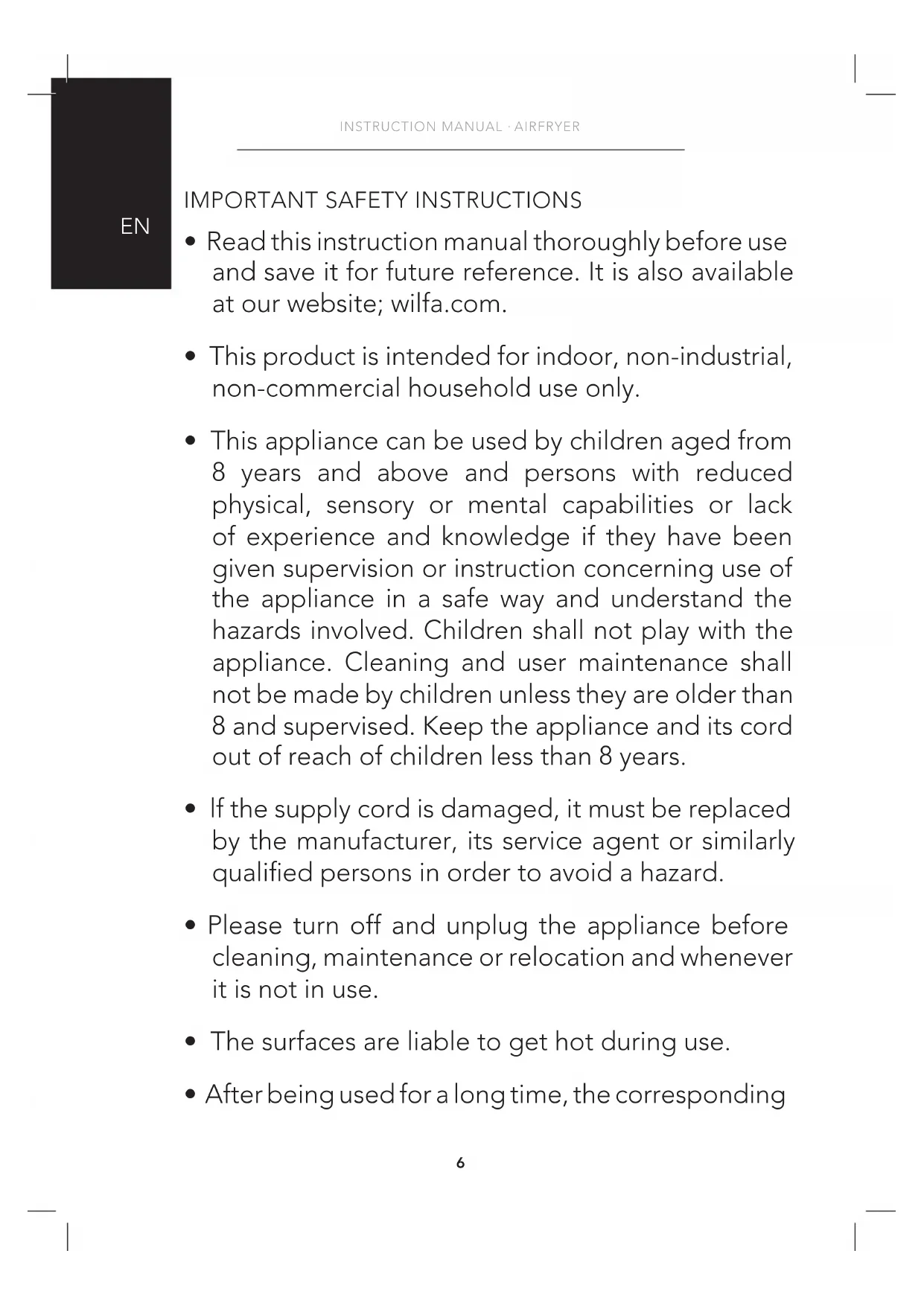

IMPORTANT SAFETY INSTRUCTIONS

• Read this instruction manual thoroughly before use and save it for future reference. It is also available at our website; wilfa.com.
• This product is intended for indoor, non-industrial, non-commercial household use only.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Please turn off and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use.
• The surfaces are liable to get hot during use.
• After being used for a long time, the corresponding

heating zone of the induction hot plate is still hot. Never touch the ceramic surface to avoid burning.

• Do not immerse any part of the appliance in water or other liquid.
• Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse under the tap.
• Do not let any water or other liquid enter the appliance to prevent electric shock.
• Do not cover the air inlet and the air outlet openings while the appliance is operating.
• Never touch the inside of the appliance while it is operating.
• Keep the main cord away from hot surfaces.
• Never connect this appliance to an external timer switch or separate remote-control system in order to avoid a hazardous situation.

• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

• Please pay attention to scald where there is a high temperature symbol.

EN

SAFETY PRECAUTIONS FOR YOUR AIRFRYER

• Always put the ingredients to be fried in the basket, to prevent it from coming in contact with the heating elements.
• Do not fill the pan with oil as this may cause a fire hazard.
• During airfrying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

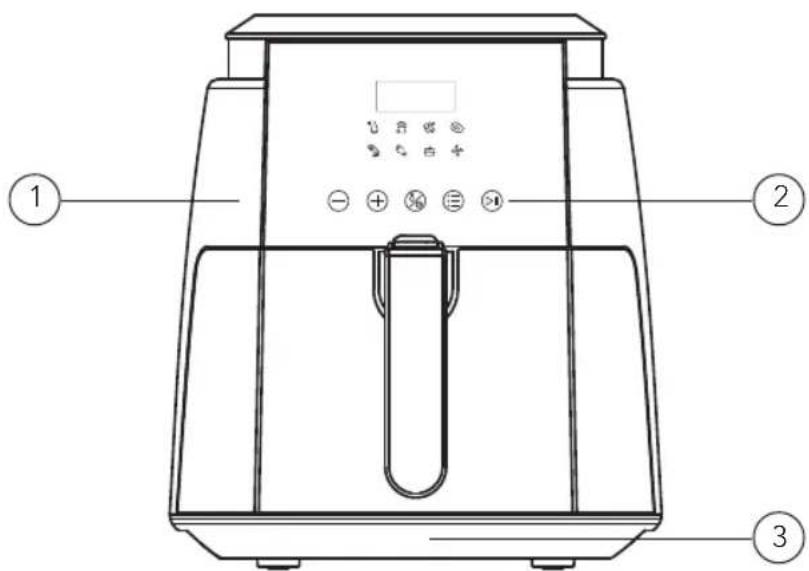

PRODUCT OVERVIEW

1. Main unit
2. Control panel
3. Base assembly
4. Frying basket
5. Pan

EN

BEFORE FIRST USE

• The first use requires 10 minutes of dry heating. A small amount of smoke or odor may appear during the dry heating process, which is normal.
• Before use, please check that the frying basket and pan is in place to avoid malfunction.
• If you find that the product is malfunctioning, please stop using it, unplug the power plug and contact our service department.
• Please use the frying basket and pan together in the air fryer, and avoid using them separately.
  After using, unplug the power plug and allow the air fryer to cool completely before moving.

ASSEMBLING

1. The product should be stably placed on a flat, level surface (Figure 1), so that the power cord has a sufficient length to be plugged into the socket, and the air around the product should be kept in circulation, and should not be close to flammable items.

1. Install the basket into the pan (figure 2), then push it into the main unit (Figure 3).

Fig. 2

Fig. 3

1. Before placing the ingredients, preheat the machine for 3-5 minutes, which improves the cooking result.

HOW TO USE

1. Plug in the power cord. Touch the button to select the corresponding program and touch button to let the machine run for preheating.
2. After the preheating is completed the machine will beep and the display will show "ADD". Hold the top of the machine with one hand, and pull the pan out with the other hand. The pan must be placed on a flat and heat resistant surface.
3. Put the ingredients in the frying basket and put the basket into the pan.
4. Push the pan into the machine, and it will start heating and cooking the ingredients automatically.
5. After reaching half of the set heating the machine beeps 3 times, you can take out the pan, and flip the food.
6. The machine beeps when the cooking time is finished. Unplug the unit, put it on a flat surface and take out the cooked food with a plastic or wooden tool.

CAUTION: Be careful when you take out the pan, it contains hot food and it can release hot steam.

EN

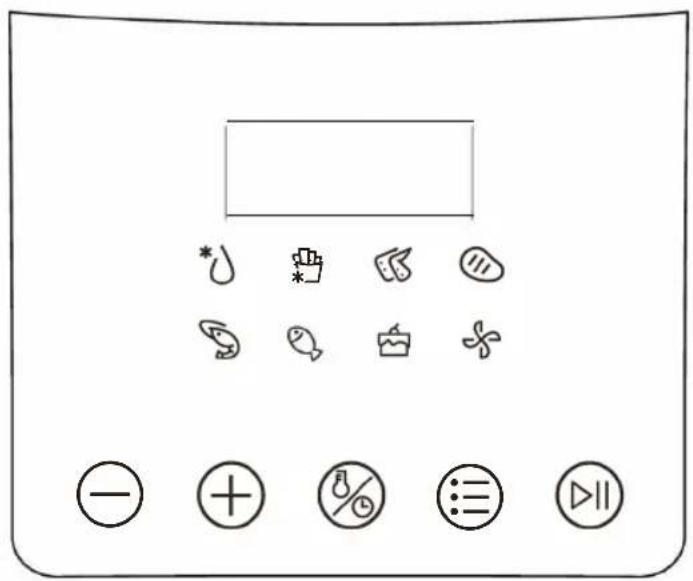

• Touch button to select program.
• After selecting program, touch button to change time or temperature setting, press the + - key to adjust time and temperature to preferred settings.
• Touch button, the appliance goes into the working state. Touch the button again, the airfrying stops. Touch and hold the button to return to the standby mode.

Program selection: The selected program is blinking, and the display shows the default temperature.

Working status: The selected program light is on, while other program lights are off. The digital display shows countdown.

PRE-SETS MENU, HEATING TEMPERATURE AND TIME

Programs Temperature (℃) Time (Min)
Pre-setting Adjustment range		Pre-setting Adjustment range
Defrost 80 35-90 6 1-90
French fries 180 80-200 15 1-90
Chicken wings	180 80-200 15 1-90
Steak 200 80-200 9 1-90
Shrimp 180 80-200 10 1-90
Fish 180 80-200 13 1-90
Cupcake	170 80-200 9 1-90
Dehydrate	70 35-90 4h	1-24h

EN

CLEANING

• Please clean the air fryer to prevent leftover food/food residue from being burned.
• After using, please clean the frying basket and pan in time to avoid the damage of the coating due to erosion of food residue or oil.
• Do not use strong abrasive cleaners to prevent damage to the machine and your health.
• Use a soft, clean cloth to wipe the air fryer. Please do not use an over-wet cloth, if water enters the air fryer it can cause short circuit in the appliance.
• Please do not use other cleaning equipment such as dishwasher to clean the air fryer, it may cause damage and affect the use.
• Use neutral detergent or clean water to clean the frying basket and pan.
• Please do not use hard and sharp items (such as steel wool, sharp tools etc) to clean the basket and pan.

TIPS AND TRICKS

• Use your air fryer to reheat your leftovers, it will make them as crispy as they were fresh.
• Brush some oil on the ingredients before airfrying for an even crispier result.

TROUBLESHOOTING

Problem Possible reasons Solutions
The fryer does not start	The air fryer is not plugged in.	Plug in the power cord.
	The pan and basket is not fully inserted.	Make sure the pan and basket is correctly assembled and inserted in the main unit.
The food is not crispy	Air fryer did not preheat. Preheat air fryer 3-5 minutes.
The ingredients are unevenly fried	The basket is too full.	Reduce the amount of ingredients.
	You did not flip or shake the ingredients halfway.	Ingredients that lie across each other needs to be shaken or turned halfway through.
White smoke comes out of the appliance	You are preparing greasy ingredients.	With greasy food, oil can leak into the pan. Oil makes the white smoke, but it will not affect the appliance or the end result.
	The pan still has greasy residue from previous use.	Make sure you clean the pan and basket thoroughly after each use.

EN

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

220-240V 50/60Hz 1500W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

INNHOLD

20 VIKTIGE SIKKERHETSINSTRUKSJONER
22 FORHOLDSREGLER VED BRUK AV AIRFRYER
23 PRODUKTOVERSIKT
24 FØR FØRSTE GANGS BRUK
24 MONTERING
25 BRUK
28 RENGJØRING
28 TIPS OG TRIKS
29 FEILSØKING
30 GARANTI
31 PRODUKTSPESIFIKASJONER
31 SUPPORT OG RESERVEDELER
31 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

FORHÄNDSINNSTILTE PROGRAMMER, OPPVARMINGSTEMPERATUR OG TID

Programmer Temperatur (°C) Tid (min)
Forhånds-	innstilling	Justerings-område	Forhånds-innstilling	Justerings-område
Tine 80 35–90 6 1–90
Pommes frites	180 80–200 15 1–90
Kyllingvinger 180 80–200 15 1–90
Biff 200 80–200 9 1–90
Reker 180 80–200 10 1–90
Fisk 180 80–200 13 1–90
Kake 170 80–200 9 1–90
Tørking	70 35–90 4 t	1–24 t

NO

RENGJØRING

SO STEllen SIE DAS BEDIENFELD EIN

CARACTERISTIQUES DU PRODUIT

220-240 V~ 50/60 Hz, 1 500 W
