USER MANUAL AF1B-350 WILFA

Black air fryer with digital display and control buttons (no visible text or symbols)

AIR FRYER

AF1B-350

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

6 IMPORTANT SAFETY INSTRUCTIONS

8 SAFETY PRECAUTIONS FOR YOUR AIRFRYER

9 PRODUCT OVERVIEW

10 BEFORE FIRST USE

10 ASSEMBLING

11 HOW TO USE

14 CLEANING

14 TIPS AND TRICKS

15 TROUBLESHOOTING

16 GUARANTEE

17 PRODUCT SPECIFICATIONS

17 SUPPORT AND SPARE PARTS

17 RECYCLABILITY

IMPORTANT SAFETY INSTRUCTIONS

• Read this instruction manual thoroughly before use and save it for future reference. It is also available at our website; wilfa.com.
• This product is intended for indoor, non-industrial, non-commercial household use only.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Please turn off and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use.
• The surfaces are liable to get hot during use.
  • After being used for a long time, the corresponding

heating zone of the induction hot plate is still hot. Never touch the ceramic surface to avoid burning.

• Do not immerse any part of the appliance in water or other liquid.
• Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse under the tap.
• Do not let any water or other liquid enter the appliance to prevent electric shock.
• Do not cover the air inlet and the air outlet openings while the appliance is operating.
• Never touch the inside of the appliance while it is operating.
• Keep the main cord away from hot surfaces.
• Never connect this appliance to an external timer switch or separate remote-control system in order to avoid a hazardous situation.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

- Please pay attention to scald where there is a high temperature symbol.

SAFETY PRECAUTIONS FOR YOUR AIRFRYER

• Always put the ingredients to be fried in the basket, to prevent it from coming in contact with the heating elements.
• Do not fill the pan with oil as this may cause a fire hazard.
• During airfrying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

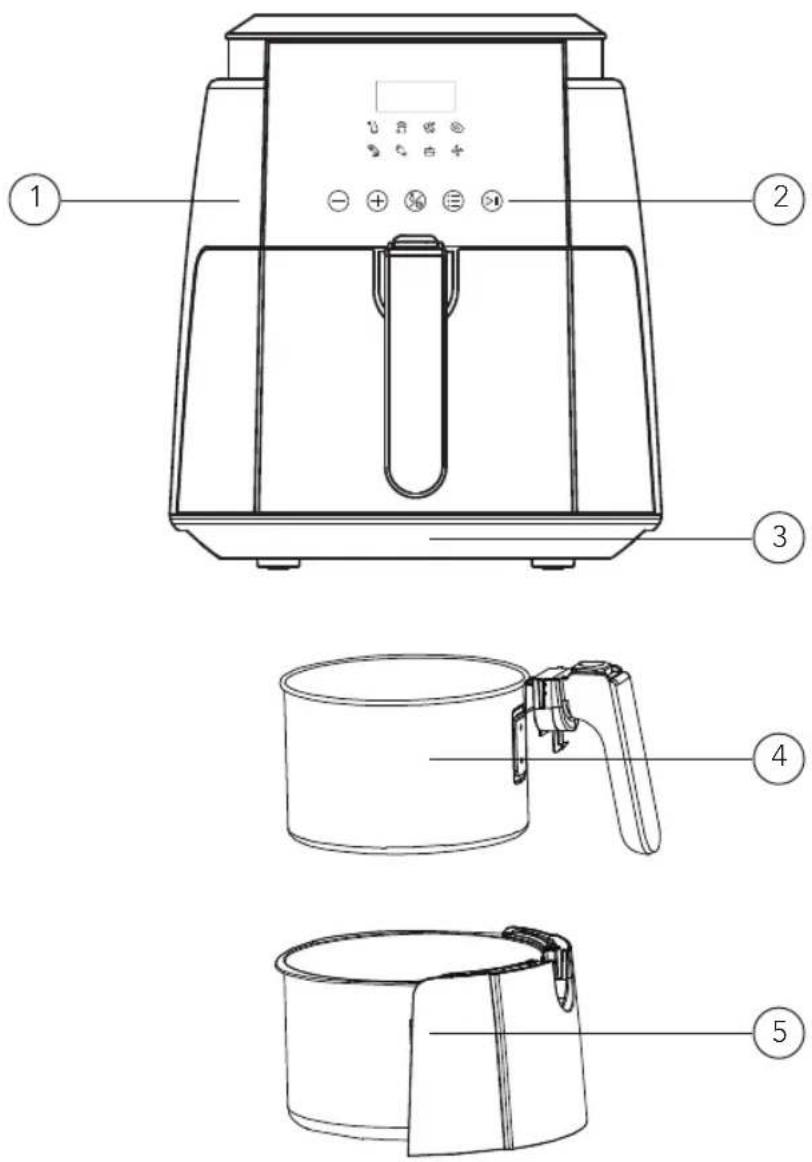

PRODUCT OVERVIEW

1. Main unit
2. Control panel
3. Base assembly
4. Frying basket
5. Pan

EN

BEFORE FIRST USE

• The first use requires 10 minutes of dry heating. A small amount of smoke or odor may appear during the dry heating process, which is normal.
• Before use, please check that the frying basket and pan is in place to avoid malfunction.
• If you find that the product is malfunctioning, please stop using it, unplug the power plug and contact our service department.
• Please use the frying basket and pan together in the airfryer, and avoid using them separately.
• After using, unplug the power plug and allow the airfryer to cool completely before moving.

ASSEMBLING

1. The product should be stably placed on a flat, level surface (Figure 1), so that the power cord has a sufficient length to be plugged into the socket, and the air around the product should be kept in circulation, and should not be close to flammable items.

Line drawing of a simple portable device on a wooden table, labeled Fig. 1 (no text or symbols on the device itself)

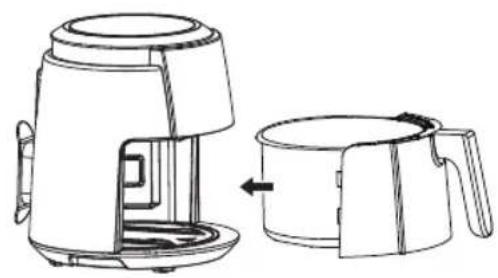

1. Install the basket into the pan (figure 2), then push it into the main unit (Figure 3).

Diagram showing a cup being placed on a side table, with an arrow indicating the process (no text or symbols present)

Fig. 2

Line drawing of a coffee maker with lid removed from its side, showing internal structure and cooling mechanism (no text or symbols)

Fig. 3

1. Before placing the ingredients, preheat the machine for 3-5 minutes, which improves the cooking result.

HOW TO USE

1. Plug in the power cord. Touch the button to select the corresponding program and touch button to let the machine run for preheating.
2. After the preheating is completed the machine will beep and the display will show "ADD". Hold the top of the machine with one hand, and pull the pan out with the other hand. The pan must be placed on a flat and heat resistant surface.
3. Put the ingredients in the frying basket and put the basket into the pan.
4. Push the pan into the machine, and it will start heating and cooking the ingredients automatically.
5. After reaching half of the set heating the machine beeps 3 times, you can take out the pan, and flip the food.
6. The machine beeps when the cooking time is finished. Unplug the unit, put it on a flat surface and take out the cooked food with a plastic or wooden tool.

CAUTION: Be careful when you take out the pan, it contains hot food and it can release hot steam.

EN

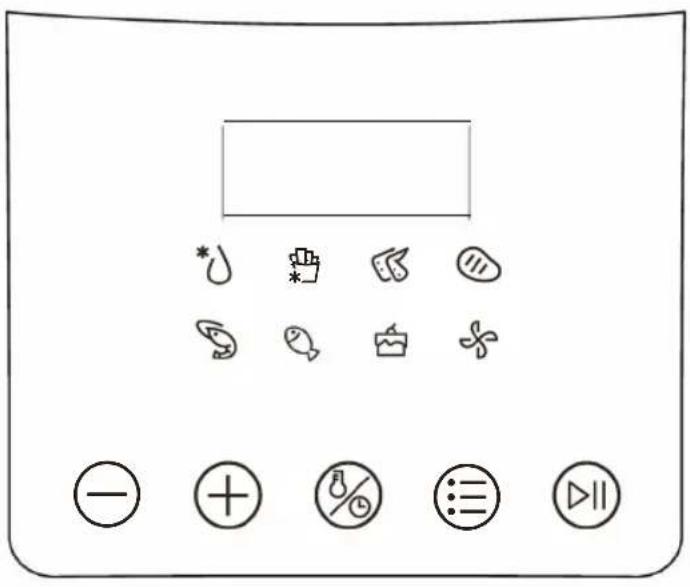

• Touch ⏰ button to select program.
• After selecting program, touch ⚠️ button to change time or temperature setting, press the + - key to adjust time and temperature to preferred settings.
• Touch ▶ button, the appliance goes into the working state. Touch the button again, the airfrying stops. Touch and hold the button to return to the standby mode.

Program selection: The selected program is blinking, and the display shows the default temperature.

Working status: The selected program light is on, while other program lights are off. The digital display shows countdown.

Diagram showing a control panel with icons for basic functions like battery, switch, gear, fish, swirl, and directional buttons below.

PRE-SETS MENU, HEATING TEMPERATURE AND TIME

Programs Temperature (°C) Time (Min)
Pre-setting Adjustment	range	Pre-setting Adjustment range
Defrost 80 35-90 6 1-90
French fries 180 80-200 15 1-90
Chicken wings 180 80-200 15 1-90
Steak 200 80-200 9 1-90
Shrimp 180 80-200 10 1-90
Fish 180 80-200 13 1-90
Cupcake 170 80-200 9 1-90
Dehydrate 70 35-90 4h	1-24h

EN

CLEANING

• Please clean the airfryer to prevent leftover food/food residue from being burned.
• After using, please clean the frying basket and pan in time to avoid the damage of the coating due to erosion of food residue or oil.
• Do not use strong abrasive cleaners to prevent damage to the machine and your health.
• Use a soft, clean cloth to wipe the airfryer. Please do not use an over-wet cloth, if water enters the airfryer it can cause short circuit in the appliance.
• Please do not use other cleaning equipment such as dishwasher to clean the airfryer, it may cause damage and affect the use.
• Use neutral detergent or clean water to clean the frying basket and pan.
• Please do not use hard and sharp items (such as steel wool, sharp tools etc) to clean the basket and pan.

TIPS AND TRICKS

• Use your airfryer to reheat your leftovers, it will make them as crispy as they were fresh.
• Brush some oil on the ingredients before airfrying for an even crispier result.

TROUBLESHOOTING

Problem Possible reasons Solutions
The fryer does not start	The airfryer is not plugged in.	Plug in the power cord.
	The pan and basket is not fully inserted.	Make sure the pan and basket is correctly assembled and inserted in the main unit.
The food is not crispy	Airfryer did not preheat.	Preheat airfryer 3-5 minutes.
The ingredients are unevenly fried	The basket is too full.	Reduce the amount of ingredients.
	You did not flip or shake the ingredients halfway.	Ingredients that lie across each other needs to be shaken or turned halfway through.
White smoke comes out of the appliance	You are preparing greasy ingredients.	With greasy food, oil can leak into the pan. Oil makes the white smoke, but it will not affect the appliance or the end result.
	The pan still has greasy residue from previous use.	Make sure you clean the pan and basket thoroughly after each use.

EN

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

220-240V \~ 50/60Hz 1500W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

EN

NO

NO

INNHOLD

20 VIKTIGE SIKKERHETSINSTRUKSJONER

22 FORHOLDSREGLER VED BRUK AV AIRFRYER

23 PRODUKTOVERSIKT

24 F∅R F∅RSTE GANGS BRUK

24 MONTERING

25 BRUK

28 RENGJ∅RING

28 TIPS OG TRIKS

29 FEILS∅KING

30 GARANTI

31 PRODUKTSPESIFIKASJONER

31 SUPPORT OG RESERVEDELER

31 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

Line drawing of a portable air fryer on a table, labeled Fig. 1 (no text or symbols on the device itself)

Diagram showing a cup being folded into another cup, with no text or symbols present.

Fig. 2

Line drawing of a portable coffee maker with lid and side panel (no text or symbols)

Line drawing of a cylindrical container with handle and side panel, no text or symbols present

Fig. 3

Diagram showing a control panel with icons for battery, battery pack, battery tray, and various function buttons below.

FORHÅNDSINNSTILTEPROGRAMMER, OPPVARMINGSTEMPERATUR OG TID

Programmer Temperatur (°C) Tid (min)

Forhånds-	innstilling	Justerings-område	Forhånds-innstilling	Justerings-område
Tine 80 35–90 6 1–90
Pommes frites	180 80–200 15 1–90
Kyllingvinger 180 80–200 15 1–90
Biff 200 80–200 9 1–90
Reker 180 80–200 10 1–90
Fisk 180 80–200 13 1–90
Kake 170 80–200 9 1–90
Tørking	70 35–90 4 t	1–24 t

RENGJ∅RING

Line drawing of a portable air fryer on a table, labeled 'Bild 1' (no other text or symbols)

Line drawing of a cup being folded into a larger cup (no text or symbols)

Bild 2

Line drawing of a portable coffee maker with lid and side panel (no text or symbols)

Line drawing of a cylindrical container with handle and side panel, no text or symbols present

Bild 3

Diagram showing a control panel with icons for battery, battery pack, battery, fish, water drop, and various function buttons below.

STANDARDMENYN STÄLLER IN UPPVÄRMNINGSTEMPERATUR OCH -TID

Program Temperatur (°C) Tid (min.)
Förinställning Justerings-område		Förinställning Justerings-område
Avfrostning 80 35–90 6 1–90
Pommes frites	180 80–200 15 1–90
Kyckling-vingar	180 80–200 15 1–90
Biff 200 80–200 9 1–90
Räkor 180 80–200 10 1–90
Fisk 180 80–200 13 1–90
Kakor 170 80–200 9 1–90
Torkning 70 35–90 4 h	1–24 h

RENGÖRING

Line drawing of a portable air fryer on a wooden table, labeled Fig. 1 (no text or symbols on the diagram itself)

Line drawing of a cup being folded into another cup (no text or symbols)

Fig. 2

Line drawing of a portable coffee maker with lid and side panel (no text or symbols)

Line drawing of a cylindrical container with handle and side arm, no text or symbols present

Fig. 3

Diagram showing a control panel with icons for basic functions like battery, switch, gear, fish, and directional buttons below.

STANDARDMENUEN FORUDINDSTILLER OPVARMNINGSTEMPERATUR OG -TID

Programmer Temperatur (°C) Tid (min.)
Forud-	indstilling	Justerings-område	Forud-indstilling	Justerings-område
Optøning 80 35-90 6 1-90
Pommes frites 180 80-200 15 1-90
Kyllingevinger 180 80-200 15 1-90
Steak 200 80-200 9 1-90
Rejer 180 80-200 10 1-90
Fisk 180 80-200 13 1-90
Kage 170 80-200 9 1-90
Dehydrering 70 35-90 4 time		1-24 timer

RENG∅RING

Line drawing of a simple object resembling a kettle or container placed on a wooden table, labeled 'Kuva 1' below (no other text or symbols)

Line drawing of a cup with handle and lid, showing a drop in the cup's side (no text or symbols)

Kuva 2

Line drawing of a portable coffee maker with lid and side panel (no text or symbols)

Line drawing of a cylindrical container with handle and side panel, no text or symbols present

Kuva 3

Diagram showing a control panel with icons for basic functions like battery, switch, gear, fish, swirl, and directional buttons below.

Fl

OLETUSVALIKOSSA NÄKYY ESIASETETTU LÄMMITYSLÄMPÖTILA JA -AIKA

Ohjelmat Lämpötila (°C) Aika (min.)
Esiasetus Säätöalue Esiasetus Säätöalue
Sulatus 80 35–90 6 1–90
Ranskalaiset 180 80–200 15 1–90
Kanansiivet 180 80–200 15 1–90
Pihvi 200 80–200 9 1–90
Katkaravut 180 80–200 10 1–90
Kala 180 80–200 13 1–90
Kakku	170 80–200 9 1–90
Kuivaus	70 35–90 4 h	1–24 h

FI

PUHDISTUS

Line drawing of a simple portable device on a wooden table, labeled Abb. 1 (no text or symbols on the device itself)

Diagram of a cup being folded into another cup, showing the lid and handle (no text or symbols)

Abb. 2

Line drawing of a portable coffee maker with lid and side panel (no text or symbols)

Line drawing of a cylindrical container with handle and side panel, no text or symbols present

Abb. 3

Diagram showing a control panel with icons for basic functions like battery, water drop, and battery plug.

DE

Line drawing of a portable air fryer on a wooden table, labeled Fig. 1 (no text or symbols on the diagram itself)

Diagram showing a container being folded into a larger container, with no text or symbols present.

Fig. 2

Line drawing of a portable coffee maker with lid and side panel (no text or symbols)

Line drawing of a cylindrical container with handle and side panel, no text or symbols present

Fig. 3

Diagram showing a control panel with icons for basic functions like battery, switch, and display controls.

NL

IN HET STANDAARDMENU WORDEN DE
VERWARMINGSTEMPERATUUR EN -TIJD VOORAF INGESTELD

Line drawing of a simple portable device on a wooden table, labeled 'Rys. 1' (no other text or symbols)

Line drawing of a cup being placed on top and bottom (no text or symbols)

Rys. 2

Line drawing of a portable toaster with lid and front panel (no text or symbols)

Line drawing of a cylindrical container with handle and side arm, no text or symbols present

Rys. 3

Diagram showing a control panel with icons for battery, battery pack, fuel, air, fish, water, and power symbols below.

PL

USTAWIENIA DOMYŚLNE PROGRAMÓW

Line drawing of a portable air fryer on a table, labeled Fig. 1 (no text or symbols on the diagram itself)

Diagram showing a cup being placed on top of a smaller cup, with an arrow indicating the process (no text or symbols present)

Fig. 2

Line drawing of a portable coffee maker with lid and side arm (no text or symbols)

Line drawing of a cylindrical container with handle and side panel, no text or symbols present

Fig. 3

Diagram showing various icons and symbols including a rectangle, leaf, fish, airplane, and control buttons with minus, plus, percentage, menu, and play symbols.

FR

LE MENU PAR DÉFAUT PERMET DE PRÉRÉGLER LA TEMPÉRATURE ET LA DURÉE DE CUISSON

CARACTÉRISTIQUES DU PRODUIT

220-240 V\~ 50/60 Hz, 1 500 W

ASSISTANCE ET PIÈCES DÉTACHÉES

FSC www.fsc.org 100% From well- managed forests FSC® C000000

AF1B-350_20_02
