H7 Elite - Desktop Computer NZXT - Free user manual and instructions

Product Type	Mid Tower PC Case
Dimensions (W x H x D)	230 mm x 480 mm x 505 mm
Weight	Approximately 12 kg
Materials	Steel, tempered glass
Color	Black / White (depending on version)
Supported Motherboard Form Factors	EATX, ATX, MicroATX, Mini-ITX
Storage Bays	2 x 3.5" HDD, 4+2 x 2.5" SSD (including 2 SSD trays)
Expansion Slots	7
CPU Clearance	185 mm
GPU Clearance	400 mm
Front Radiator Support	Up to 360 mm (max thickness 60 mm)
Top Radiator Support	Up to 360 mm (max thickness 30 mm)
Included Fans	3 x F140 RGB in front, 1 x F140 in rear
RGB/Fan Controller	Integrated, 3 PWM fan channels, 6 NZXT RGB channels
Front Panel Connectors	1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1 Type-A, headphone jack, power button, power LED
Dust Filters	Front (behind panel), power supply, top
Side Panel	Tempered glass (left and right side)
Cable Management	18-22 mm space, cable ties included

Frequently Asked Questions - H7 Elite NZXT

How to install the motherboard in the NZXT H7 Elite?

Place the motherboard on the pre-installed standoffs (use additional standoffs if needed). Secure it with the included 6-32 hex screws. Ensure the I/O panel aligns with the cutout.

How to clean the dust filters of the case?

Remove the front filters (under the magnetic front panel) and the PSU filter. Wash them with lukewarm water and mild soap. Let them dry completely before reinstalling.

What type of power supply is compatible with the H7 Elite?

A standard ATX power supply (up to about 230 mm in length). The PSU mounts in the bottom compartment, fan facing down.

How to connect RGB fans to the controller?

Plug the fans into the fan ports (1 to 3) of the controller. Connect the NZXT RGB cables to the RGB ports (1 to 6). Connect the controller to the motherboard via USB and to the PSU via SATA.

Can I install a 360 mm radiator at the top?

Yes, the top supports radiators up to 360 mm with a maximum thickness of 30 mm. Check that RAM does not interfere.

How to remove the tempered glass panel?

Unscrew the two thumb screws at the rear of the panel. Gently pull the panel backward to detach it. Caution: the glass is heavy and fragile.

What to do if the RGB controller is not working?

Check that the SATA cable is connected to the PSU and the USB cable is connected to a USB 2.0 header on the motherboard. Ensure fans are properly plugged into the corresponding ports.

How many 3.5-inch hard drives can I install?

The case can accommodate up to 2 3.5-inch hard drives in the removable metal tray. Use the provided screws (KB5).

Is the case compatible with long graphics cards?

Yes, GPU clearance is 400 mm. You can install most high-end graphics cards, including triple-fan models.

How to contact NZXT support?

Send an email to [e-mail] with a detailed description and proof of purchase. You can also order spare parts at support.nzxt.com.

USER MANUAL H7 Elite NZXT

Line drawing of a desktop computer tower case with 'NZXT' branding on the front panel (no other text or symbols)

TABLE DES MATIERES

VERSION 1.1

1. INFORMATIONS SUR LE PRODUIT...02
2. COMPOSANTS ET PORTS ..06/07
3. ANNEXE A-1

1. INFORMATIONS SUR LE PRODUIT

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

1.1 Boite D'accessoires....03

B. Vis 6-32 x 5mm x21

Exploded view diagram of a computer system with numbered components for identification

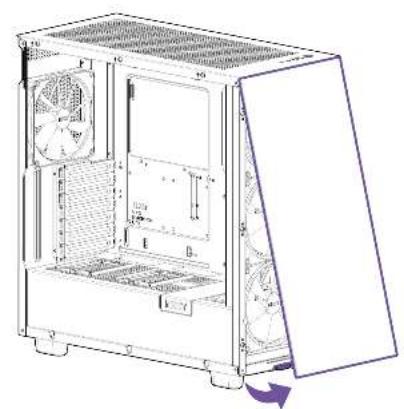

NO. PART NAME

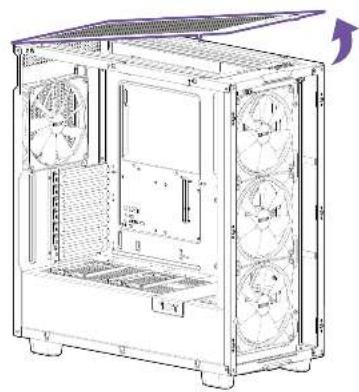

1 Panneau supérieur

2 Filtre supérieur

Exploded view diagram of a computer system with numbered components for identification

NO. PART NAME

Technical line drawing of a server rack unit with ventilation grilles and cooling fins (no text or symbols)

Technical line drawing of a computer tower case with fan and ventilation duct (no text or symbols)

Technical line drawing of a computer tower case with fan and ventilation ducts (no text or symbols)

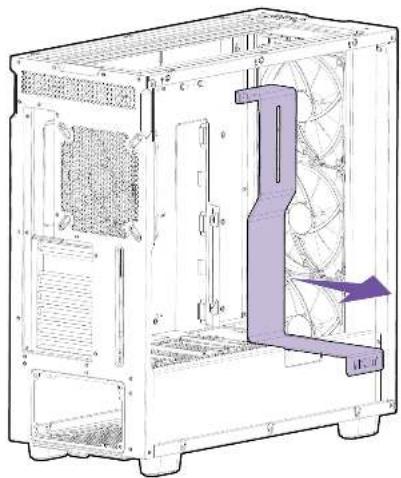

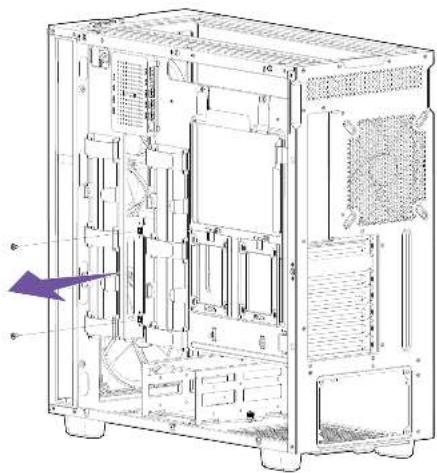

2.5 BARRE DE CÂBLAGE

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

Technical diagram of a computer tower case with internal components and labeled parts (no readable text or symbols)

Technical line drawing of a computer tower case with visible internal components and ventilation duct (no text or symbols)

2.6 SYSTÈME DE CÂBLAGE

H7 ELITE BOÎTIER TOUR MOYENNE HAUT DE GAMME

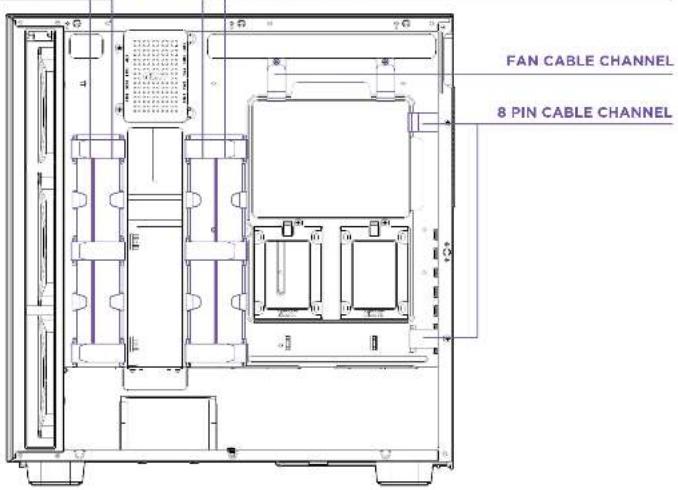

FRONT I/O CABLE AND FAN CABLE CHANNEL 24 PIN CABLE AND SATA CABLE CHANNEL

FAN CABLE CHANNEL 8 PIN CABLE CHANNEL

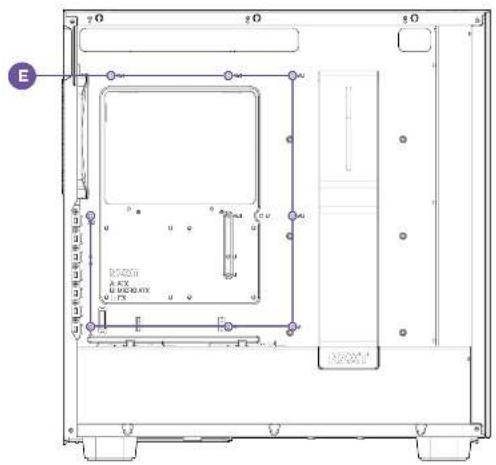

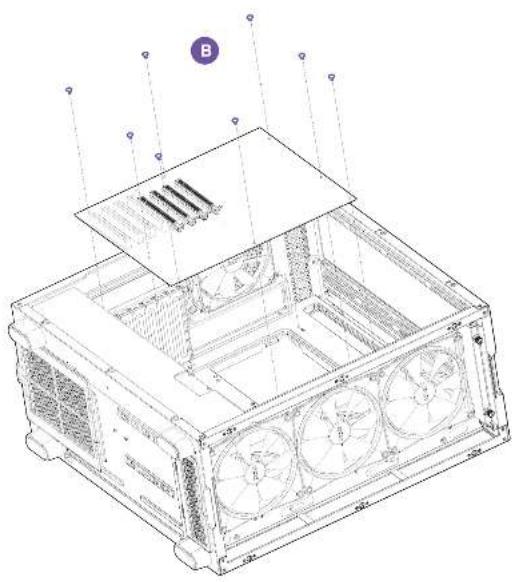

2.7 INSTALLATION DE LA CARTE MÈRE

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

Technical line drawing of a computer case with ventilation fans and ventilation ducts (no text or symbols)

E B5000 A: 472 B: 10000.40X C: 472 D: 472 E: 472

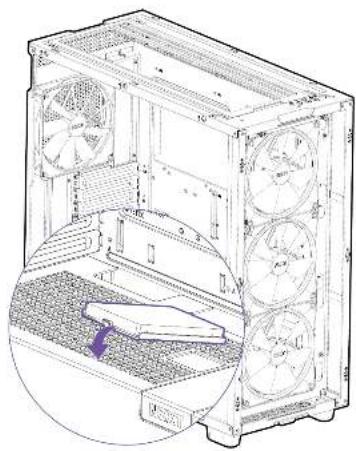

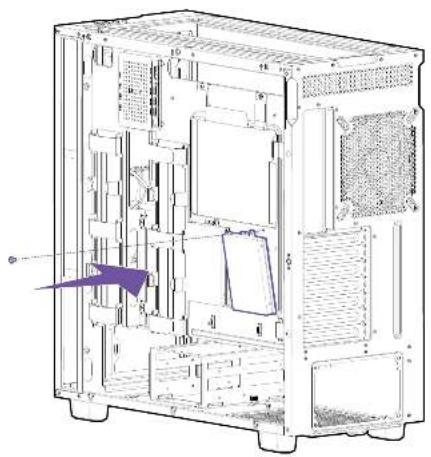

2.8 INSTALLATION DU DISQUE SSD

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

Technical diagram of a mechanical assembly with labeled components H and C (no text or symbols beyond labels)

Technical diagram of a computer tower case with internal compartments and ventilation grilles (no text or labels)

Technical line drawing of a multi-chamber HVAC unit with fan blades and ventilation grilles (no text or labels)

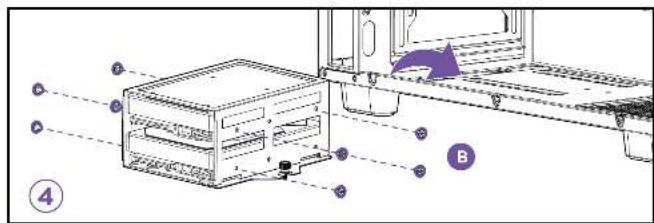

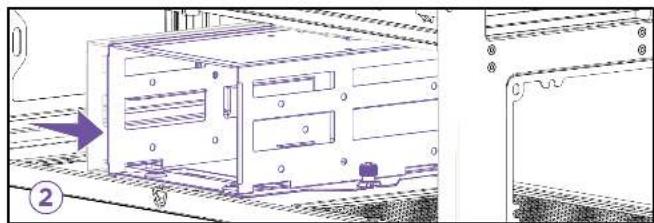

2.9 INSTALLATION DE LECTEUR HDD

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

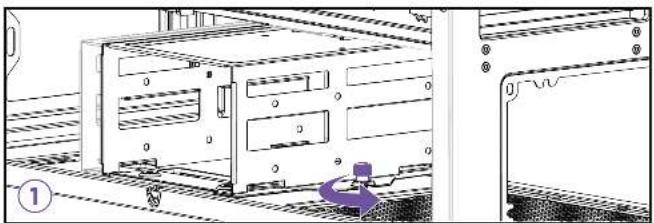

Technical line drawing of a mechanical assembly with no visible text or symbols

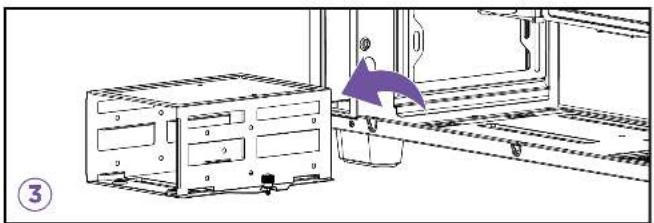

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a device with a purple arrow pointing to a component, no text or symbols present

Technical diagram of a mechanical assembly with labeled components and numbered parts

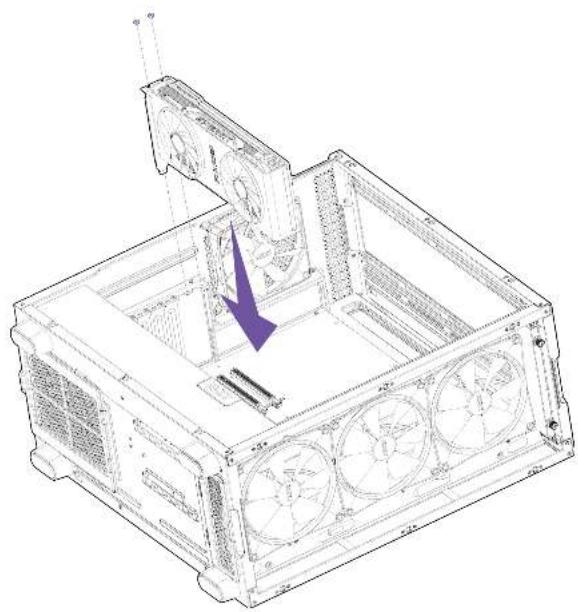

2.10 INSTALLATION DE LA CARTE D'EXTENSION

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

Technical line drawing of a mechanical housing with three fans and a purple arrow indicating a component (no text or symbols present)

2.11 INSTALLATION DE L'ALIMENTATION

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

IMPORTANT

• Install the PSU with the fan facing down.

Technical diagram of a desktop computer tower with labeled internal components and a purple arrow indicating a specific area.

2.12 PRISE EN CHARGE DES RADIATEURS ET VENTILATEURS

H7 ELITE BOÎTIER TOUR MOYENNE HAUT DE GAMME

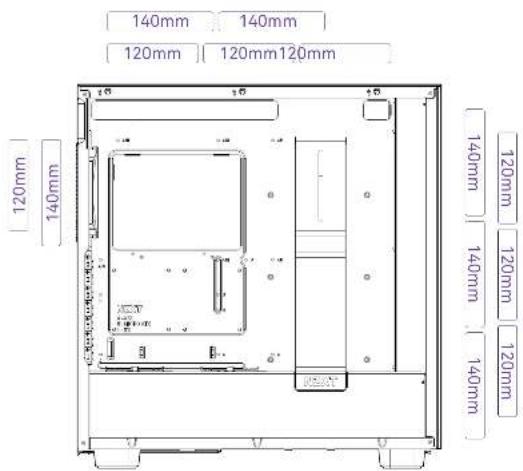

Ventilateur

Haut: 3 X 120mm / 2 X 140mm

Avant: 3 X 120mm / 3 X 140mm

Arrière: 1 X 120mm / 1 X 140mm

140mm 140mm 120mm 120mm120mm 120mm 120mm 140mm 140mm 120mm 120mm 140mm 140mm 140mm

2.12 PRISE EN CHARGE DES RADIATEURS ET VENTILATEURS

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

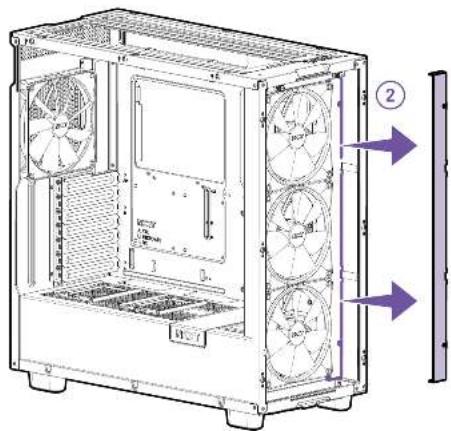

Radiateur

Haut: jusqu'à 360mm

Technical diagram of a computer chassis with an arrow indicating a component (no text or symbols present)

Technical diagram of a computer tower case with fan layout and labeled components, showing internal fan arrangement and directional arrows.

REMARQUE

- Step 1 and 2 apply to white version only.

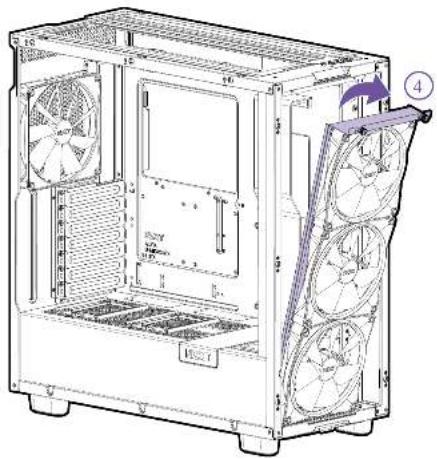

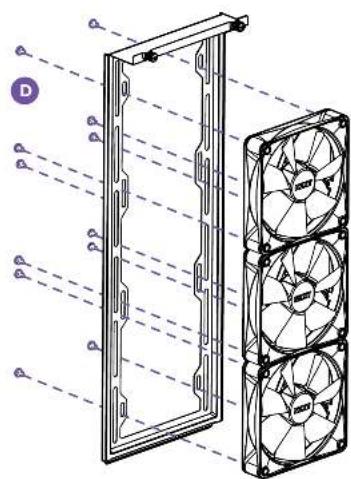

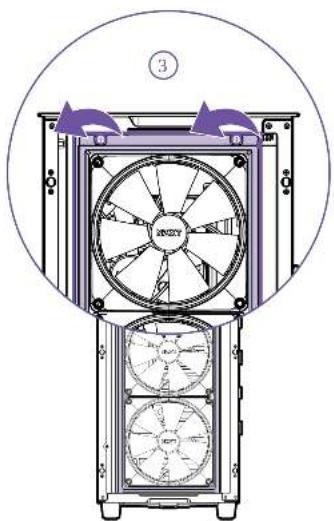

2.13 INSTALLATION DES RADIATEURS ET VENTILATEURS

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

Technical diagram of a fan assembly with labeled components (no text or symbols present)

Technical line drawing of a computer tower case with fan and ventilation ducts (no text or symbols)

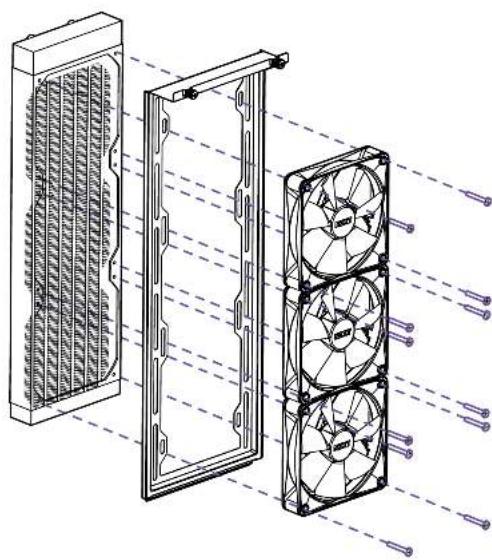

2.13 INSTALLATION DES RADIATEURS ET VENTILATEURS

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

Technical line drawing of a multi-panel HVAC unit with fan arrangement and ventilation duct (no text or symbols)

The screws shown will be provided within liquid cooler packaging.

Technical diagram showing assembly of a multi-panel fan with labeled components and dashed alignment lines

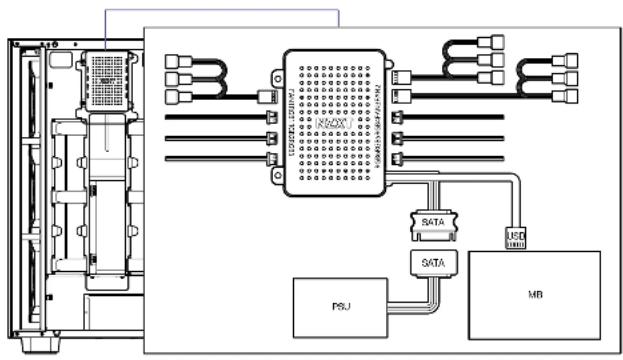

2.14 CONTRÔLEUR DE VENTILATEUR ET ÉCLAIRAGE RGB

H7 ELITE

BOÎTIER TOUR MOYENNE HAUT DE GAMME

PORTS & CONNECTORS

3.1 NZXT Global Warranty Policy....A-2 3.3 Regulations ....A-11

3.2 Support and Service....A-8 3.4 Revision History ....A-12

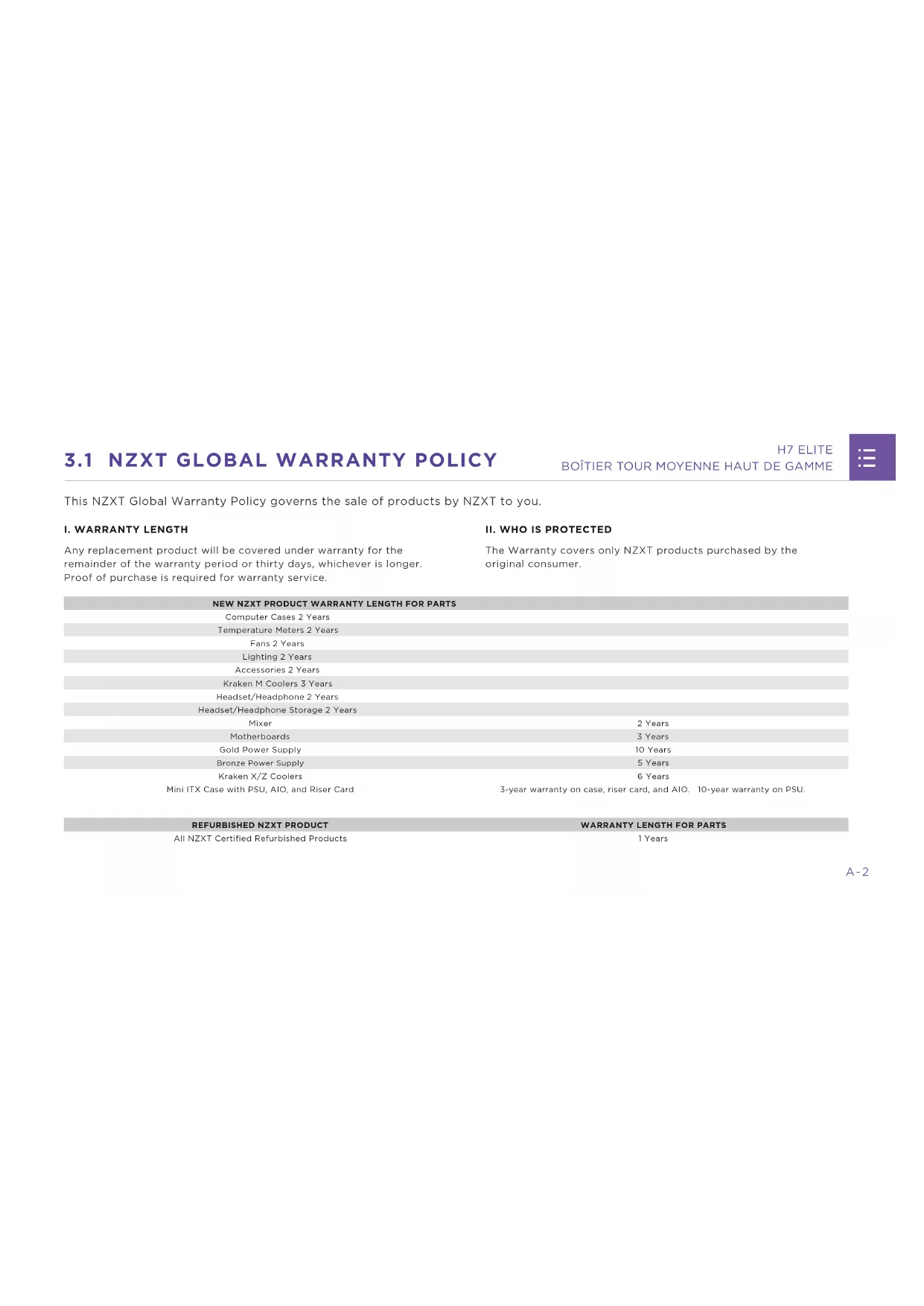

3.1 NZXT GLOBAL WARRANTY POLICY
