Product type	Mid-tower case
Brand	NZXT
Model	H7 Flow
Supported motherboard form factor	EATX, ATX, MicroATX, Mini-ITX
2.5" SSD slots	4+2 (6)
3.5" HDD slots	2
Expansion slots	7
Cable management	18-22 mm
Maximum CPU cooler height	185 mm
Maximum GPU length	400 mm
Front radiator clearance	60 mm
Top radiator clearance	30 mm
Included fans	2x 140mm fans (front) and 1x 140mm fan (rear)
Left side panel	Tempered glass
Dust filters	Front, top, PSU
Front ports	1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen1 Type-A, headphone jack
Power supply	Not included, standard ATX form factor
Front radiator compatibility	Up to 360 mm
Top radiator compatibility	Up to 360 mm
Rear radiator compatibility	Up to 140 mm
Dimensions (W x H x D)	230 x 450 x 480 mm
Weight	Approximately 9 kg
Color	Black
Box contents	Screws, standoffs, cable ties, SSD tray, key

Frequently Asked Questions - H7 Flow NZXT

How to install the motherboard?

Place the motherboard on the provided standoffs (key included) and secure it with 6-32 x 5mm screws (ref. B) or M3 x 5mm depending on the holes. Refer to section 2.7 of the manual.

What is the maximum GPU length?

The GPU clearance is 400 mm, allowing installation of most high-end graphics cards.

How to clean the dust filters?

The front, top, and PSU dust filters are removable. Remove them and wash with warm soapy water. Let dry before reinstalling. A sweep bar is also provided for cleaning.

What types of radiators are compatible?

The case supports radiators up to 360 mm at the front and top, and up to 140 mm at the rear. Maximum thickness is 60 mm at the front and 30 mm at the top.

How to replace the glass panel?

The left tempered glass panel is removed by gently pulling on the latches. To reinstall, align the hinges and push until it clicks. Handle with care.

Can I install an additional 2.5" SSD?

Yes, the case has 4 fixed 2.5" SSD slots and 2 additional on a tray. Use M3 x 5mm screws (ref. C) to secure them on the provided trays.

Which fans are pre-installed?

The H7 Flow case comes with 2x 140 mm fans at the front for intake and 1x 140 mm fan at the rear for exhaust, optimized for airflow.

How to manage cables?

The case offers a cable management space of 18 to 22 mm. Use the provided cable ties (ref. G) to secure cables along the dedicated cable management bar.

Is the case compatible with a standard power supply?

Yes, the power supply is not included but the case accepts a standard ATX power supply. Secure it with 6-32 x 6 mm hex screws (ref. A) on the dedicated bracket.

Where can I get spare parts?

You can order spare parts at support.nzxt.com. For any questions, contact [e-mail] with your proof of purchase.

USER MANUAL H7 Flow NZXT

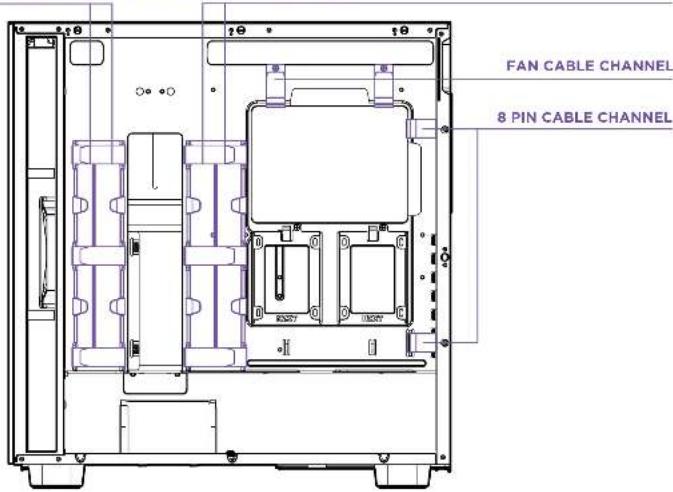

FRONT I/O CABLE AND FAN CABLE CHANNEL 24 PIN CABLE AND SATA CABLE CHANNEL

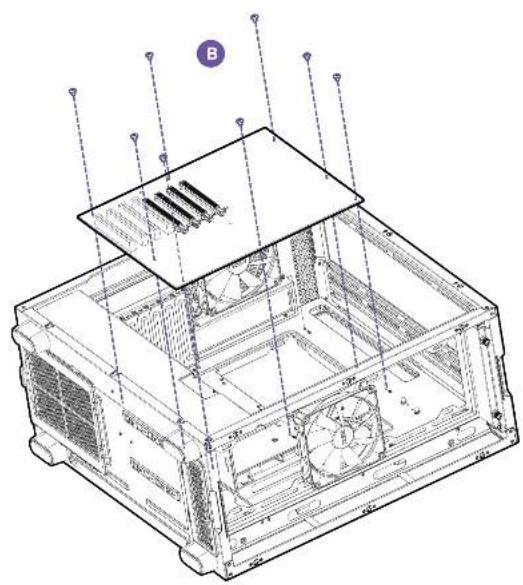

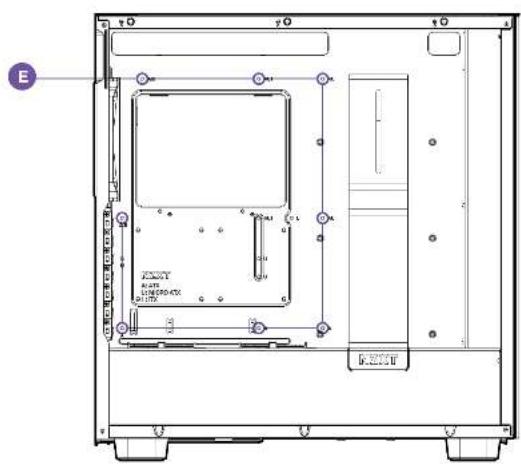

2.7 INSTALLATION DE LA CARTE MÈRE

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

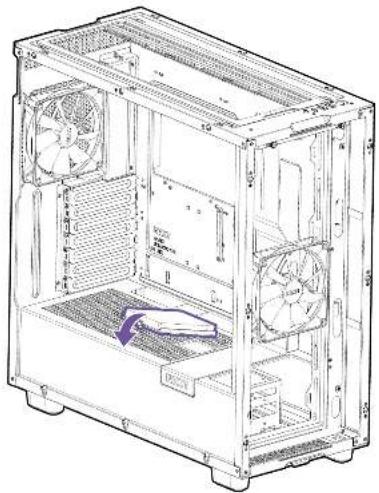

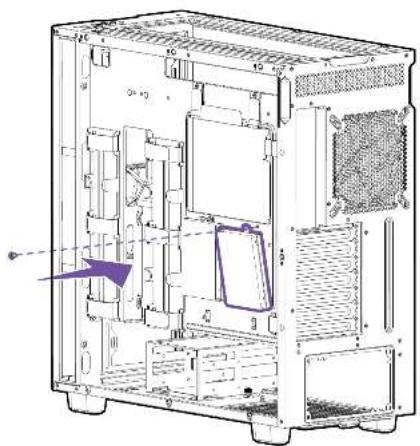

2.8 INSTALLATION DU DISQUE SSD

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

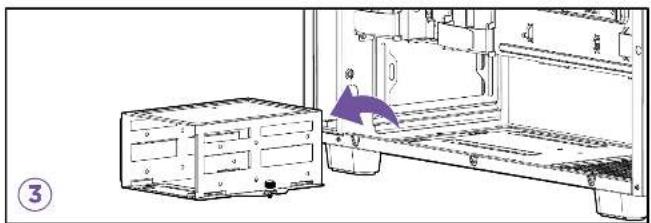

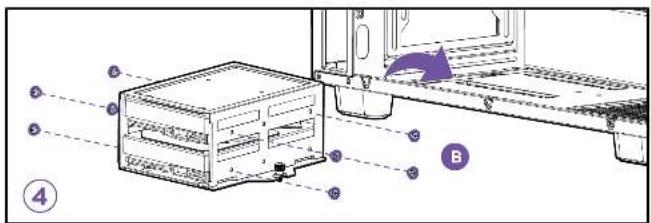

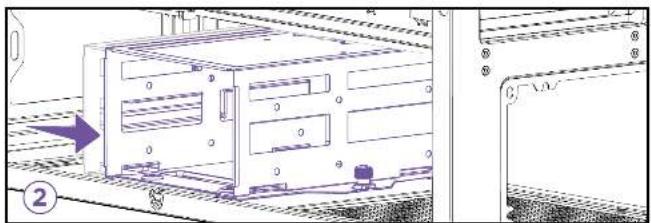

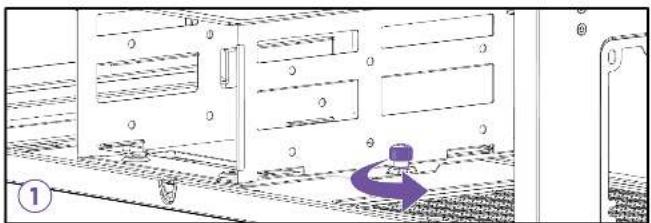

2.9 INSTALLATION DE LECTEUR HDD

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

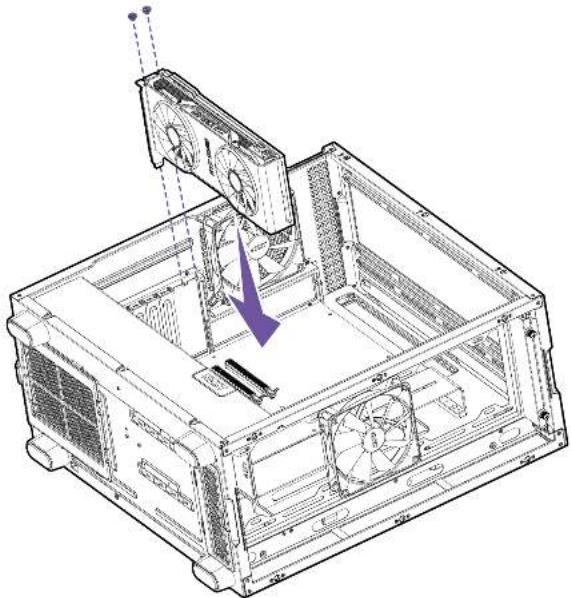

2.10 INSTALLATION DE LA CARTE D'EXTENSION

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

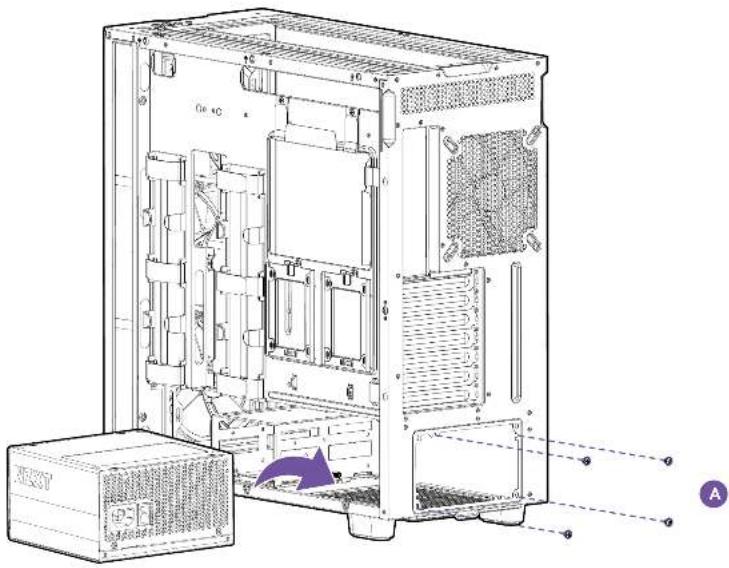

2.11 INSTALLATION DE L'ALIMENTATION

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

IMPORTANT

Install the PSU with the fan facing down.

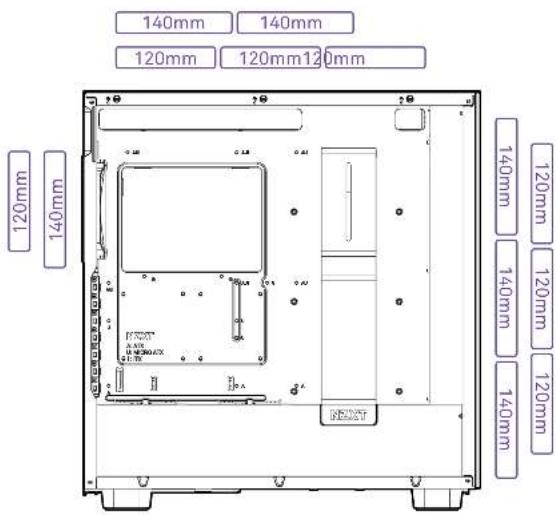

2.12 PRISE EN CHARGE DES RADIATEURS ET VENTILATEURS

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

Ventilatour

Haut: 3 X 120mm / 2 X 140mm

Avant: 3 × 120 ~mm / 3 × 140 ~mm

Arriere: 1 X 120mm / 1 X 140mm

2.12 PRISE EN CHARGE DES RADIATEURS ET VENTILATEURS

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

Radiateur

3.1 NZXT Global Warranty Policy A-2 3.3

Regulations A-11

3.2 Support and Service A-8 3.4

Revision History A-12

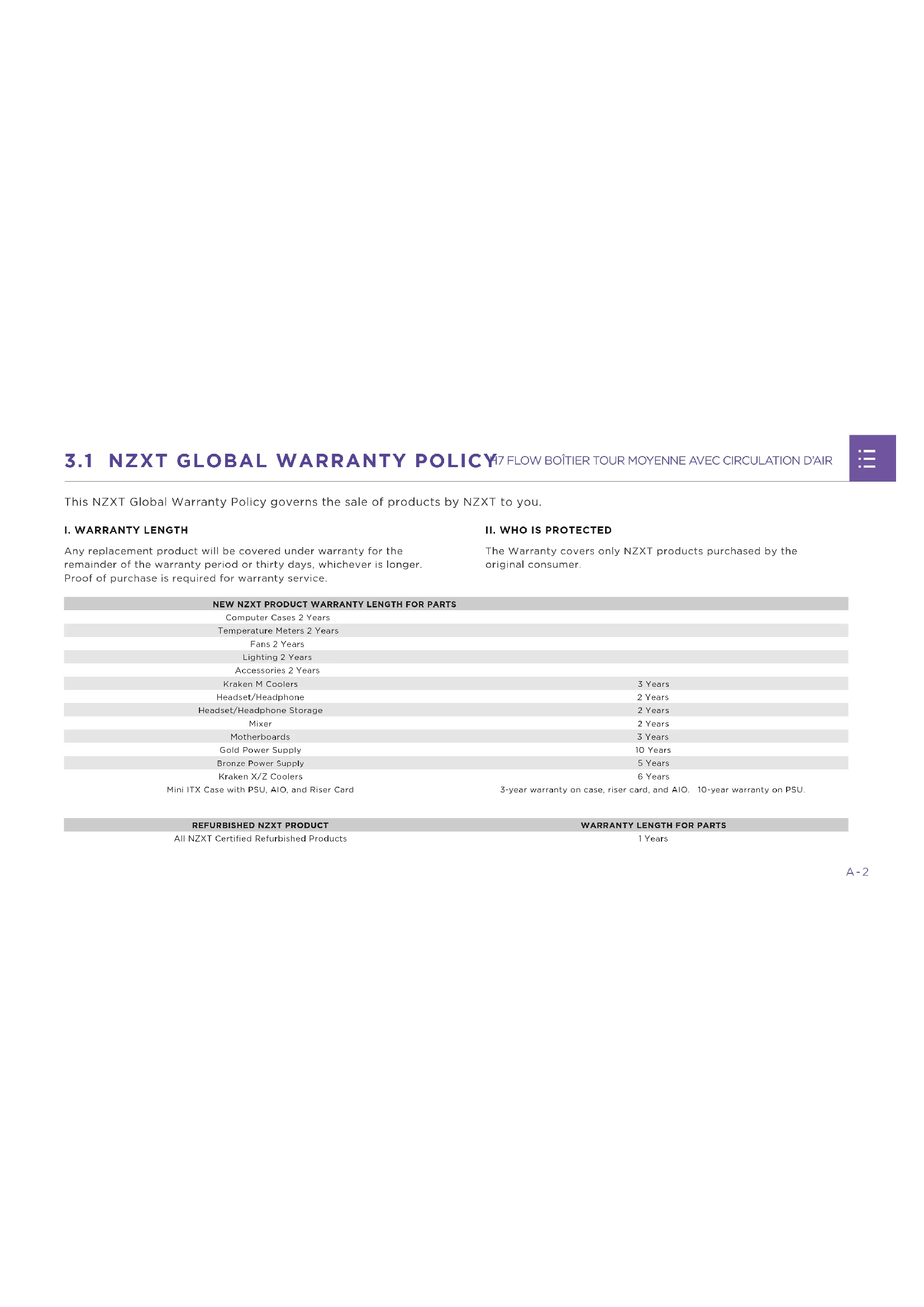

3.1 NZXT GLOBAL WARRANTY POLICY7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

This NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.

II. WHO IS PROTECTED

The Warranty covers only NZXT products purchased by the original consumer.

NEW NZXT PRODUCT WARRANTY LENGTH FOR PARTS

Computer Cases 2 Years
Temperature Meters 2 Years
Fans 2 Years
Lighting 2 Years
Accessories 2 Years
Kraken M Coolers	3 Years
Headset/Headphone	2 Years
Headset/Headphone Storage	2 Years
Mixer	2 Years
Motherboards	3 Years
Gold Power Supply	10 Years
Bronze Power Supply	5 Years
Kraken X/Z Coolers	6 Years
Mini iTX Case with PSU, AIO, and Riser Card	3-year warranty on case, riser card, and AIO. 10-year warranty on PSU.

REFURBISHED NZXT PRODUCT

All NZXT Certified Refurbished Products

WARRANTY LENGTH FOR PARTS

1 Years

3.1 NZXT GLOBAL WARRANTY POLICY

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

III. WHAT IS AND IS NOT COVERED

Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

Our warranty does not cover the following:

• any product or serial number/warranty sticker modification applied without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
• improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the carrier);
  normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)

NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

3.1 NZXT GLOBAL WARRANTY POLICY

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

V. LIMITATIONS OF IMPLIED WARRANTY

Here are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph 1.

VI. TO OBTAIN TECHNICAL SUPPORT

If you have already referenced your product owner's manual and still need help, you may contact us by phone at [phone], by email at [e-mail], or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT

To receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.

Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

3.1 NZXT GLOBAL WARRANTY POLICY

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS

This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary.

For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

In the United Kingdom:

• For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:

  Up to 30 days: if your goods are faulty, then you can get an immediate refund.
  Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
  Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.

• If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.
• The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

3.1 NZXT GLOBAL WARRANTY POLICY

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

IX. WARRANTY SERVICE FROM RESELLERS

In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:

Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:

Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:

Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:

If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

3.1 NZXT GLOBAL WARRANTY POLICY

H7 FLOW BOITIER TOUR MOYENNE AVEC CIRCULATION D'AIR

X.NZXT.COM STORE RETURNS/EXCHANGE POLICY

Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA

NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany

[phone] / [e-mail] / NZXT.com

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. support.nzxt.com

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, [e-mail]. Lastly we would like to thank you for your support by purchasing this product.

For more information about NZXT, please visit us online. NZXT Website: NZXT.com

SOPORTE Y SERVICIO

This personal computer case with the smart device is tested to comply with FCC standard, Australian standard and EU EMC Directive (2014/30/EU)

CANICES-003(B)/NMB-003(B)

This Class B personal computer case with smart device complies with Canadian ICES-003
