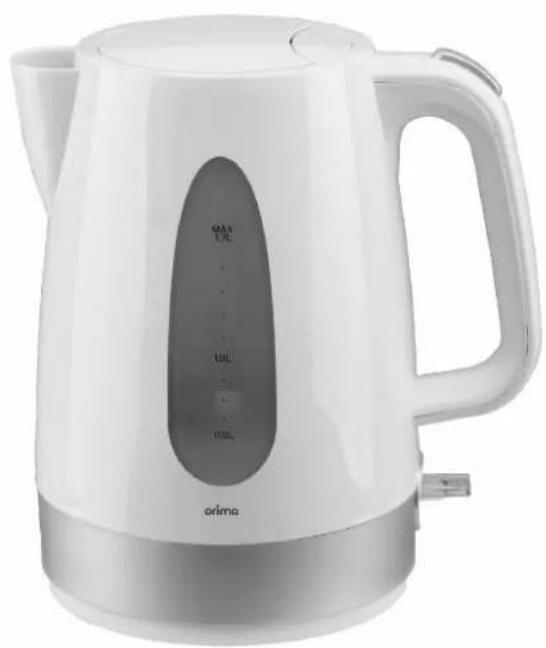

ORWK215 - Kettle Orima - Free user manual and instructions

Product Type	Electric Kettle
Brand	Orima
Model	ORWK215
Capacity	1.7 L (min 0.75 L)
Dimensions (approx.)	22 x 22 x 25 cm
Weight (approx.)	1.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power	2200 W
Color	White / Stainless Steel (depending on version)
Body Material	Plastic or stainless steel
Main Functions	Automatic shut-off at boiling, overheat protection, 360° swivel base
Indicator Light	Yes, during operation
Lid Opening	By push-button
Anti-scale Filter	Yes, removable
Water Level Indicator	Yes, graduated
Care and Cleaning	Clean the filter with warm water; descale with lemon juice
Safety	Do not immerse the base; avoid contact with water; hot surface
Spare Parts	Anti-scale filter (reference according to retailer)
Repairability	Power cord replaceable by a professional
General Information	Household use only; do not operate empty

Frequently Asked Questions - ORWK215 Orima

What is the maximum capacity of the Orima ORWK215 kettle?

The maximum capacity is 1.7 liters. The minimum water level is 0.75 liters for proper operation.

How to open the kettle lid?

Press the opening button on the handle to release the lid. Do not force it open when there is steam.

Does the kettle turn off automatically?

Yes, the kettle turns off automatically as soon as the water reaches boiling. You can also turn it off manually with the switch.

What to do if the kettle heats empty?

The kettle has overheat protection. If it is turned on without water, it will shut off automatically. Let it cool for 15 minutes before filling with cold water; the system will reset.

How to descale the kettle?

Fill the kettle halfway with tap water and add lemon juice. Boil the mixture three times, letting it sit for 15 minutes between each boil. Rinse thoroughly.

How to clean the anti-scale filter?

Remove the filter from the spout, wash it with warm water, remove impurities, then put it back. Do not use abrasive products.

Can the lid be opened during boiling?

No, never open the lid while steam is escaping. Wait until the kettle is turned off and cooled.

What is the power of the ORWK215 kettle?

The power is approximately 2200 watts, allowing fast water heating.

Can the kettle be used by children?

Yes, from 8 years old under adult supervision. Children must not play with the appliance or clean it without supervision.

Where can I find the complete user manual?

The manual is available for free download in PDF format on the website notice-facile.com for model ORWK215.

USER MANUAL ORWK215 Orima

facebook.com/orima.pt

MMA

JARRO ELETRICO

Water Kettle | Jarra Électrica | Bouilloire

ORWK-215

SERVICO DE APOIO AO CLIENTE

Apoio ao CLIENTE:

Tel.: [phone] E: [e-mail]

Servico Pós Venda:

Tel.: [phone] E: assistenciaorima.pt

Obrigo por ter adquirido este produits ORIMA. Por favor leia atentamente estemanualantesdeveniracusraoaparelho.
UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.
FR Merci d'avoir acheté ce produit ORIMA. Veuillez dire attentivement ce manuel avant d'utiliser l'appareil.
ES Gracias por haber adquirido este produits ORIMA. Por favor lea atentamente este manual antes de empezar a usar el aparato.

220-240V 50/60Hz 1850-2200W

• Please read these instructions carefully before using the jug kettle for the first time.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning

use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• This appliance is intended to be used in

household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• If the kettle is overfilled, boiling water may be ejected.

• Kettle is only to be used with the stand provided.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• farm houses.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• If the kettle is overfilled, boiling water may be ejected.

• The kettle is only to be used with the stand provided.

• Before you connect the kettle to the mains supply, make sure that the voltage indicated on the rating plate, located on the bottom of the jug kettle matches the mains voltage in your home. If it does not, contact your dealer and do not use the kettle.

• The kettle will switch off automatically when the water has boiled. You may switch the kettle off before the boiling process is complete by using the on/off switch.
• After the kettle has switched off automatically (or has been switched of manually) it may need time to cool down. After 15-20secs, the kettle can be switched on again.
• If the kettle ever boils dry, the kettle will switch off automatically and the power indicator will go out. Allow 15 minutes to cool before refilling with cold water. The safety cutout will automatically reset during this time.
• Place the kettle on a stable flat surface.
• Ensure that the kettle is switched off before removing it from its stand.
• Never immerse the kettle or cord in water or any other liquid. Do not allow liquid to penetrate the electrical parts of this kettle.
• Prevent children from pulling on the mains cord or knocking the kettle over.
• Ensure that the mains lead does not overhang the worktop surface.
• Before cleaning the kettle disconnect from the power supply and wait until it was cooled down.
• Only use the cord supplied with this kettle. If a replacement is required, only approved components may be used.
• The outside surface of the kettle may get hot during use, please take care when using the kettle.
• Never fill in water more than the maximum acceptable water level.
• Keep electrical appliance out of reach from Children or infirm persons. Do not let them use the appliance without supervision.

Before first use

Before first use, it is recommended to operate the kettle for 2 or 3 times following the instructions above, this will remove any dust or residues remaining from the

manufacturing process.

• Take up the jug kettle from the base before filling.
• To fill the jug kettle, open the cover by press the lid-lever downwards, then fill to the desired level (min 0.5L-Max.17L), close the lid by pressing it down until it clicks into place.
• Plug the power supply cord into the main, press the On/Off switch, the power indicator lights up.
• When the water has boiled the kettle will automatically switch itself off, you can stop the boiling process at any time by lifting the On/Off switch. The power indicator will go out.

Note: Do not open the lid when steam is coming out of the spout.

Cleaning

• First read the instructions in the section titled "Importance".
• Avoid using abrasive cleaning agents.
• Empty the kettle and allow to cool, open the lid, lift out the filter, rinse the filter under warm water and brush off any impurities.
• Refitting is the reverse of removal.

Dscaling

• Half fill the kettle with tap water and add the juice of 1 lemon to the water.
• Boil this mixture and allow it to stand for 15 minutes. Re-boil the mixture and allow it to stand a further 15 minutes. Re-boil this mixture a third time then rinse the kettle well.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

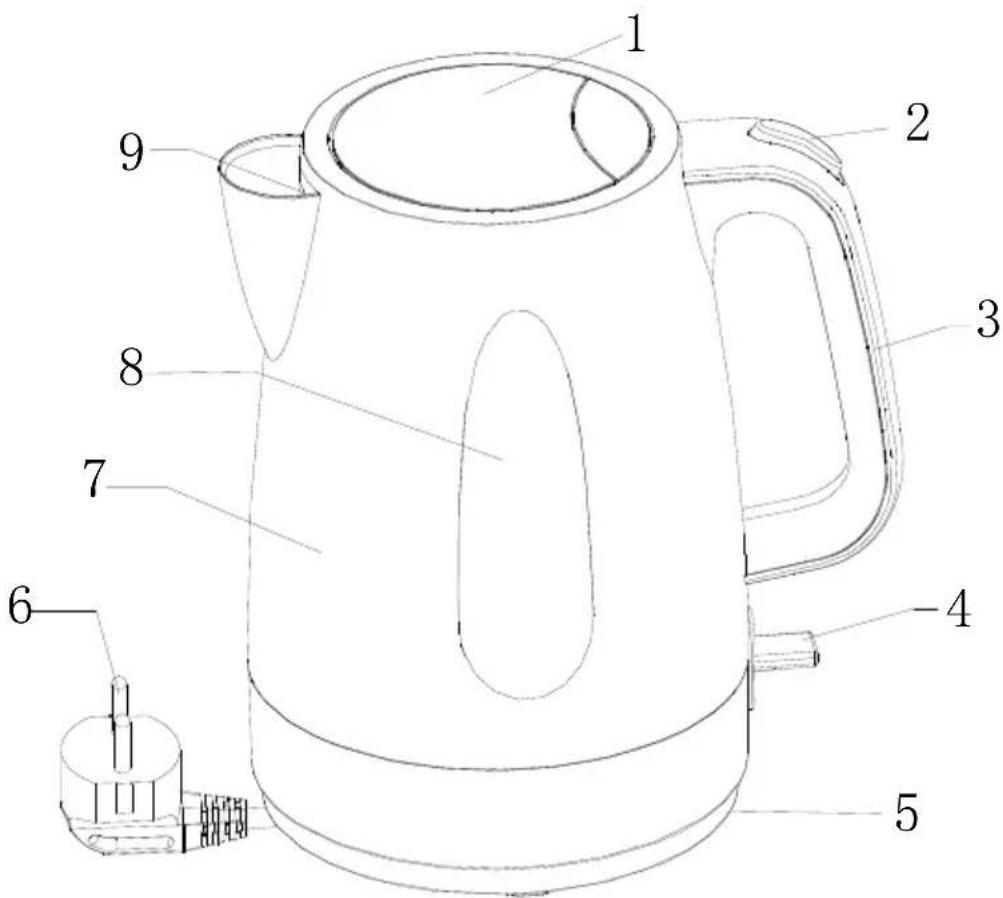

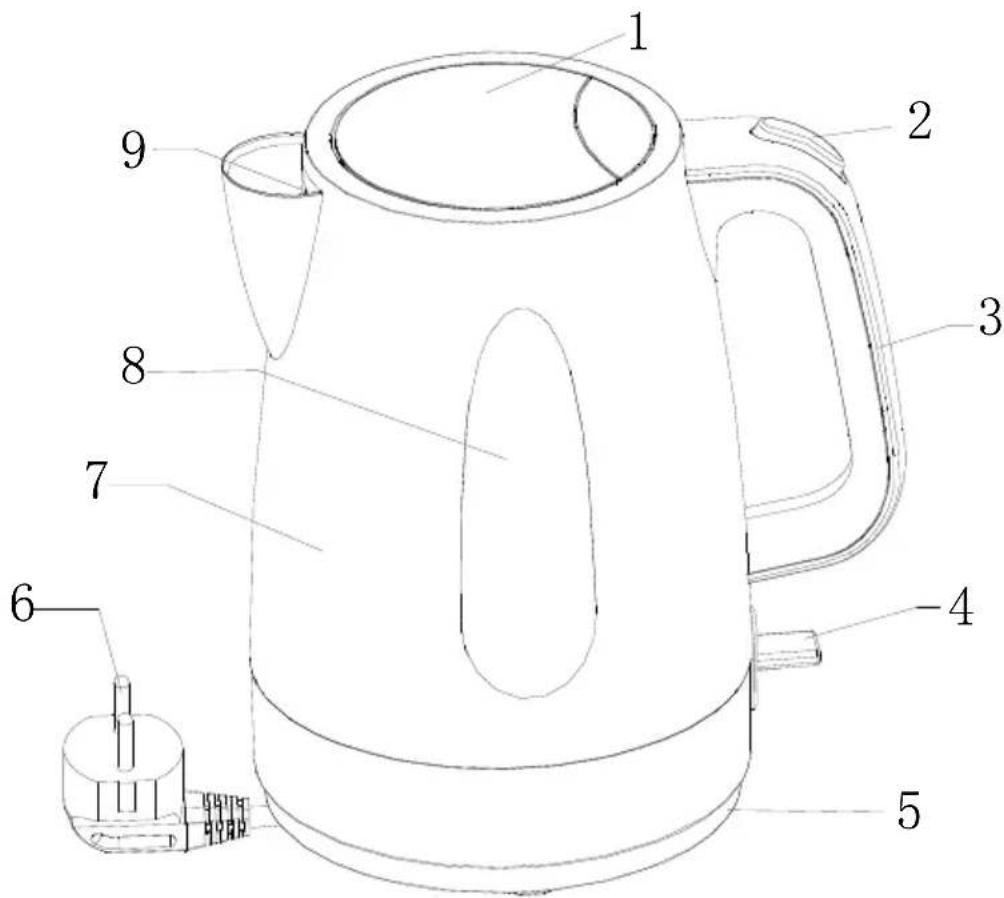

1. Tapa,2. BotondeaperturadelaTapa,3. Asa,4. Interruptor,5. Base,6. CabledeAlimentacion,7. CuerpodelaJarra,8. Ventananiveldeagua,9. Filtro
