USER MANUAL Marbella 30.3066.01 TFA

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

• Following and respecting the instructions in your manual will pre- vent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of non- following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.

• Please take particular note of the safety advice!

• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Wireless pool thermometer (base station)

3. Range of application and all the benefits of your new instrument

• Water temperature wireless (868 MHz), distance range of up to 100 m (open field)

• Pool sensor with 110 mm measuring depth

• Indoor temperature and humidity

• Indication of maximum and minimum values with manual or auto- reset

• Radio-controlled clock

• Expandable up to 2 temperature/humidity transmitters (item no. 30.3239.02) for the control of indoor (e.g. children’s room, wine- cellar) or outdoor climate (optionally available)

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions. TFA_No. 30.3066_Anleitung_02_21 27.02.2021 10:55 Uhr Seite 112322 MARBELLA – Wireless pool thermometer

• Unauthorized repairs, alterations or changes to the product are pro- hibited. Caution! Risk of injury:

• Keep these devices and the batteries out of reach of children.

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help imme- diately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.

• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries. Important information on product safety!

• Do not expose the devices to extreme temperatures, vibrations or shocks.

• Attention: Close the pool sensor carefully, so that no water can pene- trate the device.

• Protect the base station from moisture.

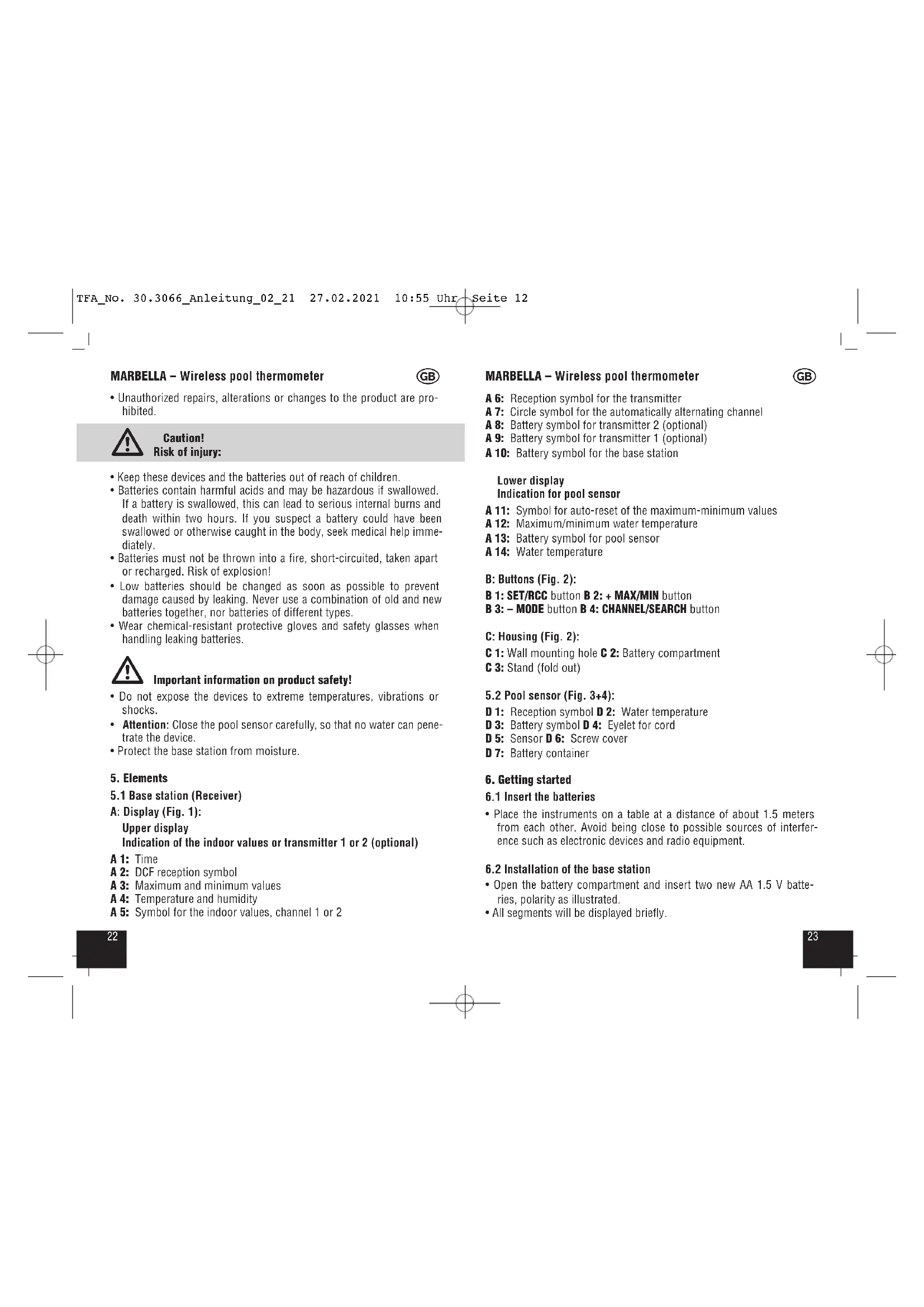

5.1 Base station (Receiver)

A 6: Reception symbol for the transmitter A 7: Circle symbol for the automatically alternating channel A 8: Battery symbol for transmitter 2 (optional) A 9: Battery symbol for transmitter 1 (optional) A 10: Battery symbol for the base station Lower display Indication for pool sensor A 11: Symbol for auto-reset of the maximum-minimum values A 12: Maximum/minimum water temperature A 13: Battery symbol for pool sensor A 14: Water temperature B: Buttons (Fig. 2): B 1: SET/RCC button B 2: + MAX/MIN button B 3: – MODE button B 4: CHANNEL/SEARCH button C: Housing (Fig. 2): C 1: Wall mounting hole C 2: Battery compartment C 3: Stand (fold out)

5.2 Pool sensor (Fig. 3+4):

D 1: Reception symbol D 2: Water temperature D 3: Battery symbol D 4: Eyelet for cord D 5: Sensor D 6: Screw cover D 7: Battery container

• Place the instruments on a table at a distance of about 1.5 meters from each other. Avoid being close to possible sources of interfer- ence such as electronic devices and radio equipment.

6.2 Installation of the base station

• Open the battery compartment and insert two new AA 1.5 V batte- ries, polarity as illustrated.

• On the upper display of the base station appear 0:00 and the indoor temperature and humidity.

• “- -,-°C“ flashes on the lower display.

• The base station will scan for 3 minutes the outdoor values. You can install the pool sensor during this time.

• Close the battery compartment again.

6.3 Installation of the pool sensor

• Turn the screw cover counterclockwise.

• Carefully pull the battery container out of the body and insert 2 x AA

1.5 V batteries with the correct polarity.

• All segments will be displayed briefly.

• On the display of the pool sensor appears the temperature in °C.

• Push the battery container back into the housing.

• Close the cover carefully.

• Pay attention to the sealing ring.

6.4 Outdoor values reception

• After the batteries are inserted, the measuring values of the pool sensor will be transmitted to the base station.

• If the reception is successfully on the lower display of the base sta- tion appear the water temperature with the maximum and minimum values.

• If the reception of the outdoor values fails, “- -,-°C“ remains on the base station display. Check the batteries and try it again. Check if there is any source of interference.

• As soon as the base station receives the radio-controlled time, you can start the manual initialisation of the transmitter. Press and hold the CHANNEL/SEARCH button for three seconds while the indoor val- ues “in“ are shown on the upper display. “- -, -°C“ flashes on the lower display. The base station will scan the outdoor values.

6.5 Radio-controlled time reception

• After the reception of the outdoor values, the clock will now scan the DCF frequency signal and the DCF symbol flashes on the display. When the time code is successfully received after 2-10 minutes, the radio-controlled time and the DCF symbol will be shown steadily on the display. MARBELLA – Wireless pool thermometer

• The DCF reception always takes place at 1:00 and 2:00 o'clock in the morning. If the reception is not successfully received at 3:00 o'clock, further attempts will be taken at 4:00 and 5:00 o'clock.

• You can also activate the DCF reception manually.

• Press the SET/RCC button. The DCF reception symbol flashes.

• Interrupt the reception by pressing the SET/RCC button again. The DCF reception symbol disappears.

• There are three different reception states: flashing – reception is active solid – reception is very good No symbol – no reception/time was set manually

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually. The DCF reception symbol disappears and the clock will then work as a nor- mal quartz clock (see: Manual settings).

6.6 Note on radio-controlled time

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braun- schweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio clock receives the signal, converts it and always shows the exact time. The adjustment to Daylight Saving Time (summer/winter time) is auto- matic. The reception quality depends mainly on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.

• Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.

• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily recep- tion is adequate to keep the accuracy deviation under 1 second. TFA_No. 30.3066_Anleitung_02_21 27.02.2021 10:55 Uhr Seite 132726 MARBELLA – Wireless pool thermometer

• Press and hold the + MAX/MIN or – MODE button in setting mode for fast mode.

• The device will automatically quit the setting mode if no button is pressed for a few seconds.

• Press and hold the SET/RCC button in normal mode for three sec- onds, to enter the setting mode.

• The hour digit will be flashing. Press the + MAX/MIN or – MODE but- ton to adjust hours.

• Confirm with the SET/RCC button.

• Set minutes in the same way.

• Press the SET/RCC button again to make the settings in the following sequence: the possibility of the automatically reset of the maximum and minimum values (AUTO OFF - default) and the temperature unit °C or °F (°C - default). Press the + MAX/MIN or - MODE button to adjust.

• Confirm with the SET/RCC button.

• The manually set time is overwritten once the DCF time signal is suc- cessfully received.

7.1.1 Automatic reset of the maximum and minimum values

• In the setting mode you can activate or deactivate the automatic reset of the maximum and minimum values.

• AUTO appears on the display and OFF flashes.

• Press the + MAX/MIN or – MODE button to activate (ON) or deacti- vate (OFF) the automatic reset.

• If the automatic reset is activated, AUTO appears on the display.

• Press the + MAX/MIN button during the indoor values are shown in the upper display.

• MAX appears on the upper display. MARBELLA – Wireless pool thermometer

• You can now get the highest value for the indoor temperature and humidity.

• Press the + MAX/MIN button again.

• MIN appears on the display.

• You can now get the lowest value for the indoor temperature and humidity.

• Press the + MAX/MIN button again to return to normal mode.

7.2.2 Indication of maximum and minimum values of the pool

• The maximum and minimum values of the pool temperature are shown permanently on the lower display.

• Provided that in the setting mode the automatic reset is activated (ON). AUTO appears on the display.

• Provided that in the setting mode the automatic reset is deactivated (OFF).

• Indoor maximum and minimum values: Press and hold the – MODE button during the highest or lowest values are displayed. The values will be deleted and reset to the current state.

• Maximum and minimum values for the pool temperature: Press and hold the – MODE button in normal mode. The values will be deleted and reset to the current state.

8. Positioning and fixing of the base station and the pool sensor

• The base station can be placed onto any flat surface with the foldable leg or wall mounted at a chosen location with the mounting hole, both found at the back of the unit. Make sure to avoid the vicinity of any source of interference such as computer screens, TV sets or solid metal objects. TFA_No. 30.3066_Anleitung_02_21 27.02.2021 10:55 Uhr Seite 142928 MARBELLA – Wireless pool thermometer

• The pool sensor floats on the water surface and measures the tem- perature in a water depth of about 110 mm. You can fix the pool sen- sor by a cord. Pull the cord through the opening.

• Once the desired location is chosen, check whether the transmission from the pool sensor to the base station is possible (transmission range of up to 100m in open areas). Within solid walls, especially ones with metal parts, the transmission range can be reduced con- siderably.

• If necessary choose another position for the base station.

9. Additional transmitters (item no.: 30.3239.02) optionally available

• Beside the pool transmitter the base station is able to receive 2 addi- tional transmitters for the control of indoor (e.g. children's room, wine-cellar etc.) or outdoor climate

9.1 Elements of the transmitter (Fig. 5):

E 1: Temperature or humidity E 2: Transmission symbol E 3: Transmission signal light E 4: Battery compartment E 5: °F/°C button E 6: 1 2 switch for channel selection E 7: TX button E 8: Battery symbol E 9: Channel number E 10: Wall mounting hole

9.2 Installation of the optional transmitters

1. Open the transmitter's battery compartment.

2. Select channel 1 with the switch.

3. Insert two new AA 1,5 V batteries, polarity as illustrated. The meas-

ured temperature and humidity in sequence and the channel number 1 appear on the display.

4. Close the battery compartment again.

• If you want to connect another channel repeat the steps 1-4 for channel number 2. MARBELLA – Wireless pool thermometer

9.3 Reception of the transmitters at the base station

• If the reception is successful, the outdoor temperature and humidity appear on the base station display, next to the corresponding chan- nel number.

• You can also start the search for the transmitter manually. Choose with the CHANNEL/SEARCH button the corresponding channel and press und hold the CHANNEL/SEARCH button for three seconds. Press the TX button in the transmitter's battery compartment. The reception symbol of the transmitter flashes and the base station will scan the outdoor values.

• Press the CHANNEL/SEARCH button on the base station to display sequentially the desired transmitters. On the display appear the indoor values or the selected transmitter.

• Press the CHANNEL/SEARCH button again after the last registered channel and a circle symbol will appear. On the upper display the values of the internal sensor and the installed transmitters are dis- played in sequence. To deactivate the function press the CHANNEL/ SEARCH button again.

• With the + MAX/MIN button you can recall the highest and lowest temperature and humidity values for the actual selected channel (in, 1, 2) (see 7.2.1).

9.4 Positioning and fixing of the optional transmitters

• The transmitter can be wall mounted (mounting hole at the back). When placed outdoors, choose a shady and dry place for the trans- mitter. Direct sunlight may trigger incorrect measurement and con- tinuous humidity damages the electronic components needlessly.

10. Care and maintenance

• Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if you do not use the devices for a long period of time.

• Store the devices in a dry place.

10.1 Battery replacement

• Change the batteries of the pool sensor, when the battery symbol appears on the lower display next to the pool temperature or on the pool sensor display.

• Change the batteries of the corresponding transmitter when the bat- tery symbol “1” or “2” appears on the upper display or on the sensor display.

• Please note: When the batteries are changed, the contact between the transmitter and the base station must be restored – so always insert new batteries into all devices or start the manual search for the trans- mitter.

Problem Solution No indication on the ➜ Ensure the batteries' polarities are base station/transmitter correct ➜ Change the batteries No DCF reception ➜ Start scanning with the SET/RCC button ➜ Wait for an attempt reception during the night ➜ Choose another place for the base station ➜ Check if there is any source of interference ➜ Restart the base station according to the manual ➜ Set the clock manually No reception ➜ No pool sensor installed of the pool sensor ➜ Check the batteries of pool sensor Display “---“ (do not use rechargeable batteries!) ➜ Start the manual search for the pool sensor: Press and hold the CHANNEL/SEARCH button on the base station (while the indoor values are displayed) ➜ Restart the pool sensor and the base station according to the manual MARBELLA – Wireless pool thermometer

➜ Choose another place for the base station ➜ Reduce the distance between the pool sensor and the base station ➜ Check if there is any source of interference No transmitter reception ➜ No transmitter installed Display “---“ ➜ Check the transmitter batteries (do not use rechargeable batteries!) ➜ Start manual search: Press the CHANNEL/SEARCH button on the base station for three seconds (while the values for channel 1 or 2 are displayed) and then press the TX button in the transmitter's battery compartment ➜ Restart the transmitter and the base station according to the manual ➜ Choose another place for the trans- mitter and/or the base station ➜ Reduce the distance between the transmitter and the base station ➜ Check if there is any source of inter- ference Incorrect indication ➜ Change the batteries If your device fails to work despite these measures, contact the retailer where you purchased the product.

This product has been manufactured using high-grade materials and components which can be recycled and reused. Never dispose of empty batteries and rechargeable batter- ies with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to pro- tect the environment. TFA_No. 30.3066_Anleitung_02_21 27.02.2021 10:55 Uhr Seite 163332 MARBELLA – Wireless pool thermometer

The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary house- hold waste. As a consumer, you are required to take end- of-life devices to a designated collection point for the dis- posal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Base station Measuring range Indoor temperature 0…..+50°C (32…122 °F) Resolution 0.1°C Accuracy ±1°C Measuring range Humidity 10...99% RH Resolution 1%RH Accuracy ±5%rH (@25°C, 30…80%RH) Power consumption Batteries 2 x AA 1,5 V (not included) Use alkaline batteries Dimensions 90 x 30 (50) x 85 mm Weight 98 g (device only) Pool sensor (30.3238.06) Measuring range Temperature 0...+60°C (32...140°F) Resolution 0.1°C Accuracy ±1°C (0...+50°C) Measuring depth 110 mm Range max. 100 m (open field) MARBELLA – Wireless pool thermometer

Transmission frequency 868 MHz Maximum radio-frequency power < 25mW Power consumption Batteries 2 x AA 1,5 V (not included) Use alkaline batteries Dimensions 97 x 105 x 168 mm Weight 174 g (device only) Additional transmitter 30.3239.02 (not included) Measuring range Temperature -40… +60°C (-40…+140°F) Resolution 1°C transmitter, 0.1°C base station Accuracy ±1°C (0...+50°C) Measuring range Humidity 10... 99%RH Resolution 1%RH Accuracy ±5%RH (@25°C, 20…90%RH) Range max. 100 m (open field) Transmission frequency 868 MHz Maximum radio-frequency power < 25mW Power consumption Batteries 2 x AA 1,5 V (not included) Use alkaline batteries Dimensions 51 x 20 x 146 mm Weight 60 g (device only) TFA_No. 30.3066_Anleitung_02_21 27.02.2021 10:55 Uhr Seite 173534 MARBELLA – Wireless pool thermometer

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our home- page by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 30.3066 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de/service/downloads/ce www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany 02/21 MARBELLA – Thermomètre de piscine radio-piloté
