Product type	Graphics tablet
Brand	ARCHOS
Model	79b Neon
Operating system	Android 6.0 Marshmallow
Display	7 inches (estimated)
RAM memory	1 GB (estimated)
Internal storage	8 GB (estimated)
Expandable storage	Yes, microSD card
Connectivity	Wi-Fi 802.11 b/g/n, micro-USB 2.0, micro-HDMI, 3.5 mm jack
Front camera	Yes (resolution not specified)
Rear camera	Yes (resolution not specified)
Battery	Rechargeable lithium-ion, capacity not specified
Power supply	Power adapter (5V/2A estimated)
Dimensions	Approximately 190 x 110 x 10 mm (estimated)
Weight	Approximately 300 g (estimated)
Box contents	Tablet, quick start guide, power adapter, micro-USB cable, warranty booklet and legal notices
Main features	Web browsing, multimedia playback, games, Android apps, photography
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Security	Locking via PIN code, pattern or password. Use Android Device Manager in case of loss.
Spare parts and repairability	Contact ARCHOS customer service. Spare parts not available to the general public.

Frequently Asked Questions - 79b Neon ARCHOS

How to turn on the ARCHOS 79b Neon tablet?

To turn on the tablet, press and hold the ON/OFF button located on the side until the screen lights up. Then follow the instructions to set up language, WiFi and other settings.

What to do if the tablet does not turn on?

If the tablet does not turn on, first charge it fully with the supplied adapter. Then press and hold the ON/OFF button for 10 seconds to force a restart.

How to increase battery life?

To optimize battery, reduce screen brightness, disable WiFi and Bluetooth when not in use, and close unnecessary background applications.

How to connect the tablet to a WiFi network?

Pull down the status bar, then touch it again to display quick settings. Tap the WiFi icon to enable it, then select the desired network and enter the password if required.

How to reset the tablet to factory settings?

Go to Settings > Backup & reset > Factory data reset. Confirm the operation to erase all data. If you cannot access settings, refer to the ARCHOS FAQ for the alternative procedure.

How to update the operating system?

Go to Settings > About tablet > System updates. If an update is available, follow the instructions to download and install the new version.

What to do if the tablet is slow?

Close all unused applications by accessing the task manager. Delete large files or applications. If the problem persists, consider a factory reset.

How to transfer files from a computer?

Connect the tablet to the computer via the micro-USB cable. On the tablet, select File transfer (MTP) mode in the notifications. The computer will then recognize the device to copy files.

How to use the rear camera?

Open the Camera app from the home screen. To switch to the rear camera, tap the rotate icon (depicting a camera with arrows). Frame and press the shutter button to take a photo.

How to clean the tablet screen?

Use a soft, dry cloth (preferably microfiber). Avoid abrasive or alcohol-based cleaning products. Gently wipe the screen in circular motions.

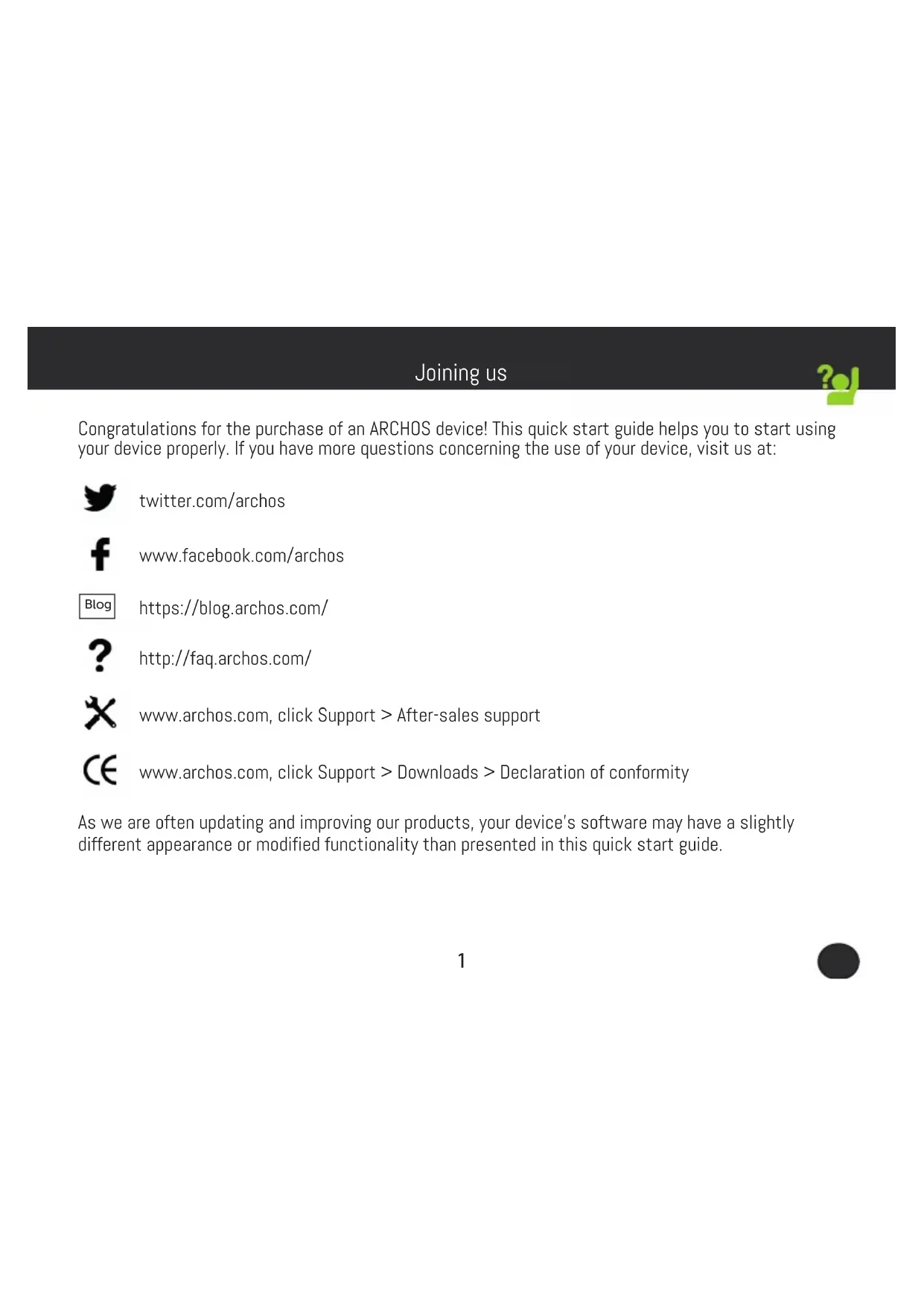

USER MANUAL 79b Neon ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

Blank tablet device with no visible text or symbols on the screen or body

ARCHOS 79b Neon

Quick start guide

Warranty, legal and safety notice

Charger adapter

Simple black cable with a connector icon (no text or symbols)

Charging cable

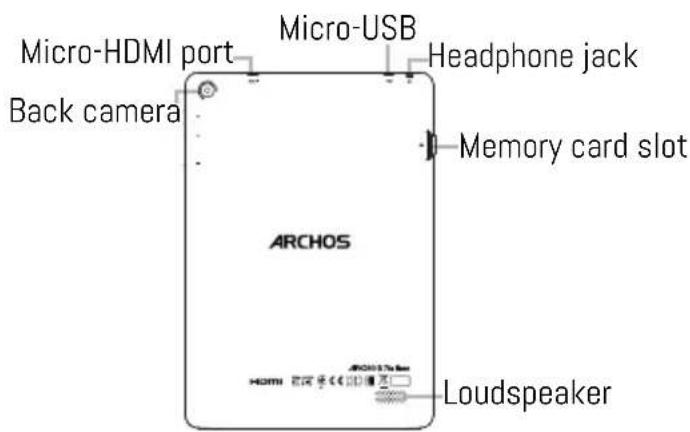

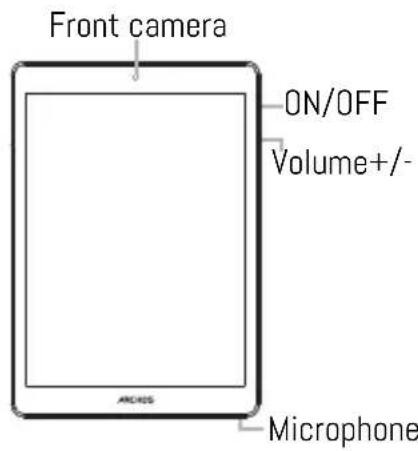

Describing your device

Your device is running Android 6.0 operating system. Updates could be offered to improve the device's performance.

To check if any update is available, go to: Settings > About tablet > Check for update.

Front camera ON/OFF Volume+/- ARCHS Microphone

Micro-HDMI port Back camera Micro-USB Headphone jack Memory card slot ARCHOS Loudspeaker

Starting up

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet.

Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.

NOTE: You can skip some steps and define them later from the Settings app.

Activating WiFi connection

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection
4. Select "WiFi" below the WiFi icon.
5. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Hints & tips

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security. Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https://www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

-If your device is frozen:

Press the ON/OFF button for 10 seconds.

-If your device doesn't turn on:

1. Charge your device.

2. Press the ON/OFF button for 10 seconds.

-If your device functioning is too slow:

Close all apps which are not currently used.

-If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

-If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

Contactez-nous

www.archos.com, click Support > After-sales support

Blank tablet device with no visible text or symbols on the screen face

ARCHOS 79b Neon

Simple black cable with a connector icon (no text or symbols)

Câble de charge

Blank tablet device with no visible text, numbers, or symbols on the screen

ARCHOS 79b Neon

Benutzerhandbuch

Simple line drawing of a black cable with a connector (no text or symbols)

Ladekabel

Blank tablet device with no visible text or symbols on the screen

ARCHOS 79b Neon

Guía de usuario

Coiled black cable with a small USB icon at the top (no text or symbols)

Cable de carga

Blank tablet device with no visible text or symbols on the screen

ARCHOS 79b Neon

Guida dell'utente

Simple black cable with a connector icon (no text or symbols)

Cavo di caricamento

Blank tablet device with no visible text or symbols on the screen face

ARCHOS 79b Neon

Simple black cable with a connector icon (no text or symbols)

Oplaadkabel

Blank tablet device with no visible text or symbols on the screen

ARCHOS 79b Neon

Guia do usuário

Simple black cable with a connector icon (no text or symbols)

Blank tablet device with no visible text or symbols on the screen face

ARCHOS 79b Neon

Краткое руководство

Coiled black cable with a small USB icon at the top (no text or symbols)

Blank tablet device with no visible text or symbols on the screen or body

ARCHOS 79b Neon

Simple black cable with a connector icon (no text or symbols)

Kabel do ładowania

Opis urządzenia

Blank tablet device with no visible text or symbols on the screen

ARCHOS 79b Neon

Simple black cable with a connector icon (no text or symbols)

Töltőkábel

A készülék leírása

Blank tablet device with no visible text or symbols on the screen face

ARCHOS 79b Neon

Simple black cable with a connector icon (no text or symbols)

Blank tablet device with no visible text or symbols on the screen or body

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian None Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.
