USER MANUAL DH016A1WT DANBY

Welcome to the Danby family.

We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.

You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.

1. Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
2. Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION after fi lling out a product survey, at www.danby.com/support/product-registration/

Model Number:

Serial Number:

Date of Purchase:

Need Help?

1. Read your Owner's Manual for installation help, troubleshooting, and maintenance assistance.
2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching your model number in the search bar.
3. For the Quickest Customer Service, please fill out the web form at www.danby.com/ support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.
4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one hour.

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

This appliance is approved for both residential and commercial use.

IMPORTANT: When using this appliance to store blood or vaccines ensure that you follow CDC or Health Canada storage and procedural guidelines.

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost refrigerator.
• Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
• Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
• Component parts shall be replaced with like components to minimize the risk of possible ignition due to incorrect parts.
• Dispose of properly in accordance with federal or local regulations.
• Follow handling instructions carefully.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offi ces and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

The Silver ION coating on the handle inhibits the growth of bacteria, mold and mildew that may affect this appliance.

The antimicrobial properties do not protect users against other bacteria, viruses, germs or other disease organisms. Always clean and wash this appliance thoroughly before and after each use.

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord.

Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

LOCATION

• Two people should be used when moving the appliance.
• Place the appliance on a floor that is strong enough to support it when it is fully loaded.
• Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
• For optimum temperature performance, it is recommended that this appliance be at least 30% full at all times. If the appliance is not 30% full, it is recommended to add some water bottles or freezer packs to ensure temperature stability.
• Do not use the appliance near water, for example in a wet basement or near a sink.
• Before connecting the appliance to a power source, let it stand upright for approximately 6 hours to avoid damage to internal components.
• Allow 12.7cm (5 inches) of space between the back of the appliance and the wall. Allow 5cm (2 inches) of space between the sides and top of the appliance and all adjacent walls.
• This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.
• This appliance is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).

OPERATING INSTRUCTIONS

FIRST TIME SET UP

The first time the appliance is plugged in, the date and time must be set. The programming menu includes the following options:

• YY - used to set the year
• NN - used to set the month
  dd - used to set the day
• HH - used to set the hour
• nn - used to set the minute

To set the date and time, follow the steps below.

1. Year Setting: Press and hold the Set button and the down arrow button at the same time for 5 seconds to enter the programming menu. The display will flash "YY". Press the Set button to enter the year setting. Press the up and down buttons to choose the last two digits of the correct year. Press the Set button to confirm the selection. The display will return to the selection menu and will flash "YY".
2. Month Setting: Press the up button. The display will flash "NN". This is meant to indicate the month. Press the Set button to enter the month setting. Press the up and down buttons to choose the correct month. Press the Set button to confirm the selection. The display will return to the selection menu and will flash "NN".
3. Day Setting: Press the up button. The display will flash "dd". Press the Set button to enter the day setting. Press the up and down buttons to choose the correct day. Press the Set button to confirm the selection. The display will return to the selection menu and will flash "dd".
4. Hour Setting: Press the up button. The display will flash "HH". Press the Set button to enter the hour setting. Press the up and down buttons to choose the correct hour. Press the Set button to confirm the selection. The display will return to the selection menu and will flash "HH".
5. Minute Setting: Press the up button. The display will flash "nn". This is meant to indicate the minute. Press the Set button to enter the minute setting. Press the up and down buttons to choose the correct minute. Press the Set button to confirm the selection. The display will return to the selection menu and will flash "nn".

Note: If no buttons are pressed within 10 seconds, the control panel will close the selection menu.

OPERATING INSTRUCTIONS

TEMPERATURE SELECTION

The display screen will show the current internal temperature of the appliance. The temperature of the appliance can be set between 2^ - 8^ (36°F - 46°F). Use the up and down buttons to choose the desired temperature. Press the Set button to confirm the selection.

TEMPERATURE SCALE

Temperature can be displayed in Fahrenheit or Celsius units. To change the temperature scale, press the ^ F / ^ button. The current temperature scale will be shown by the indicator light.

CONTROL PANEL LOCK

The control panel can be locked so that it cannot be adjusted accidentally.

To set the control panel lock, press and hold the Set button for five seconds. The display will show "ON" to indicate that the lock is activated.

To disengage the control panel lock, press and hold the Set button for five seconds. The display will show "OFF" to indicate that the lock is disengaged.

DATA STORAGE

The appliance will record the time and temperature every 10 minutes and will store this information for up to 3 years. After three years of functioning, the data will begin to over write the existing saved data.

The data collected can be downloaded from the appliance memory by inserting a standard USB data stick into the USB connection on the control panel.

When a USB stick is inserted, the display will show "UP" to indicate that data is being uploaded. It will alternately display the current internal temperature.

Once the data is uploaded, the display will show "Ed" and a buzzer will sound to indicate that the upload is complete. The buzzer will continue to sound every 5 seconds until the USB stick is removed. Remove the USB stick and the appliance will resume normal functioning.

Note: The USB port can not be used for charging other electrical devices.

LEVELING INSTRUCTIONS

There is an adjustable leg that can be turned up or down to level the appliance.

1. Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the chassis.
2. Slowly turn the leveling leg clockwise until the appliance is level.

OPERATING INSTRUCTIONS

CHANGING THE BATTERY

The battery should be replaced every three years. Ensure that the appliance is unplugged before replacing the battery.

The change the battery in the appliance, follow the steps below.

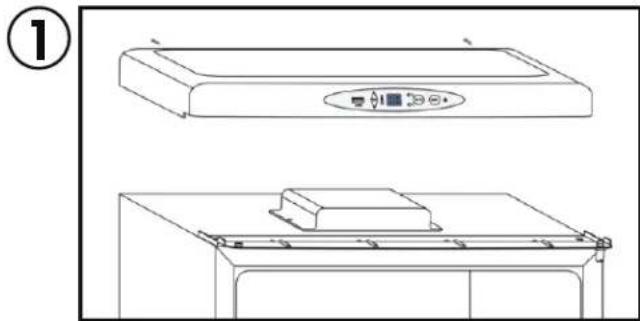

1. Remove the worktop from the appliance.

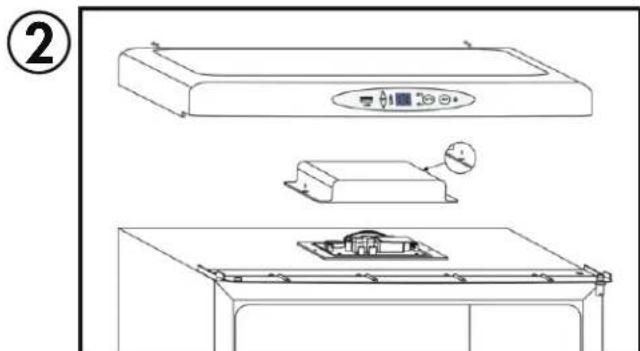

2. Remove the cover from the electrical control box.

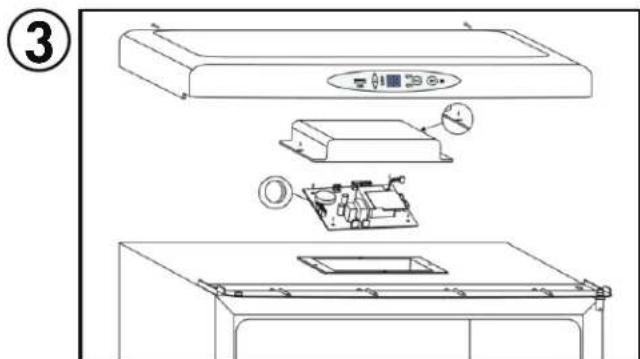

3. Remove the battery from the control board. Replace the battery with a circular CR3023 battery. Replace the cover of the electrical control box and the worktop.

OPERATING INSTRUCTIONS

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

To change the direction of the door swing, follow the instructions below.

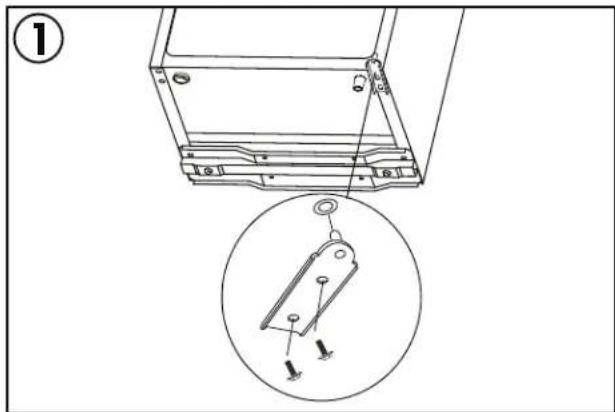

1. Remove the adjustable foot from the lower left side of the cabinet. Remove the lower hinge from the lower right side of the cabinet. Remove the solid foot from the lower right side of the cabinet.

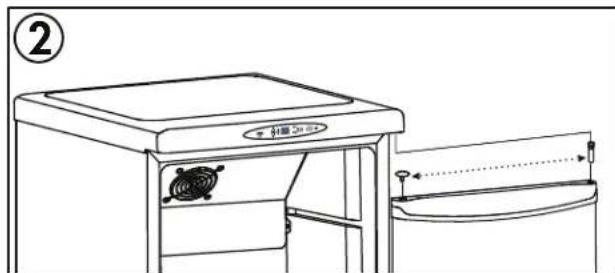

2. Remove the door from the cabinet. Unscrew the upper hinge pin from the upper right side of the worktop and install it on the upper left side of the worktop.

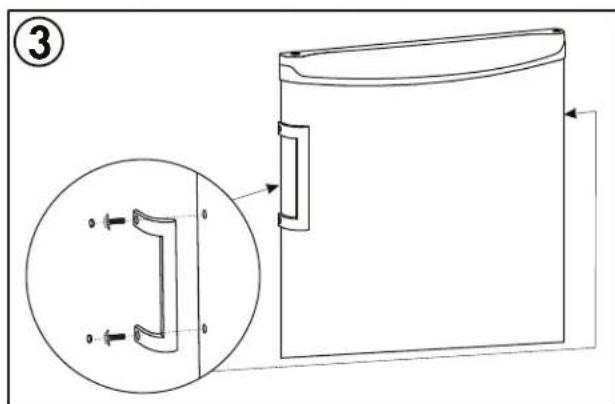

3. Install the door on the cabinet. Install the lower hinge on the lower left side of the cabinet. Install the adjustable foot on the lower right side of the cabinet. Install the solid foot on the lower left side of the cabinet. Remove the door handle from the left side of the door and install it on the right side of the door.

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

• Clean the inside and the outside of the appliance with a soft cloth and a solution of a tablespoon of baking soda to one quart of water or some mild detergent.
• Wash shelves in a mild detergent solution, then dry and wipe with a soft cloth.
• It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the internal temperature of the appliance if the number of times the door is opened is kept to a minimum.

If power is lost, the appliance will keep all settings in its memory and will resume normal functioning automatically when power is restored.

Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

• Remove all contents.
• Secure all shelves and the door with tape.
• Turn the adjustable leg up to the base.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE

No power • A fuse may be blown or the circuit breaker tripped • Plug not fully inserted into the wall outlet

Internal temperature not cold enough • Temperature setting is too warm • Door is not shut properly or opened excessively • Recently added a large quantity of warm food to the cabinet • Close proximity to heat source or direct sunlight • Ambient temperature or humidity is very high

Appliance runs continuously • Temperature setting is too cold • Door not shut properly or opened excessively • Recently added a large quantity of warm food to the cabinet • Close proximity to heat source or direct sunlight • Ambient temperature or humidity is very high

ERROR CODE DESCRIPTION
E0 Environmental	temperature sensor fault
E1 Temperature	control sensor fault
L1 Storage module	communication failure
EH Temperature	sensor warning - Internal temperature is 5 degrees higher than the set temperature for an extended period of time
EL Temperature	sensor warning - Internal temperature is 5 degrees lower than the set temperature for an extended period of time
Dr Door open alarm	This alarm will sound when the door has been open for more than 3 minutes

LIMITED "CARRY IN" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 24 months During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
6) Service calls resulting in customer education.
7) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Warranty Service

Carry In

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [519] 837-0920 FAX: [519] 837-0449

1-800-263-2629

03/21
