USER MANUAL 7241415BLV2 LA CROSSE TECHNOLOGY

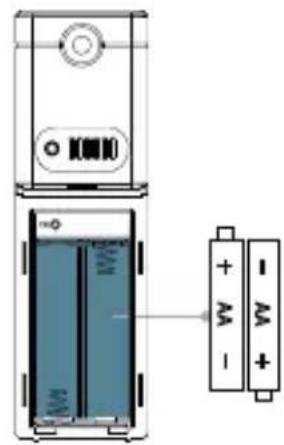

1. Insert 2-AA batteries into your TH Sensor.

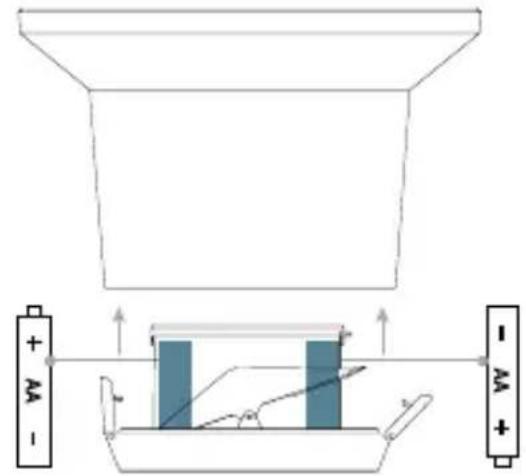

2. Insert 2-AA batteries into your Rain Sensor.
3. Insert 2-AA batteries into your Rain Station Display.
4. Configure Basic Settings.

Note: Use the USB Power Cord for constant backlight.

Thermo-Hygro (TH) Sensor Rain Sensor

TX145R-BL 725-1415BLv2TX141TH-Bv4

POSITION SENSORS

Once the sensors are reading to your Rain Station:

TH Sensor

• Place your TH Sensor outside in a shaded location to protect from sun's heat.
• Watch mounting video: bit.ly/TH_SensorMounting

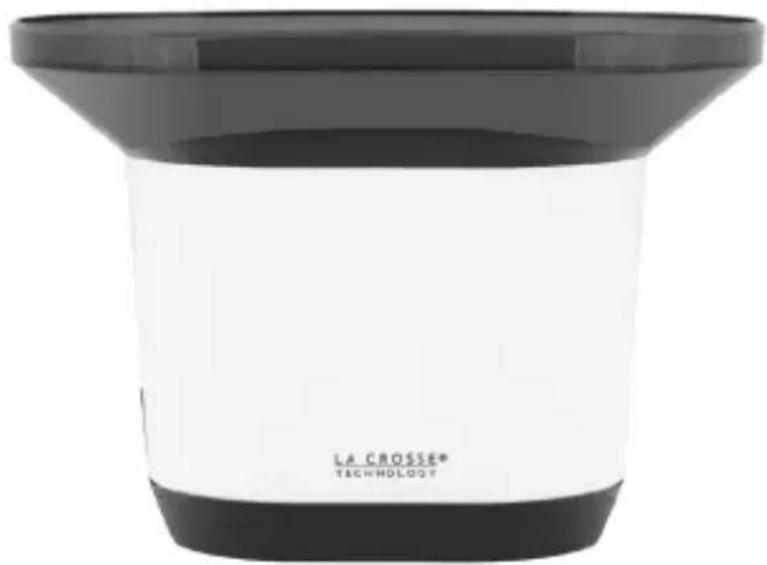

Rain Sensor

• Place your Rain Sensor in an open area, level, and preferably off the ground for the most accurate rain readings.
• Watch mounting video: bit.ly/Rain_SensorMounting

SETTINGS

1. Hold the SET button to enter the Settings Menu.
2. Use the + or - button to adjust, and SET to confirm.
3. Press the LIGHT button at any time to exit.

Settings Menu Order:

Language (English, Espanol, Français)
- Beep ON/OFF
12/24 Hour Format
- Hour
- Minutes
Year
Month
- Date
- Temperature: Fahrenheit/Celsius
- Rainfall: Inches/Millimeters
- Rainfall: AVERAGE/HIGH/LOW

Note: This final setting is only used to define changes to the Flower Icon

Note: Weekday will set automatically when Year, Month and Date are set.

FLOWER ICON

In most regions, the AVERAGE Rainfall Setting will work just fine. However, if you're in a region that has higher or lower than average rainfall per year, make sure to select the appropriate setting in the Settings Menu. This will adjust how your Flower Icon animates to changing rain conditions.

The Flower Icon will update at 12AM each day, or at the start of any rain event.

See the chart on page 4 for details.

Flower Icon Chart

ICON Low Regional Rainfall Average Regional Rainfall High Regional Rainfall
	7+ days of Rain 4+ days of Rain 4+ days of Rain
	0-24 Days Without Rain & 0-6 Days of Rain	0-9 Days Without Rain & 0-3 Days of Rain	0-6 Days Without Rain & 0-3 Days of Rain
	25-49 Days Without Rain	10-14 Days Without Rain	7-10 Days Without Rain
	50-99 Days Without Rain	15-19 Days Without Rain	11-17 Days Without Rain
	100+ Days Without Rain	20+ Days Without Rain	17+ Days Without Rain

RAINFALL READINGS

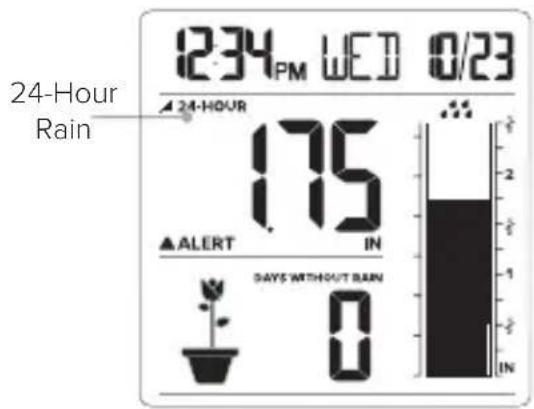

24-Hour Rain: A running total of the rainfall accumulated in the past 24 hours. This is the station's default reading.

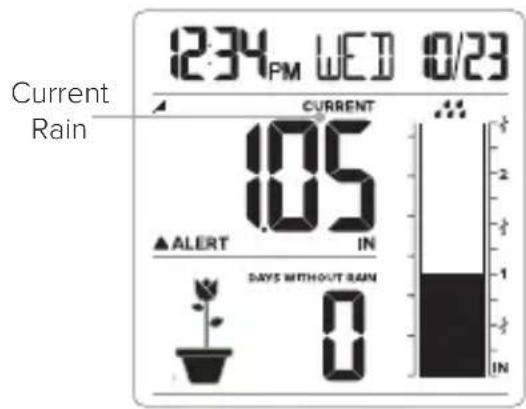

Current Rain: At the start of a new rain event, the CURRENT Rainfall Reading will automatically appear. After 15 minutes of no additional rain, the station will return to the 24-Hour Rain Display.

RAINFALL HISTORY

Press and release the HISTORY button to toggle through Rainfall History Readings: 1 HOUR: Last one hour rain fall. Updates every 5 minutes.

24 HOUR: Based on past 24 hours accumulated rain total. This is a running total that updates each hour.

7 DAYS: Accumulated last 7 consecutive 24HR rainfall readings. Updates at midnight each day. This reading is not subject to the calendar. Be sure time is set.

MONTH: Current Month. Ex: January 1-January 31. At the first calendar day of the month rain is reset to 0. Accumulated rain from 1st of th month to current day of the month. Press and release the PLUS (+) button to toggle through the past 11 monthly history readings.

YEAR: Current year January 1-December 31 total up to the current month reading.

TOTAL: Total rainfall since powered on or reset.

Note: As time passes without rain, the 1 hour, 24 hour, and 7 day rain totals will count down to zero.

Note: The Rain Cylinder Graph will not change with Rainfall History. It only changes with 24 hour and Current Rain.

RESET RAINFALL HISTORY

When viewing Rain History, Hold the (-) MINUS button to reset the history readings individually. The reading will show dashes briefly then show zero.

SEARCH FOR SENSORS

• If either sensor loses connection, the station will show NO after 30 minutes of no reception.
• The station will automatically search for 3 minutes every hour to try and reestablish the sensor connection.
• To manually search for the sensors, hold the PLUS (+) button until the Reception Icon . . . begins to animate.

LOW BATTERY INDICATORS

Individual Station/Sensor Low Battery Indicators will let you know which batteries to replace.

PARTS

Scan the QR code or visit bit.ly/724-1415blv2 Parts, for replacement parts.

OPTIONAL BACKLIGHT

Battery Operation:

• Press the LIGHT button to activate the backlight for 10 seconds.

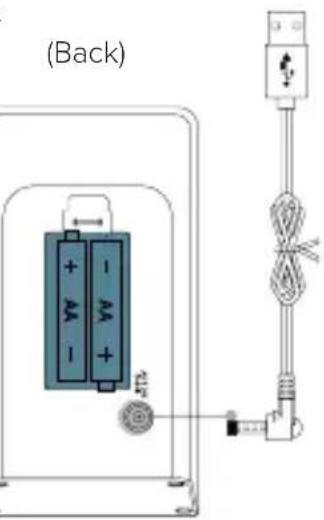

USB Power Cord (Required):

• You can have a constant backlight when using the USB Power Cord.
• Press and release the LIGHT button to adjust the backlight 5 levels (OFF | 1.5% | 20% | 50% | 100%.).
• BACKLIGHT and intensity level will show briefly.

AUTO DIM BACKLIGHT

When using the USB Power Cord, have your station automatically dim its backlight during set hours.

Auto Dim Settings

1. Hold the LIGHT button to enter Auto Dim Settings.
2. Use the + or - button to turn the Auto Dim Setting ON (or OFF).
3. Press the LIGHT button to move to Auto Dim START TIME setting.
4. Use the + or - button to adjust your Auto Dim starting hour.
5. Press the LIGHT button to confirm and move to Auto Dim STOP TIME setting.
6. Use the + or - button to adjust your Auto Dim stopping hour.
7. Press the LIGHT button to confirm and exit.

Note: Auto Dim Icon will show when active.

WARNING: This product can expose you to chemicals including acrylonitrile, 1, 3-butadiene, and styrene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov

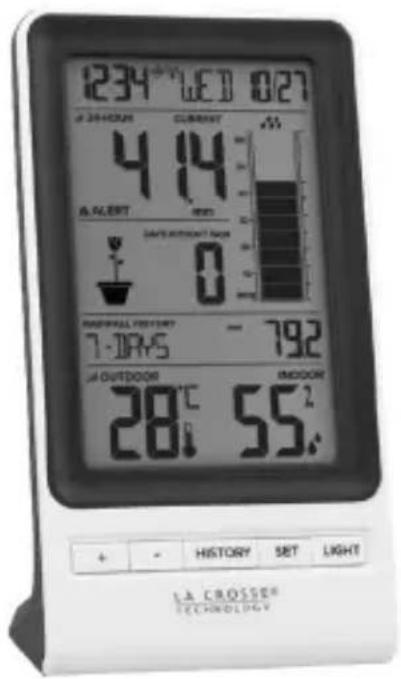

BUTTONS & FUNCTIONS

+

-

HISTORY

SET

LIGHT

BUTTON FUNCTION
+	Press to toggle between Indoor and Outdoor Temperature/Humidity readings. Hold to search for the TH and Rain Sensors. When viewing Rain History (Month), press to view your past 12 months of rain data.
- When	viewing Rain History, hold to reset individual History Records.
HISTORY	Press to view Rain History (1 Hr, 24 Hr, 7 Days, Month, Year, Total) Hold to set Rain Alert.
SET	Hold to enter the Settings Menu. Press to confirm settings in the Settings Menu.
LIGHT	Battery Power Only: Press for a 10 second backlight. When using the USB Power Cord: Press to adjust backlight brightness. Hold to select Auto Dim settings.

SPECIFICATIONS

Rain Station (724-1415BLv2)

Indoor Temperature Range: 32^ to 122^ (0^ to 50^)

Indoor Humidity Range: 10% RH to 99% RH

Primary Power: 2 "AA" Alkaline Batteries (sold separately)

USB Power Cord Included (USB180-P11W) for use with external adapter

Dimensions: 3.24^ × 2.16^ 5.98"H (8.23 cm L x 5.48 cm W x 15.19 cm H)

TH Sensor (TX141TH-Bv4)

Outdoor Temperature Range: -40^ to 140^ (-40^ to 60^)

Outdoor Humidity Range: 10% RH to 99% RH

Wireless Range: Over 330 Foot (100 meter)

Requires: 2 "AA" Alkaline Batteries (sold separately)

Dimensions: 1.57^ × 0.82^ 4.94^ (3.98 cm L × 2.08 cm W × 12.98 cm H)

Rain Sensor (TX145R-BL)

Rain Range: 0 to 393.6 inches (0 to 999.9 cm)

Wireless Range: Over 330 Foot (100 meter)

Requires: 2 "AA" Alkaline Batteries (sold separately)

Dimensions: 7.16 in. L × 5.24 in. W × 4.72 in. H (18.2 cm L × 13.3 cm W × 12.7 cm H)

WE'RE HERE TO HELP

If you require additional assistance, get in touch with our friendly customer support team based in La Crosse, WI.

Self Help: bit.ly/724-1415blv2_support

Online: bit.ly/contact_techsupport

Phone: [phone]

Our knowledgeable customer support team is available:

Mon-Fri 8am-6pm CST

STAY IN TOUCH!

Ask questions, watch set up videos, and provide feedback on our social media outlets. Follow La Crosse Technology on Youtube, Facebook, and Instagram.

WARRANTY & PATENTS

La Crosse Technology Ltd. provides a 1-year limited-time warranty on this product relating to manufacturing defects in materials & workmanship. Per the Song-Beverly Act, in the state of California, the warranty on this item becomes effective on the date of delivery.

La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601

For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty

Patents: www.lacrossetechnology.com/pages/patents

DOUBLE YOUR WARRANTY

Scan the QR Code or visit: bit.ly/724-1415blv2 register to register your product and double the standard 1-year warranty for free by opting to recieve occasional product emails.

Designed in La Crosse, Wisconsin · Made in China · Printed in China · DC071125
