WS9118U - Weather Station LA CROSSE TECHNOLOGY - Free user manual and instructions

Product Type	Wireless Weather Station
Brand	La Crosse Technology
Model	WS9118U
Indoor Station Dimensions	180 x 108.8 x 31.2 mm
Outdoor Sensor Dimensions	60 x 43 x 23 mm
Station Power Supply	3 AA 1.5V batteries
Sensor Power Supply	2 AA 1.5V batteries
Recommended Battery Type	Alkaline
Transmission Range	100 m open field
Indoor Temperature	-10 °C to +60 °C
Outdoor Temperature	-30 °C to +70 °C
Indoor Relative Humidity	1 % to 99 %
Outdoor Relative Humidity	1 % to 99 %
Display	LCD with EL backlight
Main Functions	Weather forecast (sunny, cloudy, rainy), pressure trend, indoor/outdoor temperature and humidity, heat index, dew point, min/max records, moon phases, alarm with snooze, WWVB radio-controlled time, up to 3 remote sensors
Warranty	1 year limited
Care and Cleaning	Clean with a damp cloth, avoid solvents, remove used batteries
Safety	Do not immerse in water, do not open the case, keep out of reach of children
Spare Parts and Repairability	Contact La Crosse Technology, no user repair

Frequently Asked Questions - WS9118U LA CROSSE TECHNOLOGY

How to install batteries in the station and sensor?

First insert batteries into the outdoor sensor (2 AA batteries), then into the indoor station (3 AA batteries). Observe polarity. After powering on, do not press any buttons for 15 minutes to allow synchronization.

How to set the time manually?

Press SET for 3 seconds. Press SET repeatedly to reach the time setting. Use ALM/+ to adjust hours and minutes. Press SET to confirm.

Why is the outdoor temperature not displaying?

Check that the sensor batteries are new and correctly inserted. Ensure the sensor is within 100 m of the station and no thick obstacles block the signal. If the problem persists, remove batteries from both devices for 10 minutes, then reinsert starting with the sensor.

How to display minimum and maximum temperature records?

Press IN/HR for indoor records or OUT/MIN for outdoor. The display shows 'MAX' or 'MIN' with the value, time, and date. Records stay displayed for 30 seconds.

How to enable the alarm and set the alarm time?

Press ALM/+ for 5 seconds. The alarm time digits flash. Use IN/HR to set hours and OUT/MIN for minutes. Press SNZ/CH to confirm. To enable the alarm, press ALM/+ until the bell icon appears.

What does the WWVB icon on the display mean?

The tower-shaped icon indicates reception of the WWVB radio-controlled time signal. It flashes during search and stays lit when signal is received. The station syncs time automatically each night.

How to change the time zone?

Press SET for 3 seconds, then press SET once to access the time zone setting. Use ALM/+ to select your zone (e.g., -5 for EST). Press SET to confirm.

How to adjust the LCD contrast?

Press SET for 3 seconds. 'LCD' appears with a flashing digit (0 to 7). Use ALM/+ to increase or decrease contrast. Press SET to confirm.

Can I use multiple outdoor sensors?

Yes, the station can receive up to 3 sensors. Install batteries in sensors in numerical order (1, 2, 3) before powering on the station. Press SNZ/CH to switch between sensors.

What to do if the displayed time is incorrect despite WWVB reception?

Check that the time zone and DST setting are correct. If the time is off by one hour, enable or disable DST. Ensure the station is placed at least 2 m away from electrical devices.

USER MANUAL WS9118U LA CROSSE TECHNOLOGY

Radio-controlled Weather Station

Instruction Manual

FCC DISCLAIMER

FCC ID: OMO-01RX (Receiver), OMO-01TX (transmitter)

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

LA CROSSE

TECHNOLOGY

technology tools for home & office

Contents

Language Page

English 2

Francais 27

Spanish 53

TABLE OF CONTENTS

Topic Page
Inventory of Contents/Additional Equipment 3
About WWVB 4
Quick Set-Up Guide 4
Detailed Set-Up Guide
Battery installation 5
Program Mode
Program Sequence and Default Settings 7
Function Keys 7
Setting the LCD Contrast 7
Setting the Time Zone 7
Daylight Saving Time Setting	8
Radio-controlled Time Setting	9
12/24-hour Time Setting	9
Setting the Time	10
Setting the Year, Day and Month	11
Setting the Snooze	11
Setting the Forecast Sensitivity	12
Features
Weather Forecast Icons and Tendency Arrows	13
Indoor Temperature, Humidity, & Comfort Level Indicator	14
Outdoor Temperature, Humidity, Heat Index, Dewpoint	14
Minimum & Maximum Records (Indoor, Outdoor, & Resetting)	15
Moon Phase	17
Time Alarm	17
EL Backlight 18
Adding Remote Temperature Humidity Sensors (Optional)	18
Mounting	19
Troubleshooting	21
Maintenance & Care	22
Specifications	22
Warranty Information	24

INVENTORY OF CONTENTS

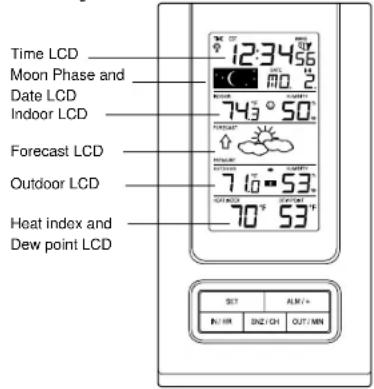

1. The WS-9118U weather station (Figure 1)
2. One TX7U remote temperature/humidity sensor (Figure 2)
3. Mounting hardware
4. Instruction manual and warranty card.

Figure 1
Figure 2

ADDITIONAL EQUIPMENT (not included)

1. Three fresh AA 1.5V batteries for the indoor weather station.
2. Two fresh AA 1.5V batteries for the remote temperature/ humidity sensor.
3. One Philips screwdriver for mounting.

GB P.2

P.3

GB

ABOUT WWVB (Radio Controlled Time)

The NIST (National Institute of Standards and Technology-Time and Frequency Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits the exact time and date signal continuously throughout the United States at 60kHz . The signal can be received up to 2,000 miles away through the internal antenna in the Weather Station. However, due to the nature of the Earth's ionosphere, reception is very limited during daylight hours. The weather station will search for a signal every night when reception is best. The WWVB radio station derives its signal from the NIST Atomic clock in Boulder, Colorado. A team of atomic physicists is continually measuring every second, of every day, to an accuracy of ten billions of a second per day. These physicists have created an international standard, measuring a second as 9,192,631,770 vibrations of a Cesium-133 atom in a vacuum. For more information on the atomic clock and WWVB please see the NIST website at http://www.boulder.nist.gov/timefreq/stations/wwwb.htm.

QUICK SET-UP GUIDE

Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.

1. Have the indoor weather station and remote temperature/ humidity sensor 3 to 5 feet apart.
2. Batteries should be out of both the indoor weather station and remote temperature/humidity sensor units for 10 minutes
3. Place the batteries into the remote temperature/humidity sensor first then into the indoor weather station.
4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.

In this time the indoor weather station and remote temperature/ humidity sensor will start to talk to each other and the display will show the indoor temperature/humidity, outdoor temperature/ humidity, heat index and dew point. If the indoor weather station does not display all information after the 15 minutes please retry the set up as stated above. After all information has been displayed for 15 minutes you can place your sensors outdoors and set your time.

Important Notes on Set-up and Operation

• The remote temperature/humidity sensor should be placed in a dry, shaded area.
• Fog and mist will not harm your remote temperature/humidity sensor but direct rain must be avoided.
  The remote temperature/humidity sensor has a range of 330

feet. Any walls that the signal will have to pass through will reduce distance. An outdoor wall or window can have up to 30 feet of resistance and an interior wall can have up to 20 feet of resistance. Your distance plus resistance should not exceed 330 ft. in a straight line.

• The remote temperature/humidity sensor transmits a signal every minute. After the batteries have been installed, the indoor weather station will search for the signal for a duration of 4 minutes. If there is no temperature or humidity reading in the OUTDOOR LCD after 4 minutes, make sure the units are within range of each other, or repeat the battery installation procedure.
• If a button is pressed before the indoor weather station receives the signal from the remote temperature/humidity sensor, you will need to follow the battery installation procedure again.

To complete the set up of your new wireless weather station after the 15 minutes have passed please follow the steps that follow in the Detailed Set-Up Guide.

DETAILED SET-UP GUIDE

BATTERY INSTALLATION

A. REMOTE TEMPERATURE/HUMIDITY SENSOR

1. Remove the batteries from all existing units in operation.
2. Using a screwdriver, unscrew and open the battery cover located at the front of the outdoor temperature/humidity sensor.
3. Replace the battery cover and screw.

GB P.4

P.5

GB

B. INDOOR WEATHER STATION

1. Remove the battery cover. To do this, insert a solid object in the space provided at the lower-central position of the battery cover, then push up and pull out on the battery cover.
2. Observe the correct polarity, and install 3 AA batteries.
3. Replace the battery cover.

Note: Immediately after the batteries have been installed, the LCD (Liquid Crystal Display) will flash. Within 15 seconds the indoor temperature, indoor relative humidity, and the weather icons (sun and clouds) will be displayed. If not, remove batteries for 10 seconds and reinstall. If the outdoor temperature is not displayed within four minutes, remove batteries from both units, wait 30 seconds, and reinstall making sure to install batteries into the remote temperature sensor first. The time will show 12:00 and start searching for the WWVB signal. If it successfully receives the time signal (usually at night), it will display the correct time (default time-zone is Eastern). You will need to adjust the time zone to match your local time.

PROGRAM MODE

Programming Note: If 15 seconds are allowed to pass, or the SNZ/CH button is pressed during the programming mode, the unit will confirm/set the last information entered—the display will stop flashing and return to normal time-date readings. If you don't leave the program mode during the programming of sections III through XI, you can advance to step 4 of the next program setting. If you do leave the program setting (or want to program a specific setting) follow each instructional step to program that setting.

1. Press and release the SET button again.
2. The time zone will flash in the DATE LCD
3. Press and release the ALM/+ button to select your time zone.

Note: It is possible to select any time zone from -12 GMT to +12 GMT (for example to see the time in another country).

TIME ZONES

GMT 0
ATLantic -4
EST Eastern -5
CST Central -6
MST Mountain -7
PST Pacific -8
ALA Alaska -9
HAW Hawaii-1

1. Press and release the SET button to confirm and advance to the Daylight Saving Time setting.

V. DAYLIGHT SAVING TIME (DST) SETTING

1. Press and hold the SET button for 3 seconds.
2. "LCD" will show in the TIME LCD and the number setting will flash.
3. Press and release the SET button twice.
4. "DST" will appear in the DATE LCD and either "ON" or "OFF" will flash in the TIME LCD.
5. Press and release the ALM+ button to select DST on or off.

Note: "DST OFF" indicates that the feature is off and the WWVB will not change times automatically. "DST ON" indicates that the feature is on and the WWVB will change times automatically.

I. PROGRAMMING SEQUENCE AND DEFAULT SETTINGS

The programming sequence and default (factory) settings are as follows:

LCD Contrast 5

Time Zone -5 (Eastern)

Daylight Saving Time ON

Radio-controlled time reception ON

12/24-hour time 12

Time - Hour 12

Time-Minute:00

Year 2003

Month

Day 1

Snoopze 10 minutes

Forecast Sensitivity

2

II. FUNCTION KEYS

The function keys are located on the front of the unit directly below the LCD (Liquid Crystal Display).

III. SETTING THE LCD CONTRAST

1. Press and hold the SET button for 3 seconds.
2. "LCD" will show in the TIME LCD and the number setting will

Note: There are 8 LCD contrast levels to choose from "LCD 0" is the lightest, and "LCD 7" is the darkest.
3. Press and release the ALM/+ button to select the level you desire.
4. Press and release the SET button to confirm and advance to the Time Zone setting.

IV. TIME ZONE SETTING

1. Press and hold the SET button for 3 seconds.
2. "LCD" will show in the TIME LCD and the number setting will flash.

P.7

GB

Note: Some locations (Arizona and parts of Indiana) do not follow Daylight Saving Time, and should select "DST OFF".
6. Press and release the SET button to confirm and advance to the radio-controlled time on/off setting.

VI. RADIO-CONTROLLED TIME ON/OFF SETTING

1. Press and hold the SET button for 3 seconds.
2. "LCD" will show in the TIME LCD and the number setting will flash.
3. Press and release the SET button three times.
4. "RCC" will appear in the DATE LCD and "ON" or "OFF" will flash in the TIME LCD.

5. Press and release the ALM/+ button to select radio-controlled time on or off.

6. Press and release the SET button to confirm and advance to the 12/24-hour time setting.

VII. 12 OR 24 HOUR TIME SETTING

1. Press and hold the SET button for 3 seconds.
2. "LCD" will show in the TIME LCD and the number setting will flash.
3. Press and release the SET button four times.
4. "12h" or "24h" will flash in the DATE LCD.
5. Press and release the ALM/2+ button to select 12 or 24-hour time format.

Note: When in the 12-hour format "PM." will appear to the left of the hour in the time LCD between the hours of noon and midnight. 6. Press and release the SET button to confirm and advance to the time setting.

GB

VIII. TIME SETTING

There are two methods by which the time and date can be set:

A) Automatically via WWVB reception, or

B) Manually.

A. WWVB (Remote Control Time)

This method requires you to do nothing, except wait for the signal to be received, and to select a time zone. Reception usually takes approximately 10 minutes during optimal conditions. The best conditions for reception is at night, between midnight and 6:00 am-when there is less atmospheric interference. To keep your time as accurate as possible, the indoor weather station conducts a WWVB search every night between these hours, and overrides any manually set time. The WWVB tower icon (appearing in the TIME LCD) will flash when a signal-search is in progress and a signal is being received, and will remain steady when the signal has been received. If the WWVB time has not been received after 15 minutes of battery installation, you may manually set the time or leave the time function alone (reception will occur regardless).

B. MANUAL TIME SETTING

Note: When in the 12-hour format "P.M." will appear to the left of the hour in the time LCD between the hours of noon and midnight.

Note: Reception of the WWVB signal will automatically set the time. The reception of the signal will override any programmed time.

1. Press and hold the SET button for 3 seconds.
2. "LCD" will show in the TIME LCD and the number setting will flash.
3. Press and release the SET button five times.
4. The hours digits will flash in the TIME LCD.
5. Press and release the ALM/+ button to advance the hours.
6. Press and release the SET button to confirm the hours setting and advance to the minutes setting.
7. The minutes digits will flash in the TIME LCD.
8. Press and release the ALM/+ button to advance the minutes.
9. Press and release the SET button to confirm and advance to the year setting.

IX. SETTING THE YEAR, DAY AND MONTH

Note: Reception of the WWVB signal will also set the date and day. The reception of the signal will override any programmed date and day.

1. Press and hold the SET button for 3 seconds.
2. "LCD" will show in the TIME LCD and the number setting will flash.
3. Press and release the SET button seven times.
4. The year will flash in the DATE LCD.
5. Press and release the ALM ^+ button to advance the year.
6. Press and release the SET button to confirm the year and advance to the month setting.
7. The month will flash in the DATE LCD.
8. Press and release the ALM/+ button to advance the month.
9. Press and release the SET button to confirm the month and advance to the day setting.
10. The day of the month will flash in the DATE LCD.
11. Press and release the ALM/+ button to advance the day of the month.
12. Press and release the SET button to confirm and advance to the snooze setting.

X. SETTING THE SNOOZE

1. Press and hold the SET button for 3 seconds.
2. "LCD" will show in the TIME LCD and the number setting will flash.
3. Press and release the SET button ten times.
4. "Sn" will appear in the DATE LCD and a number will be flashing next to it.

GB P.10

P.11

GB

1. Press and release the ALM/+ button to select the duration of the snooze.

Note: The snooze can be set for 0 to 30 minutes in 5-minute increments. If 0 minutes is selected pressing the SNZ/CH button will deactivate the alarm and it will not come back on.

1. Press and release the SET button to confirm and advance to the forecast sensitivity setting.

XI. SETTING THE FORECAST SENSITIVITY

Note: The forecast sensitivity can be adjusted to allow for areas that have a higher or lower sensitivity to changing air pressure (for example coastal areas have more pressure change than areas such as southern Arizona).

The numbers correspond to the amount of air pressure change necessary to trigger a change in the forecast icon. Areas that tend to have more air pressure change would set the sensitivity to 3, while areas that experience lower than normal air pressure change would set the sensitivity to 1.

1. Press and hold the SET button for 3 seconds.

2. "LCD" will show in the TIME LCD and the number setting will flash.

3. Press and release the SET button eleven times.
4. Either "1", "2" or "3" will flash in the TIME LCD and the forecast icon and tendency arrows will flash in the FORECAST LCD.
5. Press and release the ALM+ button to select the forecast sensitivity.
6. Press and release the SET button to confirm the forecast sensitivity and complete the programming.

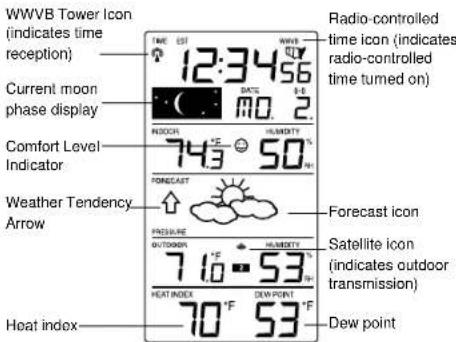

FEATURES OF THE WS-9118U

I. WEATHER FORECAST

The weather forecasting feature is estimated to be 75% accurate and is for the next 12 to 24 hours. The weather forecast is based solely upon the change of air pressure over time. The WS-9118U averages past air-pressure readings to provide an accurate forecast creating a necessity to disregard all weather forecasting for 12-24 hours after the unit has been set-up, reset, or moved from one altitude to another (i.e. from one floor of a building to another floor). In areas where the weather is not largely affected by the change of air pressure, the sensitivity setting should be set to 1. In areas where the air pressure changes more rapidly (such as coastal areas) the sensitivity setting should be set to 3.

A. WEATHER ICONS

There are 3 possible weather icons that will be displayed in the FORECAST LCD:

Sunny-indicates that the weather is expected to improve (not that the weather will be sunny).

Sun with Clouds-indicates that the weather is expected to be fair (not that the weather will be sunny with clouds).

Clouds with Rain-indicates that the weather is expected to get worse (not that the weather will be rainy).

GB P.12

P.13

GB

These icons indicate the expected weather change in the next 12 to 24 hours. The icon does not give an exact prediction of the weather, however it should be viewed as a generalization of the expected weather change (for example a "sunny" icon indicates the weather is expected to improve).

The weather icons change when the unit detects a change in air pressure. The icons change in order, from "sunny" to "partly sunny" to "cloudy" or the reverse. It will not change from "sunny" directly to "rainy", although it is possible for the change to occur quickly. If the symbols do not change then the weather has not changed, or the change has been slow and gradual.

B. WEATHER TENDENCY ARROWS

Other possible displays in the FORECAST LCD are 2 weather tendency arrows, one that points up (on the left side of the LCD) and one that points down (on the right side of the LCD). These arrows reflect current changes in the air pressure. An arrow pointing up indicates that the air pressure is increasing and the weather is expected to improve or remain good, an arrow pointing down indicates that the air pressure is decreasing and the weather is expected to become worse or remain poor.

II. INDOOR TEMPERATURE, HUMIDITY, AND COMFORT LEVEL INDICATOR

The current indoor temperature and relative humidity are displayed in the INDOOR LCD.

The comfort level indicator is located at the center of the INDOOR LCD. The indicator will display a happy face icon when the temperature is between 68^ and 78.6^ , and the humidity is between 45% and 65% . A sad face icon will be displayed when the temperature and humidity are outside the mentioned ranges.

III. OUTDOOR TEMPERATURE AND HUMIDITY / HEAT INDEX / DEWPOINT

The temperature and humidity received from the remote temperature/humidity sensor is viewed in the OUTDOOR LCD. When there is more than one remote temperature/humidity sensor unit in operation, a "boxed" number will appear to the center of the temperature. This indicates which remote temperature sensor unit (1, 2, or 3) is currently displaying its data in the OUTDOOR LCD. (This feature is explained in further detail in section VII-Adding Remote Temperature Sensors). The Heat Index and Dew

1. Press and release the OUT/MIN button again (once while MAX temperature is still displayed, twice otherwise). "MIN" appears with the outdoor temperature, indicating that the minimum temperature and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode
2. Press and release the OUT/MIN button again (once while "MIN" temperature is still displayed, 3 times otherwise). "MAX" appears with the outdoor humidity, indicating that the maximum humidity, and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode.
3. Press and release the OUT/MIN button again (once while MAX) humidity is still displayed, 4 times otherwise). "MIN" appears with the outdoor humidity, indicating that the minimum humidity and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode.
4. Press and release the OUT/MIN button again (once while "MIN" humidity is still displayed, 5 times otherwise). "MAX" appears with the heat index and, indicating that the maximum heat index, and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode.
5. Press and release the OUT/MIN button again (once while MAX" heat index is still displayed, 6 times otherwise). "MIN" appears with the heat index, indicating that the minimum heat index and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode.
6. Press and release the OUT/MIN button again (once while "MIN" heat index is still displayed, 7 times otherwise). "MAX" appears with the dew point, indicating that the maximum dew point, and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode.
7. Press and release the OUT/MIN button again (once while MAX) dew point is still displayed, 8 times otherwise). "MIN" appears with the dew point, indicating that the minimum dew point and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode.
8. While "MIN" is still displayed, press and release the OUT/MIN button again to return to the current data display. While in the record display mode, pressing any key except SET key will also return the display back to the current readings.

Point will then be calculated from the received temperature/ humidity readings.

IV. MINIMUM AND MAXIMUM TEMPERATURE, HEAT INDEX AND DEW POINT RECORDS

The WS-9118U keeps a record of the MINIMUM and MAXIMUM and date of their occurrence, for both the indoor and outdoor modes.

A. VIEWING THE INDOOR TEMPERATURE AND HUMIDITY RECORDS

1. Press and release the IN/HR button once. "MAX" temperature appears with the indoor temperature, indicating that the maximum temperature and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode.
2. Press and release the IN/HR button again (once while "MAX" temperature is still displayed, twice otherwise). "MIN" appears with the indoor temperature, indicating that the minimum temperature and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode.
3. Press and release the IN/HR button again (once while "MIN" temperature is still displayed, 3 times otherwise). "MAX" appears with the indoor humidity, indicating that the maximum humidity and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode.
4. Press and release the IN/HR button again (once while "MAX" humidity is still displayed, 4 times otherwise). "MIN" appears with the indoor humidity, indicating that the minimum temperature and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode.
5. While "MIN" is still displayed press and release the IN/HR button again to return to the current data display. While in the record display mode, pressing any key except SET key will also return the display back to the current readings.

B. VIEWING THE OUTDOOR TEMPERATURE/HUMIDITY/HEAT INDEX AND DEW POINT RECORDS

1. Press and release the OUT/MIN button once. "MAX" appears with the outdoor temperature, indicating that the maximum temperature, and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode.

P.15

GB

C. RESETTING THE MINIMUM AND MAXIMUM RECORDS To reset the INDOOR records:

1. Press and release the IN/HR button to select the record you wish to reset, either MAX or MIN.
2. Press and hold the SET button for 5 seconds.
3. The record is now reset and will show the current time in the TIME LCD and current indoor temperature or humidity in the INDOOR LCD.

To reset the OUTDOOR records:

1. Press and release the OUT/MIN button to select the record you wish to reset, either MAX or MIN
2. Press and hold the SET button for 5 seconds.
3. The record is now reset and will show the current time in the TIME LCD and current outdoor temperature, humidity, heat index or dew point in the OUTDOOR LCD.

V. MOON PHASE

There are 12 moon phases shown on the indoor weather station. Thus, when the moon icon is all white, it is a full moon.

New Moon Full Moon

Small Waxing Cresce

Taning Gibbous

Large Waxing Cresce

Taning Gibbous

First Quarter Last Qu

O Small Waxing Gibbou

Aning Crescent

Large Waxing Gibbou

Aning Crescent

VI. TIME ALARM

To set the time alarm:

1. Press and hold the ALM/+ button for 3 seconds.
2. The alarm time will begin to flash in the DATE LCD.
3. Press and release the IN/HR button to adjust the hour.

Note: When in the 12-hour mode and setting an alarm for a time between noon and midnight, "PM" will appear to the left of the alarm time in the DATE LCD.

1. Press and release the OUT/MIN button to adjust the minutes.

2. Press and release the SNZ/CH button to confirm the setting or wait for 15 seconds and the display will automatically return to the normal mode.

To activate the alarm:

1. Press and release the ALM+ button to toggle between the alarm time and the day and date.
2. When the alarm time and alarm icon are showing in the DATE LCD the alarm is activated.
3. When the day and date are showing in the DATE LCD the alarm is deactivated.

To activate the snooze:

1. While the alarm is sounding press and release the SNZ/CH button.
2. The snooze will be activated and the alarm will come back on after the selected time period.

VII. E.L BACK-LIGHT

1. The weather station has an EL backlight designed for night-viewing. This will light up for 10 seconds whenever any key is pressed.
2. The EL backlight cannot be turned on constantly; this would drain the batteries.

VIII. ADDING REMOTE TEMPERATURE/HUMIDITY SENSORS (OPTIONAL)

The WS-9118U is able to receive signals from 3 different remote temperature/humidity sensors. The remote temperature/humidity sensor model(s) that you choose will come with their own set of instructions-follow these instructions for a complete guide to setting up. Following are some brief instructions for the basic set-up of remote temperature/humidity sensor units with the WS-9118U. These extra sensors can be purchased through the same dealer as this unit, or by contacting La Crosse Technology directly. A TX4U will monitor temperature and humidity, a TX6U will monitor temperature only, a TX3U will monitor temperature and display the temperature on its LCD, and the TX3UP will monitor the temperature via a probe for use in pools, spas, etc.
Note: When setting up multiple units it is important to remove the batteries from all existing units in operation, then to insert batteries first into all the remote temperature sensor units. Wait until the first transmitter reception is received by the indoor weather station before inserting batteries into the next transmitter and so forth. After all the transmitters reception is received, install batteries into

GB P.18

temperature/humidity sensor or indoor weather station. While the remote temperature/humidity sensor is weather proof, avoid submersion in water or snow. We recommend that you mount the remote temperature/humidity sensor on an outside North-facing wall. The sending range is 330ft-obstacles such as walls, concrete, and large metal objects can reduce the range. Place both units in their desired location, and wait approximately 15 minutes before permanently mounting to ensure that there is proper reception. The indoor weather station should display a temperature and humidity in the OUTDOOR LCD within 4 minutes of setting up.

I. THE REMOTE TEMPERATURE/HUMIDITY SENSOR

The remote temperature/humidity sensor can be mounted in several ways:

• With the use of screws
  Using adhesive tape
• Using the bracket as stand

A. MOUNTING WITH THE SCREWS

1. Remove the mounting bracket from the outdoor temperature/ humidity sensor.
2. Place mounting bracket over desired location. Through the 3 screw holes of the bracket, mark the mounting surface with a pencil.
3. Where marked, drill holes into mounting surface using an appropriate size drill bit.
4. Screw mounting bracket onto the mounting surface. Ensure that the screws are flush with the bracket.
5. Snap the outdoor temperature/humidity sensor into place on the mounting bracket.

B. MOUNTING WITH ADHESIVE TAPE

1. With a nonabrasive solution, clean and dry the back of the mounting bracket and the mounting surface to ensure a secure hold. The mounting surface should be smooth and flat.
2. Remove the protective strip from one side of the tape. Press firmly into the designated area on the back of the mounting bracket.
3. Remove the protective strip from the other side of the tape, and position the outdoor temperature/humidity sensor in the desired location.

C. MOUNTING USING THE BRACKET AS A STAND

The mounting bracket can be used as a stand by simply attaching the bracket to the bottom of the temperature/humidity sensor. Once snapped in place the sensor can then be placed on a shelf, table

the indoor weather station. Transmission problems will arise if this is not done correctly and if the total time for set-up exceeds 4 minutes.

A. SET-UP OF MULTIPLE UNITS

1. It is necessary to remove the batteries from all units currently in operation.
2. Remove the battery covers to all remote temperature/humidity sensor units.
3. Place all remote temperature/humidity sensor units in a numeric sequential order.
4. In sequential order, install batteries (follow the same battery installation procedures seen in section I. A) of the Detailed Set-Up Guide).
5. Install batteries into the indoor weather station.
6. Follow the Detailed Set-Up Guide for programming and operating instructions.

B. VIEWING AND OPERATING WITH MULTIPLE REMOTE TEMPERATURE/HUMIDITY SENSOR UNITS

1. To view the temperature, humidity, heat index and dew point of a different remote temperature sensor unit, press and release the SNZ/CH button. A shift from one "boxed" number to the next should be observed in the OUTDOOR LCD.
2. To view the Minimum/Maximum temperature, humidity, heat index and dew point: first select which remote temperature/ humidity sensor to read data from (indicated by the "boxed" number), then press the OUT/MIN button. To view the readings from different transmitters, follow IV.B. Viewing the Outdoor Temperature/Humidity/Heat Index/ and Dew Records paragraph above.
3. To reset the Minimum/Maximum readings, select first which remote temperature/humidity sensor to read data from. Press the OUT/MIN button to view the outdoor MIN/MAX records. Then follow the steps in IV.C. Resetting the Minimum and Maximum Records paragraph above.

MOUNTING

Note: Before permanently mounting ensure that the indoor weather station is able to receive WWVB signals from the desired location. Also, extreme and sudden changes in temperature will decrease the accuracy of the indoor weather station, and changes in elevation will result with inaccurate weather forecasting for the next 12 to 24 hours. These changes will require a 12 to 24 hour wait before obtaining reliable data. To achieve a true temperature reading, avoid mounting where direct sunlight can reach the remote

P.19

GB

or other surface where the temperature and humidity measurements are desired.

II. THE INDOOR WEATHER STATION

The indoor weather station can be mounted in several ways:

With the use of screws
Using its foldout stand

A. MOUNTING WITH SCREWS

1) Fix a screw (not included) into the desired wall, leaving approximately 3/16 of an inch (5mm) extended from the wall.
2) Place the indoor weather station onto the screw using the hanging hole on the backside.
3) Gently pull the indoor weather station down to lock the screw into place.

B. USING THE TABLE STAND

1) The indoor temperature station comes with the table stand already mounted. If you wish to use the table-stand all that is required is to place the indoor temperature station in an appropriate location.

TROUBLESHOOTING

NOTE: For problems not solved, please contact La Crosse Technology.

Problem: No reception of WWVB time signal. Solution:

1) Wait overnight for signal.
2) Be sure indoor weather station is at least 6 feet from any electrical devices, such as televisions, computers, or other radio-controlled clocks.
3) Remove batteries for five minutes, reinsert and leave the unit alone overnight without pressing buttons.
4) If there are still problems, contact La Crosse Technology.

Problem: Hour is incorrect (minute and date are correct). Solution:
Be sure correct time zone and daylight saving time settings are selected.

Problem: The LCD is faint.

Solution:

1) Set the LCD contrast to a higher number.
2) Replace the batteries

P.21

GB

Problem: No outdoor temperature/humidity is displayed. Solution:

1) Remove all batteries, reinsert into remote temperature/humidity sensor first, then the indoor weather station.
2) Place the remote temperature/humidity sensor closer to the display.
3) Be sure all batteries are fresh.
4) Place the remote temperature/humidity sensor and indoor weather station in position so the straight-line signal is not passing through more than two or three walls.

Problem: Temperatures do not match if units are placed next to each other.

Solution:

Each temperature/humidity sensor is manufactured to be accurate to within 2 degree plus or minus and under normal conditions, so two sensors could be as much as 4 degrees different. However, the difference can be exaggerated further because the sensors are designed for different working environments. The indoor temperature sensor is less responsive to ambient air currents because of the shielding effect of the display's case. In addition, the case can act as a heat sink to absorb and store heat from external sources (i.e. handling of the case or radiant heat). Also, the much greater range of the remote temperature/humidity sensor requires a different calibration curve than the indoor range. Error is usually greater at the extreme ends of a range, making it harder to compare different ranges with different curves. Under non

MAINTENANCE AND CARE INSTRUCTIONS

• Extreme temperatures, vibration, and shock should be avoided to prevent damage to the units.
• Clean displays and units with a soft, damp cloth. Do not use solvents or scouring agents; they may mark the displays and casings.
• Do not submerge in water.
• Immediately remove all low powered batteries to avoid leakage and damage.
• Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs.

SPECIFICATIONS

Weather data measuring range:

Indoor Temperature: 14.1°F to 139.8°F with 0.2°F resolution

"OFL" displayed if outside this range

Outdoor Temperature and Dew Point:

-21.9°F to 157.8°F with 0.2°F resolution for

Temperature; with 1^ for dew point

resolution "OFL" displayed if outside this

range and "OF" for Dew Point

Heat Index

0^ to 217F with 1F resolution. "OFL

displayed if outside or above the range

"OFL" displayed if outdoor temperature is

less than 0^ or greater than 139.8

Same as outdoor temperature if outdoor

temperature is between 0^ and 64^

Indoor relative humidity measuring range:

1% to 99% with 1% resolution
(- - displayed if outside this range)

Outdoor relative humidity measuring range

1% to 99% with 1% resolution
(- - " displayed if outside this range)

Weather data checking interval:

Indoor temperature checking interval: Every 15 seconds Indoor humidity checking interval: Every 20 seconds

Outdoor temperature checking interval Every 1 minute (remote temperature/humidity sensor):

Outdoor humidity checking interval Every 1 minute

(remote temperature/humidityensor):

Outdoor temperature and humidity Every 5 minutes reception (indoor weather station):

Outdoor Dew Point and Heat Index Every 5 minutes

(afterreceptionof

temperature/humidity)

Transmission range: 330 feet / 100 meters

(in open space)

Power Supply:

Indoor weather station: 3 × AA , IEC LR6, 1.5V
Remote temperature/humidityensor:2xAA,IEC LR6,1.5V
Battery life cycle: Approximately 12 months
Recommended battery type: Alkaline

Dimensions (H x W x D):

Indoor weather station: 7.08" x 3.96" x 1.22"

(180× 100.8× 31.2mm) Remote temperature/humidity sensor: 6.29^× 1.69^× 0.90^*

(160 x 43 x 23mm)

GB P.22

P.23

GB

WARRANTY INFORMATION

La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only on products purchased and used in North America and only to the original purchaser of this product. To receive warranty service, the purchaser must contact La Crosse Technology, Ltd for problem determination and service procedures. Warranty service can only be performed by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd's authorized service center.

La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of La Crosse Technology, Ltd and must be returned to La Crosse Technology, Ltd. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd will pay all expenses for labor and materials for all repairs covered by this warranty. If necessary repairs are not covered by this warranty, or if a product is examined which is not in need or repair, you will be charged for the repairs or examination. The owner must pay any shipping charges incurred in getting your La Crosse Technology, Ltd product to a La Crosse Technology, Ltd authorized service center. La Crosse Technology, Ltd will pay reasonable return shipping charges to the owner of the product.

Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier); (3) damage to, or deterioration of, any accessory or decorative surface; (4) damage resulting from failure to follow instructions contained in your owner's manual; (5) damage resulting from the performance of repairs or alterations by someone other than an authorized La Crosse Technology, Ltd authorized service center; (6) units used for other than home use (7)

applications and uses that this product was not intended or (8) the products inability to receive a signal due to any source of interference. This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances.

LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL. CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF CHILDREN'S REACH.

This warranty gives you specific legal rights. You may also have other rights specific to your State. Some States do no allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you.

For warranty work, technical support, or information contact:

La Crosse Technology, Ltd

190 Main Street

La Crescent, MN 55947

Phone:[phone]

Fax:[phone]

e-mail:

[e-mail]

(warranty work)

[e-mail]

(information on other products)

web:

www.lacrossetechnology.com

Questions? Please see instruction video at

www.lacrossetechnology.info/9118

All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher.

This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their consequences.

All trademarks and patents are acknowledged.

GB P.26

TABLE DES MATIÈRES

B. FLECHES DETENDANCE

B. MISE EN PLACE AVEC LE RUBAN ADHESIF

INFORMATIONS SUR LA GARANTIE

La Crosse Technology, Ltd

190 Main Street

La Crescent, MN 55947

TéI:507.895.7095

Fax:[phone]

e-mail:

[e-mail]

La Crosse Technology, Ltd

190 Main Street

La Crescent, MN 55947

Telfono:507.895.7095

Fax:[phone]

e-mail:

[e-mail]
