USER MANUAL V15 LA CROSSE TECHNOLOGY

LA CROSSE® TECHNOLOGY

TODAY 20° 48:37 THUR 15° 52° 44° FRI 75° 47° 39° Extended Forecasts Extra Sensor Current Conditions 2992 ° 72.3 48° WEDNESDAY OCT/26/22 12:34 PM LA CROSSE TECHNOLOGY

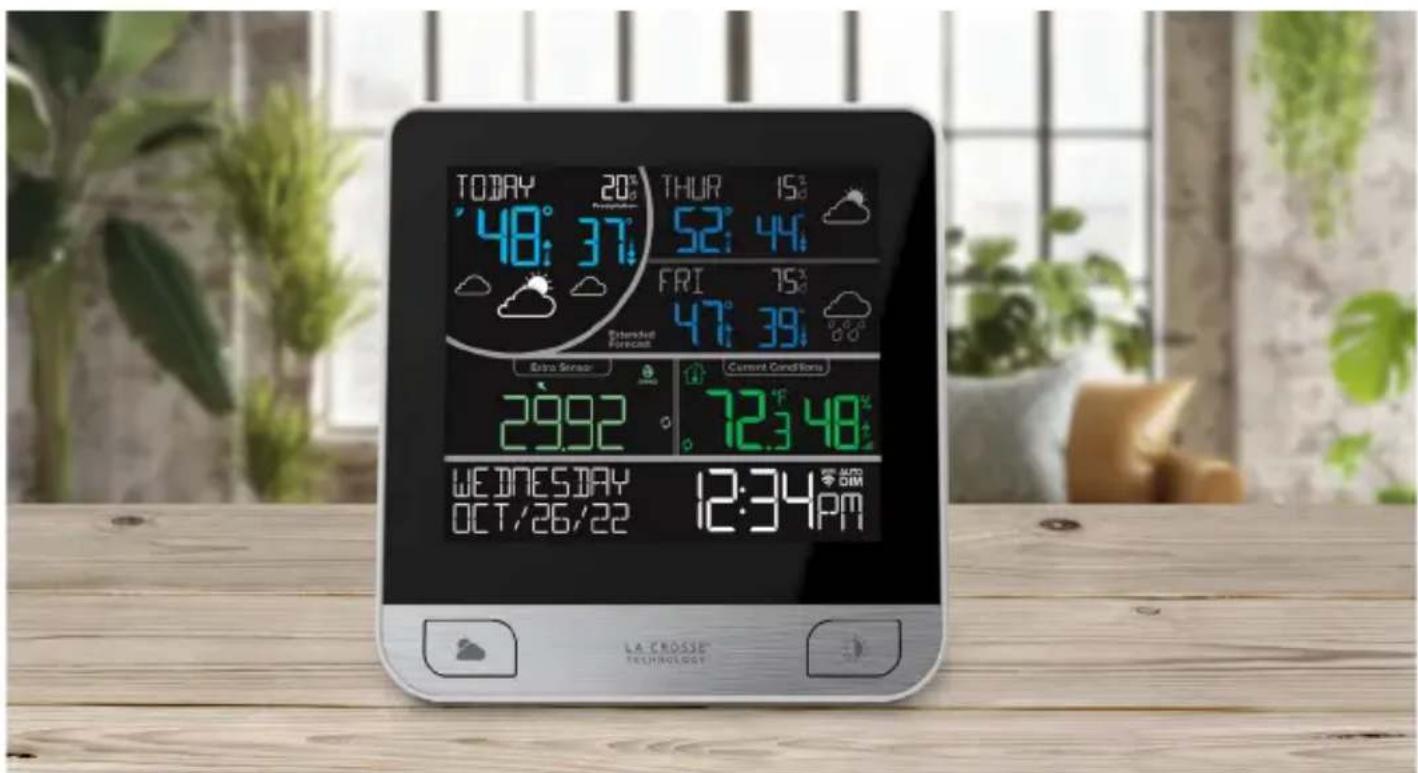

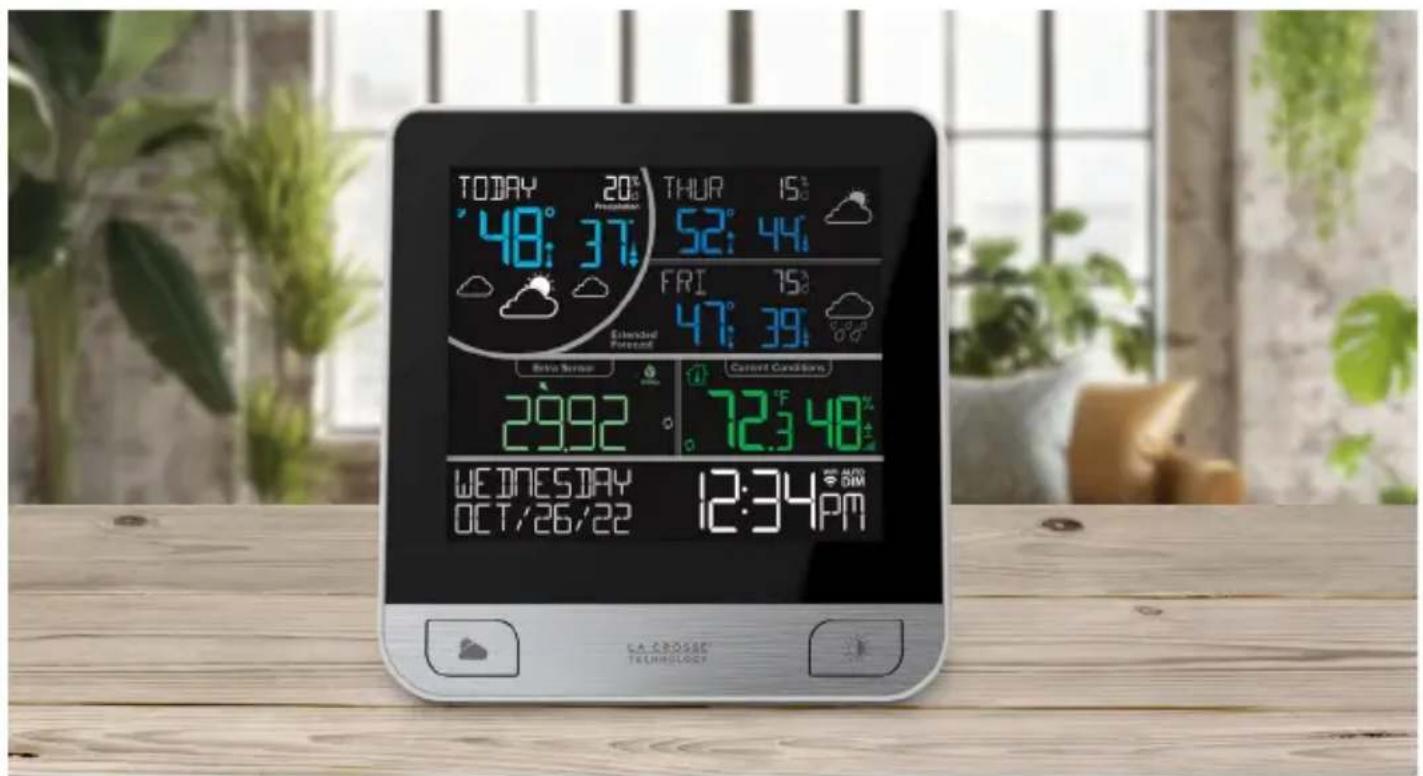

Wi-Fi COLOR FORECAST STATION

SET UP GUIDE

MODEL NUMBER V15

Table of Contents

BASICS

Initial Setup 02
Station Settings 06
Buttons 07
LCD Display Brightness 08
Auto-Dim Settings 08

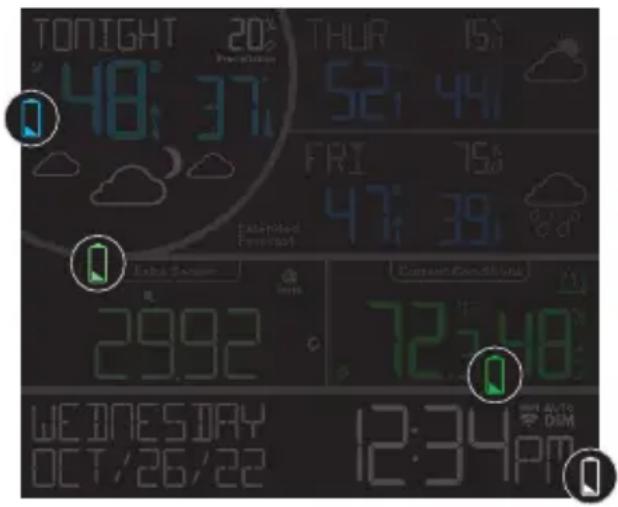

Low Battery Indicators 16

LA CROSSE VIEW

Connecting to the App
Connecting Your Station
Adding Your Sensor to the App
Manually Add Sensor to the App

TEMP. AND HUMIDITY

03 Viewing Current 09-13
04 Conditions
05 Accessing Indoor/Outdoor 09
Readings
05 Viewing TH Records 12
Temp. & Humidity Alerts 13

FORECAST

Viewing Your Forecast Data 13
Viewing Extended Forecasts 14
Standalone Forecast Icons 15
Enhanced Forecast Data 15
Relative Pressure 16

SENSORS

Placement & Mounting
Add-On Sensors
Adding Extra Sensors

APPENDIX

17 Cautions/Statements 18-20
17 Warranty 19
17 Recycling & Disposal 19
Specifications 19
FCC Statement 20
Canada Statement 20

SUPPORT

We're Here to Help 21
Factory Reset 21
Stay in Touch 21

BASICS

Initial Setup

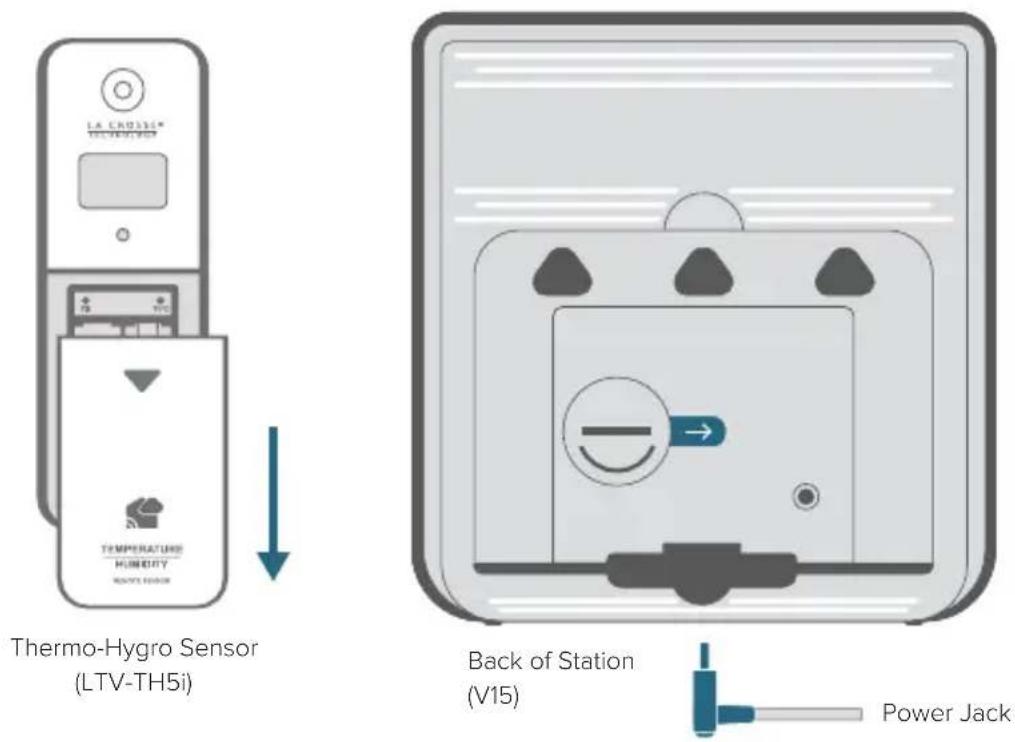

Power Up

Weather Station

Insert the 5V Power Adapter into an outlet, and then plug it into the Power Jack on the back of the station. Next, remove the Insulation Tab from the Station's Battery Compartment.

Thermo-Hygro Sensor

Install 2 fresh "AA" batteries according to polarity and replace battery cover. The blue LED light will flash when transmitting.

LA CROSSE VIEW

Connecting to the App

La Crosse View®

Stay connected to your home anytime, anywhere with the La Crosse View app.

Monitor your home environment and set custom alerts to notify you when conditions change.

Connecting your station is optional and the display will function as a standalone unit without the Wi-Fi connection. However, we recommend connecting during the initial setup, as it will save you time and allows access to some advanced features right away.

Download the La Crosse View App

Visit the App Store or Google Play Store to download the free La Crosse View app onto your mobile device.

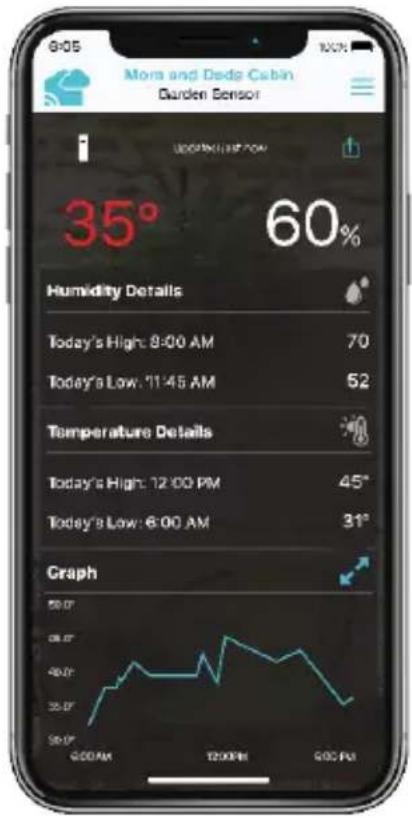

Launch the App

Open the La Crosse View app. Follow the on-screen setup instructions to create an account, add new devices, and connect your station to your Wi-Fi network.

6:05 Mona and Dede Cabin Garden Sensor 35° 60% Humidity Details Today's High: 9:00 AM 70 Today's Low: 11:45 AM 52 Temperature Details Today's High: 12:00 PM 45° Today's Low: 6:00 AM 31° Graph

Download on the App Store GET IT ON Google Play

Connecting Your Station to the App

Now that you've created your La Crosse View account, it's time to add your station into your account and connect your station to your home router using the La Crosse View app.

NOTE: For the steps listed on the next page, you'll need your Wi-Fi network name (SSID) and password. Make sure your mobile device is connected to the same Wi-Fi network.

LA CROSSE VIEW

Adding & Connecting Your Station to Wi-Fi

1. The La Crosse View app is required to connect the station to your Wi-Fi network. Download, install, and log into your La Crosse View account first.

Follow the initial app instructions or manually add the display into your account. 2.

New User Initial Setup: When first setting up your station, the app will lead you through a series of instructions to help get your station added into your account and connected to your home Wi-Fi network.

Manually Add & Connect Display: After the initial walkthrough, stations can be added and connected via the Devices tab in the app's main menu. Simply tap the Add Device or + button at the bottom of the Devices page in the app.

1. Next, the app will prompt you to use your phone to scan the device ID barcode located on the back of the station. Please note, adding a device to your account and connecting it to Wi-Fi are two different steps. You can complete either step separately after if you have any trouble.
2. When connected, the station will beep, and time and forecast information should populate on the display. The WiFi indicator will become solid.

Checking Your Station's Wi-Fi Status

Press the SET button on the top of the station to view your Wi-Fi Status.

ALL OK CONNECTED 12:34PM

ALL OK CONNECTED: Your station is connected to your Wi-Fi and its data should be available on the station and in the app.

SEE APP TO CONNECT

SEE APP TO CONNECT: Check the app for notifications.

NO WEATHER SERVICE

NO WEATHER SERVICE: Your Internet weather and time services are not connecting. These should resolve on their own, please be patient.

LOST WIFI 12:34PM

LOST WIFI: Check your router and network connections.

Having Trouble Connecting to Wi-Fi?

The app should guide you through the best method for your Wi-Fi network and router. However, if you have trouble connecting, please go to: bit.ly/v15_wifi or scan the QR code. This will explain additional connectivity options, including connecting by WPS or contacting our technical support team for further assistance.

LA CROSSE VIEW

Add Your Sensors to the App

Cancel Add Device Save Please wait up to 10 minutes for your additional devices to connect to your account.

Upon getting the station connected to your Wi-Fi network, the app will explain how your connected sensor should be brought in. Within the next 15 minutes, you should receive an Add Device notification in your app. This is indicated by the Red Cloud and the numbers inside of it. Tap this icon to begin adding your sensor into the app.

Manually Add Your Sensor to the App\*

1. Open your La Crosse View app. On the Main Menu, scroll to ADD/EDIT and select DEVICES.
2. On the Devices page, select the ADD DEVICE or PLUS (+) button.

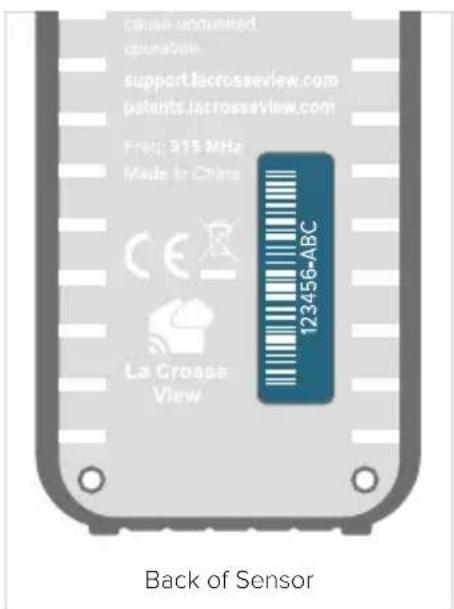

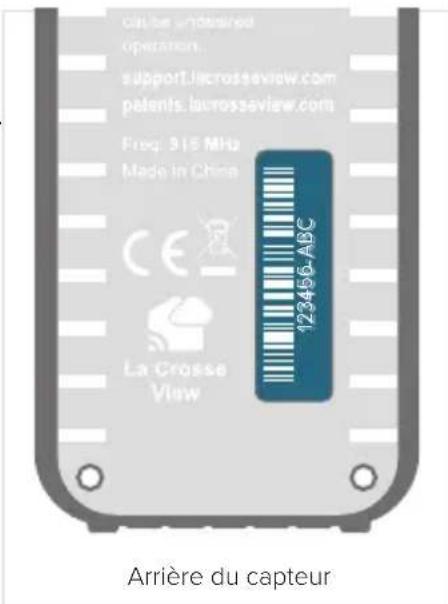

3. Scan the Barcode on your Sensor or type in the Device ID manually.
4. Confirm the sensor image and Device ID and add a Device Name and Location Name. Select DONE.

A.10.12 LOCALITYS DEVICES ARTIS

Devices Add Devices Device Store ADD DEVICE

Add Device Scan Device ID Model: Inverse or Disleading. Save the Scan device to select by the Scan Device ID. Open: 100% scan device ID File Path... Scan device will be easily ready. Save the device regularly. Read only. Scan to 10 samples D:\3485.ABC

cause-unbursed operation. support.lacrosseview.com patents.lacrosseview.com Freq: 315 MHz Made in China CE La Crosse View Back of Sensor 123456-ABC

123456-ABC

BASICS

Station Settings

When the station is first powered on, it will begin searching for the sensor, which should connect within 10 minutes.

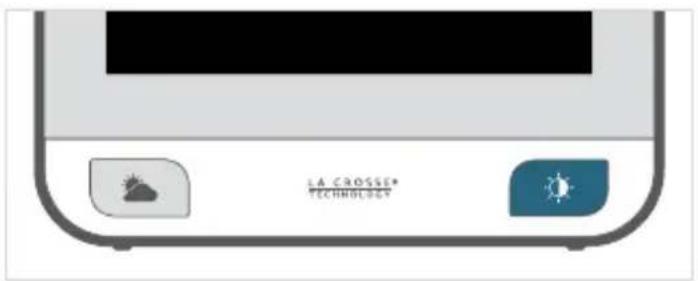

Navigating the Settings Menu

ALBERTA TEMP: EXTRA SENSOR + SET - INPUT FORECAST REFRESH

1. To manually set language, time/date, and other settings, hold the SET button to enter the Settings Menu.

ALL TIME EXTRA SENSOR + SET - PRINT FORECAST REFRESH

1. Use the +/- buttons on the top of the station to adjust the values.

ALERTS TEMP EXTRA SENSOR + RET - INPUT FORECAST REFRESH

1. Press the SET button to confirm your selection and move to the next setting.

LA CROSSE TECHNOLOGY

1. You may exit the Settings Menu at any time by pressing the 🔒 button on the front of the station.

Settings Menu Order

• Greeting/HELLO
  • Language (English/Spanish/French/German)
• Beep ON/OFF
  • 12/24 Hour Time Format

• Hour | Minute | Year | Month | Date

• Calendar Order Month/Date or Date/Month

• Temperature Units (Fahrenheit/Celsius)

• Pressure Units (InHg/hPa)

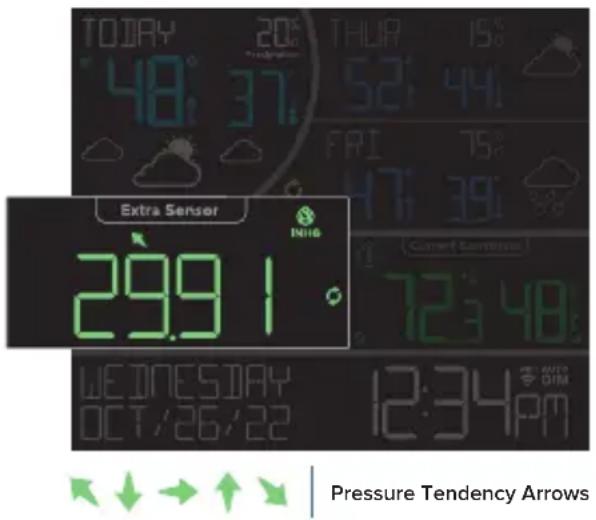

• Pressure Number Setting

The default pressure reading is 29.91 INHg (1013 hPa). The station will acclimate on it's own if the pressure number is not set. Learn more on page 16

- THANK YOU

Important: Settings such as language and units of measure must be set manually within the station's Settings Menu. These are not controlled by the La Crosse View app.

• The language selected will affect menu instructions as well as weekday and month readouts.
• Weekday will set automatically after year, month, and date settings are adjusted.
• When in 24 hour time format, seconds will show in place of AM/PM markings.
• If you're connected to Wi-Fi, the time/date will automatically update from the Internet. See pages 3-4 for more info.

BASICS

Buttons


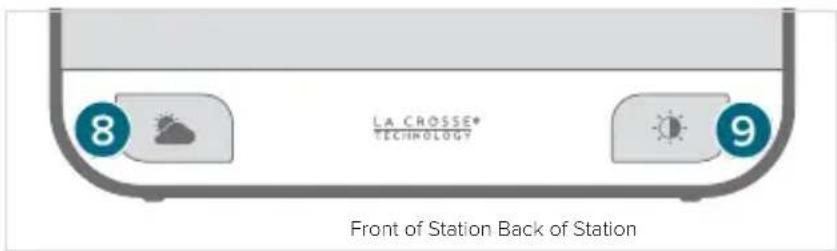

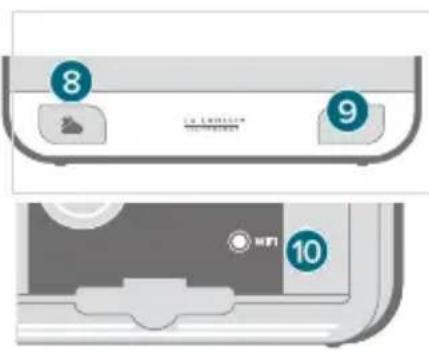

LA CROSSE® TECHNOLOGY 8 9 Front of Station Back of Station

10 WIFI

1. ALERTS: Hold to enter alerts setting. Use +/- buttons to turn alerts on/off.
2. EXTRA SENSOR: Press to view sensor ID numbers. Hold to add sensors. While viewing, hold the MINUS button delete the sensor.
3. PLUS/MINUS (+/-): Use to adjust values.
4. FORECAST REFRESH*: Press to refresh Forecast Readings.

5. BACKLIGHT (☐): Press to adjust backlight. Hold to enter Auto-Dim settings.

6. TEMP: Press to view Temp. & Humidity History. While viewing, hold MINUS button to reset the history reading.

7. SET: Press to view Wi-Fi status. Hold to enter Settings Menu.
8. IN/OUT: Press to view switch between Indoor Outdoor Temperature/Humidity display or autoscroll
9. FORECAST/PRECIP. (✗)*: Press to change Forecast Times. Hold to select Percent of Precipitation or Amount of Precipitation reading.
10. WIFI: Press during initial setup for Wi-Fi Connection. Hold to re-enter Configuration Mode and clear previous Wi-Fi settings.

BASICS

LCD Display Brightness

LA CROSSE® TECHNOLOGY

Auto-Dim Settings

Program your display to automatically dim during preselected times.

1. Hold the 🔊 button to enter the Auto-Dim Settings Menu.
2. Press the +/- buttons to turn the Auto-Dim feature on or off. Press 🔒 to confirm.
3. Press the +/- buttons to adjust the starting hour. Press 🔍 to confirm.
4. Press the +/- buttons to adjust the stopping hour. Press ⚙ to confirm and exit.

Please Note: Only the hour can be set.

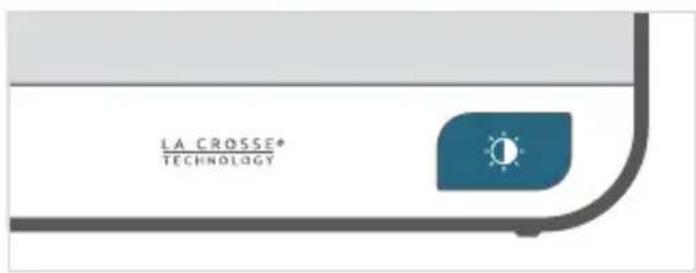

Adjusting the LCD Display Brightness

Press the ⚙ button to adjust the backlight intensity. There are 4 brightness levels, plus an off option.

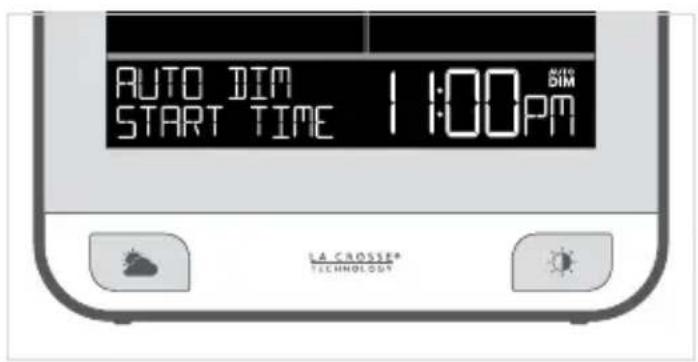

AUTO DIM START TIME 1:00PM LA CROSSE® TECHNOLOGY

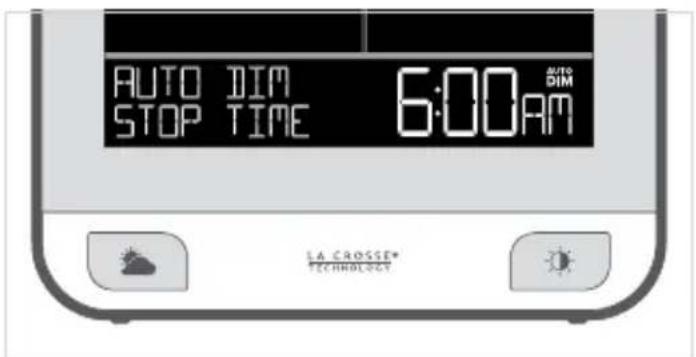

AUTO DIM STOP TIME 6:00 AM AUTO DIM LA CROSSE® TECHNOLOGY

The Auto-Dim Icon (AUTO DIM) will appear on the LCD when the Auto-Dim feature is activated.

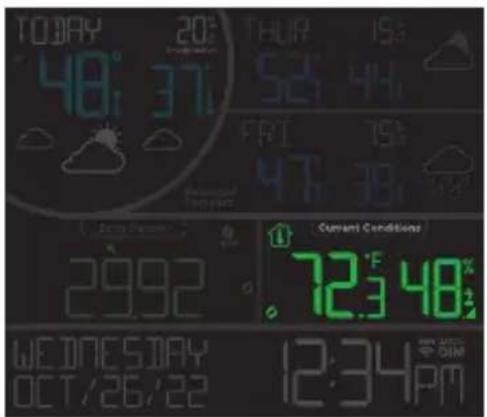

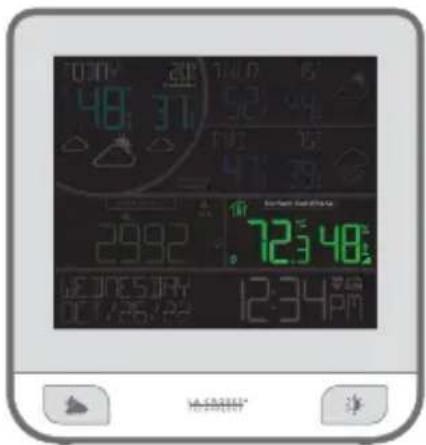

Viewing Current Conditions

00:00 48 31 52 44 47 38 2982 72348 12:34 PM 12:34 PM

Your indoor/outdoor temperature & humidity readings share the same section on the LCD.

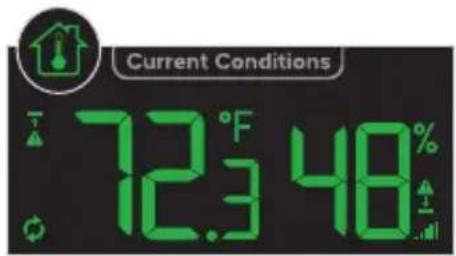

Current Conditions 72.3 48%

Indoor Data Example Indicated by house icon in top left

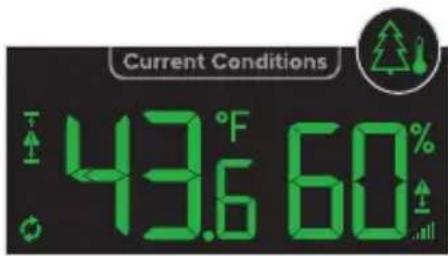

Current Conditions 43.6 60%

Outdoor Data Example Indicated by tree icon in top right

IN/OUT FORECAST REFRESH

Accessing Indoor/Outdoor Readings

Press the IN/OUT button on the top of the station to switch between Indoor & Outdoor readings, or select the Auto-Scroll option to alternate between readings.

AUTOSCROLL TEMP DATA LA CROSSE* TECHNOLOGY

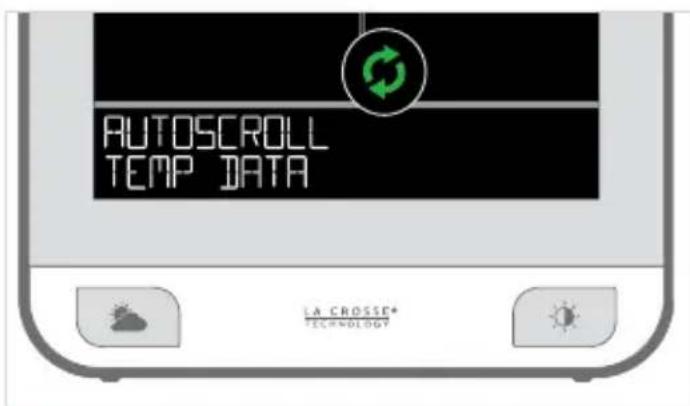

Programming the Auto-Scroll Option

Press the IN/OUT button until AUTOSCROLL TEMP DATA appears on the LCD.

The Auto-Scroll icon (💡) located in the bottom left corner will appear when active.

To deactivate the Auto-Scroll option, press the IN/OUT button until the Auto-Scroll Icon (💡) disappears. The station will stay on your current selection.

Viewing Current Conditions

TODAY 48:37 20: THUR 15: 52:44 FRI 79: 47:78 Current Conditions 2992 72.348% WEDNESDAY OCT/26/22 12:34PM

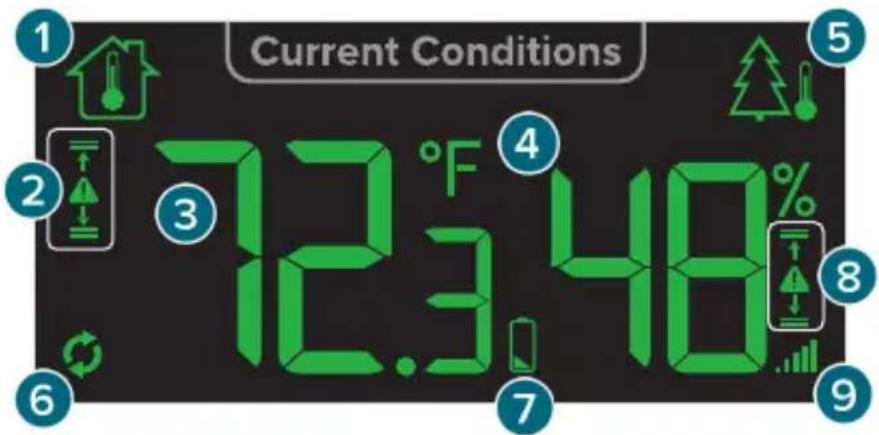

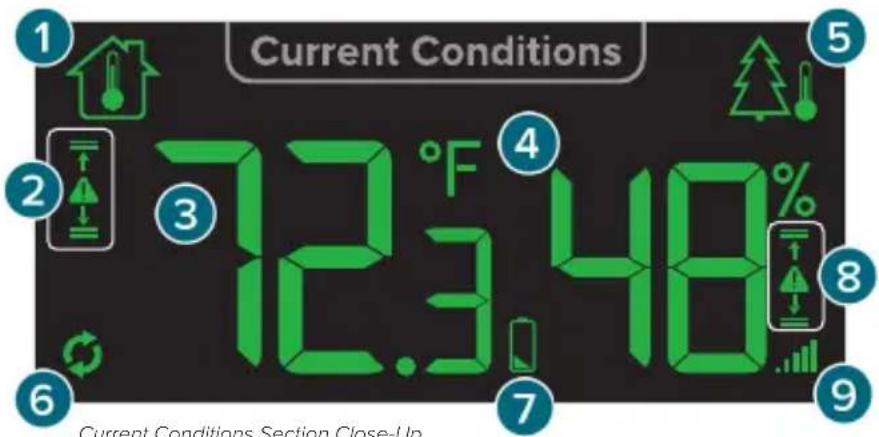

Current Conditions 1 2 3 7 12.3.48% 4 5 6 7 8 9 Current Conditions Section Close-Up

1. INDOOR ICON ( ↑ )

Indicates you are viewing indoor temperature and humidity

3. INDOOR OR OUTDOOR TEMPERATURE

Current indoor or outdoor temperature (based on setting)

5. OUTDOOR ICON (△)

Indicates you are viewing outdoor temperature and humidity

7. LOW BATTERY INDICATOR (☐)

Indicates the batteries in the thermo-hygro sensor should be replaced soon

2. TEMPERATURE ALERT ICONS

Indicates an active high ( ) or low ( ) temperature alert

4. INDOOR OR OUTDOOR HUMIDITY

Current indoor or outdoor humidity (based on setting)

6. AUTO-SCROLL ICON (☐)

Icon will appear when auto-scroll is active

8. HUMIDITY ALERT ICONS

Indicates an active high ( 1 ) or low ( 1 ) humidity alert

9. SENSOR RECEPTION INDICATOR (..)

Indicates if the station is receiving data from the thermo-hygro sensor

Viewing Current Conditions

ALERTS TEMP. EXTRA SENSOR

Viewing Records

Press the TEMP. button to toggle through indoor/outdoor temperature and humidity records with time and date stamps.

Records Viewing Order

• Outdoor High Temperature
• Outdoor Low Temperature
• Outdoor High Humidity
• Outdoor Low Humidity
- Indoor High Temperature
- Indoor Low Temperature
- Indoor High Humidity
- Indoor Low Humidity

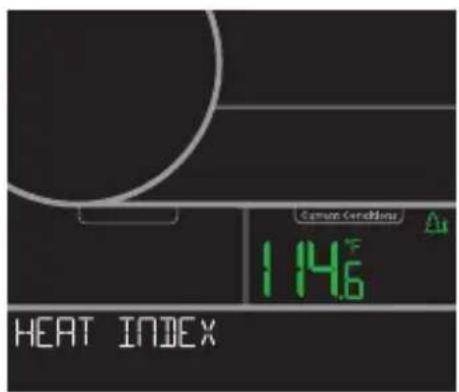

- Heat Index
- Dew Point

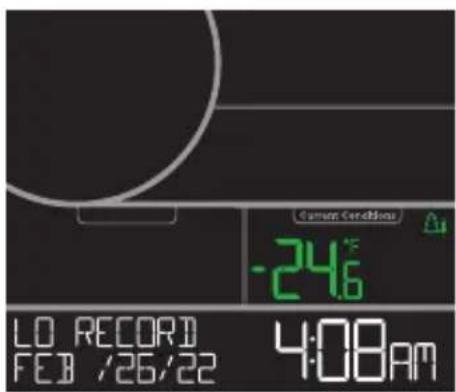

Current Condition -24.6° LO RECORD FEB /26/22 4:08AM

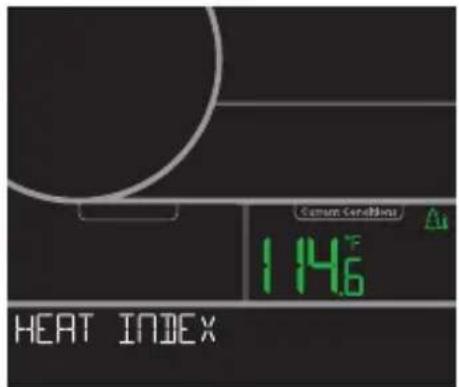

Carbon Conditions 114.6 Δt HEAT INDEX

Outdoor Low Temperature Record Example Heat Index Example

Resetting Individual Records

ALERTS TEMP EXTRA SENSOR + SET - INPUT FORECAST REFRESH

Press the TEMP. button to view the individual values you'd like to reset.

ALERTS TEMP. EXTRA SENSOR. + SET - OUTPUT FORECAST® REFRESH

Next, hold the MINUS (-) button until dashes appear on the LCD. This reading is now reset to your current temperature or humidity value.

Setting Custom Alerts

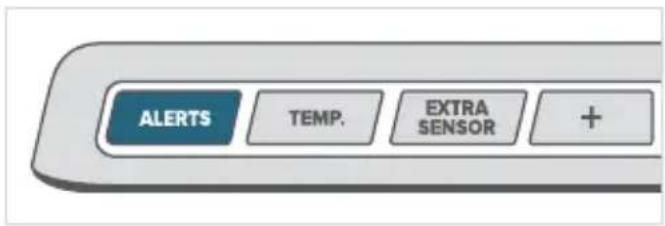

1. Hold the ALERTS button to enter the Alert Settings Menu.
2. Use the +/- buttons to activate/deactivate individual alerts, or press the ALERTS button to skip to the next alert option.
3. Once activated, use the +/- buttons to adjust the alert value. Press the ALERTS button to confirm and move forward.

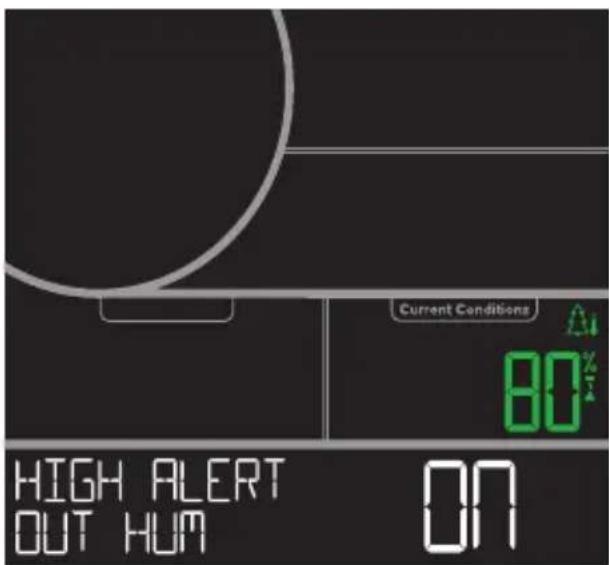

Current Conditions 80% HIGH ALERT OUT HUM ON

Outdoor High Humidity Alert LCD Example

Active alerts are indicated by the ▲ and ⬆/⊥ icons in the Current Conditions section on the screen.

Note: The default setting for alerts is OFF.

Alerts Setting Order

Outdoor High Temperature • Outdoor Low Temperature • Outdoor High Humidity • Outdoor Low Humidity Indoor High Temperature • Indoor Low Temperature • Indoor High Humidity • Indoor Low Humidity

ALERTS TEMP. EXTRA SENSOR +

Activating/Deactivating Alerts

1. Hold the ALERTS button to enter alert settings.
2. Use the +/- buttons to activate/deactivate alerts.

Alerts Sounds

• If the alert sounds and you do not see a flashing alert icon, press the IN/OUT button to view the other reading.
• When an alert value is reached, the station will beep 5 times each minute until the value moves out of the alert range.
• Press any button to stop the alert sound.
• Alerts set on the station are separate from those created within the app.

FORECAST

Viewing Your Forecast Data

You can view up to 6 days of forecasts and 12 hours of forecast data. The default display will show your current and following 2 days of forecasts, detailing weather conditions, chance of precipitation, and high/low temperature predictions.

TODAY 20° 48:37 THUR 15° 52:44 FRI 75° 47:39 Extended Pastoral 2992 12:48 WEEDNESDAY 12:34PM OCT/26/22

TODAY 20% Precipitation 1° 48° 37° THUR 15° 52° 44° FRI 75° 47° 39° Extended Forecast

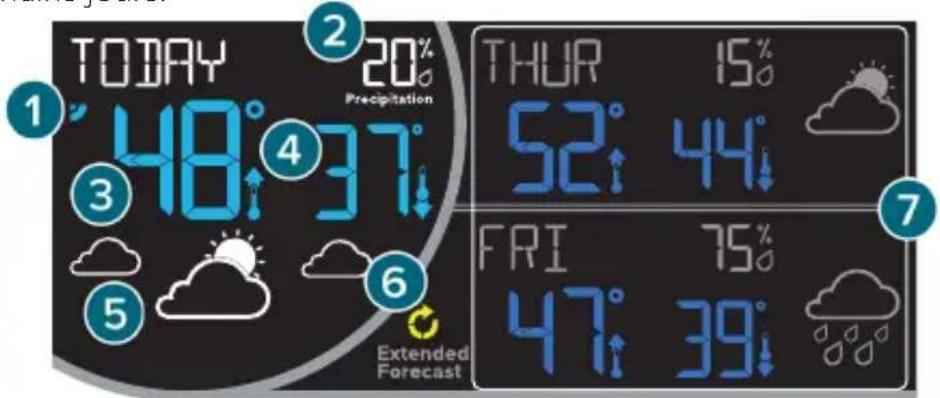

Forecast Section Close-Up

Indicates the station is connected and receiving AccuWeather forecasts*

3. DAILY FORECASTED HIGH TEMPERATURE

Forecasted daily high temperature*

5. FORECAST ICONS

Predicts weather conditions in the next 12 hours**

7. EXTENDED FORECAST SECTION

Forecast icons and daily forecasted highs and lows for the next 2 days

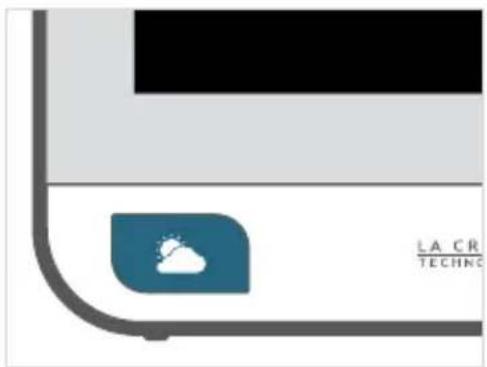

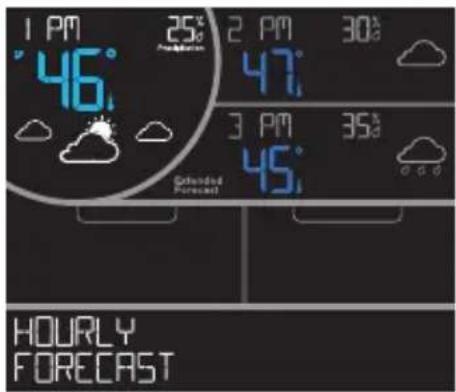

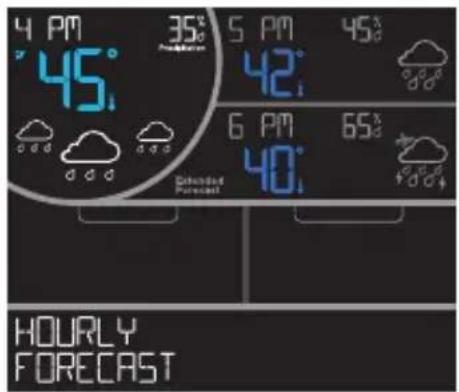

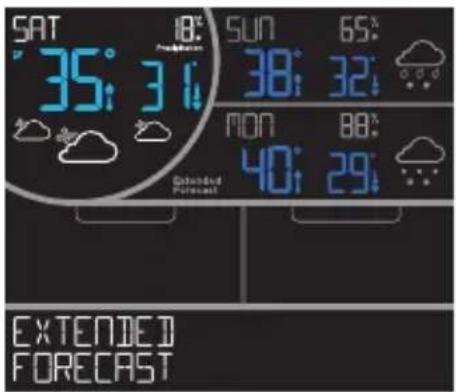

Press the 🔒 button to view additional 3-day and 12-hour forecast information

2. CHANCE OF PRECIPITATION

Percent chance of precipitation*

Hold button to view amount of precipitation*

4. DAILY FORECASTED LOW TEMPERATURE

Forecasted daily low temperature*

6. FORECAST REFRESH ICON (○)

Press the FORECAST REFRESH button to refresh the 3-day forecast. The icon will cycle for 30 seconds***

* Your display must be connected to Wi-Fi to receive AccuWeather forecast data.
** When connected, your station will display 6 additional forecast icons.
*** Refreshing the forecast may result in the same readings if they are current.

FORECAST

Viewing Your Forecast Data

Viewing Extended Forecast

Press the 🔒 button to view the next 3 days and next 12 hours forecast.

Pure graphical icon showing a cloud with a sun and partial text 'LA CR TECHNO' (no readable document content)

Extended Forecast Examples

SAT 35:31 18:00 Sun 38:32 65: MON 40:29 88: Extended Forecast EXTENDED FORECAST

Forecast data for upcoming 4-6 days Forecast data for next, 2

1 PM 25° Preparation 46° 2 PM 30% 47° 3 PM 35% 45° Extended Forecast Hourly FORECAST

nd, and 3rd hours Forecast data for upcoming 4

4 PM 35° Preparation 45° 5 PM 45° 42° 6 PM 65° 40° +dd + Deferred Forecast Hourly FORECAST

^m , 5^m , and 6^m hours

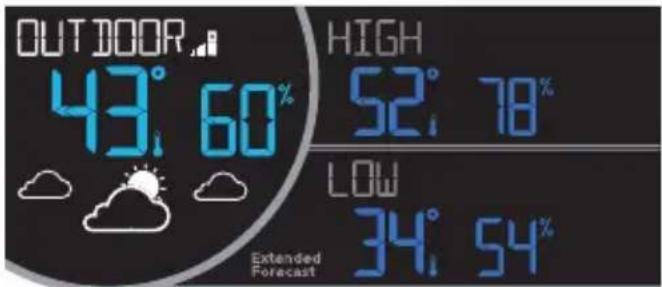

Forecast When not Connected Day/Night Forecast

When station is not connected, you'll see current temperature and humidity, as well as daily high/low temperature and humidity records from your sensor.

OUTDOOR 43° 60% HIGH 52° 78% LOW 34° 54% Extended Forecast

Forecast icons will only appear in the circular area.

When connected, the sun icon will show in daylight hours and the moon icon will show during nighttime hours if the forecast is for sunny or partly sunny.

Simple line drawing of a sun partially covered by clouds against a dark background (no text or symbols)

Simple weather icons showing cloudy, moon, and cloud shapes on dark background (no text or symbols)

Sun Icon (7:00am to 6:59pm) Moon Icon (7:00pm to 6:59am)

• The times the sun and moon icons appear are pre-programmed and cannot be adjusted.
• The station must be connected Wi-Fi to activate the day/night forecast feature.

FORECAST

Viewing Your Forecast Data

Forecast Icons

When using as a standalone station, the display will use changes in barometric pressure to predict your weather to come in the next 12 hours. These will be represented by the following 6 forecast scenes:

Sunny

Partly Sunny

Clouds

Rain

T-Storms

Snow

Please Note: The Forecast Icons may not represent your current weather. They are a future prediction of the weather to come over the next 12 hours.

AccuWeather

When connected to Wi-Fi, the station will receive additional weather icons, chance of precipitation values, and future forecast information. These enhanced Internet features are powered by AccuWeather.

Additional forecast scenes include:

Light Rain

Light Snow

Wintry Mix

Wind

Ice

Fog

Secondary Forecast Icons | The following icons appear in the extended forecast section:

Sunny Rain SnowClouds Light Sunny

Rain

T-Storms WindLight Snow

Wintry Mix

IcePartly

Fog

Tip: The 9 icon will appear in the top right corner of the forecast section when your display is connected and receiving AccuWeather forecasts.

FORECAST

Relative Pressure

• Your Relative Pressure reading will come from your station's internal barometer.
• Please allow up to 10 days for automatic calibration, or program your local pressure value in the Settings Menu.
• The green arrows located above the values represent Pressure Tendency.

- Select your desired unit of measurement (InHg or hPa) in the Settings Menu. You can also set a specific pressure number setting if desired.

TODAY 20° THUR 15° 48° 37° 52° 44° FRI 75° 17° 39° Extra Sensor 29.91 ° Current Settings 72° 48° WEDNESDAY 12:34PM OCT/26/22 Pressure Tendency Arrows

Note: The default pressure reading is 29.91 InHg (1013 hPa). The station will acclimate on its own if the pressure number is not set.

BASICS

Low Battery Indicators

TONIGHT 20° THUR 15° 48:37:52:44 FRI 75% 47:39:47 Rainfall Current Cond.5/6/14 29:27:52:48 WEDNESDAY 12:34 PM OCT/26/22 WIN AUTO DIM

• If a blue low battery indicator appears in the forecast/circular section, replace batteries in the TH sensor. You'll only see this icon if you're not connected to the app.
• If a light green low battery indicator appears in the extra sensor section, replace batteries in the extra sensor.
• If an green low battery indicator appears in the outdoor temperature section, replace batteries in the TH sensor.
• If a white low battery indicator appears next to the time display, replace the coin cell battery in the station.

SENSORS

Sensor Placement & Mounting

• Use the hole at the top to hang your sensor from the back using a nail. Or, insert one mounting screw through the front of your sensor.
• Mount your sensor on a north-facing wall or in any shaded area. Under an eave or deck rail is preferred to avoid inaccurate readings from the sun.
• The maximum wireless transmission range to the station is up to 400 feet (121 meters) in open air, not including walls or floors.
• Be sure your sensor is mounted vertically, to allow moisture to drain out properly.

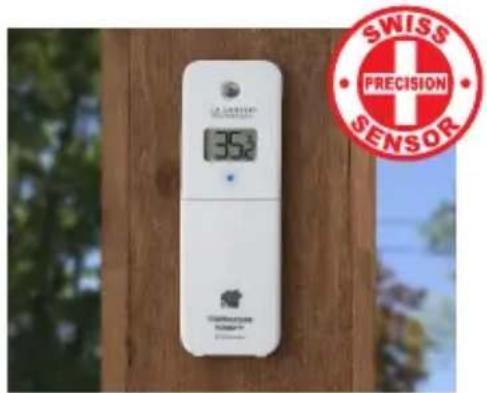

Add-On Sensors

Whether you choose to connect to the La Crosse View app or not, this station can display data for up to 4 extra sensors. This data will appear in the light green section on the LCD and in your La Crosse View app if connected.

SWISS PRECISION SENSOR 35.2 Temperature Sensor

SENSORION SENSOR: This thermo-hygro sensor features a sensorion chip, providing improved temperature & humidity readings, unrivaled accuracy tolerances, and faster data transfer.

Extra Sensor 72° DRY

^ Water Leak Sensor Example

Adding Sensors to Your Station

1. Hold the EXTRA SENSOR button until the Sensor Reception Indicator . . . starts to animate.
2. Install batteries into your sensor. If the sensor has a TX button, press it to force a transmission signal. This button is usually located in or near the sensor's battery compartment. The LED light on the sensor will flash once.
3. Your sensor should connect within the next 3 minutes, briefly displaying its ID and type on the LCD. The Sensor Reception Indicator will show solid on the screen when a sensor is connected.

Viewing Add-On Sensor Data

If you have multiple add-on sensors connected, press the EXTRA SENSOR button to cycle through the data you'd like displayed on the LCD. The Auto Scroll Icon (💡) will appear if activated. This setting will also include relative pressure data in the cycle.

QR code image with green square in center, no readable text or symbols beyond the matrix pattern

Find all of your add-on sensor options by scanning the QR code or visiting:
bit.ly/v15_parts

APPENDIX

Care & Maintenance

Replace the Coin Cell Battery

1. Use a coin to turn the battery cover to the left to remove it.
2. Pull back the metal pin and gently remove the battery.
3. Insert a fresh CR2032 battery with the + side up and snap into place.
4. Replace the battery cover and use the coin to turn it to the right to lock.

Battery Replacement Instructions

When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury.

• Always purchase the correct size and grade of battery most suitable for the intended use.
• Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of different types.
- Clean the battery contacts and also those of the device prior to battery installation.
- Ensure the batteries are installed correctly with regard to polarity (+ and -).
- Remove batteries from product during periods of non-use. Battery leakage can cause corrosion and damage to this product.
- Remove used batteries promptly.
- For recycling and disposal of batteries, and to protect the environment, please check the internet or your local phone directory for local recycling centers and/or follow local government regulations.

Caution!

WARNING

1. This product contains a button battery.
2. If swallowed, it could cause severe injury or death in just 2 hours.
3. Seek medical attention immediately.
4. Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the esophagus.
5. If you suspect your child has swallowed or inserted a button battery, immediately seek urgent medical assistance.
6. Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened.
7. Do not use if compartment is not secure.
8. Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.
9. Tell others about the risk associated with button batteries and how to keep their children safe.

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN

California Residents

WARNING: This product can expose you to chemicals including styrene, which is known in the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov

The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or modifications to this equipment. Such changes or modifications could void the user authority to operate the equipment.

All rights reserved. This manual may not be reproduced in any form, even in part, or duplicated or processed using electronic, mechanical or chemical process without the written permission of the publisher.

This booklet may contain errors or misprints. The information it contains is regularly checked and corrections are included in subsequent editions. We disclaim any responsibility for any technical error or printing error, or their consequences.

All trademarks and patents are recognized.

APPENDIX

Warranty

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product, relating to manufacturing defects in materials and workmanship.

For full warranty details, visit:

www.lacrossetechnology.com/support

La Crosse Technology, Ltd.

2830 S. 26 ^th Street, La Crosse, Wisconsin 54601

Recycling & Disposal

Please consider the environment when deciding to dispose of this product. Although household electronics are generally safe to use on a daily basis, incorrect disposal can cause negative and potentially irreversible impacts on our environment.

Check with local donation centers to see if your product can be donated for future use. If disposal is the only option, federal agencies, local governments, and certified retailers may have electronic recycling programs in place. Programs may vary based on location.

Please Recycle

Specifications

Wi-Fi NETWORK REQUIREMENTS

• Broadcast Frequency: 2.4GHz (802.11 b/g/n)
  • Network Name/Password: Must Not Exceed 45 Characters
  • Network Speed: Must Be Greater than 1 Mbps

Note: If you have multiple band router, this device will connect to the 2.4GHz band when connecting to Wi-Fi.

MOBILE REQUIREMENTS

• Apple phones require iOS with cellular or Wi-Fi service.
• Android phones require Android OS with cellular or Wi-Fi service.

STATION SPECIFICATIONS (V15)

• Indoor Temperature Range: 32°F to 122°F (0°C to 50°C)
• Indoor Humidity Range: 10 to 99% RH
• Relative Pressure Range: 23.62 to 32.48 InHg (800 to 1100 hPa)
  • Power Requirements:

• Primary Power: 5.0V Adapter (included)

- Battery Backup: 1 "CR2032" Coin Cell Battery (included)

• Station Dimensions: 6.50 in. L x 1.09 in. W x 6.81 in. H (16.5 cm L x 2.78 cm W x 17.3 cm H)
• LCD Brightness: 4 Intensity Levels + OFF (Programmable Auto-Dim Backlight Option
  • Language Options: English, Spanish, French, and German (Translation Available for Menus & Calendar)

SENSOR SPECIFICATIONS (LTV-TH5i)

• Outdoor Temperature Range: -40°F to 140°F (-40°C to 60°C)
  • Outdoor Humidity Range: 10 to 99%RH
  • Transmission Range: 400 feet (121 Meters) open air
• Update Interval: Every 51 Seconds
  • Power Requirements: 2 "AA" Batteries (not included)
• Sensor Dimensions: 1.97 in. L x 0.75 in. W x 5.73 in. H (5.0 cm L x 1.91 cm W x 14.55 cm H)

A

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

FCC Radiation Exposure Statement

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement.

Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

SUPPORT

Having Trouble? We're here to help.

To find answers to FAQs and additional self-help options, scan the QR code or visit: bit.ly/v15_support

If you need additional support, get in touch with our friendly customer support team:

Online: bit.ly/contact_techsupport

Phone Number: 1.844.200.8752

Representatives are available Monday-Friday, 8:00am to 6:00pm CST

QR code image with green square in center, no visible text or symbols beyond the matrix pattern

La Crosse Technology® Patents

Visit www.lacrossetechnology.com/patents for patent information.

Factory Reset Stay in Touch

ALERTS TEMP. EXTRA SENSOR + SET - INPUT FORCAST REFRESH

If you are experiencing issues, press and hold the ALERTS and FORECAST REFRESH buttons down together until the display beeps. You do not need to remove the coin cell battery to reset the station.

Ask questions, watch setup videos, and provide feedback on our social media outlets.

Follow La Crosse Technology on Facebook, Instagram, YouTube, and Twitter.

LA CROSSE® TECHNOLOGY

TODAY 20° Preparation 48:37 THUR 15° 52:44 FRI 75° 47:39 Extended Forecast Beta Screen Current Conditions 2992 72348% WEDNESDAY OCT/26/22 12:34PM LA CROSSE TECHNOLOGY

STATION MÉTÉO WIFI COLORÉE

SET UP GUIDE

Modèle V15

Sommaire

LES BASES

Configuration initiale 02

Pression relative 16

CAPTEURS

8:05 Mom and Daddy Cabin Garden Sensor i Up to 12 PM 35° 60% Humidity Details Today's High: 9:00 AM 70 Today's Low: 11:45 AM 52 Temperature Details Today's High: 12:00 PM 45° Today's Low: 6:00 AM 31° Graph 50.0F 28.0F 40.0F 35.0F 30.0F 6:00 AM 12:00 PM 6:00 PM

Download on the App Store GET IT ON Google Play

12:34 Cancel Add Device Save Please wait up to 15 minutes for your additional devices to connect to your account

Devices Add Device

Add Device Scan Device ID Product description in the coding: See the description of scanning device in a device 3. Copyright: 100% or more. No. 100% Read History: Description will be used to add Use IP address to access IP address. Order of 5 Numbers 173455-ABC

Cin le undesired operation. support.lacrosseview.com patents.lacrosseview.com Freq: 315 MHz Made in China CE La Crosse View 122466 ABC Arrière du capteur

123456-ABC

ALBERTS TEMP EXTRA SENSOR + SET - ENDOUT PROMCAST REFRESH

ALERTS TEMP EXTRA SENSOR + SNR - INPUT P/B/G/CAST REFRESH

LA CROSSE® TECHNOLOGY

ALERTS TEMP. EXTRA SENSOR + SET - IN/OUT FORECAST REFRESH 1 2 3 4 5 6 7

8 9 10

1. ALERTS:

LA CROSSE TECHNOLOGY

Current Conditions 72.3 48%

Current Conditions 43.6 60%

IN/OUT FORECAST REFRESH

TODAY 20° THUR 19 48:37:52.44 FAT 75: 47:38:52.44 Extra Current Current Conditions 2992 72.348% WEDNESDAY 12:34PM OCT/26/22 DIM

Current Conditions 1 2 3 4 5 7 8 9 12.3.48%

1. ICONE "INTERIEUR"

LO RECORD FEB /26/22 -24.6 4:08AM

Cement Sediment 14.6°F HEAT INDEX

ALERTS TEMP EXTRA SENSOR + SET - INPUT FORECAST REFRESH

Current Conditions 80% HIGH ALERT OUT HUM ON

TODAY 20°C 48:37: THUR 15% 52:44: FRI 75% 47:39: Extended Forecast 2992 12:48: WEDNESDAY OCT/26/22 12:34 PM

TODAY 20% Precipitation 1 48° 37° THUR 15° 52° 44° FRI 75° 47° 39° Extended Forecast

1. ICONE INTERNET (7)

Close-up of a computer monitor with a cloud icon and partial logo (no readable text or symbols)

OUTDOOR 43° 60% HIGH 52° 78% LOW 34° 54% Extended Forecast

Simple line drawing of a sun arching over clouds with two cloud shapes on the left (no text or symbols)

Simple weather icons showing cloud, moon, and crescent on dark background (no text or symbols)

TODAY 20° THUR 15° 48:37:52:44: FRI 75° 47:39:17 Extra Sensor 29.91 1 Current Sensors 72:48: WEDNESDAY OCT/26/22 12:34PM

TOMIGHT 20° THUR 15° 48:37:52:44: FRI 75: 47:39: External Temperature Current Cold/Balls 2992 72:48: WEDNESDAY 12:34 PM OCT/26/22 WE AUTS. DIM

LES CAPTEURS

SWISS PRECISION SENSOR 35.2

QR code image with green square in center, likely for digital scanning or linking

QR code image with green square in center, no readable text or symbols beyond the matrix pattern

ALERTS TEMP: EXTRA SENSOR + SET - INPUT FORECAST REFRESH
