N252A024HUSHK - Network Equipment Tripp Lite - Free user manual and instructions

Product Type	Network patch panel
Brand	Tripp Lite
Model	N252A-024-HUSHK
Category	Networking hardware
Form Factor	0.5U (half-unit, 19 inches wide)
Number of Ports	24 ports
Connector Type	IDC (Insulation Displacement Connector) STP
Cable Category	Cat6a
Shielding Type	STP (Shielded Twisted Pair)
Power	Passive (no external power required)
Height	Approximately 22 mm (0.5U)
Width	483 mm (19 inches)
Approximate Weight	1 kg
Material	Steel, gold-plated contacts (estimated)
Main Function	High-density structured cabling for networks
Grounding	Integrated grounding lug to attach to rack
Maintenance and Cleaning	Clean with a dry, lint-free cloth; avoid liquids
Safety	Mandatory grounding for protection against electrostatic discharge
Spare Parts and Repairability	Not applicable; in case of defect, contact Tripp Lite support for replacement
Warranty	Limited lifetime warranty (manufacturing and material defects)
Package Contents	Patch panel, mounting screws, grounding lug, cable ties
Languages of the Manual	French, English, Spanish, Russian

Frequently Asked Questions - N252A024HUSHK Tripp Lite

How to install cables in the N252A-024-HUSHK panel?

Prepare the cable by stripping about 5 cm of jacket, then strip 2 mm of the metallic foil (for S/FTP) or wrap the ground wire (for F/FTP). Separate the conductors, place each wire into the IDC slots according to the color code, and punch down with a suitable impact tool. Secure the cables with nylon cable ties.

What types of cables are compatible with this panel?

The panel accepts S/FTP and F/FTP (shielded) Cat6a cables. The conductors must be inserted into the IDC connectors.

How to ground the patch panel?

Attach the provided grounding lug to the rack or cabinet with a screw. Ensure the connection is tight to guarantee protection against electrostatic interference.

What is the height of the panel?

The panel occupies 0.5U (half-unit) in a standard 19-inch rack, approximately 22 mm in height.

How many ports does the panel have and how are they arranged?

It has 24 STP IDC ports, likely arranged in two rows of 12. The panel is designed for high-density cabling.

What warranty does Tripp Lite offer for this product?

Tripp Lite offers a limited lifetime warranty covering material and workmanship defects. In case of defect, contact support to obtain an RMA number.

How to clean the patch panel?

Use a dry, lint-free cloth to remove dust. Do not use liquids or chemicals, as they could damage the connectors.

What to do if an IDC connector is defective?

The panel is not designed to be repaired at the connector level. Contact Tripp Lite support for a replacement under warranty.

Can I use this panel with unshielded cables?

No, this panel is specifically designed for shielded cables (STP). Using unshielded cables could compromise performance and grounding.

How to mount the panel in the rack?

Insert the panel into the 19-inch rack, then tighten the side screws to hold it in place. Ensure the grounding lug is properly attached before closing the panel.

USER MANUAL N252A024HUSHK Tripp Lite

24-Port Cat6a Dual IDC STP High-Density 0.5U Patch Panel

Model: N252A-024-HUSHK

Español 9 • Français 16 • Русский 23

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing!

tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2019 Tripp Lite. All rights reserved.

Installation

1 Prepare Cables.

S/FTP Cable

Remove approximately 5 cm of cable sheath.

Pure diagram of a cable or tube with internal components and an arrow indicating direction (no text or symbols)

Roll the exposed braid back along the cable sheath.

Where a foil screen is present, remove approximately 2 mm of the exposed length.

Cross-sectional diagram of a multi-core cable with twisted insulation (no text or labels)

Separate the conductors.

F/FTP Cable

Remove approximately 5 cm of cable sheath.

Diagram of a mechanical tool with a curved blade and directional arrow (no text or symbols)

Roll the exposed foil back along the cable sheath.

Where a foil screen is present, remove approximately 2 mm of the exposed length.

Cross-sectional diagram of a multi-core cable showing twisted insulation and insulation (no text or labels)

Wrap the drain wire at least twice around the foil. Separate the conductors.

Installation

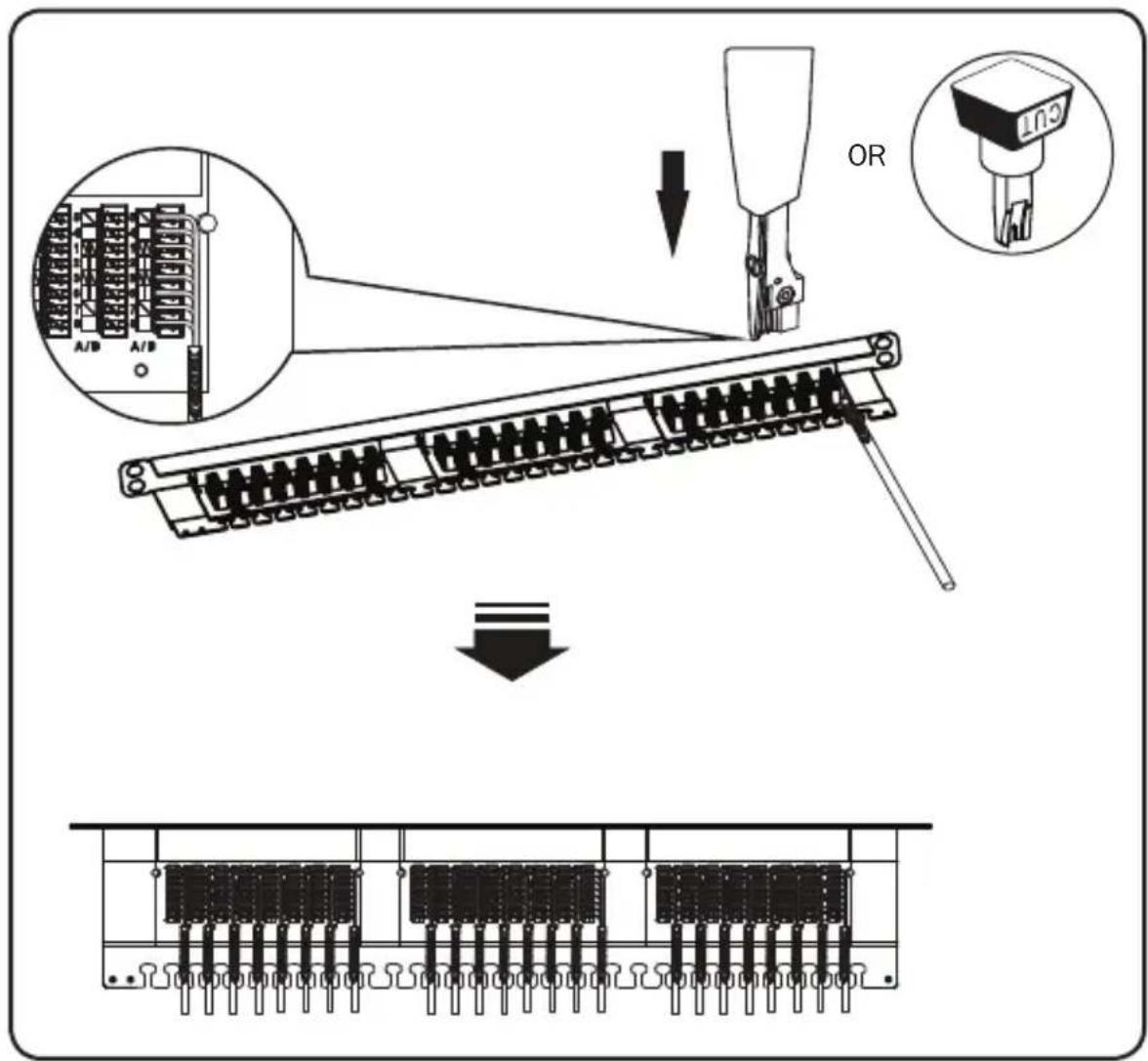

2 Seat each wire into the IDC slots according to the color scheme map. Punch down with a proper impact tool.

Installation

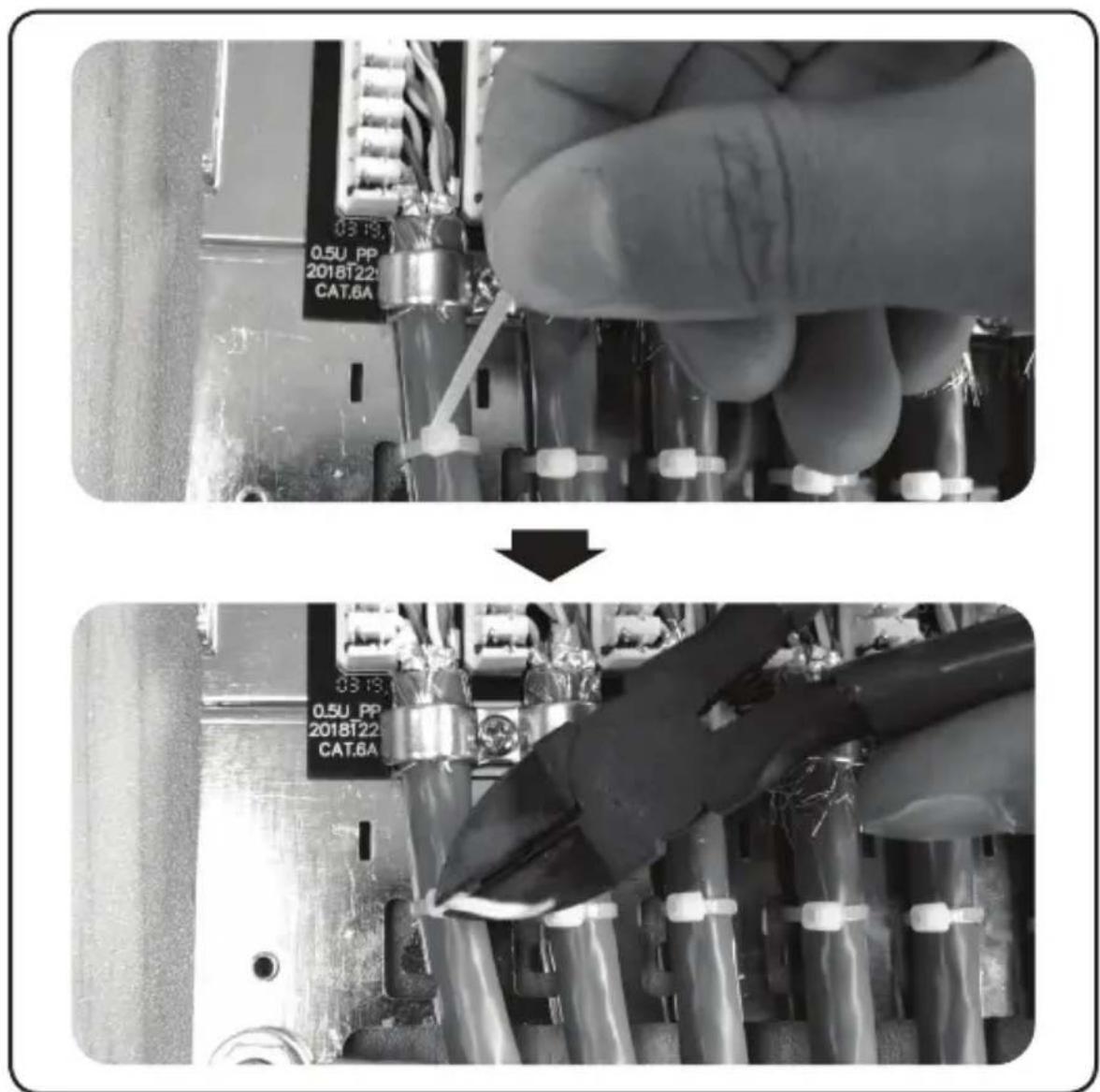

3 Use nylon cable ties to secure the bulk cables to the cable manager.

Cut off all excess straps.

Note: Do not over-tighten the cables.

Installation

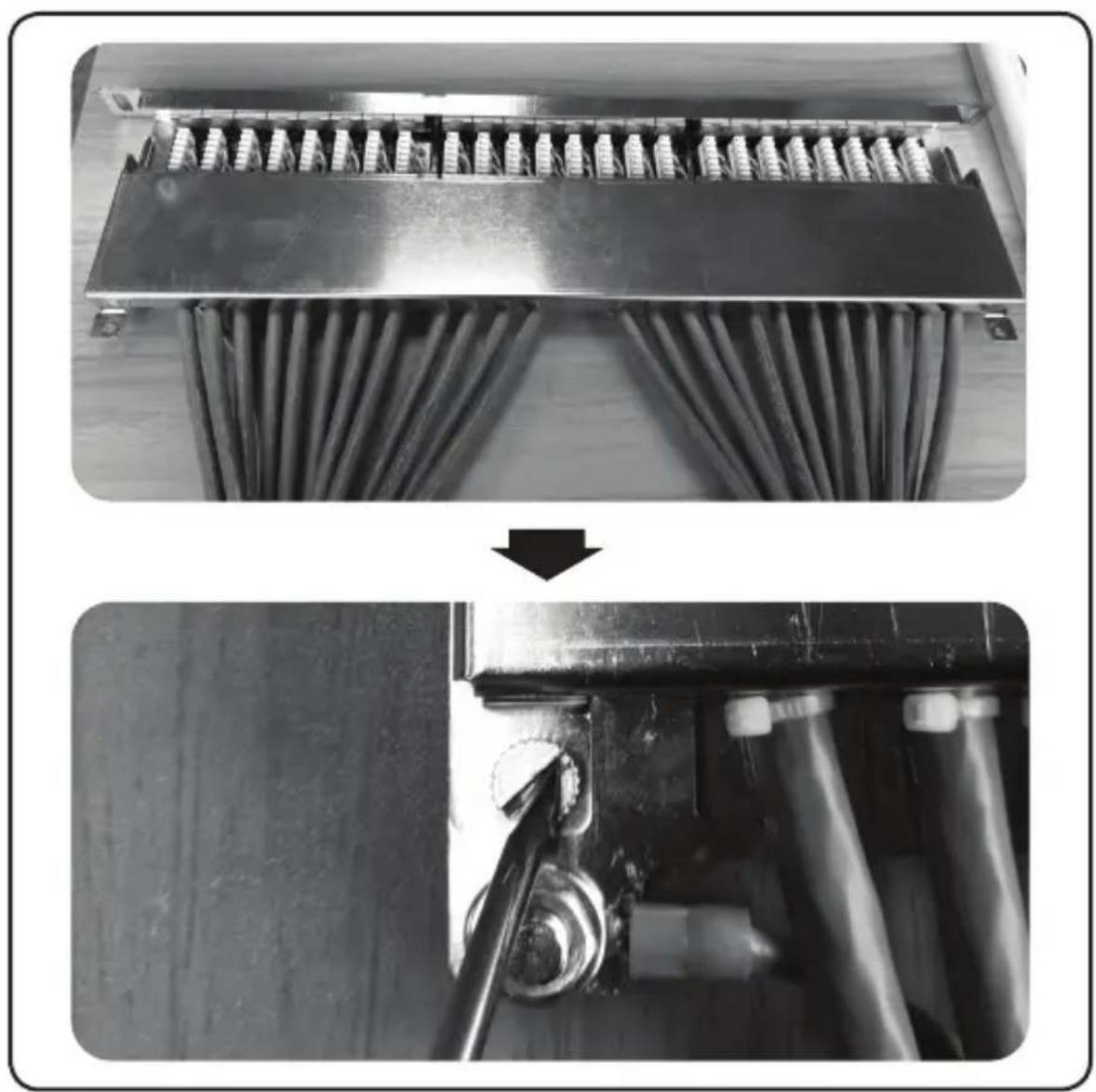

4 Close the top of the panel and secure by tightening the side screws.

Close-up of a mechanical component with metal parts and a close-up view showing internal components (no text or symbols visible)

Installation

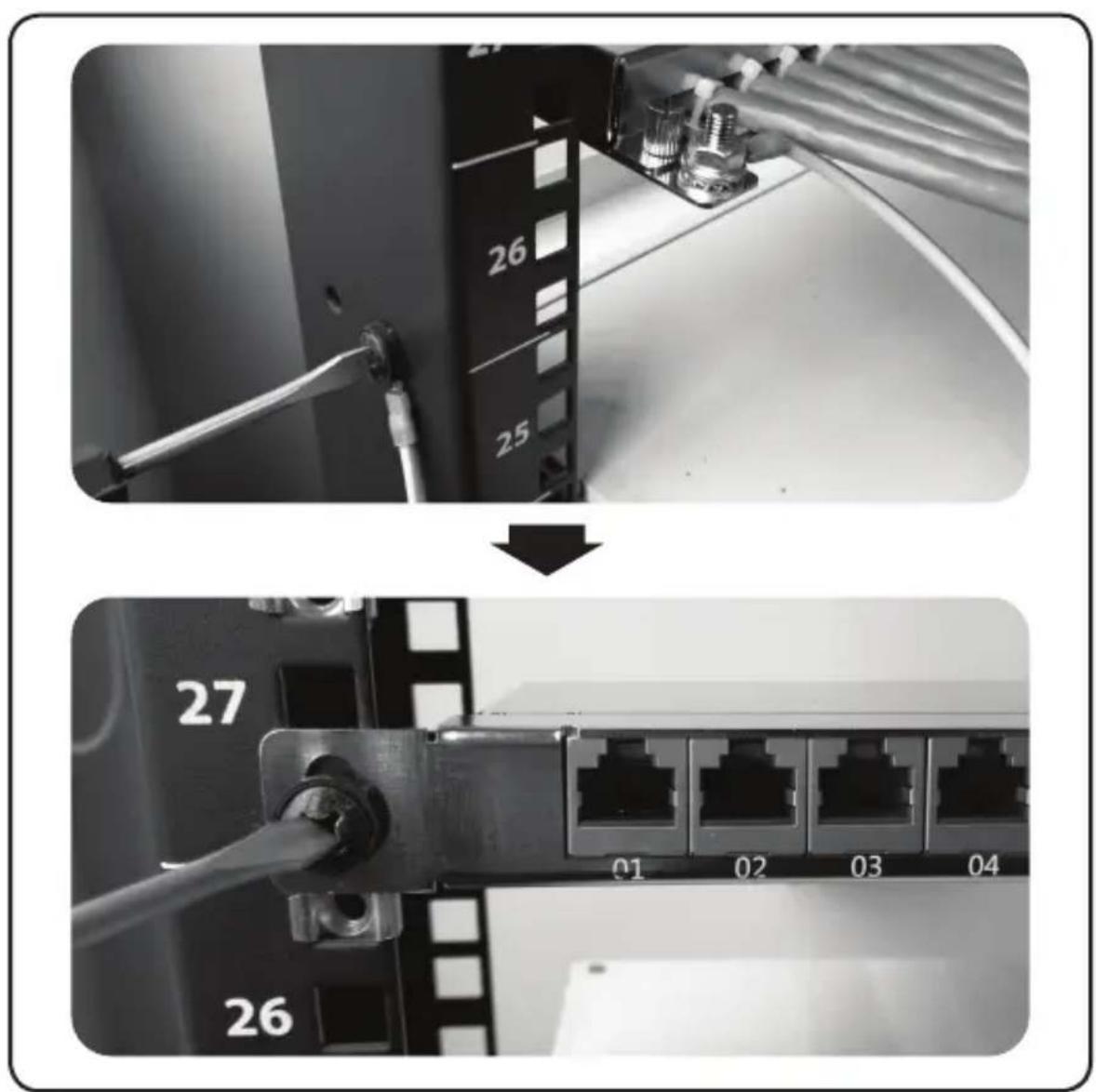

5 Attach the panel's grounding lug to a rack or cabinet.

Warranty and Product Registration

Lifetime Limited Warranty

Tripp Lite warrants its products to be free from defects in materials and workmanship for life. Tripp Lite's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
