USER MANUAL AJWV100 Sun Joe

© 2020 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe

Model AJWV100 Form No. SJ-AJWV100-880E-M

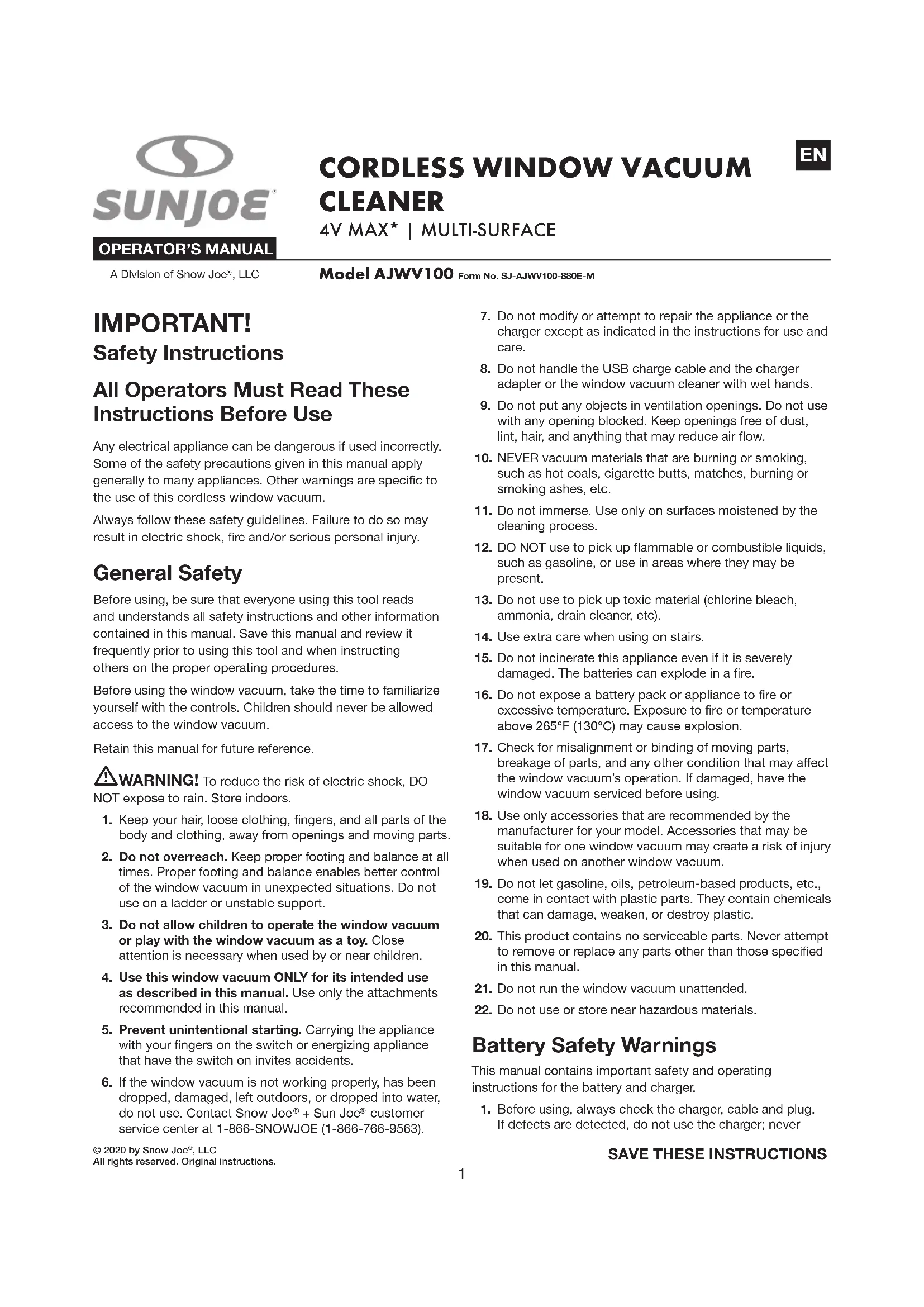

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Any electrical appliance can be dangerous if used incorrectly. Some of the safety precautions given in this manual apply generally to many appliances. Other warnings are specic to the use of this cordless window vacuum. Always follow these safety guidelines. Failure to do so may result in electric shock, re and/or serious personal injury. General Safety Before using, be sure that everyone using this tool reads and understands all safety instructions and other information contained in this manual. Save this manual and review it frequently prior to using this tool and when instructing others on the proper operating procedures. Before using the window vacuum, take the time to familiarize yourself with the controls. Children should never be allowed access to the window vacuum. Retain this manual for future reference. mWARNING! To reduce the risk of electric shock, DO NOT expose to rain. Store indoors.

1. Keep your hair, loose clothing, ngers, and all parts of the

body and clothing, away from openings and moving parts.

2. Do not overreach. Keep proper footing and balance at all

times. Proper footing and balance enables better control of the window vacuum in unexpected situations. Do not use on a ladder or unstable support.

3. Do not allow children to operate the window vacuum

or play with the window vacuum as a toy. Close attention is necessary when used by or near children.

4. Use this window vacuum ONLY for its intended use

as described in this manual. Use only the attachments recommended in this manual.

5. Prevent unintentional starting. Carrying the appliance

with your ngers on the switch or energizing appliance that have the switch on invites accidents.

6. If the window vacuum is not working properly, has been

dropped, damaged, left outdoors, or dropped into water, do not use. Contact Snow Joe

7. Do not modify or attempt to repair the appliance or the

charger except as indicated in the instructions for use and care.

8. Do not handle the USB charge cable and the charger

adapter or the window vacuum cleaner with wet hands.

9. Do not put any objects in ventilation openings. Do not use

with any opening blocked. Keep openings free of dust, lint, hair, and anything that may reduce air ow.

10. NEVER vacuum materials that are burning or smoking,

such as hot coals, cigarette butts, matches, burning or smoking ashes, etc.

11. Do not immerse. Use only on surfaces moistened by the

12. DO NOT use to pick up ammable or combustible liquids,

such as gasoline, or use in areas where they may be present.

13. Do not use to pick up toxic material (chlorine bleach,

ammonia, drain cleaner, etc).

14. Use extra care when using on stairs.

15. Do not incinerate this appliance even if it is severely

damaged. The batteries can explode in a re.

16. Do not expose a battery pack or appliance to re or

excessive temperature. Exposure to re or temperature above 265°F (130°C) may cause explosion.

17. Check for misalignment or binding of moving parts,

breakage of parts, and any other condition that may aect the window vacuum’s operation. If damaged, have the window vacuum serviced before using.

18. Use only accessories that are recommended by the

manufacturer for your model. Accessories that may be suitable for one window vacuum may create a risk of injury when used on another window vacuum.

19. Do not let gasoline, oils, petroleum-based products, etc.,

come in contact with plastic parts. They contain chemicals that can damage, weaken, or destroy plastic.

20. This product contains no serviceable parts. Never attempt

to remove or replace any parts other than those specied in this manual.

21. Do not run the window vacuum unattended.

22. Do not use or store near hazardous materials.

Battery Safety Warnings This manual contains important safety and operating instructions for the battery and charger.

1. Before using, always check the charger, cable and plug.

If defects are detected, do not use the charger; never

open the charger. Thoroughly read all instructions and cautionary markings on the manual, the charger, and the cordless window vacuum. mWARNING! If the cordless window vacuum is cracked or damaged, do not insert the charging adapter into the power tool or plug the power tool into the mains outlet. There is a danger of electric shock or electrocution.

2. Protect the battery charger from rain and moisture. Water

penetration in a battery charger increases the risk of electric shock.

3. This charger is ONLY intended to charge the rechargeable

battery inside of the cordless window vacuum. Any other use poses a risk of re, electric shock or electrocution.

4. Recharge only with the charger specied by the

manufacturer (AJWV100-USBCHARGER). A charger that's suitable for one type of battery pack may create a risk of re when used with other battery packs.

5. Do not open or modify the battery. Release electrolyte is

corrosive and may cause damage to eyes and skin. It may be toxic if swallowed.

6. Short circuit hazard! Do not insert conductive objects

(such as screw drivers or similar) into the charger plug.

7. Keep the battery charger clean. Contamination may

increase the risk of electric shock.

8. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns.

9. Do not place any object on top of the charger or place

the charger on a soft surface that may result in excessive internal heat. Keep the charger away from any heat source.

10. To reduce the risk of damaging the charger adapter and

the USB cable, pull the charger adapter, not the USB cable, when disconnecting the charger from the electric outlet.

11. Make sure the USB cable is located in a safe place so

that it will not be stepped on, tripped over or otherwise subjected to damage or stress. Do not abuse the cable and do not yank on the cable to disconnect. Keep the USB cable away from heat and sharp edges.

12. An extension cord should not be used unless absolutely

necessary. Using an improper extension cord poses a risk of re, electric shock or electrocution.

13. Do not operate the adapter if it has received a sharp

blow or has become damaged in any way. Contact the Snow Joe

14. Do not disassemble the charger adapter. Incorrect

reassembly may pose a serious risk of electric shock, re or exposure to toxic battery chemicals. If the battery or charger are damaged, contact an authorized Snow Joe

dealer or call the Snow Joe

15. To reduce the risk of electric shock, unplug the charger

from the outlet before cleaning the unit.

16. Never attempt to connect two (2) chargers together.

17. DO NOT store or use the tool and the charger in locations

where the temperature may reach or exceed 104 ºF (40 ºC). Dangerous storing locations include outdoor sheds or metal buildings in the summer.

18. The charger is designed to operate on standard household

electrical power (100 - 240 V). Do not attempt to use it with any other voltage! NOTE: The integrated battery is not fully charged out of the carton. Read the safety instructions and then follow the charging notes and procedures.

19. The longest life and best performance can be obtained if

the integrated battery is charged when the air temperature is between 64.4 ºF – 75.2 ºF (18 ºC – 24 ºC). Do not charge the battery pack when the air temperature falls below 50 ºF (10 ºC) or above 104 ºF (40 ºC). Following these safety measures will prevent damage to the battery pack.

20. Do not incinerate the integrated battery even if it is

seriously damaged or completely worn out. The battery can explode in a re. Service

1. If your power tool requires service, contact an authorized

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Only identical replacement parts should be utilized for repairs. This will ensure that the safety of the power tool is maintained.

2. If the USB cable is damaged, it must be immediately

replaced to avoid a hazard. Contact the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.3 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. To reduce the risk of electric shock, do not use outdoors or in damp or wet environments. Do not expose to rain. Store indoors in a dry place. Safety alert. Exercise caution. Symbols Descriptions Symbols Descriptions To reduce the risk of injury, user must read the instruction manual. Indoor use only. Only use battery charger indoors.Know Your Cordless Window Vacuum Cleaner Read the owner’s manual and safety rules carefully before operating the window vacuum cleaner. Compare the illustration below to the unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

/min) Waste Water Tank Capacity .................. 3.4 oz (100 ml) Net Weight ............................................. 1.25 lbs (0.57 kg) *Initial no-load voltage, when fully charged, peaks at 4.2 volts; nominal voltage under typical load is 3.7 volts.

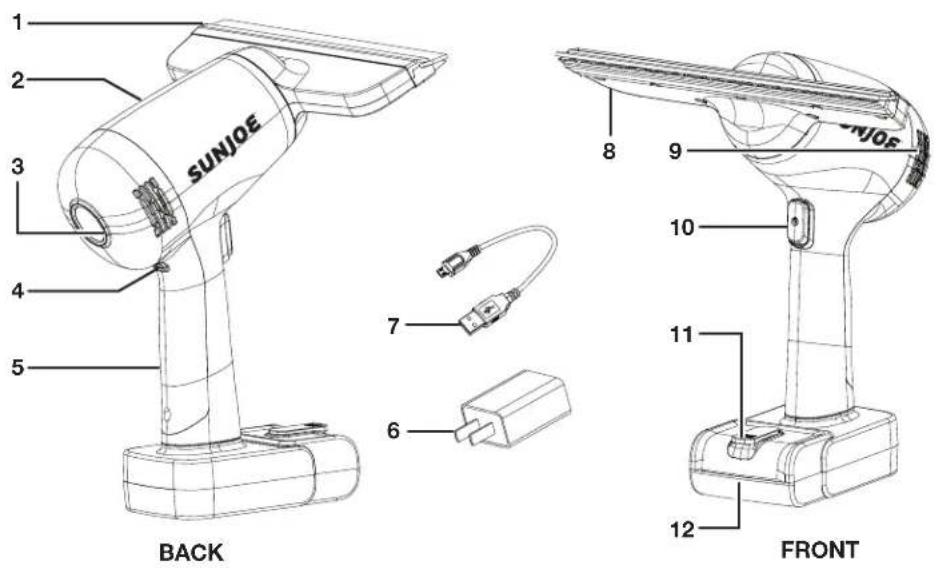

6. USB charging adapter

• Cordless window vacuum cleaner

• Manuals with registration card

1. Carefully remove the window vacuum cleaner and check

to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new window vacuum. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suocation risk! Assembly mWARNING! To avoid serious personal injury, read and understand all safety instructions provided. mWARNING! Do not switch on the unit until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

1. With the nozzle assembly slightly tilted as shown, connect

the nozzle assembly with the motor housing. Make sure the tabs on the motor housing are inserted into the slots on the nozzle assembly (Fig. 1).

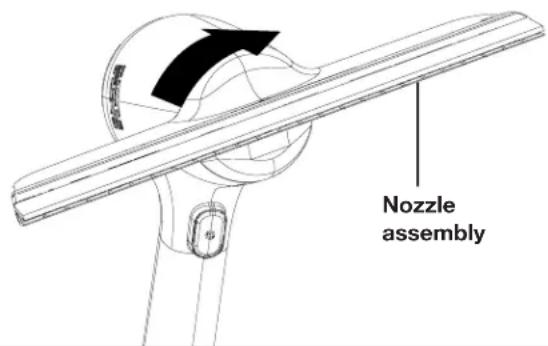

2. Twist the nozzle assembly clockwise to lock the assembly

(Fig. 2). Shake the whole unit to make sure the nozzle assembly is secured and won't come o. Before Using Charging Procedure The battery charger supplied matches the lithium-ion battery installed in the tool. Do not use other battery chargers. The lithium-ion battery is protected against deep discharging. When the battery is empty, a protective circuit will automatically switch OFF the equipment. The vacuum will no longer work. Charge the battery up to 4 hours then use it until it runs down. Recharge for up to 4 hours again before resuming operation. mWARNING! Continued and excessive overuse of the ON/OFF button can permanently damage the lithium-ion battery.

• During the charging procedure, the handle and the housing of the tool will feel slightly warm to the touch. This is normal.

• When no further use is planned for an extended period of time, disconnect the battery charger from the outlet and the unit.

• Do not use the tool during the charging procedure. Battery Charge Level Indicator The equipment has charger level indicator, which will illuminate and indicate the charge level when the unit is being used.

• The charge indicator is lit blue: Battery charge level is high.

• The charge indicator is ashing red: Battery charge level is less than 3 V. Stop working and charge the battery.

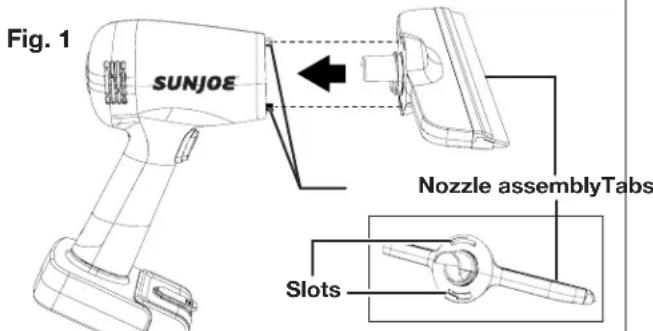

Fig. 1 Nozzle assemblyTabs Slots Fig. 2 Nozzle assembly 5Battery Charging The length of service between each charging varies depending on the type of work you are doing. The battery in this window vacuum has been designed to provide maximum trouble- free life. However, like all batteries, it will eventually wear out. To obtain the longest possible battery life, we suggest the following:

• Store and charge your cordless window vacuum cleaner in a cool area. Temperatures above or below normal room temperature will shorten battery life.

• Never store the cordless window vacuum cleaner with the battery in a discharged condition. Recharge the unit immediately after it is discharged.

• All batteries gradually lose their charge. The higher the temperature is, the faster they lose their charge. If you store your cordless window vacuum cleaner for long periods of time without using it, recharge the battery every 6 months. This will extend battery life. NOTE: The cordless window vacuum cleaner has been shipped in a low charge condition and should be fully charged before use.

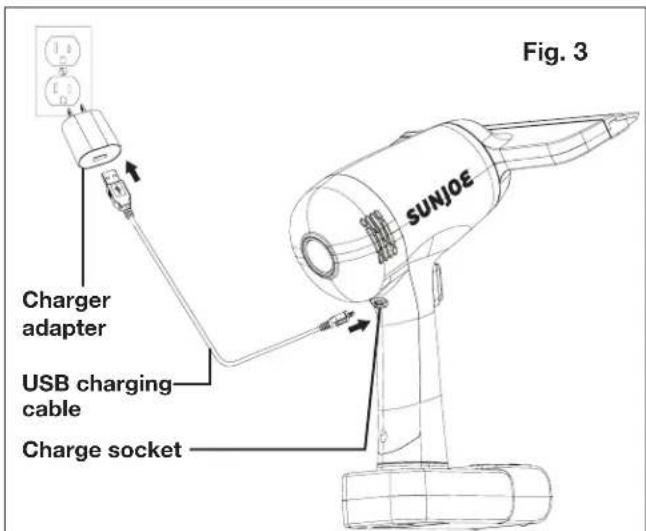

1. Plug the charger adapter into an appropriate AC power

outlet. Connect the charger adapter and the window vacuum cleaner's charge socket with the USB charger cable, as shown (Fig. 3).

2. The battery will take approximately 4 hours to charge. The

battery indicator LED will ash in red during the charging process. Unplug the charger when the LED is illuminated in blue.

3. Timely recharging of the tool will help prolong the battery's

life. You must recharge the tool according to the charger level indicator. NOTE: This charger will automatically turn o 30 mins after the battery is fully charged. The blue battery charge indicator will turn o when the charger is o. IMPORTANT! Never allow the tool to become fully discharged as this will cause irreversible damage to the battery. Operation This appliance is intended for indoor use for cleaning damp, smooth surfaces such as windows, mirrors or tiles, in accordance with the instructions provided in this manual. The appliance is not intended to vacuum up debris on the oor, drains or containers. mWARNING! Do not use any attachments or accessories that are not recommended by the manufacturer. The use of attachments or accessories not recommended can result in product damage. General Vacuum Procedure

1. Before using the window vacuum, wet the surface to be

cleaned with sprayer. Or use a sponge lled with water or proper detergent to wipe the surface.

2. Grab the window vacuum cleaner by the handle. Place the

squeegee blade against the upper part of the surface to be cleaned (Fig. 4).

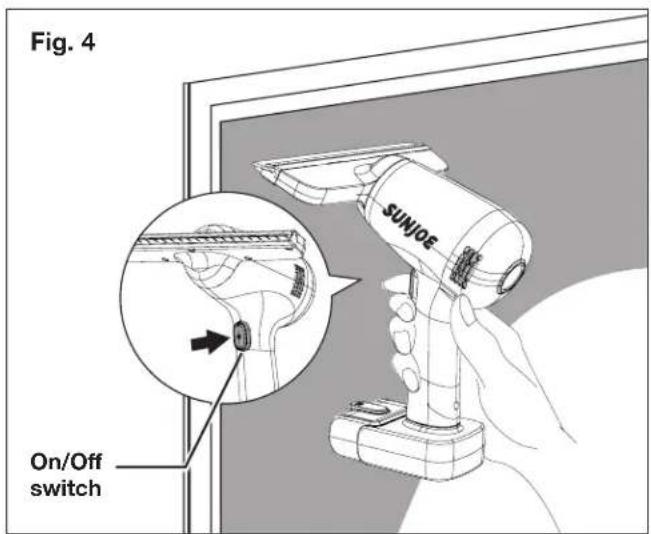

3. Turn on the window vacuum cleaner by squeeze the On/

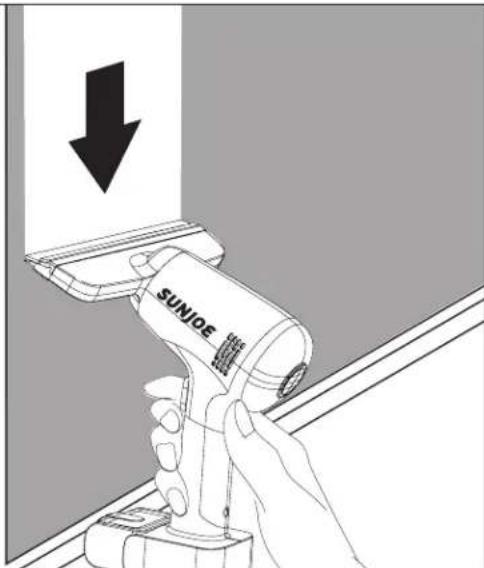

64. With a little pressure applied, slide the squeegee along the

surface. The appliance will vacuum all the liquid and leave a clean and smooth surface (Fig. 5).

5. After the vacuuming is done, shut o the appliance by

pressing the On/O switch again. If there's still water residual left on the surface, wipe with dry cloth. Drain the Waste Water Tank

1. It's recommended to empty the waste water tank every

time after using. Turn o the vacuum and make sure the tool is stopped completely.

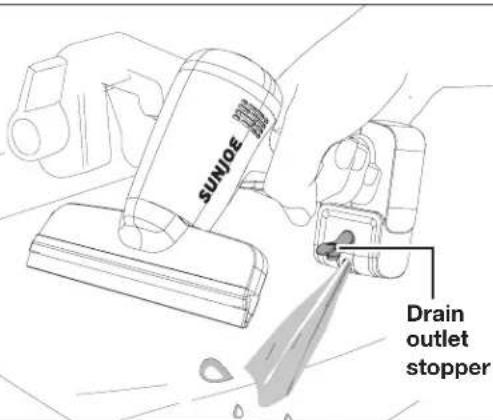

2. Pull out the drain outlet stopper, and tilt the appliance to

drain the liquid debris from the drain outlet (Fig. 6)

3. After draining is done, reinsert the outlet stopper.

mWARNING! Only operate the appliance until the MAX mark of the waste water tank has been reached. Switch o the appliance and empty the waste water tank. Operation Tips

• Do not press the appliance too forcefully but rather allow it to glide over the surface.

• During operation, make sure the air outlet is not blocked. Block air outlet may result in overheating and cause damage to the unit.

• The cordless window vacuum cleaner is equipped with overheating protect. When the temperature is too high during operation, the circuit will be cut o. Wait until it cools down before switch on the unit and resume working.

• During operation, ensure the surface is wet by spraying sucient uid onto the surface.

• Clean the squeegee blade regularly.

• Turn o the unit after vacuuming, before cleaning and maintenance. Empty the waste water tank, clean and dry before storage.

• The cleaning should not be done in direct sunlight or excessive heat. Maintenance To order genuine replacement parts or accessories for the Sun Joe

AJWV100 cordless window vacuum, please visit sunjoe.com or contact the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). mWARNING! To reduce the risk of re, electric shock or injury, turn power OFF before performing maintenance or troubleshooting. Cleaning

1. Turn o the vacuum cleaner.

2. Remove the nozzle assembly by slightly twisting it

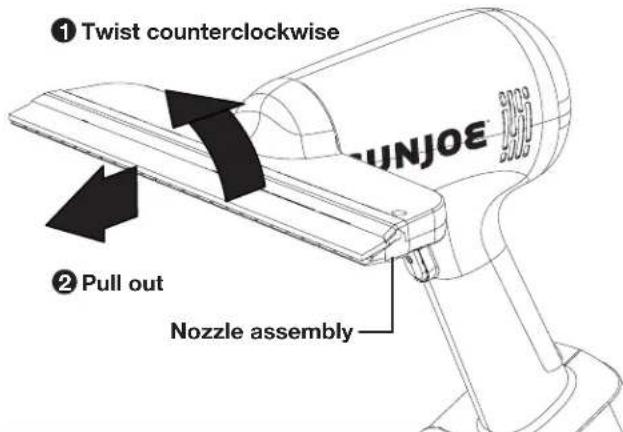

counterclockwise and pulling it out from the unit (Fig. 7).

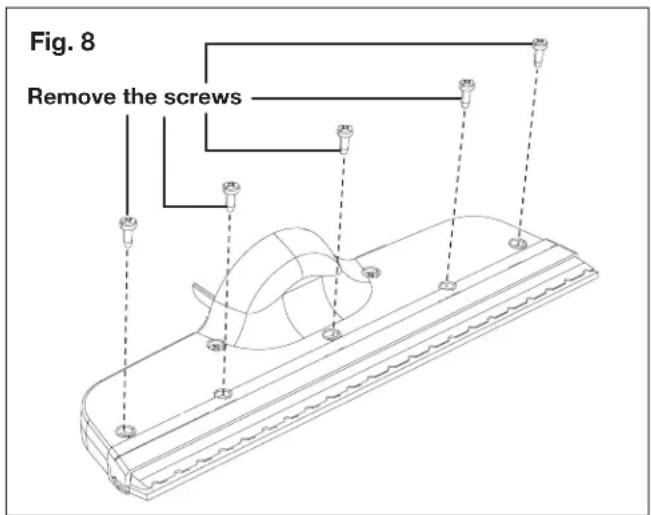

3. Remove the 5 screws used to x the squeegee blade in

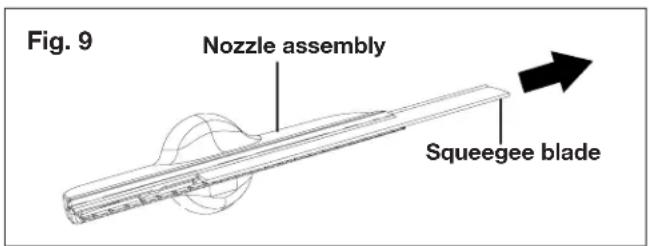

4. Grab the end of the squeegee blade and pull it out from

the nozzle assembly (Fig. 9).

5. Clean the squeegee blade and the nozzle assembly under

running water. Air dry before reassembly. NOTE: Do not clean the cleaner motor housing under running water, instead, use only mild soap and a damp cloth to clean. Do not use detergent that contains gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia, acetone, or household detergents containing ammonia since these cleaning agents and solvents are harmful to plastics and other insulated parts. Never use ammable or combustible solvents around tools. Storage

• Examine the cordless window vacuum cleaner thoroughly for worn, loose or damaged parts. Should you need to repair or replace a part, contact an authorized Snow Joe

dealer or call the Snow Joe

• Store the window vacuum cleaner upright with the charger indoors in a clean, dry and locked location that is free from dust. Service + Support If your Sun Joe

AJWV100 cordless window vacuum requires service or maintenance, please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Model + Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below. A J W V 1 0 0 Record the following numbers from the housing or handle of your new product: Model #: Serial #: Fig. 8 Remove the screws Fig. 9 Nozzle assembly Squeegee blade9 Troubleshooting

• Turn o the equipment before carrying out maintenance on the machine or when checking that its parts are in proper working order.

• To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues. Optional Accessories mWARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this cordless window vacuum. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless window vacuum. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. AJWV100 USB charger + cable AJWV100-USBCHARGER ModelAccessories Item

AJWV100 replacement squeegee blade AJWV100-SQGBLD Problems Possible Cause Possible Solution Machine refuses to start

• Overheating protection is on

• On/O button is damaged

• Wait for a while until the unit is cool down and resume working

• Contact the Snow Joe

• Clear the waste water tank

• Contact the Snow Joe

• Shut down the unit. Wait for a while until the unit is cool down before resuming working

• Clear the waste water tank

• Waste water tank is full

• Battery power is low

• The airow is blocked

• The unit works continuous for too long

• Waste water tank is full Vacuum force drops Motor housing is hot10 SNOW JOE

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, (3) repair the Product, or (4) refund the full purchase price of the Product to the original purchaser and owner. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products. EN11©2020 Snow Joe , LLCDerechos reservados. Instrucciones originales.
