USER MANUAL WM120B BLACK & DECKER

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

• READ ALL INSTRUCTIONS BEFORE USING.
• Do not touch hot surfaces. Only use the heat-resistant handle.
• To protect against electrical shock, do not immerse cord, plug, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner. Contact consumer support at the toll-free number listed in the warranty section.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, remove plug from wall outlet. Do not pull on cord.
• Do not use appliance for other than intended use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• When using the appliance, provide adequate air space above and on all sides for circulation.
• Do not use this appliance on an unstable surface.
• Do not attempt to heat or cook non-food items in this appliance.
• Use this appliance only in the closed position.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V models only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

1) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2) Extension cords are available and may be used if care is exercised in their use.
3) If an extension cord is used:

a) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;
b) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord; and
c) The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

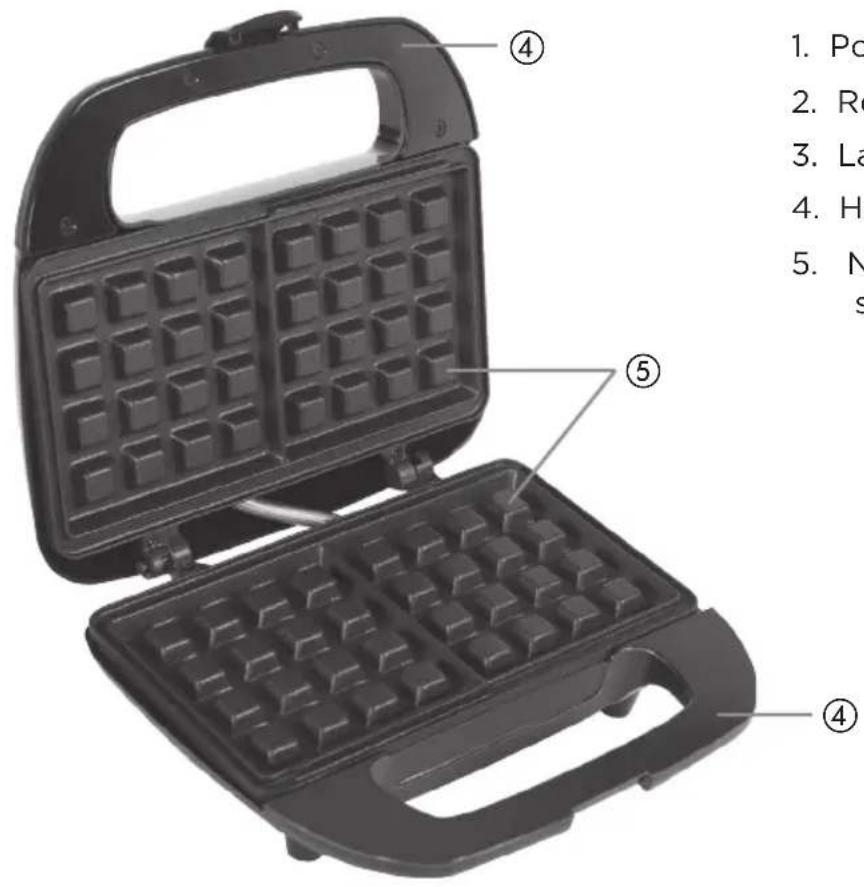

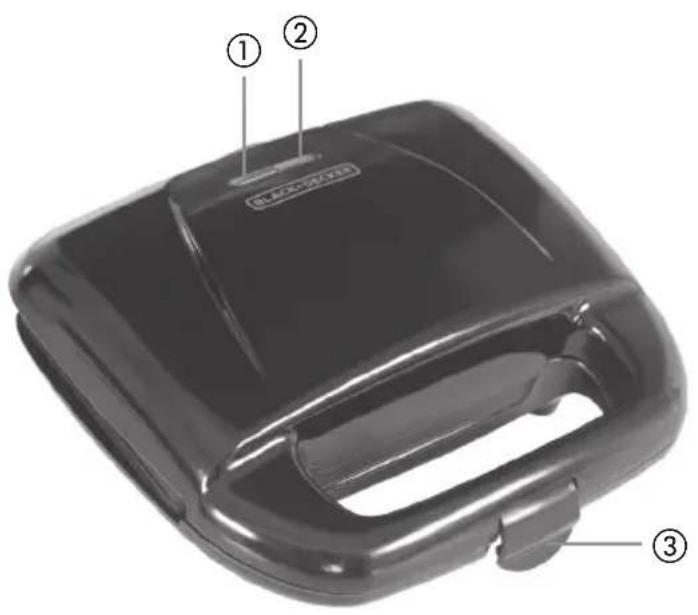

GETTING TO KNOW YOUR WAFFLEMAKER

1. Power light (red)
2. Ready light (green)
3. Latch
4. Heat-resistant handle
5. Nonstick cooking surfaces

Product may vary slightly from what is illustrated.

HOW TO USE

This appliance is intended for household use only.

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Remove and save literature.
• Please go to www.prodprotect.com/blackanddecker to register your warranty.
• Before first use, clean appliance and plates according to instructions in the CARE AND CLEANING section of this manual.

PREPARATION

Note: Aerosol cooking spray should not be used on the plates.

1. Set the appliance on a stable, level, heatproof surface.
2. Close lid and plug cord into outlet.
3. The red power light will come on as long as the appliance is connected to the electricity supply.
4. The green ready light will come on when the elements reach the correct cooking temperature, then cycle on and off with the thermostat.
5. Wait till the green light comes on before starting to cook.

WAFFLES

1. Prepare the batter.
2. Pour about 1/4 cup (60ml) of mixture over each half of the bottom plate.
3. Close the waffle maker. Don't use the latch.
4. Grill the waffles until golden brown (check after 3 minutes).

CARE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Be sure the unit is unplugged and completely COOL before cleaning. Wipe the cooking surfaces with a damp sponge or cloth. DO NOT IMMERSE THE UNIT nor run water directly onto the cooking surface.
2. Do not use steel wool or other abrasive cleaners on the cooking surfaces as they may damage the nonstick coating. To remove cooked-on food, use a plastic bristle brush or nylon mesh pad. Be sure to clean the handles after each use.
3. Clean the outside surfaces by wiping with a damp or soapy sponge or cloth. Dry thoroughly with a soft cloth. Do not use harsh or abrasive cleaners that may scratch or mar the exterior surfaces. Never spray or apply cleaners directly to the waffle maker; instead, apply the cleaner to a cloth and rub on

At the places where the top and bottom toasting plates make contact, the non-stick surfaces may show signs of wear. This is purely cosmetic, and will not affect the operation of the appliance.

WARRANTY INFORMATION

For service, repair or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty (Applies only in the United States and Canada)

What does my warranty cover?

• Your warranty covers any defect in material or workmanship provided; however, the liability of Spectrum Brands, Inc. will not exceed the purchase price of product.

For how long?

One year from the date of original purchase with proof of purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/blackanddecker, or call toll-free 1-800-465-6070, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

C.A.B.A. - Argentina

Chile

Col. Centro, Cuauhtemoc,

Mexico, D.F.

Tel. [phone]

Nicaragua

LRM ELECTRONICA

Managua - Sinsa Altamira 1.5

kilómetros al norte

Nicaragua

Tel. [phone]

Panama

Supermarcas

Centro commercial El dorado, Plaza

Dorado, Local 2.

Panama

Tel. [phone]

Perú

Servicio Central Fast Service

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

BLACK+DECKER and the BLACK+DECKER logos and product names are trademarks of The Black & Decker Corporation, used under license. All rights reserved.

© 2019 The Black & Decker Corporation and Spectrum Brands, Inc., Middleton, WI 53562
