USER MANUAL G48TD BLACK & DECKER

Please Read and Save this Use and Care Book

3-in-1 Wafflemaker, Grill & Griddle

Accessories/Parts (USA/Canada)

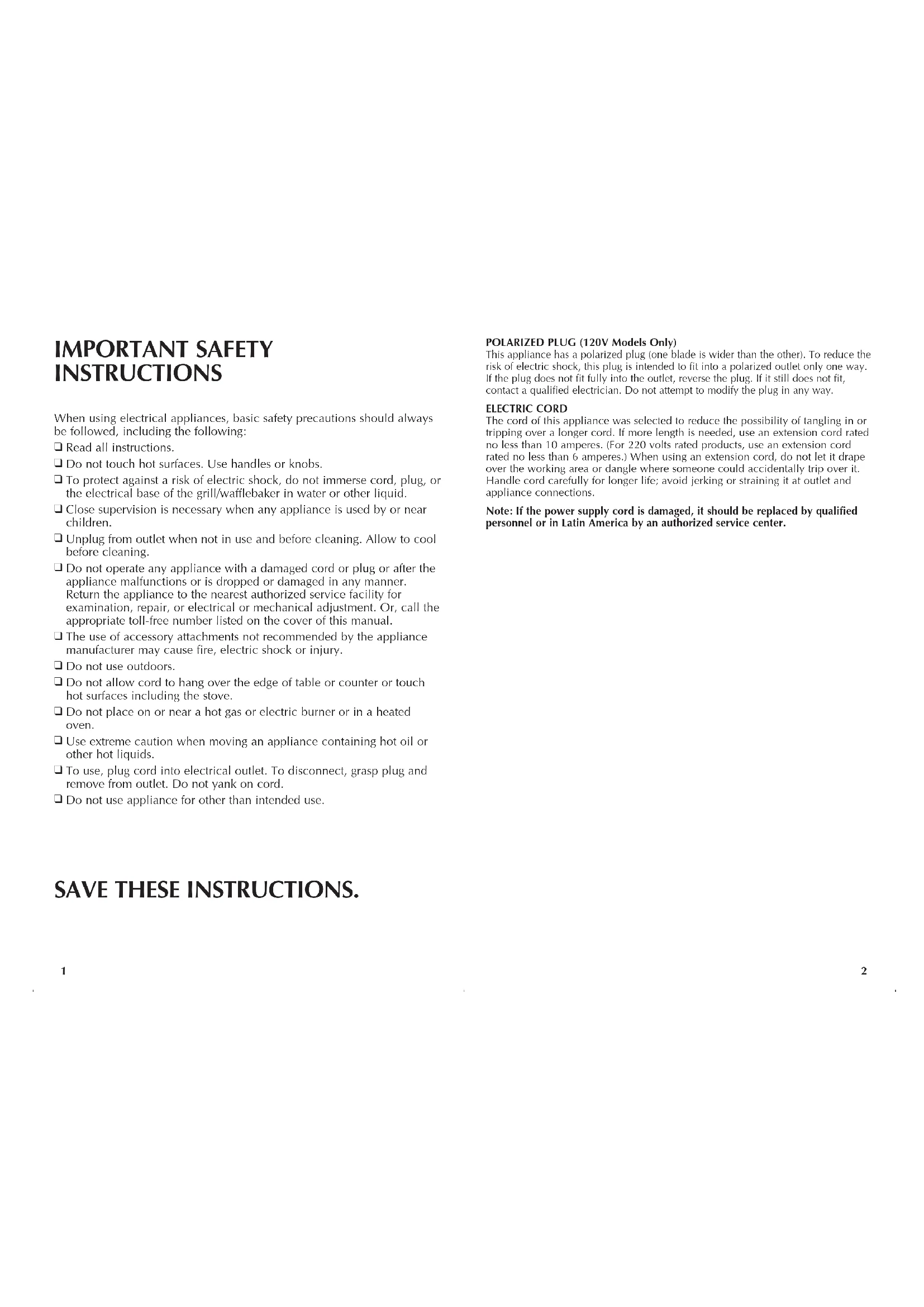

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against a risk of electric shock, do not immerse cord, plug, or the electrical base of the grill/wafflebaker in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of accessory attachments not recommended by the appliance manufacturer may cause fire, electric shock or injury.
Do not use outdoors.
Do not allow cord to hang over the edge of table or counter or touch hot surfaces including the stove.
Do not place on or near a hot gas or electric burner or in a heated oven.
Use extreme caution when moving an appliance containing hot oil or other hot liquids.
To use, plug cord into electrical outlet. To disconnect, grasp plug and remove from outlet. Do not yank on cord.
Do not use appliance for other than intended use.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

ELECTRIC CORD

The cord of this appliance was selected to reduce the possibility of tangling in or tripping over a longer cord. If more length is needed, use an extension cord rated no less than 10 amperes. (For 220 volts rated products, use an extension cord rated no less than 6 amperes.) When using an extension cord, do not let it drape over the working area or dangle where someone could accidentally trip over it. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

SAVE THESE INSTRUCTIONS.

Product may vary slightly from what is illustrated.

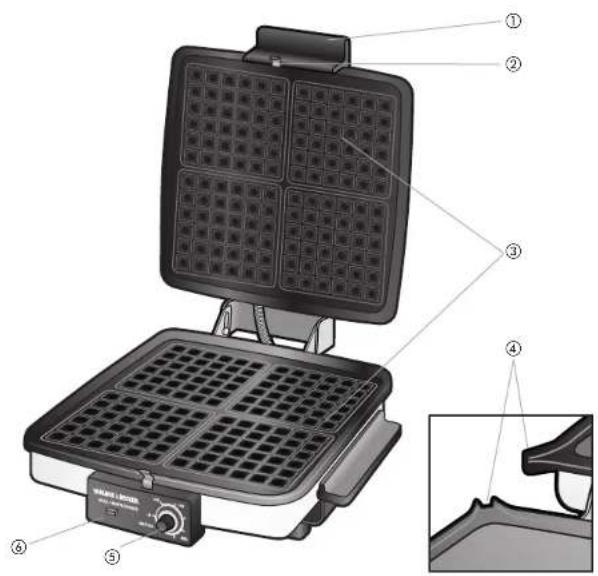

1. Handles
2. Grid clips
3. Non-stick cooking grids
4. Grease spouts
5. Control knob
6. Signal light

How to Use

This appliance is for household use only.

BEFORE FIRST USE

1. Remove the cooking grids by pressing down on the grid clips at the front of the unit and sliding the grids forward and out. Wash them in hot, sudsy water, rinse, dry thoroughly, and replace them in the unit. When replacing the grids, be sure the lip of each grid fits into the notch at the back of the unit and that each is securely clipped into place before plugging in and operating. Grids should have matching surfaces.
2. IMPORTANT: Condition the non-stick cooking surfaces with a light coating of cooking oil before first use. Do not use non-stick cooking spray to "condition." Brush the oil onto the cooking surfaces or wipe on with a paper towel. Be sure to coat the cooking surfaces as this will reduce sticking. Wipe off excess oil with paper towels. The first waffle may absorb excess oil and appear greasy. If so, discard it.

BAKING WAFFLES

1. Be sure the Cooking Grids are securely attached with the waffle sides showing. Close the unit and plug the cord into a standard electrical outlet.

1. Turn the control knob to WAFFLES. The signal light (A) will come on to indicate the unit is heating. Use the pre-heat time to prepare your batter (see "Recipes"). When the signal light goes out (from 5-8 minutes), the unit is ready.

2. Open the unit and pour about 1 cup of batter onto the lower cooking surface. Spread the batter toward the edges using a rubber spatula for oven waffles.

3. Carefully close the top. Keep hands away from the unit as steam may escape when baking begins. The signal light will come back on and may cycle on and off during baking. Cooking time is 3-5 minutes depending on the type of batter/ingredients you used. The hinge between the sections is designed to be loose. This allows the waffle to rise evenly and for steam to escape during baking. You may also notice steam moisture on the sides or near the handle. This is normal. Avoid opening the unit during baking cycle as it may cause the waffle to stick or bake poorly.

4. When waffles are done, the signal light will go out. Open the top and remove the waffle using a rubber or wooden spatula. Be careful not to scratch the non-stick finish. You may want to have a plate nearby when removing waffles in case they separate as this unit is designed to semi-cut waffles into 4 sections. If sticking occurs, lightly re-oil the cooking surfaces. You can make additional batches right away — no need to lct the unit cool down. Keep the lid closed between cooking batches to preserve heat.

5. When all wafles are baked, turn the control knob to OFF, unplug the cord, open the unit, and allow it to cool.

GRILLING

This versatile unit is designed for open grilling to prepare griddle-style foods such as pancakes, eggs, or bacon strips, or closed grilling for hamburgers, hot dogs, or sandwiches such as grilled cheese. See the charts for preparation.

1. Be sure the cooking grids are securely attached with the flat grill sides showing. Close the unit and plug the cord into a standard electrical outlet.
2. Depending on the kind of food you're grilling (such as bacon or chops), you may want to place a small can or container under the grease spouts at the corners to catch grease or drippings from the built-in grease channel.
3. For Closed Grilling: turn the control knob to high and preheat the unit closed for 8-10 minutes until the signal light goes out. Use the charts to help you determine the best setting, depending on the food. Open the unit, place the food on the lower Grid, and close the grill.

1. For Open Grilling: close the grill and turn the control knob to high to preheat for 8-10 minutes until the signal I goes out. Use the charts to help you determine food amounts and times. Open the grill and pull straight up on the top handle to relcase the top grid. Turn and slowly lower the top grid down so that it forms a flat griddle-like cooking surface across from the bottom grid (B). If cooking on only one side, place the food on the bottom grid. Watch and turn food as needed. To keep food warm while serving, turn the control knob to LOW.

2. When finished grilling, turn the control knob to OFF, unplug the cord, open the unit, and allow it to cool.

TIPS

1. To avoid damaging the non-stick surfaces, do not use sharp utensils or cut food on the Grid surfaces. Use rubber or wood utensils.
2. Baked wafles freeze well. Cook all the batter. Cool the waffles and place paper towels between them. Wrap waffles in plastic wrap or freezer bags, and freeze.
3. To keep foods from sticking, you may want to re-oil cooking surfaces before each use or use a cooking spray.

GRILLING

Use the grill in the CLOSED position to press hamburgers or other meats (i.e. chops, Canadian bacon) or as a sandwichmaker. Preparing meals in the CLOSED position will help cut down on spatter and speed up cooking times. NOTE that ALL the foods listed (or CLOSED grilling can also be prepared in the OPEN (Griddle) position but will take 5 to 10 minutes longer than CLOSED and will require watching and turning for doneness.

Food Amount Suggestions/Timing
CLOSED

Bacon 1 to 4 slices Place on grid & cook on HIGH for 9-12 minutes
Frankfurters 1 to 10 franks Place on grid & cook on HIGH for 12-16 minutes
French Toast 1 to 4 slices Preheat on HIGH. Lightly grease grids; cook for 2-3 minutes
Hamburgers 1 to 5 burgers Preheat on HIGH. Lightly grease grids; (8/7/19 mm) thick cook for 3-6 minutes
CLOSED
Ham Slice (precooked)	7/7/13mm thick Preheat on HIGH. Lightly grease grids; (8/7/19 mm) thick cook for 3-5 minutes
Lamb Chops	1 to 6 chops (8/7/19 mm) thick cook for 3-6 minutes
Sandwiches	1 to 4 Preheat on HIGH. Lightly spread outer surfaces of bread with butler or margarine. Fill bread with favorite filling and cook 2 to 4 minutes
Sausage link	1 to 16 links (approx. 1 lb./454g)
Sausage Patties	1 to 8 patties (8/7/10mm) thick

Food Amount Suggestions/Timing

OPEN (Griddle)

Egg's 1 to 6 Preheat on HIGI. Use 1 teaspoon butter/margarine

per erg, watch & turn. Cook 2 to 3 minutes

Pancakes 1 to 8 Preheat on HiGH. Lightly grease grids and turn

halfway through; cook 3-5 minutes

RECIPES

Quick Waffles

2 cggss
cup milk
2 tablespoons vegetable oil
1 cup flour

1/teaspoons baking powder
1/2 teaspoons sugar for sugar
substitute equivalent)
Teaspoon salt

1. Lightly brush waffle Grids with vegetable oil. Close unit and preheat at WAFFLE setting.

2. In medium bowl, beat eggs until thick. Add milk, vegetable oil and all dry ingredients.

Bcat until smooth.

1. Pour 1 cup batter evenly on preheated grid. Close unit: bake until light goes out

(about 5 minutes).

Makes: 2 (4-sectioned) waffles

Apple Variation: Spread cup batter over grid and quickly cover with thinly sliced apples.

Close unit and cook as usual.

Steak 'N Veggie Sandwich

lb. (227g) beef round steak
3 tablespoons soy sauce
1 tablespoons water
jeaspoon sugar
1 tablespoon butter or margarine

1 green pepper, thinly sliced
1 medium onion, thinly sliced
4 hamburger buns, split and toasted
vegetable oil to lightly coat grids

1. Cut steak diagonally into very thin slices. Combine soy sauce, water, and sugar in shallow bowl. Add sliced meat and loss to coat slices. Let meat marinate 30 minutes or more as time allows.
2. Preheat flat sides of grids on HIGH. Lightly brush grid surfaces with vegetable oil, melt butter on grid, and spread over surface.
3. Add green pepper and onion slices. Close unit and cook 1 minute. Remove vegetables to bowl.
4. Add meat mixture, spreading evenly over grid. Close unit and cook 1 minute. Add meat to vegetables and mix.
5. Place bun halves over heated flat surfaces to toast (check for color). Divide mixture over half of each bun and serve immediately.
   Makes: 4 Servings (each bun 12 cup filling)

Easy Grilled Reuben

2 slices rye bread
2 tablespoons Thousand Island salad dressing
2-3 slices Swiss cheese

2 tablespoons drained sauerkraut

2-3 slices corned beef

softened butter or margarine

1. Spread outside of second slice of bread with butter or margarine and top the sandwich with greased side up.
2. Close unit and cook 2-4 minutes or until bread is toasted and cheese is melted.

Makes: 1 Sandwich

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Unplug and allow the unit to COOL completely before cleaning. DO NOT IMMERSE THE UNIT nor run water directly onto the cooking surfaces.
2. Unclip the Grids and wash them in hot, soapy water. Rinse and dry thoroughly. DO NOT PLACE THEM IN A DISHWASHER. Do not use steel wool pads or other abrasive cleaners on the cooking surfaces as they may damage the non-stick coating. To remove cooked-on food, use a plastic bristle brush or nylon mesh pad. Be sure to clean the handles after each use.
3. Clean the outside surfaces by wiping with a damp sponge or cloth. Dry thoroughly with a soft cloth. Do not use harsh or abrasive cleaners. Never spray or apply cleaners directly to the unit; instead, apply the cleaner to a cloth and rub on. Rubbing a soft dry cloth or paper towel over the chrome surface after cleaning will restore the shine. Cleaning the outside surfaces after each use will prevent grease from burning onto the chrome and discoloring it.

COMO PREPARAR WAFLES

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.
What will we do to help you?
- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.
