USER MANUAL TCL 6 FESTOOL

Two black plastic battery modules with ventilation slots, no visible text or symbols

SCA 16

16 1-2 AIRSTREAM 1-1 1-3 30 min 15 min 5 min READY 1-4 1-5 1-6 F09 SCA1s AIRSTREAM

TCL 6

1-6 1-2 1-1 TCL Ready 1-4 1-5

TCL 6 DUO

1-2 1-4 1-1 1-5 AIRSTRALM 7.8V READY IOL Tuo OOL AD 6 B READY

Ladegerät	Seriennummer *
Charger	Serial number *
Chargeur	N° de série *(T-Nr.)

TCL 6 10018723, 10021781, 10452968

TCL 6 DUO 10451077, 10451082

SCA 16 205419, 10425151

de EU-Konformitätserklärung. Wir erklären in alleiniger Verantwortung, dass dieses Produkt mit allen relevanten Anforderungen folgender EU-Richtlinien übereinstimmt, und folgende Normen oder normative Dokumente zugrunde gelegt wurden:
en EU Declaration of Conformity. We declare under sole responsibility that this product complies with all the relevant requirements in the following EU Directives, and following standards or normative documents were applied:
fr Déclaration de conformité de l'UE. Nous déclarons, sous notre seule responsabilité, que ce produit satisfait à toutes les exigences pertinentes des directives UE suivantes et repose sur les normes ou documents normatifs suivants :
es Declaración UE de conformidad. Declaramos bajo nuestra responsabilidad que este producto cumple todos los requisitos relevantes de las siguientes directivas de la UE y que se han tomado como base las siguientes normas o documentos normativos:
it Dichiarazione di conformità UE. Dichiariamo sotto nostra unica responsabilità che il presente prodotto sia conforme a tutti i requisiti di rilevanza definiti dalle seguenti Direttive UE e che siano stati applicati le seguenti norme o i seguenti documenti normativi:
nl EU-conformiteitsverklaring. Wij verklaren en stellen ons ervoor verantwoordelijk dat dit product volledig voldoet aan alle volgende EU-richtlijnen en volgende normen of normatieve documenten daaraan ten grondslag gelegd werden:
SV EU-försäkran om överensstämmelse. Vi för- klarar på eget ansvar att denna produkt uppfyller alla relevanta krav enligt följande EU-direktiv och baseras på följande normer eller normgivande dokument:
fi EU-vaatimustenmukaisuusvakuutus. Vakuutamme yksinomaisella vastuulla, että tämä tuote täyttää seuraavien EU-direktiivien kaikki olennaiset vaatimukset ja se on seuraavien standardien tai standardiasia-kirjojen mukainen:
da EU-overensstemmelseserklæring. Vi erklærer med eneansvar, at dette produkt er i overensstemmelse med alle relevante krav i følgende EU-direktiver, og at følgende standarder eller normative dokumenter danner grundlag for det:
nb EU-samsvarserklæring. Vi erklærer under eneansvar at dette produktet oppfyller alle relevante krav i følgende EU-direktiver og at følgende standarder eller normative dokumenter er blitt lagt til grunn:

Head of Product Development

i.v. c. A

Christian Bader

Head of Development Functions

We as the manufacturer declare under our sole responsibility that the product(s) fulfill(s) all the relevant provisions of the following UK Regulations and are manufactured in accordance with the following designated standards:

S.I. 2016/1101 Electrical Equipment (Safety) Regulations 2016

S.I. 2016/1091 Electromagnetic Compatibility Regulations 2016

S.I. 2012/3032 Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

BS EN 60335-1:2012 + A2:2019

BS EN 60335-2-29:2004 + A11:2018

BS EN 55014-1:2017 + A11:2020

BS EN 55014-2:2015

BS EN IEC 61000-3-2:2019

BS EN 61000-3-3:2013 + A2:2021

BS EN IEC 63000:2018

Signed on behalf of and in name of

Festool GmbH

Wertstr. 20, 73240 Wendlingen, GERMANY

Place and date of declaration: Wendlingen, 2022-05-31

Head of Product Development

i.v. c. a

Christian Bader

Head of Development Functions

Inhaltsverzeichnis

1 Safety warnings....11
2 Technical data 12
3 Symbols....12
4 Intended use....12
5 Parts of the device....13

6 Commissioning 13
7 Operation....13
8 Service and maintenance....14
9 Environment....14
10 General information....14

1 Safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

• This appliance can be operated by children over eight years of age and persons with reduced physical, sensory or mental capabilities or a lack of practical experience and knowledge, provided they are supervised or have been instructed to use the appliance safely and understand the dangers of this. Children must not play with the appliance. Cleaning and user maintenance work must not be carried out by children without supervision.
• Do not open the charger.
• Protect the charger from metal components (e.g. swarf) and liquids.
• WARNING! Do not use non-rechargeable batteries with this charger.
• Do not use battery packs from other manufacturers with this charger. Do not use power supply units or battery packs from other manufacturers to operate cordless power tools. Do not use chargers from other manufacturers to charge the battery packs. The use of accessories not expressly authorised by the manufacturer can result in electric shocks and/or serious accidents.
• When the charger is in the Systainer, it must not be connected to the mains outlet.
• Protect the machine from moisture.
• Protect the mains power cable from heat, oil and sharp edges.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Check for damage before using the device in order to avoid hazards, especially the mains power cable, the mains plug and the housing. In the event of damage, have repaired by an authorised service workshop only.

• Do not cover vent openings on the charger. The charger may overheat and not work properly.

• There is a risk of vapours being released if the battery pack is damaged or not used correctly. The vapours may irritate your airways. Seek fresh air and consult a doctor if you feel unwell.

• Only for AS/NZS: The tool shall always be supplied via residual current device with a rated residual current of 30 mA or less.

2 Technical data

Charger SCA 16 TCL 6 TCL 6 DUO
Power supply (input) 220 - 240 V~ 220 - 240 V~ 220 - 240 V~
Mains frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Charging voltage (out- 10.8 - 18 V== 10.8 - 18 V Output1: 10.8 - 18 V == Output2: 10.8 - 18 V==
Charging current Max. 16 A Max. 6 A Output1: Max. 6 A
	Output2: Max. 6 A
Charging times for BP and BPC battery packs, approx.
4.2 Ah 76 min. 76 min. 76 min.
3.0 Ah* / 3.1 Ah* 33 min. 33 min. 33 min.
4.0 Ah* 32 min. 32 min. 32 min.
5.0 Ah* / 5.2 Ah* 33 min. 45 min. 45 min.
6.2 Ah* 32 min. 53 min. 53 min.
Permitted charging temperature range of the battery pack	-5 °C to +55 °C
Temperature monitoring	via NTC resistor

3 Symbols

Warning of general danger

Warning of electric shock

Read the operating instructions and safety instructions.

Read the operating manual and safety warnings.

For indoor use only

Fuse with specification of current value

Safety transformers

Safety class II

Do not dispose of it with domestic waste.

Do not dispose of it with domestic waste.

Handling instruction

UKCA marking: The United Kingdom Conformity Assessed symbol is a marking for products being placed on the market in the United Kingdom. It is a manufacturers indication that the product is in conformance with the relevant regulations in the UK.

4 Intended use

Chargers suitable

- For internal use only.

- For charging Festool Li-ion battery packs BP, BPS and BPC with the following rated voltages and capacities:

10.8 V (3S1P) 1.3 Ah, 1.5 Ah, 2.5 Ah

10.8 V (3S2P) 2.6 Ah, 3.0 Ah, 4.2 Ah

14.4 V (4S1P) 1.3 Ah, 1.5 Ah

14.4 V (4S2P) 2.6 Ah, 3.0 Ah, 4.2 Ah, 5.2 Ah*

18.0 V (5S1P) 1.3 Ah, 1.5 Ah, 2.6 Ah, 3.0 Ah ^ , 3.1 Ah ^ , 4.0 Ah ^*

18.0 V (5S2P) 2.6 Ah, 3.0 Ah, 4.2 Ah, 5.0 Ah ^ , 5.2 Ah ^ , 6.2 Ah ^ , 8.0 Ah ^

* Rapid charging battery packs

The user is liable for improper or non-in-tended use.

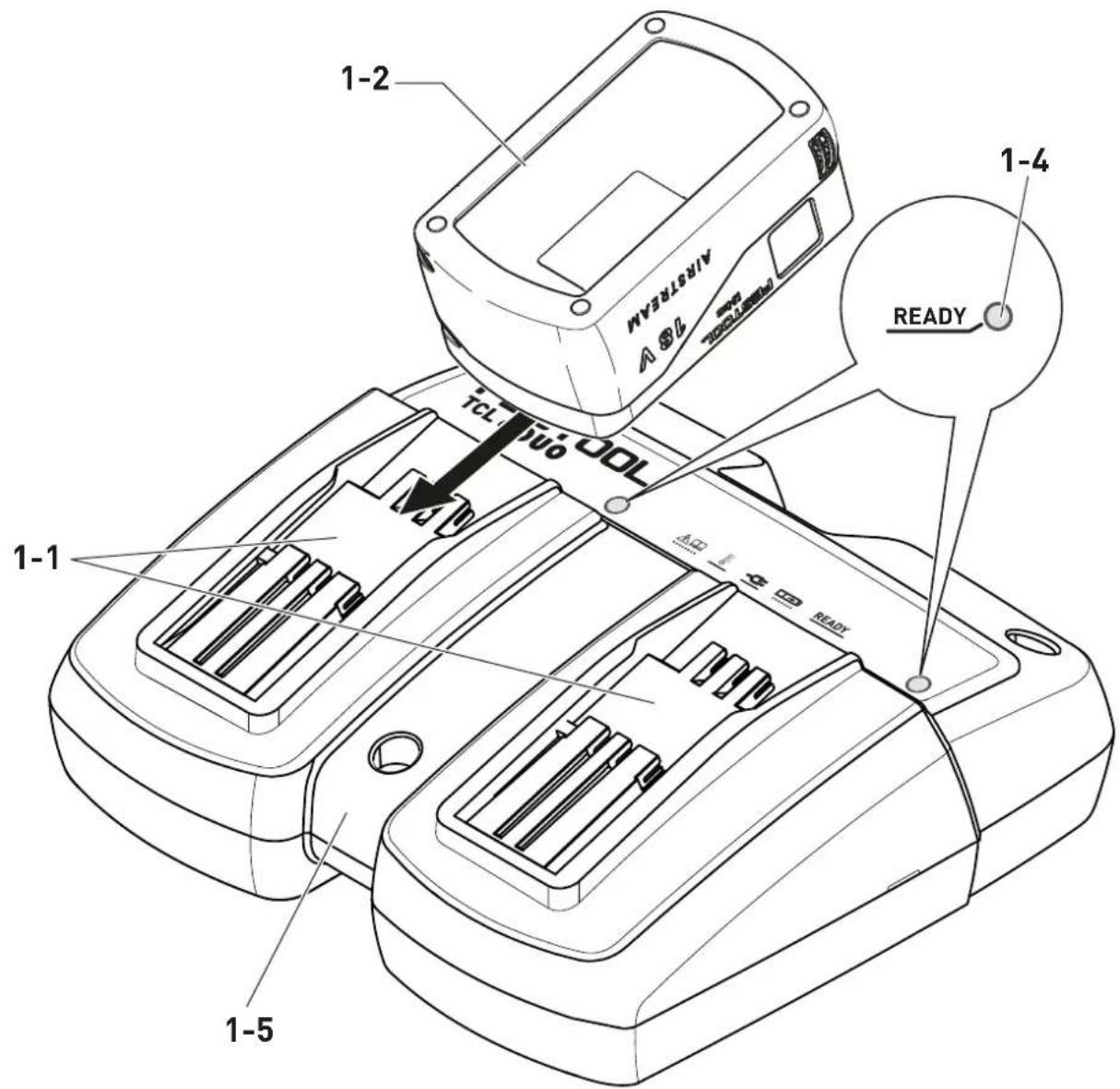

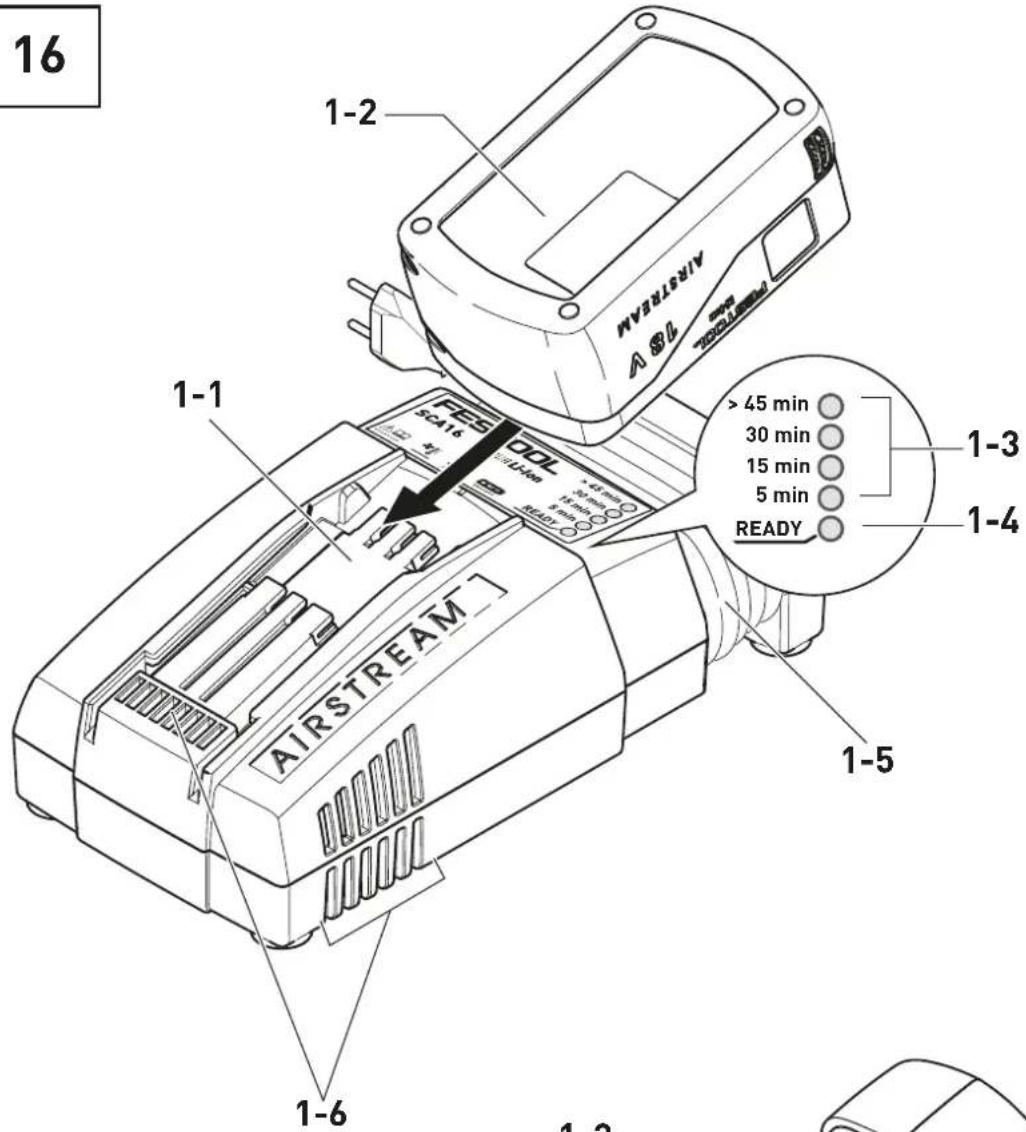

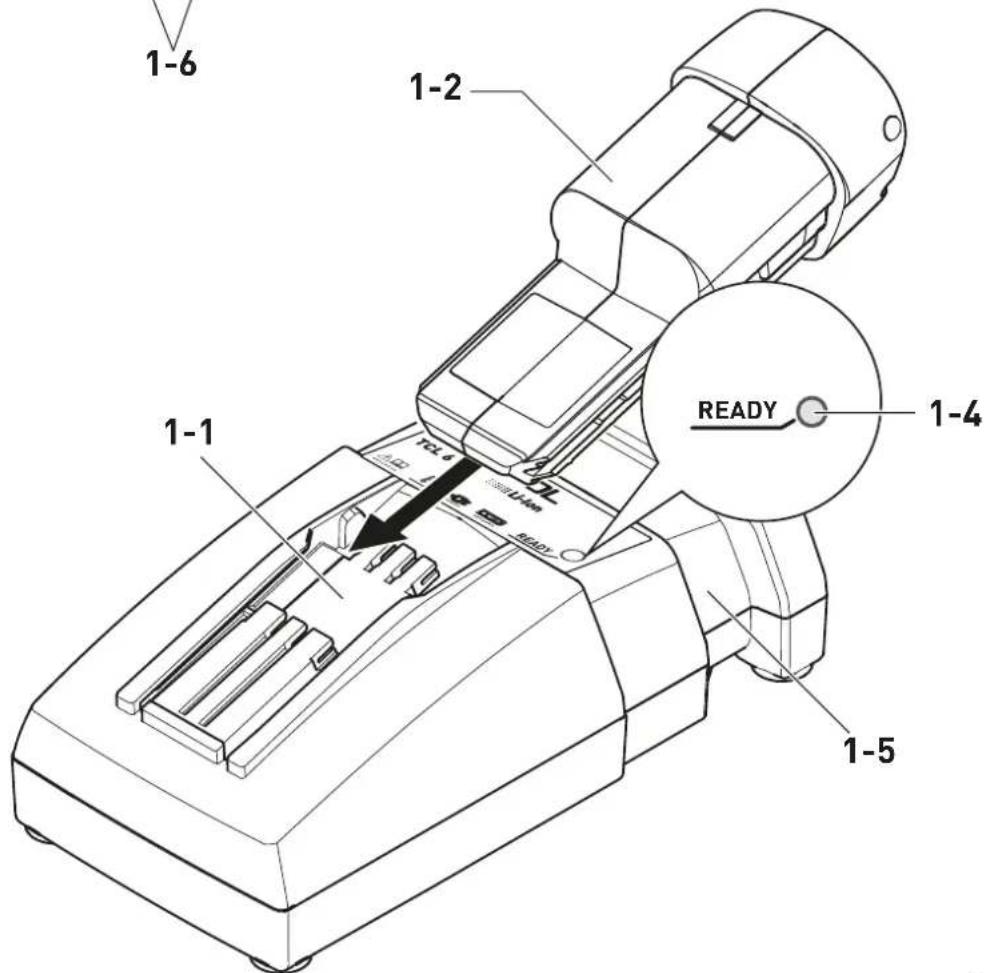

5 Parts of the device

[1-1] Charging station

[1-2] Battery pack

[1-3] Remaining charge time display (SCA 16 only)

[1-4] Charge status display

[1-5] Mains power cable rewind

[1-6] Vents (SCA 16 only)

[2] Wall mount for charger

The specified illustrations appear at the beginning of the Operating Instructions.

6 Commissioning

WARNING

Unauthorised voltage or frequency. Risk of accidents

▶ The mains voltage and the frequency of the power source must correspond to the specifications on the name plate.
▶ In North America, only Festool machines with the voltage specifications 120 V / 60 Hz may be used.

6.1 Start charging

WARNING! Before commissioning, completely unwind the mains power cable from the cut-out [1-5].

- Insert the charger's mains plug in the socket.

▶ Push the battery pack [1-2] into the charging station [1-1].

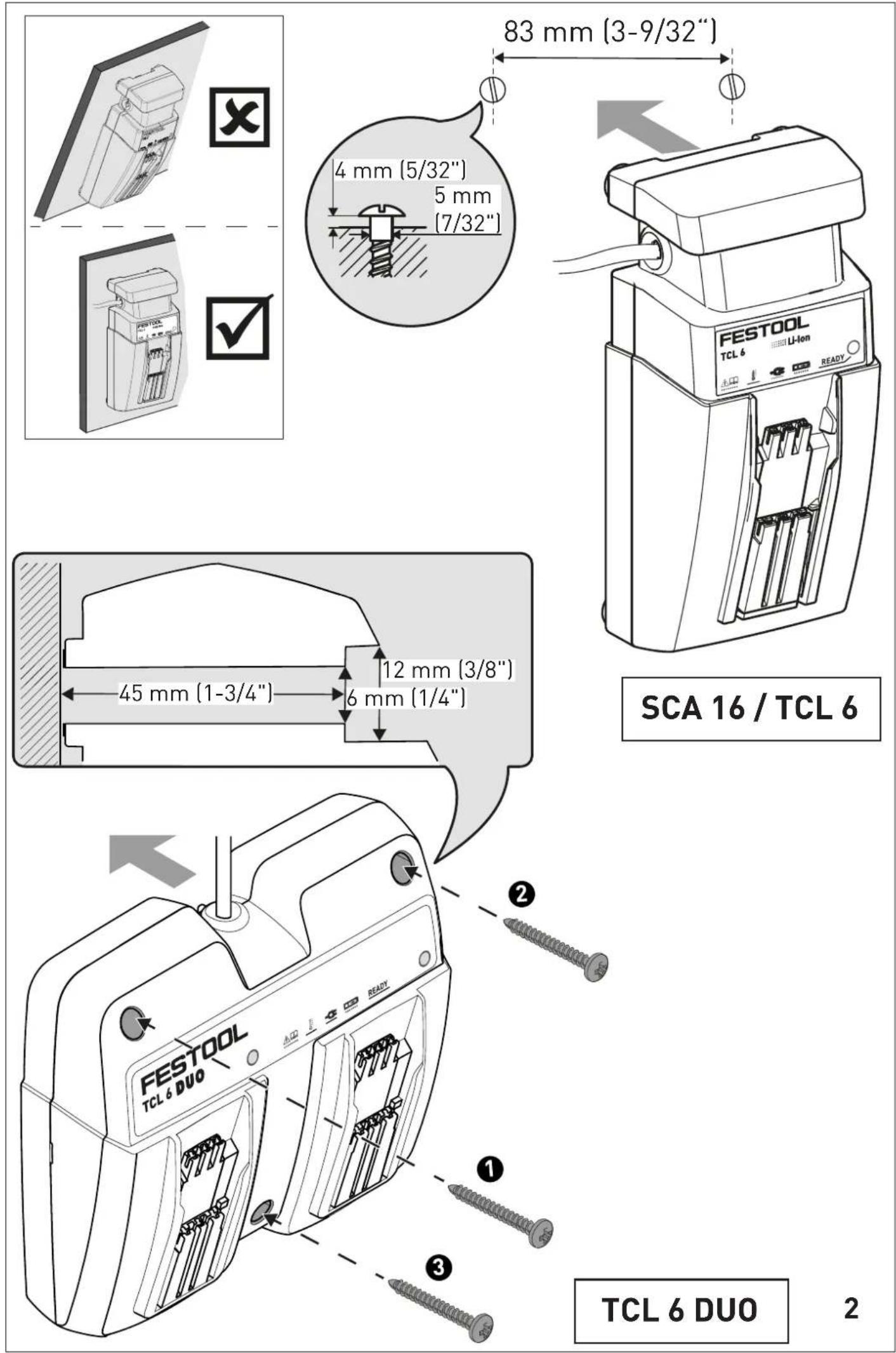

6.2 Wall mounting

See figure [2].

7 Operation

7.1 Meaning of the LEDs

After commissioning the charger, the LED of the charge status display [1-4] switches to yellow.

SCA 16 self-check

Before the LED of the charge status display switches to yellow, all LEDs [1-3] and [1-4] as well as fans [1-6] switch on for approx. 1 s.

Operating statuses of the charger:

LED yellow - steady light

Charger is ready to use.

LED green - flashing

Battery pack is charging.

READY

LED green – steady light – READY

The battery pack is > 80% charged and ready for use. In the background, the battery pack will continue to be charged up to 100%.

LED red - flashing

General fault indicator, e.g. not in full contact, short circuit, faulty battery pack, etc.

LED red - steady light

Battery temperature is outside the permitted range. As soon as the permitted temperature is reached, the charger automatically switches to charging.

Remaining charge time (SCA 16 only)

Display of anticipated remaining charge time:

▶ Insert the battery pack.

The charge status display [1-4] flashes several times.

Anticipated remaining charge time is displayed by the corresponding LED [1-3] flashing.

7.2 Working instructions

Continuous or several consecutive charging cycles can cause the charger to heat up. However, this does not do any harm and does not indicate a technical fault.

When kept in the charger, battery packs remain fully charged.

Only charge battery packs in a well-ventilated area.

English

AIRSTREAM (SCA 16 only)

The SCA 16 charger is fitted with a fan and actively supports cooling of the BP 18...AS/I battery packs.

8 Service and maintenance

Customer service and repairs must only be carried out by the manufacturer or service workshops. Find the nearest address at: www.festool.co.uk/service

Always use original Festool spare parts. Order no. at: www.festool.co.uk/service

8.1 Observe the following information:

• Clean the charger with a soft, dry cloth to prevent damage. Do not use solvents.
• Keep the connecting contacts on the charger clean.
• Do not cover the vents [1-6] on the SCA 16 charger.

9 Environment

Do not dispose of the device in the household waste! Recycle devices, accessories and packaging. Observe applicable national regulations.

EU only: In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used power tools must be collected separately and handed in for environmentally friendly recycling.

Information about collection points for correct disposal is available at www.festool.co.uk/recycling.

Information on REACH: www.festool.co.uk/reach

10 General information

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way

Bury St Edmunds

IP30 9XH

Great Britain
