Product type	Additional digital cordless handset
Brand	Panasonic
Model	KX-TGA800EX
Compatibility	KX-TG8011 and KX-TG8021 bases
Charger power supply	AC adaptor PQLV209CE (100-240 V AC)
Battery type	Rechargeable Ni-MH AAA (R03)
Number of batteries supplied	2
Initial charging time	Approximately 7 hours
Display	LCD display with language selection
Main functions	Auto recording, calls, directory (via base)
Safety	Auto shut-off in case of overheating, safety instructions
Maintenance	Clean with a soft damp cloth
Spare parts	Batteries HHR-55AAAB, adaptor PQLV209CE
Compatible countries	Germany, Spain, Italy, Norway, Sweden, Denmark, Finland, Austria, Belgium, Greece, Switzerland, Turkey, Netherlands
Certifications	Compliant with Directive 1999/5/EC

Frequently Asked Questions - KX-TGA800EX PANASONIC

How to install the batteries in the handset?

Open the handset cover, insert the rechargeable Ni-MH AAA batteries respecting the polarities, then close the cover. Only use Ni-MH batteries.

How long does it take to charge the batteries before first use?

Place the handset on the charger for approximately 7 hours before first use.

How to register the handset on the base?

Pick up the handset, press the [✗①] key. On the base, depending on the model, press [•••] (KX-TG8011) or [••] (KX-TG8021) for 5 seconds. Then place the handset on the base and wait for the confirmation tone.

How to change the display language?

Press the middle soft key, select "Display Setup" then "Select Language". Choose the desired language with the [▼]/[▲] keys and confirm with OK.

What to do if the message 'Press «•••» on base for 5sec' appears?

This message indicates the handset is not registered. Follow the registration procedure: press the corresponding key on the base for 5 seconds, then place the handset on the base.

Can I use alkaline or Ni-Cd batteries?

No, only use rechargeable Ni-MH AAA (R03) batteries. Alkaline, manganese, or Ni-Cd batteries are not suitable.

How to clean the device?

Clean the outer surface with a soft damp cloth. Do not use benzene, thinner, or abrasive powder.

What to do if the power adaptor becomes hot?

It is normal for the adaptor to be hot during use. However, if it emits smoke or an abnormal smell, unplug it immediately and contact an authorized service center.

Is the handset compatible with other Panasonic bases?

This handset is designed for use with KX-TG8011 and KX-TG8021 bases. It may not be compatible with other models.

Where to find the declaration of conformity?

The declaration of conformity can be downloaded at http://www.doc.panasonic.de.

USER MANUAL KX-TGA800EX PANASONIC

TGA800EX(ex).book Page 1 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Panasonic

KX-TGA800EX

Installation Manual

Bedienungsanleitung

Manuel installateur

Line drawing of a classic mobile phone with keypad and front panel (no text or symbols)

Additional Digital Cordless Handset

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA800EX(ex).book Page 3 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Contents/Inhalt/Table des matières/Inhoud/Innehåll/Innholdsfortegnelse/Sisällysluettelo/Περιεχόμενα/Indholdsfortegnelse/Contenido/Indice/İçindekiler

English 4

Deutsch 9

Français.... 15

Nederlands.... 21

Svenska 27

Norsk 32

Suomi 37

Ελληνικά...... 42

Dansk...... 49

Español 54

Italiano....60

Türkçe....66

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA800EX(ex).book Page 4 Wednesday, July 23, 2008 9:29 AM

English

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset for use with the following series of Panasonic Digital Cordless Phone: KX-TG8011/KX-TG8021 You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger....1 AC adaptor (PQLV209CE)....1

Rechargeable batteries ^*1 2

Handset cover ^*2 1

*1 Please read the base unit's operating instructions for replacement battery information.
*2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
• This equipment is designed for use in Germany, Spain, Italy, Norway, Sweden, Denmark, Finland, Austria, Belgium, Netherlands, Greece, Switzerland, and Turkey.
• In the event of problems, you should contact your equipment supplier in the first instance.
• For use in other countries, please contact your equipment supplier.

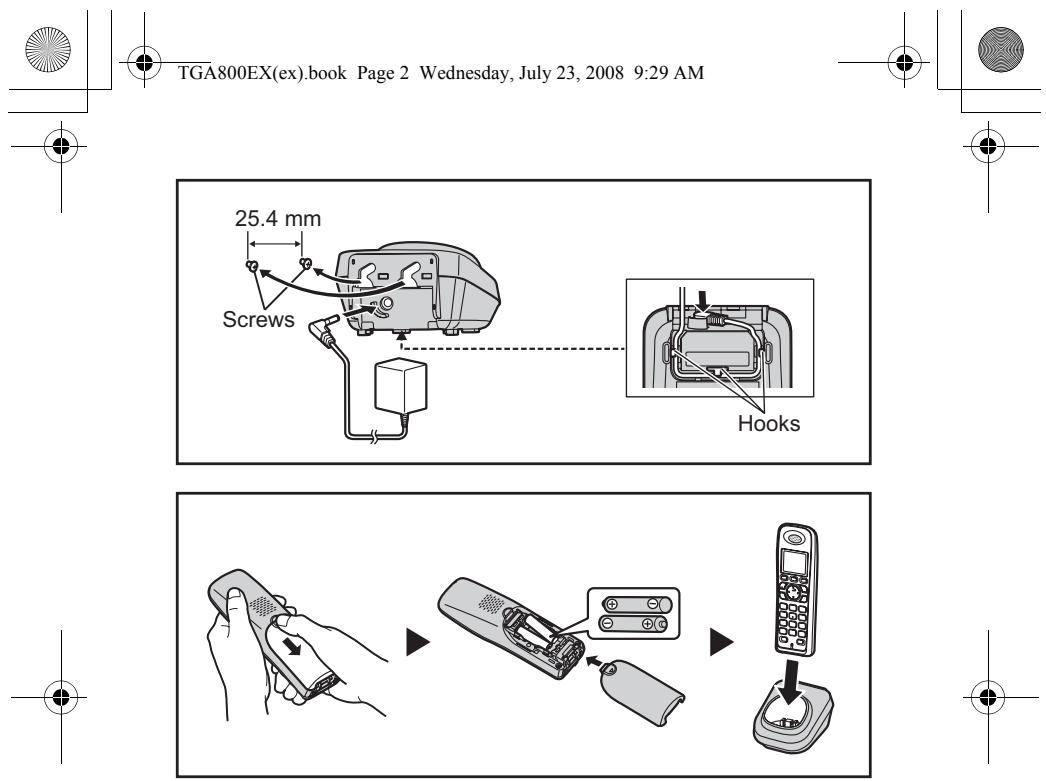

Connection

• Use only the supplied Panasonic AC adaptor PQLV209CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)

Battery installation/Battery charge

Important:

• Use the supplied rechargeable batteries (Part No. HHR-55AAAB).
• When installing the batteries:
• Wipe the battery ends (⊕, ⊖) with a dry cloth.
• Avoid touching the battery ends (⊕, ⊖) or the unit contacts.
• Confirm correct polarities (⊕, ⊖).

4

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 5 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

- When replacing the batteries:

- USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

- Do NOT use Alkaline/Manganese/Ni-Cd batteries.

- We recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions for replacement battery information.

Place the handset on the charger for about 7 hours before initial use.

Note:

- The handset display may show “Please Wait...” when the handset is placed on the charger if it is not registered to the base unit.

- If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (, ) and the charge contacts with a dry cloth and charge again.

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [✗①] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [✗①].

2 Base unit:

Proceed with the operation for your model.

■ KX-TG8011

Press and hold [•••] for about 5 seconds. (No registration tone)

■ KX-TG8021

Press and hold [•••] for about 5 seconds, until the registration tone sounds.

- If all registered handsets start ringing, press the same button to stop. Then repeat this step.

3 Handset:

Place the handset on the base unit.

- Continue the operation even when the handset display shows "Please Wait...".

4 With the handset still on the base unit, wait until a confirmation tone sounds and stops flashing.

Note:

- If an error tone sounds, or if Y is still flashing, register the handset according to the base unit's operating instructions.

• The KX-TG8011 does not feature an answering system.

- Answering system features are available only when this handset is registered to the KX-TG8021.

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

5

TGA800EX(ex).book Page 6 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

CAUTION

Installation and relocation

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

6

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 7 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

- Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase the information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used

batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

7

TGA800EX(ex).book Page 8 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

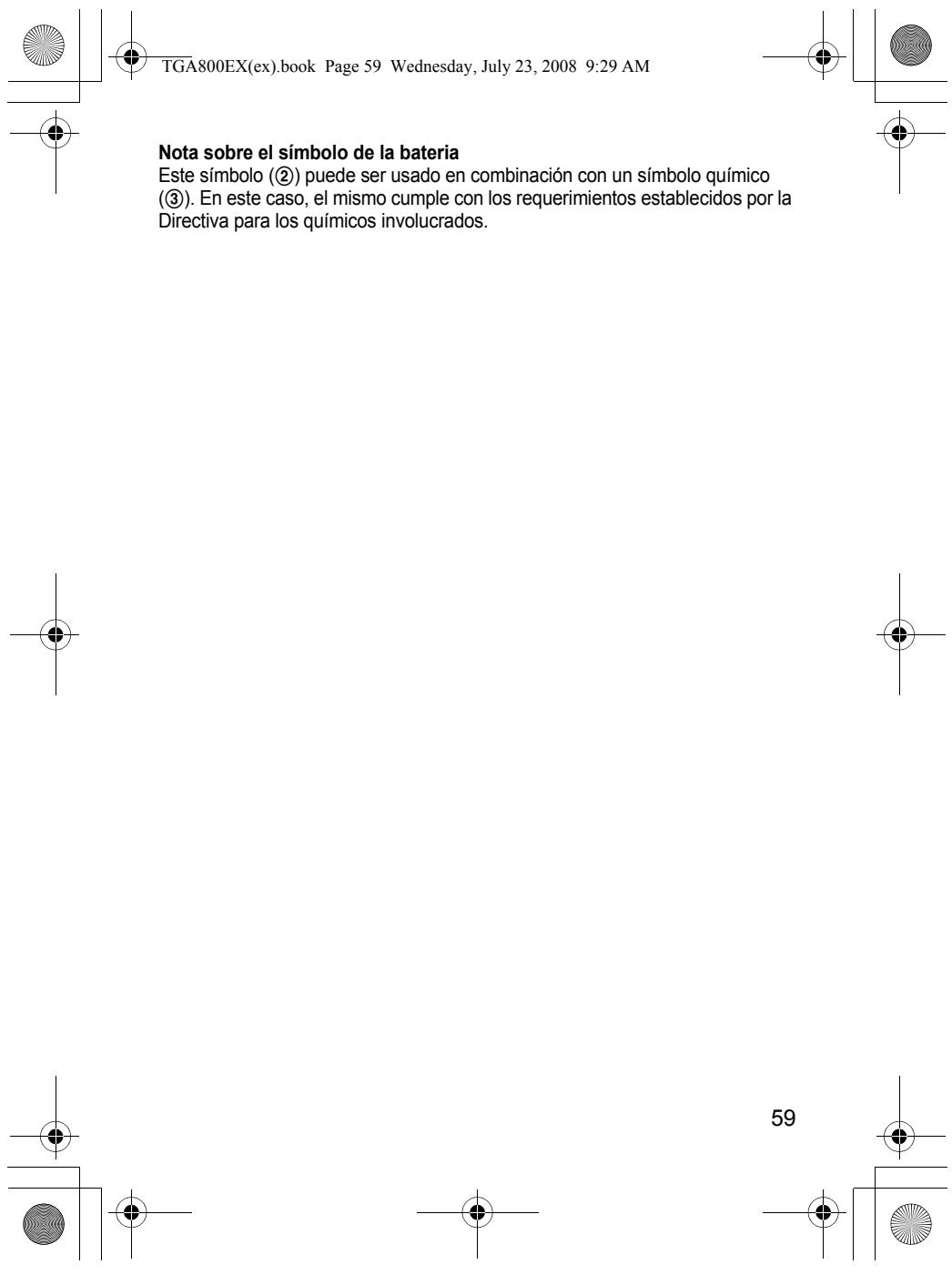

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 9 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Deutsch

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 10 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 11 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

11

TGA800EX(ex).book Page 12 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 13 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

13

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 14 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 15 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Français

VEUILLEZ LIRE CE DOCUMENT AVANT TOUTE UTILISATION ET LE CONSERVER

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

15

TGA800EX(ex).book Page 16 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 17 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

17

TGA800EX(ex).book Page 18 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 19 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Autres informations

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

19

TGA800EX(ex).book Page 20 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 21 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Nederlands

LEES DE HANDLEIDING VOOR HET GEBRUIK EN BEWAAR DEZE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

21

TGA800EX(ex).book Page 22 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Batterijen installeren/Batterij opladen

Belangrijk:

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA800EX(ex).book Page 23 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Displaytaal

1 (middelste zachte toets) → 📁 → OK
2 [▼]/[▲]: "Display Setup" ("Display instel.") → OK
3 [▼]/[▲]: "Select Language" ("Kies Taal") → OK
4 [▼]/[▲]: Selecteer de gewenste taal. → OK → [×①]

Opmerking:

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

23

TGA800EX(ex).book Page 24 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Voor uw veiligheid

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 25 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

25

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 26 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 27 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Svenska

LÄS INFORMATIONEN INNAN ENHETEN ANVÄNDS OCH SPARA DEN FÖR FRAMTIDA BRUK

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 28 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 29 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

■ KX-TG8021

Pure geometric diagram with intersecting lines and circles, no text or symbols present

29

TGA800EX(ex).book Page 30 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

FÖRSIKTIGHET

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

30

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 31 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

31

TGA800EX(ex).book Page 32 Wednesday, July 23, 2008 9:29 AM

Norsk

LES F∅R BRUK OG TA VARE PÅ

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 33 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

33

TGA800EX(ex).book Page 34 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3 Håndsett:

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 35 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Batteri

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

35

TGA800EX(ex).book Page 36 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Suomi

LUE OHJEET ENNEN KÄYTTÖÄ JA SÄILYTÄ NE

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA800EX(ex).book Page 38 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 39 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3 Luuri:

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

39

TGA800EX(ex).book Page 40 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Akut

Pure geometric diagram with intersecting lines and circles, no text or symbols present

40

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 41 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Ελληνικά

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 43 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

43

Γλώσσα οθόνης

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 45 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

45

TGA800EX(ex).book Page 46 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Μπαταρία

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 48 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 49 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Dansk

LÆSES F∅R BRUG OG OPBEVARES DEREFTER

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 50 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and symbols without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 51 Wednesday, July 23, 2008 9:29 AM

■ KX-TG8021

Hold [•••] nede i ca. 5 sekunder, til registreringstonen lyder.

TGA800EX(ex).book Page 52 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

FORSIGTIG

Pure geometric diagram with intersecting lines and a central circular pattern, no text or symbols present

52

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 53 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with concentric circles and crosshairs, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

53

TGA800EX(ex).book Page 54 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Español

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 55 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 56 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

2 Unidad base:

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 57 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Colocación

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

57

Cuidado rutinario

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 59 Wednesday, July 23, 2008 9:29 AM

TGA800EX(ex).book Page 60 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Italiano

LEGGERE PRIMA DELL'USO E CONSERVARE

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 61 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

61

TGA800EX(ex).book Page 62 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

62

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 63 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 64 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Altre informazioni

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 65 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA800EX(ex).book Page 66 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Türkçe

LÜTFEN KULLANMADAN ÖNCE OKUYUNUZ VE SAKLAYINIZ

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 67 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

TGA800EX(ex).book Page 68 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

■ KX-TG8021

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 69 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

69

TGA800EX(ex).book Page 70 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 71 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Declaration of Conformity:

• Panasonic Communications Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.
  Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

71

TGA800EX(ex).book Page 72 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Samsvarserklæring:

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 73 Wednesday, July 23, 2008 9:29 AM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

73

TGA800EX(ex).book Page 74 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Sales department/Vertrieb/Service des ventes/Klantenservice/Försäljning/Importør/Maahantuonti/Tμήμα Πωλήσεων/Salgskontor/Departamento de ventas/Ufficio Vendite/Satis bölümü

■ Österreich

Panasonic Austria

Leonard Bernstein Strasse 10, 1220 Wien

Rufnummer der Informationshotline: 0810-10 18 00

Branch of Panasonic Nordic AB

Fabriksparken 16

DK-2600 Glostrup

http://www.panasonic.dk

Norge

Panasonic Norge

Branch of Panasonic Nordic AB

Skarersletta 50, P.O. BOX 324

N-1471 Skarer

http://www.panasonic.no

■ Suomi

Panasonic Finland

Branch of Panasonic Nordic AB

Sinimäentie 8 B

02630 Espoo

http://www.panasonic.fi

■ Deutschland

E-Care Repair Services

Fruitweg 34

2321 DH Leiden

Tel: [phone]

Fax: [phone]

Homepage: www.panasonic.nl

E-mail: [e-mail]

Telefoonnummer klantenservice Nr.:

073-6402 802

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA800EX(ex).book Page 75 Wednesday, July 23, 2008 9:29 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

España

Panasonic ESPAÑA, S.A.

Service Centre & Support

Littauerboden 1

CH-6014 Littau-Luzern

www.panasonic.ch

Panasonic Systems Company

P.O.Box 1711, Halfway House,

1685, SOUTH AFRICA

Customer Support: 086 11 77 777

Homepage: www.panasonic.co.za

E-mail: [e-mail]

Türkiye

ithalatçı firma:

tekofaks

ELEKTRONiK SANAYi MÜMESSiLLiK VE TiC. A.Ş.

Kağithane Cad. Sevilen Sok. No:

65 Çağlayan – İSTANBUL

Tel: [phone]

Faks: (0212) 222 77 26

Panafax: 210.9648.588

e-mail: [e-mail]

Υποκατάστημα

Βόρειας Ελλάδας

Panafax: 2310.968.083

e-mail: [e-mail]

www.panasonic.gr

■ Italiana

Panasonic Italia S.p.a.

Via Lucini, 19 - 20125 MILANO

http://www.panasonic.it

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

C€0470

Pure geometric lines and crosshair symbols without any text, numbers, or labels

Panasonic Communications Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

© 2008 Panasonic Communications Co., Ltd. All Rights Reserved.
