Product type	Fan
Brand	Bimar
Model	VBOX39T
Category	Pedestal fan
Electrical class	Class II (double insulation)
Power supply	220-240 V ~ 50 Hz
Power	45 W (estimated)
Speeds	3 speeds (low, medium, high)
Timer	0 - 120 minutes, automatic shut-off
Oscillation	Yes, with push button
Blade material	Plastic
Protection grille	Metal, fine mesh
Assembly	Feet to insert into the base
Use	Domestic, indoor
Max ambient temperature	40 °C
Cleaning	Soft damp cloth, no abrasive products
Maintenance	Unplug before cleaning, do not immerse
Safety	Do not use near heat sources, do not insert objects into the grille
Weight	3.5 kg (estimated)
Dimensions (approx.)	Height 120 cm, diameter 40 cm

Frequently Asked Questions - VBOX39T Bimar

How to assemble the VBOX39T fan?

Insert each foot (right and left) fully into the base located under the stand, ensuring that the longer part of the foot is facing the back. The fan must only be used with the feet attached to the base.

How to set the timer?

Turn the timer knob clockwise to the desired position (0 to 120 minutes). For continuous operation without the timer, turn the knob counterclockwise to the 'ON' position.

How to choose the fan speed?

Use the selector knob to choose between 3 speeds: position 1 for low speed, position 2 for medium speed, position 3 for high speed. Position 0 to turn off.

How to activate oscillation?

Press the push button provided for this purpose (oscillation switch) to start or stop the oscillation of the diffuser.

What to do if the appliance does not work properly?

Check that the plug is properly connected and that the voltage matches. If the problem persists, do not use it and contact a qualified technician. Do not attempt to repair it yourself.

How to clean the fan?

Always unplug the appliance before cleaning. Use a soft, slightly damp cloth. Do not use abrasive or corrosive products. Do not immerse any part in water.

Can I use the fan with an external timer or remote control?

No, it is not recommended to use the appliance with an external timer, programmer, or any other automatic startup device, to avoid any risk of fire.

Where should I install the fan?

Place it on a stable, horizontal, and smooth surface, at least 2 meters away from heat sources and curtains. Do not install it on a shelf or hang it on the wall.

How to store the fan when not in use?

Unplug it, clean it, then store it away from dust and humidity. Ideally, use its original packaging.

How to properly dispose of the appliance at the end of its life?

Do not throw it away with household waste. Take it to a selective collection center provided by your municipality or return it to a retailer offering this service, in accordance with directive 2011/65/EU.

USER MANUAL VBOX39T Bimar

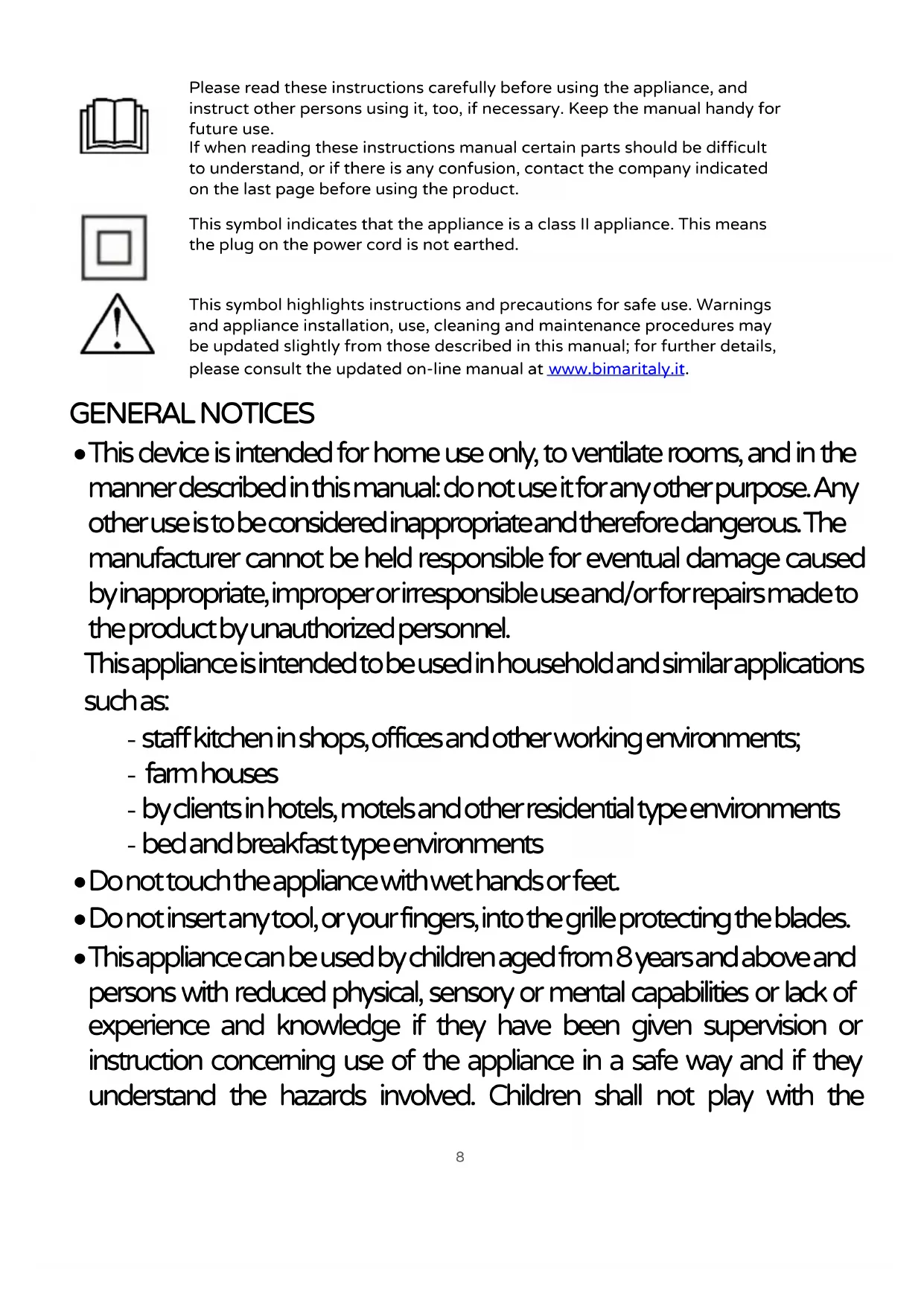

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, if necessary. Keep the manual handy for future use.

If when reading these instructions manual certain parts should be difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol indicates that the appliance is a class II appliance. This means the plug on the power cord is not earthed.

This symbol highlights instructions and precautions for safe use.Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.

GENERALNOTICES

• This device is intended for home use only, to ventilate rooms, and in the manner described in this manual: do not use it for any other purpose. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorized personnel.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen in shops, offices and other working environments;
  -famhouses
• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• Do not touch the appliance with wet hands or feet.

• Do not insert any tool, or your fingers, into the grille protecting the blades.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance can be used by children aged 8 and older and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are properly supervised or if they have received instructions regarding the safe use of the appliance and have understood the related dangers. Children should not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than 8 years of age and are supervised.
• The appliance must be kept out of children's reach.
• Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.
• Do not use the appliance if it is not operating correctly or seems damaged; if in doubt, contact professionally qualified personnel.
• Makes sure that the appliance is working correctly. if not, turn the appliance off and have it checked by professionally qualified personnel.
• Always unplug the appliance before you assemble, disassemble or make adjustments to the appliance.
• Do not move the appliance when it is operating.
• Unplug the appliance when not in use.
• Do not use the device at room temperatures above 40^ C .
• Do not move the appliance when it is in function.
• Do not leave the device exposed to the weather (sun, rain, etc.).
• Do not pull on the cord to disconnect the plug from the socket.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

INSTALLATION

• After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger.

All packaging elements must be disposed of according to their raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The bag containing the feet, which is unmarked due to its small size, therefore you have to follow the procedures for the disposal of their municipality.

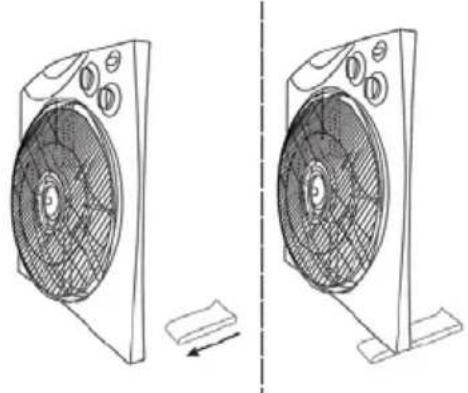

Warning: the fan should be used only with the feet attached to the base. To fix each foot (right and left), insert it all the way into the appropriate seat on the lower part (base), in the correct direction (the longer part of the foot must be in the back)

• Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network. In the event of incompatibility between the electric outlet and the plug of the heater, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the applian ce.
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
• To not place the appliance near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.
• Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
• Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
• Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.
• Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).
• In the event of a breakdown or poor operation, turn the fan heater off and ask for professionally qualified help.

USEINSTRUCTIONS

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

• Plug it in.

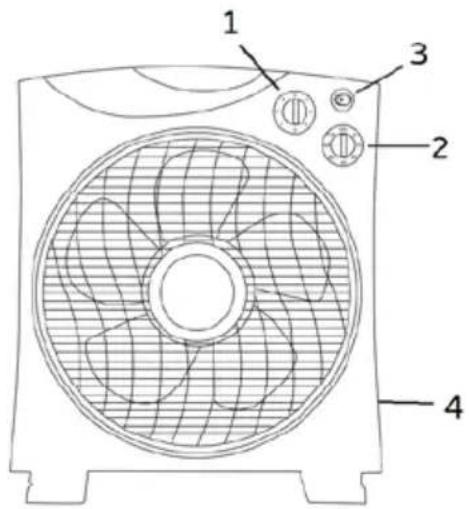

• The appliance has a timer for automatic switching off at the end of the time set; to set the time turn the timer knob (2) clockwise to the position corresponding to the desired operating time (0-120 min.); in order to operate the appliance in a continuous manner, and to therefore exclude use of the timer, turn the knob anticlockwise to the "ON" position.
• Ventilation: set the desired speed using the knob (1), by turning it to one of these positions:

0 = Off 1 = Speed minimum

2 = Speed medium 3 = Speed maximum

To switch off the appliance, turn the selector knob to the "0" position or turn the timer knob to the "OFF" position, and then remove the plug from the socket.

Diffuser rotation: this obtained by pressing the knob for the purpose (3).

When not in use for long periods, the plug must always be removed from the socket.

CLEANING AND MAINTENANCE

Attention: before normal cleaning, remove the plug from the socket.

• Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.
• It is essential that the motor's air holes be kept from dust and lint.
• If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
• Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them (such as the blade).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
