USER MANUAL Bella Elegance Klarstein

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technical diagram of a hand mixer with labeled parts including motor, screwdriver, and push buttons

Line drawing of a kitchen grater with a handle and lever, no text or symbols present

Technical line drawing of a hand-to-hand grimmer with a screwdriver (no text or symbols)

Line drawing of a hand mixer with a handle and lever, labeled with number 3 (no text or symbols on the diagram itself)

Technical line drawing of a hand mixer device with no visible text or symbols

Line drawing of a manual hand mixer device with a downward arrow indicating motion (no text or symbols)

Line drawing of a hand pump or juicer device with a downward arrow indicating motion (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 14

Before First Use 15

Device Overview 15

Assembly 16

Operation 17

Cleaning and Care 18

Troubleshooting 19

Disposal Considerations 20

Manufacturer & Importer (UK) 20

TECHNICAL INFORMATION

Item number 10039898, 10039899, 10039900
Power supply 220-240 V ~ 50 Hz
Power 200 W

SAFETY INSTRUCTIONS

• Read all instructions and keep the manual in a safe place for future reference.
• Only connect the appliance to sockets that correspond to the specified voltage.
• Unplug the device when not in use. Be careful not to damage the mains cable. If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person. Do not try to open or repair the device yourself.
• Children, physically and physically impaired persons should only use the appliance if they have been familiarised in detail with the functions and safety precautions by a supervisor.
• Do not immerse the appliance or the power cord in water and do not use the appliance with wet hands.
• Use the unit indoors only. Do not place the device directly under a power socket. Do not connect the appliance to an external timer or a remote-controlled socket. The appliance is intended for use in the home and similar environments only. It is not intended for commercial use. Do not use the appliance for any purpose other than that specified and place the appliance on a stable, level and heat-resistant work surface.

CAUTION

Risk of injury! Do not touch any moving parts while the device is in operation. Always switch off and unplug the machine before changing accessories or moving parts.

• Before operation, make sure that all parts are properly seated. Do not use the appliance if it is damaged, dropped or wet. Have the device inspected and repaired by a specialist company.
• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.

BEFORE FIRST USE

• Wipe the outside with a damp cloth and wipe dry with a towel. Do not use abrasive cleaners.
• Remove all stickers and packaging materials. Wash the accessories with warm soapy water and dry them with a towel. Never immerse the base of the device or the power cord in water or other liquids.

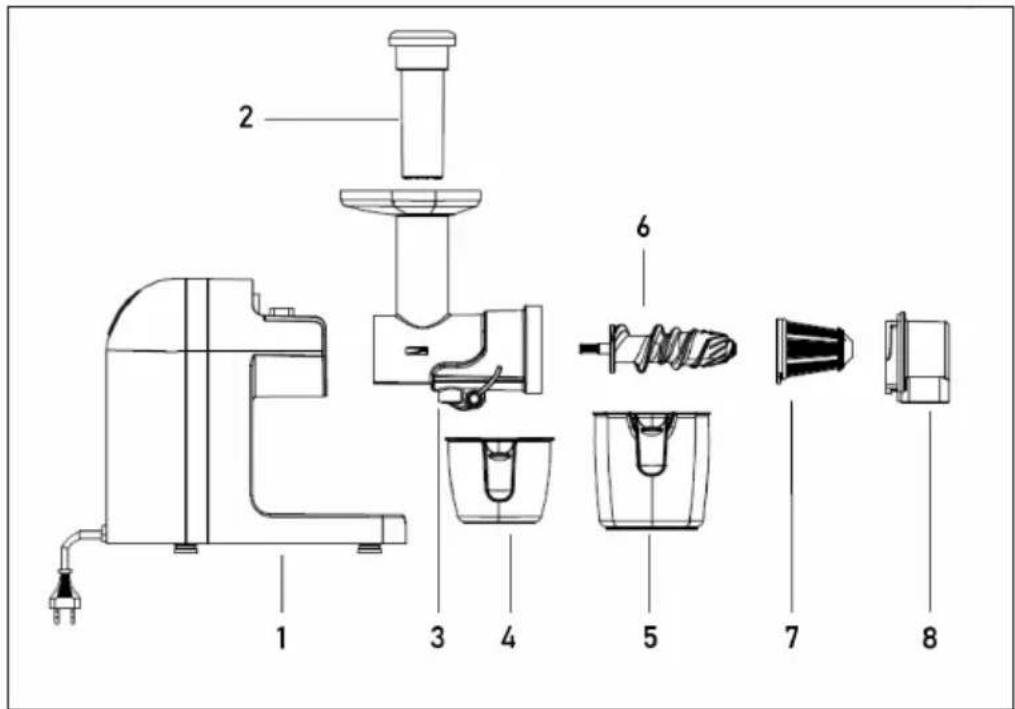

DEVICE OVERVIEW

Technical diagram of a blender with labeled parts including motor, screwdriver, and plug

1 Main unit 5 Fruit pulp cup
2 Pusher 6 Auger
3 Chamber 7 Filters
4 Juice cup 8 Lid

ASSEMBLY

Technical line drawing of a kitchen grater with a handle and base, showing no text or symbols

Technical line drawing of a hand-to-hand grimmer with a screwdriver (no text or symbols)

Line drawing of a manual hand mixer with handle and control knob, no text or symbols present

Technical line drawing of a hand mixer device with no visible text or symbols

Line drawing of a manual hand mixer device with a downward arrow indicating compression or adjustment (no text or symbols)

Line drawing of a hand pump or juicer device with a downward arrow indicating motion (no text or symbols present)

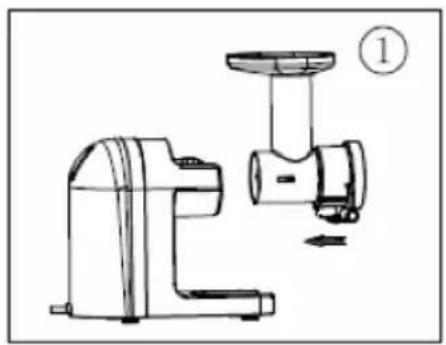

1. Position the chamber over the unit casing while pressing the button on the edge.

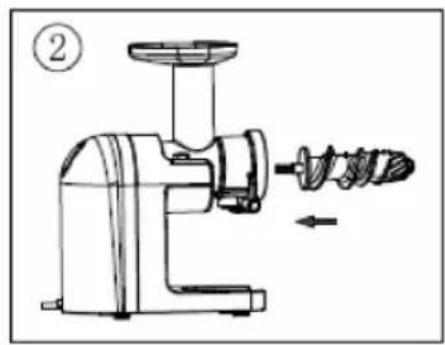

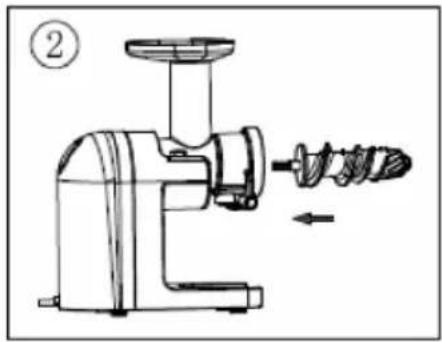

2. Install the auger securely inside the chamber. Make sure that the auger is properly seated.

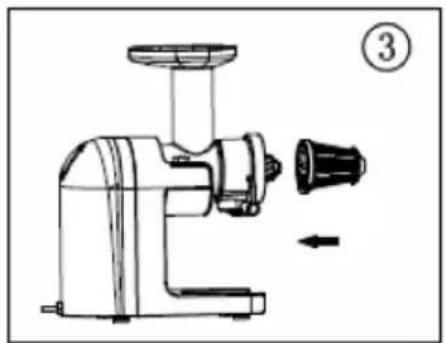

3. Position the filter in the chamber.

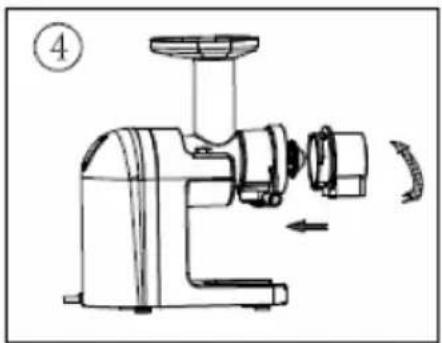

4. Secure the cover and fix it securely.

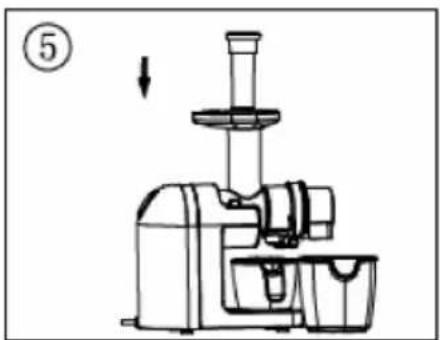

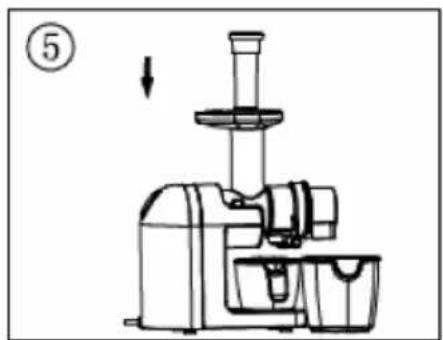

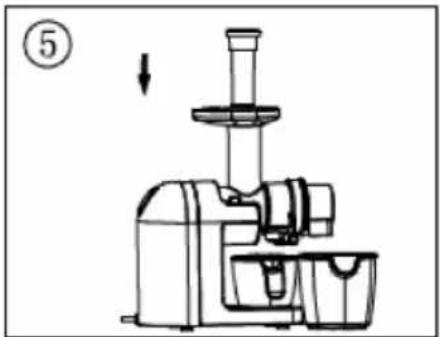

5. Put the pusher into the chamber.

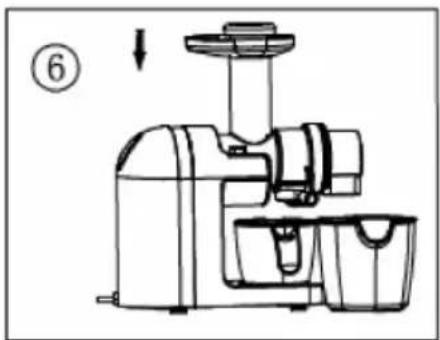

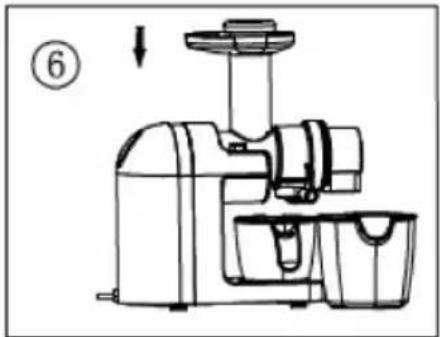

6. Switch on the appliance with the "ON" button.

OPERATION

Follow the instructions below to use the unit.

1. Switch on the unit as soon as you have fully assembled it. Allow the unit to warm up for a few seconds and make sure it is in good condition.
2. It is recommended to use fresh fruits, which are rich in water and nutrients.
3. Wash and cut the fruit into pieces that will fit through the tube.
4. Remove seeds and hard pips from the fruit.
5. Put the food into the tube and press it down carefully with the pusher.

Proceed as follows if the appliance is stopped during juicing:

1. If you have used the appliance for more than 10 minutes, switch off the appliance and let it cool down for 5 minutes before using it again.
2. The unit may be clogged. Press and hold the "R" button for 2-5 seconds to push the fruit upwards. Press the "ON" button to continue juicing.

Notes:

• To avoid damage to the auger and the micro mesh filter, do not force the fruit down during juicing.
• This appliance is not suitable for juicing grains or sugar cane.
• Do not use the appliance for more than 15 minutes at a time.

Tips and hints for juicing

• To get as much juice out of the fruit and vegetables as possible, cut them into small pieces. Do not put ice or frozen fruit in the juicer.
• If pieces get stuck in the filling chute, use the slide. Put the pieces into the filling chute one by one. Do not push them in too quickly.
• When juicing leafy greens or wheatgrass, mix with fruits or hard vegetables for best results. Only juice nuts together with other foods such as soaked soybeans or liquids.
• Only use fresh and ripe fruit and vegetables for juicing. Fresh and ripe ingredients are tastier and contain more juice than unripe ones. If possible, consume the juice immediately after juicing, as it contains the most vitamins and minerals at this time.

CLEANING AND CARE

• Always unplug the machine before cleaning the device.
- Clean the moving parts in warm soapy water. Rinse with clean water and dry the parts.
- Wipe the outside with a damp cloth and wipe dry with a towel. Do not use abrasive cleaners, alkaline cleaners or scouring pads. Do not immerse the base of the unit or the power cord in water.
- Check the device and the power cord regularly for any damage. Also inspect the mains cable for cuts or damage.
- If you are not using the appliance for a longer period of time, store the appliance together with the parts and the operating instructions in a clean, dry place.

TROUBLESHOOTING

Please check the instructions below before contacting the manufacturer or customer service.

The appliance does not start. Make sure	that the mains plug has been correctly inserted into the socket.
	Make sure that the components have been assembled correctly.
Little yield when juicing. Make sure that	the rubber stopper on the bottom of the chamber is snug and tight against the chamber.
	Fresh fruit produces the highest juice yield.
The machine stops operation. Check wh	ther there is any food residue in the appliance.
	Check the food composition (e.g. seeds) that could cause a blockage.
	Press the REV button for 3 - 5 seconds and then press the ON button. If the unit still does not work, switch it off and clean the chamber.
The appliance is making strange noises during juicing.	It is normal for the appliance to make a noise while squeezing fruit or vegetables. Depending on the type of ingredients. Hard ingredients (for example, carrots, potatoes, beetroot, radishes, etc.) can make louder noises than soft ingredients.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
