Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 8

Safety Instructions 8

Product Description and Accessory 9

Before fi rst Use 10

Assembling and Use 10

Cleaning and Care 12

Troubleshooting 13

Environment Concerns 13

Declaration of Conformity 13

Technical Data

Item number 10028001, 10028002
Rated voltage 220 V ~ 50 Hz
Rated power 150 W
Continuous operating time ≤ 10 min.
Time interval ≥ 10 min.

Safety Instructions

Read all the safety and operating instructions carefully and retain them for future reference.

Be sure the input voltage of this appliance before using: AC220V 50Hz

Be sure to disconnect the power before disassembling or adjusting any part of the product.

The appliance has Y connection. If its power cord is damaged, please contact our customer service department or have it directly replaced at a service center designated by us to avoid dangers. Do not dismantle and repair it by yourself.

Before use, please check if the power cord, the plug, the juice strainer, the juicing screw and any other part is damaged. If any damage, STOP using the appliance and contact our customer service department promptly. Do not dismantle and repair it by yourself, otherwise dangers may happen.

Be sure the juicing body, hopper and other detachable parts installed in right place before connecting power supply.

WARNING

Do not push food with fingers, or other objects (like knife), always use the enclosed Food Pusher for pushing food. When the product is working, it strictly prohibits any touch on the juicing screw and other moving parts in order to avoid injury or product damage.

• Cut food ingredients into small pieces with sizes fitting the inlet port of the juicing body. Do not extract the vegetables or fruits before removing the cores, hard seeds or thick skin or shells.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
  • Prohibited an idle running or overload.

• Dyeing of the strainer, inlet port and other plastic parts after juicing some fruits and vegetables is normal and will neither affect food eating nor harmful to health.

• Cut food ingredients into small pieces with sizes fitting the inlet port of the juicing body. Do not extract the vegetables or fruits before removing the cores, hard seeds or thick skin or shells.

• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
  • Prohibited an idle running or overload.
• Dyeing of the strainer, inlet port and other plastic parts after juicing some fruits and vegetables is normal and will neither affect food eating nor harmful to health.
• Equipped with an Intelligent Protective IC, the appliance will stop automatically after 20 minutes of continuous running. In this case, wait for 20 to 30 minutes before continuous use until the motor has cooled down to prolong the life span of the appliance.
• The appliance with current limiting design, if juicing hard ingredients (such as carrots), when the current exceeds 1.3A, the motor will stop working with „Beep beep" hints. This is to protect the motor.
• During operations, if the appliance appears limit protection or stall causes the motor stops automatically, it should be turned off the power, then start the reversal function to retreat the ingredients. After that, restart the power switch „Forward“ button to make the appliance work properly again. If the appliance still stall, then cleaning ingredients within the juicing screw and continue to use.
• Not allowed over 80°C hot water and microwave disinfection, so as to avoid damage. All the parts in contact with food complied with food hygiene certification materials.
• To protect against risk of electric shock, fire or personal injury, do not immerse power cord, plug and motor base in water or any form of liquid, neither rinse under tap water.
• Do not use steel wool or any chemical cleaner to clean the appliance. Otherwise is may change the color of the appliance or could result in a fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Put the appliance at a place unreachable to children.

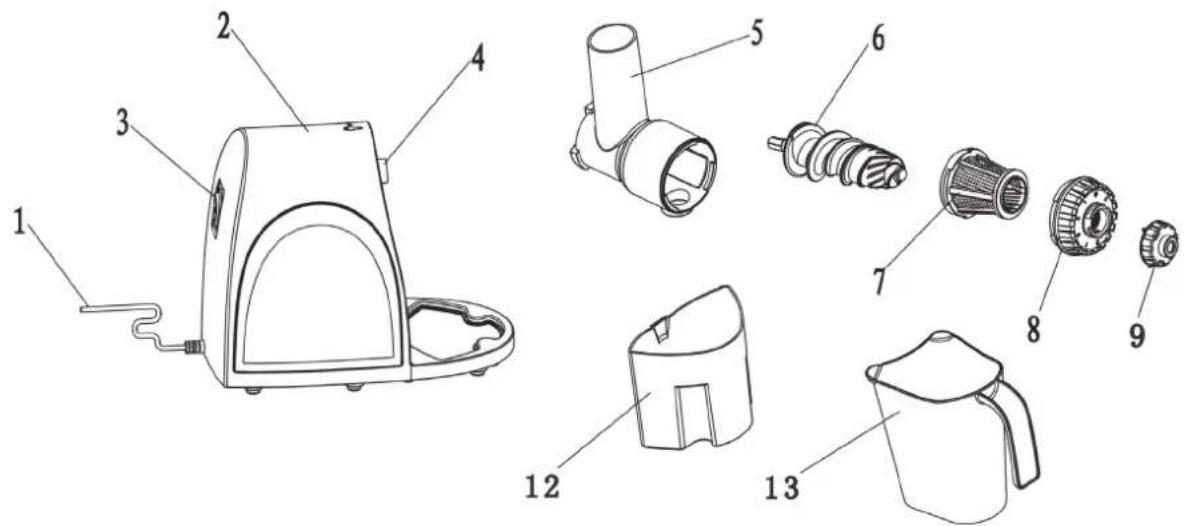

Product Description and Accessory

1 Power cord
2 Main body
3 Power switch
4 Lock
5 Juicing body
6 Juicing screw
7 Juice strainer with meshed strainer
8 Juicing body cap
9 Juicing button
10 Food pusher
11 Hopper
12 Juice cup
13 Pulp container

11 10

Exploded diagram of a portable electric cooker with numbered parts for identification

Before first Use

Before using the appliance for the first time, clean these parts which may contact with food ingredients thoroughly.

Line drawing of a manual brush tool with a circular button labeled ON and R (no text or symbols on the device itself)

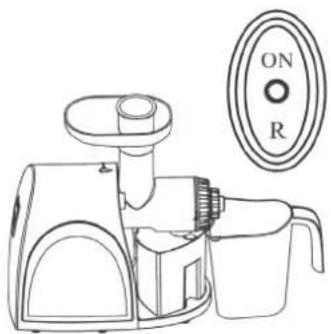

Control button operation instructions:

Button ON: For normal use Button O: Close and stop Button R: Reverse function

Use the reverse function when pulp discharge is blocked or the motor is clocked (Press and hold „R“ for about 3 seconds, the juicing screw will begin to reverse. After „R“ button is released, the juicing screw will stop reversing. If press the „On“ button again at this time, the juicing screw will return to normal work).

Assembling and Use

Diagram of a mechanical component with a curved arrow indicating motion or force (no text or symbols)

Connect the juicing body and the main body:

Align the mark ▼ on the juicing body with the mark „unlock triangular sign“ on the main body and then put the juicing body into the main body (the three clips on the juicing body will realize alignment). Then turn the juicing body anticlockwise. When there is a click, it means that the connection is finished

Line drawing of a manual electric motor with a coiled spring and housing (no text or symbols)

2 Align the polygonal shaft of juicing screw with the polygonal shaft hole of the motor mounted in the drive unit

Line drawing of a manual brush or scraper device with a handle and spout, showing no text or symbols.

Fit the larger-opening end of the juice strainer into the tail of the juicing screw and push it while the three clips of the juice strainer align with the three clamping slots in the juicing body. (The juice strainer is used with the juicing button hereinafter, this function is used for juicing.)

Technical diagram of a mechanical device with labeled parts and exploded view showing internal components

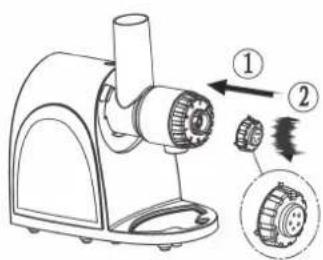

Push the juicing body cap into the juicing body horizontally while the three clips on the juicing body cap are staggered from the three clips on the juicing body. Then turn the juicing body cap anticlockwise until the figures „1“ and „2“ on it are on the right above positions.

Technical diagram of a manual pump with labeled parts and mechanical assembly details

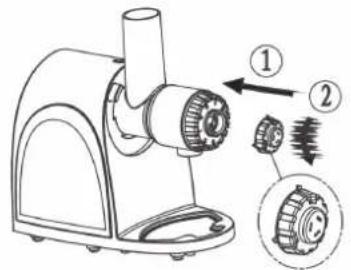

Push the juicing button into the juicing body cap horizontally while the three clips on the inner periphery of the juicing button are staggered from the three clips on the juicing body cap. Then turn the juicing button anticlockwise until the triangular projection on the edge of the juicing button aligns with the „2" position on the juicing body cap.

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Put the juice cup in the corresponding groove on the main body and have its opening align with the bottom of the juice outlet of the juicing body.

Line drawing of a mechanical device with no visible text or symbols

7 Put the pulp container below the pulp outlet of the juicing body and close to the juice cup.

Line drawing of a small manual brush tool with a handle and base, no text or symbols present

8 Install the hopper on the upper end of the inlet port of the juicing body. The hopper can make feeding of food ingredients more convenient, particularly when small-particle food ingredients like grapes and strawberries are processed.

Line drawing of a mechanical connector or socket assembly (no text or symbols)

9 Connect the power supply for use of the appliance (make sure the switch is on the „OFF“ position before the power supply is connected).

Simple line drawing of a hand using a tool to cut a bowl into a container (no text or symbols)

10 Wash vegetables and fruits, cut them into small pieces fitting the size of the inlet port and put them on the hopper. When extracting the juice, follow the methods in the safety instructions strictly. Before extracting vegetables or fruits with cores, hard seeds or thick skin or shells, remove their cores, hard seeds or thick skin or shells first.

ON R Press Are turning

11

After the „ON“ button of the switch is pressed, the appliance will begin to run. Interval ≤ 10 minutes. Do not touch the power switch with wet hands, otherwise an electric shock or leakage accident or a fire accident may happen.

Line drawing of a manual hand pump or blender with handle and spout (no text or symbols)

12

Put food ingredients into the inlet port on the juicing body and then push the food ingredients with the food pusher. Do not push the food ingredients violently but with a proper force enough to cut off the food ingredients. (Never put fingers or other objects into the inlet port on the juicing body. After the pulp container or the juice cup is full, disconnect the power supply and remove the pulp or pour the juice before continuing to use the appliance).

After food ingredient processing is finished and there is no more juice flowing out from the juice outlet, switch off the power switch and disconnect the power supply. Do not take the juice cup away from the juice outlet until both the juicing screw and the juice strainer have completely stopped. (The extracted juice should be drunk at once. If it is exposed in air for some time, its flavor and nutrition will be both affected.) Do not store pulp for a long time.

Cleaning and Care

• Before cleaning the appliance, DO switch off and disconnect the power supply.
  • After use, clean the appliance promptly.
• Do not wash the main body with water but wipe the stains on with a cotton cloth.
• Before storing the appliance, make sure it is clean and dry.
• Following the below steps to clean the appliance after dismantling it:

Line drawing of a food grater with a side panel and handle, showing mechanical components without any text or symbols.

1 Take down the food pusher and the hopper.

Line drawing of a manual manual brush with a rotating knob and curved handle (no text or symbols)

2

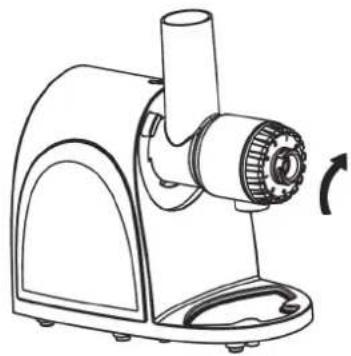

Press the lock on the upper-side of the juicing body and turn the juicing body clockwise at the same time to take out the juicing body. (The juicing body cannot be dismantled if the lock is not pressed.)

Diagram showing a mechanical assembly with multiple components and directional arrows indicating motion (no text or symbols)

After taking down the juicing body, take down the juicing button, the juicing body cap, the juice strainer and the juicing screw in order. The detachable parts may be fl ushed with clean water.

Troubleshooting

Certain problems can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed underneath.

Fault Cause analysis	Fault elimination
After the power supply is connected and the power switch is on, the appliance fails to run.	The power plug and the power socket have poor contact.	Insert the power plug again.
		Replace the power socket and try it again.
		Send the appliance to the nearest service center of our company for detection.
There is a bad smell from the motor in the first several times of use.	This is an normal phenomenon.	If there is still a bad smell after the appliance has been used for multiple times, send the appliance to the nearest service center of our company for detection.
The appliance stops during use.	The voltage is too low. Check	if the voltage is too low.
	There are too many food ingredients in it.	Disconnect the power supply and take out the surplus food ingredients.
	The appliance has run for a too long time.	It is a normal phenomenon. The motor will resume operation after some time of pause.
There is noise in are not properly ins use.	The juicing screw and the juice strainer are not properly installed.	Install the juicing screw and the juice strainer properly.
	The motor in the main body is damaged.	Send the appliance to the nearest service center of our company for detection.

Disposal and Declaration of Conformity

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Producer: CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
