ROSTO’ 58 - Oven G3 Ferrari - Free user manual and instructions

Product type	Electric oven
Brand	G3 Ferrari
Model	ROSTO’ 58
Power supply	AC 230 V ~ 50/60 Hz
Power	1800 W
Capacity	58 liters
Temperature range	40 °C to 300 °C
Timer	90 minutes (max) + continuous operation
Cooking functions	Upper heating element, lower heating element, combined, convection, rotisserie
Included accessories	Tray, grill, round tray, rotisserie
Interior light	Constantly on when operating
Door	Glass door
Material	Coated steel
Cleaning	Do not immerse; clean with a soft cloth and non-abrasive products
Safety	Automatic shut-off after use; hot surfaces, use gloves
Usage	Household and indoor use only
Repairability	Contact an authorized service center
Standby power consumption	0 W (automatically switches off)

Frequently Asked Questions - ROSTO’ 58 G3 Ferrari

How to preheat the ROSTO’ 58 oven?

Set the timer to 20 minutes, the desired temperature and the desired function. Preheating is complete when the beep sounds.

What cooking functions are available?

The oven offers: upper heating element, lower heating element, both combined, convection and rotisserie. Use the PR1 and PR2 selectors.

How to use the rotisserie?

Assemble the rotisserie, insert the tip into the food, place it in the cavity (left hole then right groove). Set the PR2 selector to position b or c.

What is the maximum oven temperature?

The temperature is adjustable from 40 °C to 300 °C using the temperature selector.

How to clean the oven?

Unplug and let cool. Clean the interior with a soft cloth and non-abrasive products. Never immerse the oven in water.

Can I leave the oven on unattended?

No, it is recommended to monitor cooking and unplug the appliance after use. Never leave unattended.

What to do if the door does not close properly?

Do not use the appliance. Contact an authorized service center for inspection and repair.

Can I use plastic containers in the oven?

No, use only containers suitable for high temperatures. Plastic could melt.

How to change the cooking function?

Use the PR1 function selector (heating elements) and the PR2 selector (convection/rotisserie). You can combine options.

What is the electrical power of the oven?

The power is 1800 W at 230 V. Ensure the electrical installation is suitable.

USER MANUAL ROSTO’ 58 G3 Ferrari

Safety Instructions. p. 8

General information. p. 10

G10154 p. 11

Operating. p. 12

Control knobs. p. 12

Preheating p. 12

Cooking. p. 12

Rotisserie. p. 13

Cleaning. p. 13

Technical features. p. 13

Waste of electric and electronic equipment (WEEE

Directive) p. 41

PORTUGUESE .p. 13

ESPANOL .p. 18

FRANCAIS .p. 23

DEUTSCH p. 29

POLSKI p. 34

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DISCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the

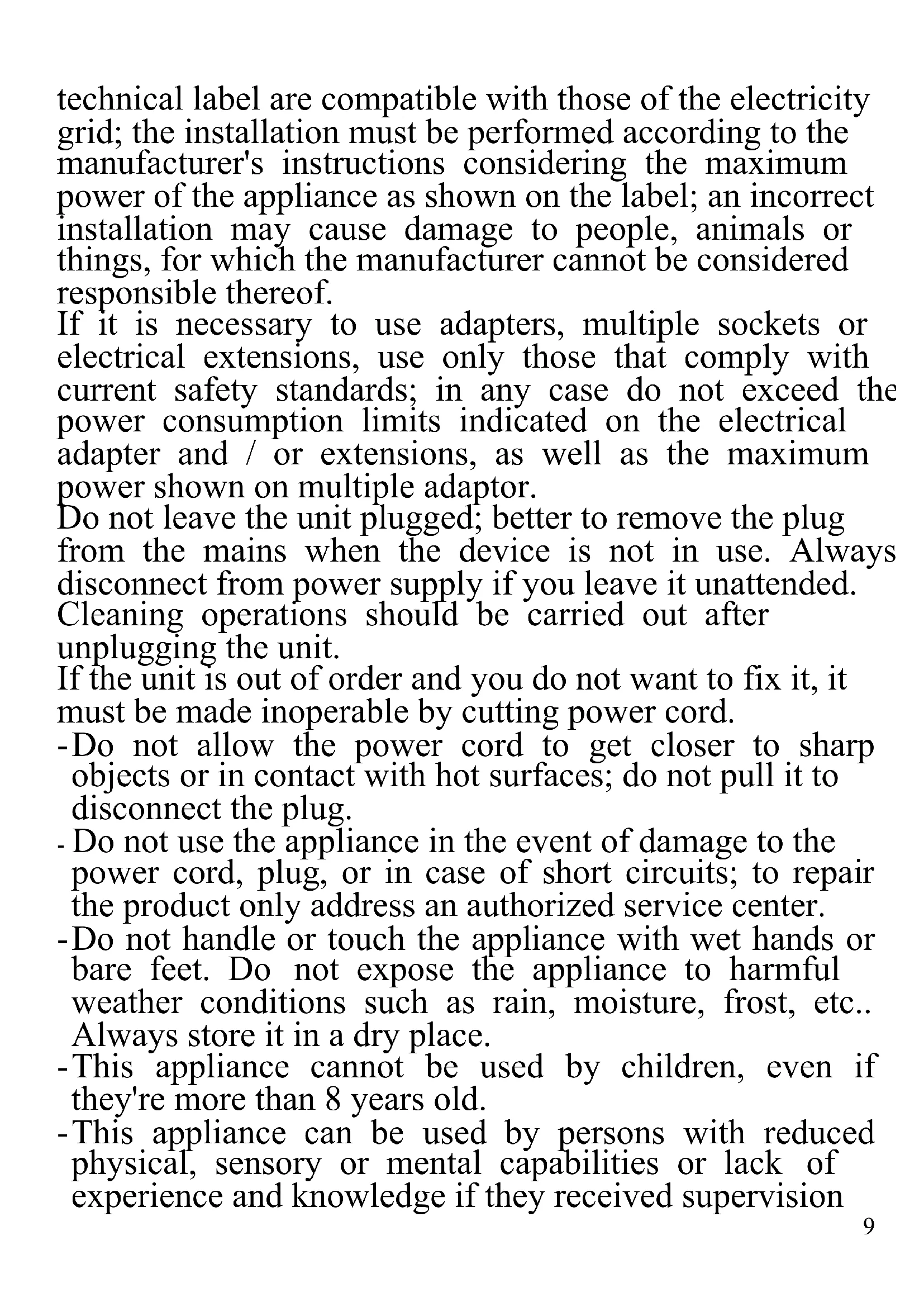

technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance cannot be used by children, even if they're more than 8 years old.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision

or instruction concerning use of appliance in a safe way and understand the hazards involved.

• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household as similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

GENERAL INFORMATION

Place the rear surface of appliances against a wall.

Only use containers suitable for high temperatures.

The appliance becomes very hot during use, do not touch glass the side walls, use handles and knobs only.

Do not place anything on the door when it is open, as

door may be damaged or oven may fall and break.

Always use pot holders to remove the grill and the pan.

Do not wash or throw water on the glass when it is hot, as it may break.

Do not use the oven if there is any damage to the door or its seals. In case of malfunction do not tamper with the appliance, but take it to the authorized service.

Handle with care fresh-cooked food to avoid risk of burning. Remove the plug after each use.

Never leave the appliance unattended while it is running.

Do not place the oven in water or other liquids and avoid splashing of liquids on the unit.

Never use plastic containers for traditional oven cooking.

Before every use, unroll the power cord. Remove all packaging materials from the cooking compartment.

Do not use the appliance as a heating unit. Do not insert anything in the ventilation windows.

Before cleaning, always unplug the unit from the electrical outlet and wait for the complete cooling of each part of the appliance.

Put on solid and stable surfaces only. Leave enough space at every sides of the oven when the unit is working.

Keep the unit away from flammable materials, curtains, heat sources, cold spots and steam. Do not use the oven as a shelf support for objects or as a place to store food, pots, containers, etc..

The contact between 2 enamel parts (tray and internal walls) may cause white signs similar to

scratches on the internal walls of the oven. At the first use wipe the internal walls with a damp cloth; in this way eventual signs will disappear. After the first use, this operation will not be necessary anymore.

DESCRIPTION G10154

1 Tray

2 Oven rack

4 Top cover

3 Round tray

5 Temperature control knob

6 Cooking selection switch

7 Timer control knob 8 Working light 9 Glass door

10 Feet 11 Bottom cover

13 Heating elements 14 Knob for fan and rotisserie

12 Ventilation openings

15 Rotisserie

OPERATING

Carefully wash all accessories and the inner housing first. Allow to ventilate the internal compartment keeping the door open for about 30 minutes and subsequently operate the empty oven for few minutes keeping the door open. Before starting with the first cooking, turn on the oven for about 20 minutes at the maximum power with both heating elements working.

GRIDUSE

To avoid the risk of rack accessory (2) falling due to weight of food, when you place inside the oven put the rack surface upper respect to rack guides, as shown in figure.

CONTROL KNOBS

Cooking selection switch PR1 (6) allows to select upper heating elements, lower heating elements or both:

1: Enable the upper heating element
2: Enable the lower heating element.
3: Enable both the upper and the lower heating elements.

With the knob PR2 (14) you can activate convection and rotisserie:

a: Enable the convection
b: Enable the rotisserie
c: Enable both convection and rotisserie.

The temperature control knob (5) allows you to set a temperature between 40 and 300 degrees Celsius. The timer control knob (7) allows you to set the cooking time between 0 and 90 minutes; rotating it anticlockwise, oven will stay ON indefinitely. The inner light automatically switches on when the oven is working.

PREHEATING

Before inserting food, always preheat the oven for 15 minutes to allow unit to reach the selected temperature.

1

2

3

a

b

C

• Preheat the oven without food. Set the timer control knob (7) up to 20 minutes.
• Set the desired temperature using the temperature control knob (5).
• Turn cooking selection switches (6 and 14) to the desired position.
• At the timer acoustic signal, preheating process is completed and the oven is ready for cooking.

COOKING

• Place the food on the pan, round pan or on the oven tray, set the temperature (control knob 5), time (7) and type of cooking (6 and 14) and place the grill or the oven rack inside the oven at the right height.
• Always place the tray (1) under the grill to avoid dripping on the lower heating element while cooking.
• The working light (8) will switch on, indicating that the unit is running. When temperature reached, the light will switch on and off periodically.
• Periodically check the condition of the food during cooking. In case you need to open the door for any reason, close it as quick as possible to avoid losing heat.
• At the end of cooking process, the light will turn off and the timer will beep. If the cooking is not complete reset the timer control knob. Always remove the oven tray and grill using a pot holder. Turn the temperature control knob (5) to the minimum and the cooking switch (6) to OFF position.

ROTISSEIRE

• Assemble the skewers (C) with the rotisserie (D), secure them tightening the lock nut (B).

• Place the tips of the skewers in the chicken (or roast or whatever) and lock securely.

• Insert the end (E) into the hole on the left wall inside the cooking chamber.

• Insert the head (A) in the guide on the bottom of the right wall of the compartment.

• Make sure the rotisserie is properly secured.

Now close the oven door and set the cooking type as explained in the previous paragraphs.

Rotisserie movement can be activated with the knob PR2 (14) in b or c position.

CLEANING - Unplug the unit from the electrical outlet and allow each part to cool down before starting any cleaning procedure.

• Do not place the oven in water. In any case prevent splashes of water or liquids from reaching unit.
• Regular cleaning of the internal chamber ensure better performances and prevents unpleasant odors. Use a soft cloth and non-abrasive cleaner to clean the cooking compartment.
• Grill, tray, oven rack and other accessories can be washed as everyday crockery.
• Don't use abrasive or metallic sponge to clean the outside of the oven. This may damage the paint.
• Be careful not to drop any liquid in the ventilation openings during cleaning.

TECHNICAL FEATURES

Power supply: AC 230V~50-60Hz. Maximum power 1800W
- Capacity: 58L - Convection, Internal light, rotisserie
- Cooking functions: bottom, top, combined
- Adjustable temperature from 40^ up to 300^ - 90 minutes timer
Power consumption in off mode: 0W, the product enters off mode automatically after use

PORTUGUES: ADVERTÉNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESIDUOS DE APARELHIOS ELECTRICOS E ELECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.
