Boston - Fire pit Blumfeldt - Free user manual and instructions

Product Type	Fire Bowl (Outdoor Fire Pit)
Brand	Blumfeldt
Model	Boston
Intended Use	Outdoor only (not in a building, garage, or enclosed space)
Fire Bowl Material	Metal (steel)
Included Parts	1 fire bowl, 3 support legs, 1 protective grid, 1 lid grid handle, 1 gripper, 6 screws, 7 hex nuts with integrated washer, 3 handles
Assembly	Requires wrench and screwdriver; simple assembly in 4 steps
Dimensions (approx.)	Bowl diameter: approx. 60 cm; total height: approx. 70 cm
Weight (approx.)	Approx. 8-10 kg
Fuel/Combustible	Wood, charcoal, briquettes (do not use gasoline, alcohol, or lighter fluid)
Grid Feature	Removable protective grid with handle; use the gripper to handle the grid
Safety - General	Risk of suffocation: do not use in enclosed space; burn risk: only touch when cooled, wear heat-resistant gloves
Safety - Use	Do not overload with fuel; keep children and pets away; do not leave unattended
Maintenance	Clean after complete cooling; use damp cloth with mild dish soap; do not use abrasive or oven cleaners
Ash Cleaning	Remove ashes only when completely cooled; leave a thin layer of ash to protect the bottom
Discoloration	Metal surface may discolor slightly over time (normal phenomenon)
Repairability	Spare parts available (bowl, legs, grid, handle, screws); regular inspection recommended
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany
UK Importer	Chal-Tec GmbH (same address)

Frequently Asked Questions - Boston Blumfeldt

Where can I install the Blumfeldt Boston fire pit?

The fire pit is designed for outdoor use only. Never use it in a building, garage, or any enclosed space, as it produces toxic fumes that can cause suffocation.

What type of fuel can I use?

Use wood, charcoal, or briquettes. Never use gasoline, rubbing alcohol, lighter fluid, or alcohol for lighting or relighting. Use firelighters compliant with EN 1860-3.

How do I correctly assemble the fire pit?

Follow the 4 steps in the manual: 1) Attach the three legs to the fire bowl with the provided screws. 2) Screw the sleeves inside. 3) Attach the handle to the lid grid from below with the union nut. 4) Use the gripper to remove the protective grid. Required tools: a wrench and a screwdriver.

How do I clean the fire pit after use?

Let the fire pit cool completely. Remove ashes when cold. Clean the outside with a damp cloth and a little mild dish soap. For stubborn stains, use a citrus cleaner and a brush. Never use oven cleaners or abrasives. Leave a thin layer of ash at the bottom to protect the bowl.

Is it safe to leave the fire pit unattended?

No. Never leave the fire pit unattended while in use. Hot embers can fall and fire can spread. Keep children and pets at a safe distance.

What should I do if the fire pit discolors?

Slight discoloration of the metal surface is normal after multiple uses. It does not affect performance or safety. Continue to use the appliance normally.

Can I use the fire pit to cook food?

Yes, you can cook food on the protective grid. Place food on the grill only when the fuel is covered with a layer of ash. Follow barbecue safety instructions: do not move the hot appliance, use heat-resistant gloves.

How do I check that the fire pit is in good condition?

Regularly inspect all parts: check that screws and nuts are tight, that components are not damaged. If you find damage, have the fire pit repaired before using it again. Never use a damaged appliance.

What are the dimensions and weight of the fire pit?

Exact dimensions are not given in the manual, but for a fire pit of this type, the bowl diameter is about 60 cm and total height about 70 cm. Estimated weight is about 8-10 kg.

Can I get spare parts?

Yes, spare parts are available: fire bowl, support legs, protective grid, handle, screws and nuts. Contact the manufacturer (Chal-Tec GmbH) or dealer to order. See the manual for part numbers.

USER MANUAL Boston Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SICHERHEITSHINWEISE

WARNUNG

Warning sign with pictograms and symbols, including a yellow warning triangle, four black-and-white icons representing heating, cooking, heating room, camping, and gathering.

VORSICHT!

VERWENDEN SIE KEINEN ALKOHOL ODER BENZIN ZUM ANZÜNDEN ODER WIEDERANZÜNDEN!

Line drawing of a circular perforated object with four legs, no text or symbols present

S2 C D

Line drawing of a portable fire pot with a mesh lid and a tool labeled 'E' (no text or symbols on the main diagram)

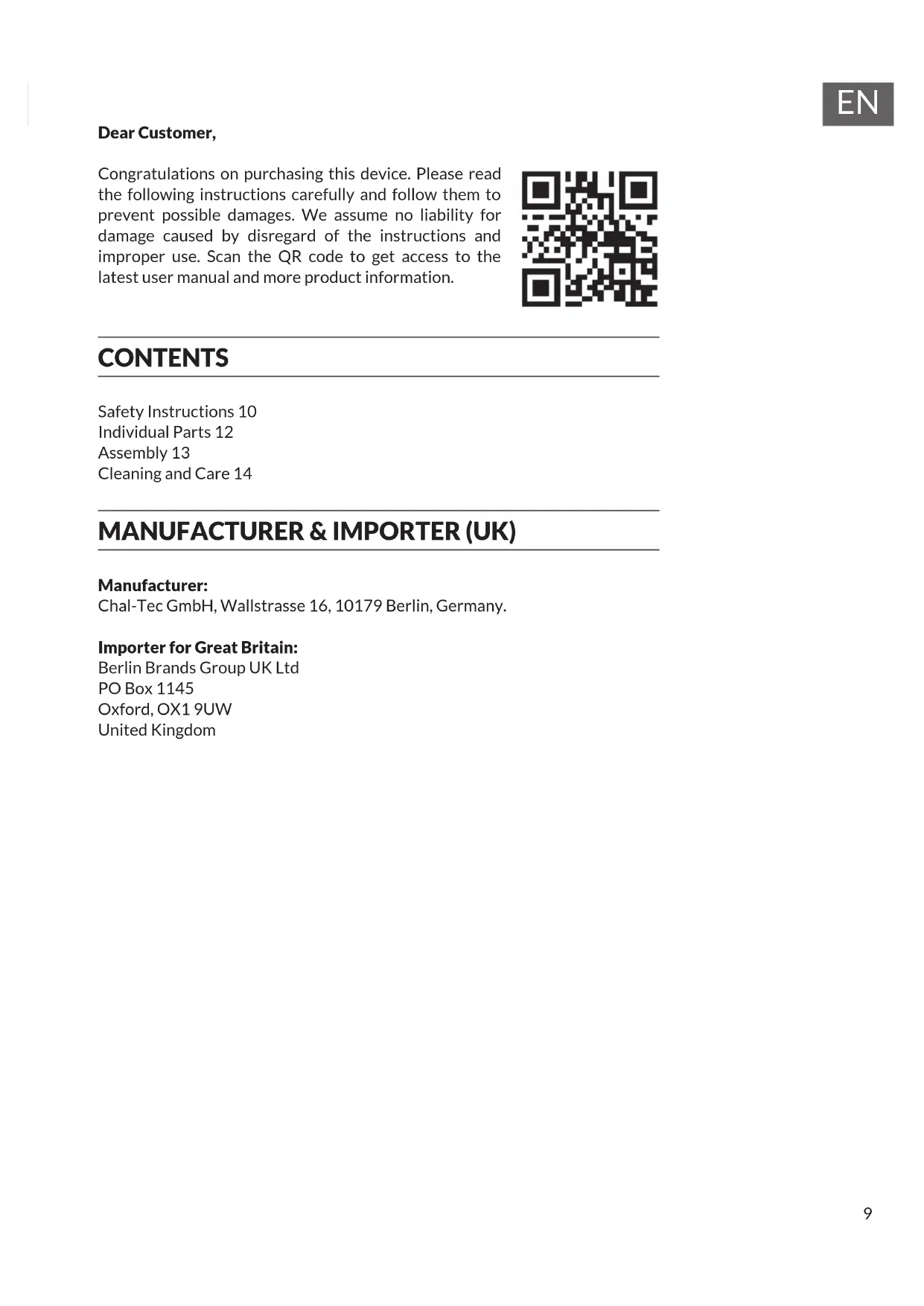

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 10

Individual Parts 12

Assembly 13

Cleaning and Care 14

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

WARNING

Risk of suffocation! This fire bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire bowl is not for commercial use.
• This fire bowl should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire bowl. This fire bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire bowl until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire bowl on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire bowl when in use as it is hot.
• Do not attempt to store the fire bowl until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fi re bowl with fuel. Do not add additional fuel until the fi re burns down. If an portion of the fi re bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire bowl as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire bowl before use.
• A slight discolouration of finish may occur after use.

Warning sign with pictograms and symbols, including a yellow warning triangle and four quadrants with red X marks.

Simple black-and-white icon of a van with a grill and a red X symbol (no text or numbers)

Simple black-and-white icon of a house with a steaming pot and a red 'X' symbol (no text or numbers)

Yellow triangular warning sign with black pictogram of a person kneeling on the ground, indicating workplace safety hazard.

Warning sign with a triangular tent containing a steaming dish and a red 'X' symbol indicating no warning.

Simple black-and-white icons showing trees, a grill, and a green checkmark (no text or symbols)

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

Special instructions for grills

• Do not place the food on the grill until the fuel is covered with a layer of ash!
• The appliance becomes very hot and must not be moved during operation.
• Do not use the appliance in closed rooms.
• Do not use spirit or petrol for ignition or reignition. Only use ignition aids in accordance with EN 1860-3.
• Keep children and pets away from the appliance.

INDIVIDUAL PARTS

1 Fire bowl
3 Support legs
1 Handle for the cover grill
1 Cover grille
1 Gripper
6 Screws
7	Hexagon nuts with integrated washer	-
3 Sleeves

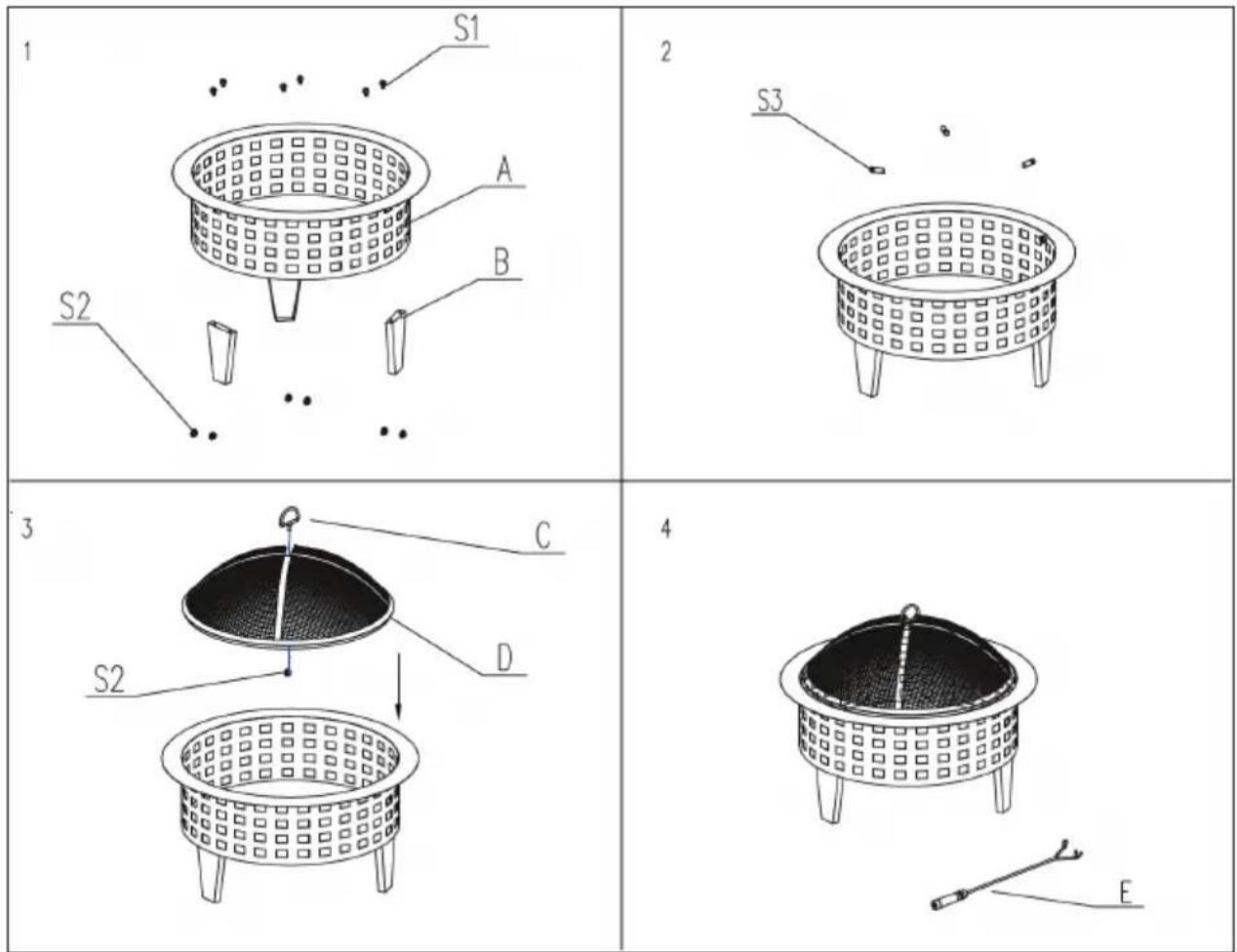

ASSEMBLY

Required tools

• Wrench
• Screwdriver

1 Attach legs (B) and fasten to fire bowl (A) with screws (S1).
2 Screw in sleeves (S3) on the inside.

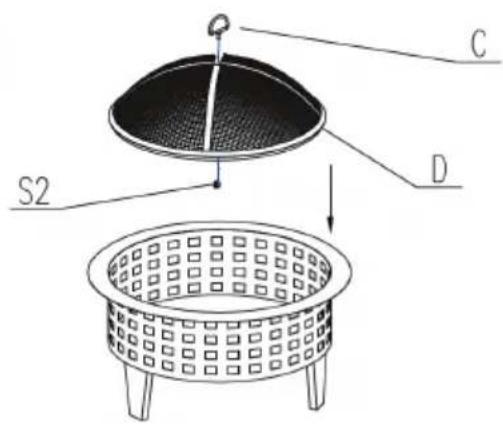

3	Attach the handle of the cover grill (D) to the cover grill (E) from below with the union nut (S2).

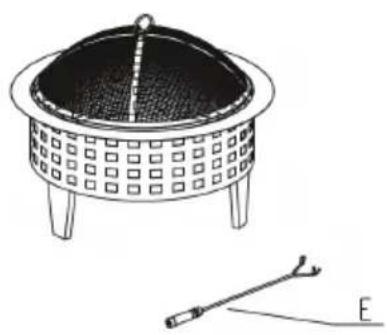

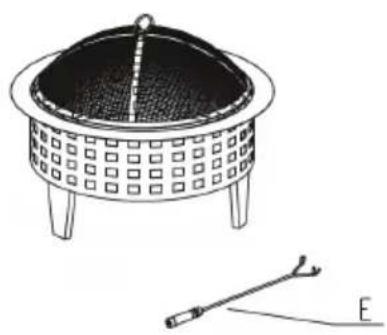

4 Use the gripper (G) to remove the cover grille.

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fi re bowl to cool completely before inspecting or cleaning it for damage.

Inspect the fire bowl for damage

Check the fire bowl regularly for damage to ensure product safety and a longer service life.

1 Check all parts to make sure they are tight.
2 Check the components for damage.
3 If you find damage to a component, have the fire bowl repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire bowl.
• Make sure the fire is completely extinguished and the fire bowl has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fire bowl regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Warning sign with pictograms and symbols, including a warning triangle, a vehicle, a house, a tent, trees, and a checkmark.

¡Atención!

¡NO UTILICE ALCOHOL O GASOLINA PARA ENCEDER LA CHIMENEA!

Line drawing of a circular basin with square cutouts and three legs, no text or symbols present

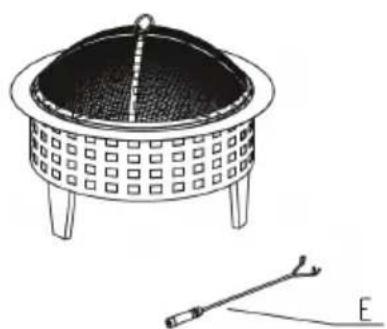

Line drawing of a fire pot with a mesh lid and a tool labeled 'E' (no text or symbols on the object itself)

LIMPIEZA Y CUIDADO

ATENCIÓN

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

CONSIGNES DE SÉCURITÉ

MISE EN GARDE

Warning sign with pictograms and symbols, including a yellow warning triangle, four black-and-white icons representing heating, cooking, heating room, camping, and gathering.

ATTENTION!

NE PAS UTILISER D'ALCOOL OU D'ESSENCE POUR ALLUMER OU RALLUMER !

QR code image containing encoded data, no visible human-readable text

INDICE

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

AVVERTENZE DI SICUREZZA

AVVERTENZA

Warning sign with pictograms and symbols, including a yellow warning triangle, four black-and-white icons representing heating and cooking activities.

ATTENZIONE!

NON UTILIZZARE ALCOOL O BENZINA PER ACCENDERE O RIACCENDERE IL BRACIERE!

Line drawing of a circular basin with square cutouts and three legs, no text or symbols present

Line drawing of a fire pot with a grid-patterned lid and a tool labeled 'E' (no text or symbols on the main diagram)
