HG06792A - Shower MIOMARE - Free user manual and instructions

Product type	Shower set with fixed shower head and hand shower
Brand	Miomare
Model	HG06792A
Intended use	Pressure-resistant hot water systems (central heating, instantaneous water heater, pressure water heater)
Minimum operating pressure	1.5 bar
Hand shower hose length	Approx. 150 cm
Faucet hose length	Approx. 70 cm
Connections	G 3/4" (26.4 mm) with adapter to G 1/2" (21 mm) if necessary
Supplied parts	Shower head, shower bar, hand shower, hoses, holders, diverter, seals, optional water saver, wall plugs, screws, plastic wrench
Diverter function	Allows switching between shower head and hand shower
Hand shower height adjustment	Via sliding holder on the bar
Water saver seal	Optional, reduces flow rate (may affect instantaneous water heater)
Maintenance and cleaning	Clear water, mild detergent, soft cloth; descaling with limescale remover
Safety	Do not use as handle; check tightness; risk of electric shock in case of leakage; do not leave children unattended
Warranty	3 years from date of purchase
After-sales service France	Tel.: [phone], Email: [e-mail]
After-sales service Belgium	Tel.: [phone], Email: [e-mail]
Spare parts availability period	Available during the warranty period

Frequently Asked Questions - HG06792A MIOMARE

What is the minimum water pressure required for this shower kit?

The minimum operating pressure is 1.5 bar. Make sure your installation provides at least this pressure for optimal operation.

Can I install this shower kit on a low-pressure water heater?

No, this product is not suitable for low-pressure water heaters (coal, wood, oil, gas, electric storage). It is designed for pressure-resistant systems like instantaneous or pressure water heaters.

How to fix the shower bar to the wall?

Use the supplied wall plugs and screws. Before drilling, check for hidden pipes with a detector. Installation should be carried out by a qualified technician to avoid risks of leaks or falling.

What to do if the water flow is too low with the water saver?

The water saver seal (supplied as optional) reduces flow. On an instantaneous water heater, too low a flow may cause automatic shutdown. If this happens, remove the water saver seal to restore normal flow.

How to clean and descale the shower kit?

Clean with clear water and a soft cloth. Use a limescale remover to remove deposits, following the manufacturer's instructions for the descaling product. Avoid abrasive cleaners.

What to do in case of leaks at the connections?

Check that all seals are properly placed and tighten connections by hand. If the leak persists, replace the worn seals. If in doubt, contact a professional to avoid any risk of electric shock or water damage.

Can the hand shower be used independently of the shower head?

Yes, thanks to the diverter, you can choose between the fixed shower head and the hand shower. The hand shower holder is adjustable in height and angle.

What is the warranty period of this product?

The product comes with a 3-year warranty from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear and tear.

Can I use this shower kit if I am allergic to nickel?

Avoid using stagnant water from chrome-plated pipes for consumption or care. Stagnant water may contain nickel. Let the water run for a few seconds before use if it has been stagnant for more than 4 hours.

How to maintain the product to prevent limescale buildup?

Clean regularly with a soft cloth and a suitable descaling agent. Remove limescale deposits as soon as they appear. Regular maintenance extends the product's lifespan.

USER MANUAL HG06792A MIOMARE

PDF ONLINE www.lidl-service.com

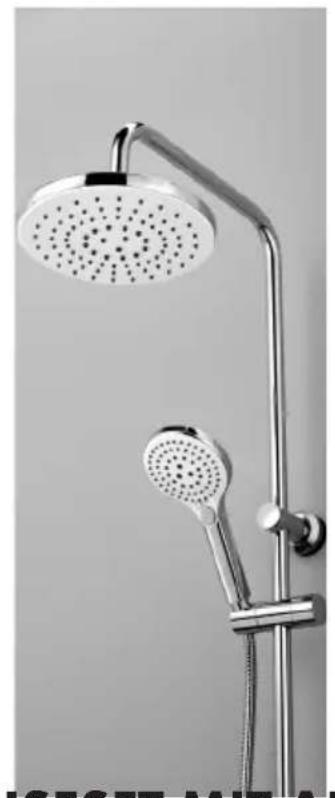

Close-up of a modern showerhead with two different designs, mounted on a stand (no text or symbols visible)

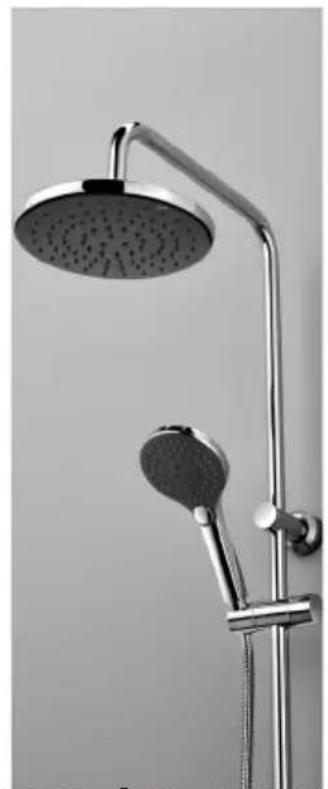

Close-up of a modern showerhead with adjustable arm and two washers (no text or symbols visible)

ÜBERKOPFBRAUSESET MIT ABLAGE / OVERHEAD SHOWER HEAD WITH SHELF / SET DOUCHE DE TÊTE AVEC TABLETTE

DE AT CH

ÜBERKOPFBRAUSESET MIT ABLAGE

OVERHEAD SHOWER HEAD WITH SHELF

Assembly and safety advice

FR BE

SET DOUCHE DE TÊTE AVEC TABLETTE

SPRCHOVÁ SOUPRAVA S POLIČKOU

GB/IE Assembly and safety advice Page 9

Four line drawings of objects: a human figure, a pencil, a drill bit, and a post (no text or symbols)

Labeled diagram of a showerhead with numbered parts for identification

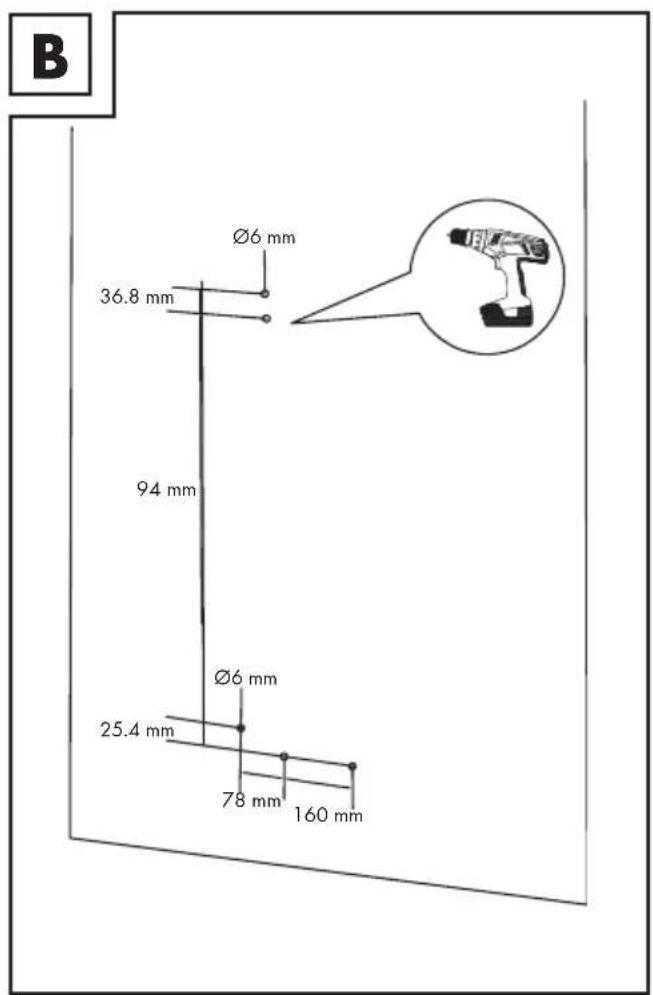

B Ø6 mm 36.8 mm 94 mm Ø6 mm 25.4 mm 78 mm 160 mm

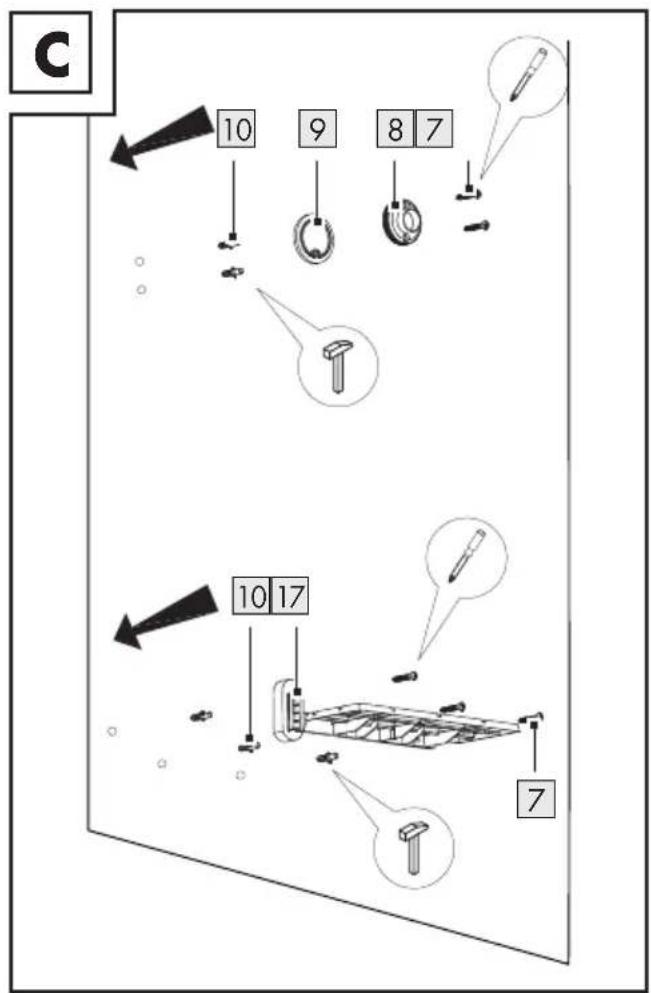

C 10 9 8 7 10 17 7

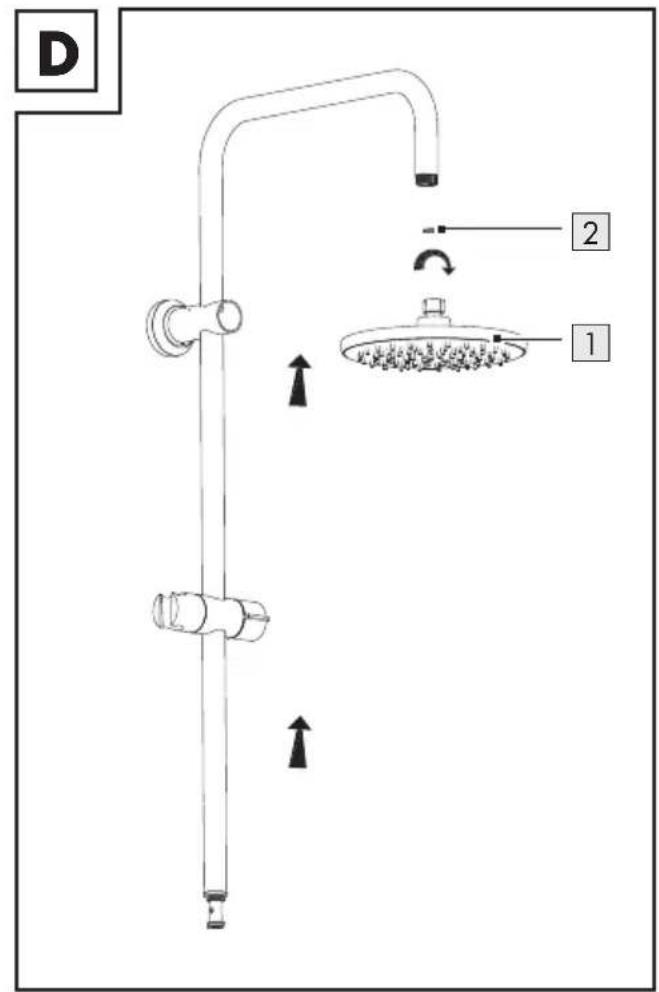

D 1 2


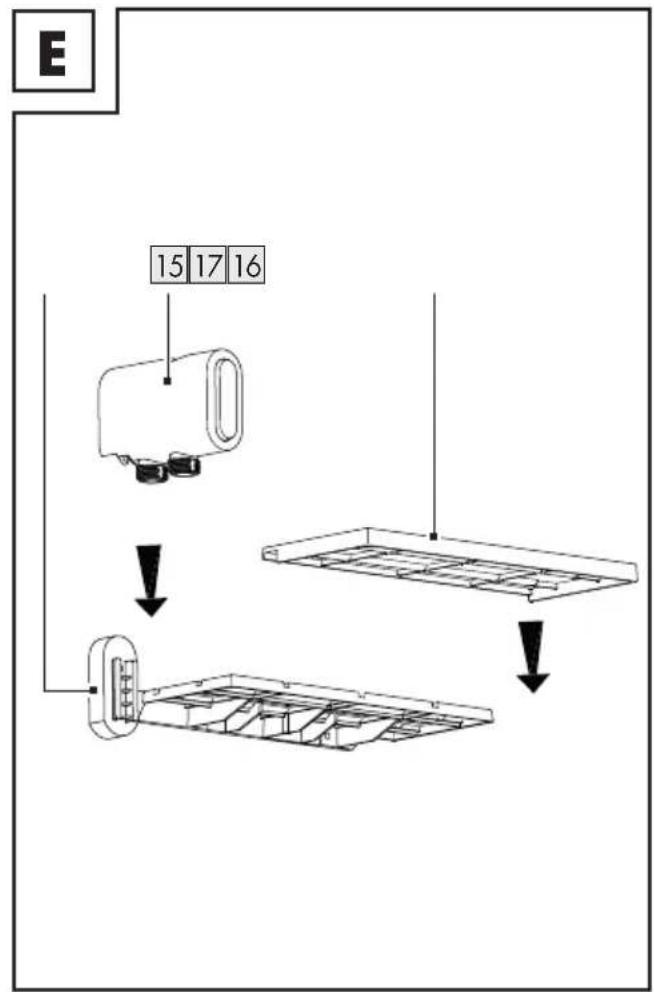

    A["15 17 16"] --> B["Image with fan"]
    B --> C["Storage unit"]
    C --> D["Storage unit with grid"]
    D --> E["Final Storage Unit"]

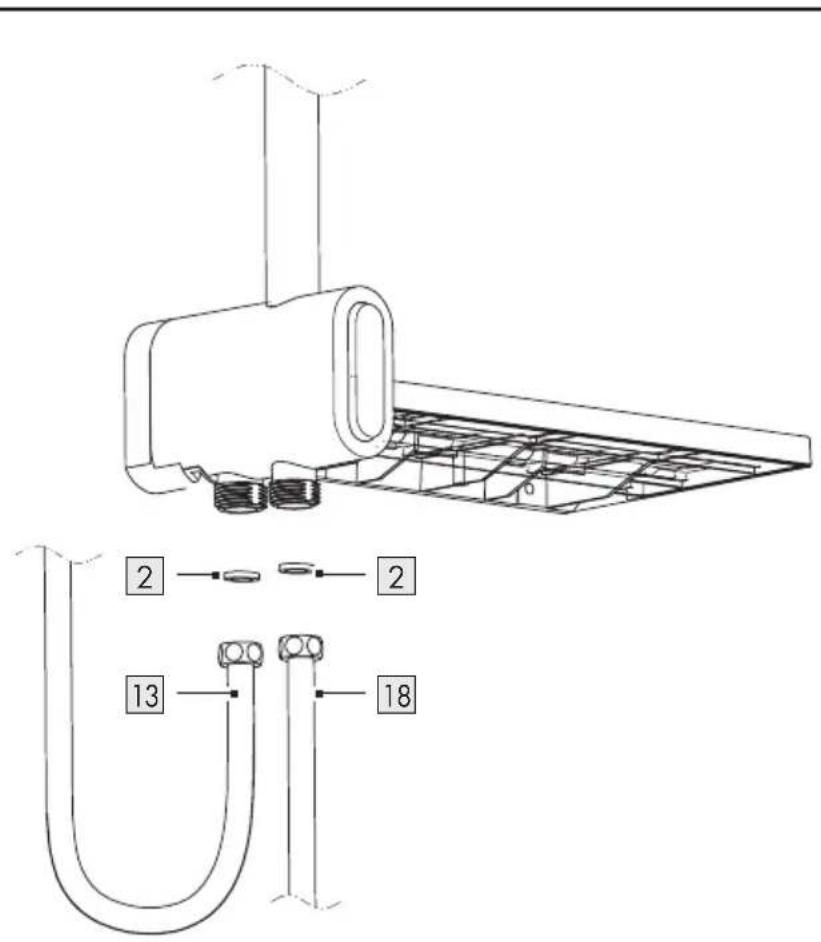

H

Technical diagram of a U-shaped HVAC system with labeled components and parts

H

ÜBERKOPFBRAUSESET MIT ABLAGE

Einleitung

OVERHEAD SHOWER HEAD WITH SHELF

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for all pressure-tight hot water systems such as central heating boilers, instantaneous water heaters, pressurised boilers and the like. It is not suitable for low-pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. If in doubt please seek the advice of a plumber or heating engineer. The product is intended for personal use only and not for medical or commercial use.

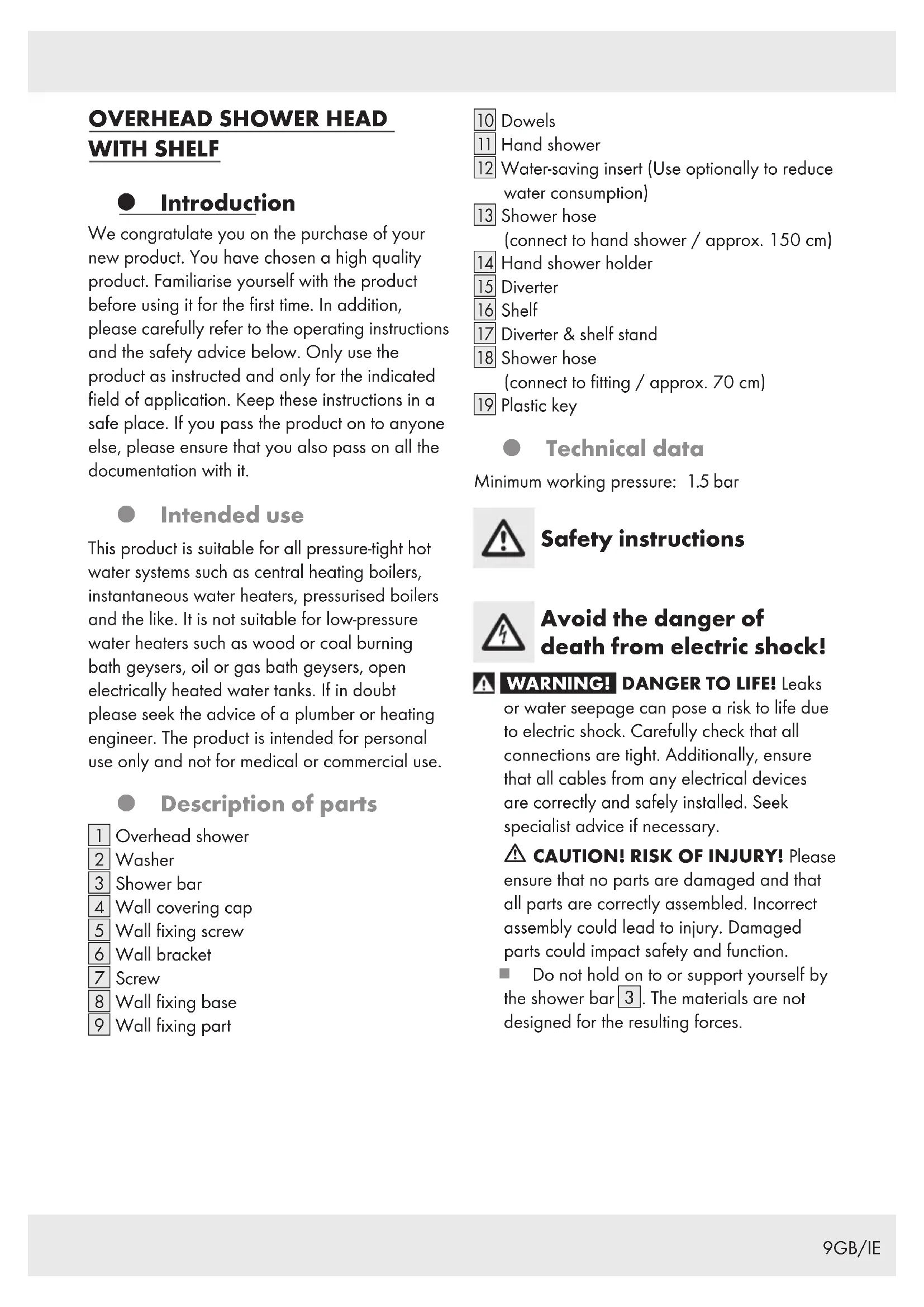

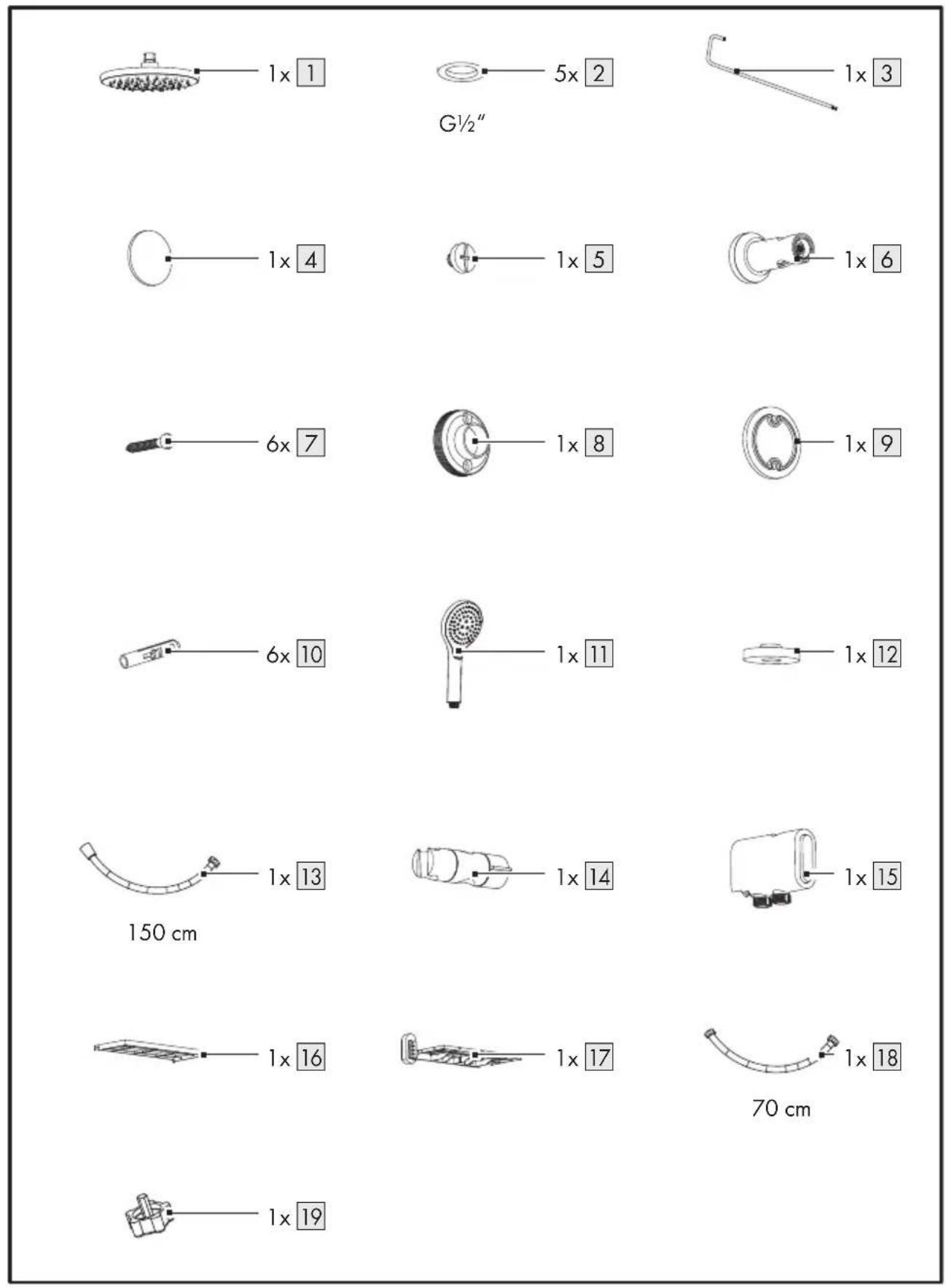

● Description of parts

1 Overhead shower
2 Washer
3 Shower bar
4 Wall covering cap
5 Wall fixing screw
6 Wall bracket
7 Screw
8 Wall fixing base
9 Wall fixing part

10 Dowels
11 Hand shower
12 Water-saving insert (Use optionally to reduce water consumption)
13 Shower hose
(connect to hand shower / approx. 150 cm)
14 Hand shower holder
15 Diverter
16 Shelf
17 Diverter & shelf stand
18 Shower hose
(connect to fitting / approx. 70 cm)
19 Plastic key

- Technical data

Minimum working pressure: 1.5 bar

Safety instructions

Avoid the danger of death from electric shock!

WARNING! DANGER TO LIFE! Leaks or water seepage can pose a risk to life due to electric shock. Carefully check that all connections are tight. Additionally, ensure that all cables from any electrical devices are correctly and safely installed. Seek specialist advice if necessary.

CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Damaged parts could impact safety and function.

Do not hold on to or support yourself by the shower bar 3. The materials are not designed for the resulting forces.

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND

CHILDREN! Never leave children

unsupervised with the packaging materials. Danger of suffocation. Keep the product away from children. The product is not a toy.

⚠️ CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that seals are wear parts and therefore will require to be replaced from time to time. Damaged parts could adversely affect safety and proper function.

⚠️ ATTENTION! RISK OF DAMAGE TO PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings or household fittings and furniture. Check all connections for leaks carefully.

■ Ensure that all seals are correctly seated to prevent leakage of water.

CAUTION! DANGER OF SCALDING!

When making the hot water setting please ensure that the temperature of the water is not too high.

Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instructions in a safe place for future reference!

Do not connect the shower hose 18 directly to a shut-off valve, always connect the shower hose with the provided diverter 15.

Before wall mounting, check that the wall can take the weight of the product. If in doubt, ask in a specialist shop.

⚠️ CAUTION! WATER DAMAGE! Check the installation area for the presence of hidden water pipes before drilling the holes for the fasteners 6, 8, and wall fixing part 9 i.e. using a pipe and metal detector.

Examine the wall before installation and choose suitable installation fixings. We have supplied fixings suitable for an ordinary solid masonry wall.

Mounting

Tip: For fittings with G ^3/4 " (26.4 mm) connection, use an adaptor with G ^3/4 " (26.4 mm) inner thread and G ^1/2 " (21 mm) outer thread, available in DIY store or bathroom shops.

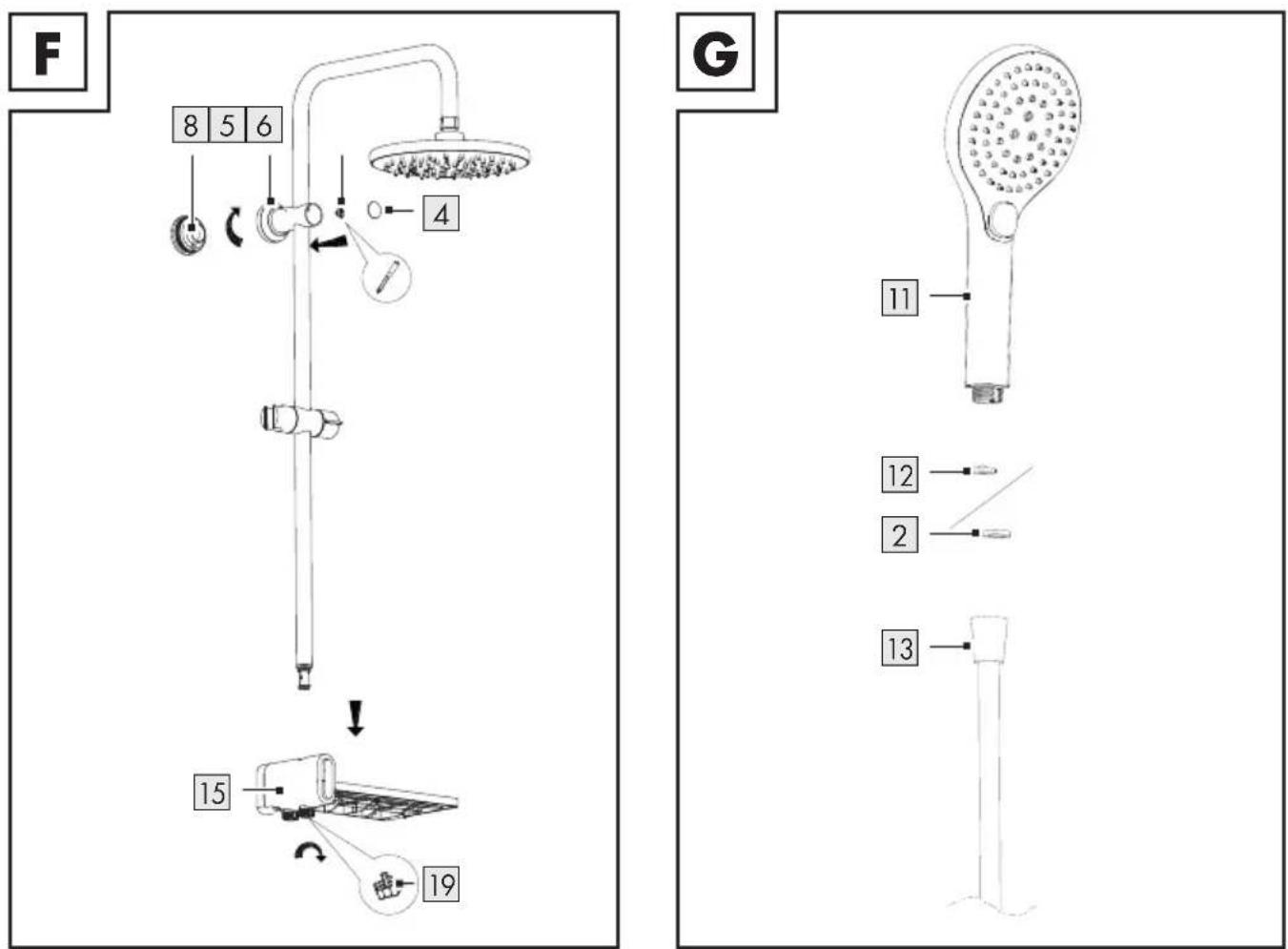

Please refer to fig. A-H.

Note: Fasten hose connections and converter hand-tight.

Operation

Diverter function:

■ Use the diverter 15 to switch between overhead shower 1 and hand shower 11.

How to adjust the hand shower 11:

■ Adjust the height of the hand shower holder 14 by using the adjustment knob.

- Adjust the angle at which the hand shower is tilted by using the hand shower holder 14.

Water-saving insert:

The water-saving insert 12 reduces the flow of water. This may have an effect on how your continuous-flow water heater works. If the flow of water is too low, your continuous-flow water heater will automatically switch off.

● Cleaning and care

- Clean the product with a soft, damp cloth and use a mild cleaning agent if necessary.

■ Remove the limescale on the product by using a commercially available limescale remover. Please follow the directions for using your cleaning agent.

Information

- Potability of mains water

Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.

The following general recommendations apply to the potability of the water from your pipework:

Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler.
Do not use stagnant water from chromium-plated pipework for the preparation of food or for drinking or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.
Do not use water from lead pipework for preparing food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

Service Ireland

Tel.:[phone]

E-Mail:[e-mail]
