IAN 367713 - Ski helmet CRIVIT - Free user manual and instructions

Product type	Ski and snowboard helmet
Brand	Crivit
Model	IAN 367713
Safety standard	EN 1077:2007 Class B
Available size	S/M (56-59 cm), L/XL (59-62 cm)
Shell material	Polycarbonate
Cushioning material	EPS foam
Ventilation system	Adjustable (open, partially open, closed) via rotary knob
Head circumference adjustment system	Continuous tightening knob, height adjustment (3 positions)
Chin strap	Multi-notch safety buckle, adjustable length and position
Accessories	Helmet bag, removable ear pads, earphone pocket, ski goggle clip
Intended use	Alpine skiing and snowboarding
Care	Clean with neutral detergent and soft cloth; hand wash padding at max 30°C
Lifespan	5 years maximum after manufacturing date
Warranty	3 years

Frequently Asked Questions - IAN 367713 CRIVIT

How to choose the right helmet size?

Measure your head circumference and select size S/M (56-59 cm) or L/XL (59-62 cm). Then adjust the helmet using the tightening knob and the height adjustment of the headband. The helmet should fit snugly without compressing.

How to clean the helmet?

Use a pH-neutral cleaner diluted in water and a soft cloth. The removable pads can be hand washed at max 30°C. Never use solvents or abrasive products.

What is the lifespan of the helmet?

The helmet must be replaced at the latest 5 years after the manufacturing date, indicated as month/year on the product. The lifespan depends on usage and impacts.

What to do if the helmet has suffered an impact or fall?

After an impact, even a light one, protection is no longer guaranteed. Replace the helmet immediately, even if no visible damage, and render it unusable.

Can I use the helmet with ski goggles?

Yes, the helmet is designed to be compatible with ski goggles. Use the clip provided to hold the goggles and ensure they do not press on the bridge of the nose.

How to adjust the helmet ventilation?

Ventilation is adjusted using the knob on top of the helmet. You can choose between open, partially open, or closed positions.

How to adjust the chin strap?

The length of the chin strap is adjusted via the tightening strap. Also adjust the position of the strap divider so it does not interfere, ideally at the end of the ear pad.

How to remove and wash the ear pads?

Pull the pads until the tabs detach from the helmet. Open the chin strap and remove them. Hand wash with a little soap and a soft brush, then dry at room temperature.

Is the helmet guaranteed?

Yes, the warranty is 3 years from the date of purchase, covering material and manufacturing defects. Keep the receipt. The warranty does not cover normal wear or improper use.

Can I paint the helmet or apply stickers?

No, it is forbidden to paint the helmet or apply stickers or labels. This could damage the structure and reduce protection.

USER MANUAL IAN 367713 CRIVIT

Instructions for use

IAN 297930

IAN 297930

DE AT CH

FR IT GB

For your own safety, we recommend that you read these instructions carefully and observe them.

Make sure you keep the instructions for future reference!

A 1 2 3 4 5 6 7 8 9 10 11

Side-by-side comparison of two helmet profiles showing front and side views with no text or symbols

Mechanical assembly diagram showing a belt drive mechanism with arrows indicating motion (no text or labels)

D enger reserter stringi tighten weiter desserier allarga loosen

E

DE AT CH

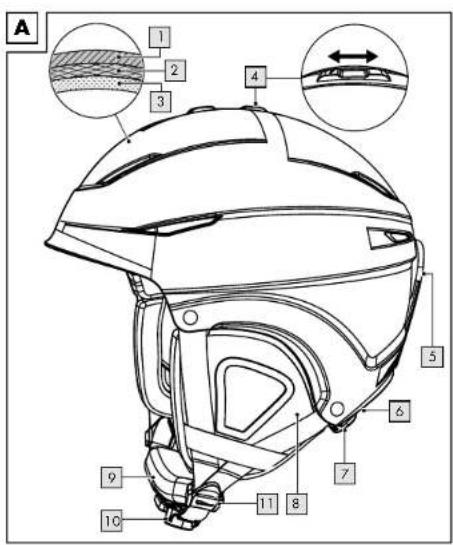

Teilebezeichnung

1. PC helmet shell
2. Damping layer
3. Padding for comfort
4. Ventilation system
5. Clip for ski goggles
6. Neck pad
7. Size adjustment system
8. Ear padding with headphone pocket
9. Chin strap
10. Multi-level safety snap fastener
11. Strap distributor

With your purchase you have decided on a high-quality product.

Get to know the product before you start to use it.

Carefully read the following operating instructions.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Important information

Before using your new helmet please take a moment to read the following instructions for its use and care.

This helmet was developed for skiing and snowboarding and is manufactured using state of the art processes. However, even the highest safety standards do not exclude the possibility of injury in a serious accident. The impact may be so great that the helmet will not offer its wearer effective head protection. Conformity with the demands of Appendix II of the European directive 89 / 686 / European Economic Community (and later modifications) as well as with those of the harmonising technical norm Class EN1077:2007 B was certified by the officials responsible at the TÜV Süd Product Service GmbH, Ridlerstraße 65, 80339 München, Notified Body No 0123.

A Class A helmet is a high performance protective helmet for skiers and snowboarders. A Class B helmet is a helmet for skiers and snowboarders for which the requirements are a little less restrictive.

A Class B helmet can thus offer more air circulation and comfort, without giving up too much protection.

Class A and class B helmets are for alpine skiers, snowboarders and similar groups. Class A helmets offer comparatively more protection, Class B helmets can offer more ventilation and allow better hearing. However, they protect a smaller area of the head and give a lower measure of protection.

This ski helmet is suitable for use with ski goggles. Be sure the ski goggles accurately fit into the helmet opening and doesn't press into the bridge of your nose when the helmet is tightly closed.

Symbols used

Date of manufacture (Month/Year): 08/2018

Integrated headphone pocket

Intended use

Class A and Class B helmets are for alpine skiers and snowboarders. It is not suitable for other sports or motorcyclists.

Safety instructions

• The helmet must fit securely and the chin strap must be firmly closed.
• Do not tip the helmet back as this will leave your forehead unprotected. The straps must be positioned over the jaw bones (Fig. B).
• Do not wear any head covering under the helmet.
• Ensure that the airflow inside the helmet is not restricted.
• Do not make any changes to the helmet, its structure or the individual components.
• Do not paint the helmet or put stickers or labels on it.
• The helmet is intended to protect your head in the event of an impact. After just one (even light) impact this protection is no longer guaranteed. Discontinue using the helmet after an impact or collision, rendered unusable and disposed of, even if there is no visible damage.
• Do not use petroleum-containing solvents or detergents to clean either the interior or exterior of your helmet. Use pH-neutral soap diluted in clean water, and rub it into the helmet carefully using a soft cloth. Wipe dry with a fluff-free cloth. The ear cushions can be cleaned with a little soap and a soft brush.
  The visor should be cleaned with soap and water only, and left to air-dry. Do not expose the visor to sources of heat!
• Only use genuine spare parts for your helmet.
• Do not allow children to wear this helmet while climbing or playing as this carries a risk of strangulation.

- The lifespan of the helmet depends on its use. However the helmet should be changed five years after the date of manufacture at the latest.

Ear buds/headphones

Please follow these safety precautions when using ear buds or headphones:

Danger!

- Never use headphones or ear buds whilst skiing or barding!

• During ascent or while waiting be sure to keep the volume at a level that allows you to hear all ambient noise and announcements.
• Not observing announcements e.g. of the mountain rescue service may result in a life threatening situation!
• Be sure the cables is not bothersome or protrudes from your body. Risk of strangulation if wires get caught e.g. on the lift or other skiers.
• You may be unable to hear warning signals from snow groomers and not hear or be oblivious to other skiers on the run, and your sense of balance could be impaired.

Selecting the helmet size

	S/M	56 - 59cm
	L/XL	59 - 62cm

- Choose your helmet by measuring the circumference of your head with a flexible tape measure. Always try on a couple of different sizes before buying. When wearing the helmet, the skin of your temples should move with it.

• Make sure that the helmet does not move around too much when the chin strap is open.

- The chin strap must fit securely. It should sit comfortably under the chin, as far back towards the neck as possible. Fasten it as tight as possible. It is correctly fitted when you find it difficult to insert your finger between the chinstrap and neck, yet are still able to breathe and swallow easily. Make sure that the helmet does not restrict your movements, e.g. when turning your head to look behind you.

- The helmet fits correctly if it's tight but comfortable on the head.

- If the helmet is too large (wiggly, can't be tightened securely) or too small (pressure, forehead is uncovered) please select the next larger or smaller size helmet.

- Do not use the helmet if you are unable to correctly adjust it.

Ventilation system

You can regulate the ventilation using the slider. There are three possible settings: open, half open, and closed (4) (Fig. A).

Adjusting the chin strap

The length of the chinstrap can be adjusted using the loop. You can alter the position of the chinstrap by using the strap divider clip. However please ensure that the strap divider does not cause irritation. We recommend positioning it at the end of the ear padding (figure C).

Harness adjustment

Use the dial to adjust the helmet to your head size to ensure the helmet is seated optimally. Turn the wheel to the left to loosen the headband on the helmet and to the right to tighten the headband (Fig. D).

Harness height adjustment

The height of the harness system is adjustable. There are 3 different height adjustments. Pull the connector pin on the harness system out of the tab locations in the EPS shell (Fig. F).

The pins on the harness system can now be moved to a higher or lower tab location. Firmly press the pins into the latching points until you can hear and feel them lock in. Always be sure both pins lock in. Position the padding as shown in figure F.

Removable ear pads (Fig. E)

Pull the ear pads with force until the flaps of the ear pads are detached from the helmet. Unfasten the chin strap and remove the ear pads.

To affix the ear pad, thread the ends of the unfastened chin strap through the ear pad loops and insert the flaps into the helmet slot until these make an audible latching click. Please pay attention to the left and right markings (L/R) on the corresponding ear pads.

Servicing and maintenance

Regular servicing and maintenance contributes to the safety and preservation of the helmet.

• Always use pH-neutral soap diluted in clear water, and rub carefully with a soft cloth. Afterwards wipe dry with a fluff-free cloth.
• The cushion can be cleaned with a little soap and a soft brush.

Inside cushion

- Hand wash below 30 °C.

30 °C/86 °F

- Allow to dry at room temperature.

Transport

Transport the helmet in a box in order to protect it against crushing (e.g. in the suitcase or car boot).

Storage

Place the helmet in the supplied bag when it is not in use and store it in a dry, well-ventilated room at room temperature.

Avoid sources of heat.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 297930

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]
