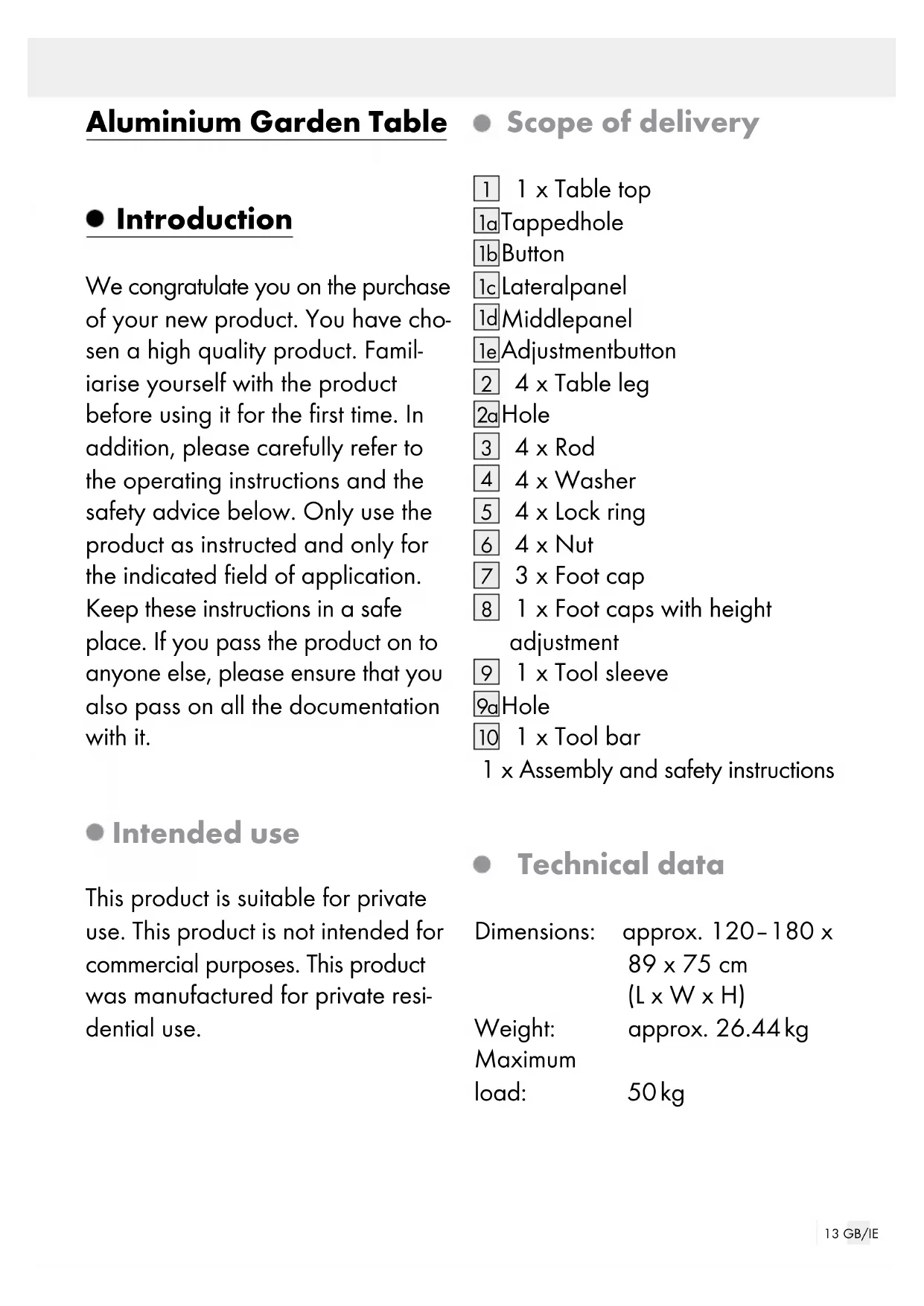

Aluminium Garden Table

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is suitable for private use. This product is not intended for commercial purposes. This product was manufactured for private residential use.

- Scope of delivery

1 x Table top
1a Tappedhole
1b Button
1c Lateralpanel
1d Middlepanel
1e Adjustmentbutton
2 4 x Table leg
2aHole
3 4 × Rod
4 4 x Washer
5 4 x Lock ring
6 4 x Nut
7 3 x Foot cap
8 1 x Foot caps with height adjustment
9 1 x Tool sleeve
9aHole
10 1 x Tool bar
1 x Assembly and safety instructions

- Technical data

Dimensions: approx. 120–180 x

$$ 8 9 \times 7 5 \mathrm{cm} $$

$$ (L \times W \times H) $$

Weight: approx. 26.44 kg

Maximum

load: 50 kg

Safety notices

KEEP THESE INSTRUCTIONS IN A SAFE PLACE! WHEN PASSING THIS PRODUCT ON TO OTHERS; PLEASE INCLUDE ALL THE DOCUMENTS.

WARNING!

DANGER TO LIFE AND

RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials.

The packaging material poses a suffocation hazard.

We recommend that two persons assemble the product together in order to avoid injuries or damage to people or the product.

WARNING!

careful when opening and closing the product in order to prevent injuries and pinching.

- Check the product for damage or wear before each use. Only use the product in good condition. Do not use the product if damage is visible or suspected.

- Verify the product is stable before use.

Before use, place the product on a level, firm surface, otherwise the product could become unstable and tip to the side and / or fall over. This can lead to injuries or damage.

Observe the maximum load capacity of 50 kg.

If the weight limit is exceeded, this can lead to product damage and/or injuries.

Please ensure that persons, especially children, do not stand on the product or pull themselves up on it. The product could fall over.

- Do not sit or stand on the product.

- Keep your hands out of the folding mechanism in order to avoid the risk of injury.

■ Ensure that the folding function is correctly locked in place before using the product.

■ Ensure that the product has been fully opened before using it.

This product is not a toy and should be used under adult supervision. The product is not a climbing frame or a toy!

- Secure the product in extreme weather, e.g. strong wind.

- Do not use the product close to a naked flame.

⚠️ RISK OF DAMAGE TO

PROPERTY! We are not liable for accidents that occur as a result of non-observance of the above safety notes or through incorrect handling.

- Assembly

1. Place the table top 1 on a soft, flat surface, with the underside facing upward.

Note: Hard surfaces may cause scratching on the table top.

1. Twist the four rods 3 into the tapped holes 1a of the table top 1 (Fig. B).

Note: Please ensure that you screw the rods 3 tightly into the table top thread 1a.

1. Slot the table legs 2 onto the rods 3. Please ensure that the end of the rod protrudes through the hole 2a in the table leg 2 (Fig. C).

2. Place one washer 4, one lock ring 5, and one nut 6 on the end of each rod (Fig. D).

3. Insert the tool bar 10 into the hole 9a in the tool sleeve 9 (Fig. D).

4. Fasten the nut 6 with the tool sleeve 9 (Fig. D) and add a

foot cap 7, 8 to the base of each leg 2 (Fig. E).

1. Turn the table carefully over and set it on the legs.

Note: The table must be turned over by two people.

1. Adjust the table leg using the height adjustment 8 in order to achieve optimum stability (Fig. F).

- Pulling out the table top

You can extend the table top 1. Please follow these steps:

1. Press the button 1b on the underside of the table top 1 (Fig. I).
2. Carefully slide out the lateral table panels 1c and unlock the plastic wing nut (Fig. H).
3. Turn the middle panel 1d located underneath the table frame (Fig. I).

Note: If necessary, push the two lateral table panels to the middle panel to get a level surface.

1. Press on the adjustment button 1e until it audibly engages (Fig. H). Slide the table panels 1c, 1d together.

To push the table top back together, follow these steps:

1. Press the button 1b on the underside of the table top 1 (Fig. G).

2. Pull the lateral table panels 1c a little apart and turn the central panel 1d around its own axis so that it slides beneath the table frame (Fig. J).

3. Make sure to lock the plastic wing nut (Fig H).
4. Slide the two lateral table pan-els 1c into the middle of the table.
5. Press on the adjustment button 1e until it audibly engages (Fig. J).

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Cleaning and care

□ Clean the product with damp cloth and a mild detergent.
- Allow all parts to dry thoroughly before you pack the product up again. This will prevent the formation of moulds, odours and discolouration.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

Storage

Store the product in a sheltered dry room. Always store the dry and clean product at room temperature.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe

location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

●Warrantyclaim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR / Min.,

(peak) (0,06 EUR /

Min., (off peak))

E-Mail: [e-mail]
