Product Type	Garden Table
Brand	Florabest
Model	HG04392B
Material	Aluminum
Dimensions (L x W x H)	Approximately 160 - 220 × 90 × 74 cm
Weight	Approximately 30 kg
Maximum Load	25 kg
Number of Legs	4
Tabletop Extension	Yes, via lateral and middle extension panels
Extension System	Via adjustment button and foldable panels
Length Range	160 to 220 cm
Leg Fixation	Via screwed bars, washers, locking rings and nuts
Balance Adjustment	Height-adjustable foot cap
Intended Use	Private outdoor use
Number of Persons for Assembly	2 persons recommended
Tools Provided	Screw tool with handle
Cleaning	Damp cloth with mild detergent
Storage	In a clean, dry place at room temperature
Warranty	3 years from the date of purchase
Spare Parts	Foot caps, bars, locking rings, nuts, screw tool

Frequently Asked Questions - HG04392B FLORABEST

How to assemble the garden table HG04392B?

Place the tabletop on a soft surface, bottom side up. Screw the four bars into the threaded holes. Slide the table legs onto the bars, then add a washer, a locking ring and a nut at each end. Use the screw tool to tighten. Attach the foot caps and adjust the height-adjustable cap for stability. Turn the table over with two people.

What is the maximum load supported by the table?

The maximum load is 25 kg. Never exceed this limit to avoid risk of injury or material damage.

How to extend the table to get more length?

Press the button located under the tabletop, then pull out the lateral extension panels. Loosen the plastic wing screws. Flip the middle extension panel upwards. Press the adjustment button until it clicks. Make sure all panels are properly aligned.

How to reduce the table after use?

Press the button under the tabletop, slightly separate the lateral panels, flip the middle panel under the frame, reposition the lateral panels, then press the adjustment button until it clicks.

What are the important safety instructions?

Do not leave children unattended with packaging. Assemble the table with two people. Check for any damage before each use. Use on a stable, level surface. Do not sit on the table. Observe the maximum load of 25 kg. Do not use near an open fire.

How to clean and maintain the table?

Clean with a damp cloth soaked in mild detergent. Allow all parts to dry completely before storing to prevent mold. Store in a clean, dry place at room temperature.

Is the table under warranty?

Yes, the table comes with a 3-year warranty from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear or damage due to improper use.

What are the dimensions of the table when folded or in minimal configuration?

The minimum dimensions are approximately 160 × 90 × 74 cm (L x W x H) when the table is not extended.

Is the table suitable for outdoor use?

Yes, it is designed for private outdoor use. However, avoid extreme weather conditions like strong wind and store it in a dry place when not in use.

Can I get spare parts for this table?

Yes, parts such as foot caps, bars, locking rings and nuts are available. Contact Florabest after-sales service to order.

USER MANUAL HG04392B FLORABEST

Operation and safety notes

NL BE

ALUMINIUMTUINTAFEL

Intended use Page 12

Scope of delivery . Page 12

Technical data.. Page 12

Safety notices Page 13

Assembly

Pulling out the table top . Page 14

Cleaning and care . Page 15

Storage.. Page 15

Disposal

Warranty

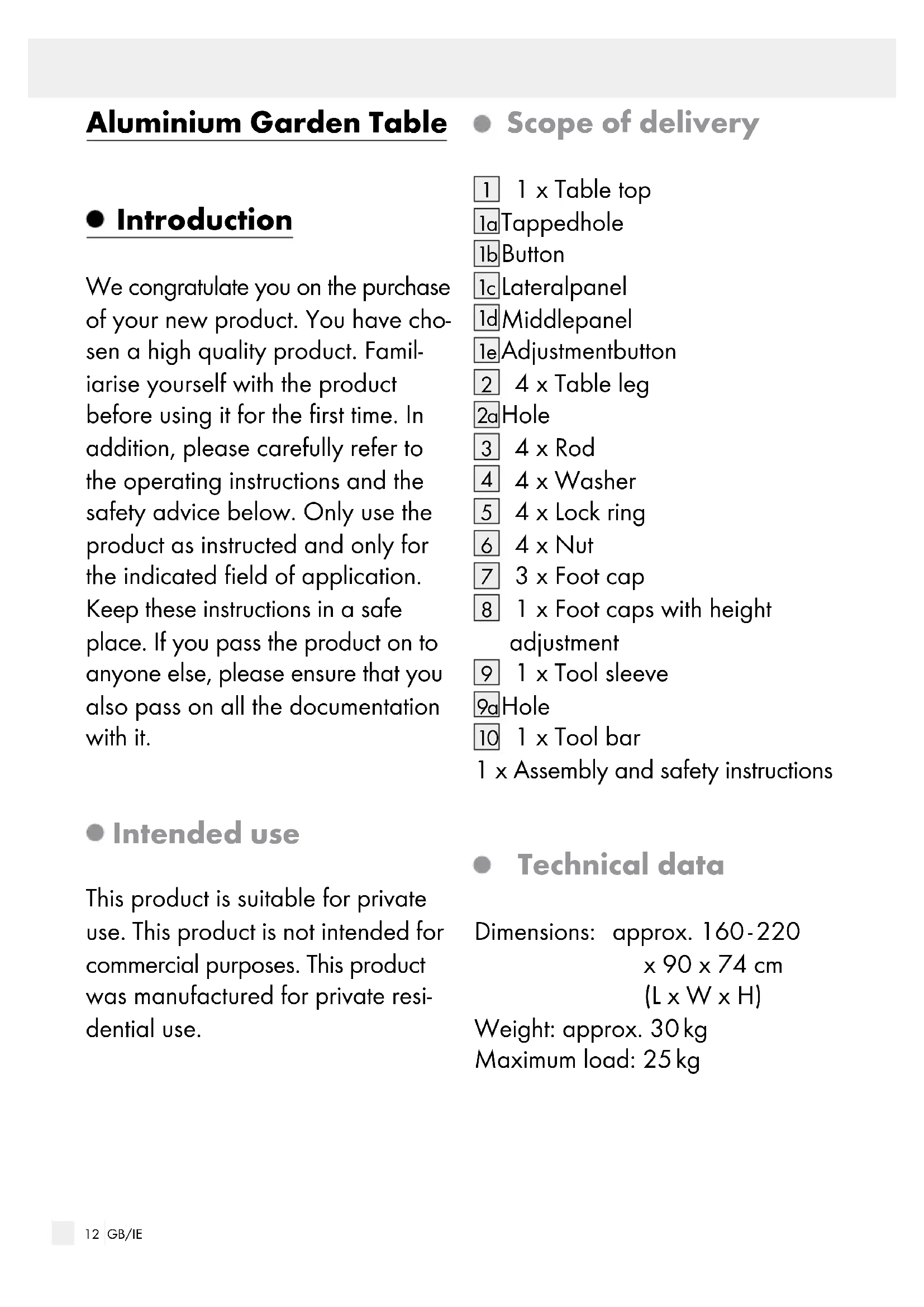

Aluminium Garden Table

- Scope of delivery

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is suitable for private use. This product is not intended for commercial purposes. This product was manufactured for private residential use.

1 1 x Table top
1aTappedhole
1bButton
1cLateralpanel
1d Middlepanel
1eAdjustmentbutton
2 4 x Table leg
2aHole
3 4× Rod
4 4x Washer
5 4xLockring
6 4x Nut
7 3xFootcap
8 1 x Foot caps with height adjustment
9 1 x Tool sleeve
9aHole
10 1x Tool bar

1 x Assembly and safety instructions

Technical data

Dimensions: approx. 160-220

$$ \times 9 0 \times 7 4 c m $$

$$ (\mathrm {L} \times \mathrm {W} \times \mathrm {H}) $$

Weight: approx. 30kg

Maximum load: 25 kg

Safety notices

KEEP THESE INSTRUCTIONS IN A SAFE PLACE! WHEN PASSING THIS PRODUCT ON TO OTHERS; PLEASE INCLUDE ALL THE DOCUMENTS.

WARNING!

DANGER TO LIFE

AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard.

We recommend that two persons assemble the product together in order to avoid injuries or damage to people or the product.

WARNING!

careful when opening and closing the product in order to prevent injuries and pinching.
Check the product for damage or wear before each use. Only use the product in good condition. Do not use the product if damage is visible or suspected.
Verify the product is stable before use.

Before use, place the product on a level, firm surface, otherwise the product could become unstable and tip to the side and / or fall over. This can lead to injuries or damage.

25kg Observethemaximul load capacity of 25kg

If the weight limit is exceeded, this can lead to product damage and/or injuries.

Please ensure that persons, especially children, do not stand on the product or pull themselves up on it. The product could fall over.
Do not sit or stand on the product.
- Keep your hands out of the folding mechanism in order to avoid the risk of injury.
Ensure that the folding function is correctly locked in place before using the product.
Ensure that the product has been fully opened before using it.
This product is not a toy and should be used under adult supervision. The product is not a climbing frame or a toy!
Secure the product in extreme weather, e.g. strong wind.
Do not use the product close to a naked flame.

RISK OF DAMAGE TO PROPERTY! We are not liable for accidents that occur as a result of non-observance of the above safety notes or through incorrect handling.

Assembly

1. Place the table top on a soft, flat surface, with the underside facing upward.
   Note: Hard surfaces may cause scratching on the table top.
2. Twist the four rods into the tapped holes of the table top (Fig. B). Note: Please ensure that you screw the rods tightly into the table top thread.
3. Slot the table legs 2 onto the rods 3. Please ensure that the end of the rod protrudes through the hole 2a in the table leg 2 (Fig. C).
4. Place one washer 4 , one lock ring 5 , and one nut 6 on the end of each rod (Fig. D).
5. Insert the tool bar into the hole in the tool sleeve (Fig. D).
6. Fasten the nut 6 with the tool sleeve 9 (Fig. D) and add a

foot cap 7, 8 to the base of each leg 2 (Fig. E).

1. Turn the table carefully over and set it on the legs.
   Note: The table must be turned over by two people.
2. Adjust the table leg using the height adjustment [8] in order to achieve optimum stability (Fig. F).

Pulling out the table top

You can extend the table top 1. Please follow these steps:

1. Press the button 1b on the underside of the table top 1 (Fig. I).
2. Carefully slide out the lateral table panels 1c and unlock the plastic wing nut (Fig. H).
3. Turn the middle panel located underneath the table frame (Fig. 1).

Note: If necessary, push the two lateral table panels to the middle panel to get a level surface.
4. Press on the adjustment button 1e until it audibly engages (Fig. H). Slide the table panels 1c, 1d together.

To push the table top back together, follow these steps:

1. Press the button 1b on the underside of the table top 1 (Fig. G).

2. Pull the lateral table panels 1c a little apart and turn the central panel 1d around its own axis so that it slides beneath the table frame (Fig. J).

3. Make sure to lock the plastic wing nut (Fig H).
4. Slide the two lateral table panels into the middle of the table.
5. Press on the adjustment button 1e until it audibly engages (Fig. J).

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Cleaning and care

Clean the product with damp cloth and a mild detergent.
- Allow all parts to dry thoroughly before you pack the product up again. This will prevent the formation of moulds, odours and discolouration.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

Storage

Store the product in a sheltered dry room. Always store the dry and clean product at room temperature.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe

location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
