USER MANUAL PAAS A2 Livarno Lux
Operation and Safety Notes
FR BE
PROJECTEUR À LED
GB/IE/NI Operation and Safety Notes
Page 5
List of pictograms used....Page 6
Introduction......Page 6
Intended use....Page 6
Parts description Page 6
Technical data....Page 6
Scope of delivery....Page 7
General safety instructions....Page 7
Before installation Page 8
Use Page 8
Connect the plug into the socket of spotlight....Page 8
Cleaning and care....Page 8
Disposal Page 8
Warranty Page 9

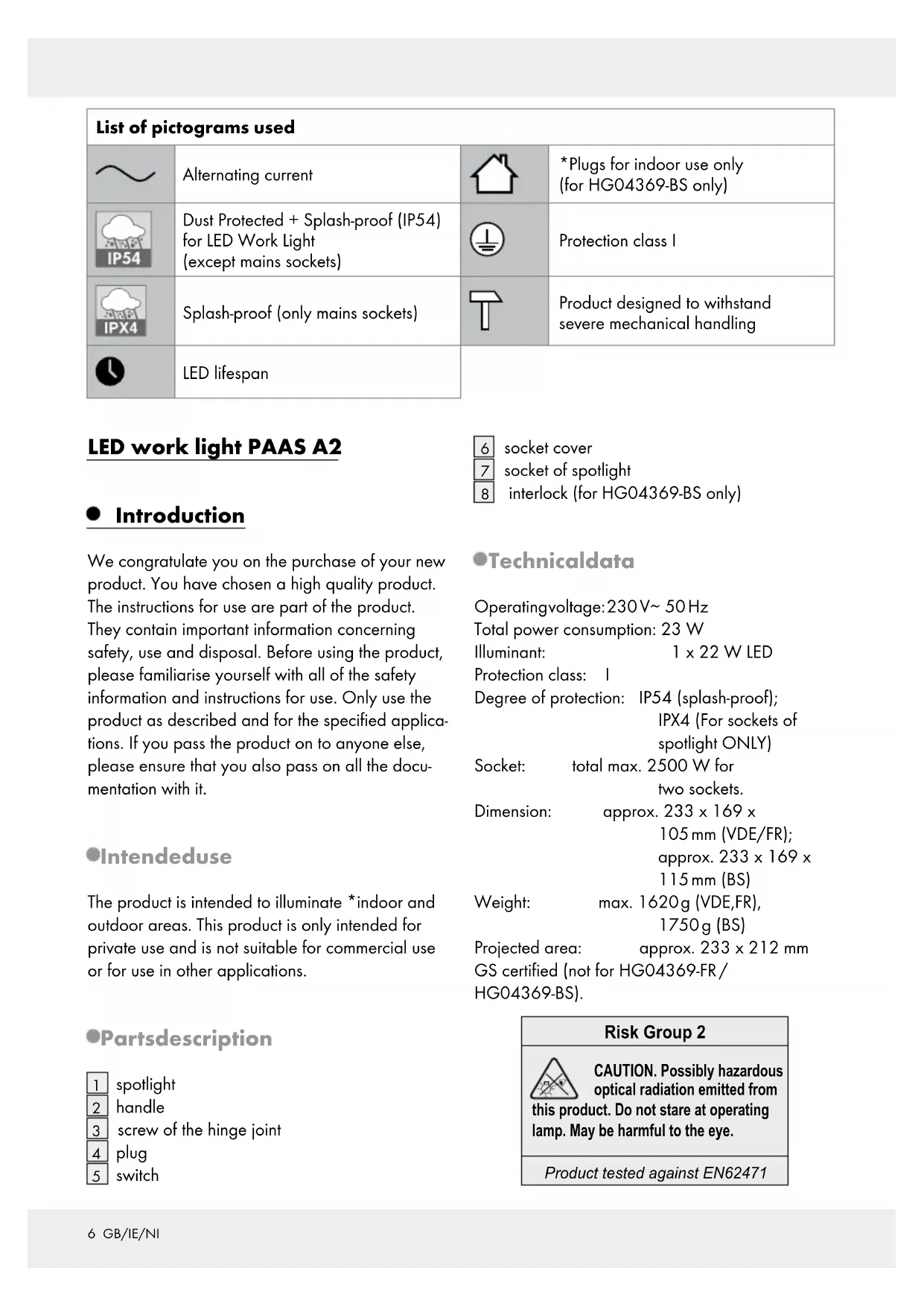

| List of pictograms used | |||
 | Alternating current |  | * Plugs for indoor use only (for HG04369-BS only) |
 | Dust Protected + Splash-proof (IP54) for LED Work Light (except mains sockets) |  | Protection class I |
 | Splash-proof (only mains sockets) |  | Product designed to withstand severe mechanical handling |
| LED lifespan | |||
LED work light PAAS A2
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
The product is intended to illuminate *indoor and outdoor areas. This product is only intended for private use and is not suitable for commercial use or for use in other applications.
Partsdescription
1 spotlight
2 handle
3 screw of the hinge joint
4 plug
5 switch
6 socket cover
7 socket of spotlight
8 interlock (for HG04369-BS only)
●Technicaldata
Operating voltage: 230V\~50Hz
Total power consumption: 23 W
Illuminant: 1 x 22 W LED
Protection class: I
Degree of protection: IP54 (splash-proof); IPX4 (For sockets of spotlight ONLY)
Socket: total max. 2500 W for
two sockets.
Dimension: approx. 233 x 169 x
105 mm (VDE/FR);
approx. 233 x 169 x
115 mm (BS)
Weight: max. 1620g (VDE,FR),
1750g (BS)
Projected area: approx. 233 x 212 mm
GS certified (not for HG04369-FR/
HG04369-BS).
| Risk Group 2 |
| CAUTION. Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp. May be harmful to the eye. |
| Product tested against EN62471 |
- Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 LED Workshop spotlight
1 Instructions for use
Generalsafety instructions
BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!
■ DANGER TO LIFE AND
ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN!
Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times.
This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.
■ DANGER OF SUFFOCATION! Children could swallow and choke on small included parts (e.g. screws). Keep children away from the work area during assembly.
This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced by end user.
If the LEDs fail at the end of their lives, they must be repaired by qualified electrician or the entire product must be replaced.
The external flexible cable or cord of this product cannot be replaced; if the cord is damaged, the product shall be destroyed.
Danger to life by electric shock
■ Always check the product for damage before connecting it to the mains. Never use the product if it shows any signs of damage.
- Protect the mains cable against sharp edges, mechanical stresses and hot surfaces.
■ Always unplug the mains plug from the socket before installation, dismantling or cleaning.
■ Disconnect the product from the mains supply if it is not going to be used for some time (e.g. holiday).
Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the product (230 V\~50 Hz). Otherwise do not install the product.
CAUTION! DANGER OF BURN INJU-
RIES! To prevent burns, verify the product is switched off and has cooled down for at least 1.5 min before touching it. The product can become very hot.
The accessible surface, especially heat shrink, is very hot when the lamp is operating.
FIRE HAZARD! Fit the product so that it is at least 1.0 m away from the material to be illuminated. Excessive heat can result in a fire.
CAUTION! RISK OF INJURY!
Broken lamp glass must be replaced before any further use is made of the product.
The product is only suited for use with the built-in LED control gear.
The product continues to draw a small amount of power even if the product is off as long as product is connected to supply mains. To switch the device off completely, unplug the plug 4 from socket.
The plug can only be connected with a corresponding socket with the same IP in order to keep the protective degree against dust/ water. For HG04369-BS, plug for indoor use only.
- Before installation
Note: Remove all packaging materials from the product.
Place the spotlight on a stable substrate with handle 2.
☐ Check the stability of the spotlight.
Align the spot into the desired direction. For this, you may need to slacken the screw of the hinge joint 3. After alignment, tighten the screw of the hinge joint 3 again, to ensure a secure hold of the spotlight 1.
Use
Plug the plug into the socket.
☐ Switch on the product with switch.
Note:
- Insert the plug to the corresponding IPX4 socket only during outdoor use.
- or the plug should be for indoor use if no corresponding IPX4 socket can be found.
- Connect the plug into the socket of spotlight
Open the socket cover behind the product.
☐ Connect an additional item by plugging it into the socket of the spotlight 7 (see Fig.).
☐ Close the socket cover (For HG04369-BS).
For HG04369-BS, lock with interlock.
Note: Make sure the addition item with water proof plug.
Note: Do not connect any appliance with a total output of > 2500 W. Otherwise there is the risk of a fire.
For HG04369/HG04369-FR:
☐ The socket of spotlight is only IPX4 protected.
☐ Insert only corresponding IPX4 plug only for outdoor use.
☐ RISK OF ELECTRIC SHOCK! Water may enter the product if incorrect plug is used
For HG04369-BS:
☐ The socket is only IPX4 protected.
☐ The socket can only protected from water when the cover is completely closed.
☐ Water may enter the product if the cover is not corrected posited.
- Cleaning and care
■ Never immerse the product in water or other liquids. Otherwise the product can be damaged.
☐ Remove the plug 4 from the socket 7 and allow the product to cool down.
☐ Clean the product with a lint-free, slightly moist cloth and mild cleaning agent.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
- Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE
(VDE,FR), 1750g (BS)
