Steam Genie Aroma 2804156 - Iron RUSSELL HOBBS - Free user manual and instructions

Product type	Steam iron
Brand	Russell Hobbs
Model	Steam Genie Aroma 2804156
Soleplate	Ceramic
Water tank	Removable, capacity not specified
Recommended water type	Distilled, purified or filtered water
Auto shut-off	Yes, after 15 minutes of inactivity
Continuous steam function	Yes, with switch lock
Included accessories	Lint remover, for delicate fabric with fragrance diffuser, for upholstery
Fragrance diffuser	Integrated into the delicate fabric accessory
Preheating time	Approximately 45 seconds
Child safety	Use from age 8 with supervision
Cleaning	Wipe with a damp cloth, empty tank after each use
Accessory maintenance	Cold water wash for fabric accessories
Use	Household use only
Warranty	Not specified

Frequently Asked Questions - Steam Genie Aroma 2804156 RUSSELL HOBBS

What type of water to use in the Russell Hobbs Steam Genie Aroma 2804156 iron?

It is recommended to use distilled, purified or filtered water to avoid mineral buildup. Never use perfumes, oils or other additives in the tank.

How to attach accessories to the steam iron?

Make sure the appliance is cool. Hook the top of the accessory onto the upper edge, then snap the lower edge into place until it is securely attached.

What to do if steam does not come out or is insufficient?

Check that the appliance has preheated for at least 45 seconds. Make sure the tank has enough water and prime the pump by holding the steam switch until steam is produced.

How to activate the continuous steam lock?

Press the steam switch, then slide the lock down. To stop, press the switch again and slide the lock up.

The appliance turns off by itself, is this normal?

Yes, after 15 minutes of inactivity, the auto shut-off activates. The indicator light flashes quickly. To resume, press the steam switch or the on/off button.

How to clean the lint remover accessory?

Wipe it with a damp cloth. Do not machine wash. The upholstery accessory can be disassembled and hand washed in cold water with a mild detergent.

Can the iron be used on all fabrics?

Check the care label. Avoid leather, suede, vinyl and plastic. For delicate fabrics, use the special accessory and test on a hidden area.

How to use the fragrance diffuser?

Place a few drops of perfume on the diffuser pad, then replace it on the delicate fabric accessory. Never add perfume to the water tank.

What to do if discolored water stains the laundry?

This is due to mineral residues or the use of additives. Empty the tank after each use and use only distilled or filtered water.

How to store the appliance after use?

Turn off and unplug the appliance, empty the tank, then let it cool completely on its base before storing in a dry place.

USER MANUAL Steam Genie Aroma 2804156 RUSSELL HOBBS

Black and white photo of a Russell Hobbs hair dryer with a conical body and ventilation grille (no visible text or symbols on the device itself)

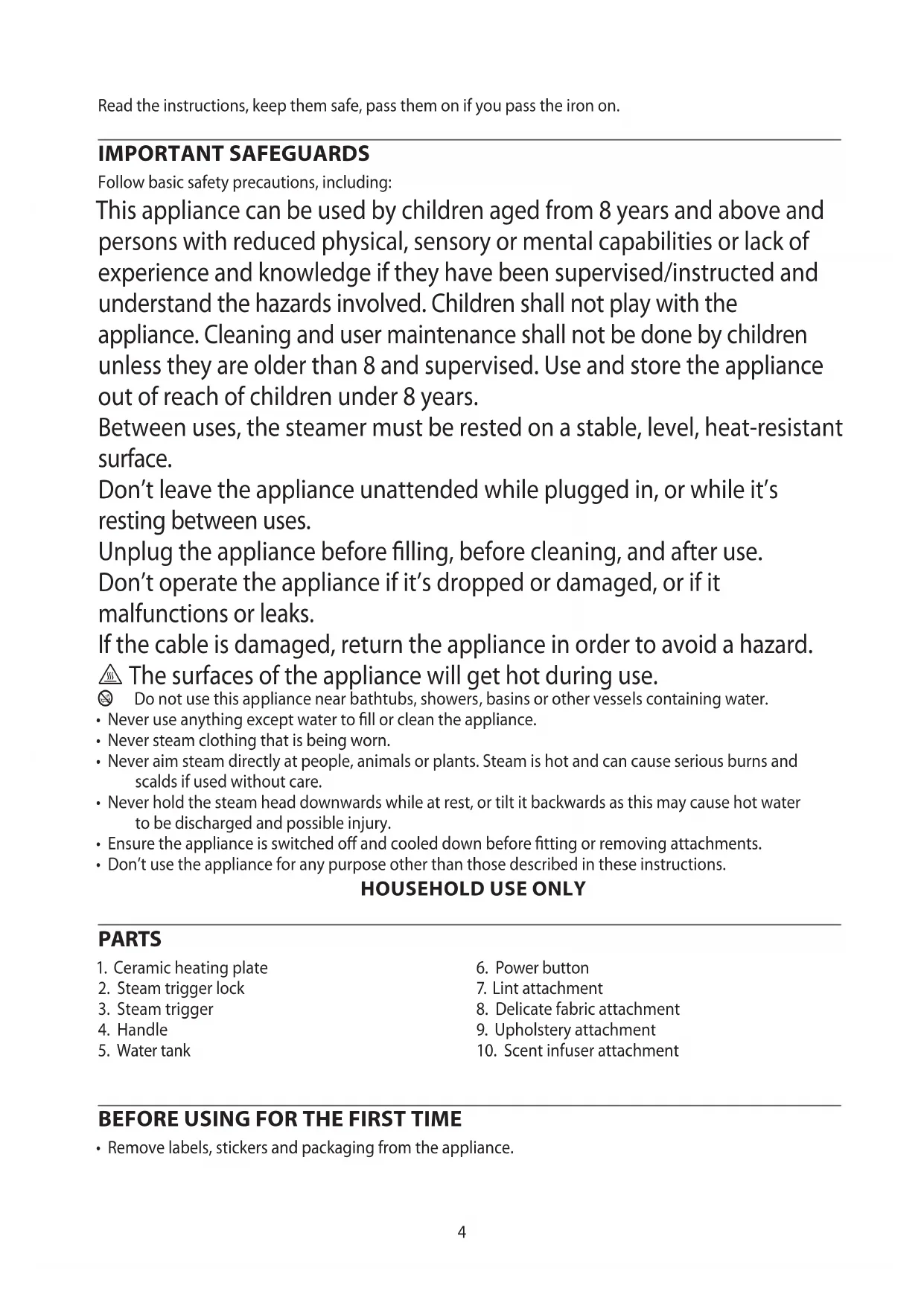

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Use and store the appliance out of reach of children under 8 years.

Between uses, the steamer must be rested on a stable, level, heat-resistant surface.

Don't leave the appliance unattended while plugged in, or while it's resting between uses.

Unplug the appliance before filling, before cleaning, and after use.

Don't operate the appliance if it's dropped or damaged, or if it malfunctions or leaks.

If the cable is damaged, return the appliance in order to avoid a hazard.

The surfaces of the appliance will get hot during use.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Never use anything except water to fill or clean the appliance.
• Never steam clothing that is being worn.
• Never aim steam directly at people, animals or plants. Steam is hot and can cause serious burns and scalds if used without care.
• Never hold the steam head downwards while at rest, or tilt it backwards as this may cause hot water to be discharged and possible injury.
• Ensure the appliance is switched off and cooled down before fitting or removing attachments.
• Don't use the appliance for any purpose other than those described in these instructions.

HOUSEHOLD USE ONLY

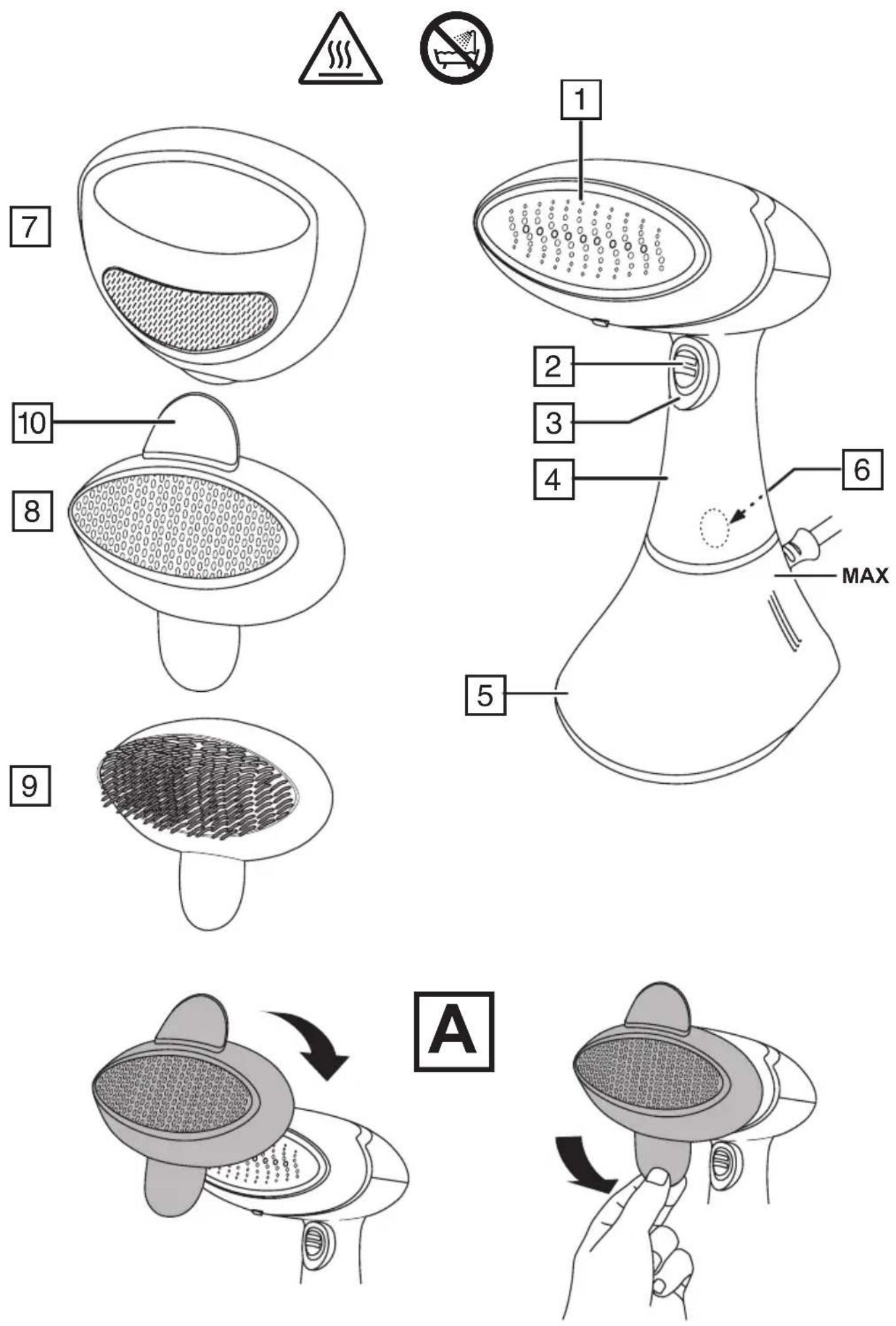

PARTS

1. Ceramic heating plate
2. Steam trigger lock
3. Steam trigger
4. Handle

5. Water tank

6. Power button

7. Lint attachment
8. Delicate fabric attachment
9. Upholstery attachment
10. Scent infuser attachment

BEFORE USING FOR THE FIRST TIME

- Remove labels, stickers and packaging from the appliance.

IMPORTANT INFORMATION

• For best performance, we recommend using distilled, purified or filtered water in your steamer. Tap water contains minerals that can build up inside your steamer over time and reduce its efficiency or even cause damage.
• Never use perfumes, oils or other additives.
• Always check the garment's care label before steaming, and always test fabrics for colourfastness in an inconspicuous area. Steamers are not recommended for use on leather, suede, vinyl, plastic, or other materials that are sensitive to steam.
• During use the steamer and accessories will become HOT. Never try to fit or remove attachments while still hot.
  • After preheating, prime the water pump by holding the steam trigger until steam forms.
• It is normal to feel or hear the water pump inside the device. It may become louder when the water level in the tank is low. Check and refill the tank when required.
• Small amounts of dripping might occur during use. If excessive, your steamer needs time to get back up to full temperature. Just allow the steamer a minute to reheat.
• Wearing clothes immediately after ironing or steaming can actually create wrinkles. Always allow the clothing to cool for about 5 minutes before wearing.

ATTACHMENTS

Your steamer has three attachments:

Lint attachment	Use on garments labelled ☐ that allow the use of steam.Tip: The pad on the attachment helps remove lint, hair, and animal fur.
Delicate fabric attachment with scent infuser	Use on garments labelled ☐ that allow the use of steam.Tip: For items with printing/embellishment, turn the garment inside out to avoid damage to sensitive areas.Use the scent infuser to infuse your favourite perfumes onto your fabrics.
Upholstery attachment Use to	to sanitise and refresh bedding, mattresses, curtains, plush toys, furniture, and hard surfaces (such as worktops or desks that are not heat sensitive).Always test for colourfastness and heat sensitivity on an inconspicuous area.

Fitting/Removing (Fig. A)

1. Make sure that the steamer and attachment are cool.
2. Hook the top of the attachment over the top edge of the steamer. Click the bottom edge into place. Make sure it is fully fitted and not loose or it may detach itself during use.
3. Remove the attachment using the tab. When removing the attachment, watch out for condensation that may have built up during use.

FILLING

1. Place the steamer on its base on a stable surface.

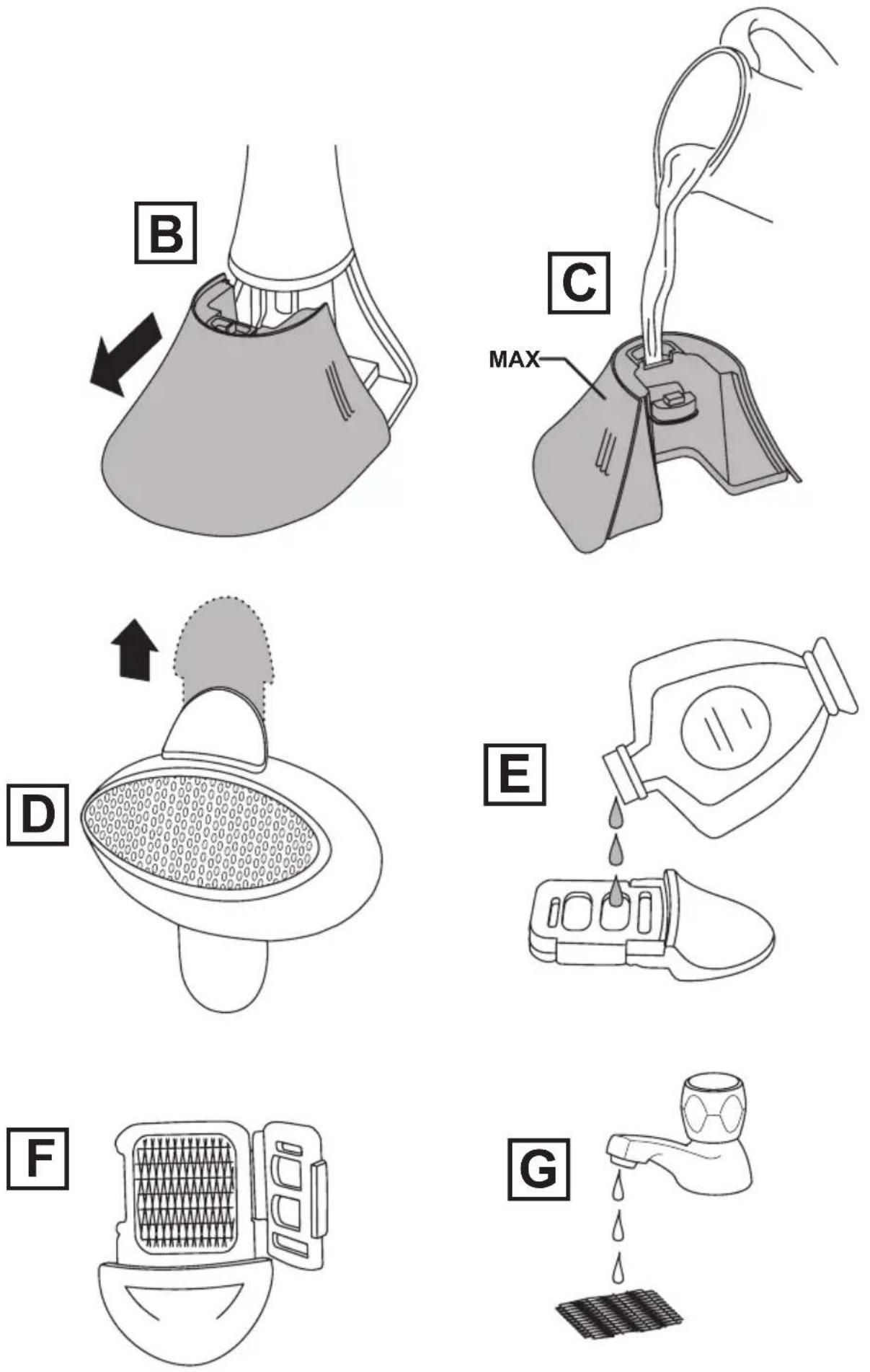

2. Pull out the removable water tank (Fig. B)
3. Gently open the rubber cover at the top of the tank.
4. Fill until the water reaches the "MAX" level mark on the side of the tank (Fig. C). Do not overfill. Close the rubber cover securely.
5. Dry off any excess water from the tank then refit it into the base until it clicks.

- To refill at any time during use, turn the steamer off by pressing the power button until the blue indicator light goes out, unplug from outlet, and follow the above procedure.

- After refilling, allow to reheat for 45 seconds and then prime the pump by holding the steam trigger until steam forms.

USING

• If the label says "do not iron" or shows this icon ⚪, fit the delicate attachment and make sure to test on an inconspicuous area prior to steaming the entire garment.
  • If the label says "do not steam" or shows this icon 📄, do not steam the garment.

• Hang the garment in an area that will not be affected or damaged by the heat and steam, such as on a shower curtain rail, or in an open doorway.

• Fit any attachment you wish to use.
• Plug the steamer in then press the power button. The blue power button light will slowly flash, indicating that the steamer is heating.
• After about 45 seconds the power light will stay on, indicating the steamer is preheated.
• Prime the water pump by holding steam trigger until steam forms.
• To generate steam, press the steam trigger. As long as the trigger is held, steam will emit from the steamer. When the trigger is released, the steam will stop.
• To generate a constant flow of steam without holding the trigger, press the steam trigger and then slide the steam trigger lock downwards. You can then release pressure on the steam trigger. To turn the steam off, press the trigger, slide the steam trigger lock upwards, then release the trigger.
• With your free hand keep the fabric taut. Steam the garment with slow, downward strokes, keeping the head of the steamer in contact with the fabric.
• When you have finished, press and hold the power button until the blue light goes out (about 3 seconds) and unplug.
• Stand the steamer on its base and allow it to completely cool off before storing. To avoid mineral buildup, empty the tank after each use.

Ceramic heated plate

Your steamer features a ceramic heated plate that helps smooth out wrinkles and creases on the areas of garments that are more difficult to reach with steam alone. The temperature of the plate is safe for all ironable fabrics.

To use, hold the plate of the steamer directly against the fabric. Don't fit any of the attachments. Steam the garment with slow, downward strokes while keeping the plate in contact with the fabric.

Using the scent infuser

The scent infuser attachment can be used to infuse your fabrics with your favourite scent.

• The use of scents, oils, or other fragrances is at your own risk and we accept no liability. Always read any instructions, warnings or advice regarding the use of the fragrance before using it with your steamer. Always use the scent infuser in a well ventilated room.
• Always remove and refit the scent infuser attachment when the steamer is cold and not producing steam.

• Always have the scent infuser fitted when using the delicate fabric attachment. Remove the fabric pad if you don't want to infuse a scent to the fabric being steamed.

• Remove the scent infuser (Fig. D).

• Place a few drops of the fragrance onto the fabric pad (Fig. E). Only use the scent infuser. Do not place fragrance directly onto the delicate fabric attachment, and never add fragrances to the water in the water tank.
• Replace the scent infuser into the delicate fabric attachment.

Auto shut off

Your steamer will automatically switch to auto shut-off mode after being left inactive for 15 minutes. The power button light will flash rapidly to indicate this. To resume steaming, press the steam trigger or power button and wait for your steamer to fully reheat.

CARE AND MAINTENANCE

1. Make sure steamer is off, unplugged and completely cool.
2. Wipe all surfaces with a clean damp cloth.
3. After the steamer has been thoroughly dried, turn it back on and lightly steam over an old cloth. This will help remove any residue left in the steam holes.
4. To avoid mineral buildup, empty the tank after each use.

Cleaning attachments

• Lint attachment: Wipe with damp cloth to clean.
• Delicate fabric attachment: Wash with cold water and small amounts of a gentle cleanser if needed. The fabric cannot be removed.
• Upholstery attachment: The fabric can be removed and hand washed with cold water and a gentle cleanser.
• Scent diffusor: Remove the scent diffusor and open it up (Fig. F). Remove the fabric pad and wash under running water with a little detergent.

TROUBLESHOOTING

Problem Possible Cause Solution
The steamer is plugged in but not heating.	The auto shut-off has activated. Press the steam trigger or press the power button to activate the steamer.
Not enough steam or no steam is coming out of the steamer.	The steamer is not heated to full temperature.	Always allow steamer to preheat at least 45 seconds, or until the power button light stops flashing.
	There is not enough water in the water tank.	Fill the water tank.
	The water pump hasn’t been primed.	After preheating, always prime the water pump by holding the steam trigger until steam forms.
Discoloured water is coming through the holes and staining the fabric.	Residue has built up in the water tank.	Empty the water tank after each use. Only use distilled, filtered, or purified water.
	Perfumed or scented additives were used.	Never use perfumed or scented additives.
Steamer is leaking or spitting.	Steamer is not hot enough.	Allow the steamer to heat for about 45 seconds.
	Water tank is running low. Fill the water tank.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
