YZQ2L - Juicer Vevor - Free user manual and instructions

Product Type	Manual Fruit Press
Brand	Vevor
Model	YZQ-2L / YZQ2L
Inner Bucket Capacity	14 x 13 cm (diameter x height)
Outer Bucket Capacity	16 x 10 cm (diameter x height)
Inner Bucket Material	Stainless Steel
Base Material	Paulownia (wood)
Pressing Plate Material	Beech (thickness 2 cm)
Vertical Posts Material	Aluminum Alloy
Pressing Mechanism	Worm Screw with Handle
Recommended Use	Crushed fruits (apples, pears, grapes, etc.)
Maintenance	Clean with dish soap before and after each use
Lubrication	Food-grade oil on spindle
Safety Instructions	Do not use if tired or under influence; flat surface; wear gloves
Included Accessories	Handle, inner and outer bucket, pressing plate, base, posts, filter screen

Frequently Asked Questions - YZQ2L Vevor

How to assemble the Vevor YZQ2L fruit press?

Place the base on a flat surface. Insert the two vertical posts into the holes of the base. Place the outer bucket on the base. Put the inner (perforated) bucket inside. Add the pressing plate (beech wood or stainless steel depending on use). Screw the threaded handle onto the plate and turn to press.

What fruits can be pressed with this model?

This manual fruit press is suitable for hard fruits like apples and pears (to be crushed first) and soft fruits like grapes, raspberries, and currants (which can be pressed whole). It separates juice from pomace without crushing seeds.

Should fruits be crushed before pressing?

Yes, for hard fruits (apples, pears, oranges), it is recommended to mash them before putting them in the filter bag. This increases juice yield. For soft fruits (grapes, berries), crushing is not necessary.

How to clean the press after use?

Disassemble all components. Wash the buckets, plate, and filter screen with warm water and dish soap. Rinse and dry thoroughly. The wooden base (paulownia) should be wiped with a damp cloth, not submerged.

Should I lubricate the spindle?

Yes, it is advisable to regularly apply a small amount of food-grade lubricating oil (such as vegetable oil) to the threaded spindle to reduce wear and facilitate rotational movement.

What are the important safety measures?

Read all instructions before use. Wear protective gloves. Keep your workspace clean and well lit. Do not let children use the appliance. Do not use the press if you are tired or under the influence of drugs/alcohol. Ensure the surface is stable.

What to do if the handle becomes hard to turn?

This may be due to excess fruit or a need for lubrication. Check that the fruits are well crushed and that the filter bag is not too full. Apply food-grade oil to the spindle. Turn slowly.

Can I use a nylon bag to filter the juice?

Yes, it is recommended to place the crushed fruits in a nylon bag (or juice bag) before putting them in the inner bucket. This allows better separation of juice and pomace.

Can the press be used for other applications?

Yes, it is also suitable for pressing distillery grains, Chinese medicinal lees, or for separating wine juice. However, do not use excessive force as this could damage the appliance.

Where to find spare parts?

Contact Vevor customer service at [e-mail] or visit www.vevor.com/support for information on spare parts and warranty.

USER MANUAL YZQ2L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FRUIT PRESS

MODEL:YZQ-2L YZQ-2L-2 YZQ-3L SC-FT5

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Fruit Press

MODEL: YZQ-2L YZQ-2L-2 YZQ-3L SC-FT5

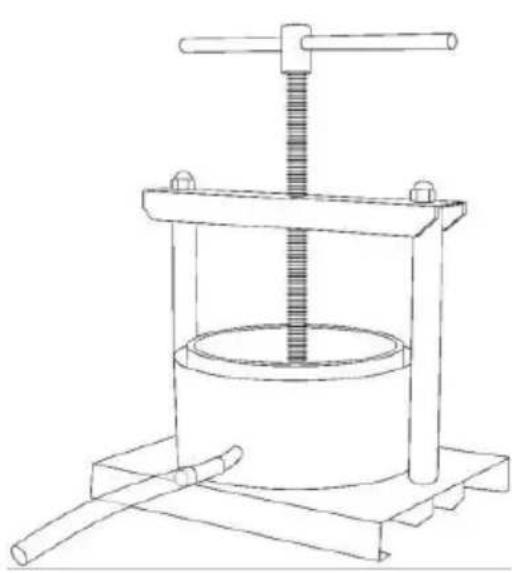

Line drawing of a mechanical press or measuring device with a cylindrical body and two handles, no text or symbols present.

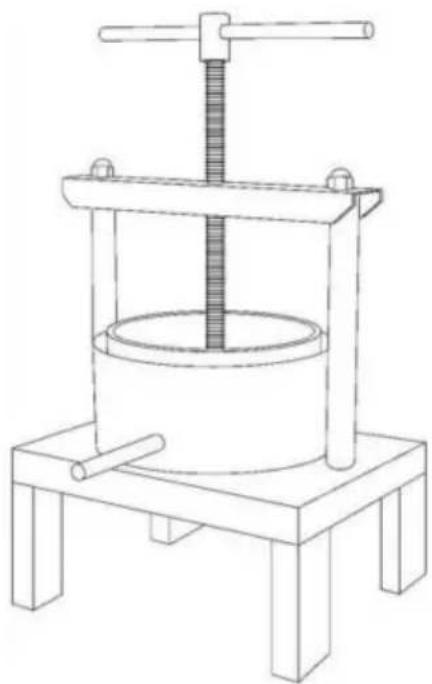

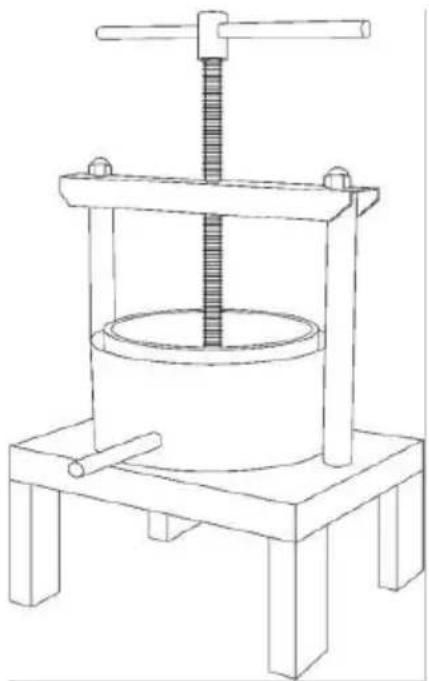

Line drawing of a mechanical press or measuring device with a cylindrical body and lever (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

• Presses fruit quickly into juice
• Stable and powerful
• Easy turns on the spindle
• Improving health and quality of life

IMPORTANT SAFEGUARDS

WARNING:

Read and understand all instructions before using this fruit press. The operate must follow

basic precautions to reduce the risk of personal injury and/or damage to the equipment.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit and of distrac-tions.
2. Always wear gloves that provide protection based on the work materials of reduce the effects of tool vibration. Keep anyone not wearing the appropriate safety equipment away from the work area.
3. Store the new fruit press properly in a safe and dry location to prevent damage. Lock fruit press away and keep out of the reach of children.
4. Always place the fruit press on a level and firm surface.

PERSONAL PRECAUTIONS

Control the fruit press, personal movement and the work environment to avoid personal injury or damage to fruit press.

1. Do not operate any fruit press when tired or under the influence of drugs, alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with a tool's parts. Keep long hair covered or bound.

SPECIFIC SAFETY PRECAUTIONS

1. Use the correct fruit press for the job. This fruit press was designed for function. Do not modify or alter this fruit press or use it for an unintended 2. The fruit press must be stored in a safe and dry place after use.

WARNING!

DO NOT let comfort or familiarity with product (gained from repeated use) restrict adherence to the fruit press safety rules. If you use this fruit press ur or incorrectly, you can suffer serious personal injury.

Model	Inner pot size	Outer pot size
YZQ-2L	14x13cm	16x10cm
YZQ-2L-2	14x13cm	16x10cm
YZQ-3L	14x13cm	20x11cm
SC-FT5	18x15cm	22x13cm

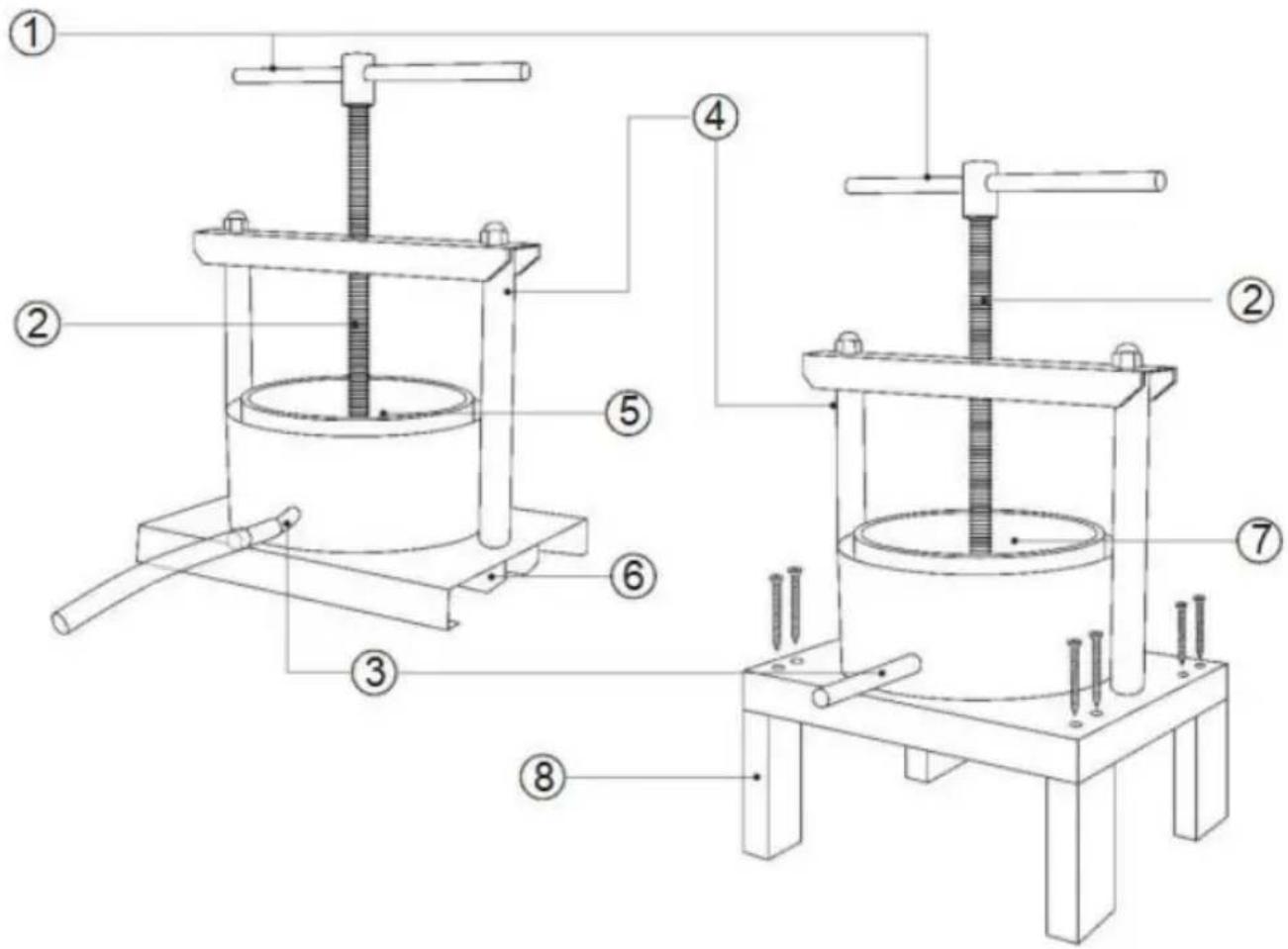

Technical diagram of a mechanical testing apparatus with numbered components for identification

1	Comfortable and labor-saving handle	1pc
2	T-pattern thread wear-resistant and safe for your ha	1pc
3	Stainless steel inner and outlet bucket	2pc
4	Aluminium alloy upright posts	2pc
5	Stainless steel round inner plate	1pc
6	Heavy duty base	1pc
7	Beech material round inner plate 2cm thickness	1pc
8	Paulownia material base	1pc

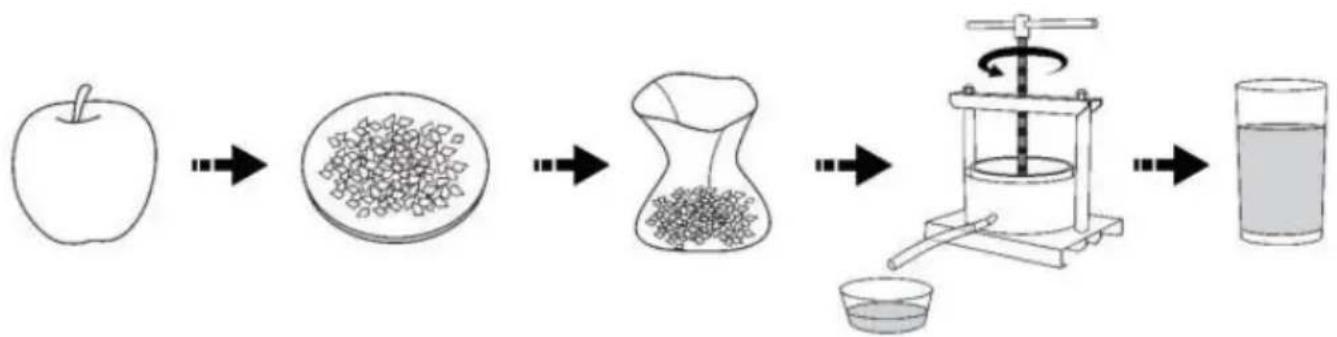

Fruit press procedure:

Puree the hard and soft fruit, then put it in a nylon bag. Finally, put it in press by turning the handle.

Fruit Press Instruction

Production introduce

Thanks for your purchase of this product. Before using this product, we hope customers can take basic precautions to minimize the risk of injury. Please run the instruction.

All the operators or maintainers must familiarize themselves with operating instructions. Never allow children to use it. The product does not include a set kit.

These products can't press whole fruit, which must be mashed. Otherwise, you won't be able to juice it successfully.

The manual juice press is different from other electric juicers. For example, t

grape can't be put into the electric juicer because crushed grape seeds will bitterness. Only using this product can keep the seeds intact. Please make s the fruit is fresh, and the fruit is crushed.

Press apples, pears, oranges, and other similar fruits, which should be crushed. This will increase juice production. But like grapes, raspberries, currants do not need to mash.

Before pressing, all the fruit mush clean.

Usable range

It can be used for distiller grains pressing, Chinese medicinal dregs pressing, CaiXian pressing, wine juice separation, etc.

But the fruit press is used for juice slag separation, which can't be thorough pressed out; if you use excessive force will cause damage to the machine. I use it with caution!

Tips

Clean before and after each use. The spindle should be apply a small amount of lubrication oil to reduce shaft wear

Please put the filer screen on the barrel

Please make sure all the fruit is in the filter bag

Please prepare vessel under the juice outlet

Slowly turn the handle shaft

If the pressure increases, turn the handle shaft and put other fruit in the ba

Clean care

It must be cleaned with dish detergent before and after use

All moving parts must be lubricated regularly, especially when not used for a time to dry with food-grade lubricant rust.

SAVE THESE INSTRUCTIONS

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support
