USER MANUAL Archer NX500 TP-LINK

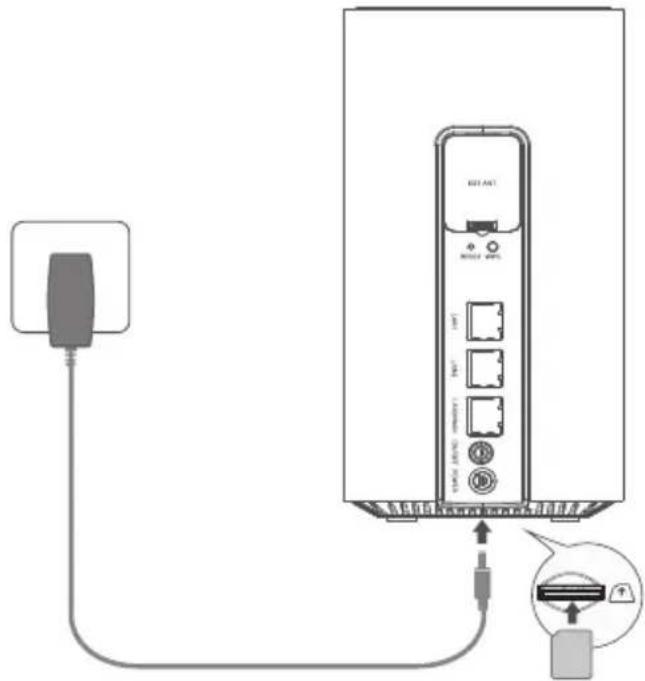

English Connect the Hardware 1 Insert the SIM card into the slot until you hear a click. 2 Connect the power adapter and turn on the router. 3 Make sure the Internet LED is on, indicating the router is connected to the internet successfully. If it is not, Please refer to FAQ > Q2 in this guide. Connect your device to the router (wired or wireless). The default SSID and password are printed on the product label at the bottom of the router. Enjoy the Internet! Note: Images are for demonstration only.6 English Customize the 5G/4G+ Router 1 Make sure your computer is connected to the router (via wired or wireless). 2 Enter http://tplinkmodem.net or http://192.168.1.1 in the address bar of a web browser. Based on the actual web management login page

use the default admin for both username and password or create a new password to log in. 3 Follow the step-by-step instructions on the Quick Setup page to complete the initial configuration. Note : The router can also be used (or configured) in wireless router mode for Cable connections. For more information, please refer to the User Guide at www.tp-link.com. FAQ(Frequently Asked Questions) Q1. What should I do if I cannot access the web management page?

• Verify that the computer is set to obtain an IP address automatically from the router.

http://192.168.1.1 is correctly entered in the web browser.

• Use another web browser and try again.

• Reboot your router and try again.

• Disable and then enable the active network adapter and try again. Q2. What can I do if I cannot access the internet?7

• Verify that your SIM card is a 5G/4G or WCDMA card.

• Verify that your SIM card is in your ISP’s service area.

• Verify that your SIM card has sufficient credit.

• Check the LAN connection: Enter http://tplinkmodem.net or http://192.168.1.1 in the address bar of a web browser. If the login page does not appear, refer to FAQ > Q1 and then try again.

• Check your ISP parameters: 1 Open a web browser and log in to the web management page. 2 Verify the parameters provided by your ISP are correctly entered. If the parameters are incorrect, create a new profile with the correct parameters.

• Check the PIN settings: 1 Open a web browser and log in to the web management page. 2 Verify if PIN is required. If it is, enter the correct PIN provided by your ISP.

• Check the Data Limit: 1 Open a web browser and log in to the web management page. 2 Verify if the total used data exceeds the total allowance. If it does, correct the total allowance and set the total used data to 0, or disable the data limit.

• Check the Mobile Data: 1 Open a web browser and log in to the web management page. 2 Enable the mobile data to access the internet.8 English

• Check the Data Roaming: 1 Confirm with your ISP if you are in a roaming service area. If you are, open a web browser and log into the web management page. 2 Enable the data roaming to access the internet. Q3. How to restore the router to its factory default settings?

• With the router powered on, press and hold the RESET button on the rear panel of the router until the Power LED starts flashing. The router will restore and reboot automatically.

• Log in to the web management page of the router to restore the router to its factory defaults. Q4. What can I do if I forget the password of the web management page?

• Refer to FAQ>Q3 to restore the router and use admin for both username and password or create a new password to log in. Q5. What can I do if I forget my wireless network password?

• The default wireless password is printed on the product label of the router.

• Keep the device away from water, re, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

• Do not use damaged charger or USB cable to charge the device.

• Do not use any other chargers than those recommended.

• Do not use the device where wireless devices are not allowed.

• Adapter shall be installed near the equipment and shall be easily accessible. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk. Español: Información de Seguridad
