USER MANUAL DMP-UB700EG PANASONIC

Basic Operating Instructions

Blu-ray Disc™ Player

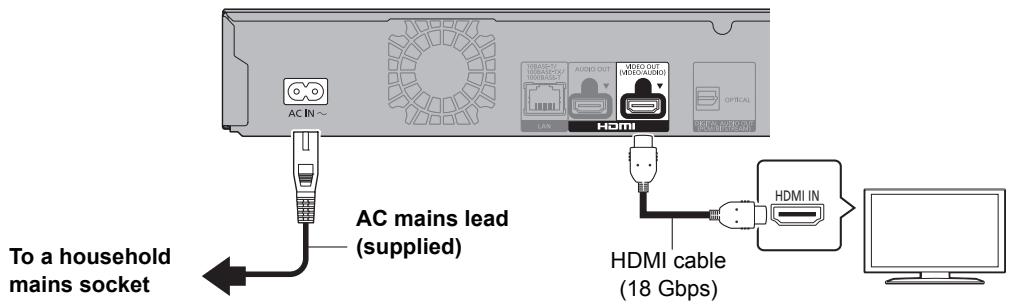

STEP 1: Connecting to a TV

• To enjoy 4K output, you need to connect this unit to a 4K compatible TV.
• To enjoy images in 4K (50p/60p), you need an HDMI cable that supports 18 Gbps. When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less. It is recommended that you use Panasonic's HDMI cable.
• If you connect this unit to a 4K-compatible TV and perform "Easy Settings", 4K (50p/60p) will be automatically selected.
• To view Ultra HD Blu-ray content in 4K/HDR format, connect to the HDMI terminal of a device that supports HDCP2.2, 4K (50p/60p) 4:4:4, and HDR signals that meet Ultra HD Blu-ray standards.

STEP 2: Connecting to the network

Wireless LAN connection

Wireless router, etc.

Internet

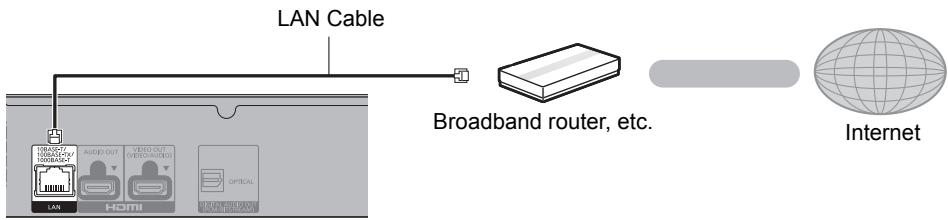

LAN cable connection

Use category 5e or above straight LAN cables (STP) when connecting to peripheral devices.

STEP 3 : Settings

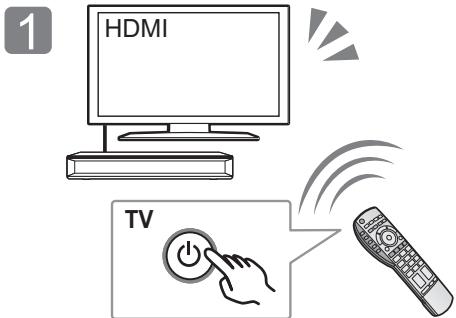

Turn on the TV and select the appropriate video input.

Touch [少 / I]^*2

Follow the on-screen instructions to continue with the settings.

These buttons work just by touching the marks.
Do not place any objects on or around the buttons.
2 Standby/on switch (D/I)

Touch to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

STEP 4 : Playing a disc

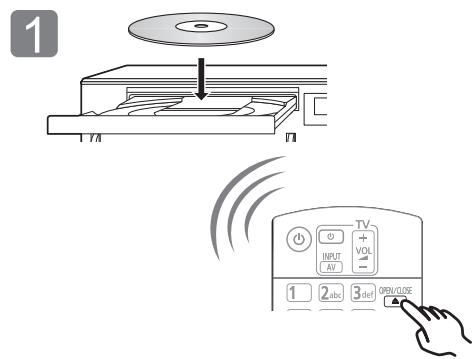

Insert the disc.

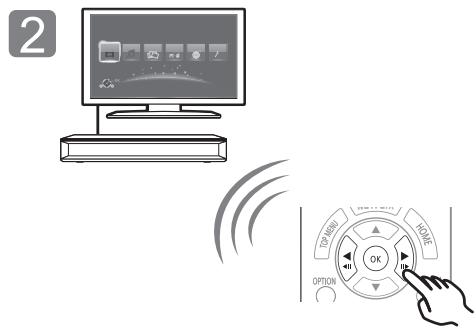

Select the item to play and press [OK].

Firmware updates

Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology.

Panasonic recommends updating your firmware as soon as you are notified.

For details, refer to the operating instructions (PDF format).

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

Reading the Operating Instructions

This document explains basic operations of the unit. For more detailed explanation, please refer to "Operating Instructions (PDF format)" which is recorded in the enclosed CD-ROM.

How to open the Operating Instructions (PDF format)

When you insert the CD-ROM and open the [INDEX.pdf] in the CD-ROM, the Operating Instructions list will be displayed. Click the document name of the Operating Instructions you would like to open.

• Adobe Reader is required to view the PDF file. Please download it from the homepage of Adobe Systems Incorporated.

Operating Instructions (PDF format) cannot be played back on the player itself.

Accessories

Check the supplied accessories before using this unit.

1 Remote control
(N2QAYB001090)
2 Batteries for remote control
1 AC mains lead
1 CD-ROM

• Product numbers are provided in these operating instructions correct as of August 2016. These may be subject to change.
• Do not use AC mains lead with other equipment.

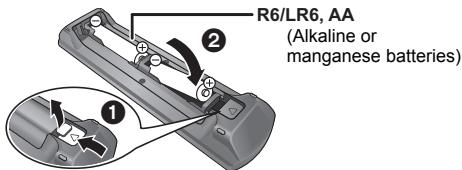

• Using the remote control

• Insert the batteries to the terminal so that it (+ and -) matches those in the remote control.

Point it at the remote control signal sensor on this unit.

Playable media

Ultra HD Blu-ray: Video

BD-Video: Video

BD-RE: Video, JPEG, MPO

BD-R: Video, MKV, JPEG, MPO

DVD-Video: Video

DVD-R/DVD-R DL: Video, AVCHD, MKV, JPEG, MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-RW/+R/+RW/+R DL: Video, AVCHD

Music CD: Music [CD-DA]

CD-R/CD-RW: MKV, JPEG, MPO, AAC, ALAC, FLAC, MP3, Music [CD-DA], WAV, WMA

SD Memory Card (from 8 MB to 2 GB)/

SDHC Memory Card (from 4 GB to 32 GB)/

SDXC Memory Card (48 GB, 64 GB)/

Compatible with both mini and micro types):

AVCHD, AVCHD 3D, MP4, JPEG, MPO

USB devices (up to 2 TB): MKV, MP4, MPEG2, JPEG, MPO, AAC, ALAC, DSD (DFF, DSF),

FLAC, MP3, WAV, WMA

To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presents to delete the user settings. For details, refer to the operating instructions (PDF format).

• The operation history may be recorded in the memory of this unit.

Declaration of Conformity (DoC)

Hereby, "Panasonic

"Corporation" declares that

this product is in compliance

with the essential

requirements and other relevant provisions of Directive 1999/5/ EC.

Customers can download a copy of the original DoC to our R&TTE products from our DoC server:

http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, Germany

This product is in compliance with the radio standards of the following countries.

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Iceland, Liechtenstein, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Switzerland

The WLAN feature of this product shall exclusively be used inside buildings.

This product on purpose to connect to access point of 2.4 GHz or 5 GHz WLAN.

Precautions

WARNING

Unit

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.
• Do not place heavy items on this unit.

AC mains lead

To reduce the risk of fire, electric shock or product damage,

• Ensure that the power supply voltage corresponds to the voltage printed on this unit.
• Insert the mains plug fully into the socket outlet.
• Do not pull, bend, or place heavy items on the lead.
• Do not handle the plug with wet hands.
• Hold onto the mains plug body when disconnecting the plug.
• Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device.

Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Small object

Keep the Memory Card out of reach of children to prevent swallowing.

CAUTION

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in moderate climates.
• Some portions of this unit may become hot during use. When moving or cleaning this unit, disconnect the AC mains lead and wait for 3 minutes or longer.

Placement

Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Batteries

Mishandling of batteries can cause electrolyte leakage and may cause a fire.

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal
• Do not mix old and new batteries or different types at the same time.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not take apart or short circuit.
• Do not recharge alkaline or manganese batteries.
• Do not use batteries if the covering has been peeled off.

Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

Wireless LAN connection

The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit. Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this unit.

Data transmitted and received over radio waves may be intercepted and monitored.
- This unit contains delicate electronic components.

Please use this unit in the manner in which it was intended and follow the following points:

• Do not expose this unit to high temperatures or direct sunlight.
• Do not bend, or subject this unit to strong impacts.
• Keep this unit away from moisture.
• Do not disassemble or alter this unit in any way.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

The symbols on this product (including the accessories) represent the following:

ACIN

DC5V500mA

Class II equipment (The construction of the product is double-insulated.)

"Panasonic Corporation"

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

"Panasonic Corporation"

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

Para eliminar o transferir estaunities

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

Att slänga aller überlamna encheten

Enheten kan spera anvandarens installiningsinformation. Om du kastar bort eheten som avfaller uberfor den, sca du folja proceduren for att uterstalla alla installinngt till fabriksvarden saatt anvandarens installinngraderas. Se bruksanvisingen for mer information (PDF-format).

• Drifthistoriken kan registrareras ienna apparats minne.

Forsakran om

överensstämme (DoC)

Härmed deklarerar

"Panasonic Corporation" att denna produit

överensstämmer med

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

Corporation", at dette

produktpfylderde

m = 311 ;

MPO, AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

AVCHD, AVCHD 3D, MP4, JPEG, MPO

USB-laite (jopa 2 Tt): MKV, MP4, MPEG2, JPEG, MPO,

AAC, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

"Panasonic Corporation"

"Panasonic Corporation"

OλωεI ΟI TO TIpoióv auTo

Eivai aoupuwo me tis Baoikc ataithoic kai aalecs oxetikec biadaei ts ondyia 1996/5C.

Oi TAEcTtnpoov vKaTeBaaouv Eva aviypapoTOu TpuroTuO DoC yia Ta R&TTE TpoIovTa ma atro To Doc SRue mac

http://www.doc.panasonic.de

ETIKOIVUVNATE ME TAV EGOUIDOTJMEVO AvITPOAOI MAc; Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15,22525 Hamburg, Tepuavia

AutoTo pOIOv eiv ouoBATO E ta paoovikA TPOUTa TuV aKIoAUoUW uwoW.

Auroria, BeLVIO, BouLVAPIA, KUMPOC, ToXyIKI DNuOxPAIa, DAVia, DivLVADIA, RaIIAIa, ErpuVIA, EALDAa, OUYAPIA, IApvAdia, IALIA, IaLVADIA, IaTeVATAV, AouEeMuOpYo, MaTAt, OALVADIA, NopNByIA, PLoVIA, PtoPovAA, Pouvavia, LoAβKAcia, LToBεViA, IotAVIA, SounDlva, HwUevo BAilEio, EAEBtia

TOXAPKITPIOTKO W LAN TO pIOVOTc AO UT pTETe va XPOJIOIOTIEAT OAKTEIKA MVO TO EOAUTPEKIO KTIPIUW.

To troiov auto aroaktei onuovdean ge nueio tnpoaaoncs (access point) tuv2, 4 GHz 5 GHz WLAN.

Portugues

Declaração de

Conformidade (DoC)

"Panasonic Corporation"

"Panasonic Corporation"

"Panasonic Corporation"

declarçacaproduusuleste

conform ci cerintele esentiale si ci alte norme corespunzatoare Directive 1999/5/EC.

Clienti pot descarca o copie a DoC-ului original al produselor noastre R&TTE de la adressa noastrà DoC din Internet: http://www.doc.panasonic.de

"Panasonic Corporation"

Deknapupa, Ye To3N

npOdyKT CbOTBeTCTBa Ha

cIbueCTeBHTNE I3CkBAHnI yIpyITNe pIINOJIMM pAnOpRednHaNpIeKTHBa 1999/5/EC.

PotrepBentnITE Morat da cBAIANT KOINTE OOPRINHANHTe DoC KbM HauNTe npOdyKTNE OT TUNA R&TTE OT cbPbpa, HA KOITOC ce cbxpanhaat DoC:

http://www.doc.panasonic.de

Cbpxete c c haun ynbHOMOeH npedctabntel:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, Германia

nTPONDyKT E CbOTBETCTBc CpaDIOeNEKTPNueCKNTe HOPMn HA CTpAHTNo-DONY.

AByrpn, BEnrrn, BbIrrapn, KInbp, CheuKa penybnika, DaHnna, FmHnHaDn, PAnHnau, EpMaHnru, Fbpnu, YpHnru, IpaHndu, ItaNnla, NcHnDa, LnxTtenhau, JIOKcem6Vpor. Mantra.

Hnepnndn, Hopbern, Poiwa, NpOpyran, Pymbnna

Cnobakn, CnoBENHn, NcAnHn, UBeuHn, OBeINHeO kpanCTBO, UBeuZaHn

Either of these labels is affixed to this unit. (Inside of product)

Importer for Europe:

Panasonic Corporation

Kadoma, Osaka, Japan

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany
