Product Type	Heavy-duty professional griddle plate
Brand	Vollrath
Model	CBGHD48
Width	48 inches (121.9 cm)
Estimated Weight	Approximately 90 kg
Power Source	Natural gas (convertible to liquid propane)
Max Supply Pressure	1/2 PSI (14 inches WC)
Heat Type	Radiant heat or lava rock (interchangeable)
Number of Burners	4 (estimated for 48 inches)
Main Material	Stainless steel
Main Features	Tilting grates, removable drip tray with water, adjustable legs
Safety	Manual shut-off valve, pilot light, regulator, minimum 15 cm clearance at rear, 10 cm legs required
Daily Maintenance	Scrub hot grates (300°F) with a brush or brick, apply a thin film of oil after cleaning
Weekly Maintenance	Clean radiant heat bars or flip lava rocks
Initial Burn-in	Heat for 30 minutes at maximum power to burn off manufacturing residues
Griddle Seasoning	Apply oil, heat for 30 minutes at medium heat, let cool, wipe off (repeat)
Warranty	Warranty against defects in material and workmanship (see terms on vollrath.com)
Spare Parts	Available on Vollrath.com
Use	Commercial food service only

Frequently Asked Questions - CBGHD48 Vollrath

How to light the pilot light of the CBGHD48 griddle?

Wait 5 minutes after any gas interruption. Hold a flame above the desired burner while gently turning the adjustment screw counterclockwise to adjust the flame. Repeat for each pilot light.

What type of gas to use with this model?

The unit is shipped configured for natural gas (1035 BTU/cubic foot). It can be converted to liquid propane using the provided conversion kit. Conversion must be performed by a qualified technician.

How to convert the griddle from natural gas to propane?

Follow the instructions included in the conversion kit. Conversion must be carried out by a qualified technical agent in accordance with the International Fuel Gas Code.

Why is the cooking surface smoking excessively?

This may be due to a dirty surface or too high a temperature. Let it cool, clean the surface while hot, and season it. Also check ventilation (at least 6 inches clearance at the rear).

How to clean the griddle grates?

For daily cleaning, scrub hot grates (around 300°F / 148°C) with a grill brush or brick. Do not use steel wool or soapy chemicals. Then apply a thin film of food-grade oil to prevent corrosion.

What to do if the main burner does not light?

Check if the pilot light is on. If it is off, wait 5 minutes for gas to dissipate, then relight it. If the problem persists, the orifice may be clogged or the air shutter misadjusted; contact a qualified technician.

Should the grates be seasoned before first use?

Yes, after the burn-in (heat on high for 30 min), apply food-grade oil to the grates, heat on medium for 30 min, let cool and wipe off excess. Repeat once.

What is the burn-in procedure for the griddle?

Turn the burner knob to the maximum setting and let it heat for about 30 minutes to burn off manufacturing residues. A slight odor is normal. Then turn off and proceed with grate seasoning.

How to adjust the legs to level the griddle?

Start by hand-tightening each leg. Then turn each adjustable leg (located at each corner) to adjust level in all directions. Use a bubble level.

Where to find spare parts for this model?

Spare parts are available on Vollrath.com. For any repairs, contact Vollrath technical services providing the item number and serial number.

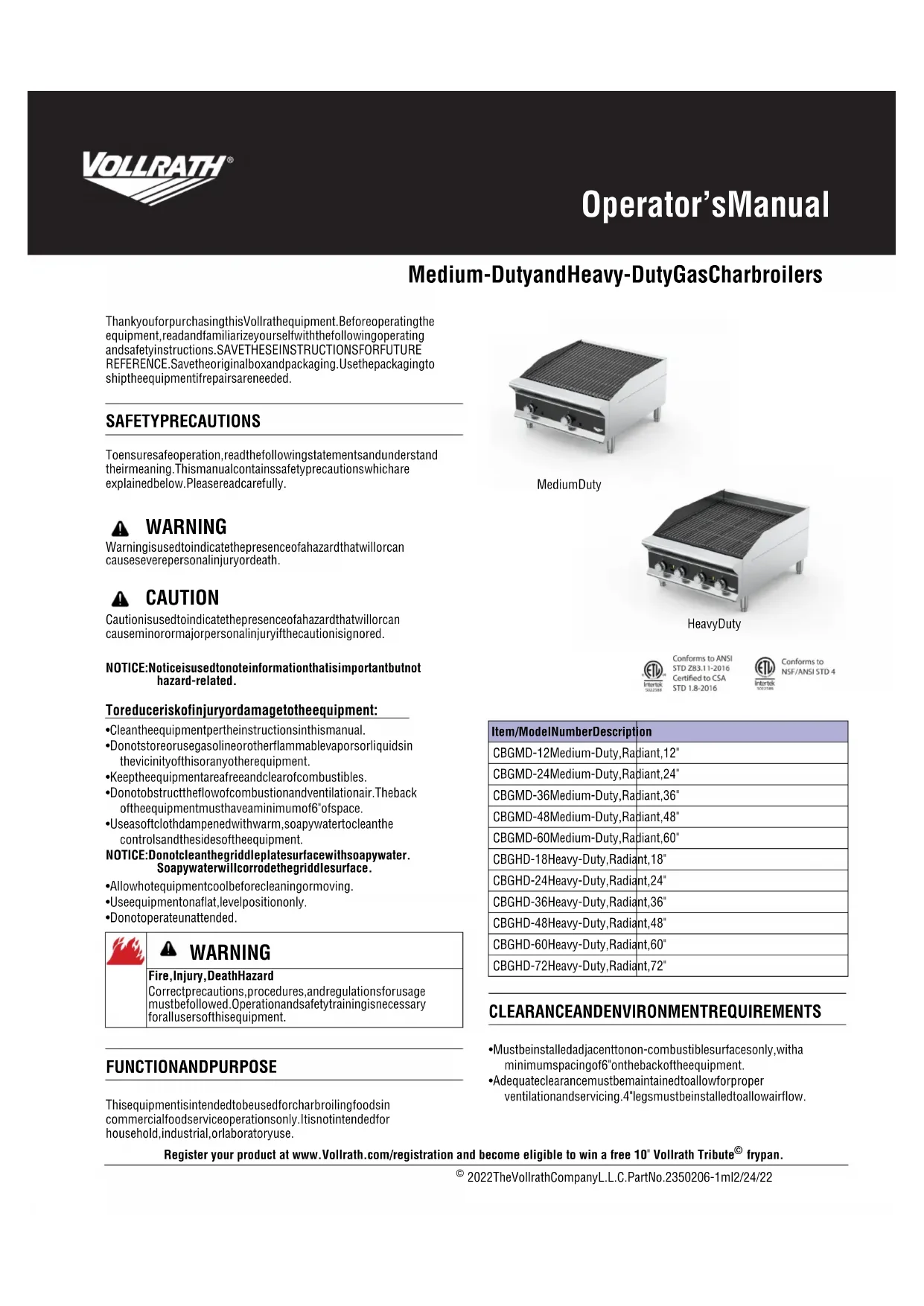

USER MANUAL CBGHD48 Vollrath

Medium-DutyandHeavy-DutyGasCharbroilers

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethepackagingto shiptheequipmentifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicate the presence ofahazardthatwillcause minormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamageotheequipment:

Cleanthequipmentpertheinstructionsinthisismanual.
- Donotstoreorusegasolineorotherflammablevapororsliquidsin thevicinityofthisoranyotherequipment.
- Keepthequipmentareafreeandclearofcombustibles.
- Donotobstructtheflowofcombustionandventilationair. Theback of the equipment must have a minimum of space.
- Useasoftclothdampenedwithwarm,soapywatertocleanthe controlsandthesidesofthecquipment.

NOTICE: Donotcleanthegriddleplatesurfacewithsoapwater. Soapwaterwillcorrodethegriddesurface.

-Allowwhotequipmentcoolbeforecleaningormoving.
- Use equipment onaflat, level positiononly.
- Donotoperatunattended.

WARNING

Fire, Injury, DeathHazard

Correct precautions, procedures, and regulations for usage must be followed. Operationandsafetytrainingisnecessary for all users of this equipment.

FUNCTIONANDPURPOSE

This equipment is intended to be used for charbroiling foodsin commercial foodservice operationsonly. It is not intended for household, industrial, or laboratory use.

MediumDuty

HeavyDuty

Conforms to ANSI STD ZB3.11-2016 Certified to CSA STD 1.8-2016

Conforms to NSF/ANSI STD 4

Item/ModelNumberDescription

CBGMD-12Medium-Duty,Radiant,12"

CBGMD-24Medium-Duty,Radiant,24"

CBGMD-36Medium-Duty,Radiant,36"

CBGMD-48Medium-Duty,Radiant,48"

CBGMD-60Medium-Duty,Radiant,60"

CBGHD-18Heavy-Duty,Radiant,18"

CBGHD-24Heavy-Duty,Radiant,24"

CBGHD-36Heavy-Duty,Radiant,36"

CBGHD-48Heavy-Duty,Radiant,48"

CBGHD-60Heavy-Duty,Radiant,60"

CBGHD-72Heavy-Duty,Radiant,72"

CLEARANCEANDENVIRONMENTREQUIREMENTS

• Mustbeinstalledadjacenttonon-combustiblesurfacesonly,witha minimumspacingof6"onthebackoffthequipment.
  Adequateclearancemustbemaintainedtoallowforpropert ventilationandservicing.4"legsmustbeinstalledtoallowairflow.

Register your product at www.Vollrath.com/registration and become eligible to win a free 10^ Vollrath Tribute® frypan.

INSTALLATION

WARNING

Improperinstallation, adjustment, alteration, serviceor maintenancecausepropertydamage, injuryordeath. Readtheinstallation, operatingandmaintenanceinstruct- tionsthoroughlybeforeinstallingservicingthisequipment.

WARNING

Fire, Injury, Death Hazard

This equipment must be installed by a qualified installer in accordance with all federal, state, and local codes. Failure to install this equipment properly can result in injury or death.

WARNING

FireHazard

Donotinstallorusewithout4"legs.Useffthisequipment withoutlegscancausetheappliancetooverheatandcause afire.

CAUTION

Anyloosedirtormetalparticlesthatareallowedtoenterthegas linesonthisappliancewilldamagethevalveandaffectits operation.Wheninstallingthisappliance,allpipeandfittingsmustbefreefromanyinternalcontaminates.Itisrecommendedthatasedimenttrapbeinstalledin-linebeforetheregulator.

ApplicableCodesandStandards

United States

Vollrathrecommendsthatallcommercialcookingequipmentbeprovided withventilationsystemincompliancewithNFPA96:

Cooking equipment that uses or produces grease (e.g. fryer, griddle), must be provided with hoodsthat are designed to capture grease and provide fire protection.
- Equipmentmustbeinstalledinaccordancewiththerequirementsand approvaloftheAHJ"AuthorityHavingJurisdiction."

NOTICE: Postinstructionstobefollowedintheeventheusersmells gas. Consultyourlocalgassupplierfortheseinstructionsand posttheminaprominentlocation.

NOTICE: The installation of this equipment must conform with local codes, or the absence of local codes, with the National Fuel GasCode, International Fuel Gas Code, ANSI Z223.1/NFPA54, or the Natural Gas and PropanelstallationCode, CSAB149.1, as applicable.

InstallandLeveltheLegs

Ensure the equipment is level in all directions. Begin by tightening each leg securely. Then, as needed date each corner, rotate the head adjustable foot.

GasPiping

Gaspingmustbesizedtoensuresufficientpressureandflowtomeet thefull-ratedgasinputoftheequipment.
- Connectiontoanexistingsystemrequires that the existing system have capacity equal to greater than the full-rated gas input of the equipment.
Jointcompound(pipedope)shouldbeusedsparinglyandonlyonthe malethreadsofthepipejoints.Suchcompoundsmustberesistantto theactionofliquidpropane(LP)gases.

PressureRegulator

NOTICE: All commercial cooking equipment must have pressure regulator on the incoming serviceline for safe and efficient operation.

NOTICE: Priortoconnectingtheregulator, checkthe incoming line pressure. Theregulatorcanonlywithstandamaximum pressure of 12 PSI (14*WC). If the line pressure is beyond this limit, astep-downregulatorbeforetheregulatorprovidedwill berequired.

NOTICE:Theapplianceanditsindividualshutoffvalvemustbe disconnectedfromthegassupplypipingsystemduringany pressuretestingofthatsystemmattestpressuresinexcessof1/2psi(3.5kPa).

NOTICE:Theappliancemustbeisolatedfromthegassupply piping systembyclosingsitsindividualmanualshutoffvalveduring anypressuretestingofthegassupplypipingsystemattest pressuresequaltolessthan1/2psi(3.5kPa)

Thearrowforgedintothebottomoftheregulatorbodyshowstegas flowdirection,andshouldpointdownstreamtothequipment.
- Theregulatorprovidedwiththisequipmentsisconfiguredforusewith naturalgas. FollowingtheinstructionsintheLPConversionKit, it can bereconfiguredforusewith LP gas.
Theequipmentcomesfittedwitha 3 / 4 N.P.T.maleadapterforconnection tothepressureregulator.
- Check the pressure of the incoming gasline. Theregulator can withstand maximum pressure of 14"WC(1/2 PSI). If the line pressure is beyond this limit, astep-downregulator will be required.

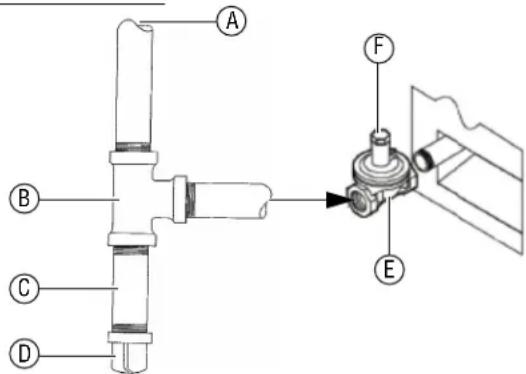

RegulatorConnection

ATogassupplywiththeinstallationofB,C,andDinavertical orientationasshowntprovidedebriscapture.

BTEEsuppliedRegulator

CNipple(anylength)FVent

DCap

OrificeSizing

NOTICE:RefertotheInternationalFuelGasCodeforproperorificesizing.

• Installerisresponsibleforcorrectorificesizing.
  Theorificesizeismarkedonteorifice/spud.
• Equipmentism manufactured for 1035BTU per cubic foot/heat value of natural gas.

GasConversion

• Conversion from natural gastoliquid propane(LP) or viceversamust beperformed byaqualified technicianor serviceagentperthe International Fuel Gas Code.
• Refertotheconversionkitinstructionsincludedwiththisequipment.

ManualShut-OffValve

Amanualshutoffvalveshouldbeinstalledinanaccessiblelocation within6ft.(1.8m)ofthequipment.

TesttheEquipment

CheckforGasLeaks

NOTICE:Matches, candleflame, or any other potential source of ignitions shall not be used forthispurpose.

1.Rotatethegascontrolknobsforthemainburner(s)totheOFF position.
2. Removethegascontrolknob(s).
3.Usea5/16'nutdrivertoremovethe4screwssecuringthefront panel.Removethefrontpaneltoaccesssthepilotburnercontrol valve(s).
4. Locatethepilotburnercontrolvalvesforeachpilotlightandturn themOFFbyturningthesmallforward-facingscrewclockwiseuntil tight.
5. Connect the equipment to the gas supply.
6. Apply soapaywatertoachconnection.
7. TurnONthemsainsupplyvalve.
8.Lookforbubblesattheconnections.
9. Tightening connections as needed.

LightthePilotBurners

1.Wait5minutestoallowanygastodissipate.
2.Tolightthepilotburners,holdaflamesourceoverthedesiredpilot burnerwhileslowlyturningitscontrolvalvescrew counterclockwise,adjustingtheflametothehedesiredintensity. RePEATforallpilotburners.

TesttheMainBurners

Afterlightingallofthepilotburners,ensurethateachmainburner functionscorrectly.

Afterthelightingthe pilots, themainburnerscanbeignitedbypushing andturningthecontrolknobfromthe"off"positiontothedesired setting. Visuallycheckthathepilotlightignitesthemainburner.

Themainburnerscanbeextinguishedbyturningthecontrolknobback tothe"off"position. The pilotlightscanbeextinguishedbyshutting off thegassupplyattheshut-offvalveinstalledonthegasline.

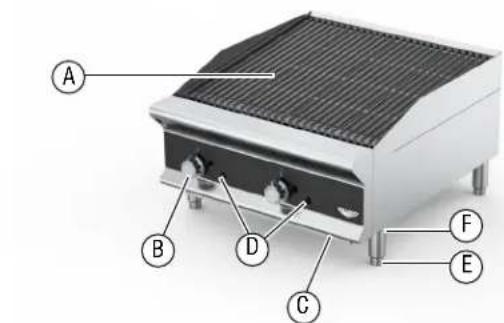

AGrillGrates.Anglecanbeadjusted.

BGasControlKnob. Usedtoadjustthetemperatureofthegrilling surface.

CDripTray.Collectsgreaseandoil.Thistraycanberemovedfor cleaning.Itisrecommendedtohaveathinlayerofwaterinthe driptraytoreduceflare-upsandsmoking,whilstillallowing plentyofvolumefordrippings.

DPIilotLightAccessHole. Allowsaccesssthepilotlight.

EAdjustableFoot. Usedtoadjusttheleveloftheequipment.

FLeg.Supportstheequipment.

BEFOREFIRSTUSE

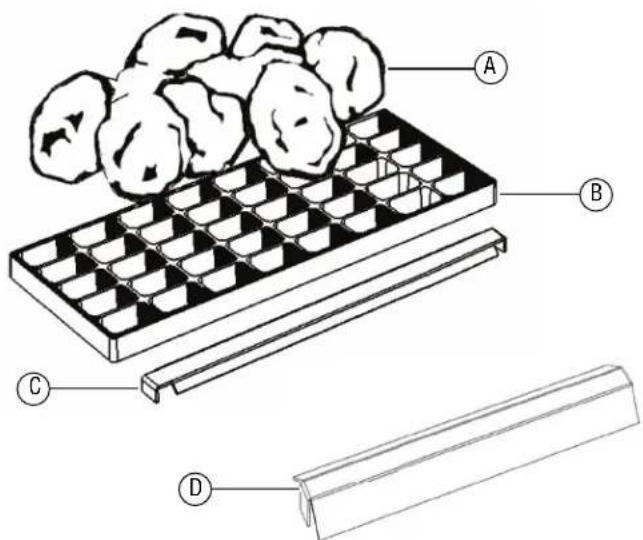

SetupForLavaRockorRadiantHeat

ALavaRock. Helpstodeliverevenheatingacrosstheentre surface, andalsoservletocollectdrippingsandtoprovidesome smokeflavoringtothefood. Shouldbereplacedwhenthey are nolongerporous.

BWaffleGrate(s).Usedwiththelavarocksetup.

CLavaRockCover(s).Usedwiththelavarocksetup. NOTICE:Usedforheavydutymodelsonlytoreplaceheavy dtyradians.

NOTICE:Lavarockkitscanbepurchasedseparatelyasan accessory.

DRadiantCover(s).Usedaloneintheradiantsetuptoprotectthe burner(s)andtohelpdistributetheheatfromtheburner(s). NOTICE:Canbeleftinplaceformediumdutymodels.

ConverttoRadianHeatConverttoLavaRock

1. Removethelavarockandsave forfuturereuse.

2. Removetheradiantcover(s) and saveforfuturereuse.

3. Removethewafflegrate(s)and saveforfuturereuseifstill sufficientlyporous;otherwise, discard.

2.Placethelavarockcover(s)over theburnertube(s).

1. Removethelavarockcover(s) andsaveforfutureuse.

3.Setthewafflege(s)into place.

1. Placetheradiantcover(s)over theburnertube(s).

4.Setthelavarockontothewaffle grate(s)andspreadoutevenly.

Burn-IntheEquipment

1. Rotatethegascontrolknob(s) tothemaximumsetting.
2. Allow charbroilerto heat and burn-infor approximately 30 minutes. NOTICE: You may noticesmoking during this initialburn-in; this is normal.
   3.RotatetegascontrolknobstoOFF.

SeasoningGrillGrates

1. Allow the charbroilertocoolerheattoawarmingtemperature of approximately 200^ .
   2.Rubcookingoil,shortening,beefsuet,orthelikeonthecharbroiler grateswithacleancloth.
2. Heatthecharbroilertomediumhighandallowittooperatefor approximately 30 minutes.
3. Adjust the burnerdial(s) tothelowest setting and allow the charbroilertocoolandstabilizeatalowheat.
4. Removeanyexcessoilandwipeclean.
   6.Repeattheprocess:oil,heatfor30minutes,cool,andwipeclean.

OPERATION

WARNING

Fire, DeathHazard Ifyousmellgasfollowtheinstructionsprovidedbythegas supplier. Donotouchanyelectricalswitches;donottrytolightthe burner;donotuseatelephoneincloseproximity.

CAUTION

BurnHazard Hotsurfacedandfoodcanburnskin. Allowthehotsurfacedcoolbeforehandling.Donotdroporspillwaterontothe cookingsurfaceasitcansprayersplatter.

TIP:Setthegrillgratesatanangle.Thiswillenableliquidstorundn thegratesandintothedripray,whichwillreduceflare-ups.

1.Verifyhedriprayisinplace.Addwatertothedripray.Water vaporrisingfromthedriprayandthroughthecombustionchamber willhelptoreduceflare-ups.
2. Lightlyoilandwipethegratescleantoremoveanycontaminants that may have accumulated or have seeped from the grilland/or perimetersincelastuseandtoensureacclean-non-stickcooking surface.
3.Rotatethegascontrolknobstoignitethemainburner(s).Adjustthe knob(s)tothedesiredheatlevel.
4.Preheatthegrillgratesfor15minutes.
5.Cookthefood
6. Emptythrieprayperiodicallytoensureitdoesnotoverflow. Checkthedriprayfrequentlyandaddwaterasnecessary.
7.Donotallowoilorgreasetobuilduponthegrillgrates.Wipedown thegrillgratestoppreventcarbonbuild-up,whichcouldaffectthe performanceofthegrill.

AdjustingthePilotLight

Fromtimetotimethepilotlightintensitymayneedtobeadjustedto properlyignitethemainburners.

1. With the pilot lightignited, useaflatheadscrewdriver turn the exposed slotted brasscrew. Turn the screw clockwise to decrease intensity and counter-clockwise to increase intensity.
   2.Determine the proper intensity toignitetheburner flames. Burners shouldignitefrompilotinunder4seconds.

CLEANING

CAUTION

BurnHazard

Hotsurfacedandfoodcanburnskin.Allowthehotsurfacesto coolbeforehandling.Donotdroporspillwateronto the cookingsurfaceasitscansprayorsplatter.

Topreventflare-upsandtomaintaintheappearanceandincreasethe servicelife,cleanyouequipmentdaily.

NOTICE: Donotcleantheequipmentwithsteelwool.

NOTICE: Donotusecleaningchemicalsorsoapsasthesecanbe absorbedbythecookingsurfaceandaffecttheflavorofthe food. Ifnecessary, useonlycleanwater, oil, and/or arofood gradedegreaserforthecleaningprocess.

NOTICE:Topreventcorrosion, donotallowthegrate(s)toremain unseasonedorwithoutathincoatingofcookingoil.

Daily

1. While the grates are hot (approximately 300^ ), use a drill brush or grill brick to scrub them clean.
   2.Inspectthegratesanddetermineiftheyneedtobere-seasoned.If theygratedonotneedseasoning,applyathincoatofcookingoilto thegratestpreventcorrosion.
2. Allow the charbroilertocool.
   4.Remove,empty,andcleanthedripty
   5.Cleantheexterioroftheunit.

WeeklyOrMoreOftenIfNeeded

RadiantBars

1.Removetheradianbars.
2.Inspectforwear.lfbarsareworn,orderreplacements.

NOTICE: Donotoperatethecharbroilerwithwornradianbars. Thiswillreduceperformanceofthecharbroilerandmay causeflare-ups.

3.Washtheradiantbarsinasolutionofwarm,soapywater.
4. Thoroughly drytheradiantbars.
5.Placetheradiantbarsinthecharbroiler.

LavaRock

1.Flipoverthelavarocks.Thiswillenableanygreasethathascumulatedondhetopoftherockstoburnoff.
2.Inspecttthewafflegeforwear.lfthegrateisworn,ordera replacement.

NOTICE: Donotoperatethecharbroilerwithaworngrate. This willreduce the performance of the charbroiler and may cause flare-ups.

3.Inspecttherocksforwear.Vollrathrecommendssreplacingtherocks whenthesurfaceisnelongerporous.Eventually,ashand contaminantswillplugtheholesandthelavarockwillnolonger capturethedrippingsandconvertthemtosmoke.Instead,the drippingswillrunoffandriskaflare-up.

PREVENTATIVEMAINENCE

WARNING

Fire, Injury, DeathHazard Contactaqualifiedtechnicianorserviceagentforany adjustments,maintenance,orrepairs.Thisapplianceisnot userserviceable.

Aqualifiedservicecompanyshouldchecktheunitforsafeanddeficient operationnonanannualbasis.Contactthefactoryrepresentativeorlocal servicecompanytoperformmaintenanceandrepairs.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Gassmell.Unknowcause.		Turnoffthemainsupplyvalve,ventthearea, callaqualifiedserviceagent.
Burnerdoesnotlight.Pilotburnernotlit.		Wait5minutesallowgastodissipate,then lighthepilotburner.
Cookingsurfacesmokesexcessively.Cookingsurface	cenotcleaned.	Allowthecookingsurfacetocouldnand cleanwhilestillwarm,thenseasononthetop.
Cookingsurfaceistoohot.Insufficientventilation.		Ensureaminimumof6"ofspaceisallowedon thebackoftheequipment.
Unevencookingssurfacetopheating.	Insufficientventilation.	Ensureaminimumof6"ofspaceisallowedon thebackoftheequipment.
	Airshutternotproperlyadjusted.ContactVollratthe	chnicalservice.
Burnernotoperatingsproperly.	Orificecontaminated.	Contactanaauthorizedserviceagenttoservice theburner.
	Airshutternotproperlyadjusted.ContactVollratthe	chnicalservice.

Thispageintentionallyleftblank.

SERVICEANDREPAIR

Serviceablepartsareavailableonwww.vollrath.com.

To avoid serious injury or damage, never attempt to repair the unit yourself. Either contact a qualified service agent for the repair or contact Vollrath TechnicalServicesforinstructions. Theappropriatephonenumerislistedatthebottomofthepage.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company L.L.C. does not offer a written warranty to purchasersforsuchuses.

The Vollrath Company L.L.C. warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

Forcompletewarrantyinformation/productregistrationandnewproductannouncement,visitwww.vollrath.com.

Conforms to ANSI STD Z83.11-2016 Certified to CSA STD 1.8-2016

Conforms to NSF/ANSI STD 4

Conforms to ANSI STD Z83.11-2016 Certified to CSA STD 1.8-2016

Conforms to NSF/ANSI STD 4

Núm. art./modelo Descripción
CBGMD-12	Servicio mediano, radiante/piedra volcanica, 12° (30,5 cm)
CBGMD-24	Servicio mediano, radiante/piedra volcanica, 18° (45,7 cm)
CBGMD-36	Servicio mediano, radiante/piedra volcanica, 24° (61 cm)
CBGMD-48	Servicio mediano, radiante/piedra volcanica, 36° (91,4 cm)
CBGMD-60	Servicio mediano, radiante/piedra volcanica, 48° (121,9 cm)
CBGHD-18	Servicio mediano, radiante/piedra volcanica, 60° (152,4 cm)
CBGHD-24	Servicio pesado, radiante/piedra volcanica, 24° (61 cm)
CBGHD-36	Servicio pesado, radiante/piedra volcanica, 36° (91,4 cm)
CBGHD-48	Servicio pesado, radiante/piedra volcanica, 48° (121,9 cm)
CBGHD-60	Servicio pesado, radiante/piedra volcanica, 60° (152,4 cm)
CBGHD-72	Servicio pesado, radiante/piedra volcanica, 72° (182,9 cm)
