Product Type	Professional Cooking Appliance
Brand	Inoksan
Model	PDG113MN
Dimensions (W x D x H)	530 x 769 x 919 mm (20.86 x 30.27 x 36.18 inches)
Shipping Weight	33.8 kg (74.36 lb)
Installed Weight	42.8 kg (94.16 lb)
Supply Voltage	115 V AC, 60 Hz
Rated Current	0.4 A
Plug Type	NEMA 5-15P (grounded)
Gas Type	Natural Gas (NG) - convertible to propane
Total Power	30,717 BTU/h (7.5 kW)
Main Functions	Rotisserie cooking with tilting or vertical rotation; separate controls for horizontal and vertical radiants; manual ignition with pilot light
Maintenance and Cleaning	Clean with warm soapy water and non-abrasive disinfectant; spit and plates are dishwasher safe; do not use abrasive products or pressure water; disconnect before cleaning
Safety	Use by trained personnel only; mandatory grounding; do not obstruct ventilation; respect clearances (sides 304.8 mm, rear 76.2 mm); do not store flammable substances nearby
Spare Parts and Repairability	Interchangeable injectors for gas conversion (see table T1); fuses (F1, F2); capacitor; switch; motor; ignition electrode; contact an authorized technician for repairs
General Information	Free PDF manual available; support by email at [e-mail] or website www.inoksanUSA.com; model and serial number to be noted for after-sales service

Frequently Asked Questions - PDG113MN Inoksan

How to properly install the Inoksan PDG113MN appliance?

Installation must be performed by qualified personnel according to local codes. Place the appliance level on a suitable counter, under a hood or in a well-ventilated room. Respect clearances: 304.8 mm on the sides and 76.2 mm at the rear for non-combustible materials. Connect the gas with a 1/2 inch flexible metal hose. Before first use, check for gas leaks with foam.

What safety precautions should be taken?

The appliance must be used only by trained personnel. Do not block combustion air inlets and ventilation. If you smell gas, do not operate any electrical switch, do not smoke, open doors and windows, and call the gas emergency immediately. The appliance must be plugged into a grounded outlet. Do not store flammable substances nearby.

How to light the burners?

Open the main gas valve, then manually light the pilot. For the lower burner, press the button and turn it counterclockwise from '0' to the full flame position. For half flame, turn to the half flame position. For the other burners, turn the knobs counterclockwise while holding them down until the flame lights from the lower burner.

How to turn off the appliance?

Turn the knobs one by one clockwise to the zero position, starting from the bottom. Set the motor switch to '0'. Close the main gas valve. Wait 5 minutes before relighting the appliance.

What type of gas to use and how to convert the appliance?

The appliance is factory set for natural gas (NG). To use propane (LPG), refer to table T1 to select the appropriate injector and pressure. Replace the injector by following the procedure: remove the front panel, remove the pin and old injector, insert the new one, replace the pin. Then stick the label indicating the new gas type.

How to clean the appliance?

Unplug the appliance before cleaning. Use a cloth dampened with warm soapy water and a non-aggressive food-safe disinfectant. Never use abrasive products, hard brushes, or pressure water. The spit and plates in contact with meat can be washed in the dishwasher. At the end of the day, clean all surfaces. If the appliance is unused for a long time, apply a thin layer of petroleum jelly to the surfaces.

What are the electrical characteristics of the appliance?

The appliance operates on 115 V AC, 60 Hz, with a rated current of 0.4 A. It is equipped with a NEMA 5-15P three-prong plug (grounded). It must be plugged directly into a grounded outlet in accordance with local electrical codes (NFPA 70 in Canada, CSA C22.2).

How to maintain the spit rotation motor?

The motor (1 rpm) is located in the lower body and rotates the spit in a tilted or vertical manner. For maintenance, unplug the appliance. Check wiring and capacitor if necessary. Any intervention must be performed by an authorized technician. Do not let the silicone cable pass through the switch spiral.

Where to find the wiring diagram and spare parts?

The wiring diagram is located at the back of the lower control panel. Spare parts include injectors (references in table T1), fuses (F1, F2), capacitor (C), switch (I-0-II), battery igniter (TR), ignition electrode (S), and power cord (P). Contact the manufacturer via www.inoksanUSA.com or email [e-mail].

What to do in case of breakdown or malfunction?

In case of breakdown, unplug the appliance and close the gas. Contact an authorized technician or Inoksan after-sales service (www.inoksanUSA.com). Have the model number, serial number, rated voltage, and purchase date ready. Do not allow unauthorized persons to handle the appliance.

USER MANUAL PDG113MN Inoksan

"Professional In Kitchen"

iN·XSAN

WARNING: This appliance shall be installed in accordance with current regulations and used only in well-ventilated space. Refer to instructions before installing and using this appliance.

a. If you smell gas, call your local gas utility emergency line immediately. Until the service team arrives:

i. Don't use electrical appliances or switches that can cause sparks.

ii. Don't smoke or light matches

iii. Leave doors and windows as they are

iv. Go outside

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

WARNING: Electrical circuit diagram of the appliance is inside the control panel.

Contact your local authorized service agent for service or required maintenance.

Please record the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure a faster service.

Authorized Service Agent Listing / List des techniciens agrees

Telephone / Telephone:

Office: 201.467.8333 | Fax: [phone] |

Fax/Fax:

Cell:201.906.1181

E-mail / Courriel

www.inoksanUSA.com

Be sure to remove all paper protection and packing material from unit prior to lighting.

This appliance should be installed in a non-combustible location only.

The installation of the Appliance must conform to the

NATIONAL FUEL GAS CODE "ANSI Z223.1 - LATEST EDITION" AND ALL LOCAL GAS COMPANY RULES AND

REGULATIONS.

IN CANADA INSTALLATION SHALL BE IN ACCORDANCE WITH THE CURRENT CAN/CGA-B149.1 NATURAL

National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and, CSA B149.1, as applicable, including:

1) The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
2) The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

WARNING: Appliance must be used by trained personnel.

We recommend you to install the appliance under the Hood.

Provide proper installation gaps to allow adequate clearance for the performance of combustion chamber and to ensure that the appliance correctly and to intervene in case of an emergency.

WARNING: Thisappliance is can only be installed on non combustible floor. Do not keep flammable material beside the appliance. Keep the appliance free and clear front combustibles.

Do not block air flow ofumbustion and ventilation air to ensure a good burning performance.

Do not obstruct the flow of cumbustion and ventilation air.

WARNING: Unplug the appliance during cleaning and maintenance.

Always read the instruction manual before starting to use the appliance and keep it for future reference when you

need it.

Manufacturer company does not accept any responsibility for any operations performed without following the instruction manual,

and for damages occurred against people or property due to maintenance or technical interventions by qualified technicians.

1. INSTALLATION

Technical Specifications" table should be based on when installation of the appliance, gas connection and conversion to different gases, electricity supplies are installed by experts in accordance with local standards.
Place the appliance on a bench by taking it on a scale.
Place the appliance under a fume hood or in an environment where adequate ventilation can be carried out in order to exhaust fumes and odors.

2. USER INSTRUCTION

Do not overload the appliance more then the specified meat capacity in the chart

Controlling of the radians can be performed separately in horizontal or vertical row, put the radians into use in accordance with the size of the doner meat.

1d/d motor placed in the lower body rotates the skewer in an inclined or upright position, providing ease of homogeneous cooking and ergonomic use.

WARNING: Allow enough space around the unit for adequate ventilation. Read all labels on the unit and follow their instructions.

If the appliance is mounted in the immediate vicinity of kitchen furniture, decorative coating etc., it is recommended that they should be made of noncombustible material; otherwise they must be coated with non-burning thermal insulation material and fire protection instructions must be followed carefully.

3. GAS PRESSURE PEASUREMENT

"I"Toques and mittens" should be used while user working.
Gas inlet pressure must be in accordance with the values given in the table after the gas connection. For this purpose, a hood must be used to ensure proper flow rate and pressure.
Make sure the adaptation of the appliance is carried out in accordance with the gas you will e. If it is not appropriate, the injector must be changed.
All the necessary components for installation will be provided by the manufacturer.

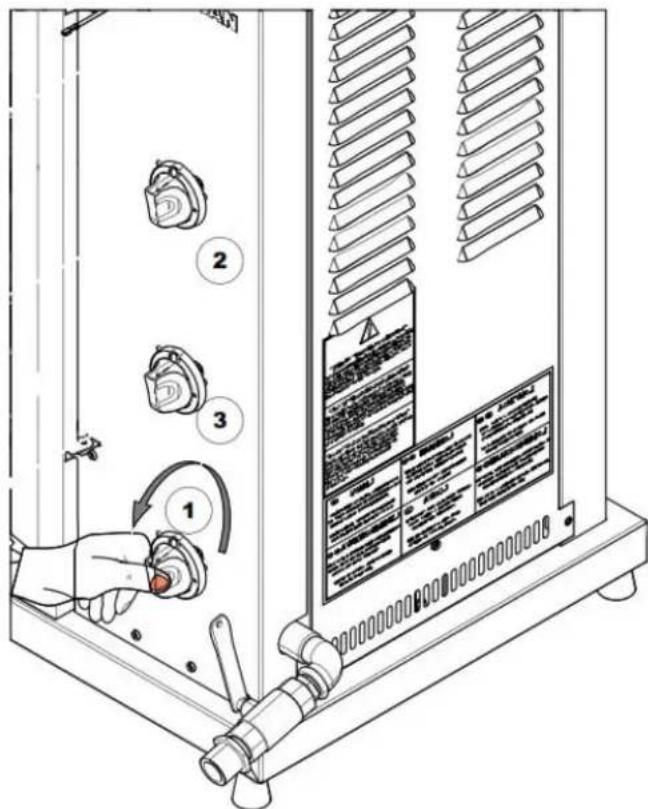

LIGHTING INSTRUCTION

Each gas tap controls a horizontal and/or a rowed of radios.
-First open the main gas valve, manually burn the pilot, then burn the burners starting from the bottom

• For the first burning operation (lower burner), push button "1" and turn counter clockwise from "0" to full flame position.
• For the half flame, press the button and turn counter clockwise from "0" to the half flame position.
• For burn the other burners, turn the burners buttons clockwise from "0" position to full flame position, from the lower hold down the flame until the flame is jumped, and leave the combustion process

To rotate the skewer, plug the appliance plug "1" into a socket and bring the key "2" with position "I-0-II" to the position "I" or "II" (Right/Left rotation).

SHUTDOWN INSTRUCTION

To shutdown the appliance, turn all knobs clockwise one by one until they are at position 0 starting with the bottom knob. Bring motor power switch to "0".

After all the burners have been switched off, close the main gas valve and completely cut off the gas

"Wait for 5 minutes before restarting the appliance when you turn it off."

SAFETY PRECAUTIONS

When the surfaces of the robax glass and storage system cools down, use a few drops of suitable cleaner and wipe clean with a soft cloth or paper towel.

Rinse thoroughly with water and dry with another paper towel or soft cloth.

4. POWER INLET

The appliance must be supplied with 110V AC 60Hz mains voltage.

The appliance must be grounded.

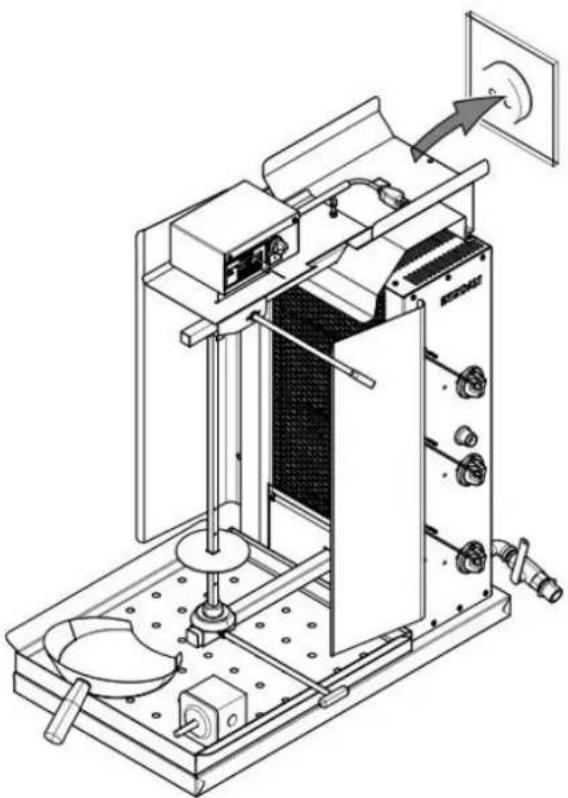

GROUNDING

WARNING : The appliance is equipped with a three-prong (grounding) plug for your against shock hazard and should be plugged directly into a

properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

The appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2

directly or with high-pressure water. Otherwise you may cause an electrical installation malfunction.

0

CT.OSED

BURNER FULL FLAME

LEFT BURNER HALF FLAME

5. MAINTENANCE

Disconnect the electrical connection of the appliance immediately before beginning maintenance or cleaning activities.

Before the first use, the electrical connection of the appliance must be disconnected and it must be cleaned with warm soapy water.

Water must definitely not be sprayed or spilled on the appliance.

Clean the appliance at the end of each working day with a piece of cloth soaked with warm soapy water and with a disinfectant that will not harm nutrition products (especially the areas in contact with meat).

Pins and tray plate contacted by the meat may be washed in the dishwasher.

Do not use materials that can scratch the surface such as detergent with abrasive ingredients, wire brushes, etc. when cleaning the surface of the appliance.

If the appliance will not be used for a long period of time, the surface should be coated with a thin layer of Vaseline.

Notify the authorized service if the appliance is considered in a dangerous situation. Do not allow incompetent persons to interfere with the appliance.

□Contact manufacturer when the maintenance period of the appliance has expired and/or when the appliance has a fault.

WARNING: Do not clean the appliance with

9. TRANSFORMATION FOR DIFFERENT GAS TYPES

Refer to table "T1" for adaptation to different gas types.

Choose the injector suitable for the gas type and pressure to be used from table "T1" and install it to the housing of the removed injector.

Label for the new gas type shall be affixed by removing the current label after adapting the appliance to a different gas type than the gas type set by the manufacturer.

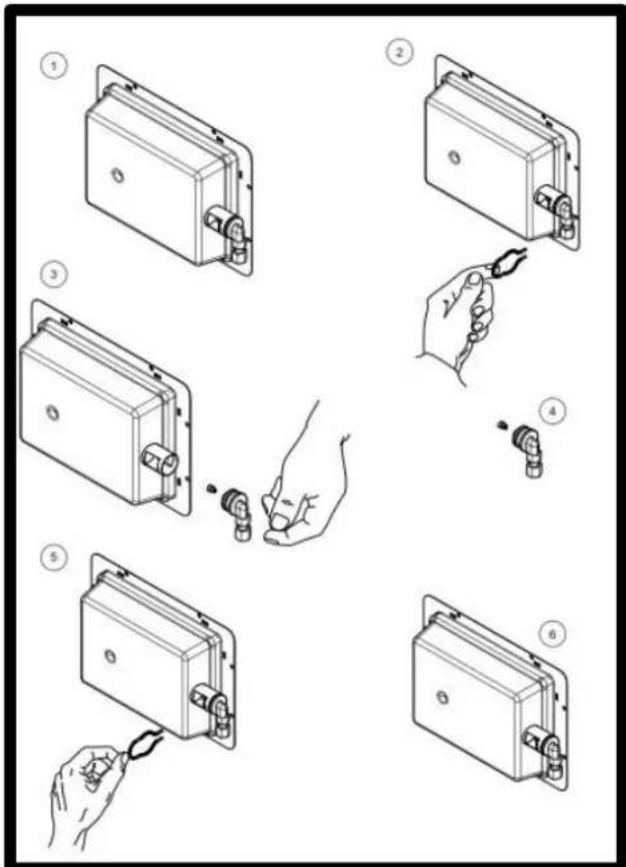

9.1 Replacement of Injector

Select suitable injector from table T1.

Remove the rear plate of the appliance.

(1) Face the radiant. (2) Remove the pin on the radiant. (3) Remove injector from the radiant. (4) Replace with new injector and install the new injector to the same housing. (5) Install the pin as you have removed it. (6) Gas type transformation is complete.

Injector diameters are printed on the injectors.

Motor Connection PDG 102MN-102N-103MN-103N-104MN-104N
